Venturi VOXAN WATTMAN Concept Bike is EV Brutalism on Two Wheels – Colors + Specs



Voxan Wattman

This concept bike from Voxan Motors is the debut model for the brand. An off-shoot of Venturi Automobiles, the bike is called the WATTMAN in a less-than-subtle nod to its electric powertrain.

All seems well with the specs – until you get to the weight and performance — which are both pretty abysmal. The other missing element is the price, which is conspicuous in its absence.

Even so, as a concept previewing a design vision?

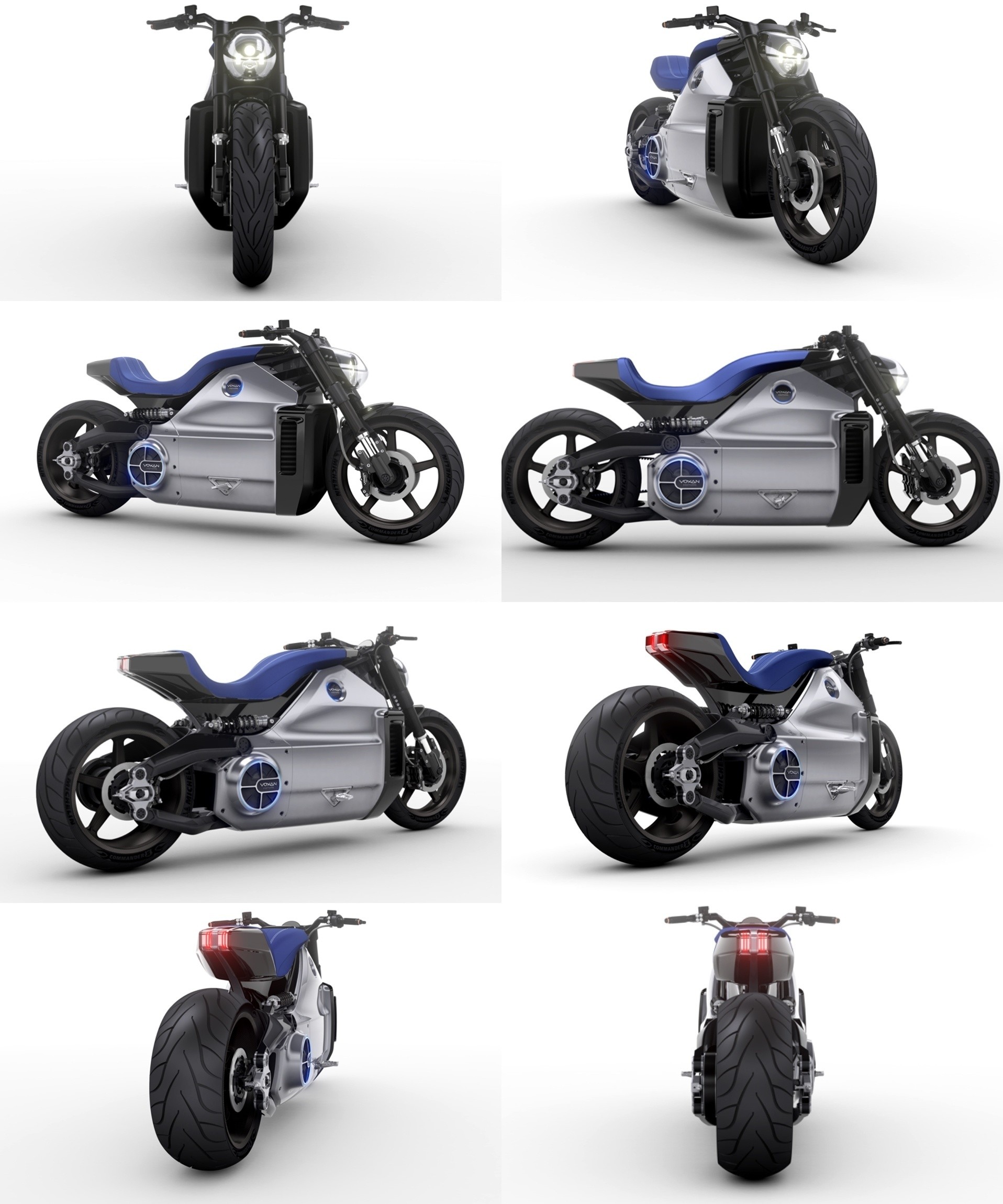

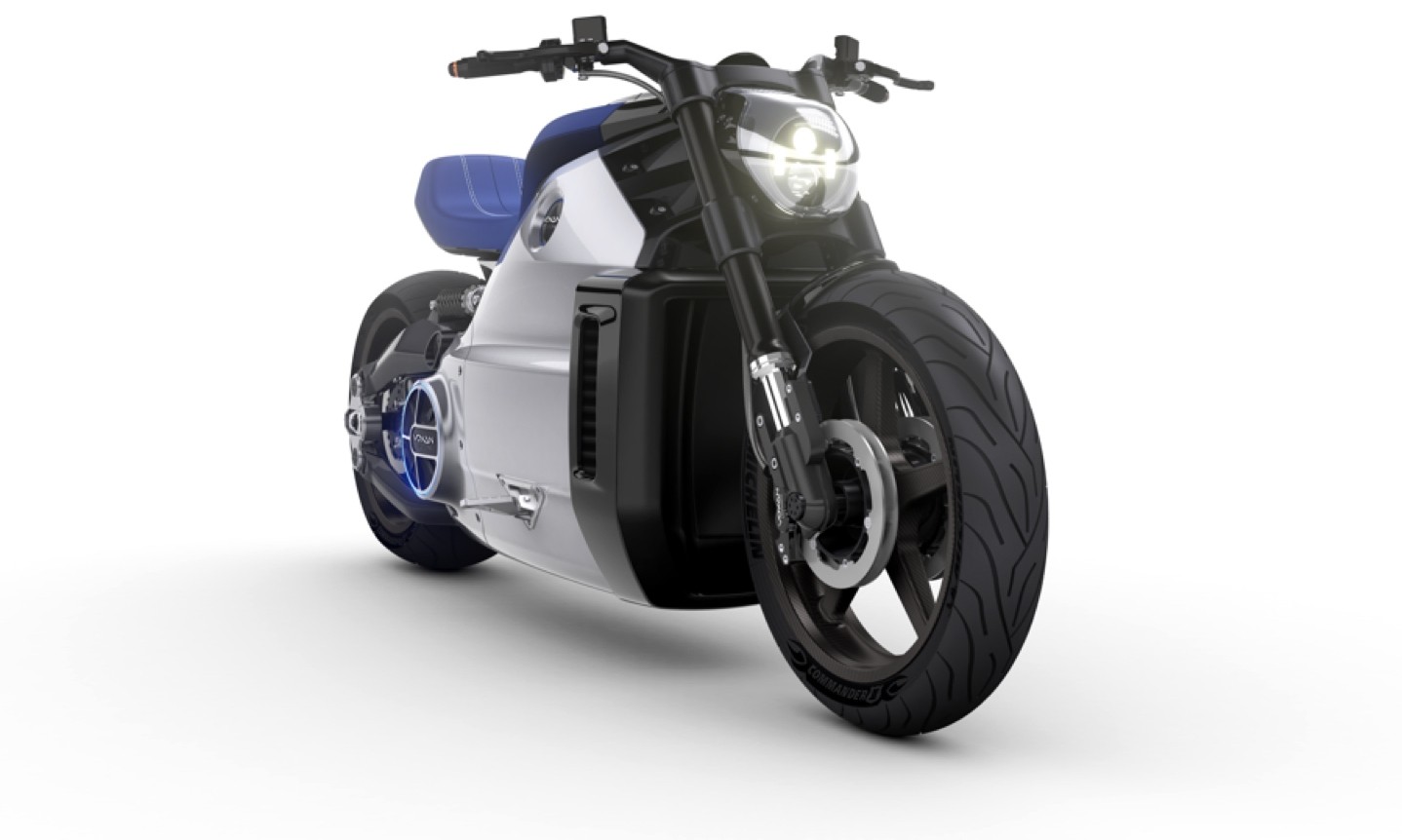

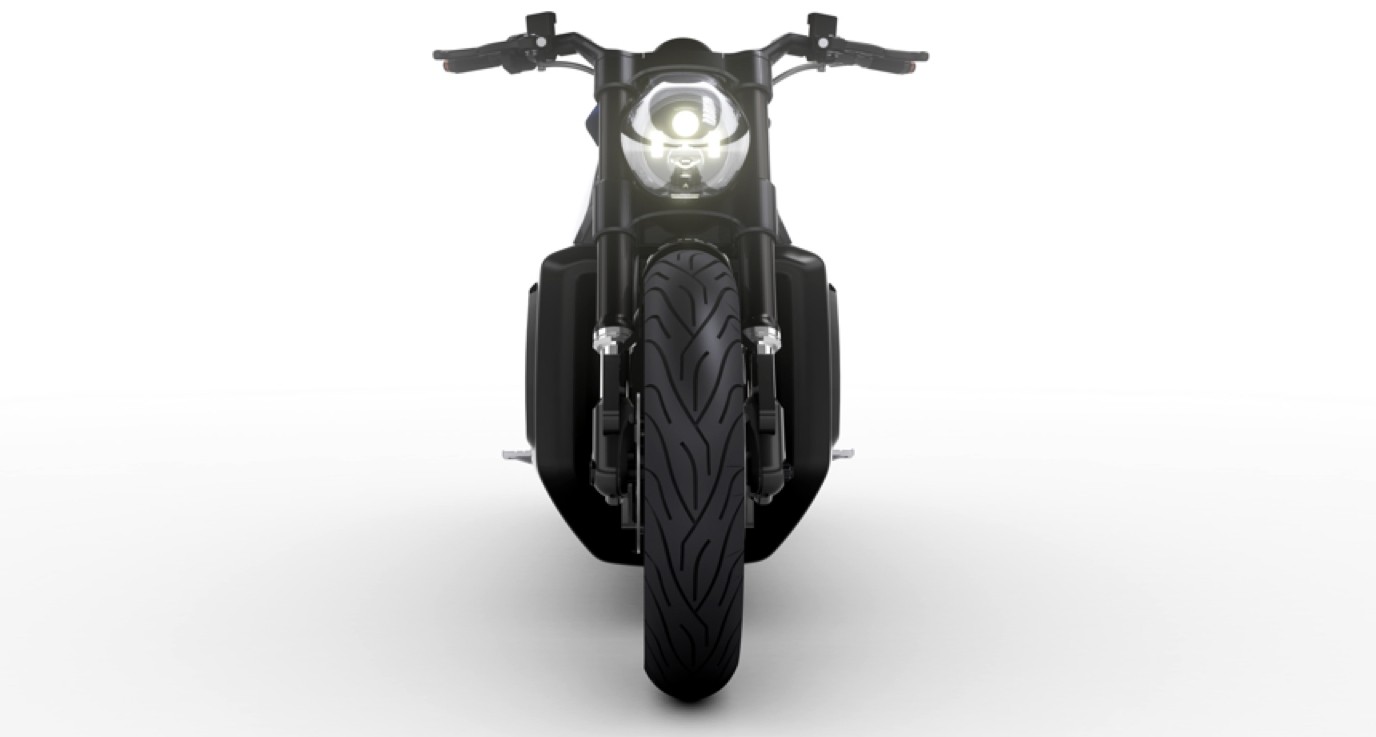

Front-White-tile

Stunning. Desirable. Brutal but delicate details. It is quite lovely.

If only it weighed less than 700 pounds and was not projected to carry a $100,000-plus price tag when for sale some time in 2015…

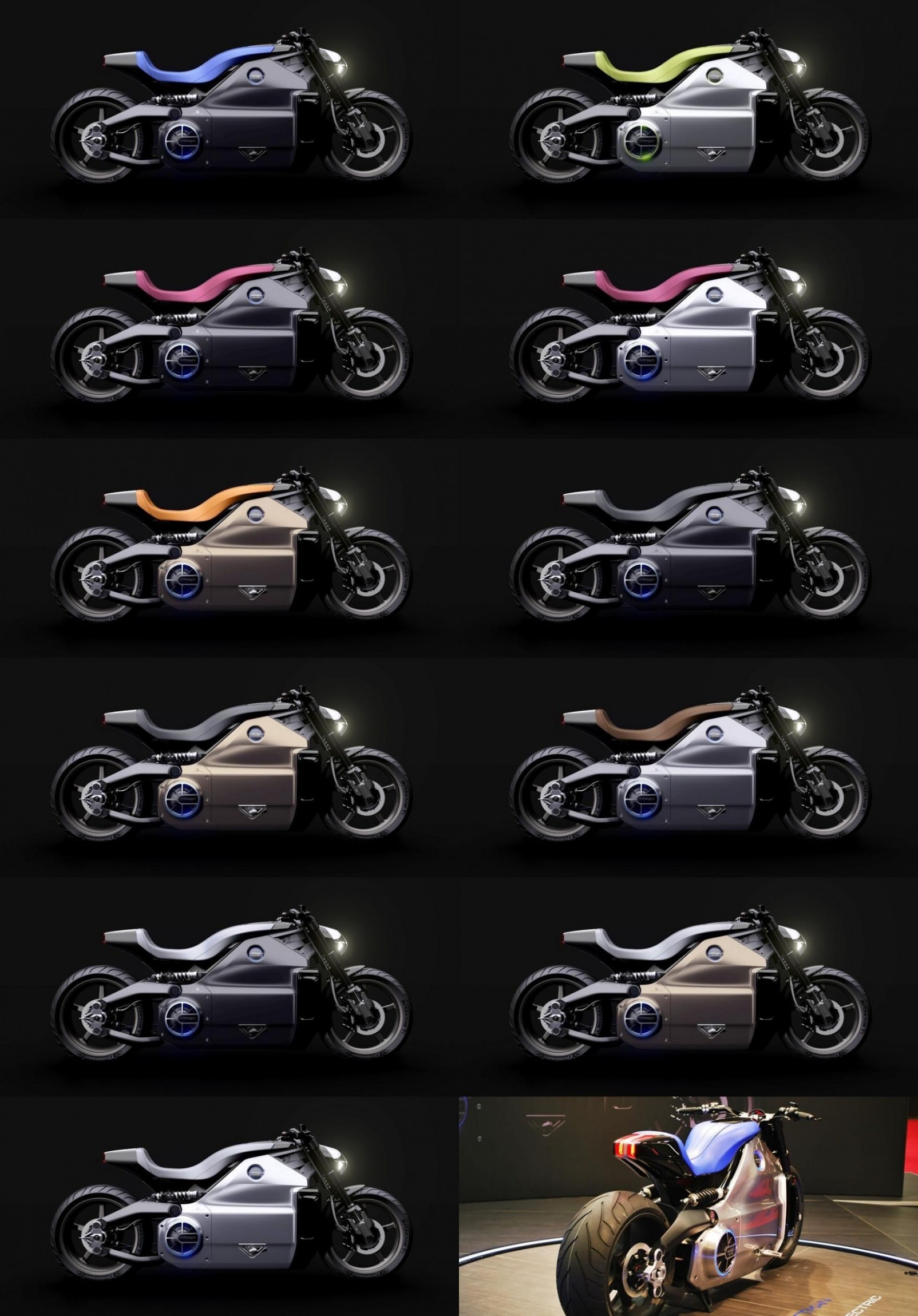

COLORS

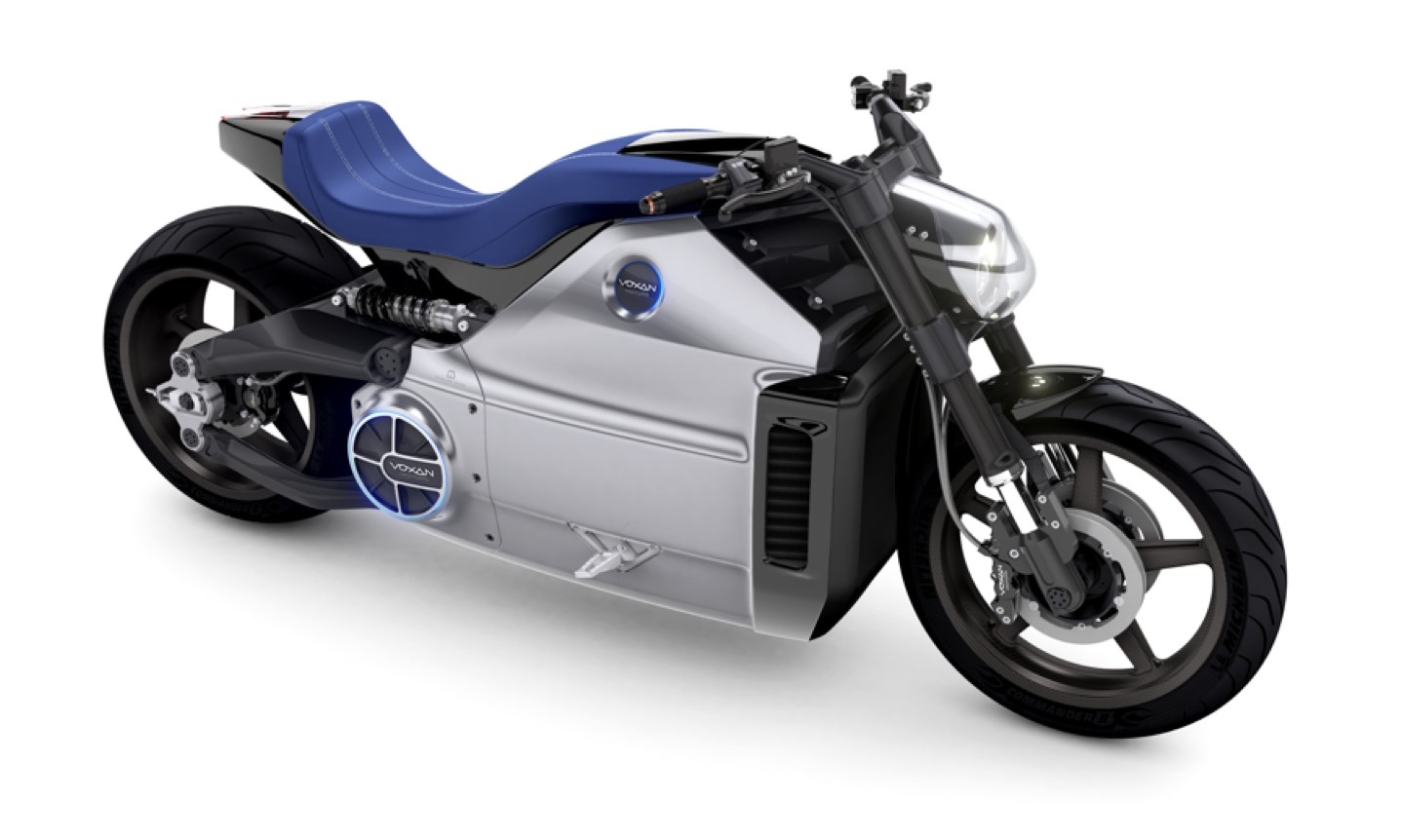

Voxan Wattman COLORSBleu-Noir-tileFront1-White Front-White Front4-White Front3-White Front2-White ptoto_voxan_wattman

Type

  • Type: Electric Power Cruiser, single seater

  • Battery

    • Technology : Lithium Ion

    • Energy : 12.8 kWh

    Electric motor

    • Max. power : 200 HP  (from 7,500 rpm to 10,500 rpm)

    • Max. torque : 200Nm (from 0 to 6,000 rpm)

    • Max. motor speed : 10,500 rpm

    Body

    • Frame : structural battery packaging and self-supporting motor casing

    • Front suspension : 43 mm inverted fork

    • Rear suspension : dual swingarms, dual shock absorbers

    • Rims : carbon 18”

    • Tyres: Michelin Commander II

    • Fron :t 130/70/18

    • Rear : 240/40/18

    • Front brakes : 4 discs (230mm diameter) – 4 piston calipers (Beringer 4D System)

    • Rear brakes : Disc (230mm diameter) – 2 piston caliper (Beringer)

    Transmission

    • 35 mm timing belt

    Performances

    • Max. speed : 170 kph

    • 0-100 : 3.4 s

    • 0-160 : 5.9 s

    Range

    • 180 km (according to NEDC standard cycle)

    • Charging time : < 30 minutes (quick charge at 80%)

    • Charger plug : Combo II

    Dimensions

    • Length : 2,350 mm

    • Height : 1,015 mm

    • Width : 815 mm

    • Wheelbase : 1,705 mm

    Weight

    • Weight : 350 kg

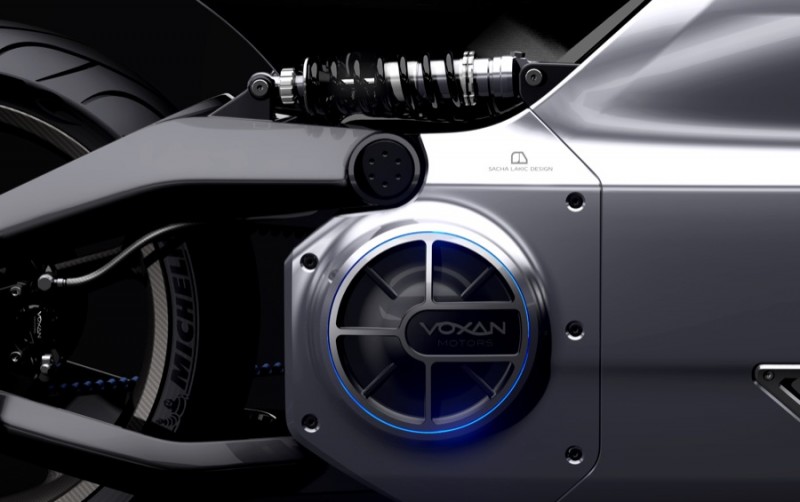

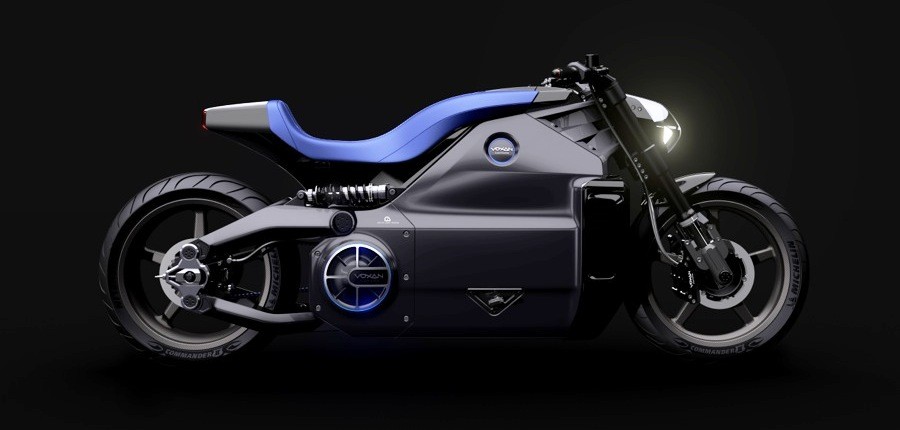

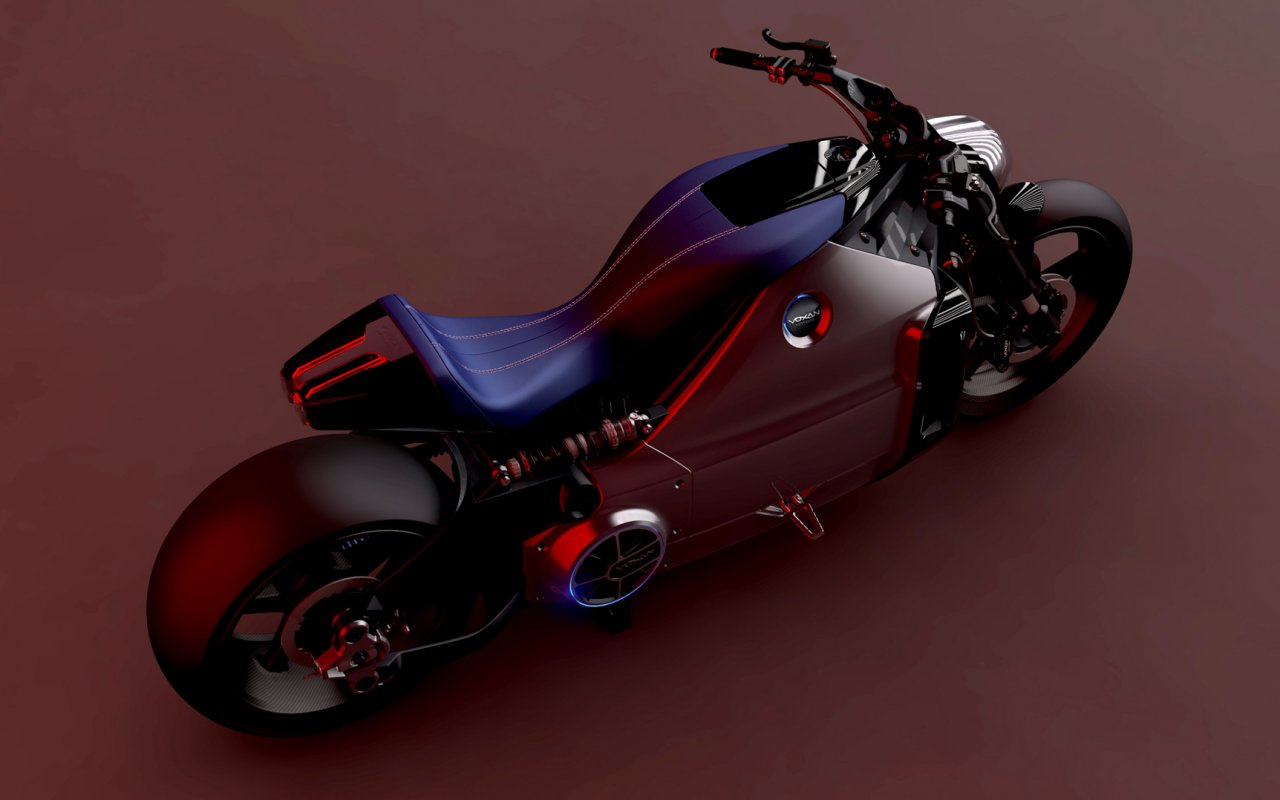

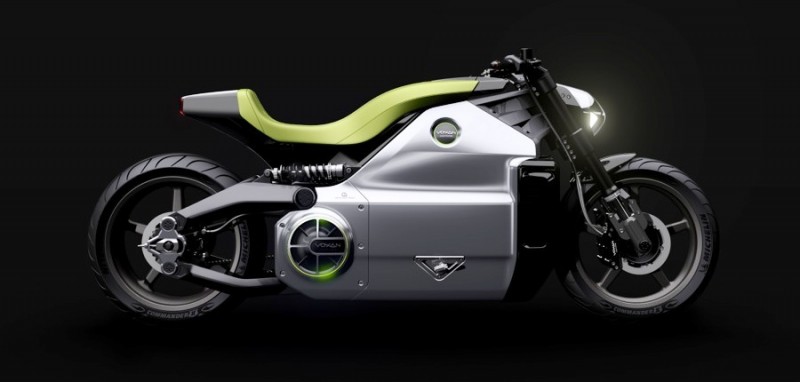

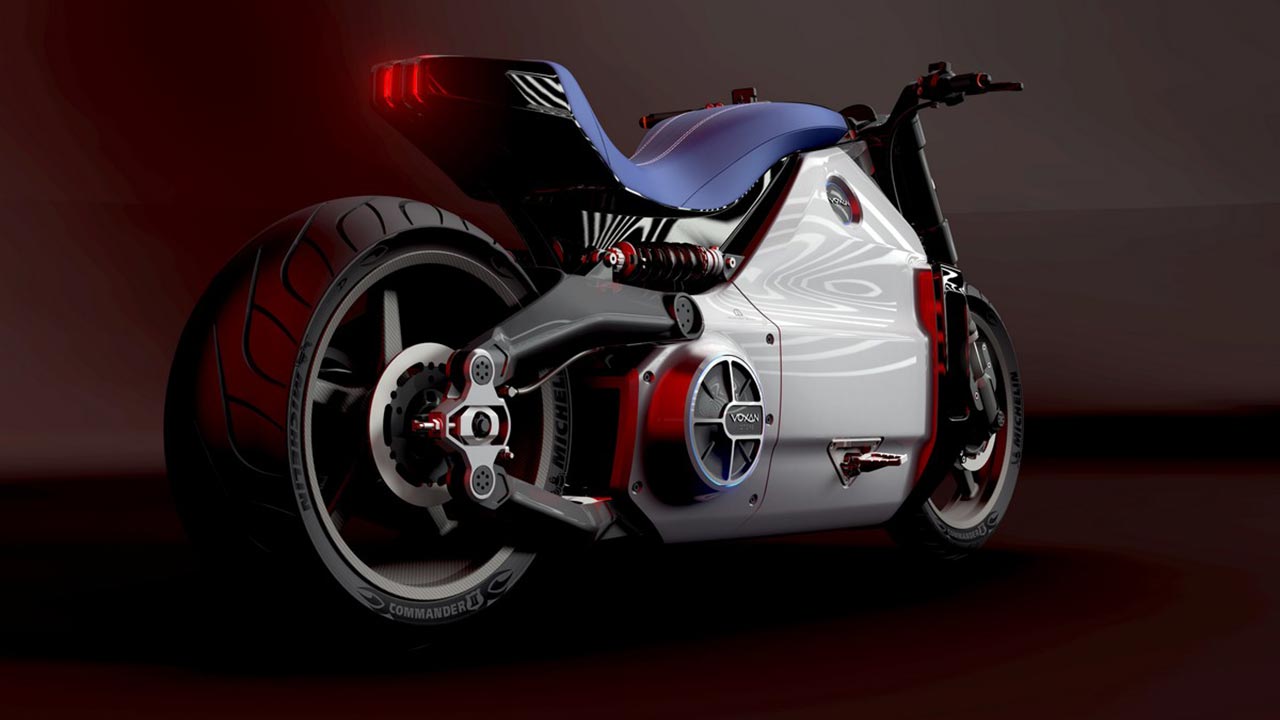

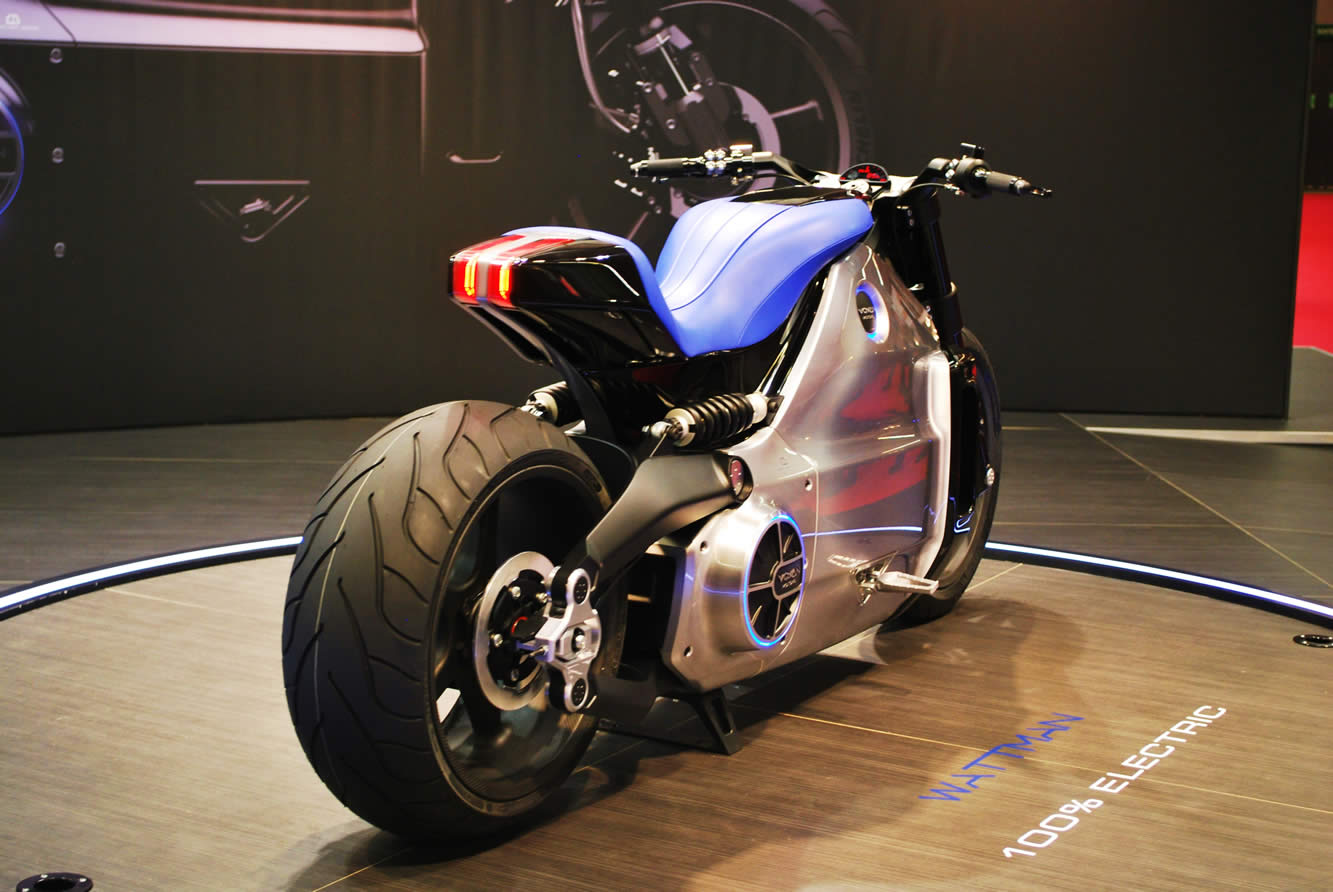

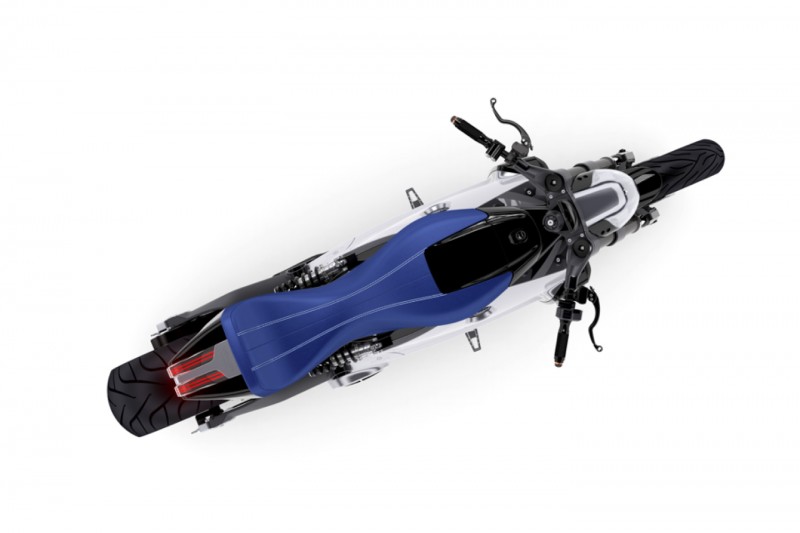

    Détail11 Détail4_001 Détail3 Bleu-Noir bioEN_001Back4-White Back3-White Back2-White Back1-White 21-voxan-wattman-design-sacha-lakic-2013-1918x1078-1280x800c 1-voxan-wattman Voxan-Wattman-Motorcycle_11 Voxan-Wattman-5 Voxan-Wattman-2 voxan_wattman_006 Voxan Wattman Vert-Alu Top2-WhiteVoxan Wattman header gif Voxan Wattman COLORS
