860HP RXR One is AMG GT-S by IMSA GmbH



How furious would you be this year if you bought an AMG GT last year??  Same goes for the 675LT McLaren they are still trying to sell next to the new-face 720S.

The new AMG GT-R is a hard upgrade of the original.

RXR One is IMSA of Germany's take on upgrading the softer GT and GT-S cars to track-attack road spec.

The result is unique, aggressive and clearly brings huge amounts of racing knowledge to bear on the GT's design.  Loving its widebody bumper intakes and outlets.   Centerlock alloys and red-striped Pirellis complete a solid racecar look.



RXR One AMG GT-S by IMSA GmbH

IMSA RXR One - THE AMG GT S RE-IMAGINED with 860hp and 1,000Nm

Over the years, IMSA GmbH has become synonymous with high performance and exclusivity, personalising Mercedes and Lamborghini cars to the individual requirements of clients.

IMSA is now taking this a step further and is proud to present the limited edition RXR One Super Gran Turismo. The brief for this unique car was to marry the performance of a major league mid-engine supercar with the inherent practicality of a traditional front-engine, rear-wheel-drive GT car like the AMG GTS on which the RXR One is based. RXR stands for Road X-tra Racing.

A limited edition of RXR One cars will be produced, with the exact number to be defined. Owners will able to individually tailor their car with a wide range of paint and interior trim options, or colour to sample. Each car will thus be a unique one-off work of engineering art.

IMSA founder Holger Mohr explains that the RXR One project came out of a specific request from one of his existing Lamborghini customers who had reached a stage in his life where he needed a more practical supercar that could be used as a daily driver, but was not willing to give up the performance of his tuned Lamborghini.

Having set the specification with IMSA, the owner then agreed that other like-minded people should be offered the chance to share this incredible concept, hence the limited edition idea.

“We came to the conclusion that the AMG GTS was the best car on which to base this project since it already ticked all the boxes in terms of practical packaging, its front-mid-engine, transaxle gearbox layout, and race-style double wishbone suspension”.

IMSA approached the transformation of the AMG GTS into the RXR One with a four-pronged design and engineering strategy: Weight reduction, power increase, chassis upgrade, and aerodynamic enhancement.

Weight Reduction: Replacing substantial sections of the bodywork with carbon-fibre panels, plus weight reduction in other critical areas has resulted in a saving of around 300kg, bringing the DIN standard weight to a shade under 1,300kg. This makes for a power-to-weight ratio of 663bhp/ton!

Power Increase: The AMG M178 family 3,982 cc twin-turbo, dry sump V8 motor has been comprehensively re-engineered through lightening and balancing the factory steel crankshaft and mating it to bespoke forged pistons with forged H-section connecting rods.

A bespoke intake system running from the front of the nose individually feeds each cylinder bank via modified turbochargers, a twin-row intercooler system, and larger throttle bodies. The cylinder heads are CNC-ported, polished and gas-flowed and exhaust gases escape via a bespoke Inconel exhaust system, which helps to lower backpressure. The resulting reduction in exhaust gas temperatures allows the use of higher boost pressures.

The resulting output is 860bhp with 1,000Nm of torque.

To reliably handle this massive output the gearbox was re-engineered using a competition grade clutch pack featuring two additional clutches, a forged intake drive shaft, high-pressure valves, and an independent oil cooling system. The rear differential also has its own oil cooler.

The cooling systems for the engine, gearbox and differentials had to be redesigned and re-dimensioned due to the greatly increased engine output and the extra heat generated. So the two turbochargers now have their own independent water-cooled circuit.

Chassis: As well as improving crash safety on the racetrack, the roll cage fitted to the RXR One significantly improves torsional stiffness, which in turn allows the suspension to work better. Occupant comfort and protection are further enhanced by the bespoke IMSA carbon-fibre sports seats, equipped with six-point safety harnesses.

Perfecting the chassis dynamics for both road and track in a car with this level of engine power resulted in major changes being made to the basic double wishbone suspension components. It was ascertained that the keys to taking handling and grip to the next level were widening the front and rear tracks and then optimising the geometry resulting from the lower, broader based suspension.

To improve suspension kinematics, the RXR One uses bespoke forged wishbone mounts with Rose joints, revised forged wheel hubs, and of course longer, uprated driveshafts. The competition springs and dampers are also unique to this car and are fully adjustable for bounce and rebound. The wide performance envelope available allows the owner to dial the car in perfectly for both road and track use.

Mechanical grip and aesthetics are both enhanced by the 12.0J x 20 and 12.5J x 21-inch IMSA Racing lightweight forged alloy wheels shod with 305/30ZR20 and 315/30ZR21 Pirelli PZero Trofeo R tyres.

Behind these big wheels, the carbon-ceramic brake system, augmented by high performance brake pads, is even more effective at stopping the car thanks to the RXR One’s lower kerb weight.

Aerodynamics: Designed with the help of a state-of-the-art industry computer programme, the autoclaved carbon-fibre bodywork of the IMSA RXR One achieves the optimum balance between drag, down force, and a purposeful appearance.

The wider tracks are covered by carbon-fibre wings that are 55mm wider per side (110mm overall) in front, and 65mm wider per side (130mm overall) at the rear. In comparison, the factory AMG GT R is 57mm wider at the rear than the GT S, but is only 15kg lighter. The wider arches of the RXR One are optically and functionally linked by the deep side-skirts that enhance the ground effect generated by the cars completely flat bottom.

Other bespoke carbon-fibre body components are the complete front bumper/spoiler assembly. The bonnet, roof, boot-lid, and rear wing are other major components made from autoclaved carbon-fibre.

Extensive wind tunnel testing threw up some issues that could be more easily resolved on a limited production, hand-built car like this than a mass-produced OE manufacturers product.

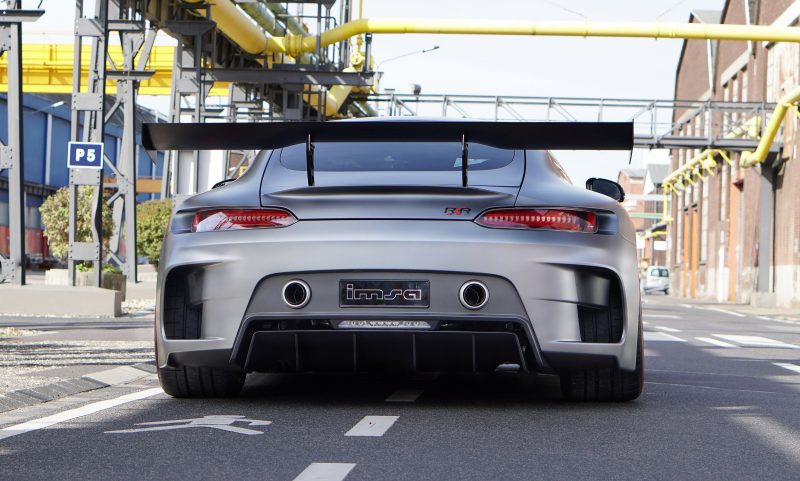

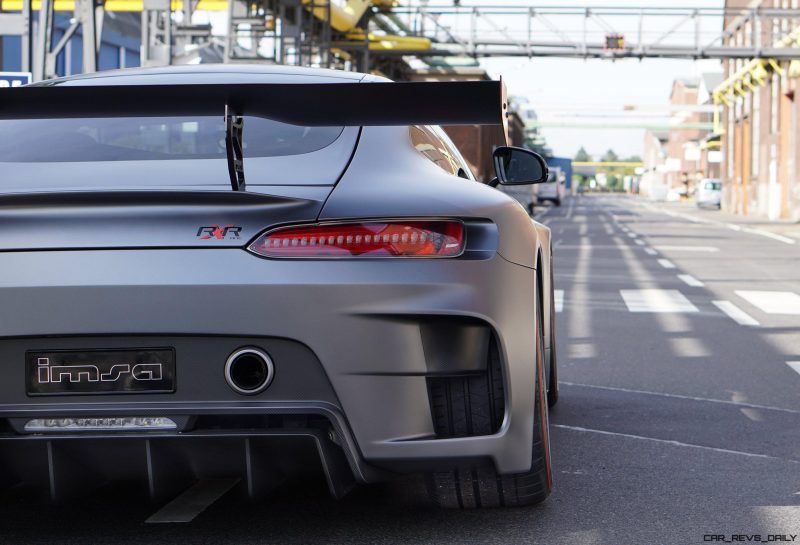

For instance, the nose section contains air intakes for the intercooler and oil cooler, while the bonnet features a ram intake for turbocharger cooling, as well as venting for the main radiator. The race-inspired complete flat bottom and air outlets for the front and rear wheel housings that help to reduce high-speed aerodynamic lift. At the rear, airflow departing from the completely flat underbody is controlled by the large carbon-fibre rear diffuser, which features deep boundary layer fences.

With “No Compromise!” as their company motto, IMSA has a long-standing reputation as an R&D consultant for OEMs as well as other aftermarket tuning companies.

A showcase of IMSA’s comprehensive experience in design and engineering, the unique RXR One is the vanguard of a new aftermarket segment whose goal is to maximise the inherent all round potential of an already accomplished super sports car.
