The first official Genesis model is out!  Dubbed the G90, this giant limo will replace the EQUUS in the US market, above the current Hyundai Genesis lineup in pricing and size.

First things first:

— the car is huge!

— the looks are unique, if derivative of very-recent global superlux cars like the Mercedes-Maybach S600.

— do not prejudge its looks too much: these are Korean-market trims and details, with changes probable for US cars (trims, wheels, etc.)

— tech and cabin luxury take a huge leap forward from the already-impressive Genesis sedans

— powertrains and pricing are finalized for the Korean market, with a new 3.3-liter turbo V6 now slotting in between the standard 3.8L six and the 425-horsepower 5.0-liter V8 in the top powertrain.

— AWD is optional on both V6s and standard on the V8, which now thunders to 60-mph in just 5.7-seconds.  6.2s and 6.7s for the turbo and non-turbo six, respectively

Prelaunch Photo Credits:  TheKoreanCarBlog.com





Hyundai’s GENESIS luxury sub-brand is striking out on its own!  We have a plethora of info and details to share on the Genesis G90, expected in the US as a 2017 model and arriving as soon as May or June of 2016.

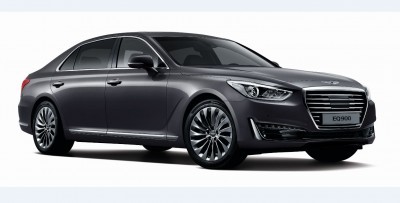

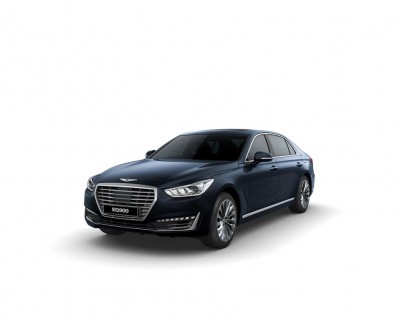

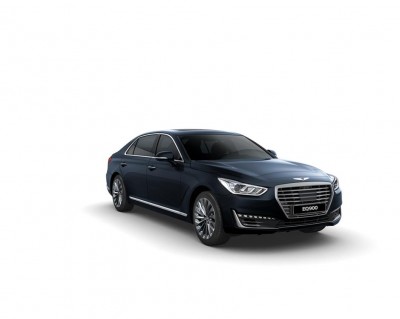

What we have extensively detailed here is the Genesis EQ900, the car’s name in its home Korean market — where it dominates C-suite and government livery duties, with a few dozen armored versions definitely in existence as well.2017 Genesis G90 33 2017 Genesis G90 36 eq900

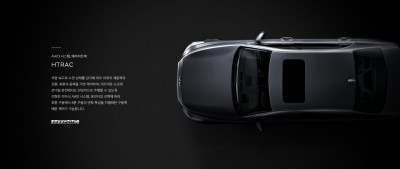

Holding back most pre-judgements on the design after hating the Genesis in initial press pics, then really falling madly in love with its 3.8L HTrack design and drive in a big road test this summer.

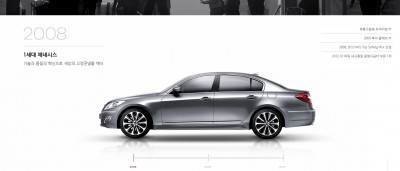

That current Genesis, by the way, will eventually be renamed the G80 and slide into the lux-only Genesis realm, ditching its current Hyundai trunk badge and dealerships for something altogether more special.

A G70 is the next model in the roll-out, and may be a smaller and sportier four-door coupe version of the Genesis (G80), much as this G90 is a jumbo, LWB extension on the latest chassis and powertrains.

Reminder: do not get too locked into how this EQ900 looks.  Hyundai really made us work for any images of the car at all — so most of these are low-res screencaps from the posh (but mostly fluff and very ESL) new GenesisMotors.com.

2017 Genesis G90

2017 Genesis G90 54 2017 Genesis G90 15 2017 Genesis G90 18 2017 Genesis G90 22

Prelaunch Photo Credits:  TheKoreanCarBlog.com

2017 Genesis G90 World Premiere





Genesis Brand Launches its First Model, G90


    – Cutting-edge technologies, ultimate refinement and luxurious convenience
      features set the Genesis brand’s range-topper apart from competitors

    – Luxury large sedan exudes confidence and originality through its ‘Athletic
      Elegance’ and refined yet dynamic performance

    – Host of world-best safety and technological innovations realized in G90

December 9, 2015 – Hyundai Motor has unveiled the new Genesis G90 large luxury sedan, the model that will top the new Genesis brand’s luxury car line-up. The G90 (called EQ900 in Korea) will compete at the top of the luxury car market with world-best technological innovations and the highest levels of refinement, convenience and dynamic performance.


Designed with profound elegance, natural dignity and grandeur by the Prestige Design Division that will craft the visual identity of each Genesis model, the G90 is the first realization of the brand’s ‘Athletic Elegance’ design style. Outside, the G90’s silhouette is powerful and refined, from its long hood to its sophisticated rear. While inside, the finest artisan materials meet human-centered ergonomics to provide occupants with absolute convenience and luxurious comfort.


Human-centered Technological Innovation
With technological innovation at its core and in anticipation of fully-autonomous cars, G90 features Genesis Smart Sense, which brings together advanced systems including Genesis’ advanced ‘Highway Driving Assistance’ (Korean market only), Advanced Smart Cruise Control and Lane Keeping Assistance System. Accentuating the customer-oriented approach of Genesis, the system substantially reduces driver fatigue by combining a series of innovative technologies. This combination of newly-developed technologies create a first-class, all-but autonomous driving experience, elevating the G90 to the top of its class.

First-class Comfort
The first-class theme extends to occupant comfort, with the G90 offering the world’s first clinically-validated Smart Posture Caring (SPC) System, which automatically adjusts the seat, steering-wheel, outside mirror and head-up display to the optimal position for the driver’s body (Korean market only). G90’s VIP ergo passenger seats feature multiple ranges of electronically-controlled adjustment and are approved by German campaign for healthier backs, Aktion Gesunder Rücken.


Best-in-class Luxury Refinement
Benefitting from an intensive four-year development program by an 800-strong team, the G90 has best-in-class refinement thanks to extensive work on the car’s NVH characteristics. Every detail of the interior has been crafted to continue the car’s human focus.


Advanced ergonomics analysis dictates the positioning of driver controls and the passenger comfort and entertainment features, while materials are sourced from the finest artisans around the world. Ride comfort and road holding is optimized by combining an advanced H-TRAC all-wheel-drive system with the first application of Genesis Adaptive Control Suspension.


Sporty Agility with Refined Performance
Driving the car, owners will notice standards of refined performance. This is central to the Genesis brand’s character, with development teams carrying out rigorous performance testing of the G90 at the Nürburgring circuit in Germany and the Mojave test center in the U.S. Despite the car’s sporty and responsive characteristics, the interior environment remains refined with all of the three available gasoline powertrains: V6 3.3-liter T-GDI, V6 3.8-liter GDI or V8 5.0-liter GDI.


The newly introduced G90 in Korea will be rolling out to other markets, including United States, China, Russia and countries in the Middle East. A further five Genesis models will be launched over the next five years.

Genesis G90 – Human-centered Luxury Defined

01 Styling
Athletic Elegance in design that exudes confidence and originality


02  Driving Performance
Refined performance with sporty agility


03  Safety
Human-centered innovation and world’s best safety technologies


04  Convenience Features
The ultimate hassle-free ownership experience


05  Noise, Vibration and Harshness (NVH)
Extensive development realizes best-in-class refinement


06  Powertrains
Refined, powerful and responsive powertrains


07  Technical Specifications
Technical details of new Genesis G90





Note – Product specifications and options available may vary by region


01 Styling


Formed by Hyundai Motor’s new Prestige Design Division, the distinctive appearance of the G90 exudes confidence and originality. Under the oversight of Chief Design Officer Peter Schreyer, G90 expresses the first interpretation of the brand’s hallmark design style ‘Athletic Elegance,’ which harmonizes beauty and elegance of movement with dynamism and an explosion of energy.

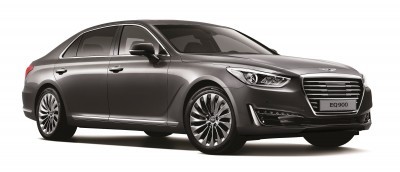

Exterior Design

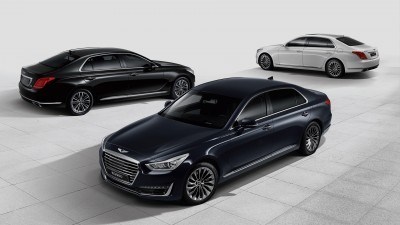

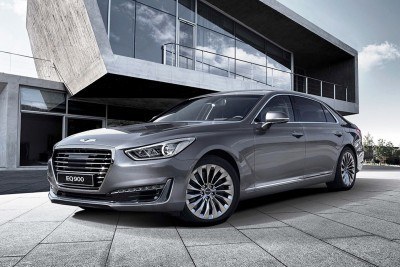

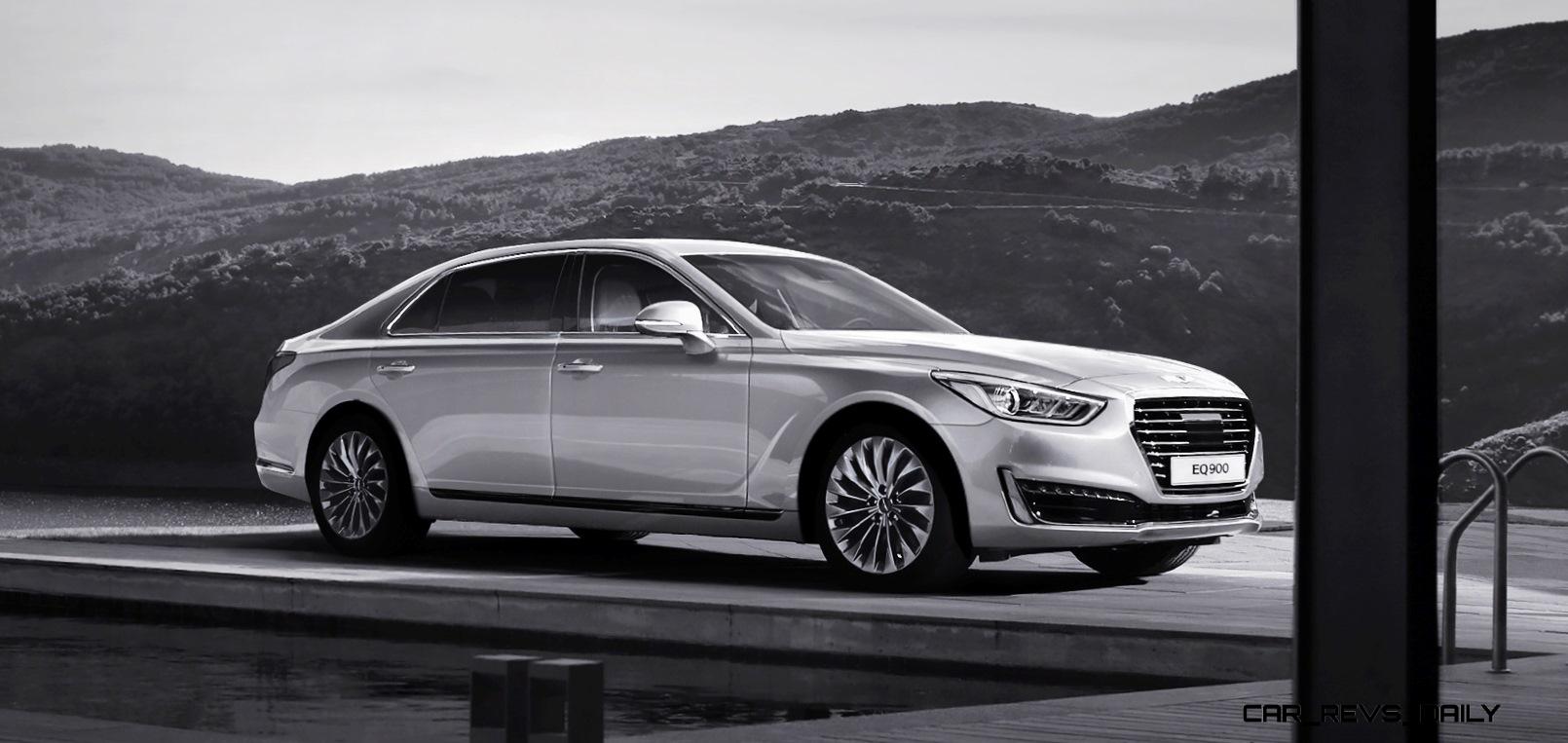

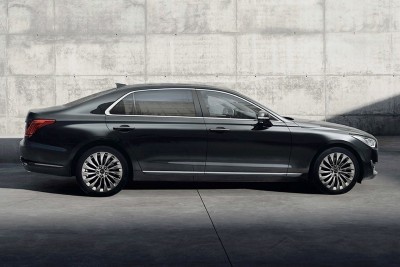

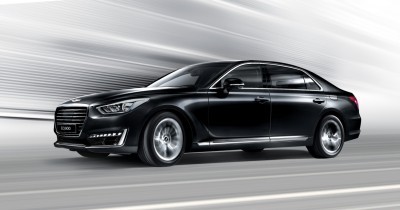

The exterior design of the car brings a respect and depth of grace to the sector, a natural dignity of “Soignee Charisma” evident when parked or in motion. In crafting the appearance of G90, the Prestige Design Division aimed to capture the car’s strength and originality, while presenting a new charm through its innovative styling and proportions.

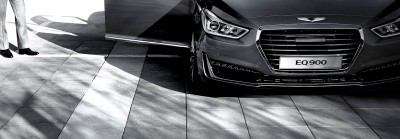

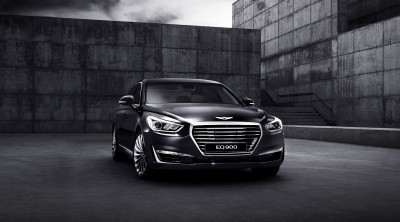

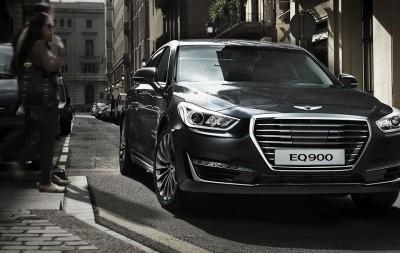

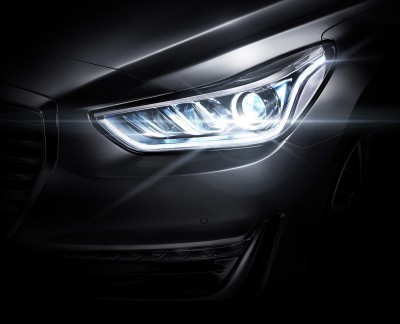

At the front, the G90’s identity is centered around a Genesis-family styling feature, the ‘CREST’ grille, and crowned with the new winged-feathers of the Genesis emblem. Powerfully-proportioned, the G90 combines a long hood with short overhangs, a design feature that accentuates the model’s strength. The sharp LED headlamps flow around the front corners of the car’s bonnet – a key feature of the new family of Genesis-brand cars.

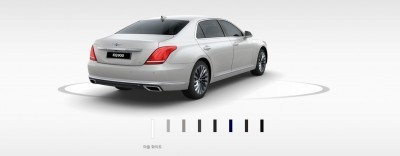

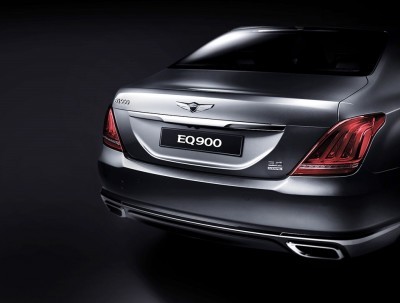

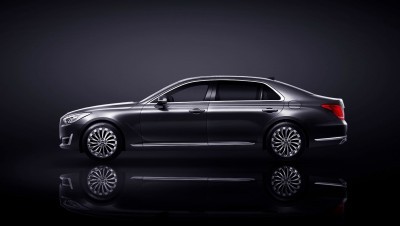

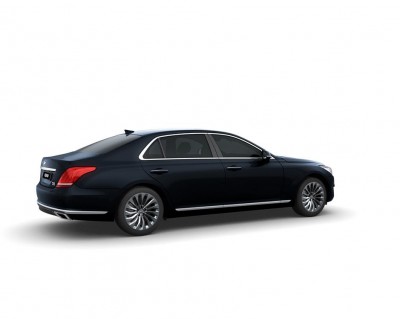

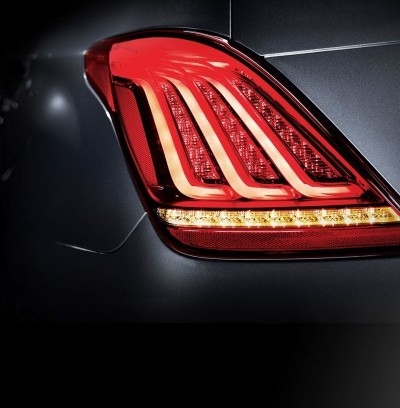

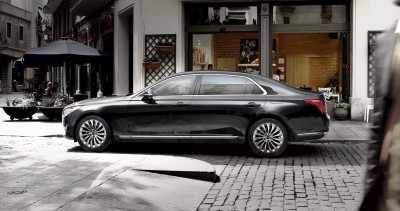

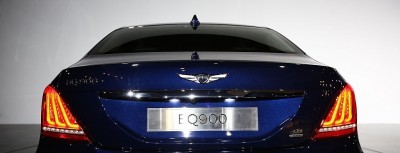

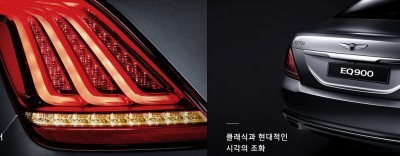

Inspired by clean modern lines and effortless elegance, the large sedan’s bold lines flow along a chrome belt line to the rear. Here, dual exhausts balance the refined vertical combination lamps to complete the car’s athletic elegance.

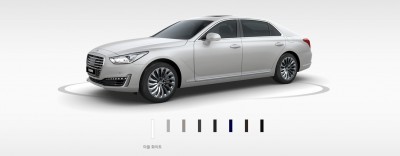

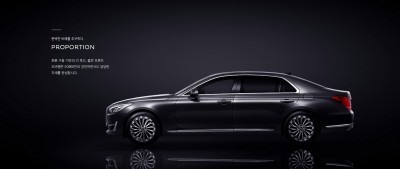

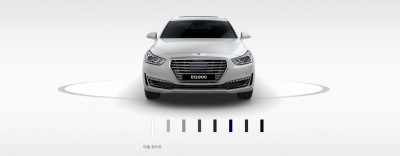

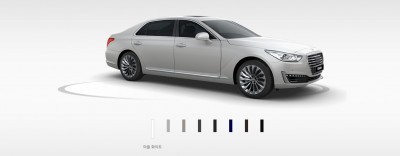

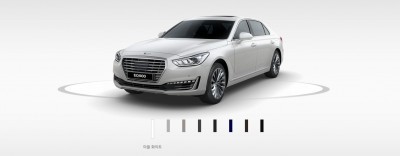

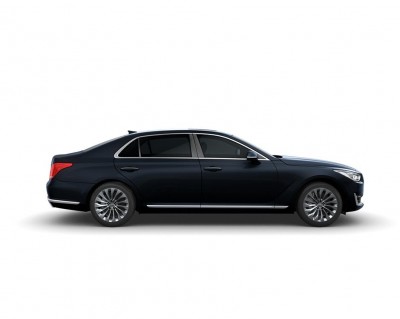

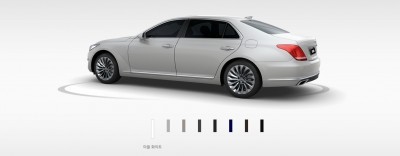

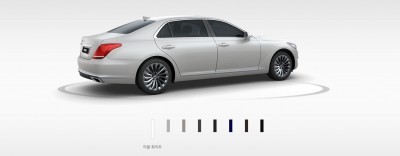

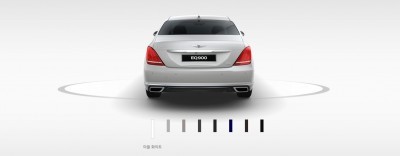

Occupying one of the most substantial footprints in its class, the G90 is available in eight sophisticated colors that pick-out the car’s characteristic lines. Ranging from Marble White and Onyx Black to Gold Scent and Neptune Blue, the color palette perfectly matches the spectrum of interior color and material combinations.

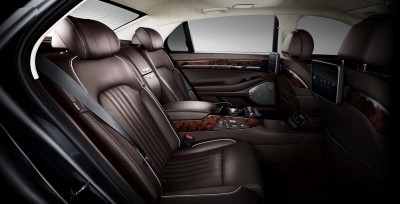

Interior Design

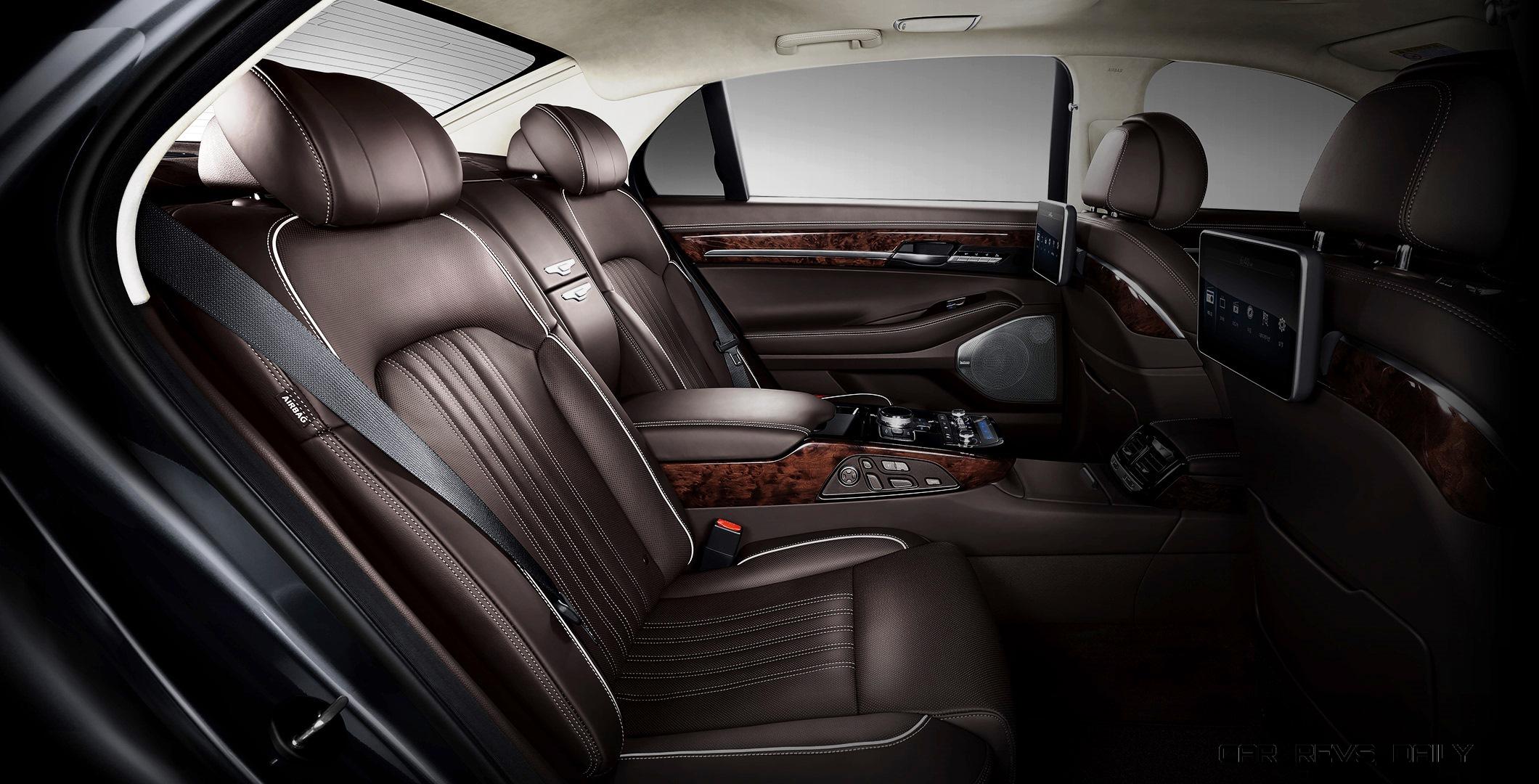

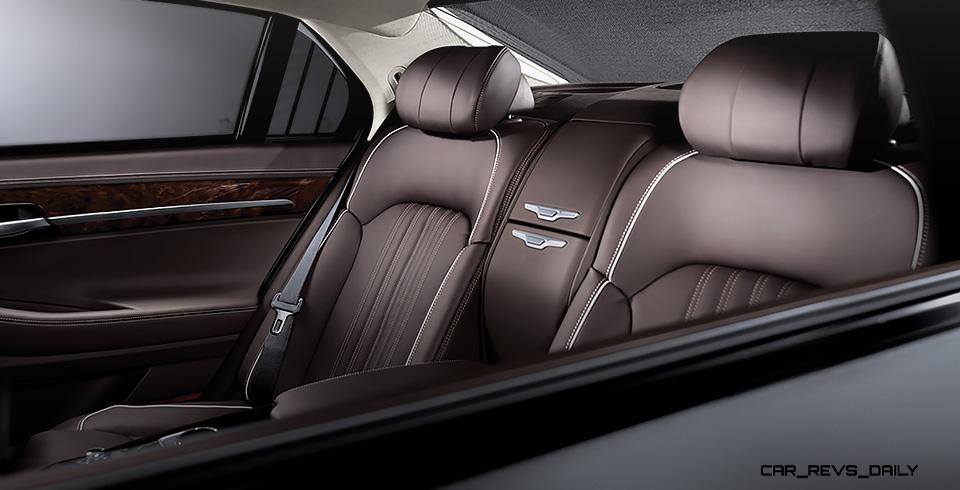

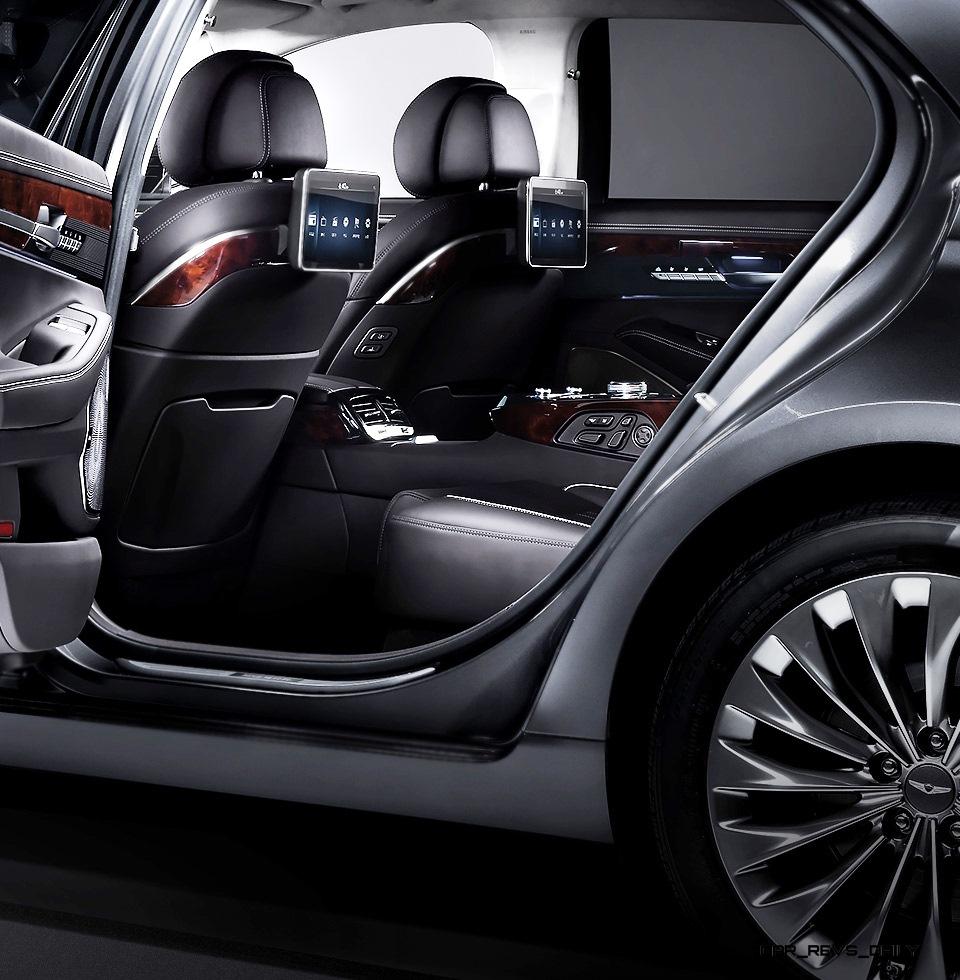

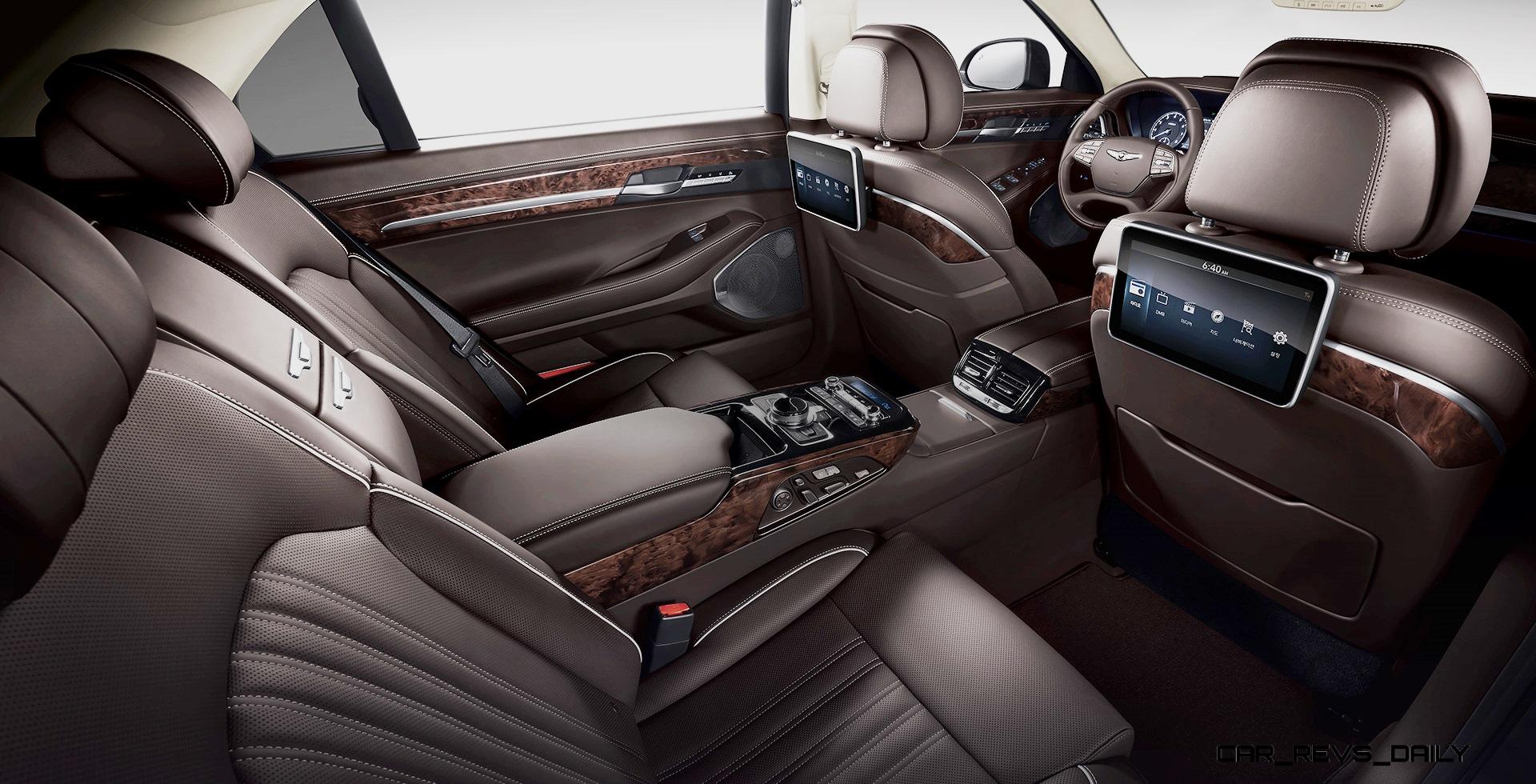

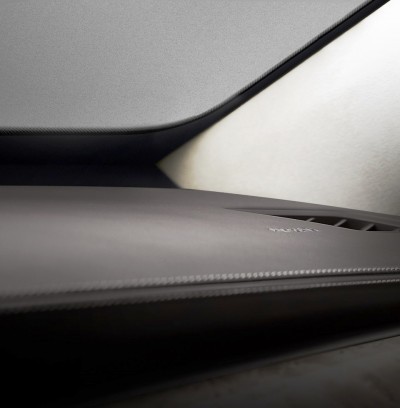

Human-centered ergonomics, total interior harmony, absolute convenience and luxurious comfort dictate the interior layout and design “Graceful Luxury” of the G90. From the graceful layout of driver controls and authentic material to the seat stitching and elegant color palette, every element of the car’s interior reinforces the focus on the car’s occupants.

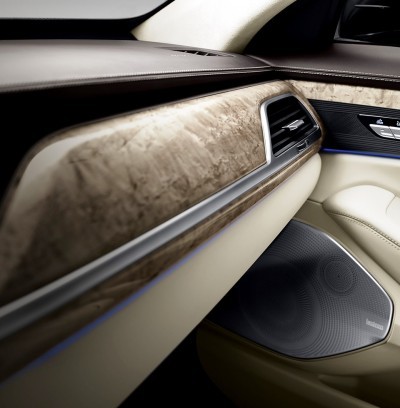

Great consideration has been given to each of the materials chosen for the G90’s interior. The highest-quality, authentic materials adorn the cockpit with ease of use and beauty of appearance central to every feature’s form and function. In collaboration with prominent Italian leather supplier Concerio Pasubio SPA, Hyundai Motor specially-developed semi-aniline leather for the seats of G90 Limousine. Throughout the cabin, the latest technologies sit among Nappa leather and glossy real wood, delighting the senses and cosseting the occupant in a first-class environment.

02 Driving Performance


A characteristic of all Genesis models will be the melding of sporty agility and refined performance. Sitting at the pinnacle of the Genesis range, the G90 captures this spirit perfectly thanks to an extensive research, development and testing regime.


The G90’s engineers worked closely with Hyundai’s European Test Centre based at Germany’s demanding Nürburgring circuit, and also put the car through its paces at Hyundai’s test center at Mojave in the Unites States. Through an intensive program of testing and development, the engineering team refined G90’s ride, handling, steering input, suspension movement and interior environment to deliver an impeccable and exhilarating driving experience with dynamics that are luxurious, sporty and refined.

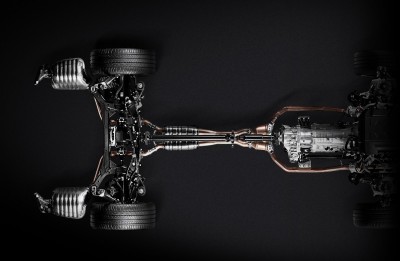

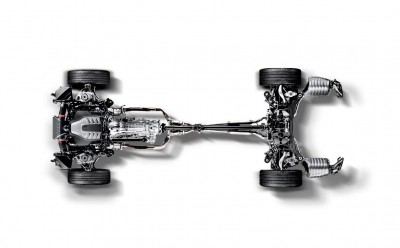

To ensure occupants enjoy the smoothest ride while retaining engaging handling characteristics, the G90 is fitted with multi-link suspension paired with High Performance Dampers or the Genesis Adaptive Control Suspension system.

03 Safety


‘Safety without compromise’ summarizes the human-centered philosophy that has directed the development of the G90. The introduction of several world-best safety technologies, alongside a highly rigid body frame (the strongest in its class), means the G90 boasts safety as one of its stand-out features.


Adding to the car’s no-expense-spared safety set-up, a selection of other technologies work to minimize risk and maximize protection for the driver, passenger and other road users. From Autonomous Emergency Braking (AEB) with Pedestrian Detection, Active Blind Spot Detection (BSD) and Driver Attention Alert, to Smart High Beam Assist and an Around View Monitor, the human-centered nature of Genesis is evident throughout.

04 Convenience Features


Simplicity and intuitiveness were key to the development of the G90’s convenience features, delivering the ultimate hassle-free experience for owners. Also, in developing the car’s specification and equipment, great thought was put in to providing everything a customer would need without anything unnecessary or over complicated.


Looking to the future, Genesis G90 applies an advanced ‘Highway Driving Assistance’ system (Korean market only), a step towards fully-autonomous motoring. The system substantially reduces driver fatigue and works by combining a series of systems – Advanced Smart Cruise Control, Lane Keeping Assistance System and a combination of newly developed technologies.

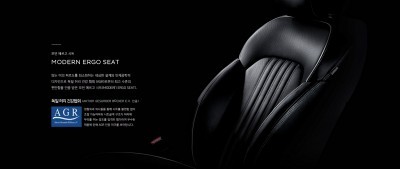

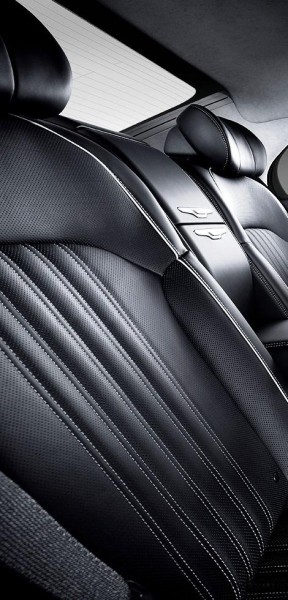

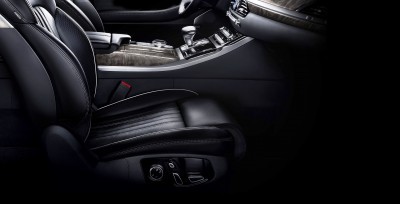

Seating comfort is an outstanding characteristic of the G90, with engineers creating the world’s first Smart Posture Caring (SPC) System to ensure total luxury for the driver and passengers. The innovative ergo seating system automatically determines the optimal position for the driver’s body, ensuring minimal stresses even on longer journeys.


The G90’s electronically-controlled driver’s seat feature 22 ranges of adjustment and have been approved by German campaign for healthier backs, Aktion Gesunder Rücken. The VIP passenger seats are electronically adjustable in 14 different ways, ensuring the highest levels of comfort.

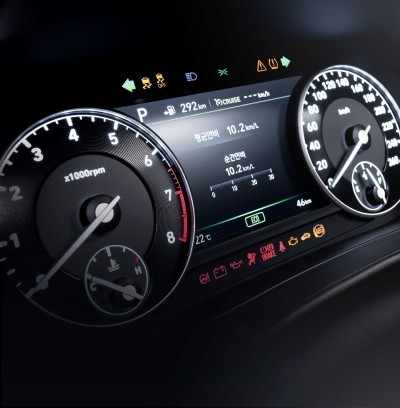

Many of the car’s features rely on interaction with the car’s audio visual system displayed via a luxurious 12.3-inch High Definition wide screen sited in the center console. The screen plays a key role in enhancing the ease of parking and in-city maneuvers for drivers. A one mega pixel digital camera is activated when parking, sharing the screen with a high-resolution 360-degree Around View Monitor.


Quality was also fundamental to the appointment of G90’s audio system. Presenting a concert hall-like experience, the Lexicon Sound System boasts Quantum Logic surround sound, while the car’s Clari-fi software rebuilds details lost in compressed audio files, adjusting the treatment based on the quality of the audio signal to restore a hi-fidelity listening experience.

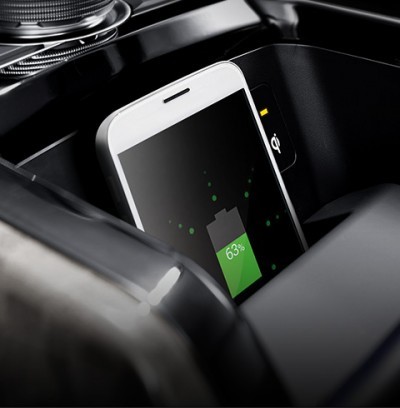

Elsewhere in the well-appointed cabin, air conditioning is divided into three separately-controlled zones, and occupants can charge their cell phones using the latest in wireless charging technology.

05 Noise, Vibration and Harshness (NVH)


Engineers set NVH as a key differentiator for G90, dedicating hundreds of hours to fine tuning every aspect of noise reduction and comfort enhancement. This obsessive attention to detail has resulted in the Genesis G90 boasting best-in-class ratings for in-cabin quietness, a major achievement in this highly competitive area of the luxury car market.


From introducing special sound-absorbing materials throughout the cabin and sub-structure of the car to the application of laminated glass on each window, the focus on providing customers with the ultimate luxury experience was the key. The determination to minimize generation of additional tire noise even extended to the special hollow design of the G90’s 19-inch alloy wheels with engineers altering the structure to channel the flow of air in a quieter way.

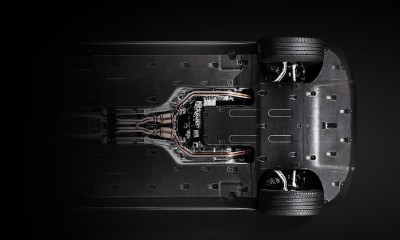

Sound engineering also extends to the sedan’s suspension set-up, which is optimized at test centers around the world for high speed cruising while minimizing in-cabin impact and body vibration.

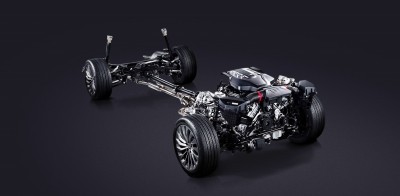

06 Powertrains


Tuned for maximizing driving pleasure, the rigorous testing regime concentrated on getting a responsive drive from the car’s powertrains, while remaining refined for drivers and passengers.

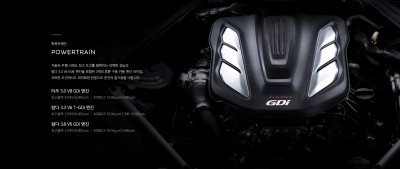

Fitted with a choice of three gasoline engines: V6 3.3-liter T-GDI (370PS); V6 3.8-liter GDI (315PS); or V8 5.0-liter GDI (425PS), the G90 boasts impressive performance characteristics despite its generous size.


The 425PS V8 unit can propel the sedan from 0-100kph in as little as 5.7 seconds, fueled by powerful torque of 53.0kgf.m. Meanwhile, Hyundai Motor’s first twin-turbocharged engine, the 3.3l V6, boasts strong performance throughout the rev-range, capable of 80-120kph overtaking maneuverers in 13.0 seconds thanks to its 52.0kgf.m of torque.

07 Technical Specifications


Engines:



  Capacity (cc) Power (PS) Torque (kgf.m) 0-100kph (sec)
3.3l T-GDI 3.342 370 52.0 6.2
3.8l GDI 3,778 315 40.5 6.9
5.0l GDI 5,038 425 53.0 5.7


Drivetrain:
Rear-wheel drive – standard
All-wheel drive – optional


Transmission:
Eight-speed electronically-controlled automatic transmission with lock-up torque converter


Suspension and damping:



Front Multi-link
Rear Multi-link


Steering:



Type MDPS (Motor-Driven Power Steering)
Overall steering gear ratio 12.9
Steering wheel turn
(lock to lock)
2.55
Minimum turning radius 5.97m

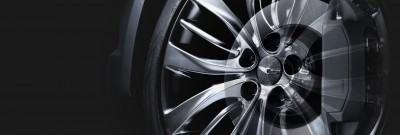

Wheels and tires:



Wheel size Tires Spare tire
8.0 x 18-inch (front and rear) 245/50R18 Temporary tire
8.5 x 19-inch (front) 245/45R19
9.5 x 19-inch (rear) 275/40R19



Exterior dimensions (mm):



Overall length 5,205
Overall width 1,915
Overall height 1,495
Wheelbase 3,160
Front overhang 860
Rear overhang 1,185
Front tread 1,630 (18-inch)
1,640 (19-inch)
Rear tread 1,659 (18-inch)
1,639 (19-inch)
Gross Vehicle Weight (kg) 2,420-2,595


Interior dimensions (mm):



  Front Rear
Head room 1,045 966
Leg room 1,175 960
Shoulder room 1,500 1,470


Capacities (liters):



Fuel tank (liters) 83 (3.3l T-GDI, 5.0l GDI), 77 (3.8l GDI)
Luggage (liters) 484



* Figures stated are manufacturer’s estimates for the Korean market, specification in other markets may vary.

SPEC

GENESIS EX900 3.8 V6
3.3T V6
5.0L V8
Full-length (mm) 5205 5205 5205
Width (mm) 1915 1915 1915
Height (mm) 1495 1495 1495
Center distance (mm) 3160 3160 3160
Before tread (mm) 1630 (18 “) / 1640 (19”) 1630 (18 “) / 1640 (19”) 1640
After the tread (mm) 1659 (18 “) / 1639 (19”) 1659 (18 “) / 1639 (19”) 1639
Engine Type Lambda V6 3.8 GDi Lambda V6 3.3T-GDi V8 Tau 5.0 GDi
Drive Type 2WD / AWD 2WD / AWD AWD
Displacement (cc) 3778 3342 5038
Maximum output (PS / rpm) 315 / 6,000 370 / 6,000 425 / 6,000
The maximum torque (kg.m / rpm) 40.5 / 5000 52.0 / 1300-4500 53.0 / 5000
Fuel tank capacity (ℓ) 77 83 83
