2016 JAGUAR F-Type AWD and Manual-Transmission Choices + R Cabriolet



 f-type r cab gif

The Jaguar F-Type is becoming a legendary machine for the black cat brand! The 2016 range will extend to 14 models, not including the just-launched F-Type R Cabrio!

This is big news, and largely comes from two new powertrain options: AWD and stick-shifts.

Until now, all F-Types have been auto-shifted via the exceptional eight-speed ZF box with paddle controls. This will stay the transmission of choice for the AWD models, which include the S Coupe and Cabrio with the 380-horsepower V6 engine, along with a new AWD option for the top R trims.

At the other side of the range, the F-Type V6 and F-Type S will not offer a six-speed manual box self-shifted, lightweight roadster thrills.

The new F-Types will arrive in Summer 2015 with a few cabin updates and a Sport Design pack for the V6 and S to bring them up to R levels of visual intensity.

We fell hard and fast for the F-Type R Coupe recently, and these newly-offered drivetrains only broaden the appeal of this barking-loud, 3.9-second Jaguar hero car.

To clarify which models are offered with which drivetrain, here is the Jaguar UK price list on the 2016 cars.



Jaguar F-TYPE 2016 Model Year Prices

Convertible

Model Engine Transmission OTR Price
F-TYPE 3.0 V6 Supercharged 340PS RWD Manual £56,735
RWD Auto £58,535
F-TYPE S 3.0 V6 Supercharged 380PS RWD Manual £65,735
RWD Auto £67,535
AWD Auto £72,385
F-TYPE R 5.0 V8 Supercharged 550PS RWD Auto £92,285
AWD Auto £97,135

Coupé

Model Engine Transmission OTR Price
F-TYPE 3.0 V6 Supercharged 340PS RWD Manual £51,250
RWD Auto £53,050
F-TYPE S 3.0 V6 Supercharged 380PS RWD Manual £60,250
RWD Auto £62,050
AWD Auto £66,900
F-TYPE R 5.0 V8 Supercharged 550PS RWD Auto £86,800
AWD Auto £91,650

f-tpe awd gif

2016 Jaguar F-TYPE: Introducing all-wheel drive and manual transmission

  • F-TYPE, Jaguar’s definitive full-size sports car, receives new powertrain and driveline options to broaden the range from six to 14 models
  • Torque on demand all-wheel drive (AWD) extends the F-TYPE’s performance and dynamic capability on all road surfaces and in all conditions
  • In AWD form, the 550PS F-TYPE R Coupé will accelerate from 0-60mph in 3.9 seconds, with a limited top speed of 186mph
  • Intelligent Driveline Dynamics (IDD) control strategy developed in-house to exploit maximum performance potential of AWD traction while retaining rear-wheel drive character
  • AWD F-TYPE models gain a unique bonnet design featuring a deeper ‘power bulge’ and distinctive new vents
  • Six-speed manual transmission option for rear-wheel drive supercharged V6 models delivers the purest sports car driving experience
  • Jaguar’s 550PS supercharged V8 comes to the F-TYPE R Convertible – available in both rear- and all-wheel drive configurations – replacing the 495PS V8 S Convertible
  • Electric Power Assisted Steering enables even greater precision and feel and reduces CO2 emissions by up to 4g/km on the EU combined cycle
  • Torque Vectoring by Braking improves agility and – standard on R derivatives – is now also standard on S models and available as an option on entry-level V6 derivatives

  • Sport Design Packs for Coupé and Convertible models – standard on R derivatives – enhance exterior styling and enable greater personalisation
  • New InControl Touch and InControl Touch Plus infotainment systems feature fast, intuitive operation and support Apple and Android smartphone connectivity – and even remote engine starts
  • The new 2016 model year F-TYPE range goes on sale from Spring 2015

“The F-TYPE Coupé and Convertible already represent everything you’d expect from a Jaguar sports car – seductive design, stunning performance and amazing agility. The addition of all-wheel drive and manual transmission options to the range will further enhance the F-TYPE’s dynamic capability and offer even greater driver reward – broadening its appeal to sports car enthusiasts worldwide.”

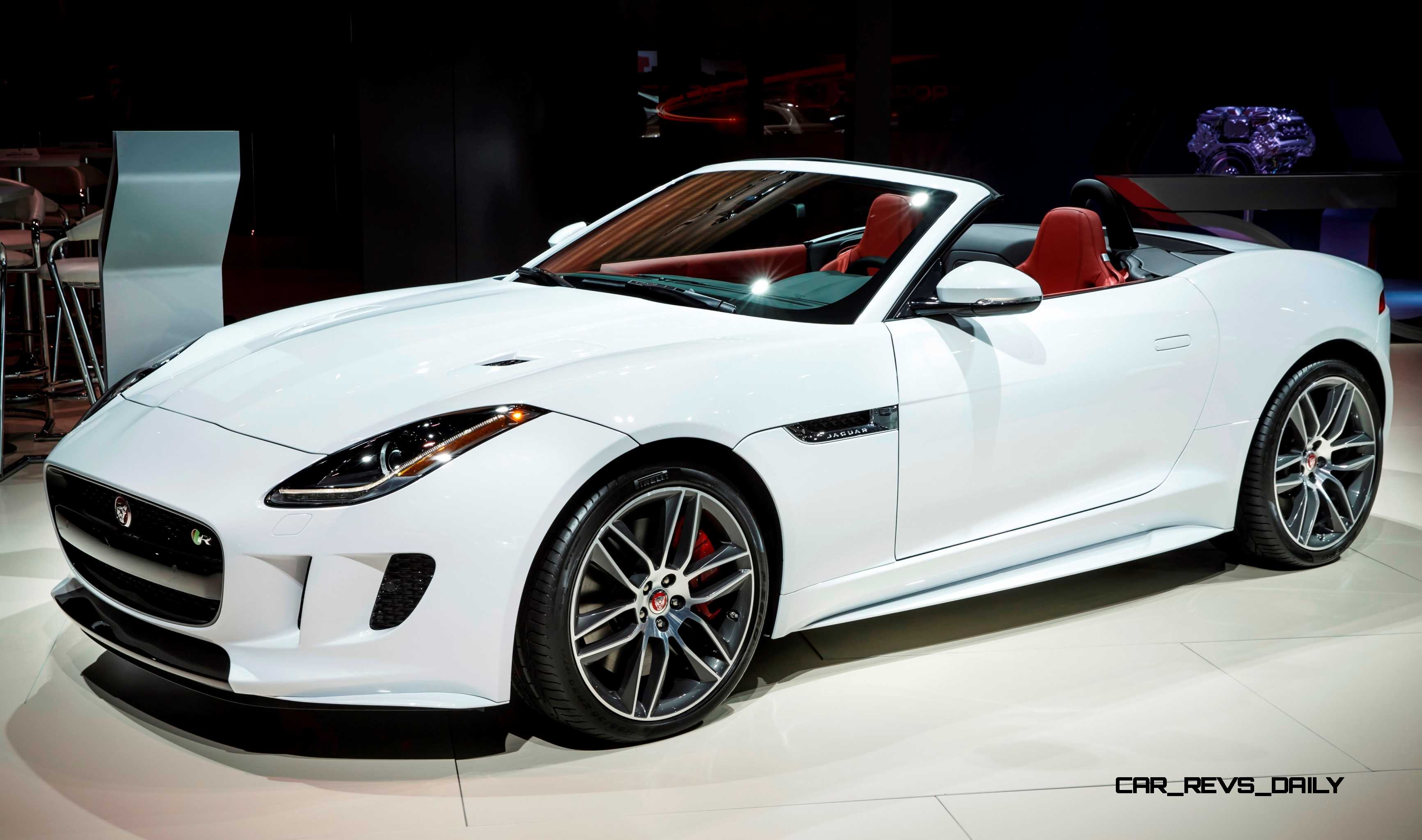

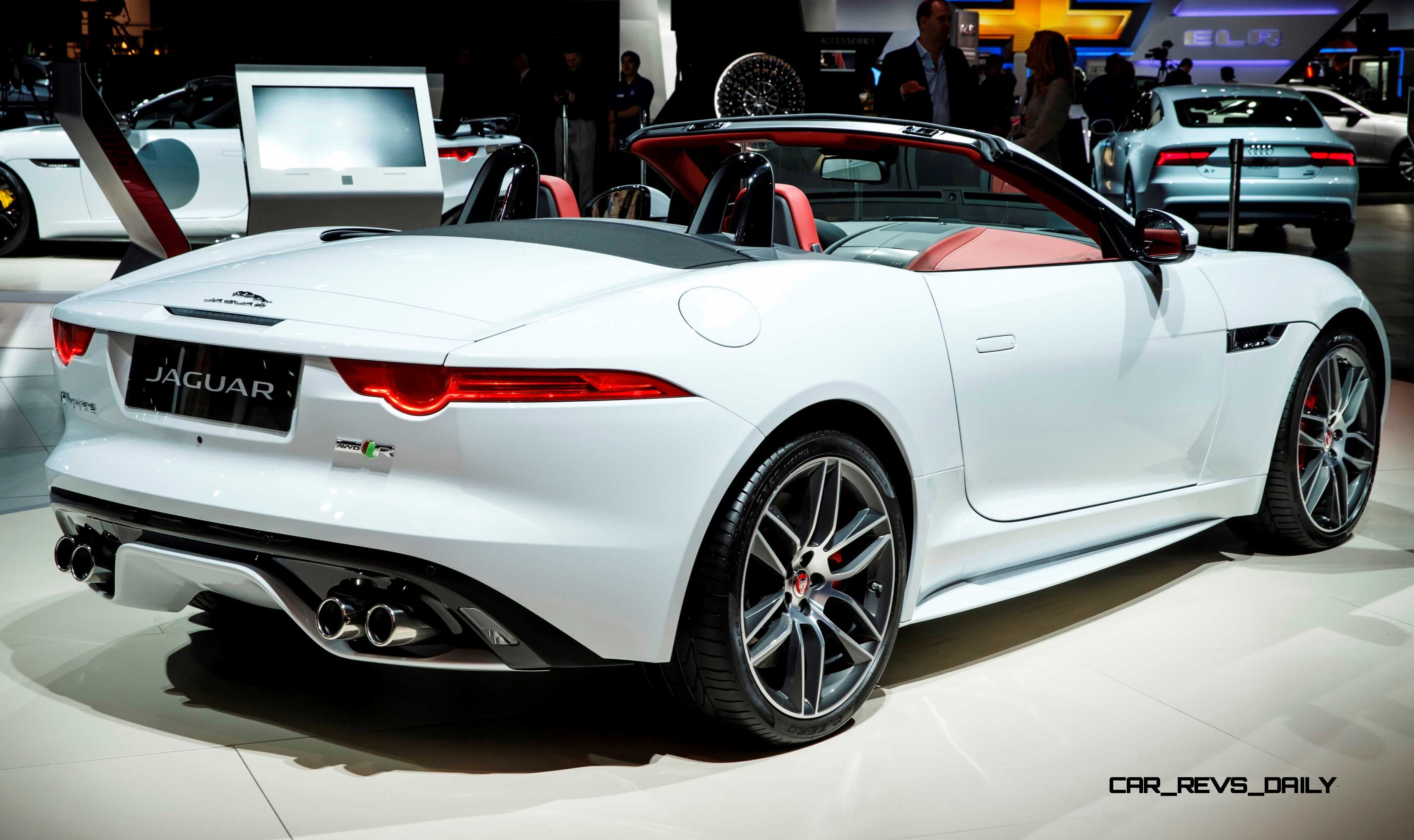

Phil Popham, Group Marketing Director, Jaguar Land RoverJag_LA_Motor_Show_Image_191114_04 Jag_LA_Motor_Show_Image_191114_05 2015 JAGUAR F-Type 41 2015 JAGUAR F-Type 19 2015 JAGUAR F-Type 18 2015 JAGUAR F-Type 17 2015 JAGUAR F-Type 16 2015 JAGUAR F-Type 15 2015 JAGUAR F-Type 14 2015 JAGUAR F-Type 13 2015 JAGUAR F-Type 12 2015 JAGUAR F-Type 11 2015 JAGUAR F-Type 10 2015 JAGUAR F-Type 9 2015 JAGUAR F-Type 8 2015 JAGUAR F-Type 7 2015 JAGUAR F-Type 6 2015 JAGUAR F-Type 5 2015 JAGUAR F-Type 4

Summary

The F-TYPE, Jaguar’s all-aluminium sports car, will in 2015 set new standards for dynamics and driver involvement with the addition of intelligent all-wheel drive (AWD) and six-speed manual transmission options, and Electric Power Assisted Steering (EPAS) standard across the range.

The fundamentals remain true to Jaguar’s core DNA of lightweight construction, refined power, perfect proportions and outstanding design – but now the F-TYPE Coupé and Convertible models deliver an even more rewarding, intuitive drive across a broader range now spanning 14 derivatives.

The latest driveline and chassis technologies heighten the sense of connection between car and driver and enable the F-TYPE to provide an even greater breadth of dynamic capability.

“Our target with engineering the all-wheel drive F-TYPE was to maintain that engaging rear-drive character that’s so important to Jaguar sports car DNA, yet offer even greater dynamic capability. The result is a controllable, exploitable and blisteringly fast performance car in all weather and road conditions.

“With the manual transmission option for the V6 F-TYPEs, we’ve gone to intricate lengths to engineer a very precise, technical and responsive level of interaction between the driver, the clutch and the transmission shift mechanism. It’s one for the driving purists – and I count myself as one of them.”
Ian Hoban, Vehicle Line Director, Jaguar

The enhancements broaden the F-TYPE range to 14 models, from the new 340PS Coupé and Convertible with the supercharged V6 driving the rear wheels through a manual gearbox, to the 550PS F-TYPE R Coupé and Convertible with the supercharged V8, AWD and eight-speed Quickshift transmission. Transmitting the V8’s 680Nm to the road though all four wheels helps the R models to accelerate from zero to 60mph in just 3.9 seconds on the way to a maximum speed of 186mph.

Integrating AWD required only subtle changes to the F-TYPE’s acclaimed styling – a prerequisite which Jaguar’s design and engineering teams worked side by side to achieve – and the enhancements give AWD F-TYPEs even more presence.

The aluminium clamshell bonnet gains a deeper central power bulge. Either side are distinctive new vents, positioned further apart and further forward than those of rear-wheel drive F-TYPEs. AWD S models also feature unique 19-inch diamond-turned Volution alloy wheels, while R derivatives feature 20-inch diamond-turned Gyrodyne wheels.

From behind the wheel drivers will quickly notice the extra dimension that AWD adds to performance, handling and road holding in all conditions – and especially on slippery road surfaces.

The AWD system features Intelligent Driveline Dynamics (IDD), a control system designed and developed in-house to exploit the maximum benefits of AWD without any compromise to Jaguar dynamics DNA. IDD is networked to the powertrain, rear differential and centre coupling and Dynamic Stability Control (DSC) system to provide optimum torque distribution.

Operating on the torque-on-demand principle, the AWD system sends 100 per cent of the engine’s torque to the rear wheels under normal driving conditions. This maintains the F-TYPE’s rear-wheel drive handling characteristics and also reduces parasitic losses in the drivetrain.2015 JAGUAR F-Type 61 2015 JAGUAR F-Type 60 2015 JAGUAR F-Type 59 2015 JAGUAR F-Type 58 2015 JAGUAR F-Type 57 2015 JAGUAR F-Type 76 2015 JAGUAR F-Type 75 2015 JAGUAR F-Type 74 2015 JAGUAR F-Type 73 2015 JAGUAR F-Type 72 2015 JAGUAR F-Type 65 2015 JAGUAR F-Type 66 2015 JAGUAR F-Type 67 2015 JAGUAR F-Type 68 2015 JAGUAR F-Type 69 2015 JAGUAR F-Type 70 2015 JAGUAR F-Type 71 2015 JAGUAR F-Type 64 2015 JAGUAR F-Type 63

If the system determines that the rear wheels are approaching the limit of available grip the electronically-controlled centre coupling transfers torque to the front axle, improving traction.

Another benefit of AWD is the ability to vary the front: rear torque split to mitigate oversteer during fast cornering by providing yaw damping. Combined with even higher levels of feedback from the new EPAS system – a technology Jaguar’s chassis engineers have spent more than five years perfecting – the F-TYPE’s performance is now even more accessible and exploitable.

While Jaguar’s eight-speed Quickshift transmission offers an unequalled blend of shift speed, comfort and refinement, there will always be a select group of enthusiasts who want the satisfaction which comes from changing gear manually.

To meet that demand, the F-TYPE’s engineering team developed a six-speed transmission exclusively for the high-revving V6 and rear-wheel drive (RWD) configuration. The short-travel gear lever with a throw of only 45mm, closely-spaced ratios, and pedals perfectly placed for heel-and-toe changes define what for some will be the definitive Jaguar sports car experience.

The F-TYPE becomes the first Jaguar sports car to use EPAS. Years of development ensure that the technology is now mature enough to deliver the benchmark response and feel expected. And because the system’s electric motor provides power assistance only when needed, fuel consumption and CO2 emissions are reduced – by up to 4g/km on the European combined cycle.The Torque Vectoring by Braking (TVbB) function first developed for the F-TYPE R Coupé is now also standard on F-TYPE S and available on F-TYPE. Integrated into the DSC system, selectively braking the inside wheels mitigates understeer, helping the driver to take the ideal line through the bend. TVbB also helps to stabilise the car and minimise steering input during manoeuvres such as emergency lane changes.

Those seeking the ultimate in style and performance will now find it in the new F-TYPE R Convertible, available in RWD and AWD form and replacing the RWD-only 495PS F-TYPE V8 S. Jaguar’s renowned 5.0-litre V8 combines direct injection and a twin-vortex supercharger to provide immediate response to the driver’s request for power. With the roof down and an open road, this engine’s unmistakable soundtrack becomes even more exhilarating.

Developing 550PS and 680Nm, the all-alloy quad-cam unit is matched exclusively to the Quickshift transmission and the choice or rear- or all-wheel drive. The extra traction of AWD enables the R Convertible to accelerate from 0-60mph in only 3.9 seconds Рmatching the R Coup̩ Рbefore reaching an electronically-limited top speed of 186mph.

Enhancements are not limited to the chassis and driveline technology. The instrument cluster features new dials and gauges. The infotainment system is upgraded too: navigation routing is much faster than before and SD card-based mapping is available for the first time.

And the F-TYPE now comes as standard with InControl Remote telematics functions, and can be specified with InControl Secure. Should the vehicle be stolen, InControl Secure alerts the driver via a smartphone app and works with law enforcement agencies to locate and recover the vehicle. When away from the vehicle, InControl Remote makes it possible to check information such as the fuel level or the door lock status using a smartphone.

For the ultimate in comfort and convenience, the driver can use a smartphone to start the engine, enabling the climate control system to bring the cabin to the desired temperature before the journey even begins.

Customers who wish to make their F-TYPE look even more exclusive have the option of a Sport Design Pack: the bespoke splitter, sills, venturi and, for the Coupé, fixed rear spoiler, subtly enhance the styling without affecting the purity of line which sets the F-TYPE apart in the sports car segment.

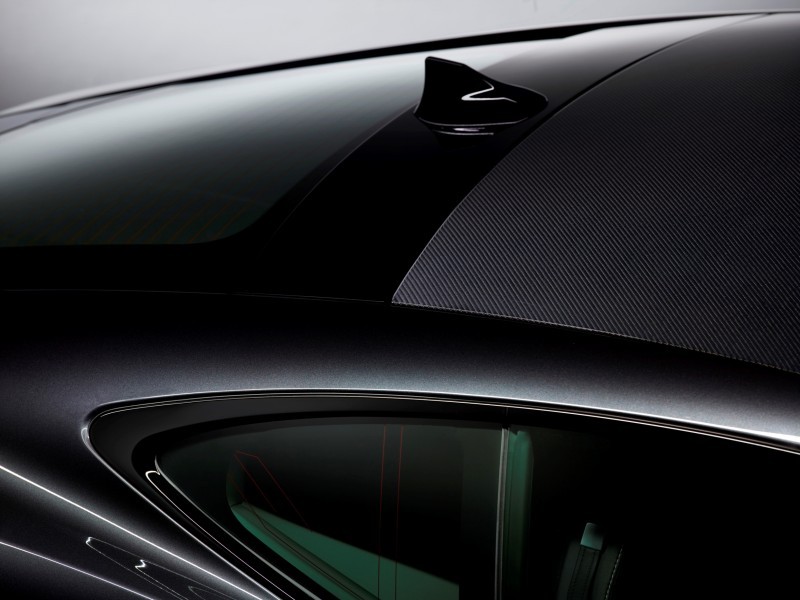

Applying composite technologies first developed in motorsport and aerospace, Jaguar has engineered a carbon-fibre roof option for the F-TYPE Coupé. At just 4.25kg, the carbon-fibre panel is even lighter than the aluminium pressing. The high-gloss lacquer finish leaves the distinctive ‘twill’ weave of the fibres clearly visible.

The new 2016 model year F-TYPE Coupé range will consist of: F-TYPE Coupé (340PS, RWD manual / RWD Quickshift), F-TYPE S Coupé (380PS, RWD manual, Quickshift RWD or AWD), F-TYPE R Coupé (550PS, Quickshift RWD or AWD).

The new 2016 model year F-TYPE Convertible range will consist of: F-TYPE (340PS, RWD manual / RWD Quickshift), F-TYPE S (380PS, RWD manual, Quickshift RWD or AWD), F-TYPE R (550PS, Quickshift RWD or AWD).

 2015 JAGUAR F-Type 20 2015 JAGUAR F-Type 55 2015 JAGUAR F-Type 54 2015 JAGUAR F-Type 53 2015 JAGUAR F-Type 52 2015 JAGUAR F-Type 51 2015 JAGUAR F-Type 50 2015 JAGUAR F-Type 49 2015 JAGUAR F-Type 48 2015 JAGUAR F-Type 47 2015 JAGUAR F-Type 46 2015 JAGUAR F-Type 45 2015 JAGUAR F-Type 44 2015 JAGUAR F-Type 43 2015 JAGUAR F-Type 42 2015 JAGUAR F-Type 41 2015 JAGUAR F-Type 40 2015 JAGUAR F-Type 39 2015 JAGUAR F-Type 38 2015 JAGUAR F-Type 37 2015 JAGUAR F-Type 36 2015 JAGUAR F-Type 35 2015 JAGUAR F-Type 34 2015 JAGUAR F-Type 33 2015 JAGUAR F-Type 32 2015 JAGUAR F-Type 31 2015 JAGUAR F-Type 30 2015 JAGUAR F-Type 29 2015 JAGUAR F-Type 28 2015 JAGUAR F-Type 27 2015 JAGUAR F-Type 26 2015 JAGUAR F-Type 25 2015 JAGUAR F-Type 24 2015 JAGUAR F-Type 23 2015 JAGUAR F-Type 22 2015 JAGUAR F-Type 21

All-Wheel Drive

Rear-wheel drive feel, all-wheel drive traction

Torque on demand all-wheel drive and Intelligent Driveline Dynamics control maintain the F-TYPE’s handling balance while making the performance even more accessible – in all weathers

Applying Jaguar Land Rover’s unrivalled expertise in all-wheel drive (AWD) technology to the F-TYPE makes it the most capable sports car the company has yet produced.

Building on the experience gained from the highly successful AWD XF and XJ, the AWD F-TYPE shares many of the driveline modules with the saloons but benefits from next-generation control. And whereas the focus for the XF and XJ is on traction, the focus for the F-TYPE is on ultimate performance and dynamics – in all conditions.

The AWD system is offered in the 380PS V6 F-TYPE S Coupé and Convertible and 550PS V8 R Coupé and Convertible, all equipped with the eight-speed Quickshift transmission.

The underlying development philosophy for AWD was to maintain the inherent agility and precision of the F-TYPE’s rear-wheel drive character while delivering the limit traction and handling benefits that torque on demand offers.

“What we require of our AWD system in F-TYPE is optimal traction in all weather conditions, but preserving the Jaguar DNA and sports car character – that means rear-drive feel and steering without any corruption. The key to this is Intelligent Driveline Dynamics – IDD.

“IDD allows us to provide ‘torque on demand’ – only delivering torque to the front wheels when it’s required to enhance traction. That means we get great steering precision and the efficiency of a rear-drive car, but with additionaltraction via the front wheels precisely delivered to match the driver’s demand, the road surface and the driving situation.”
Russ Varney, Vehicle Programme Director, Sports Cars, Jaguar

Under normal sub-limit driving conditions, 100 per cent of engine torque is sent to the rear axle. When required, the electromechanically-actuated coupling in the transfer case enables smooth transfer of torque to the front axle – the process is virtually transparent to the driver.

Everything under control: Intelligent Driveline Dynamics

To exploit the maximum potential of AWD, the system features Intelligent Driveline Dynamics (IDD). This highly-sophisticated control strategy – developed entirely in-house – is built around a high-level controller managing the interaction of AWD, the rear electronic active differential (EAD) or mechanical limited-slip differential in V6 S models, TVbB, and the Dynamic Stability Control system (DSC).

The decision to develop IDD in-house means complete control of design and calibration. The vehicle attribute team which calibrated IDD for the F-TYPE is also responsible for DSC, ensuring the best possible interaction between the two systems.

Algorithms within the IDD controller continuously estimate road surface friction. The controller uses measurements from yaw rate, steering wheel angle, wheel speed, lateral and longitudinal acceleration sensors. It also takes into account the Driving Dynamics mode selected by the driver.

The IDD controller and the EAD controller use this data to determine what the vehicle is doing – a so-called state estimate – and the design of the IDD system enables a common state estimate to be used in both controllers.

This detailed monitoring of the vehicle’s dynamics enables optimised torque distribution across the rear axle, and from front to rear, by applying both pre-emptive and feed-back control of the active driveline technologies. The result is improved agility and steering response, and the extra level of control this brings increases driver confidence.

On entering a corner, the TVbB system can mitigate understeer by lightly and selectively braking the inside wheels to keep the car on line. If the car begins to oversteer, torque can be transferred to the front axle, generating a stabilising moment. As a result, entry speeds can be higher, and the driver can apply more power sooner in preparation for corner exit.

Integrating control of these systems within IDD means that their interaction is seamless and virtually transparent to the driver. Another benefit that AWD and IDD bring compared to rear-wheel drive is greater differentiation between Normal, Rain/ice/snow and Dynamic modes – especially with DSC switched off.

With Rain/ice/snow mode selected, the IDD control software is designed to deliver a more AWD-like character than Normal mode, with Dynamic mode providing the most rear-biased character. And because the system is continually updating its estimate of road surface friction, IDD will select the most suitable calibration for any condition.

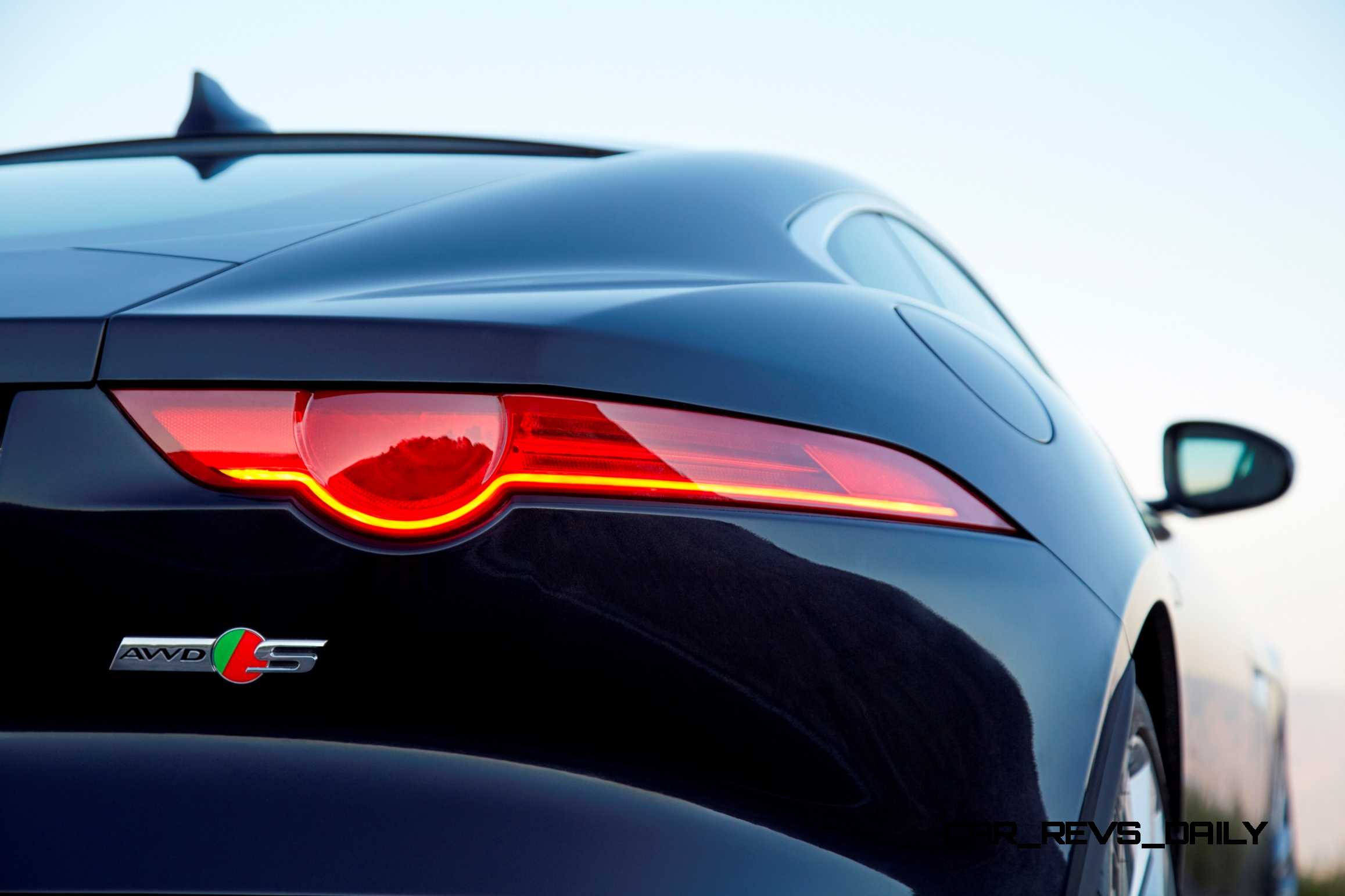

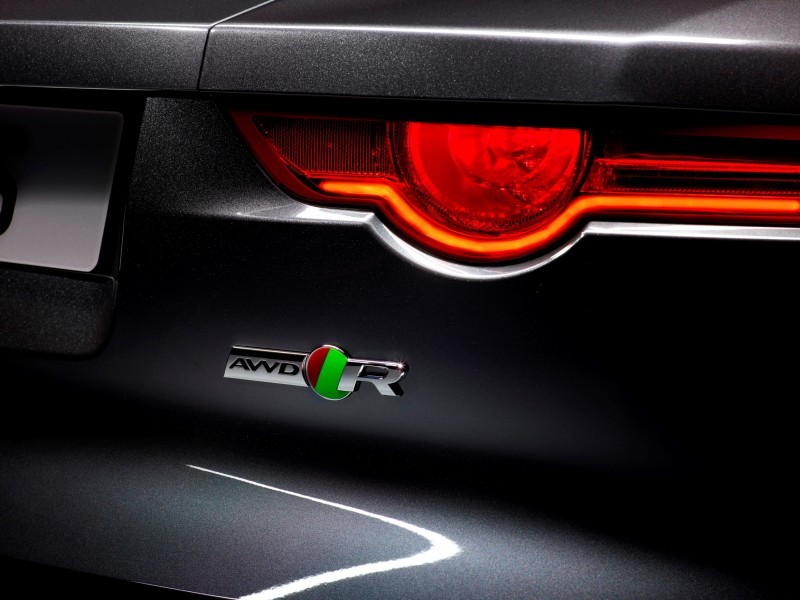

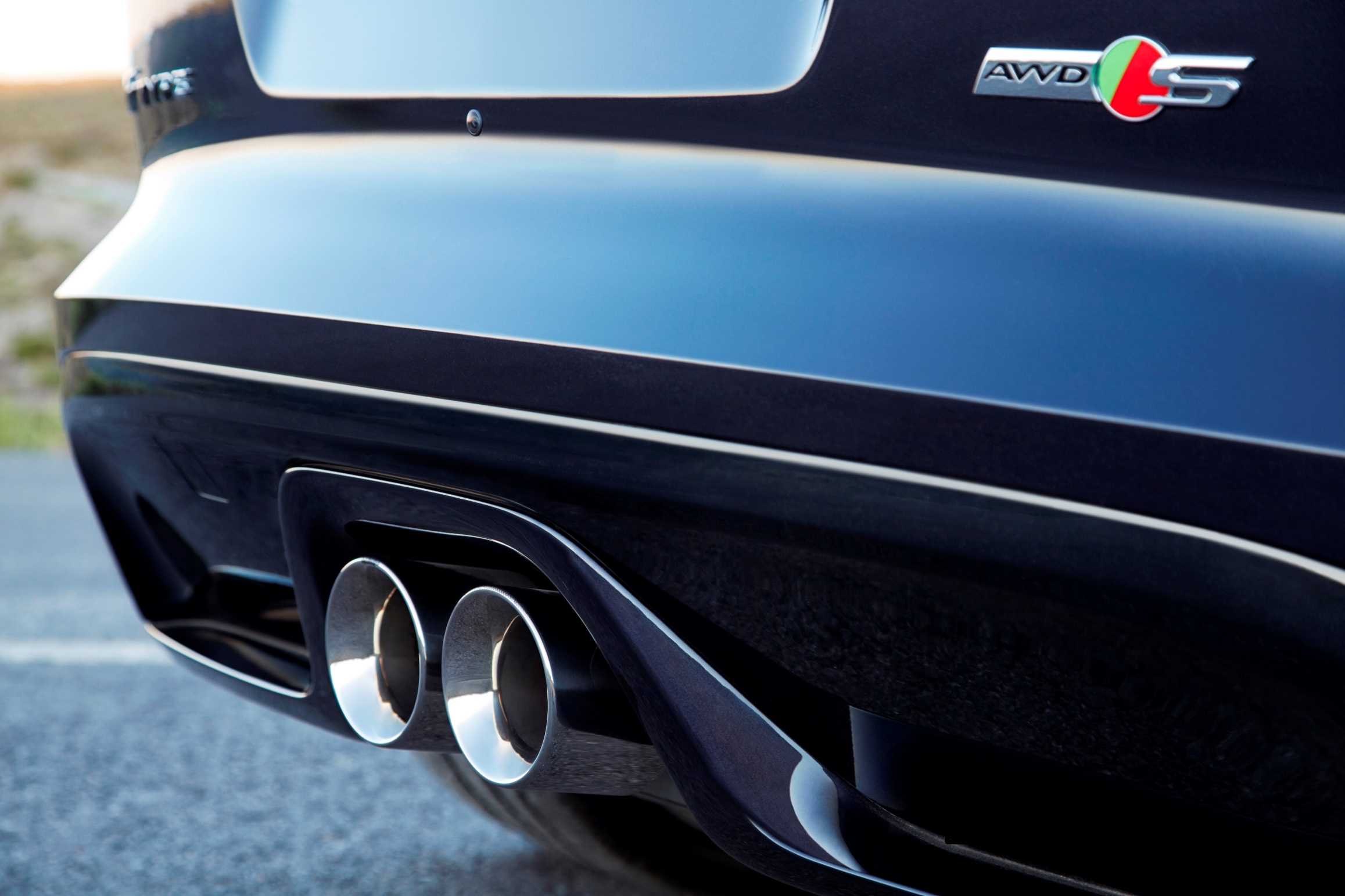

Visually, AWD models are differentiated by discreet badging and subtle but distinct changes to the F-TYPEs’ award-winning styling.

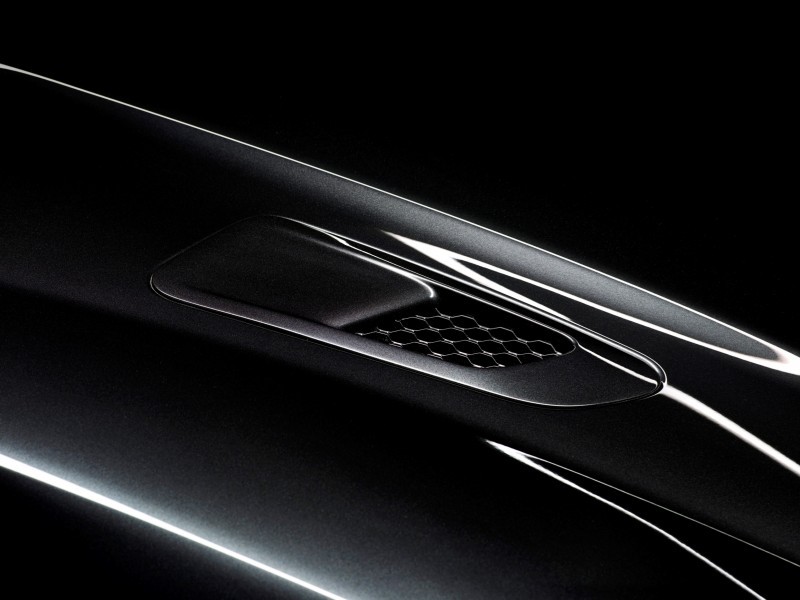

The aluminium clamshell bonnet gains a deeper central power bulge. As well as giving the F-TYPE even greater presence, the feature optimises packaging around the powertrain. On either side are new vents: positioned further apart and further forward than those of rear-wheel drive F-TYPEs, they provide an even greater cooling effect.

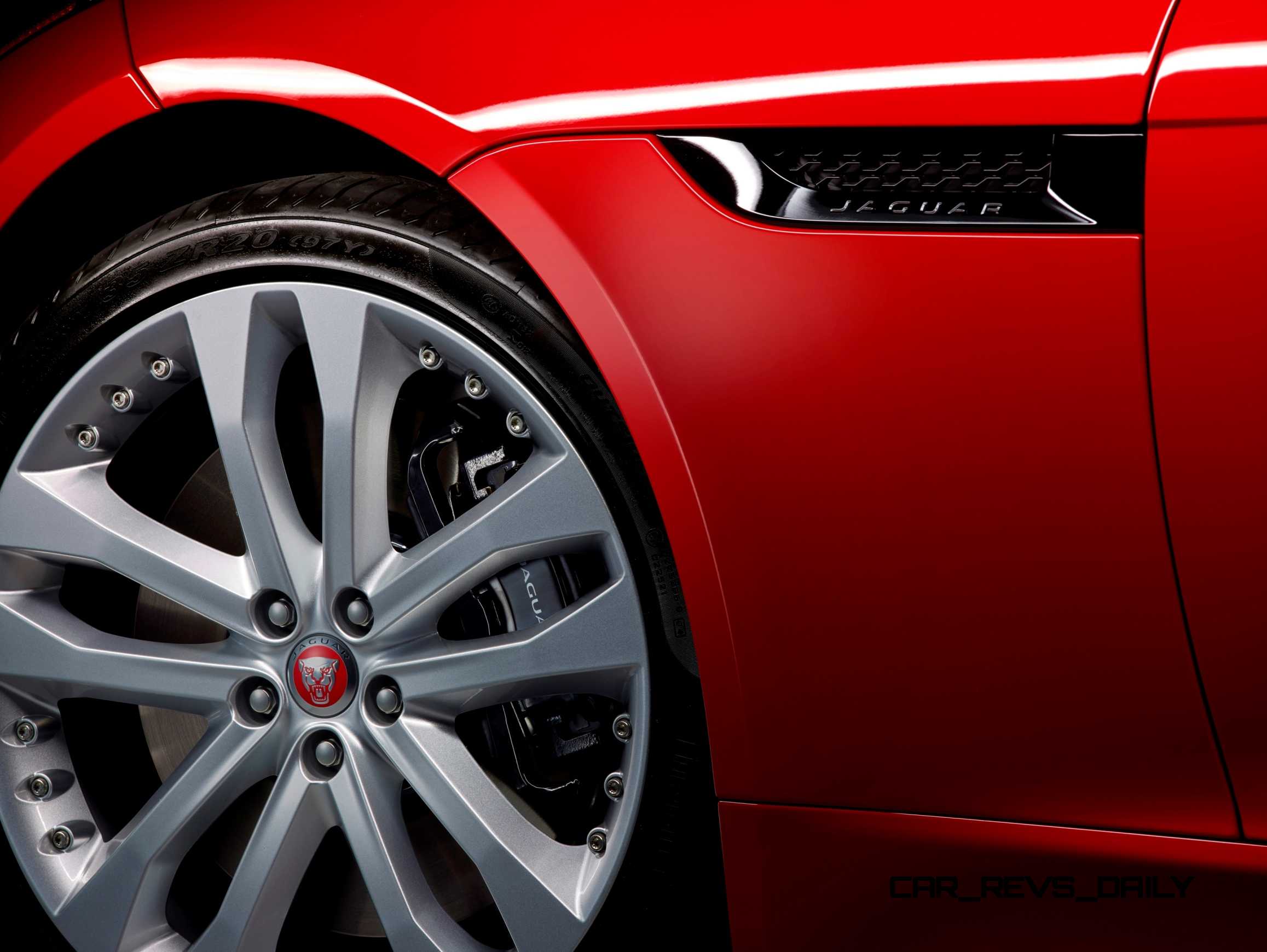

Unique new 19-inch diamond-turned ‘Volution’ alloy wheels are fitted to AWD V6 S variants, while AWD R models feature 20-inch diamond-turned Gyrodyne alloy wheels.

Beneath the surface, the electronically-controlled dampers feature recalibrated control software, and springs are up to 10% stiffer. Still of dual-rate design, they now operate in the linear range for longer. The front control arm bushes are stiffer too, helping to further improve steering response and on-centre feel.

Meticulous attention to detail during system integration means that the AWD F-TYPE retains excellent weight distribution characteristics, the balance moving forwards by only 1.2 percentage points compared to the rear-drive models.

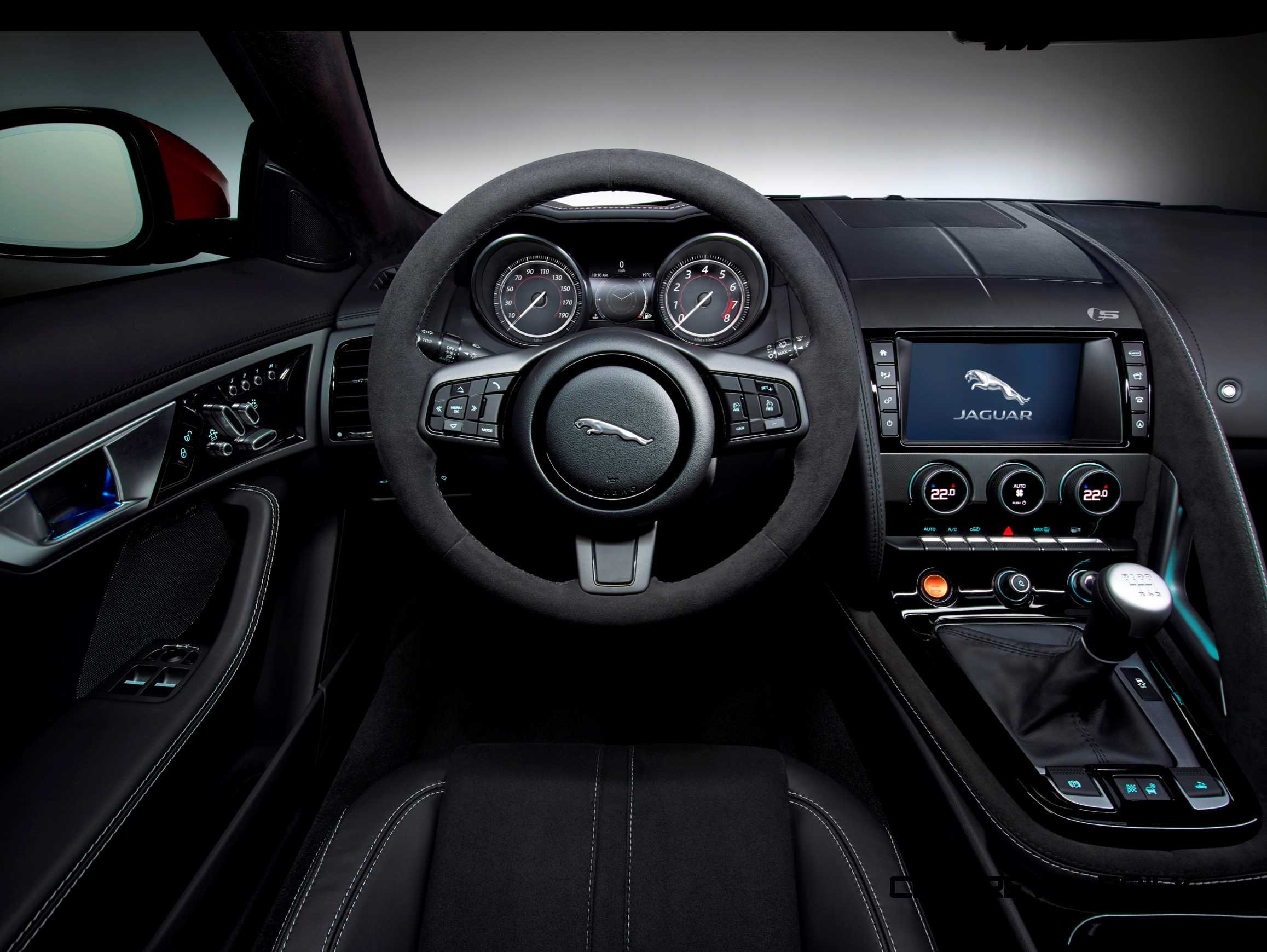

Manual Transmission

Engaging, rewarding: A sports car for purists

The F-TYPE’s six-speed manual transmission has been designed to give enthusiasts the most rewarding driving experience possible. The combination of the free-revving supercharged V6, semi-dry sump gearbox and precise, perfectly-weighted shifts deliver enjoyment on a completely new level

Jaguar’s outstanding Quickshift transmission is still a benchmark for shift speed and refinement but for a select group of enthusiasts around the world, the purest driving experience comes from executing perfectly timed shifts using a manual gearbox.

To meet this demand, Jaguar’s engineers have integrated a highly efficient six-speed transmission into the F-TYPE’s lightweight aluminium body structure, matched exclusively to the rear-wheel drive 340PS and 380PS V6 powertrains.

“A manual transmission in a sports car is always the purist driver’s choice – and to meet their expectations the manual F-TYPE had to offer a completely engaging driving experience.

“The short throw of the gear lever, the mechanical quality of the shift, pedal spacing ideally suited to heel-and-toe changes, the tune of the V6 supercharged engine itself – all have been subject to detailed scrutiny to ensure driving a manual F-TYPE is as fun as it is fast.”
Mike Cross, Chief Engineer, Vehicle Integrity, Jaguar

Everything from the gearbox detent profiles to the shift lever mounting bushes to the shape of the centre console armrest have been optimised to make the driving experience as intuitive, rewarding and enjoyable as possible.

Light, smooth, efficient

Like the Quickshift sequential transmission, the new manual gearbox was developed for the F-TYPE with experts from ZF. The compact unit features a lightweight aluminium alloy casing and an innovative semi-dry sump lubrication system to improve efficiency.

Instead of relying on the usual splash lubrication method, the F-TYPE’s gearbox uses a compact mechanical pump driven from the layshaft to spray oil on to the meshing gear teeth, bearings and the synchroniser rings. Providing lubrication only to where it’s needed using a low viscosity oil significantly reduces drag losses. It also means that the gearbox contains just 1.2-litres of fluid, saving weight and improving packaging.

The custom-designed bellhousing contains a dual-mass flywheel for the best possible NVH properties and a single-plate dry clutch optimised for rotational inertia, and therefore reduced shift loads.

Positive, precise and perfectly-weighted changes

Connecting the driver to the gearbox is a shift mechanism which combines the direct, short throw essential to a sports car application with the comfort and refinement demanded by Jaguar customers. Everything from the gearbox itself right the way back to the gear knob influences shift feel, and that’s why every component has been scrutinised in order to ensure that every change the driver makes can be perfect.

The F-TYPE’s rod linkage provides the most direct connection between the gear lever and the selector forks. Every mounting bush has been carefully tuned to strike the perfect balance between shift feel and isolation from unwanted vibration. Optimisation of the detent profiles gives smooth, precise changes without the high peak loads which result in notchiness when going into gear. A throw of just 45mm ensures fast, precise shifts.

Extensive development and testing results in a gear knob set at the ideal height and position for road and track driving.  Such is the attention to detail that the centre console armrest has been reprofiled for manual transmission models to allow for the optimum movement of wrist, elbow and shoulder during each gear change. To satisfy the most demanding enthusiasts, the brake and throttle pedals are ideally positioned for heel-and-toe shifts.

The perfect match: Supercharged V6

The manual transmission is paired exclusively with Jaguar’s all-aluminium 3.0-litre V6. This supercharged direct-injection unit, in both 340PS and 380PS ratings, is defined by its linear power delivery and willingness to rev and the new gearbox makes it even more enjoyable to exploit the engine’s full performance potential. And because the manual demands – and rewards – greater driver involvement, the V6 gains a unique calibration to enhance the driving experience while maintaining the F-TYPE’s duality of character.

Under hard acceleration the engine has been tuned to respond even more directly to throttle pedal inputs. Coupled with the reduced rotational inertias this enables the enthusiast driver to execute fast, precise heel-and-toe downshifting – without the aid of an auto throttle blip function.

The engine ECU provides a speed matching function on upshifts, making each gear change smoother. An anti-stall function makes the F-TYPE effortless to drive at low speed.



Electric Power ASSISTED Steering

Steering feel redefined

The F-TYPE’s steering system still sets the benchmark for feel and response and the adoption of electric power assistance also cuts CO2 emissions

Steering response and feel are core elements of Jaguar’s brand DNA. These are key to the ‘50 metre feel’ – what the customer experiences when driving a car out of the dealership for the first time. This initial impression has to tell them everything they need to know about how the car will behave on the road.

Jaguar sports cars have always relied on hydraulic power assistance because it has previously delivered the most natural, intuitive performance. Electric Power Assisted Steering (EPAS) offers far greater tuning potential and better energy efficiency but Jaguar’s engineers have not considered the technology sufficiently mature – until now.

“We felt very strongly that the efficiency gains offered by Electric Power Assisted Steering should be matched by levels of feel, feedback and responsiveness that would enhance the
F-TYPE driving experience still further.

“We’re satisfied that our EPAS system outperforms anything we’ve previously offered, providing the agility and interaction you’d demand of a Jaguar sports car.”
Tim Clark, Chief Technical Specialist, Jaguar

The EPAS system fitted to the latest F-TYPE is the result of R&D work which began in 2008. The years of development and tuning have ensured that this steering system delivers the immediate response and connected feel expected from a Jaguar sports car.

State-of-the-art control algorithms ensure that the F-TYPE’s steering is free from any trace of the synthetic feel which can taint some EPAS systems. And so intelligent is it that the software even compensates for differences in ambient temperature, ensuring absolute consistency in the feedback the driver gets through the wheel.

Hardware contributes to the improvements too: increasing the torsional stiffness of the steering column intermediate shaft helped to deliver the on-centre feel needed to achieve the demanding attribute targets set at the start of the programme.

Unlike hydraulic systems, which drain power from the engine from the moment it starts, EPAS only uses energy when assistance is actually needed, thereby reducing fuel consumption and CO2 emissions by up to 4g/km on the European combined cycle.

These improvements make the lightweight aluminium F-TYPE even more efficient, and help the 340PS Coupé and Convertible with Quickshift transmissions to become the first sub-200g/km Jaguar sports cars.



Infotainment and connectivity

The new InControl Touch infotainment systems offer all the functionality you need, from 3D maps and smartphone apps to surround sound systems and even remote engine starts

The F-TYPE offers a connected drive in every sense. Just as the chassis and the powertrains are engineered to respond immediately – and exactly as the driver expects – the infotainment systems have been developed to be as intuitive to use as possible.

Three systems are available: InControl Touch with 180W audio or 380W Meridian audio respectively, and InControl Touch Plus, which brings Meridian’s outstanding 770W surround sound technology into the cabin.

All feature 8-inch capacitive touchscreens with Jaguar’s new user interface. The crisp, clear graphics make them quick and easy to use, and gesture controls such as ‘swipe’ to skip tracks or flip pages, and ‘drag’ to scroll through maps, make operation even more intuitive.

Navigation data entry is much quicker than before and routes are calculated faster too. High quality rendered 3D images of junctions, cityscapes and even distant terrain make following route guidance much easier, helping drivers to keep their eyes on the road. The system can also be used to log journey details, showing duration, average speed, distance, fuel economy and a GPS map of the route.

Another feature which avoids distraction is text-to-voice: incoming SMS messages can be read out on the move, leaving the driver to concentrate on driving. When the vehicle is stationary, the touchscreen can be used for writing messages, or – for extra convenience – there’s a set of concise templates to choose from.

The F-TYPE ensures that drivers stay connected too, thanks to InControl Apps. Connecting Apple and Android smartphones using the dedicated USB port gives seamless access to compatible apps stored on the devices through the vehicle’s touchscreen.

Jaguar InControl Remote technologies come as standard and have been created to improve safety, convenience and peace of mind. Should the worst happen and the car be involved in a collision severe enough to deploy the airbags, the F-TYPE’s integrated telematics module will automatically call the emergency services and notify them of the vehicle’s location. This feature can also be triggered manually by pressing the SOS emergency call button.

In the unlikely event of a breakdown, F-TYPE owners can quickly and easily summon Jaguar Assistance simply by pressing a button, or by using the InControl Remote App on their smartphone. This will automatically connect them to the Jaguar Assistance operator, and will also send information on the vehicle’s location and status.

The InControl Remote Premium App allows the driver to interact with their F-TYPE in a completely new way. Using their smartphone, drivers can see how much fuel is in the tank, if the windows are closed or if the alarm has gone off. Better still, it enables the driver to remotely lock or unlock the car and reset the alarm – from anywhere in the world. The beep and flash feature can help drivers to find the car again – perfect for busy car parks, for example, or crowded city streets.

For unrivalled comfort and convenience, InControl Remote Premium also makes it possible to start the engine remotely. A first in the sports car segment, this feature enables the F-TYPE’s climate control system to bring the cabin to the desired temperature before the journey even begins.

InControl Secure is also available on all models, and enhances security by providing proactive vehicle monitoring. Should the F-TYPE be stolen, the tracking service can work with law enforcement agencies to locate and recover the car.
TECHNICAL DATA

  F-TYPE Coupé F-TYPE Convertible
ENGINE & TRANSMISSION
Engine capacity (cc) 2,995
Cylinders V6 Supercharged
Valves per cylinder 4; DOHC
Bore/ stroke (mm) 84.5/ 89.0
Compression ratio 10.5:1
Fuel injection 150bar direct injection
Power PS (kW) 340 (250) @ 6,500rpm
Torque Nm (lb ft) 450 (332) @ 3,500-5,000rpm
Transmission 8-speed Quickshift,
[6-speed manual]
Gear ratios (:1)
1st 4.714  [4.110]
2nd 3.143  [2.315]
3rd 2.106  [1.542]
4th 1.667  [1.179]
5th 1.285  [1.000]
6th 1.000  [0.846]
7th 0.839  [   –   ]
8th 0.667  [   –   ]
Reverse 3.317  [3.727]
Final Drive 3.15  [3.31]
CHASSIS
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Single-piston sliding caliper; 355mm ventilated discs
Rear brakes Single-piston sliding caliper; 325mm ventilated discs
Steering Rack-and-pinion; electromechanical
DIMENSIONS
Length (mm) 4,470 4,470
Width excl. mirrors (mm) 1,923 1,923
Height (mm) 1,311 1,308
Wheelbase (mm) 2,622 2,622
Track front/ rear (mm) 1,597/ 1,649 1,597/ 1,649
Kerbweight (kg) From 1,577 [1,567] From 1,597 [1,587]
Boot volume (litres) 315/ 407 with/ without parcel tray 196.2
Fuel tank (usable) litres 70 70
PERFORMANCE &
FUEL ECONOMY

0-60mph (sec) 5.1 [5.5] 5.1 [5.5]
0-100km/h (sec) 5.3 [5.7] 5.3 [5.7]
Top speed mph (km/h) 161 (260) 161 (260)
Fuel consumption mpg
(litres/100km) EU combined
33.6 (8.4) [28.8 (9.8)] 33.6 (8.4) [28.8 (9.8)]
CO2 emissions (g/km)
EU combined
199 [234] 199 [234]


Manufacturer’s figures; correct at time of going to press. Figures in square brackets refer to manual transmission.

TECHNICAL DATA

  F-TYPE S Coupé F-TYPE S Convertible
ENGINE & TRANSMISSION
Engine capacity (cc) 2,995
Cylinders V6 Supercharged
Valves per cylinder 4; DOHC
Bore/ stroke (mm) 84.5/ 89.0
Compression ratio 10.5:1
Fuel injection 150bar direct injection
Power PS (kW) 380 (280) @ 6,500rpm
Torque Nm (lb ft) 460 (339) @ 3,500-5,000rpm
Transmission 8-speed Quickshift,
[6-speed manual]
Gear ratios (:1)
1st 4.714  [4.110]
2nd 3.143  [2.315]
3rd 2.106  [1.542]
4th 1.667  [1.179]
5th 1.285  [1.000]
6th 1.000  [0.846]
7th 0.839  [   –   ]
8th 0.667  [   –   ]
Reverse 3.317  [3.727]
Final Drive 3.31  [3.31]
CHASSIS
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Twin-piston sliding caliper; 380mm ventilated discs
Rear brakes Single-piston sliding caliper; 325mm ventilated discs
Steering Rack-and-pinion; electromechanical
DIMENSIONS
Length (mm) 4,470 4,470
Width excl. mirrors (mm) 1,923 1,923
Height (mm) 1,311 1,308
Wheelbase (mm) 2,622 2,622
Track front/ rear (mm) 1,597/ 1,649 1,597/ 1,649
Kerbweight (kg) From 1,594 [1,584] From 1,614 [1,604]
Boot volume (litres) 315/ 407 with/ without parcel tray 196.2
Fuel tank (usable) litres 70 70
PERFORMANCE &
FUEL ECONOMY

0-60mph (sec) 4.8 [5.3] 4.8 [5.3]
0-100km/h (sec) 4.9 [5.5] 4.9 [5.5]
Top speed mph (km/h) 171 (275) 171 (275)
Fuel consumption mpg (litres/100km) EU combined 32.9 (8.6) [28.8 (9.8)] 32.9 (8.6) [28.8 (9.8)]
CO2 emissions (g/km)
EU combined
203 [234] 203 [234]

Manufacturer’s figures; correct at time of going to press. Figures in square brackets refer to manual transmission.

TECHNICAL DATA

  F-TYPE S AWD Coupé F-TYPE S AWD Convertible
ENGINE & TRANSMISSION
Engine capacity (cc) 2,995
Cylinders V6 Supercharged
Valves per cylinder 4; DOHC
Bore/ stroke (mm) 84.5/ 89.0
Compression ratio 10.5:1
Fuel injection 150bar direct injection
Power PS (kW) 380 (280) @ 6,500rpm
Torque Nm (lb ft) 460 (339) @ 3,500-5,000rpm
Transmission 8-speed Quickshift
Gear ratios (:1)
1st 4.714
2nd 3.143
3rd 2.106
4th 1.667
5th 1.285
6th 1.000
7th 0.839
8th 0.667
Reverse 3.317
Final Drive 3.31
CHASSIS
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Twin-piston sliding caliper; 380mm ventilated discs
Rear brakes Single-piston sliding caliper; 325mm ventilated discs
Steering Rack-and-pinion; electromechanical
DIMENSIONS
Length (mm) 4,470 4,470
Width excl. mirrors (mm) 1,923 1,923
Height (mm) 1,311 1,308
Wheelbase (mm) 2,622 2,622
Track front/ rear (mm) 1,597/ 1,649 1,597/ 1,649
Kerbweight (kg) From 1,674 From 1,694
Boot volume (litres) 315/ 407 with/ without parcel tray 196.2
Fuel tank (usable) litres 70 70
PERFORMANCE &
FUEL ECONOMY

0-60mph (sec) 4.9 4.9
0-100km/h (sec) 5.1 5.1
Top speed mph (km/h) 171 (275) 171 (275)
Fuel consumption mpg
(litres/100km) EU combined
31.7 (8.9) 31.7 (8.9)
CO2 emissions (g/km)
EU combined
211 211

Manufacturer’s figures; correct at time of going to press. Figures in square brackets refer to manual transmission.

TECHNICAL DATA

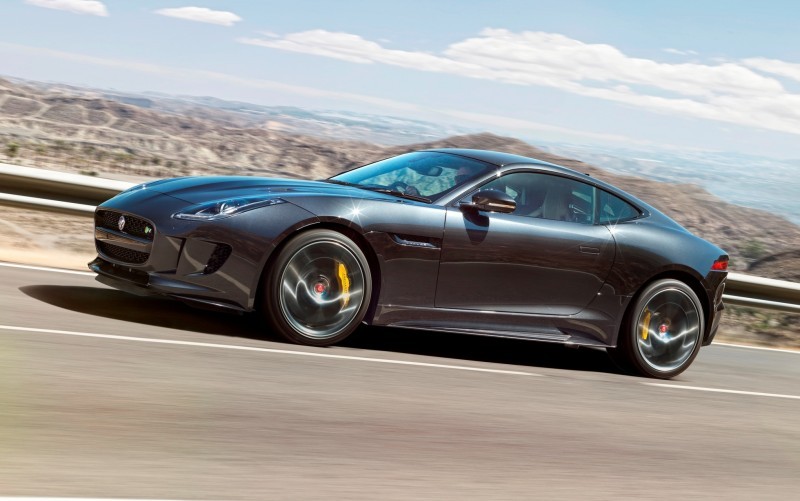

  F-TYPE R Coupé F-TYPE R Convertible
ENGINE & TRANSMISSION
Engine capacity (cc) 5,000
Cylinders V8 Supercharged
Valves per cylinder 4; DOHC
Bore/ stroke (mm) 92.5/ 93.0
Compression ratio 9.5:1
Fuel injection 150bar direct injection
Power PS (kW) 550 (405) @ 6,500rpm
Torque Nm (lb ft) 680 (502) @ 3,500rpm
Transmission 8-speed Quickshift
Gear ratios (:1)
1st 4.714
2nd 3.143
3rd 2.106
4th 1.667
5th 1.285
6th 1.000
7th 0.839
8th 0.667
Reverse 3.317
Final Drive 2.56
CHASSIS
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Twin-piston sliding caliper; 380mm ventilated discs
Rear brakes Single-piston sliding caliper; 376mm ventilated discs
Steering Rack-and-pinion; electromechanical
DIMENSIONS
Length (mm) 4,470 4,470
Width excl. mirrors (mm) 1,923 1,923
Height (mm) 1,314 1,311
Wheelbase (mm) 2,622 2,622
Track front/ rear (mm) 1,586/ 1,627 1,586/ 1,627
Kerbweight (kg) From 1,650 From 1,665
Boot volume (litres) 315/ 407 with/without parcel tray 196.2
Fuel tank (usable) litres 70 70
PERFORMANCE &
FUEL ECONOMY

0-60mph (sec) 4.0 4.0
0-100km/h (sec) 4.2 4.2
Top speed mph (km/h) 186 (300) 186 (300)
Fuel consumption mpg
(litres/100km) EU combined
26.4 (10.7) 26.4 (10.7)
CO2 emissions (g/km)
EU combined
255 255

Manufacturer’s figures; correct at time of going to press.

TECHNICAL DATA

  F-TYPE R AWD Coupé F-TYPE R AWD Convertible
ENGINE & TRANSMISSION
Engine capacity (cc) 5,000
Cylinders V8 Supercharged
Valves per cylinder 4; DOHC
Bore/ stroke (mm) 92.5/ 93.0
Compression ratio 9.5:1
Fuel injection 150bar direct injection
Power PS (kW) 550 (405) @ 6,500rpm
Torque Nm (lb ft) 680 (502) @ 3,500rpm
Transmission 8-speed Quickshift
Gear ratios (:1)
1st 4.714
2nd 3.143
3rd 2.106
4th 1.667
5th 1.285
6th 1.000
7th 0.839
8th 0.667
Reverse 3.317
Final Drive ratio 2.56
CHASSIS
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Twin-piston sliding caliper; 380mm ventilated discs
Rear brakes Single-piston sliding caliper; 376mm ventilated discs
Steering Rack-and-pinion; electromechanical
DIMENSIONS
Length (mm) 4,470 4,470
Width excl. mirrors (mm) 1,923 1,923
Height (mm) 1,314 1,311
Wheelbase (mm) 2,622 2,622
Track front/ rear (mm) 1,586/ 1,627 1,586/ 1,627
Kerbweight (kg) From 1,730 From 1,745
Boot volume (litres) 315/ 407 with/without parcel tray 196.2
Fuel tank (usable) litres 70 70
PERFORMANCE &
FUEL ECONOMY

0-60mph (sec) 3.9 3.9
0-100km/h (sec) 4.1 4.1
Top speed mph (km/h) 186 (300) 186 (300)
Fuel consumption mpg
(litres/100km) EU combined
25.0 (11.3) 25.0 (11.3)
CO2 emissions (g/km)
EU combined
269 269

Manufacturer’s figures; correct at time of going to press.

Jaguar F-TYPE 2016 Model Year Prices

Convertible

Model Engine Transmission OTR Price
F-TYPE 3.0 V6 Supercharged 340PS RWD Manual £56,735
RWD Auto £58,535
F-TYPE S 3.0 V6 Supercharged 380PS RWD Manual £65,735
RWD Auto £67,535
AWD Auto £72,385
F-TYPE R 5.0 V8 Supercharged 550PS RWD Auto £92,285
AWD Auto £97,135

Coupé

Model Engine Transmission OTR Price
F-TYPE 3.0 V6 Supercharged 340PS RWD Manual £51,250
RWD Auto £53,050
F-TYPE S 3.0 V6 Supercharged 380PS RWD Manual £60,250
RWD Auto £62,050
AWD Auto £66,900
F-TYPE R 5.0 V8 Supercharged 550PS RWD Auto £86,800
AWD Auto £91,650

f-type r cab gif
