2016 RINSPEED Etos Concept – Self-Driving, Drone-Launching Technical Tour de Force



Rinspeed ETOS ZF TRW retracting steering wheelThe RINSPEED concept for 2016 is out, with highly advanced digital-car tech of the future taking a front seat for nearly every technical element of the machine.

And if there were a back seat in the Etos, the two occupants could both chill back there while the self-driving tech takes over, sinks the steering wheel into the dashboard, and performs fully autonomous self-driving.

A basis on the BMW i8 platform means that style, to some extent, has taken a back seat to tech this year.  This means the BMW kidney grilles are replaced up front by ultralight plastics and 3D-effect woven plastic grilles to house the machine’s extensive DARPA-tastic laser, radar and lidar area array scanner suite.  All in an effort to recreate every detail of the road ahead in a language the computers can read, process and react to within milliseconds.    This grille from Barlog is pretty interesting up close, where it looks like glass-shrouded carbon fiber. From afar, just blacked-out glass is the look. But in reality: the entire upper grille piece is just advanced plastic.  (More on the style below.)

The list of upgraded component sets is deep: perhaps two dozen new tech innovations live within the subtle, almost shapeless look of the car outside.  Examples?   The glass roof and drone landing pad in the back deck of the car are Gorilla glass from Corning — the extremely strong and thin glass best known from certain smartphones.   Beneath that integrated DJI drone in back, 12,000 LEDs by Weidplas make the landing pad triple functional: it can also be a display message board, digital TV or even a dance floor…

The drone integration is pretty cool. The idea is to have full systems integration with an owner’s schedule. How?

Two errands on your to-do list for the commute home from work. They are in opposite directions, and one is gridlocked in traffic and would take hours to fetch.  Solution?  You do the easy errand, while the drone flies traffic-free to pick the tricky errand!  Then it meets you back at the house on en route, landing smoothly on its pad while you thrumm home.  1.5-liter turbo triple with lithium-polymer batteries scoots the Etos to 62-mph in just 4.4-seconds, and can also double as a battery backup for your house.

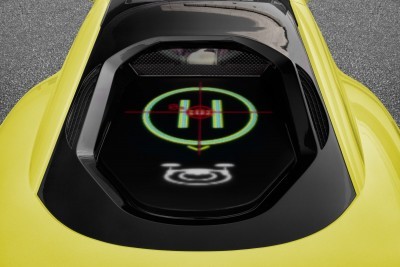

Many, many futuretech ideas on the Etos.   They are too many to detail here, but should make many friends at the Consumer Electronics Show in Las Vegas in January.  Check out the full writeup and tech details in the official literature below.Rinspeed ETOS Gorilla LED landing pad

Two closing thoughts:

— the name:  Etos is just a crude conversion of the car’s real name: the Ʃtos.  Using the Greek letter for ‘Sigma,’ the symbol also denotes summation in mathmatics.  The theme is that the car is more than the sum of its parts — a revolution in what tech suppliers are making available for manufacturers (including BMW) in the very near future.

— the style:   We’re having a hard time swallowing the uncomfortably generic, yet also uniquely off-putting designs outside and in.   We wish RINSPEED had spent more time on a unique design and upgraded performance, and a bit less time on partner tech experiments.  The cabin in particular is alarming — it seems like sensory overload.ETOS cabin animation









2016 RINSPEED Etos



CES Las Vegas 2016: Rinspeed demonstrates future possibilities and raises future questions with the self-driving “Ʃtos” concept car

On the road with my personal autopilot and drone – future here I come!

It’s show time in the gamblers’ paradise Las Vegas: For the first time ever, Frank M. Rinderknecht, boss of the Swiss idea smithy Rinspeed, celebrates a world premiere outside his Alpine home with the hybrid sports car “Ʃtos.” The automotive visionary says: “The digital world will provide the major and above all the disruptive innovations in automotive engineering. That is why nowadays all major car manufacturers and suppliers are present at the CES Consumer Electronics Show.”

As always, the Swiss mastermind approaches the mega topic of “self-driving cars” primarily from the perspective of the driver and the occupants, the human component. And as always, he garnishes his concept with a host of inspiring and emotionally appealing highlights. In so doing, the automotive thinker together with consulting firm EY expressly puts one question on the agenda that is bound to occupy us for quite some time: How much human component should, must or may there be in a machine? Everyone involved realizes that answering this question requires merging expectations, tolerances and acceptance. There are countless unsettled issues, for example the morals and ethics of a machine, that need to be resolved. In addition, the means for the technical realization also must be developed. Rinderknecht ventures a prediction: “This process will likely lead to an adaptive, learning and intuitive control software. But it will be a long rocky road.”

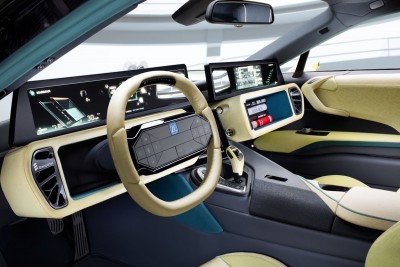

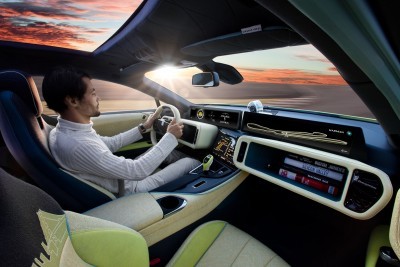

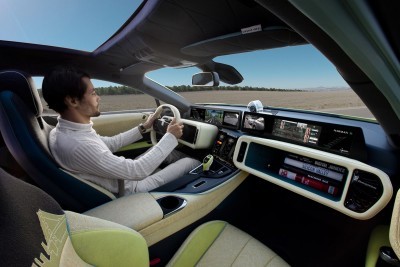

The technical highlight in the interior of the “Ʃtos” is no doubt the folding and retracting steering wheel from ZF TRW. As if by magic, it disappears in the dashboard in a few seconds. This creates lots of space in front the driver who can grab and read a book in comfort the old-fashioned way or can work in a relaxed atmosphere. The position of the two curved 21.5-inch Ultra HD widescreen monitors is individually adjustable to provide an even better view of the displayed contents.

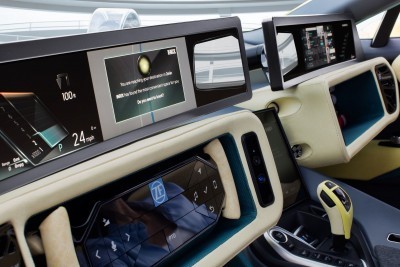

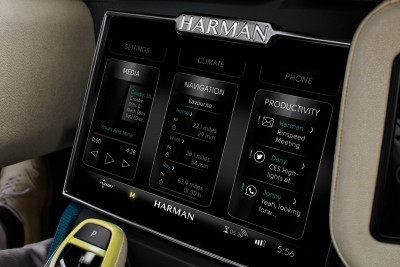

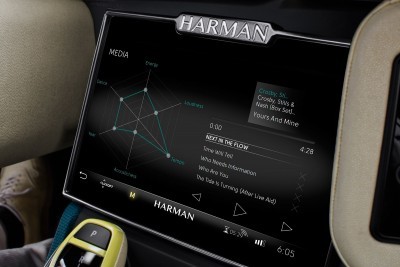

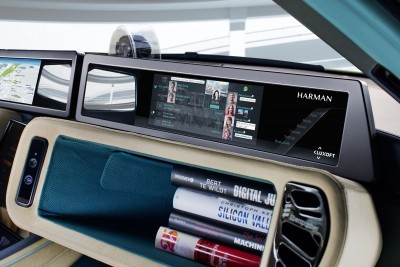

A matching fit is provided by the unrivalled infotainment experience that the innovative Harman Connected Car technologies conjure up in the vehicle. Just like a personal assistant, the system thinks along, is courteous, anticipates needs and on top of that provides perfect entertainment, connectivity and maximum safety. Destinations, route selection, tourist attractions, refueling, parking, making phone calls, music, videos or personal preferences – with every mile the “Ʃtos” gets to know the appointments, wishes and needs of the occupants better and in a flash proactively offers up the particular fitting selection options. This drastically reduces the number of distracting manual entries – despite significantly expanded functions. Should it nonetheless be necessary to enter a command, the “Ʃtos” responds promptly to voice commands, gestures, touch input, controller or the push of a button.

A total of eight HD exterior cameras visually monitor the vehicle surroundings completely. This makes impressive 180-degree panoramic views in front of the vehicle and behind possible and provides virtual “exterior mirrors” with an expanded field of vision that has no blind spots. People and objects in the entire vehicle surroundings are detected and tracked automatically. If they represent an accident hazard, the driver receives an appropriate warning. In tricky situations such as in parking garages, the so-called “Curb View” is activated automatically. It offers a “direct” view of the front wheels and thus helps prevent unwanted contact with curbs or other obstacles. The vehicle navigation also offers entirely new detail views. In parking garages, it directs drivers directly to a previously reserved parking space.

Along the route, it displays realistic 3D images of buildings, trees, bus stops, subway stations and other distinctive waypoints. The roads and lanes have been scanned with pinpoint precision – an essential prerequisite for autonomous driving. Linking information about the route and the cell phone reception results in the passengers in future not only knowing where and how long they can expect to make phone or video calls without interruption, the technology also allows smooth media streaming as well as efficient and targeted vehicle updates. The seamless link to the traffic infrastructure such as traffic lights or traffic management systems and to other cars, especially emergency response vehicles, lets drivers and the vehicle look far beyond their own horizon and even through obstacles. The so-called ‘E-Horizon’ provides innovative safety and convenience features such as precise warnings of wrong-way drivers or simply gliding along smoothly in sync with the phased traffic lights. Speaking of seeing: The gaze-tracking system of the “Ʃtos” permanently monitors the driver’s eye movements and as a result, the vehicle not only knows what the driver has seen, but also what he has failed to see. This allows custom tailoring the displayed warnings and notifications. For precisely this reason, the electronic exterior mirrors only display an image when the driver consciously checks them. The HMI was designed and programmed by Luxoft. Georg Fischer Automotive supplied the aluminum lightweight-construction frame for the three displays.

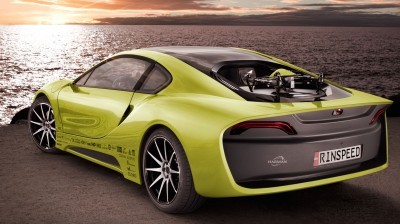

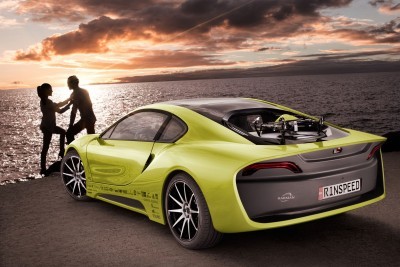

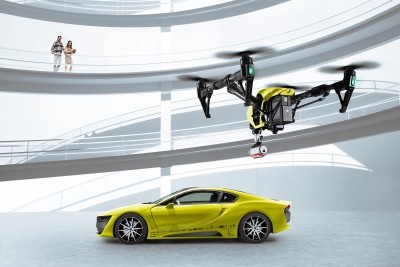

As always, the Helvetian think tank, which following an old tradition once again commissioned the Swiss colleagues of 4erC to design the twenty-second concept car and Esoro to handle the technical realization, explores the existing digital possibilities – and demonstrates new ones. The “Ʃtos” is fitted with an on-board DJI drone complete with landing platform in the rear. An armada of 12,000 individually controlled LEDs can transform this platform into an electronic message board or a visual dancefloor. This technical marvel was designed by Swiss specialist Weidplas, which is also behind the rear window that has been converted into a third brake light and the brilliant seat inlays. The drone itself is capable of providing some very useful services. For example, it can quickly pick up a bouquet of flowers for the significant other ordered on the way home. And the little flyer is a lot of fun when it acts like a UFO, shooting a selfie of the ride in the “Ʃtos” on your local favorite route and streaming it live to friends. Heads up: that little thing has an extremely high addiction and envy factor!

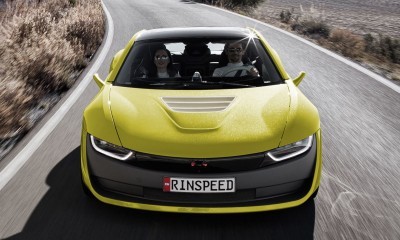

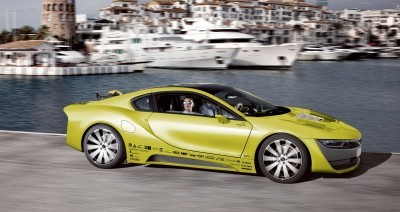

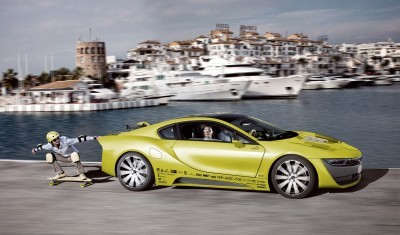

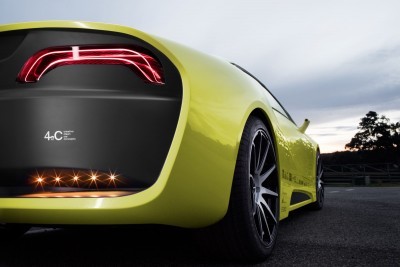

The elegantly and futuristically styled “Ʃtos” – on the technical basis of the BMW i8 – is a sustainable but also a fast racer. The deep black and shiny 20-inch Borbet GTX aluminum rims leave no doubt about that. They give the body an imposing visual width and provide perfect handling on the track. To make the athlete as light as possible, Corning manufactures the glass roof and the “drone pad” in the rear from especially strong, lightweight and thin Gorilla glass, the same kind used in smartphones. The aluminum front structure and the carbon fiber passenger cell are joined together with ultra-high-modulus adhesive from Sika.

No question, Rinderknecht not only plays the role of the visionary, but also that of the magician in Las Vegas. And since a great show also goes hand in hand with unusual eye-catching packaging, the Swiss national uses ceramics and metal alloys in the “Ʃtos.” They are applied at temperatures above 20,000 degrees Celsius and at supersonic speed. The result is a unique appearance, a new touch and feel and a novel functionality that are all unprecedented in automotive construction. Apart from delicately designed trim strips, the vehicle sports rims with a titanium protective edge and non-slip titanium pedals. These magic moments come courtesy of the specialists from the German company Putzier Oberflächentechnik. Touch it, feel it – it really is magic!

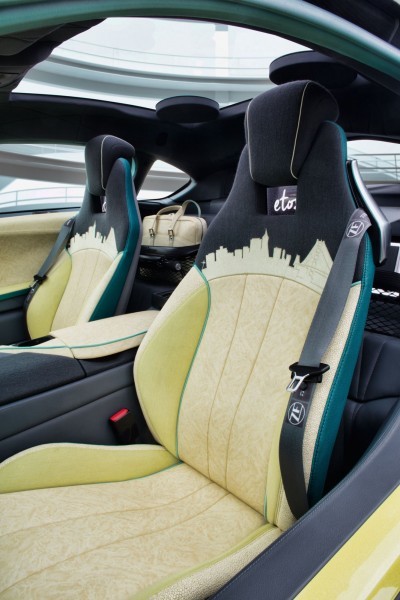

The inviting interior, designed jointly by innovative textiles supplier Strähle+Hess and Stahl Company, the surface specialist for leather and synthetic substrates, forms an unusual and striking compound of natural leather with a variety of characteristics, patterns, functions and surfaces with the equally versatile textiles and piping. This creates a sporty and yet relaxed feel-good atmosphere, adorned with the embroidered skyline of San Francisco. As in past years, Schoeller Spinning Group supplied the high-tech threads for the interior.

The 3D effect finish of the paintwork on the front panel from Barlog plastics creates an exciting and striking visual bridge between the headlamps.

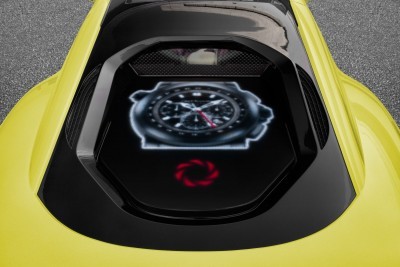

And then tradition merges with innovation: Above it all rises the mechanical Patravi Traveltec clock from Swiss Manufacture Carl F. Bucherer. It sits in a highly prominent position on the dashboard inside a rotating housing that moves automatically to wind the mechanical movement. The delicate housing resembles an airy arch. The camera integrated into the clock support pans directly to the driver or front passenger during video calls. Communication could hardly be more beautiful!

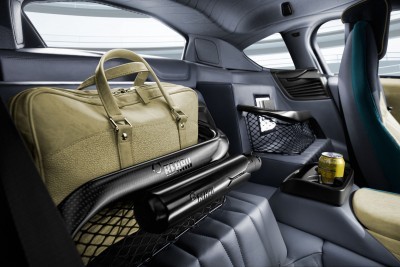

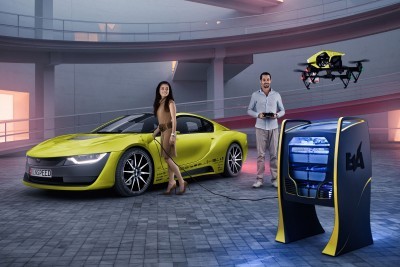

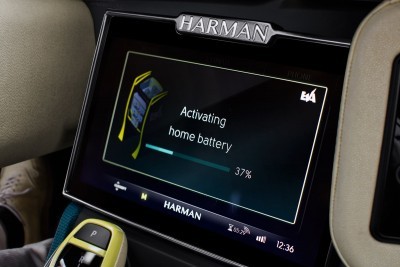

Polymer specialist Rehau developed the innovative lightweight-construction dashboard support and the clever bracket for the luggage shelf with detachable umbrella holder. A particularly efficient electrical heating system from Eberspächer provides cozy warmth in the interior. It also preheats the battery and offers a convenient auxiliary heating function. In keeping with the times, operation is by smartwatch or smartphone. The batteries of the “Ʃtos” are equally state of the art. Thanks to sophisticated technology from EVA Fahrzeugtechnik, they can also have a secondary purpose as a stationary energy storage unit when needed and consequently account for the requirements of the environment.

Connected cars are de rigueur nowadays. In the “Ʃtos,” Rinspeed partners demonstrate what is possible in the area of connectivity today and tomorrow: When it comes to data, perfect transmission and reception quality is essential not only for autonomous driving. The highly advanced octagonal flat antennas from Vites integrated into the glass roof play a crucial role to this end.

Inrix Company shows how a parking space in the city center can be located quickly by analyzing realtime data. The intelligent “Mica” industrial minicomputer from industrial connectivity specialist Harting illustrates how powertrain and engine data can be recorded continuously and transferred to an independent and neutral body such as Dekra, where they can be analyzed and presented depending on the contract previously negotiated between customer and contractual partner. This also makes it possible to lend credibility to odometer readings.

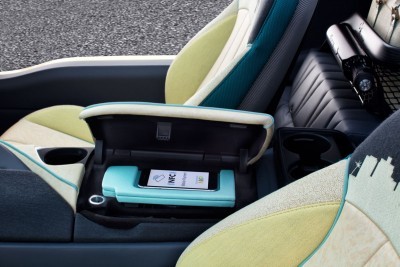

NXP ensures the secure connection of the car and its passengers to the outside world with its intelligent connectivity technologies – an important aspect for the connected self-driving car of tomorrow that must reliably capture its surroundings. This includes radar and car-to-x solutions as well as automatic payment for parking via NFC, wireless cell phone charging, smart access solutions and keyless remotes for unlocking, starting and customizing the vehicle.

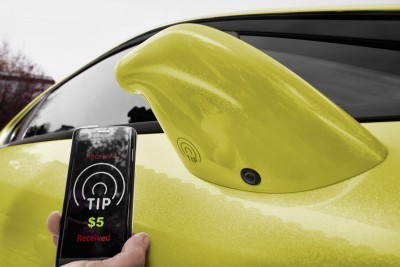

SIX, the Swiss stock exchange and backbone of the Swiss financial market, shows an “on the go” payment system for secure transactions in the “Ʃtos.” Even smaller amounts such as tips can be paid by a small swiping gesture on the exterior mirror.

The tireless Swiss national and his international partners show a first step towards tomorrow’s individual mobility with the “Ʃtos,” staged by Saarbrücken-based Vollmond advertising agency.



The Rinspeed “Ʃtos” celebrates its world premiere at the CES, January 5 to 8, 2016, as part of the exclusive HARMAN event in the Muse Hall of the Hard Rock Hotel in Las Vegas. Its European premiere will be at the Geneva Motor Show starting March 1.





Rinspeed Ʃtos


Technische Daten   Technical data
Masse Basisfahrzeug   Measurements Base Vehicle
Länge 4’761 mm Length
Breite 1’969 mm Width
Höhe 1’297 mm Height
Radstand 2.800 mm Wheelbase base vehicle
Leergewicht 1’585 kg Empty weight
Antrieb   Powertrain
Motor 1.5 L Otto + 96 kW Electric – Plug-in hybrid Engine
Systemleistung 266 kW / 362 PS System power output
Systemdrehmoment 570 Nm System torque
Kraftübertragung Allradantrieb / All wheel drive Power train
Batterie 7 kWh Lithium-Polymer Battery
Energie-Speicherung EVA Fahrzeugtechnik Energy storage
Werte   Performances
Höchstgeschwindigkeit 250 km/h Top speed
Beschleunigung 0-100 km/h 4.4 s Acceleration 0-100 km/h
Reichweite elektrisch ca. /app. 37 km Electric range
Fahrzeugaufbau   Vehicle setup
Karosserie CFK Struktur mit Aluminium-Crashstruktur

CFK with Aluminum base structure

Body
Plätze 2 Places
Antennentechnik Vites Antenna technology

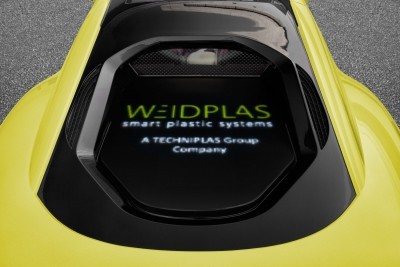

Beleuchtungsflächen Weidplas Lighting panels
Beglasung Corning Glazing
Dichtungen Sika Automotive Sealants
Innenraum-Design Stahl / Strähle+Hess Interior design
Innenraum-Materialien Stahl / Strähle+Hess / Schoeller Interior materials
Sicherheitstechnologien ZF TRW Safety technologies
Polymer-Lösungen Rehau Polymer solutions
Oberflächentechnik Putzier Surface technology
3D-Effektlackierung Barlog 3D effect painting
Mechanische Uhr Carl F. Bucherer Mechanical watch
Leichtbau-Displayträger Aluminium / Aluminum – Georg Fischer Light-weight display support
Heizung PTC – Eberspächer Heating
Motoren-Datenverarbeitung Harting Engine data handling
Bereifung   Tires
Bereifung vorne + hinten 245/45-20 + 275/40 R 20 Front and rear tires
Felgen vorne + hinten Borbet GTX 8.5×20″ + 10×20″ Front and rear wheels
Verschiedenes   Miscellaneous
Multimedia/Infotainment Harman Multimedia/Infotainment
Graphic Design Luxoft Graphic Design
Bezahlsysteme Six Payment services
Fahrintelligenz Inrix Driving intelligence
Halbleiter-Lösungen NXP Semiconductor solutions
Drohnen-Technologie DJI Drone technology
Alle Angaben ohne Gewähr   All data without guarantee
