2017 Mercedes-AMG C63-S Coupe – Edition One – USA Photoset



What supercoupe has the curb appeal of a true racecar?  That would have to be this new C63 S in its Edition One livery.  These launch specials all share their frozen grey over bright yellow paintwork.  The effect in person is polarizing, sure.  And will this be a gracefully maturing look in ten years?

Who cares!

For now, this is the best — and only?  — way to enjoy the hottest AMG V8TT in a rear-drive layout.  Well, aside from the C-Class sedan and SLC.  And SL proper, actually.

As great and still-awesome as the 4Matic cars are… nothing can replace that knife-edged traction envelope of 469 horsepower heading to one set of wheels.

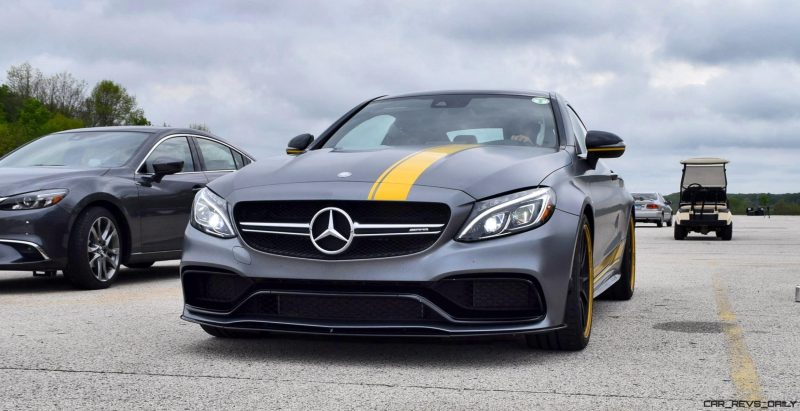

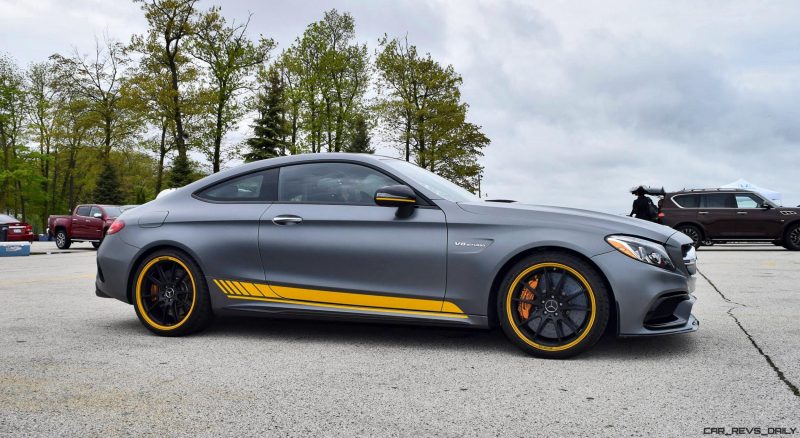

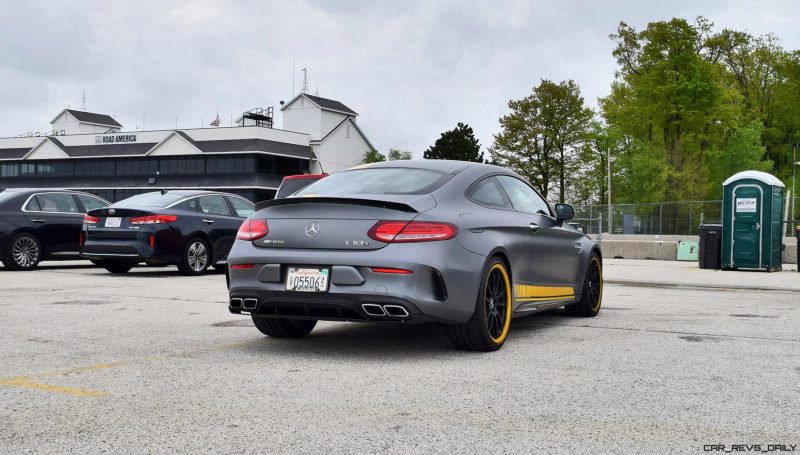

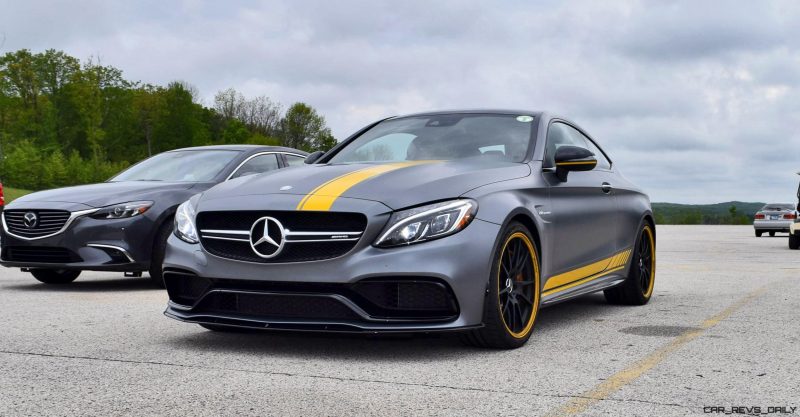

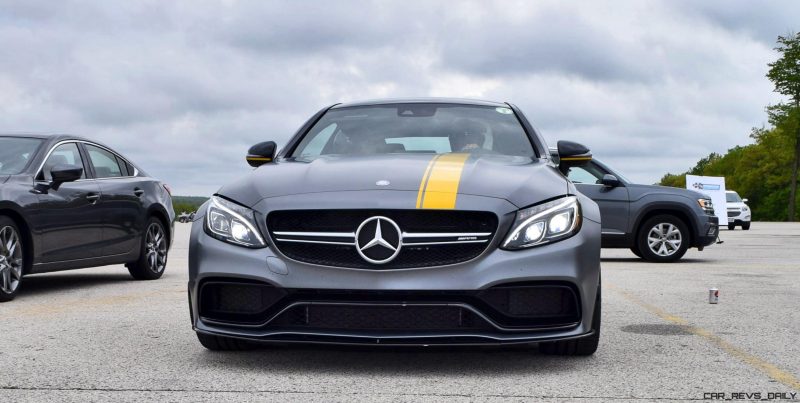

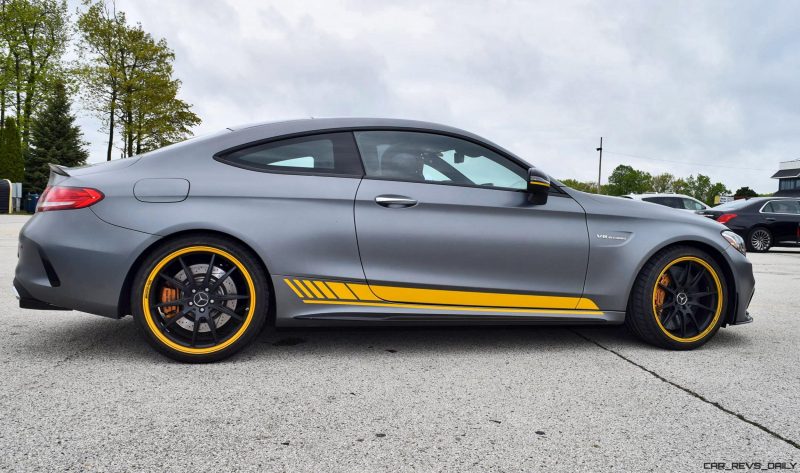

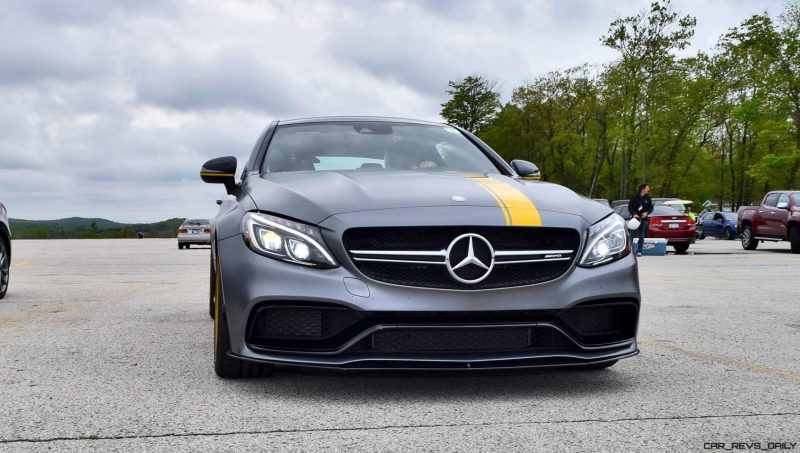

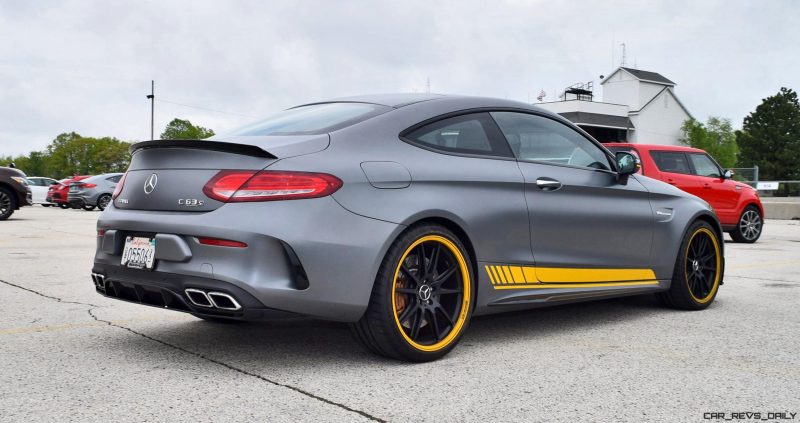

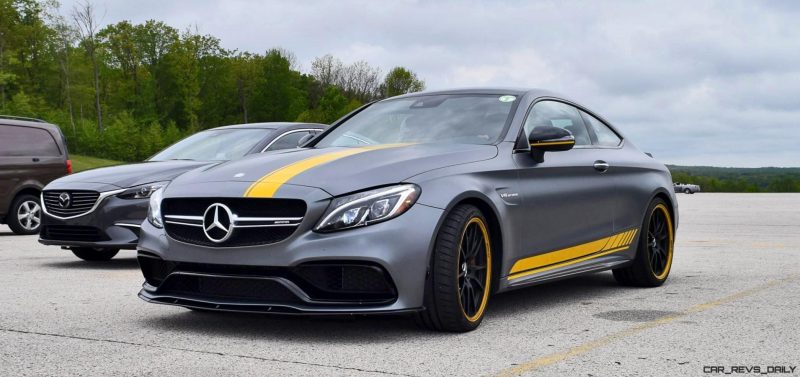

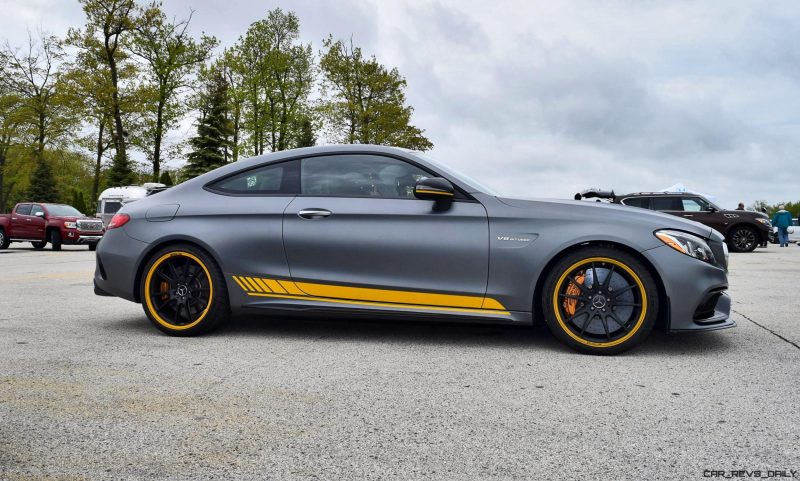

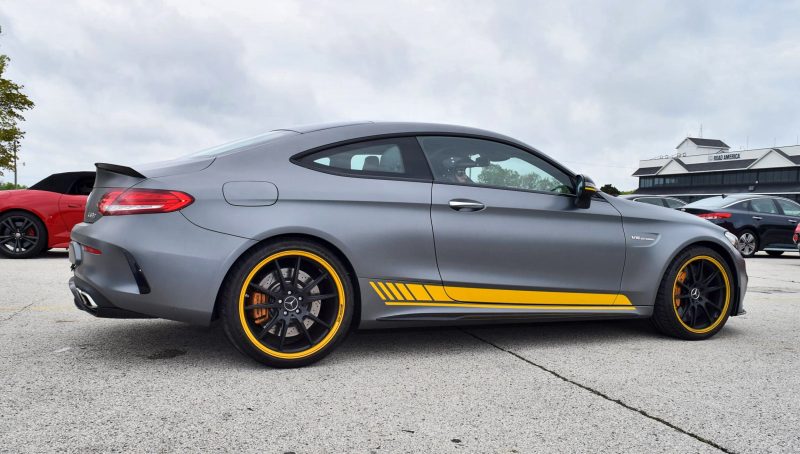

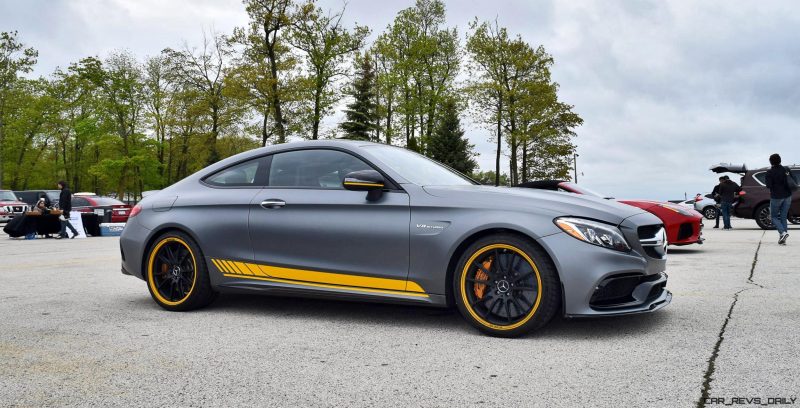

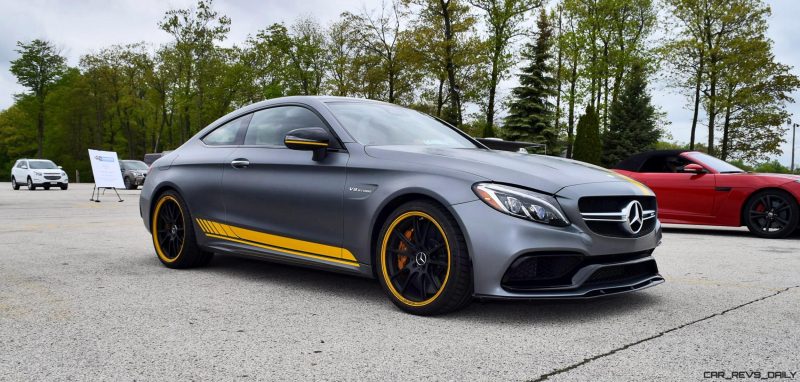

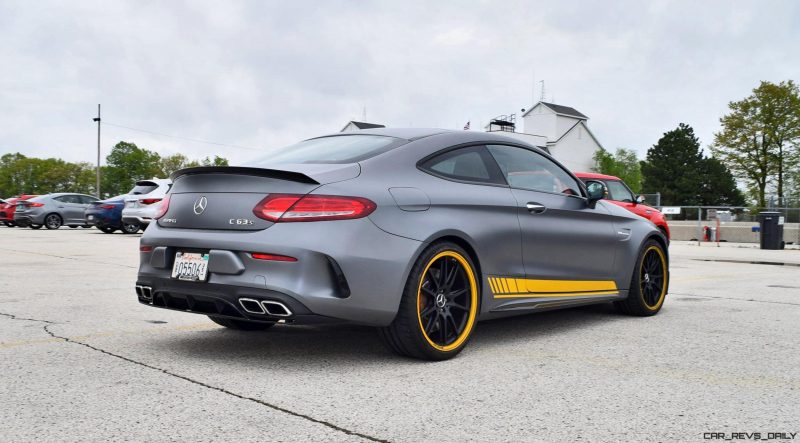

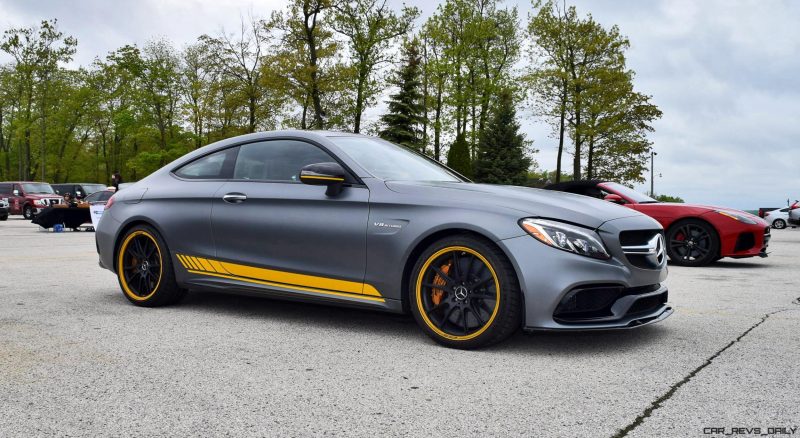

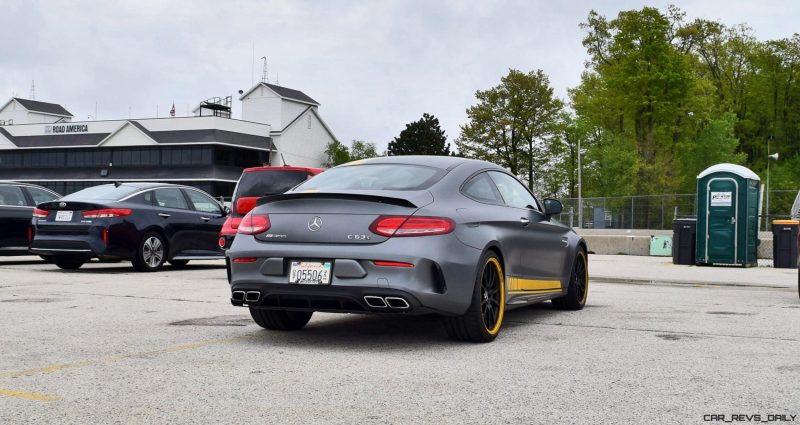

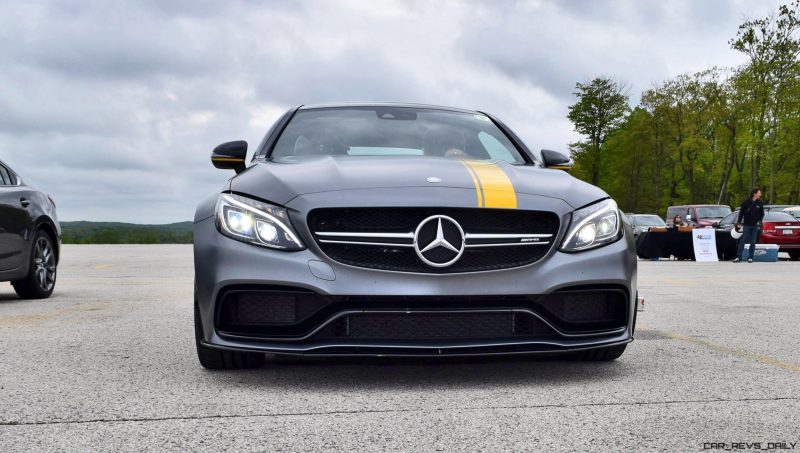

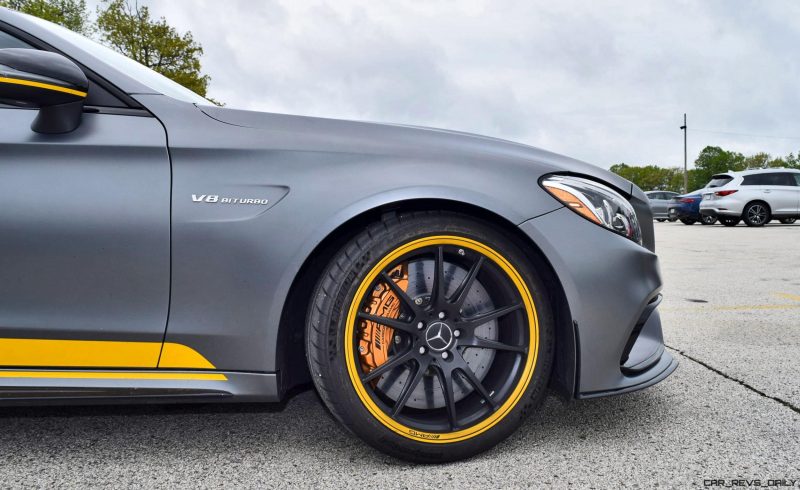

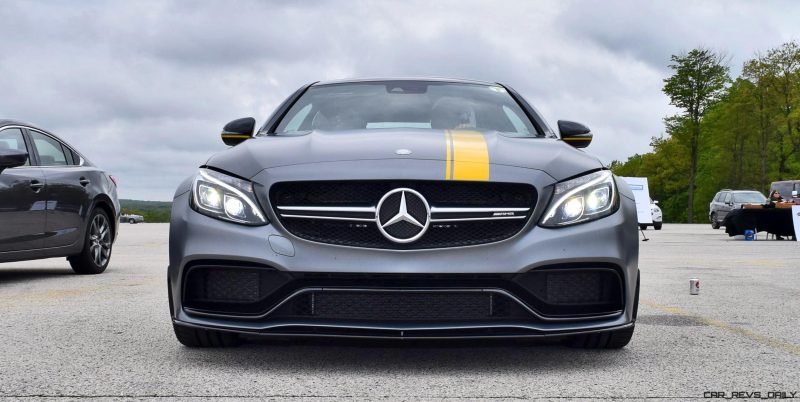

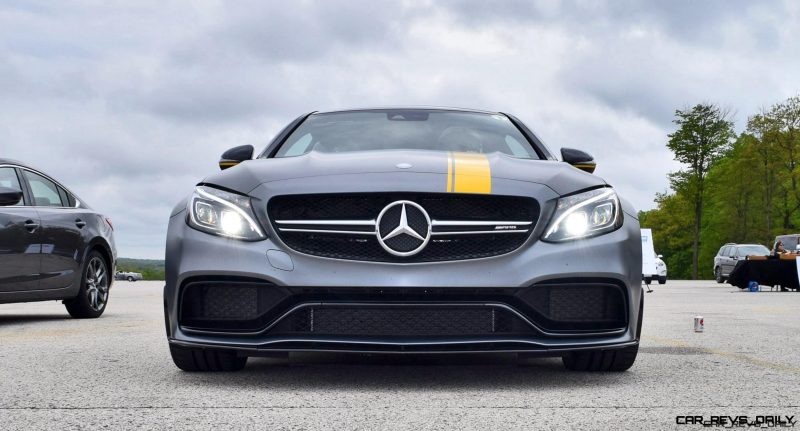

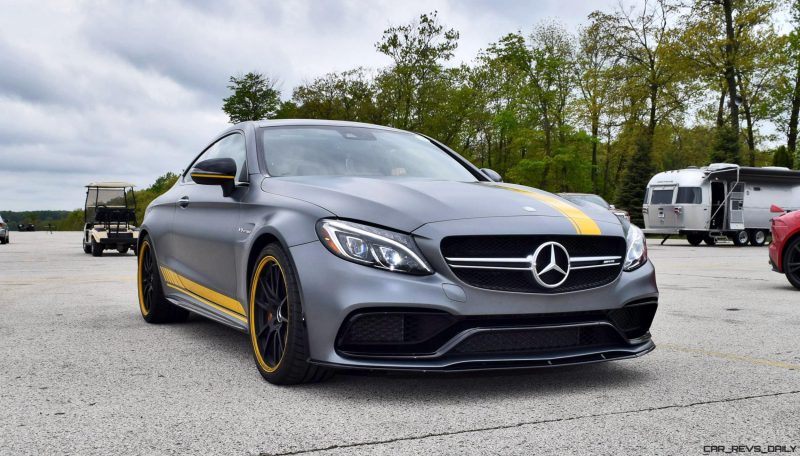

Check out these 25 photos of the car with its factory widebody and aero kit in all their real-life glory below.  Full tech specs included below the gallery too.  Enjoy!



2017 Mercedes-AMG C63-S Coupe



2017 Mercedes-AMG C63 Coupe and C63 S Coupe Specifications

Vehicle Type Two-door, four passenger coupe
Chassis Steel unibody, aluminum outer sheet metal
Drive Configuration Rear Wheel Drive



Exterior Dimensions (in)
Wheelbase 111.8
Length 187.0
Width (w/o mirrors) 73.9
Height 55.2
Track (front / rear) 64.4 / 62.7
Ground Clearance (max load) 4.06
Curb Weight (lbs) 4,074 (C63 S: 4,096)



Interior Dimensions (in)
Head room (front / rear) 38.8 / 35.6
Leg room (front / rear) 42.0 / 32.0
Shoulder room (front / rear) 54.8 / 51.7



Capacities
Cabin Volume (cu-ft) 79.3
Cargo Volume (seats up / down) 10.5 / n/a



Suspension


Front

Independent multi-link suspension with coil spring, single-tube shock absorber with continuously adjustable damping and a tubular torsion bar


Rear

Independent multi-link suspension with coil spring, single-tube shock absorber with continuously adjustable damping and a tubular torsion bar



Steering
Type Speed-dependent, electro-mechanical rack-and-pinion
Ratio 14.1 : 1
Turning Circle (ft) 37.1



Brake Disc Diameter / Thickness (in)
Front 14.2 / n/a (C63 S: 15.4 / n/a)
Rear 14.2 / n/a



Standard Wheels (in)
Front 9.0 x 18 (Cast) (C63 S: 9 x 19 Cast)
Rear 10.5 x 18 (Cast) (C63 S: 10.5 x 19 Cast)



Standard Tires
Front 255 / 40 R18 (C63 S: 255 / 35 R19)
Rear 285 / 35 R18 (C63 S: 285 / 30 R19)



Engine
Engine Type handcrafted AMG 4.0L V8 biturbo
Engine Material Aluminum-Alloy
Valvetrain / Arrangement DOHC, 4-valves per cylinder
Displacement (cc) 3,982
Bore (in / mm) 3.27 / 83.0
Stroke (in / mm) 3.62 / 92.0
Compression Ratio 10.5 : 1
Horsepower @ rpm 469 @ 5,500–6,250 (C63 S: 503 @ 5,500–6,200)
Torque @ rpm 479 @ 1,750–4,500 (C63 S: 516 @ 1,750–4,500)
Redline (rpm) 7,000



Transmission
Transmission Type AMG SPEEDSHIFT MCT 7-speed transmission
Shift Controls Wheel-mounted shift paddles
Gear Ratios:
1st 4.38 : 1
2nd 2.86 : 1
3rd 1.92 : 1
4th 1.37 : 1
5th 1.00 : 1
6th 0.82 : 1
7th 0.73 : 1
Reverse 3.42 : 1
R2 2.23 : 1
Final Drive 3.06 : 1



Performance
0-60 mph (sec) 3.9 (C63 S: 3.8)
Top Speed (mph) 155 (C63 S: 180) (electronically limited)



Fuel Economy
City / Highway / Combined (mpg) 17 / 23 / 19 (C63 S: 17 / 23 / 19)
Fuel Tank (gallons) 17.4



MSRP*
AMG C63 Coupe $67,000
AMG C63 S Coupe $75,000
