2016 Fiat 500X Cross AWD Trim Looking Svelt and Handsome in 75 New Photos



500x cross

Updated 11.17.14

The 500X Cross looks just about *perfect* to answer to wishes of all Fiat dealerships across the US -- compact, city-friendly but now a four-door and arguably a bit more handsome than even the original 500.

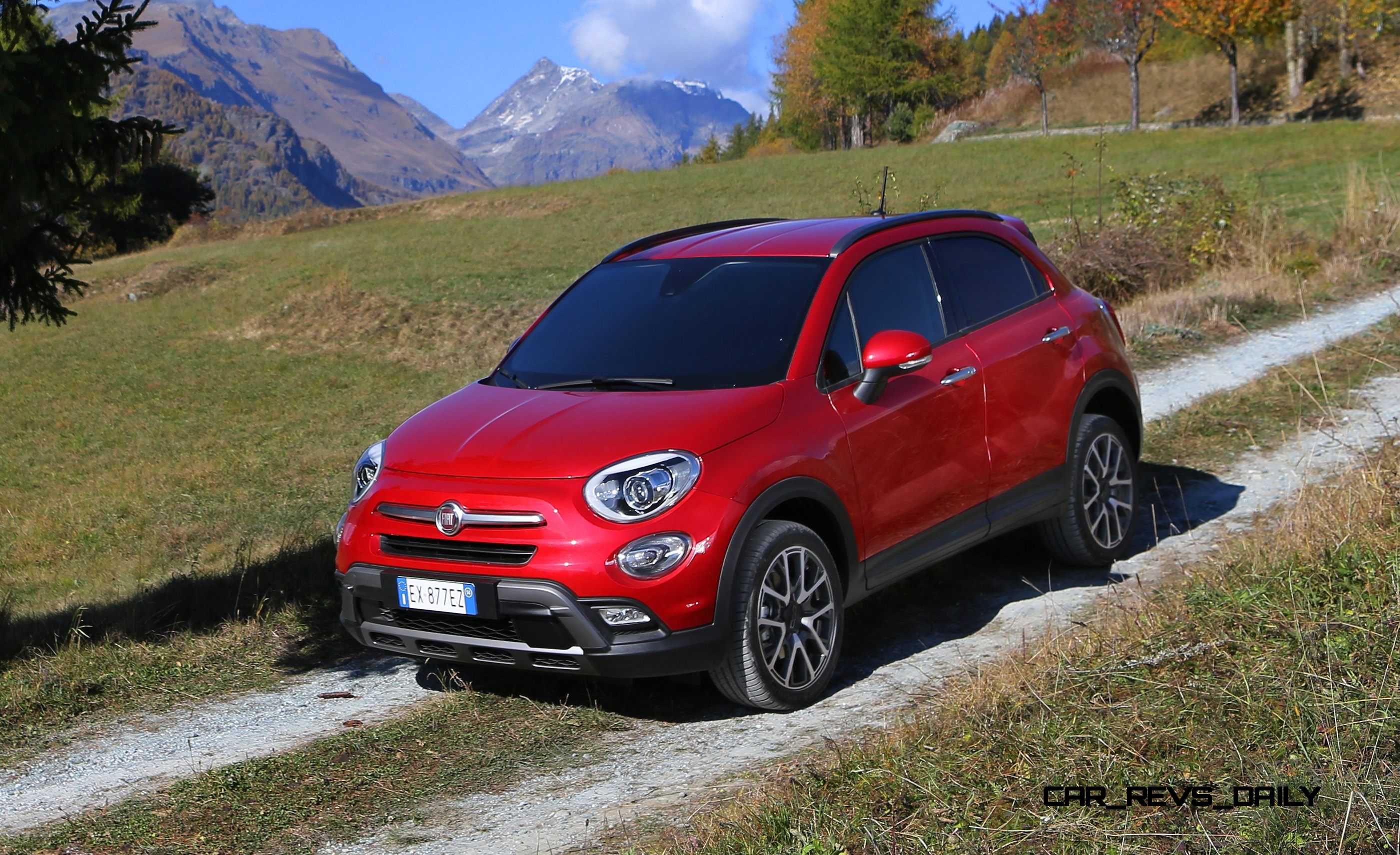

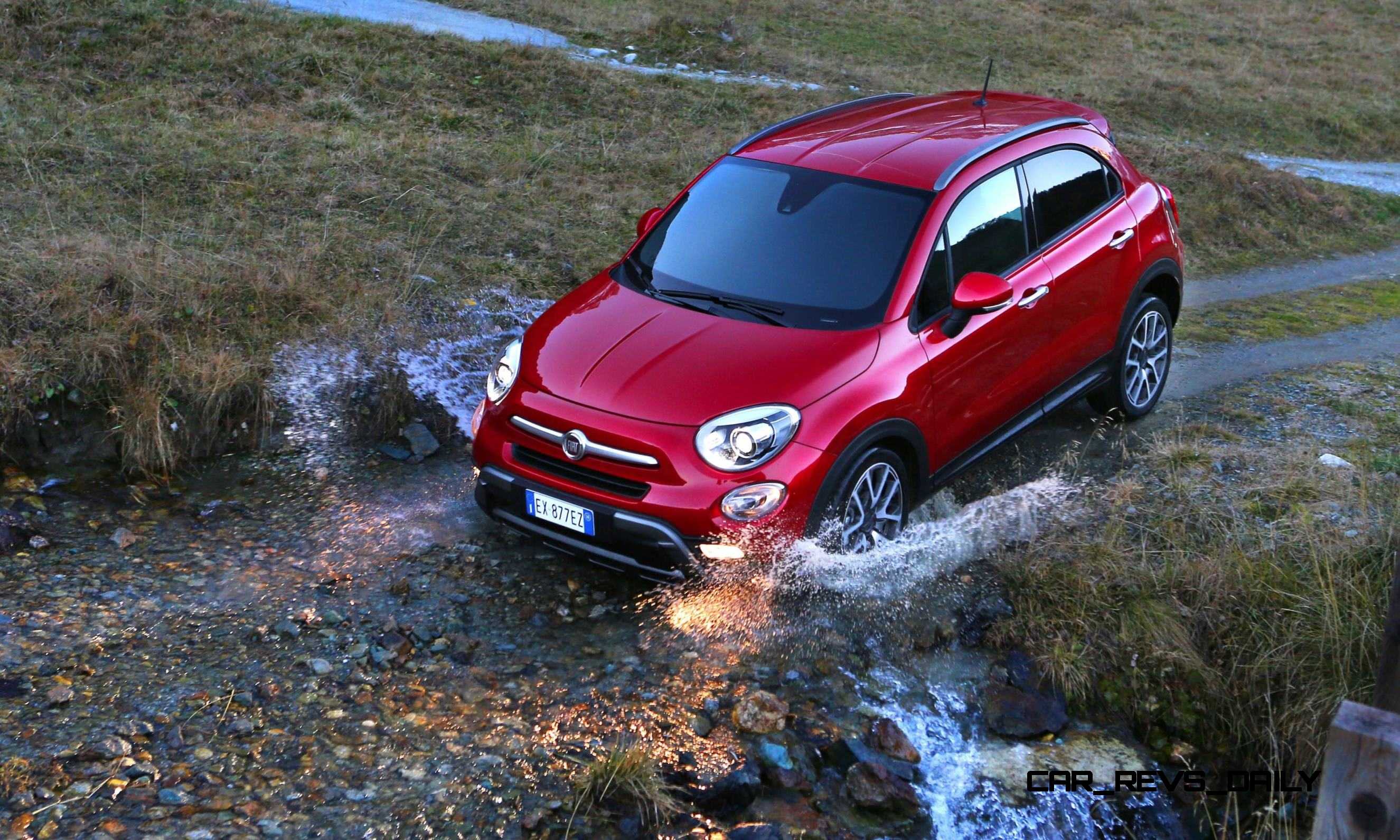

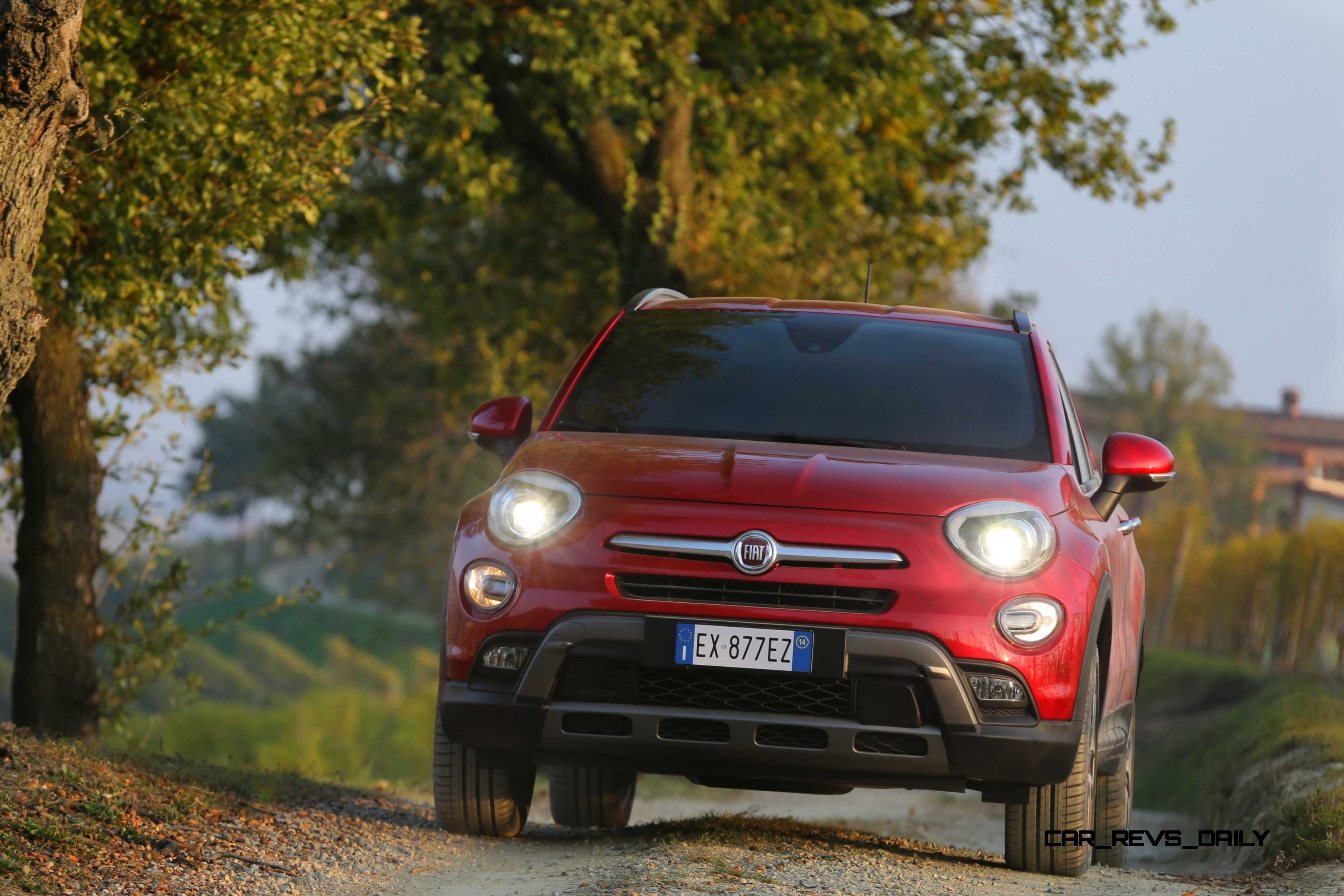

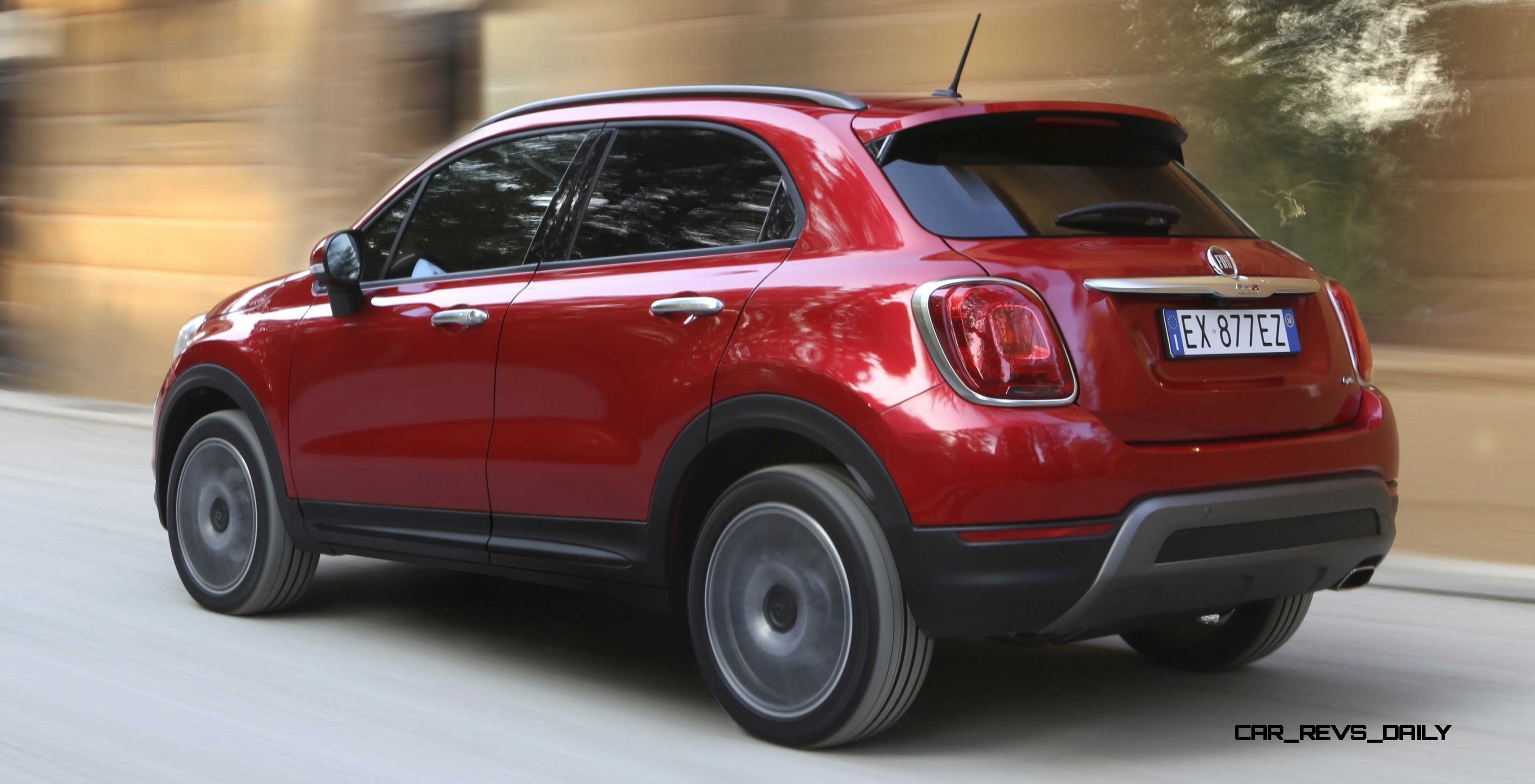

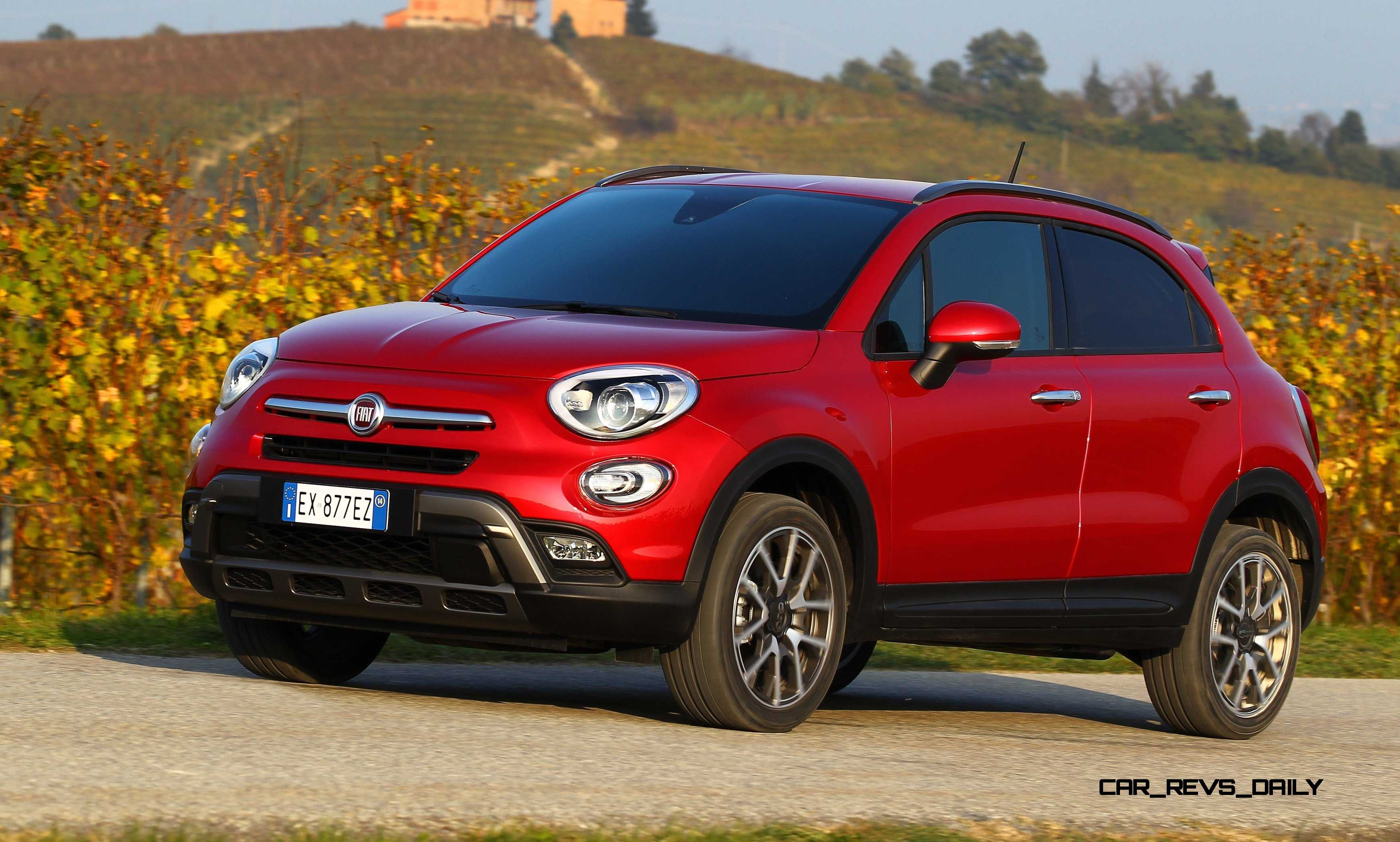

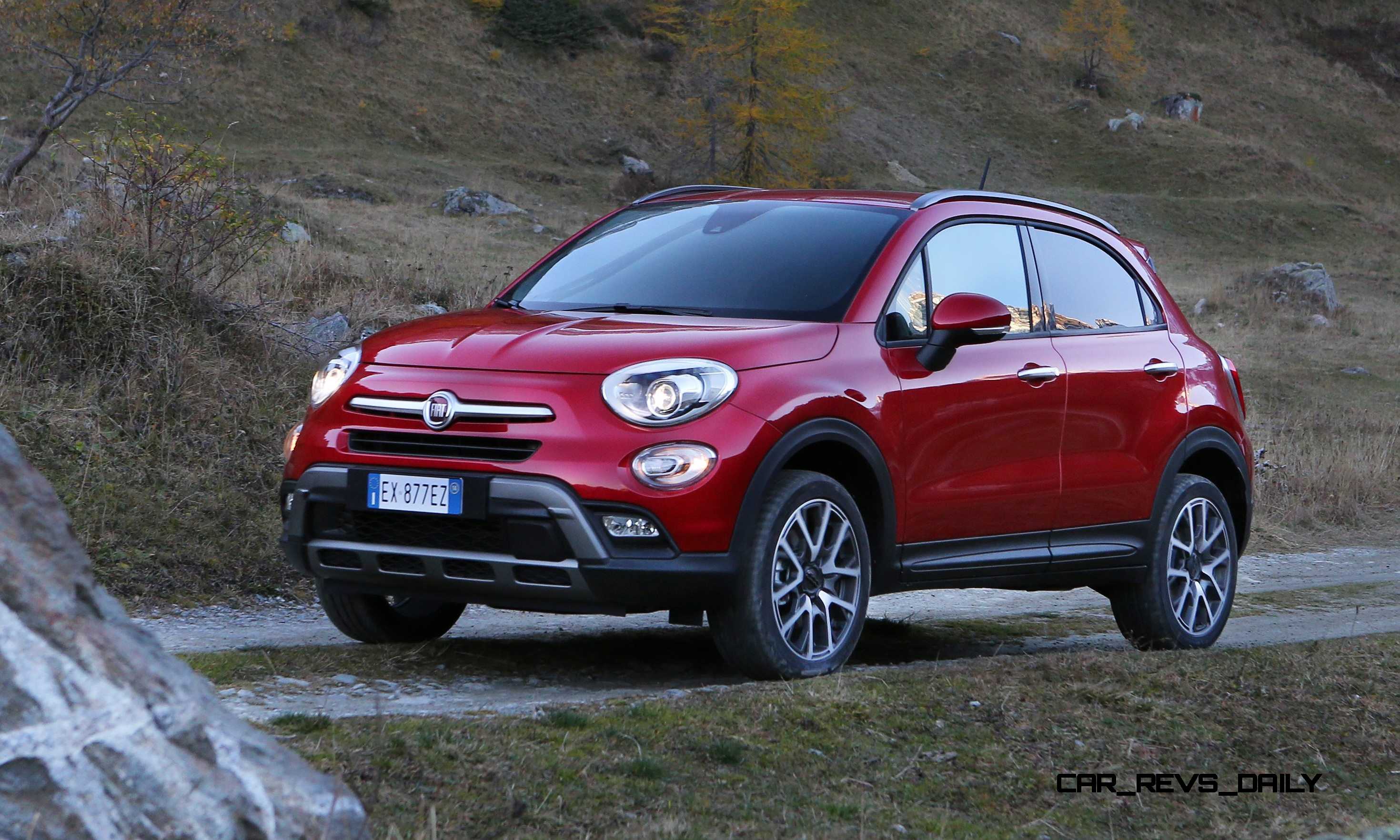

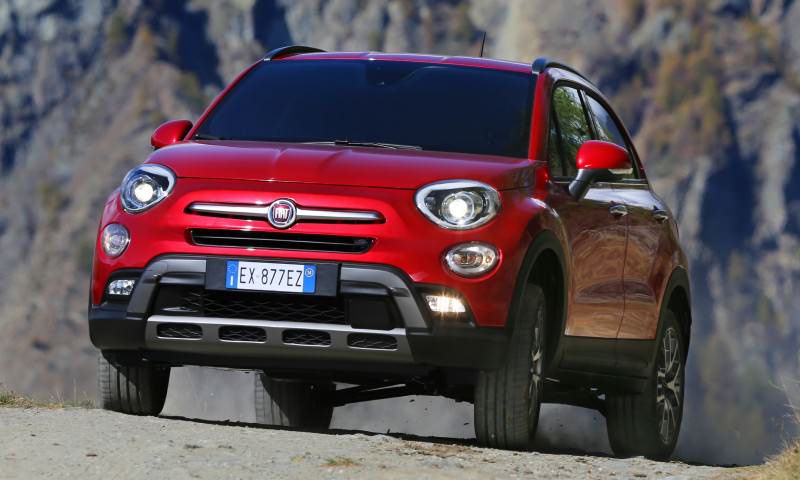

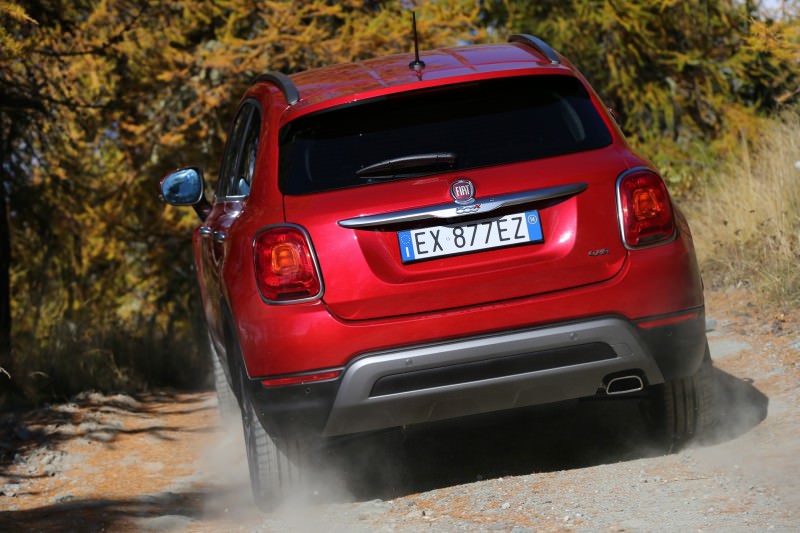

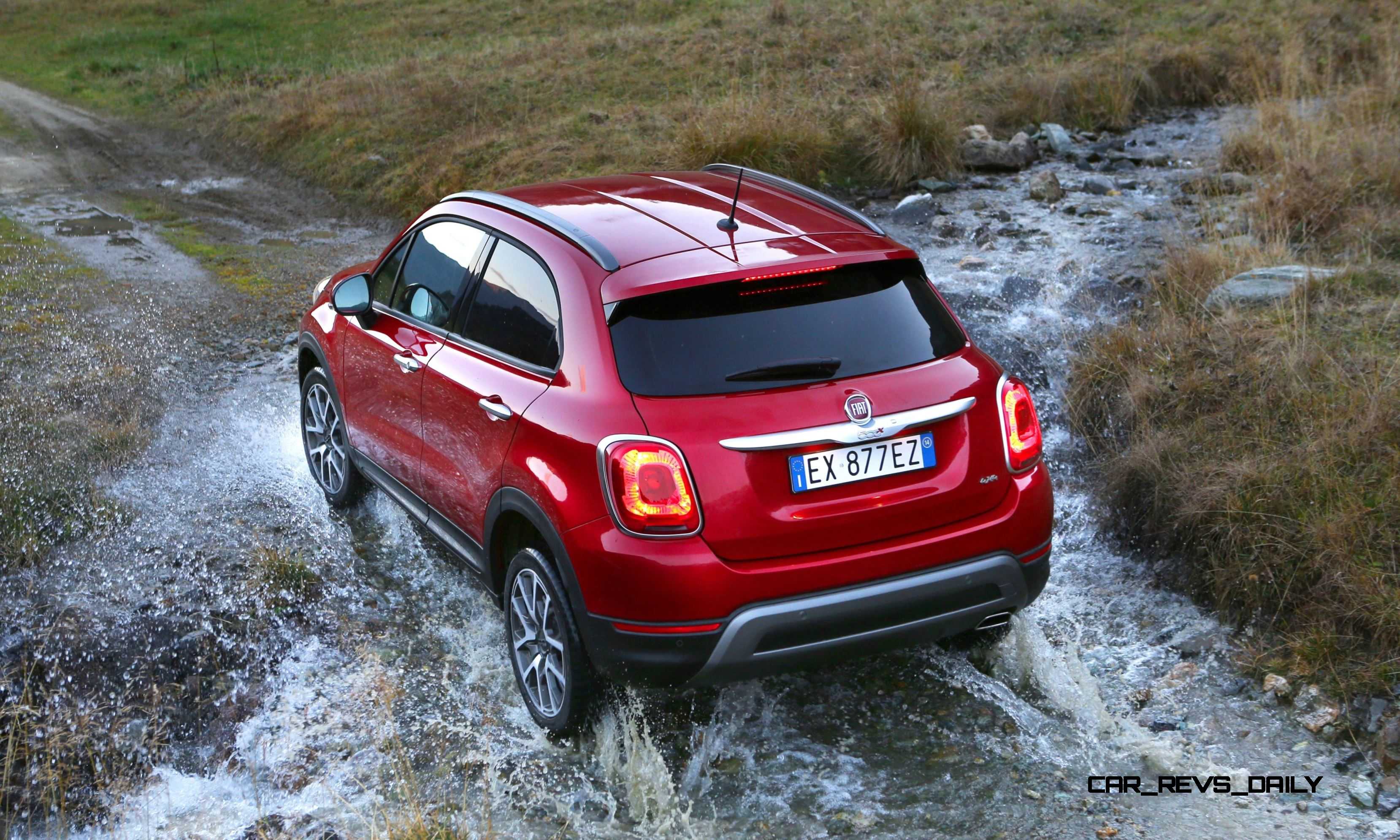

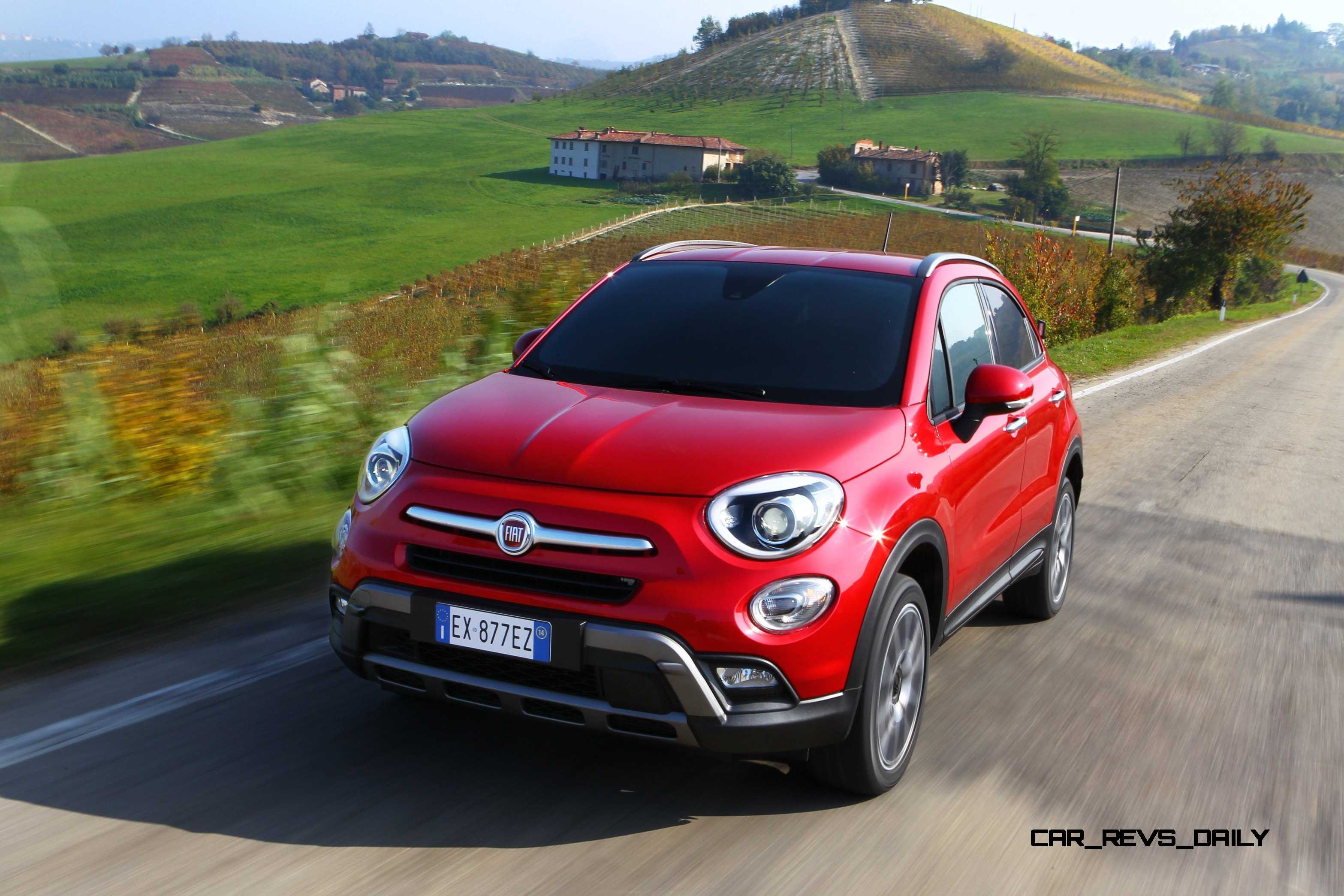

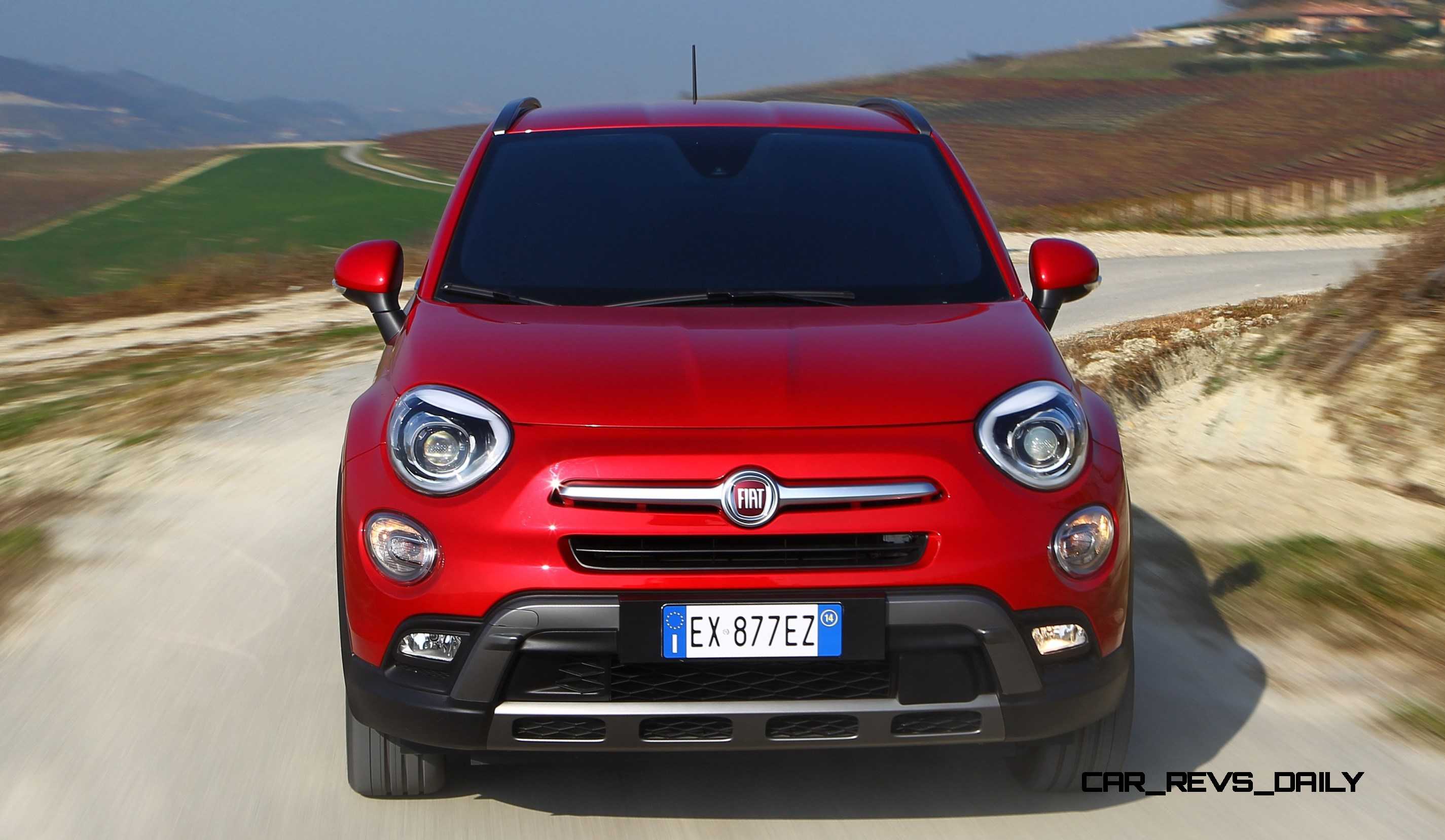

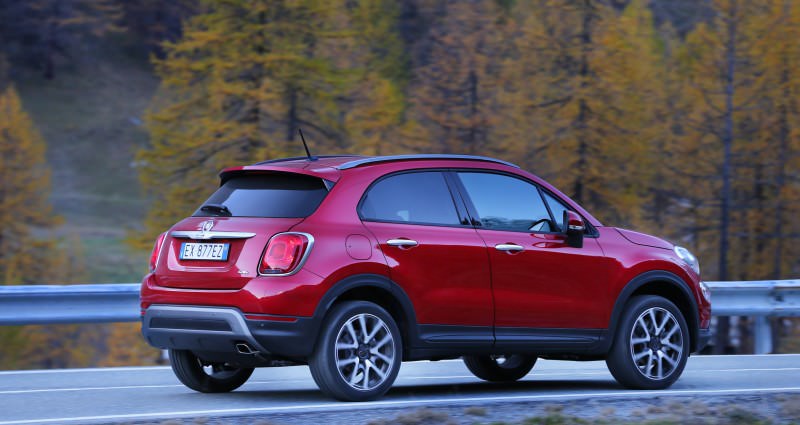

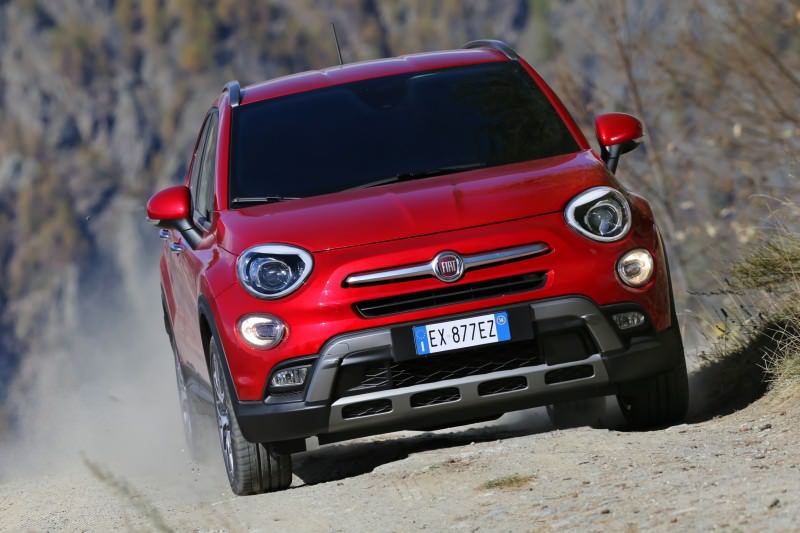

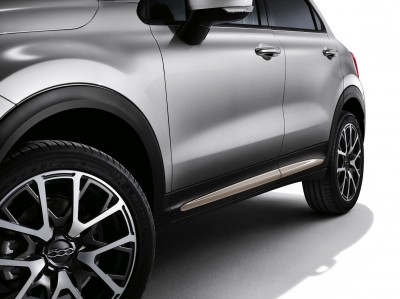

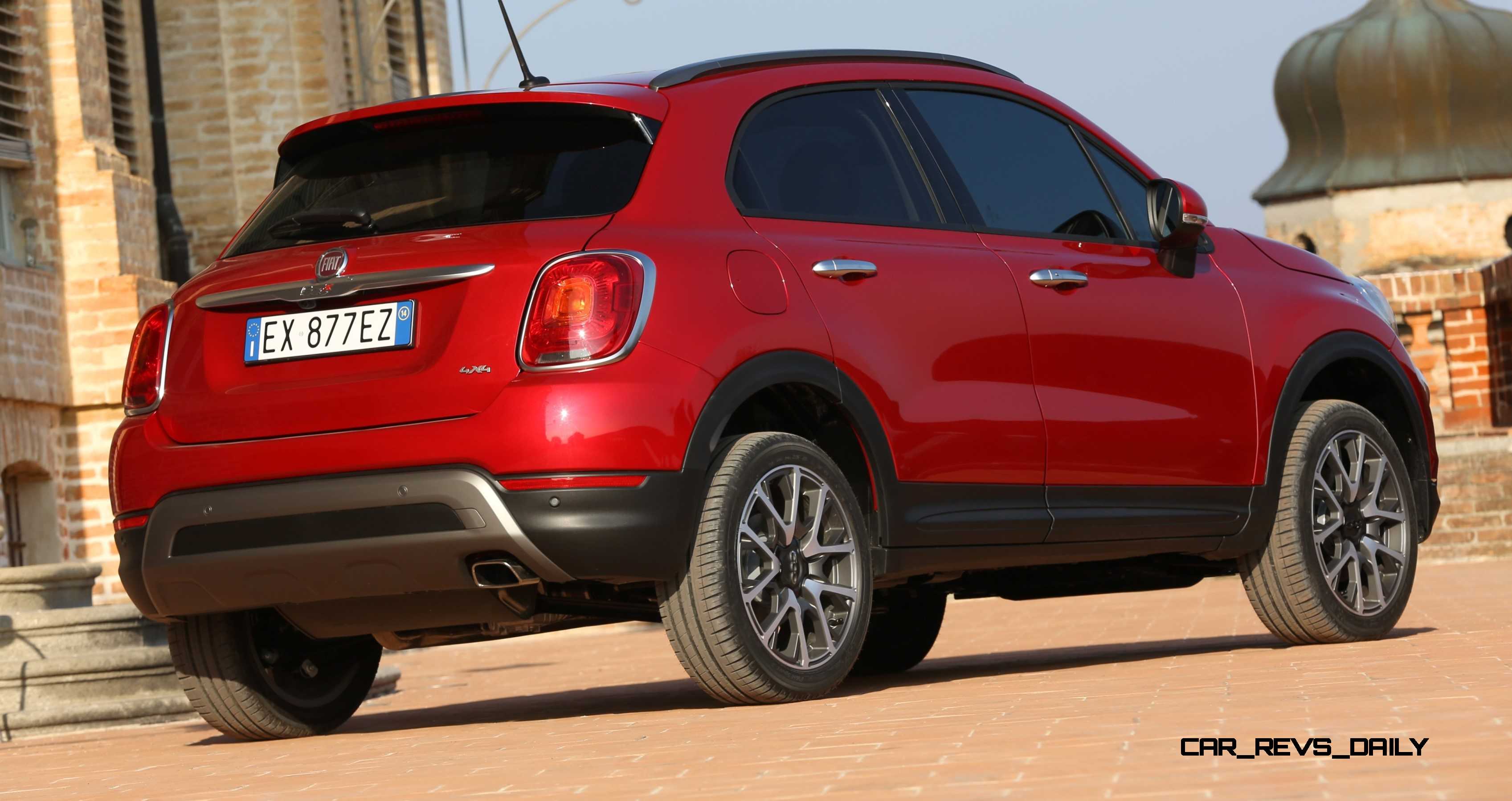

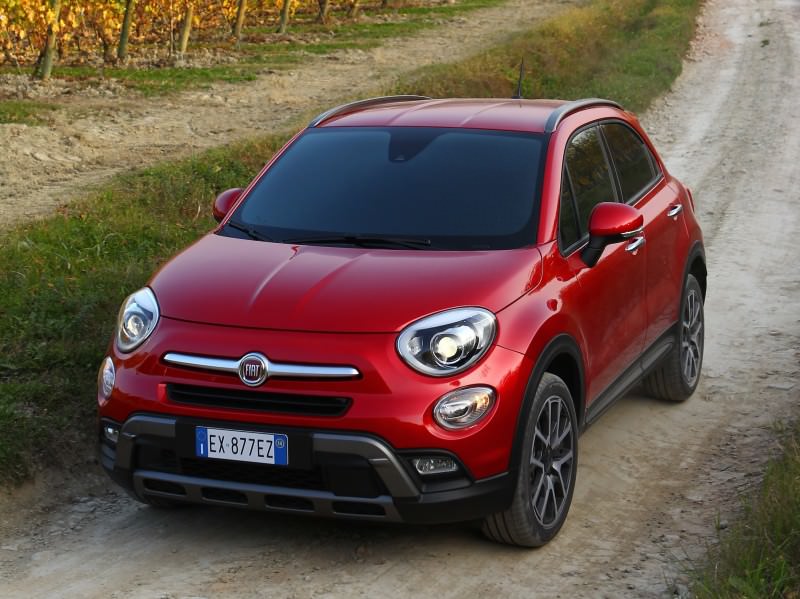

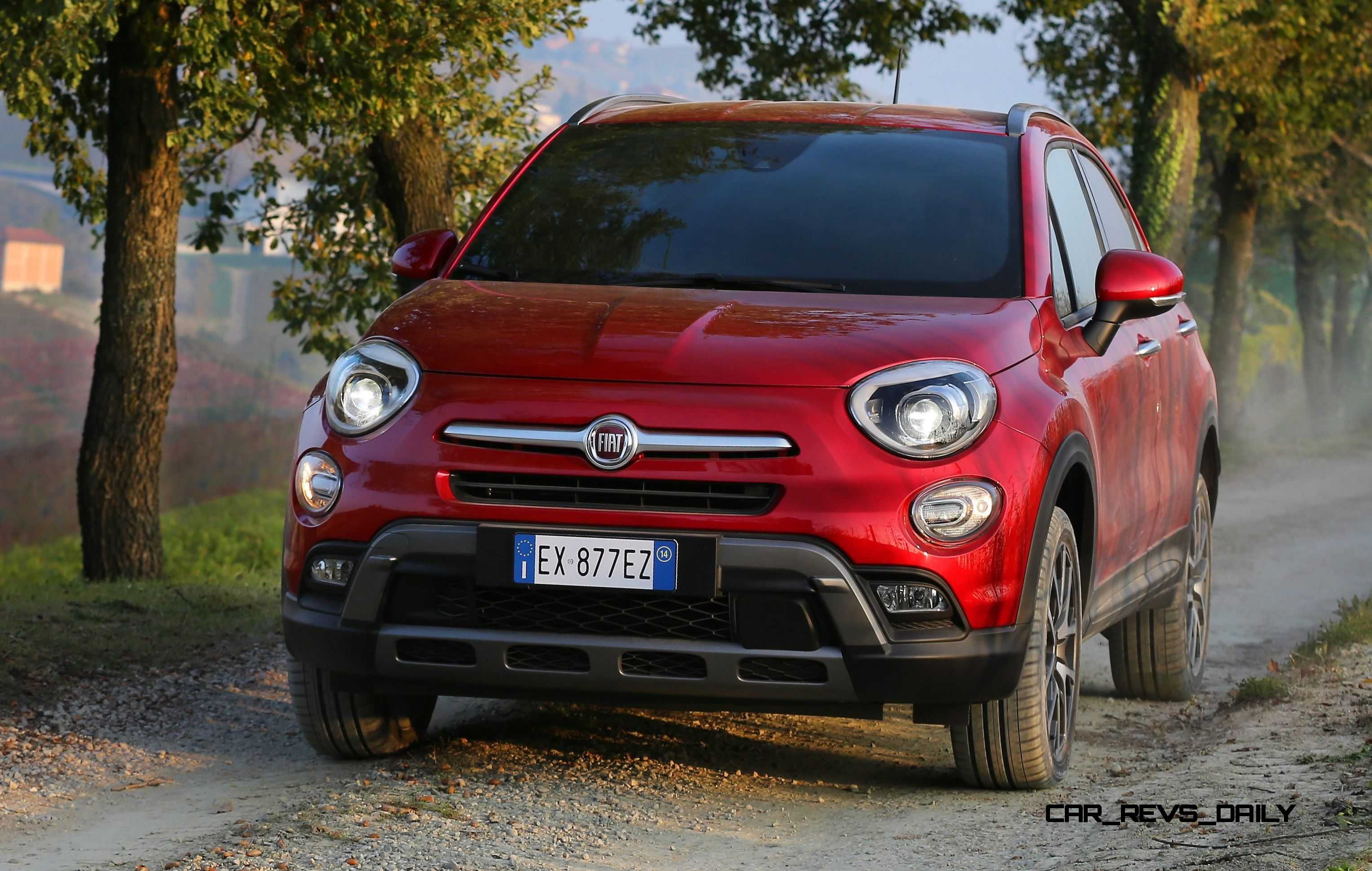

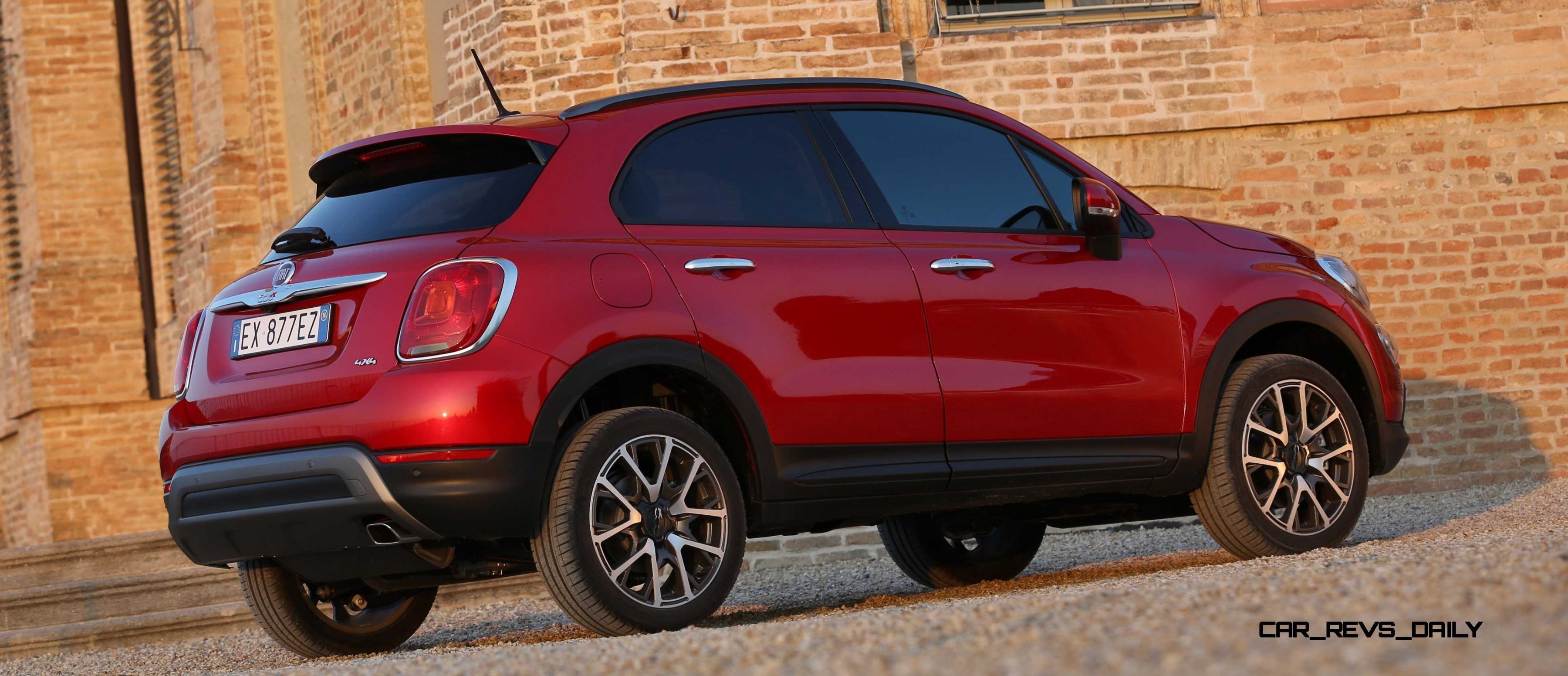

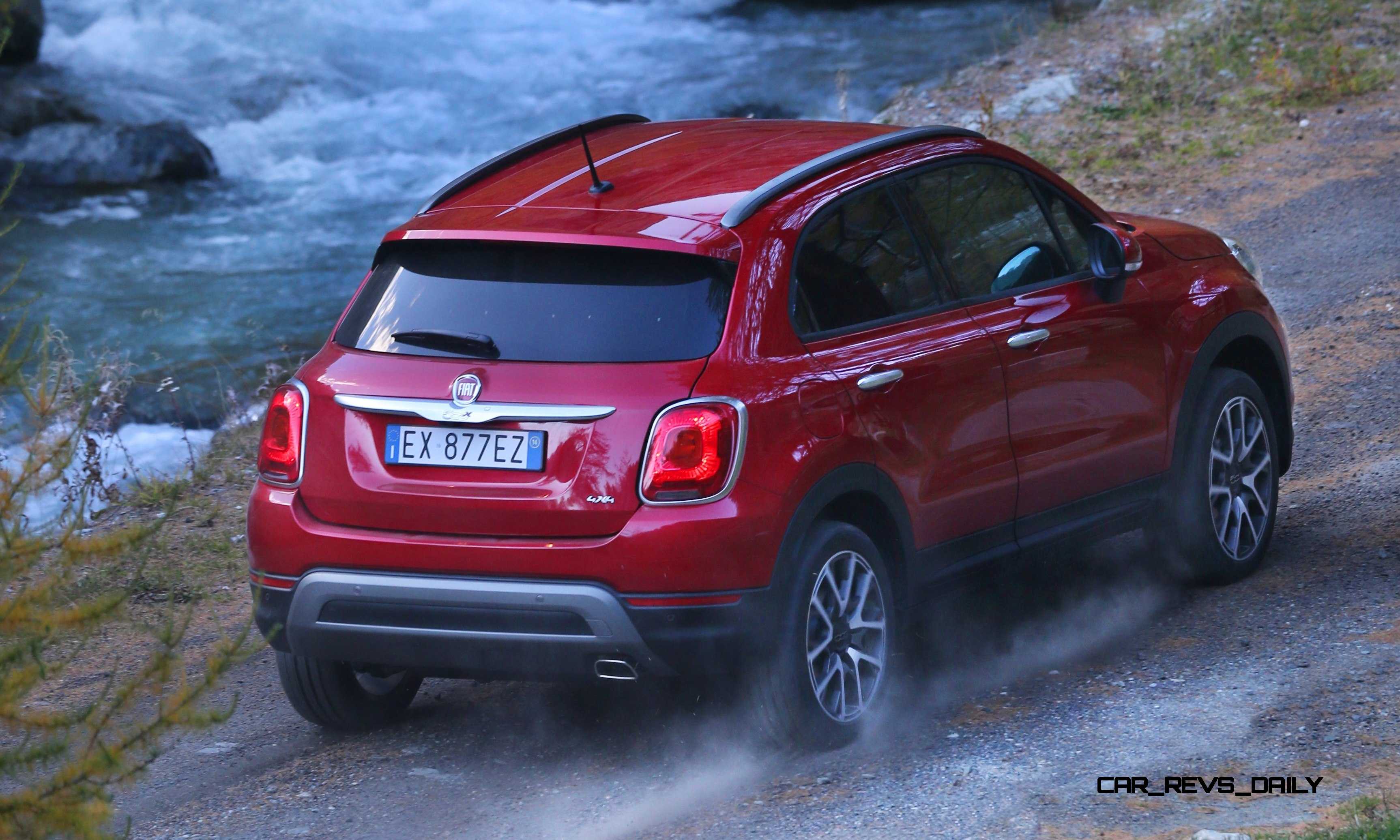

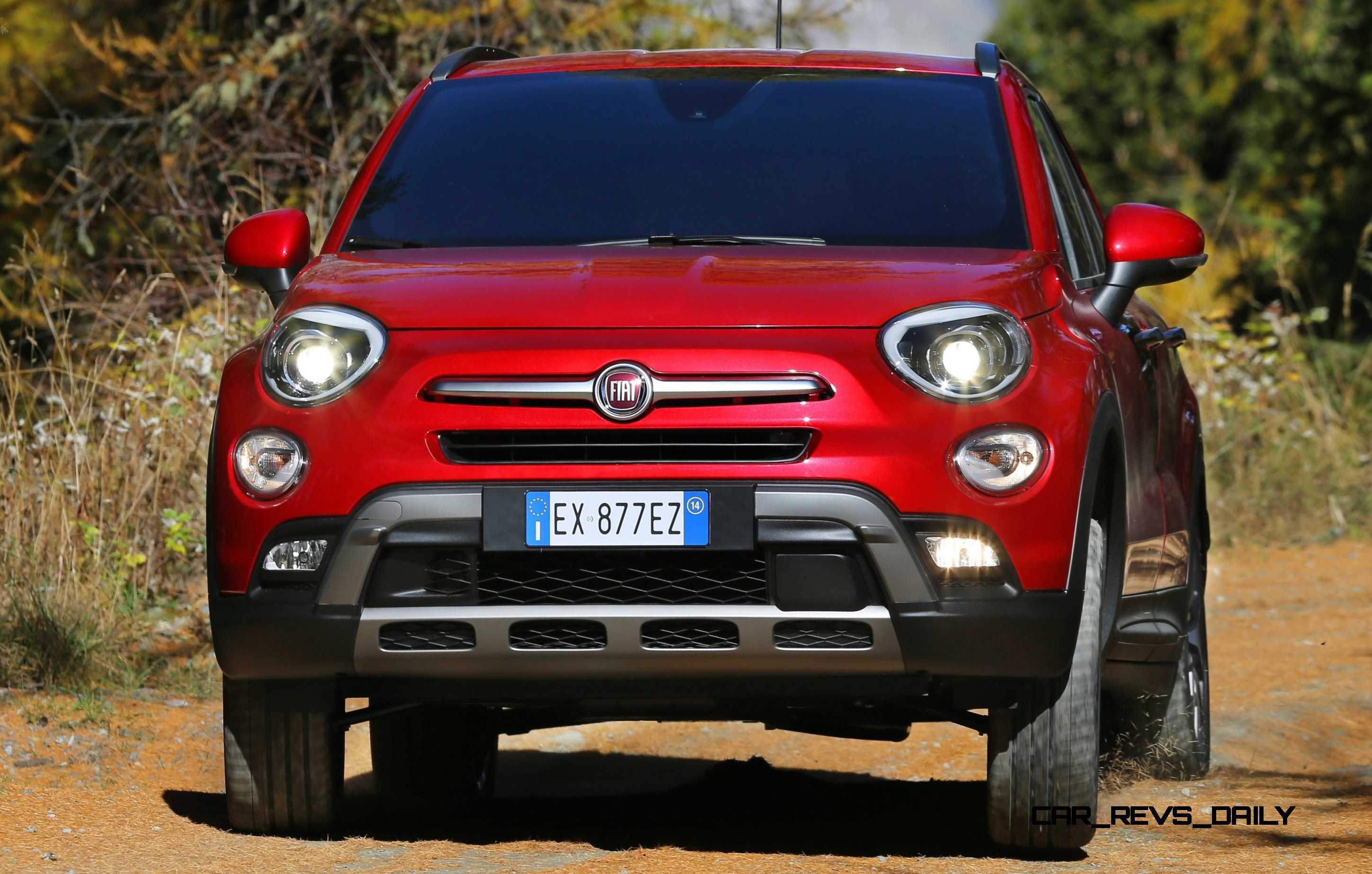

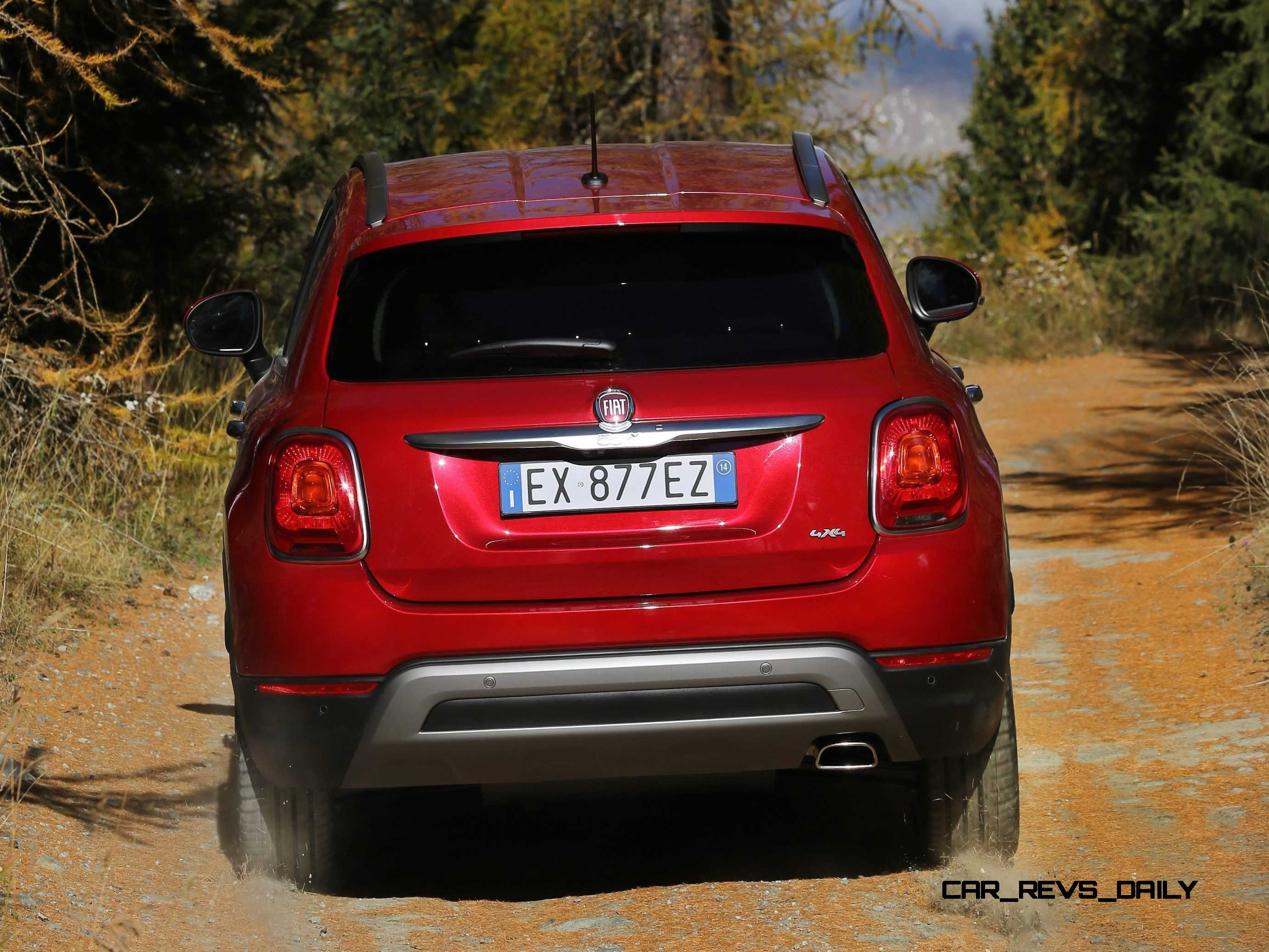

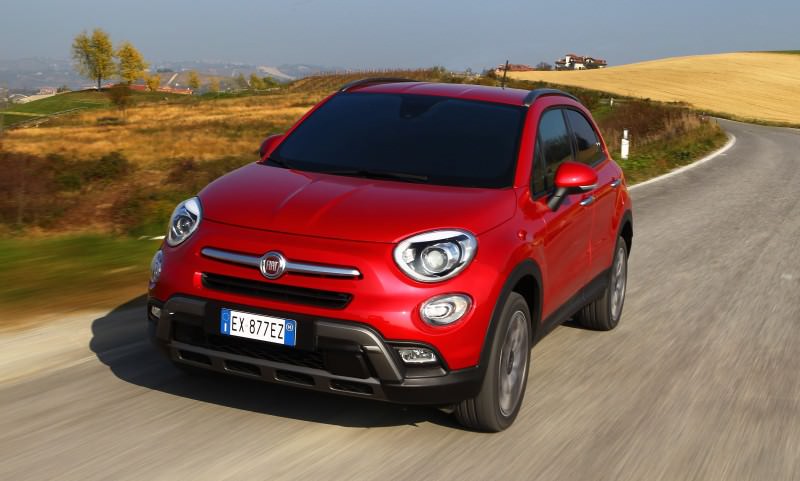

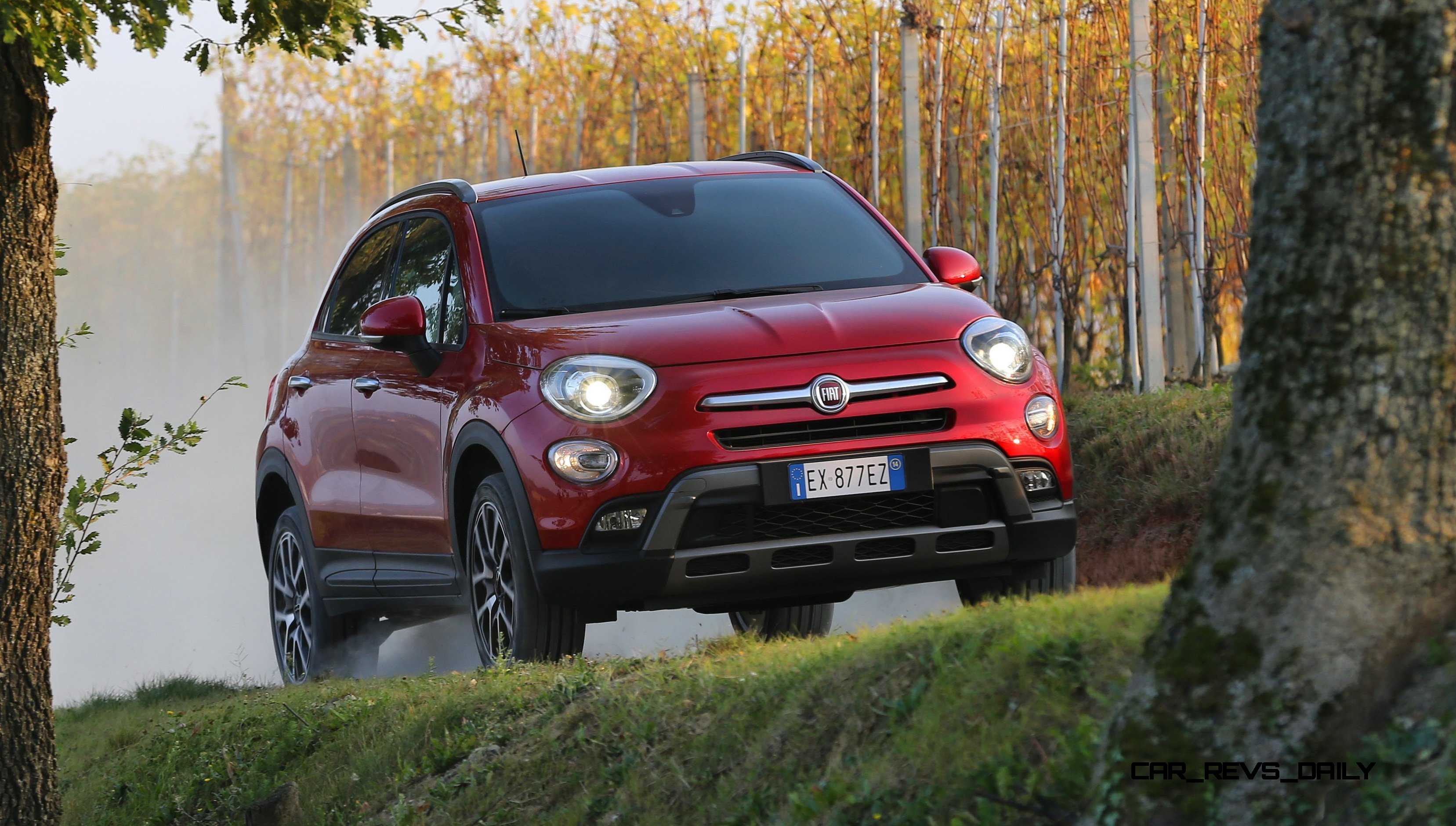

Included below is a mega photo pack of the 500X Cross -- which is the off-road guise with chunkier bumpers and gravel-proof plastic sills.

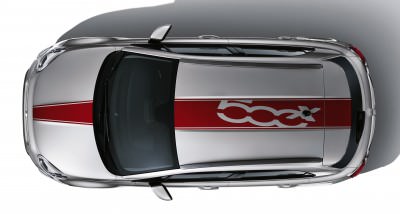

Also below are the wheels and trim personalization options, interior photos and UK pricing. No word yet on US pricing or arrival time-frames, but we'd predict around a June 2015 arrival to the US as a 2016 model.

Stay tuned for an article showcasing the 500X Lounge and Pop trims -- which are a bit more cosmopolitan with painted bumpers and detailing.

Overall, they all look very appealing indeed. Let's hope Fiat can keep a lid on overall pricing to compete well with the Chevy Trax and Honda HR-V from next summertime forward.

PREVIOUS

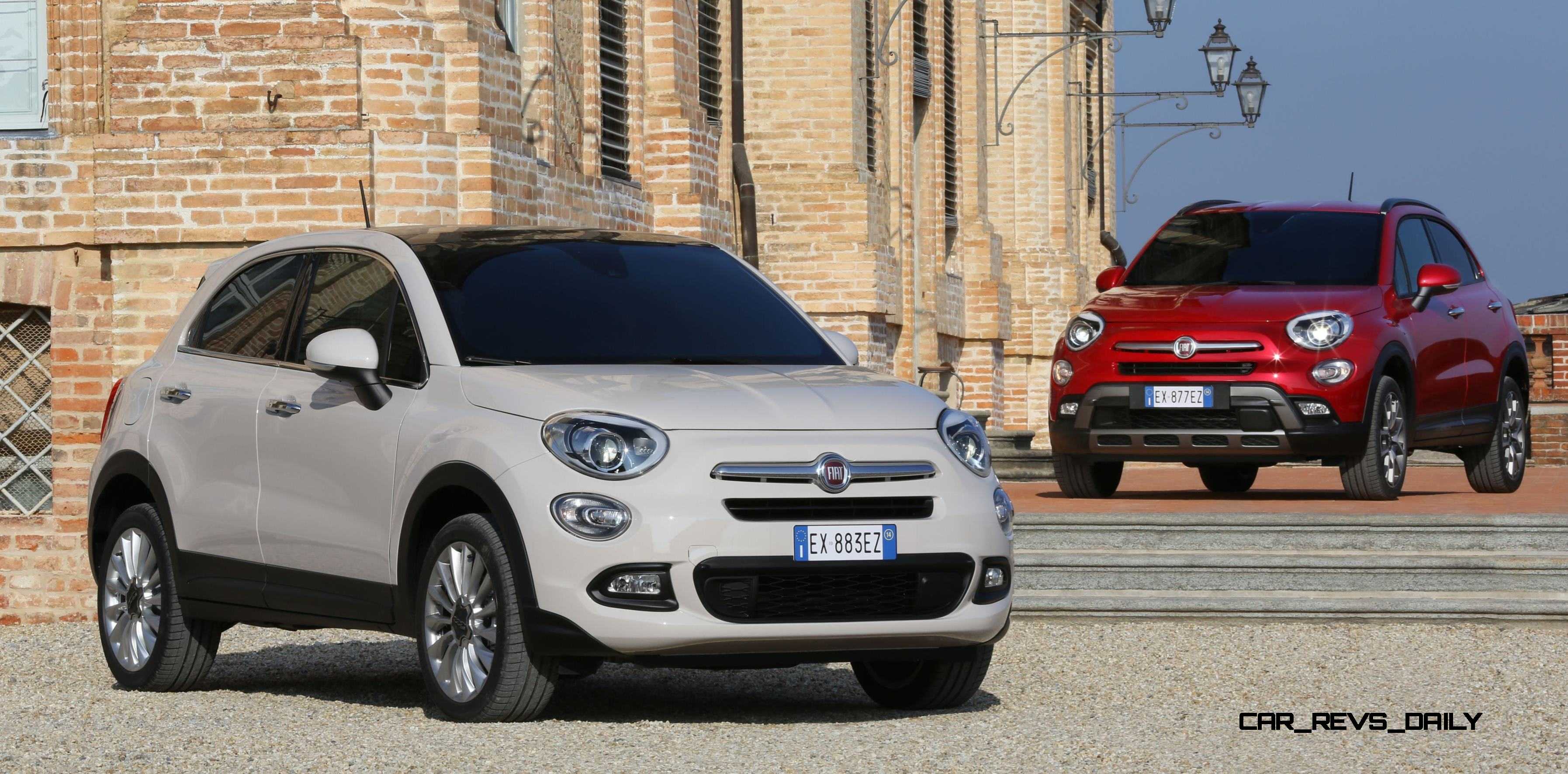

2016 Fiat 500X Lounge 1

Fiat has big plans for the 500X, a four-door off-roader sharing a name and styling themes with the popular 500 line of mini cars. This machine is a logical next move for Fiat as the 500 enters its third year on the US market.

Under the skin, the 500X shares major platform and chassis pieces with the upcoming Jeep Renegade mini SUV, and benefits from the Jeep's AWD and automatic transmission requirements. Both features are relatively critical to the 500X achieving sales volume in the US market when it arrives in Spring 2015 as a 2016 model.

Perhaps even more promising? The 500X may lead to a new four-door model to rival the latest addition to the MINI Cooper Hardtop line. Both will do wonders for the 500's relatively limited current appeal: it is just a bit too small for many suburban folks to seriously consider. Four large doors and a roomy-looking cabin promises to be a big hit with small SUV shopper priorities.

But slotting in nicely as a stylish off-roader, the 500X will make a nice little family next to the current 500, 500C, 500e and 500L models that currently sit in the US range.

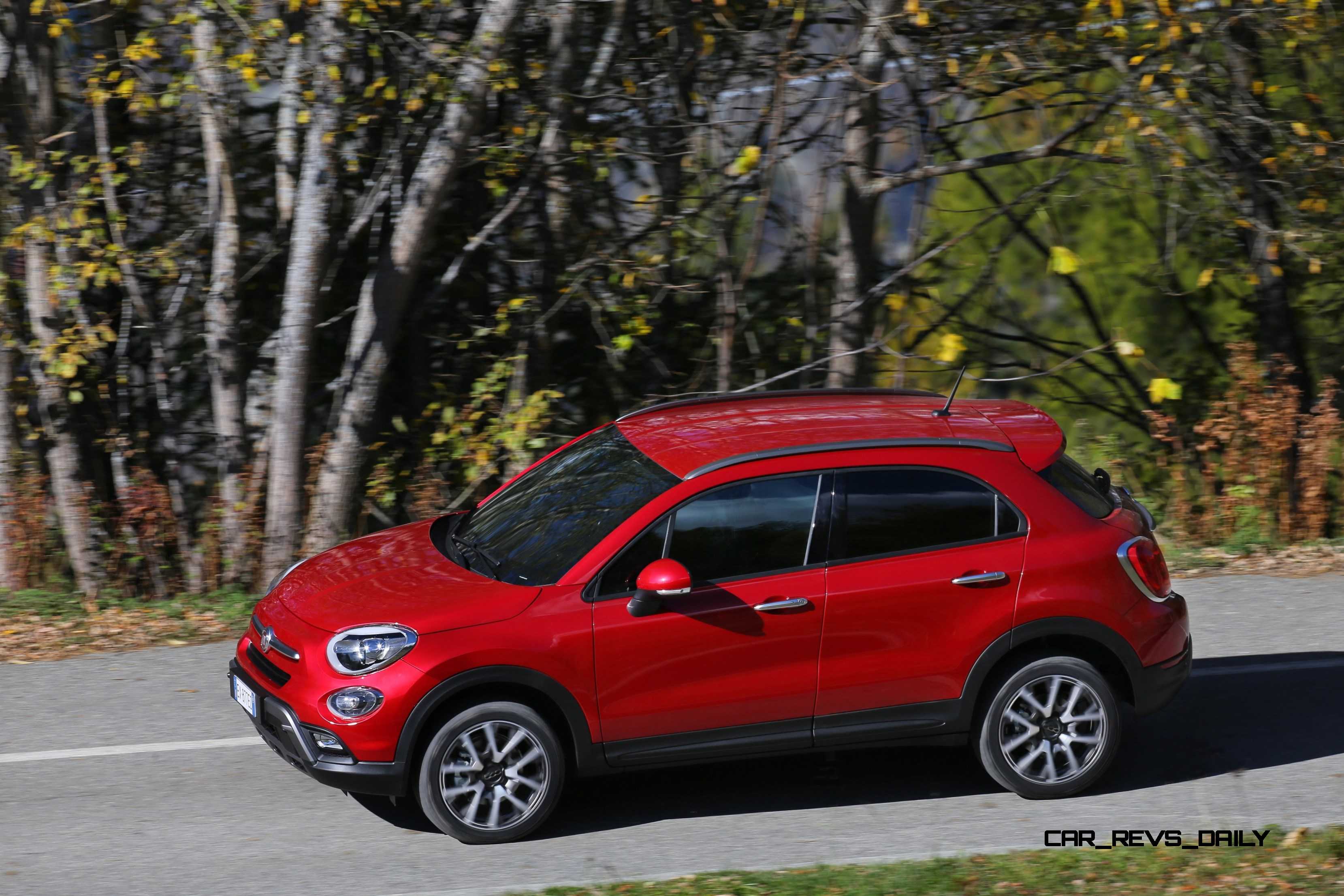

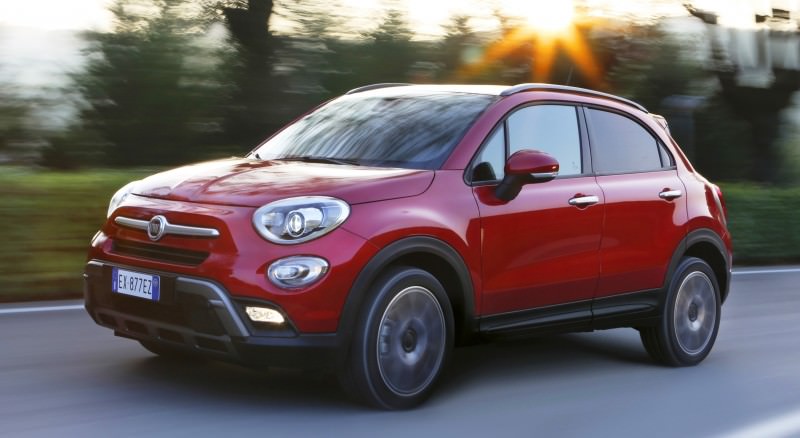

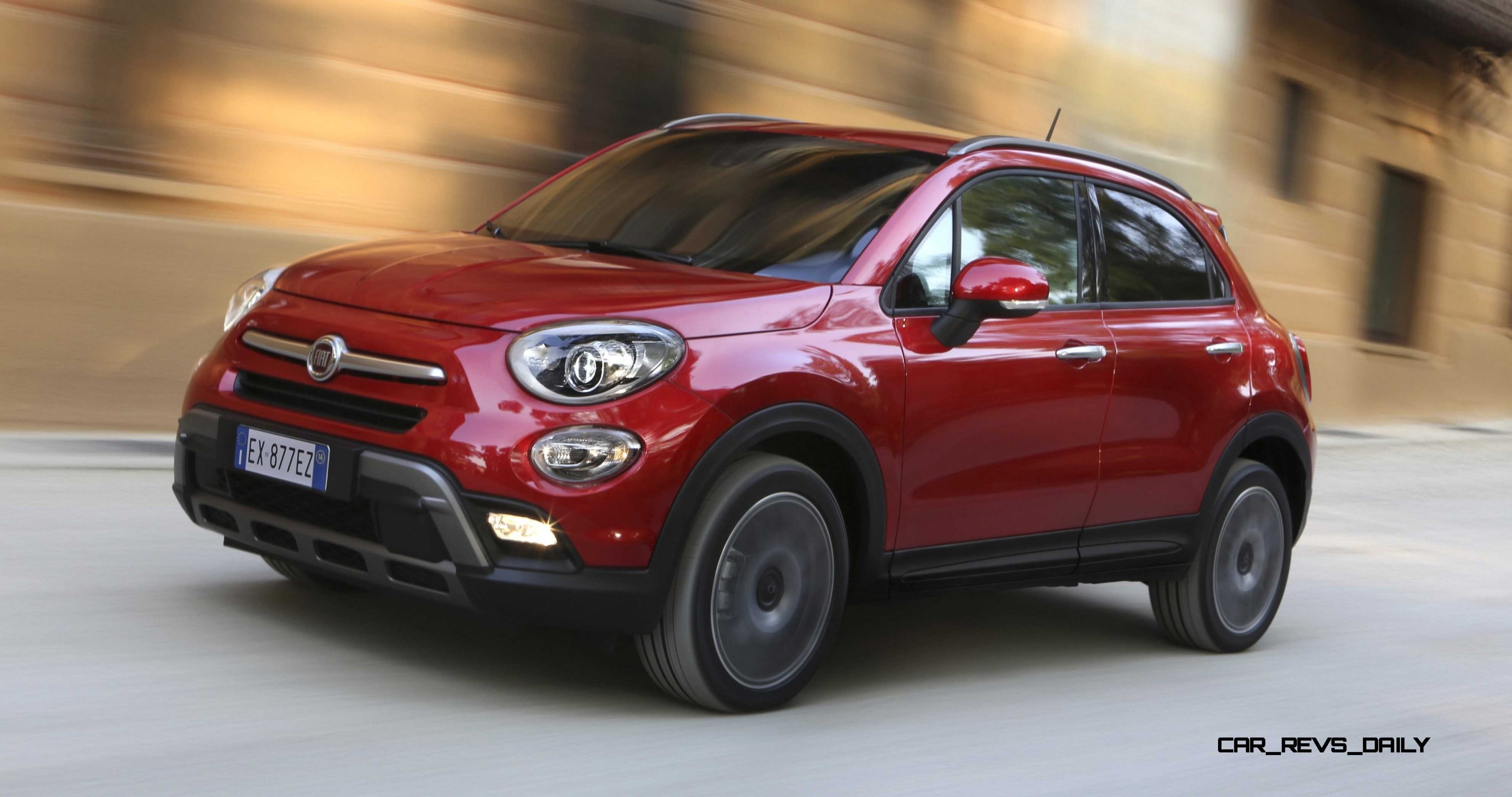

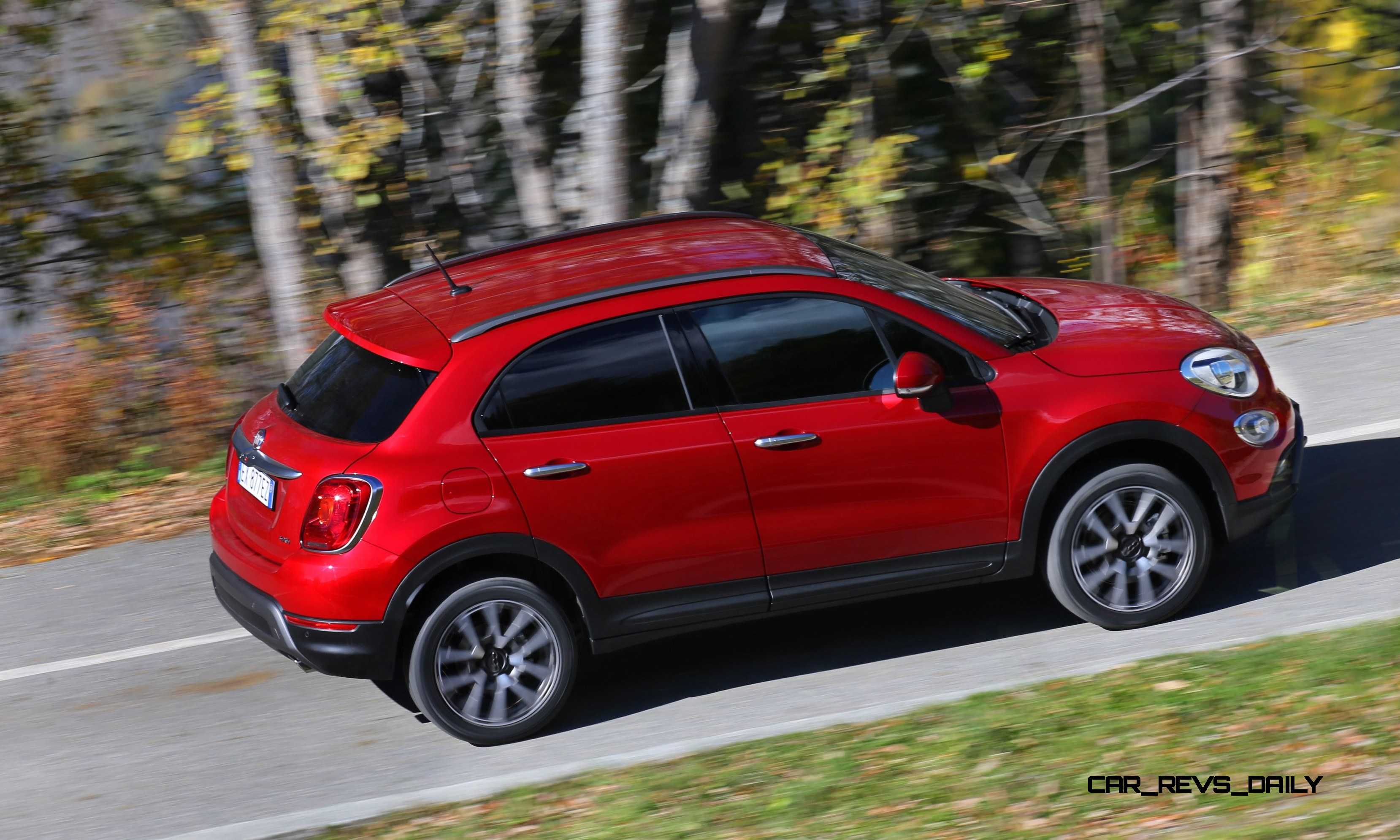

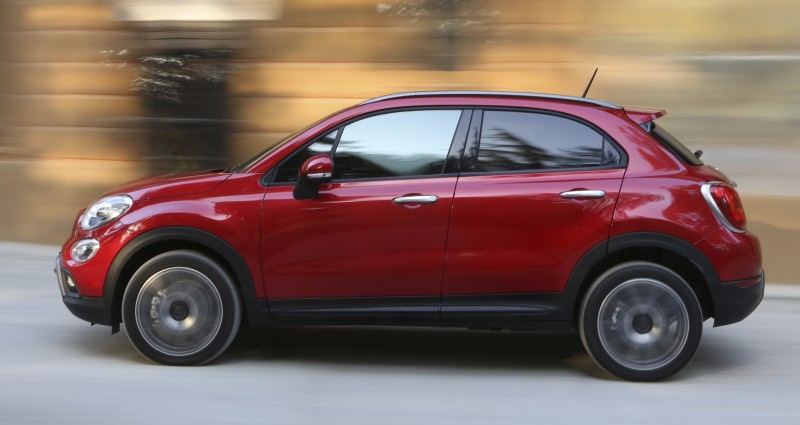

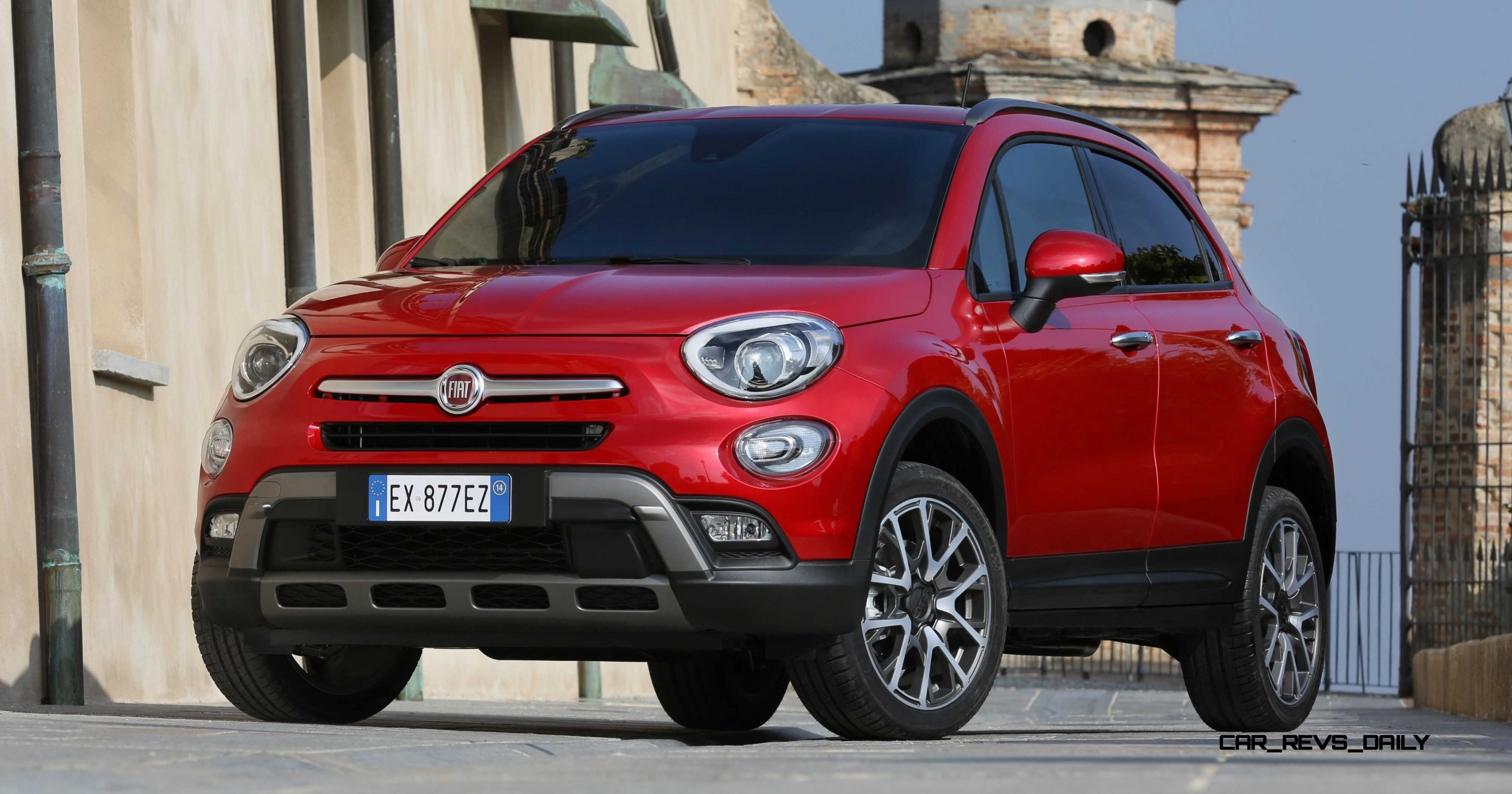

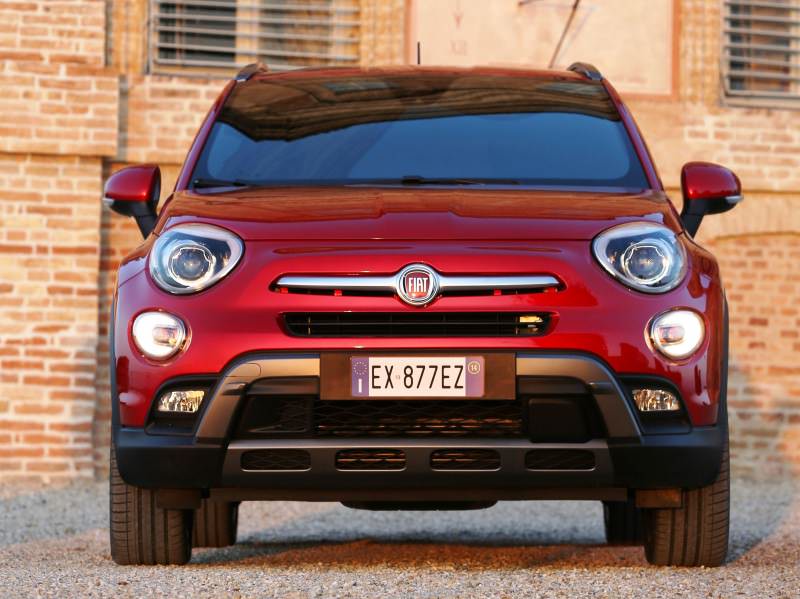

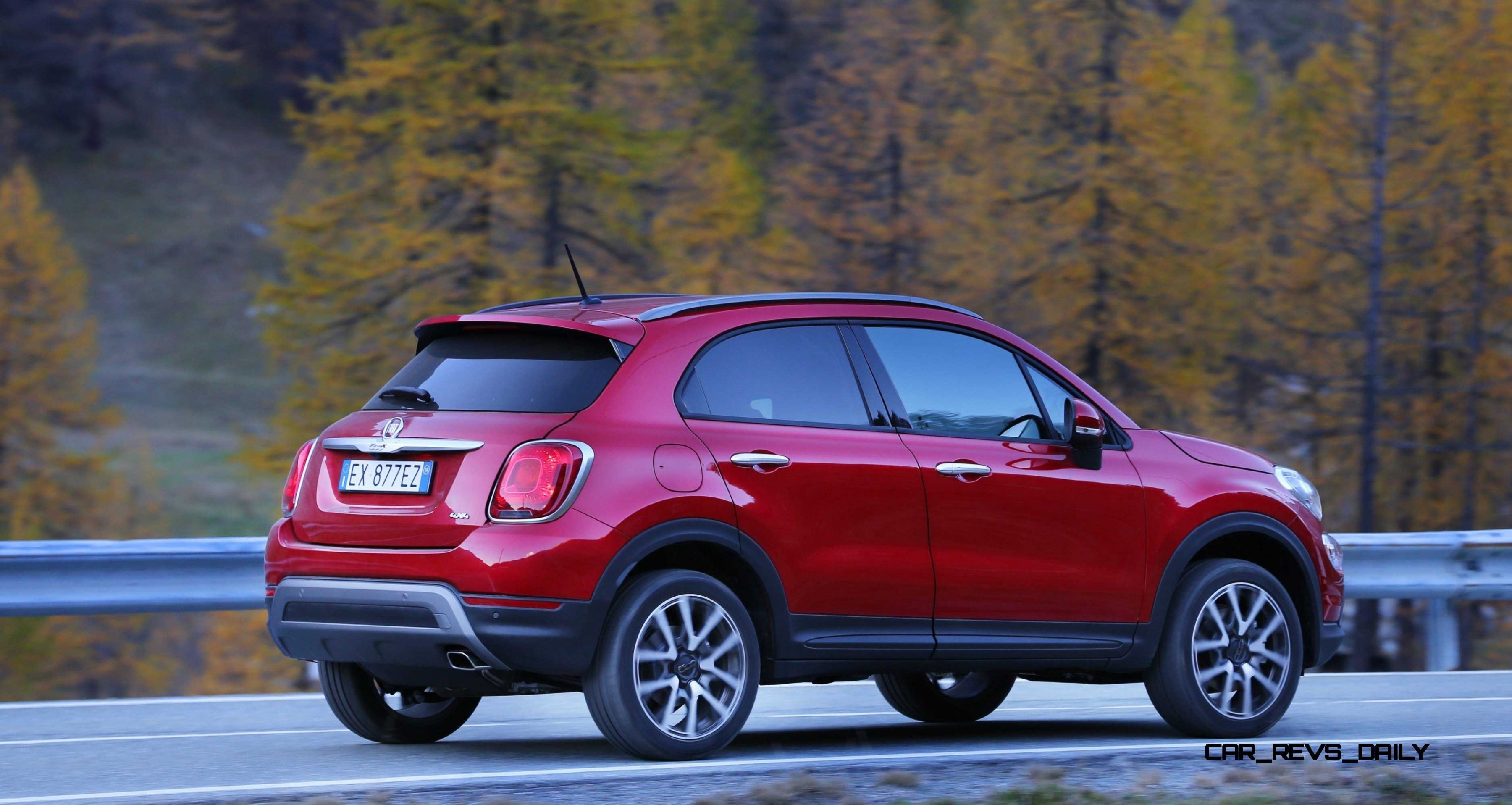

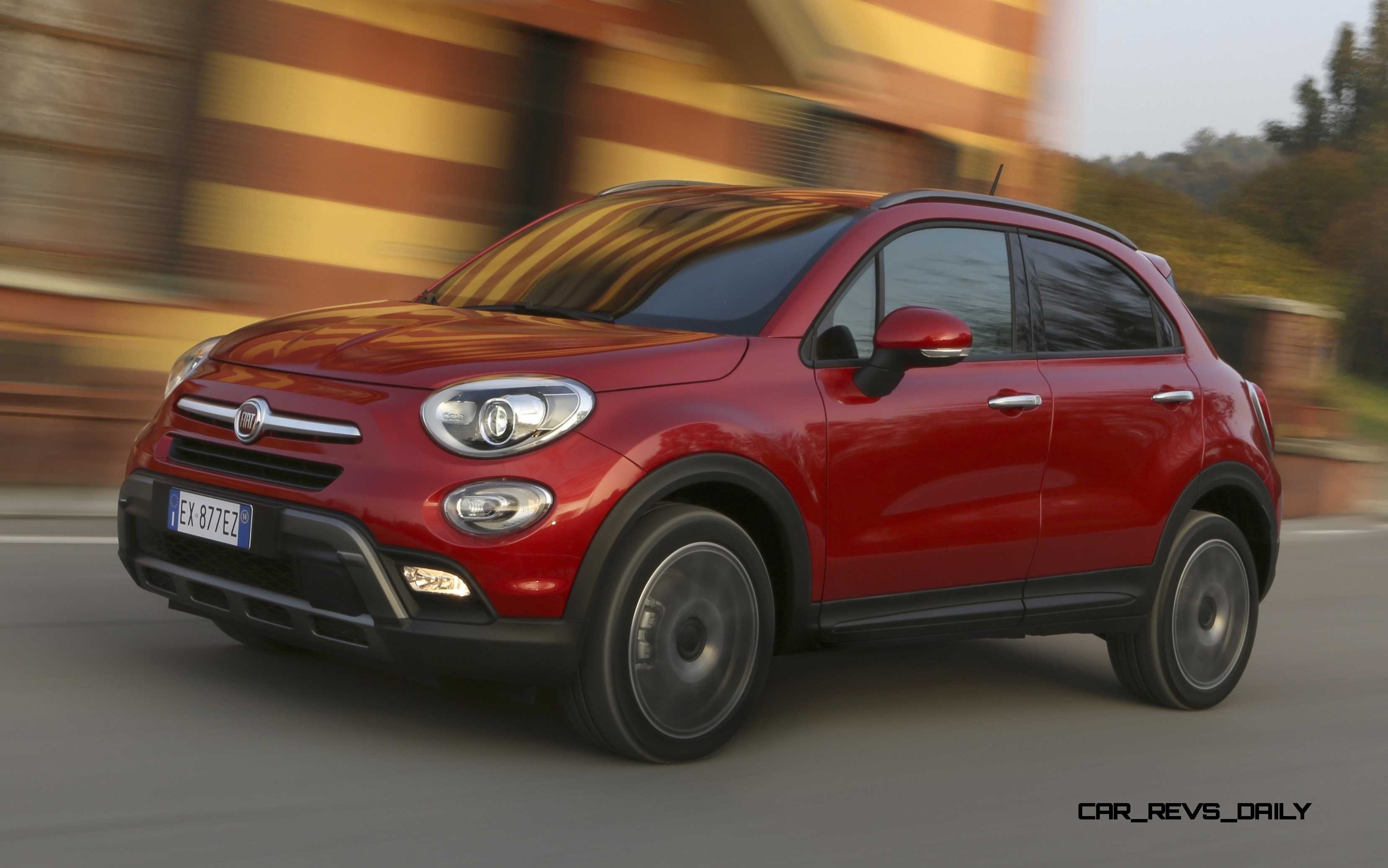

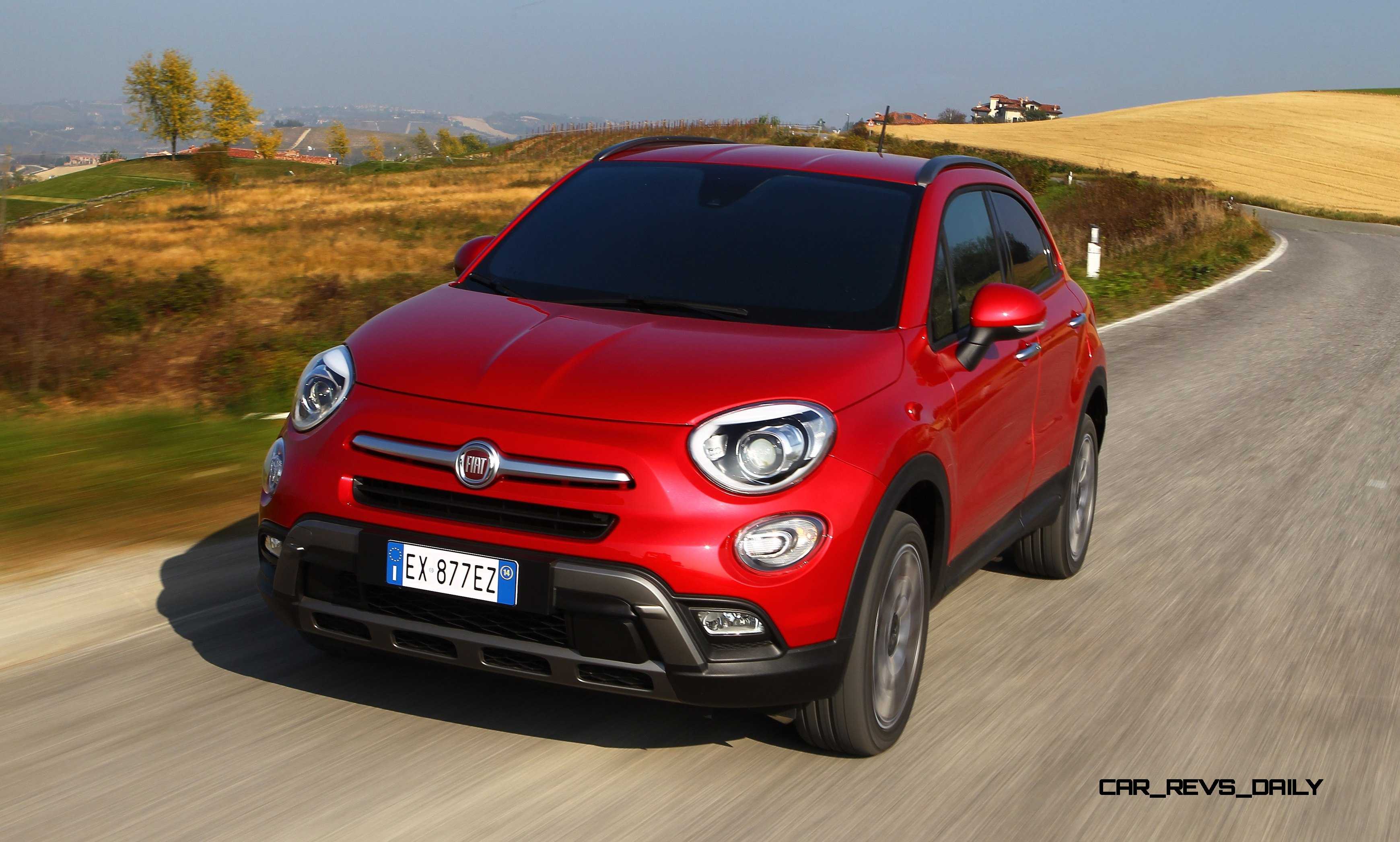

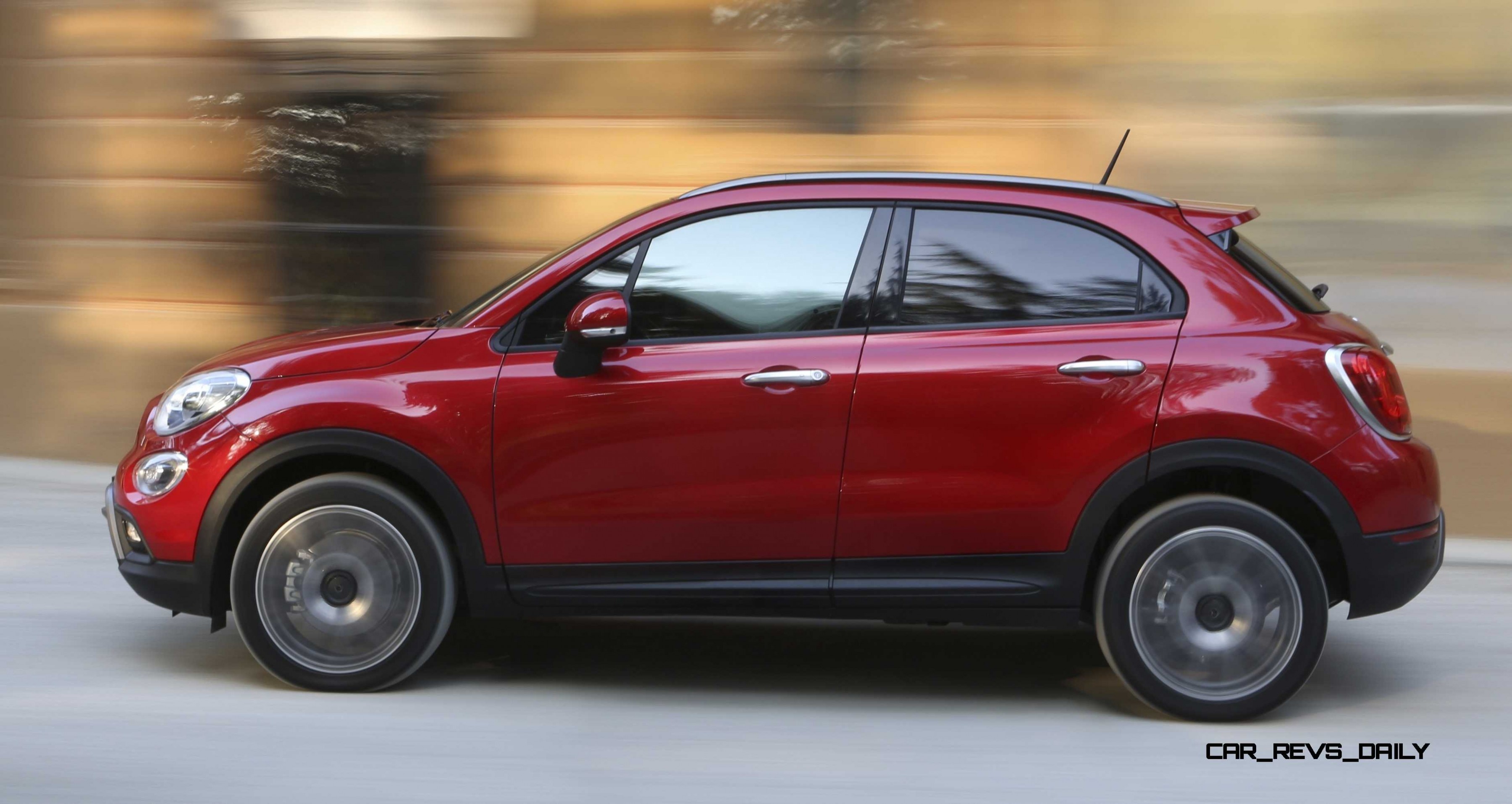

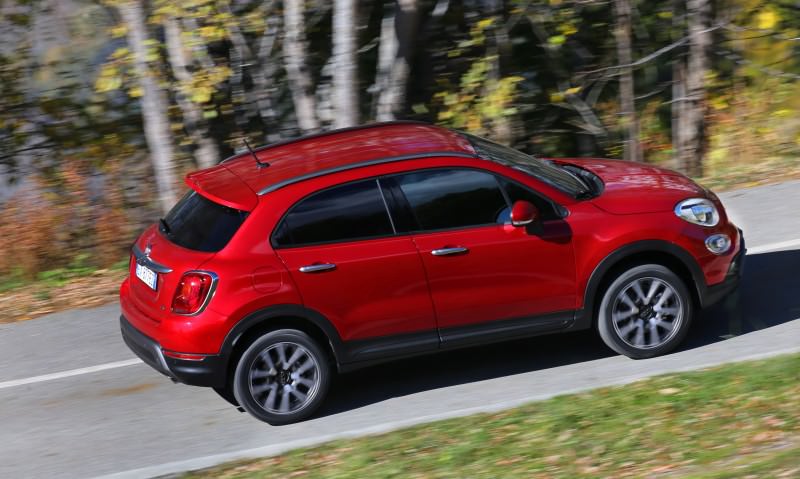

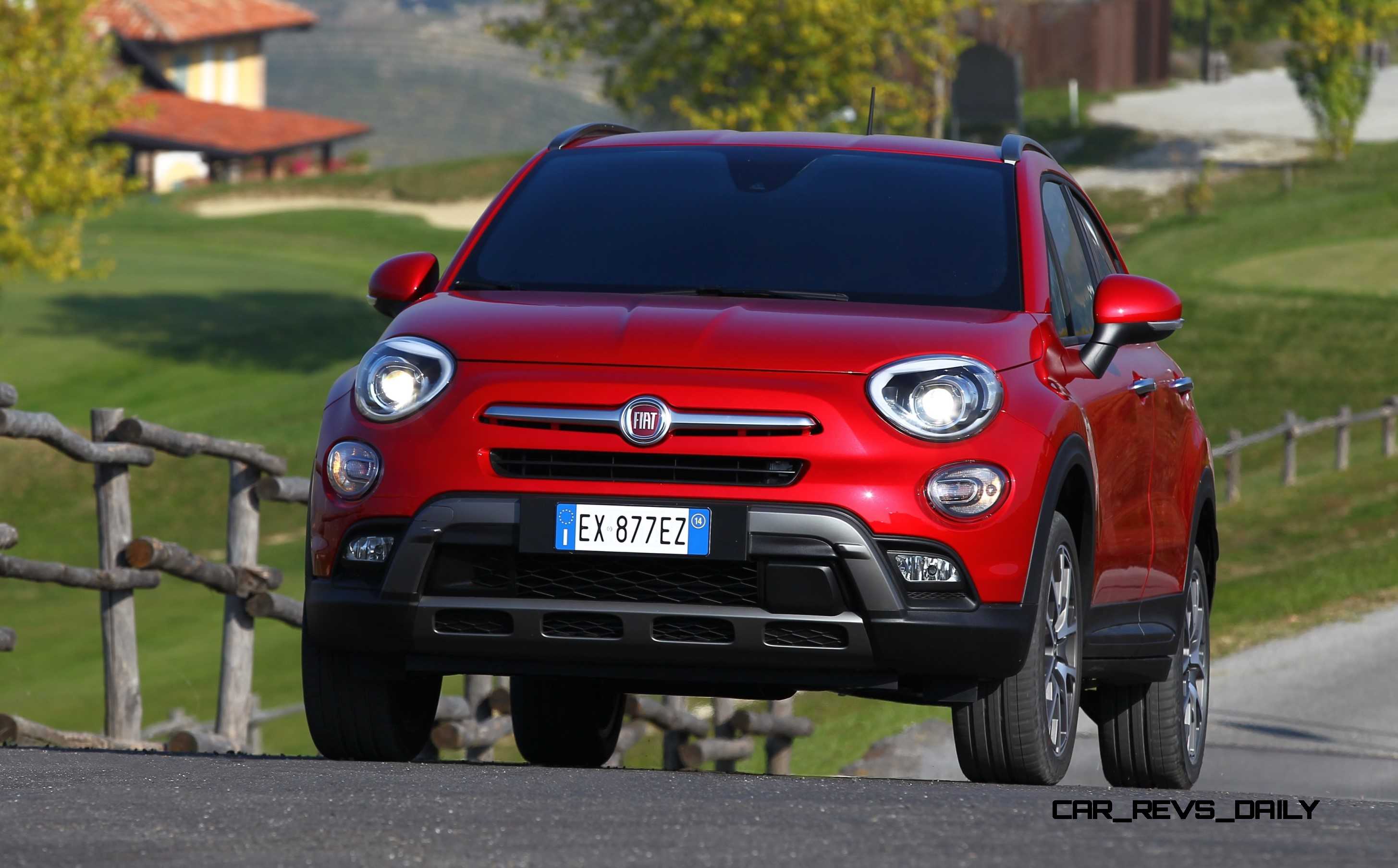

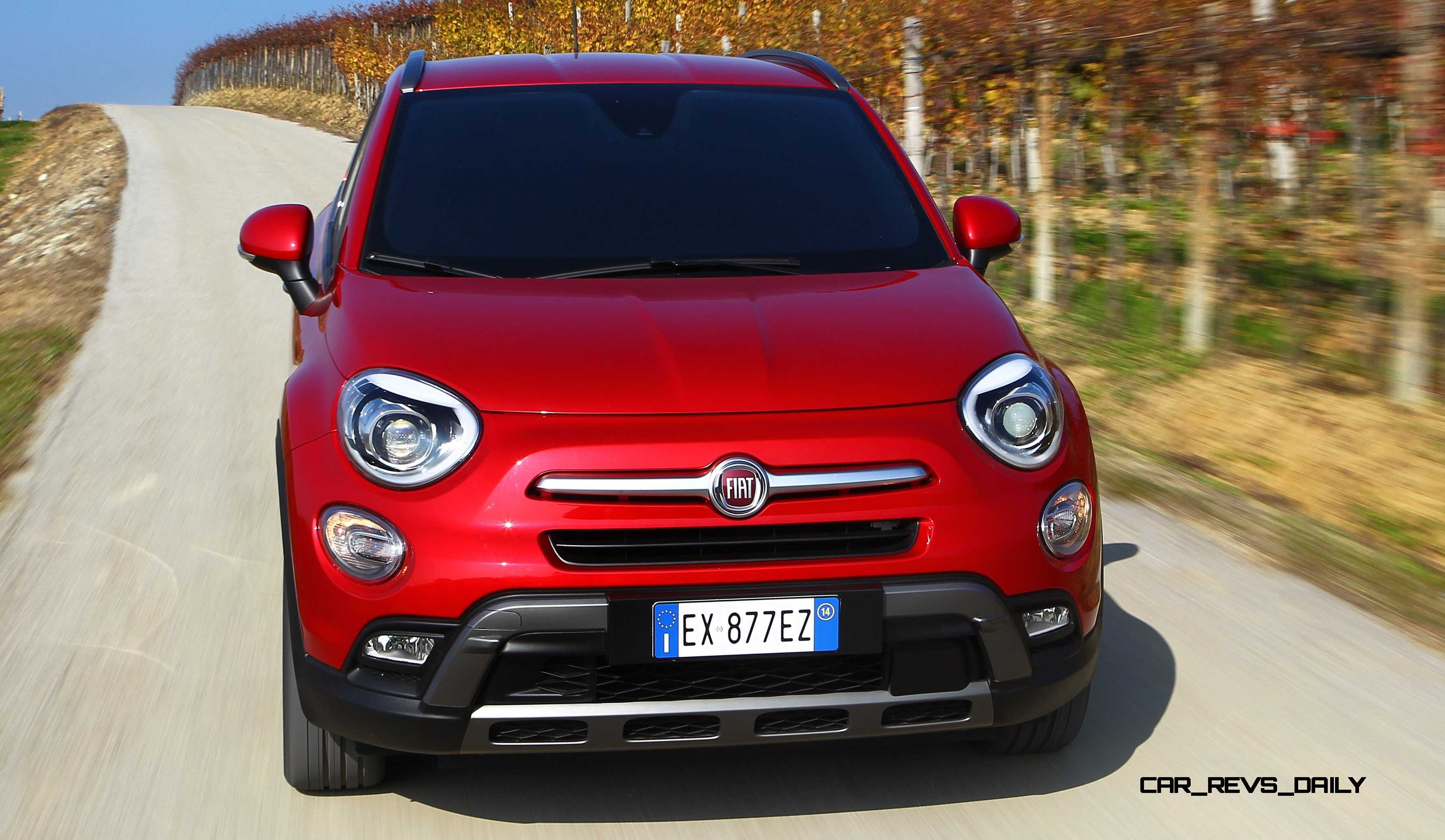

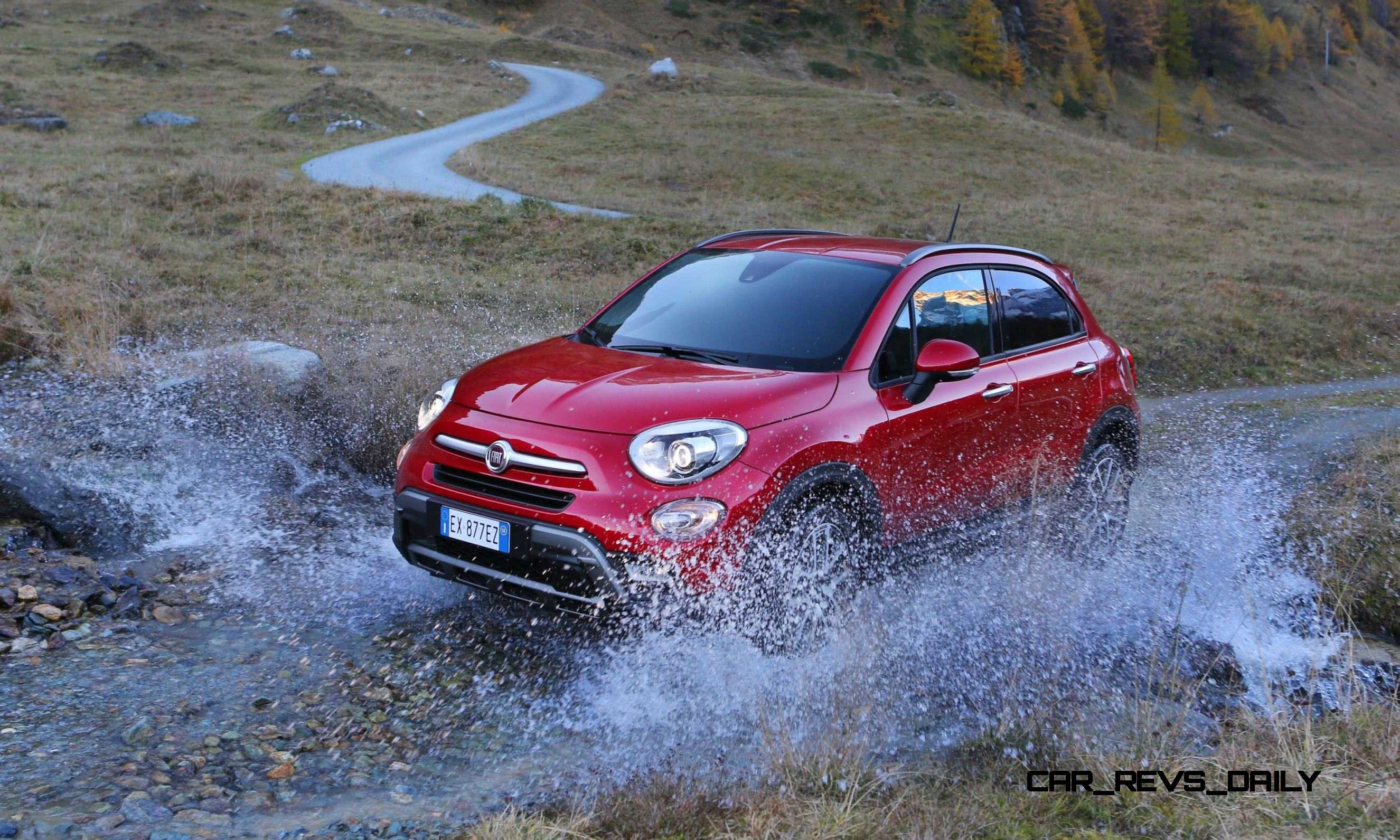

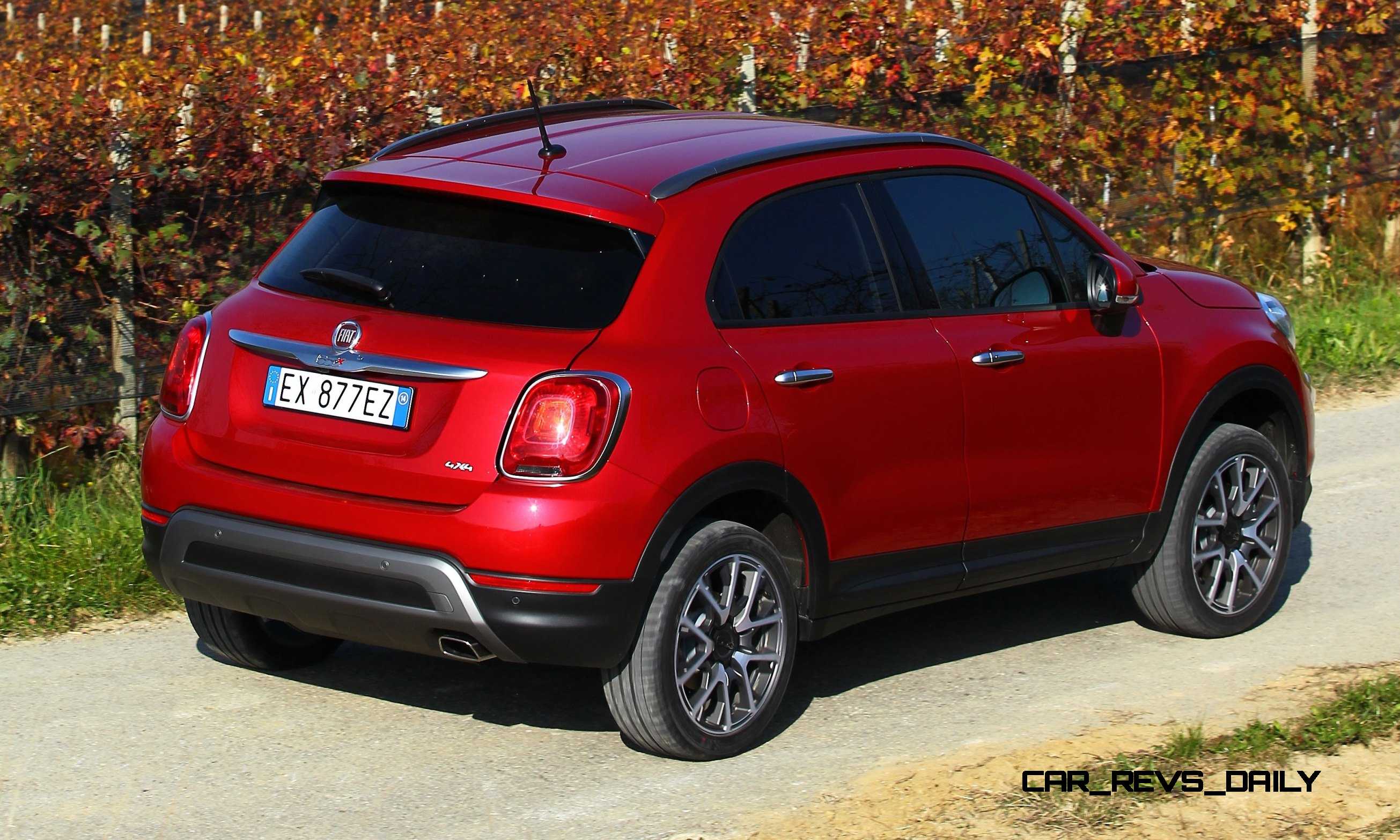

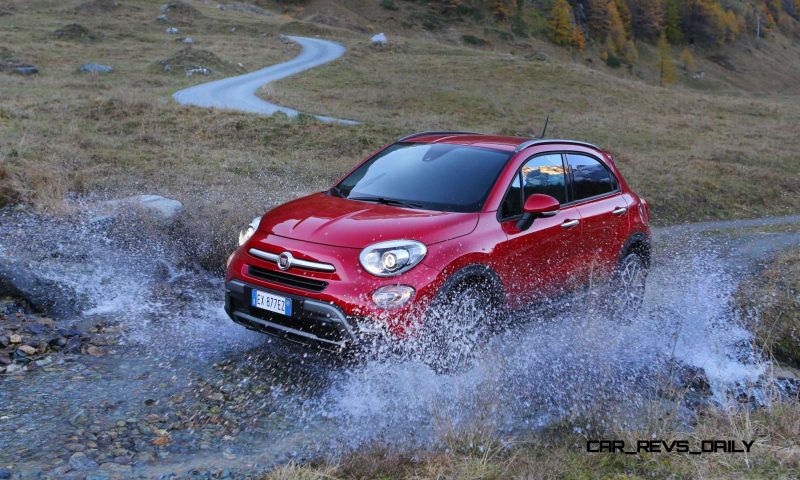

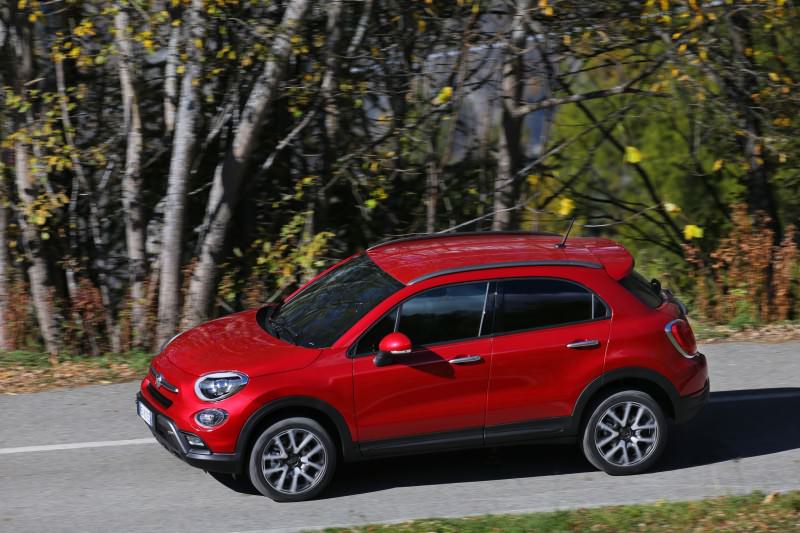

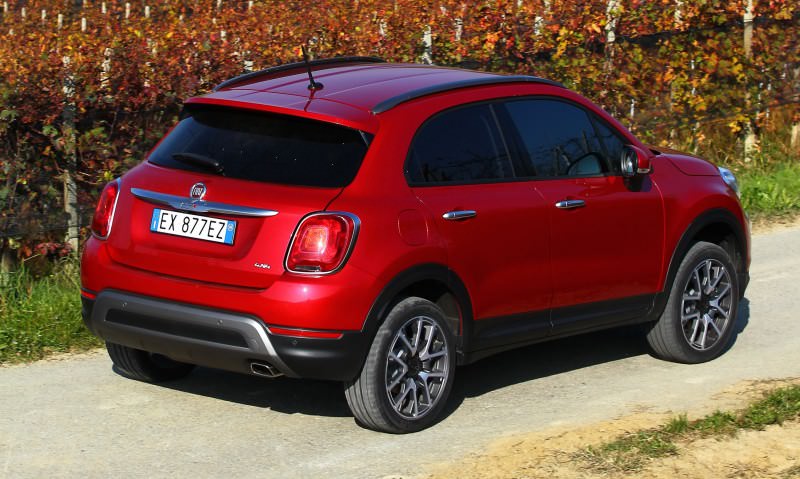

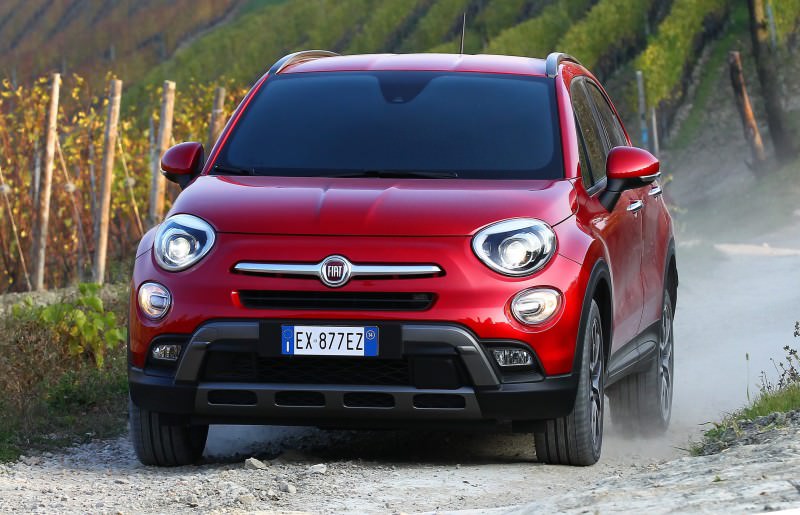

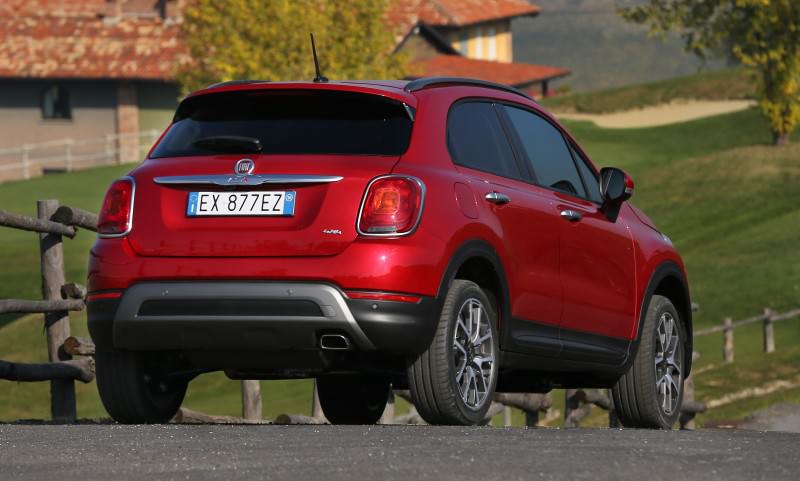

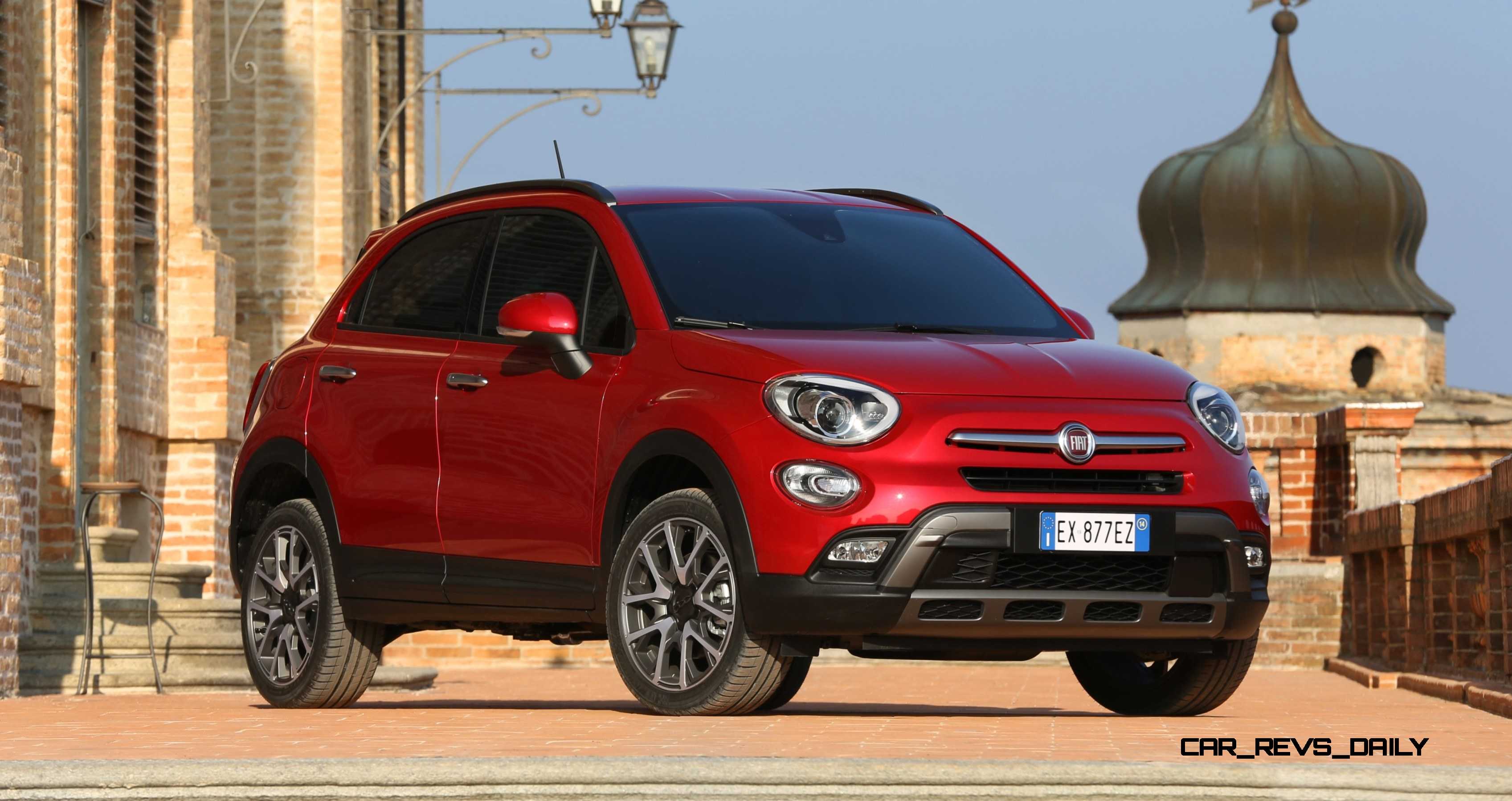

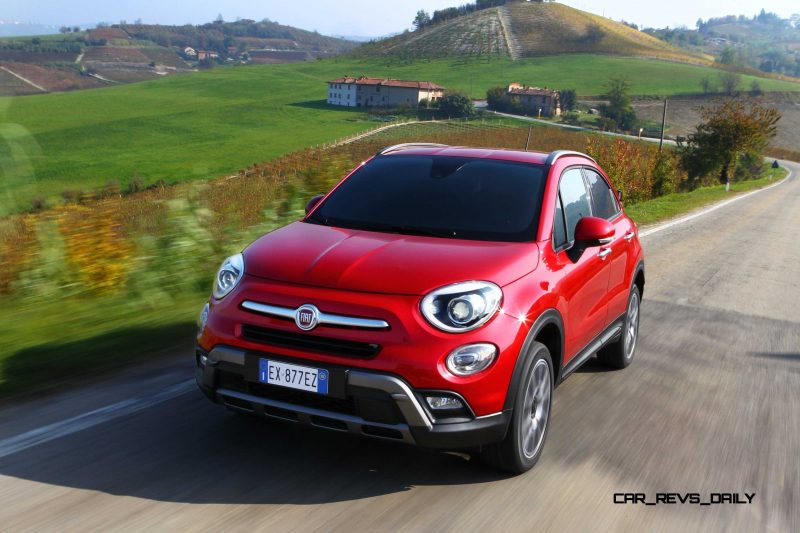

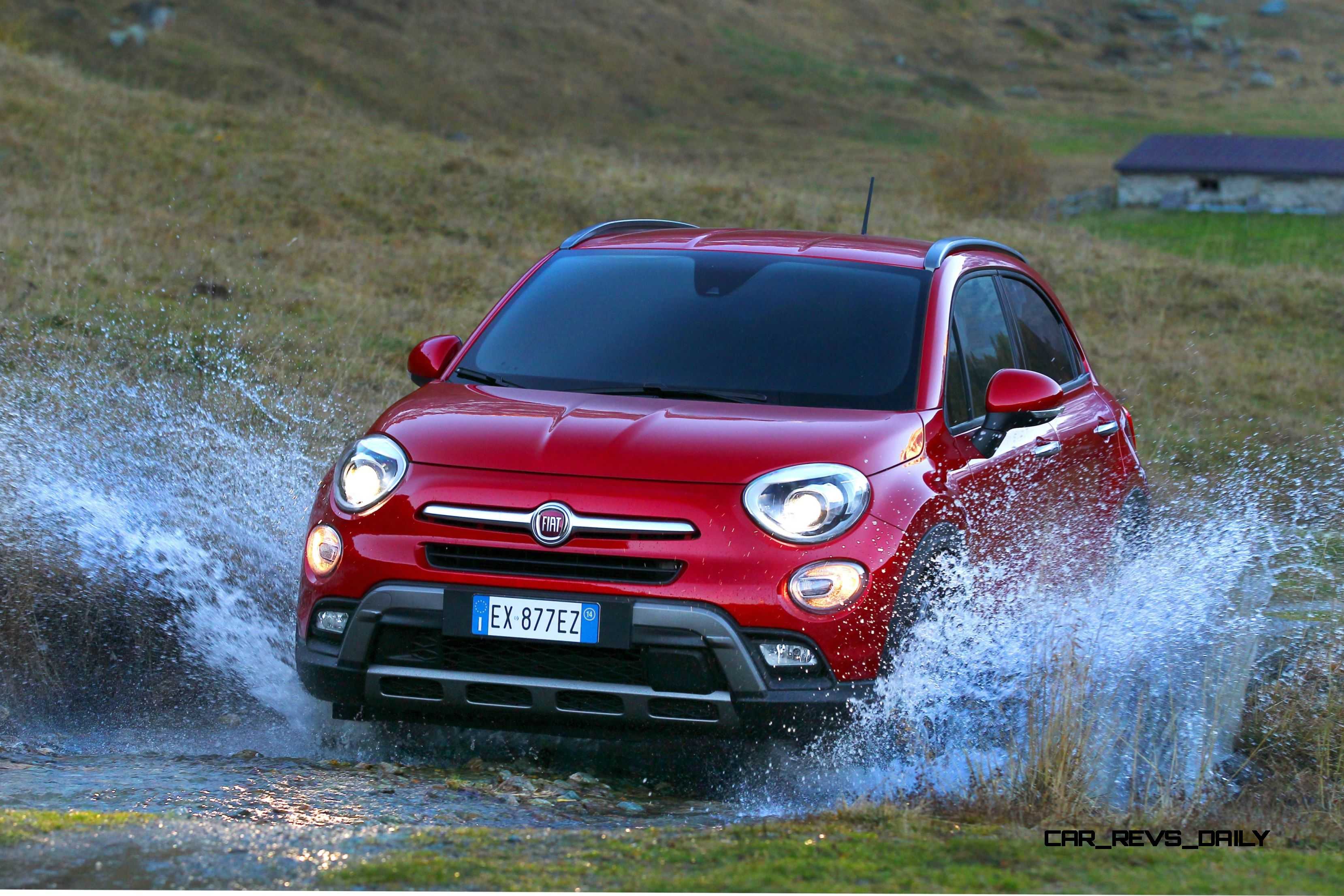

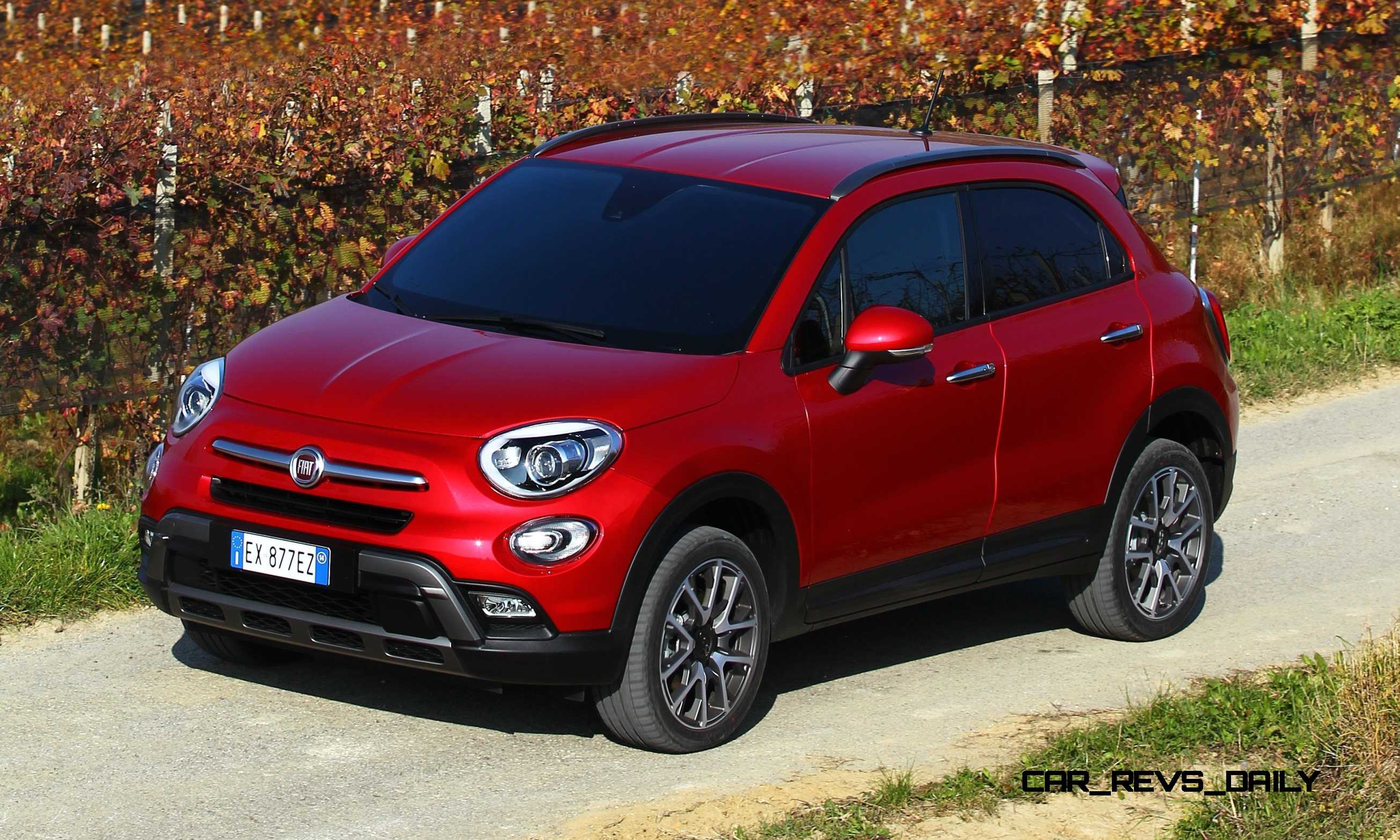

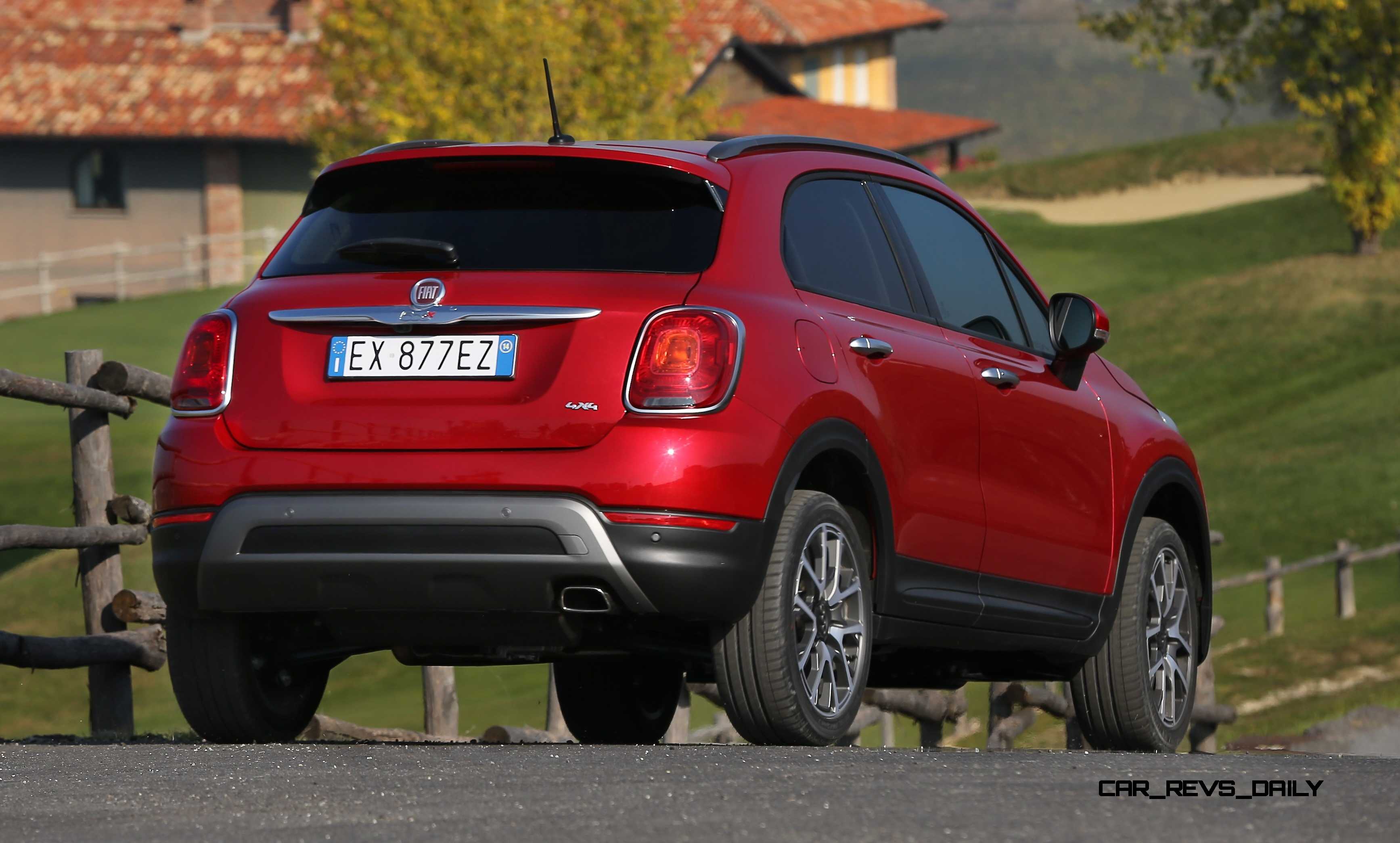

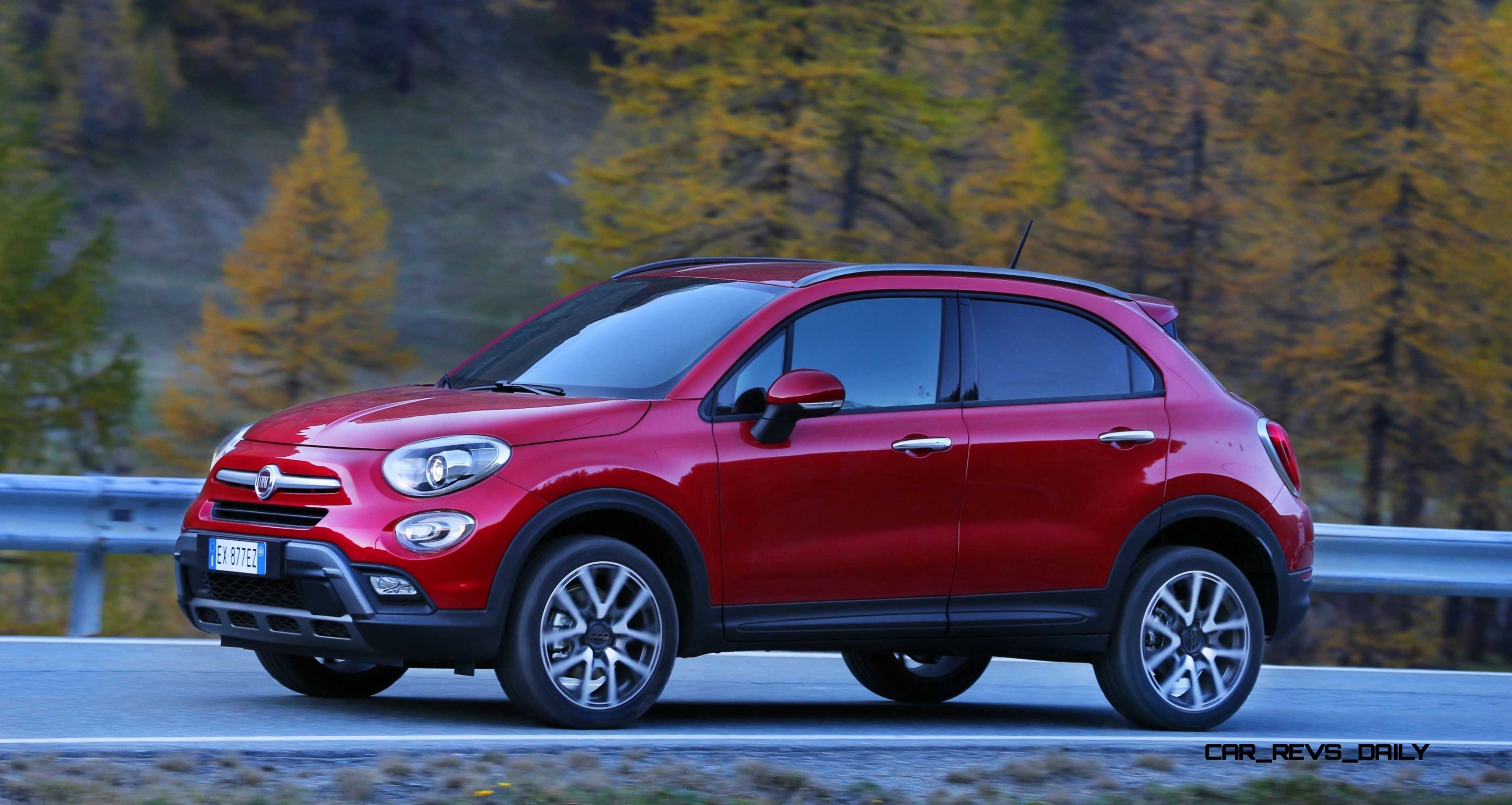

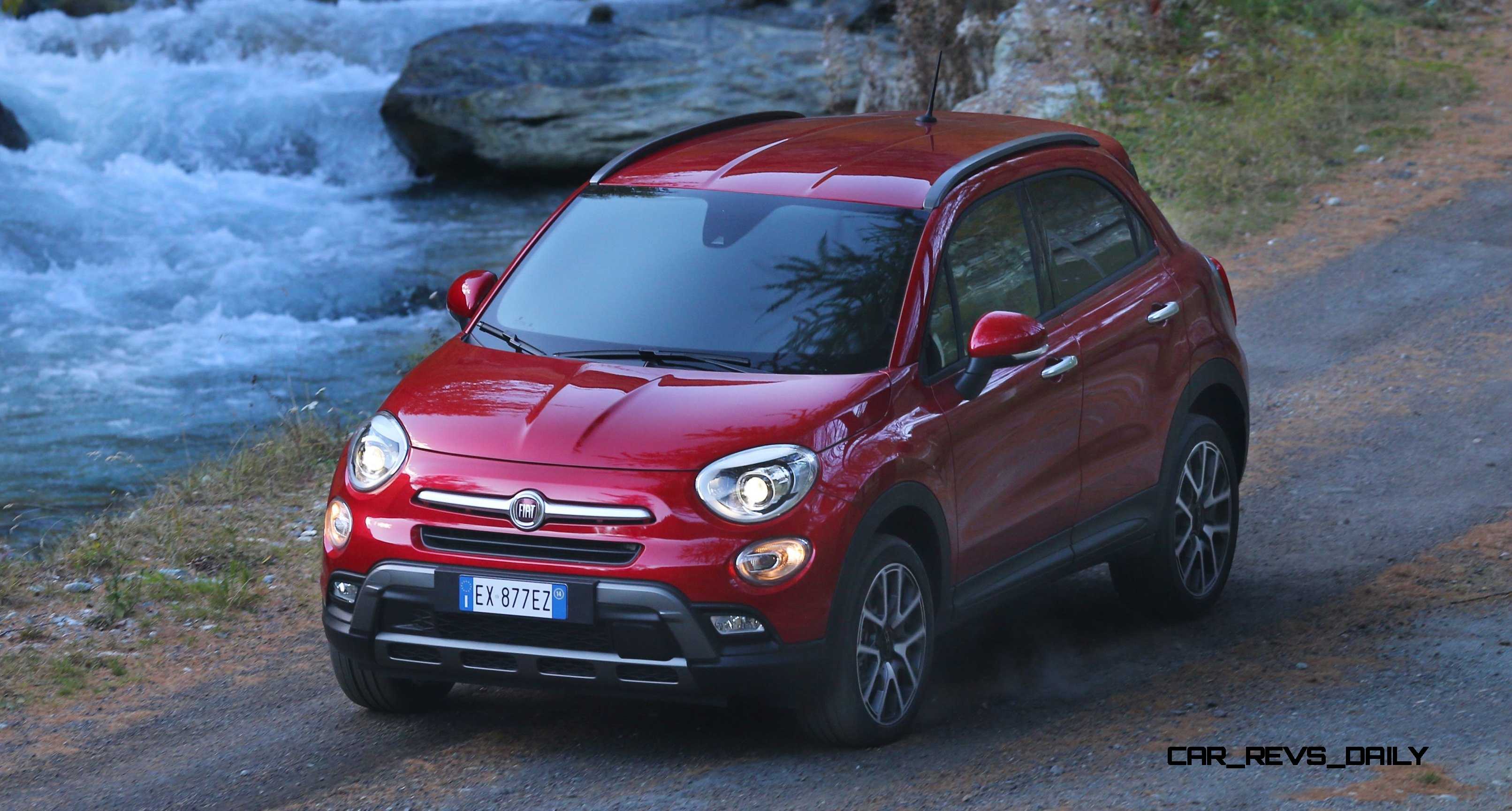

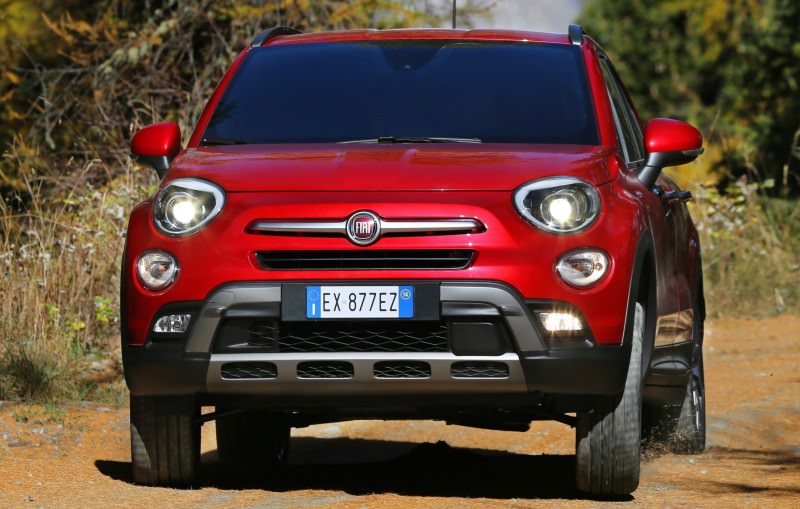

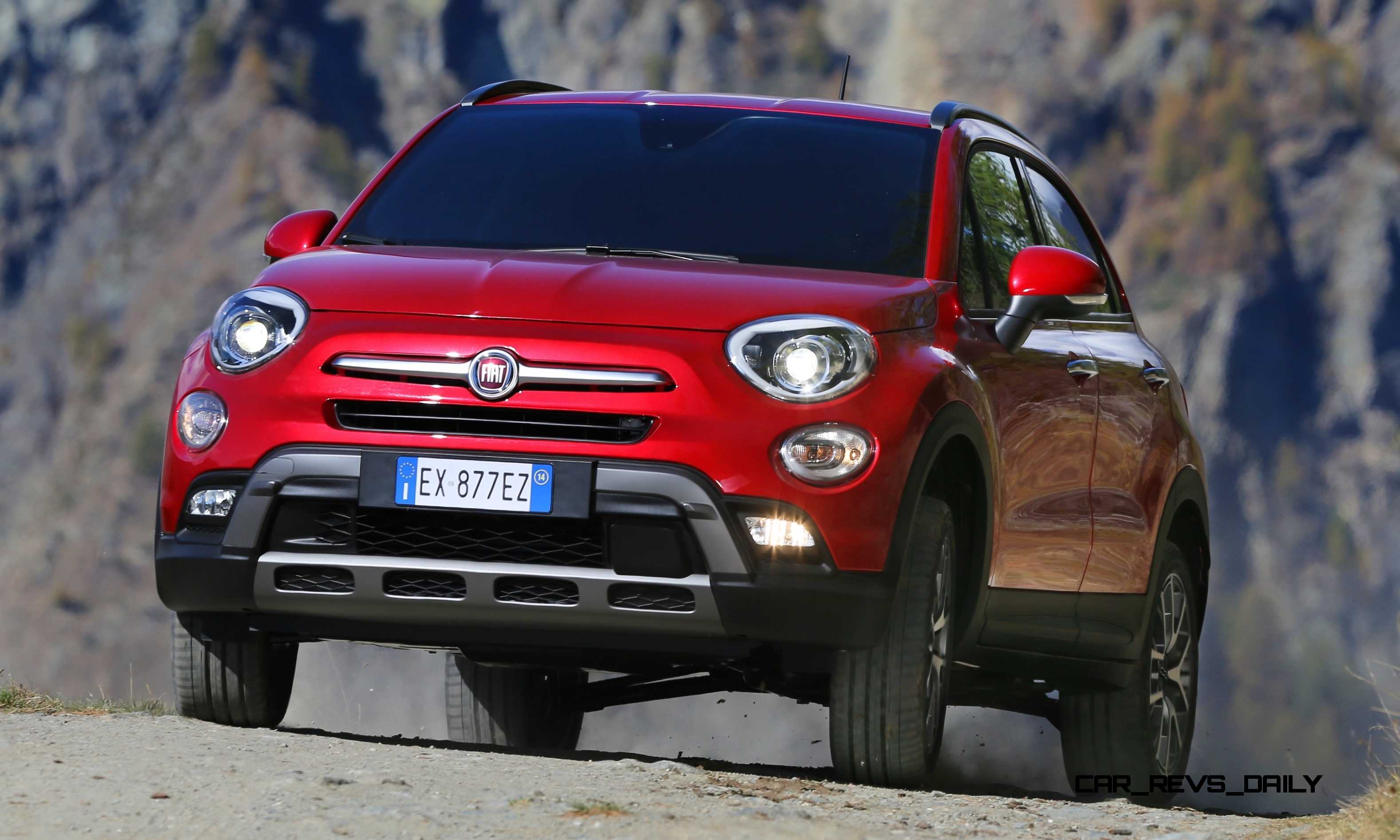

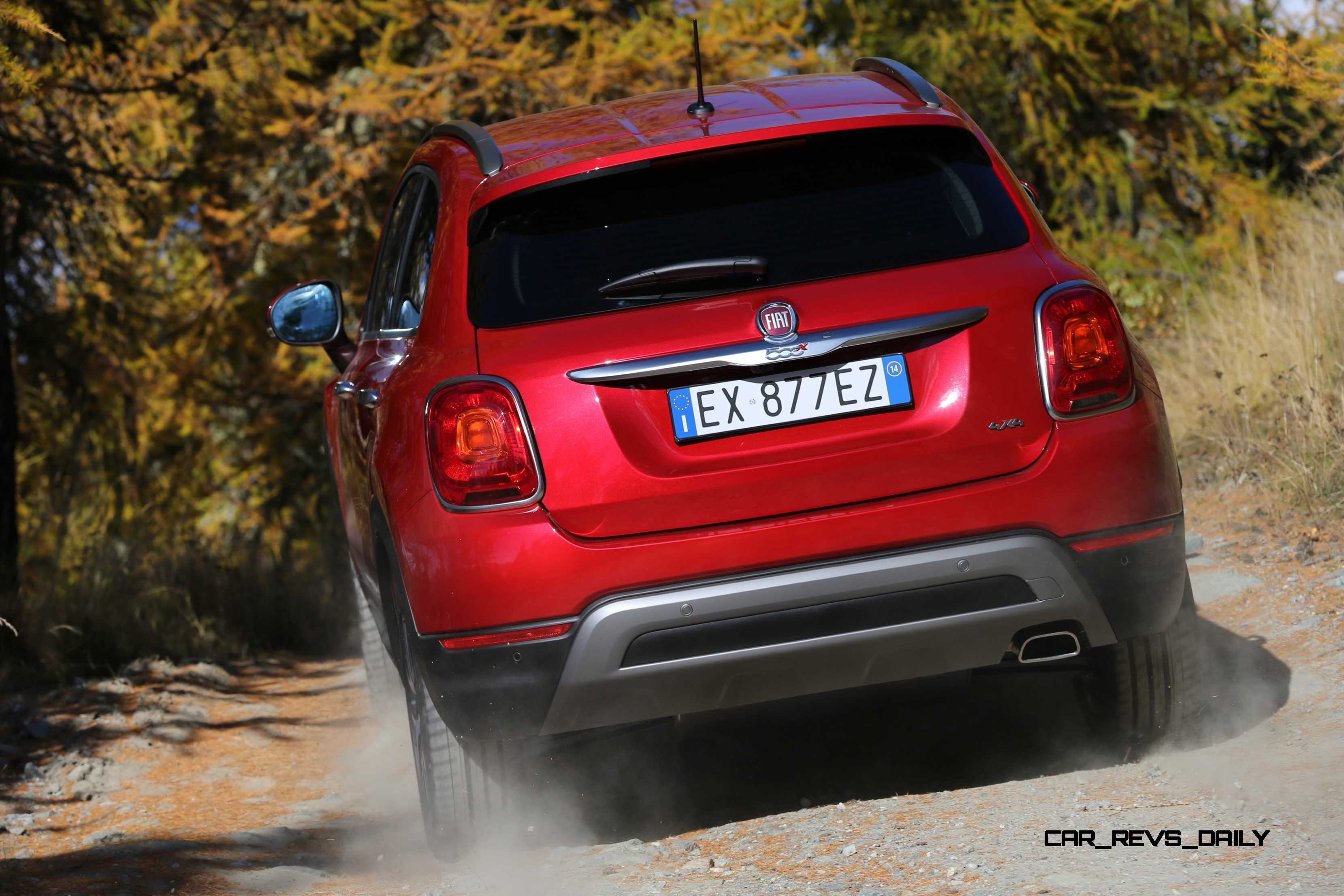

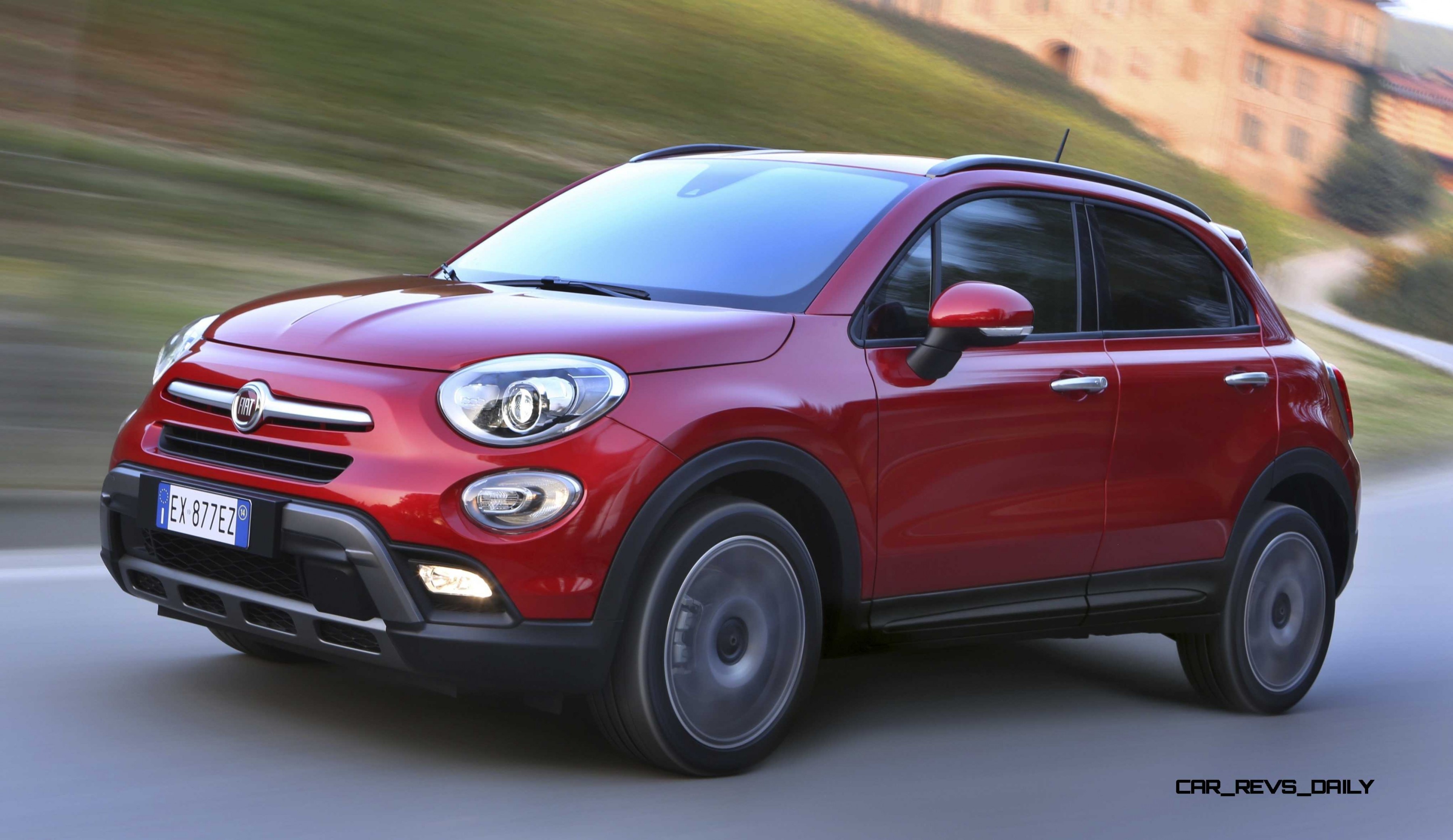

Fiat 500X Cross

2016 Fiat 500X Cross AWD 34 2016 Fiat 500X Cross AWD 1 2016 Fiat 500X Cross AWD 2 2016 Fiat 500X Cross AWD 3 2016 Fiat 500X Cross AWD 4 2016 Fiat 500X Cross AWD 5 2016 Fiat 500X Cross AWD 6 2016 Fiat 500X Cross AWD 7 2016 Fiat 500X Cross AWD 8 2016 Fiat 500X Cross AWD 9 2016 Fiat 500X Cross AWD 10 2016 Fiat 500X Cross AWD 11 2016 Fiat 500X Cross AWD 12 2016 Fiat 500X Cross AWD 13 2016 Fiat 500X Cross AWD 14 2016 Fiat 500X Cross AWD 15 2016 Fiat 500X Cross AWD 16 2016 Fiat 500X Cross AWD 17 2016 Fiat 500X Cross AWD 18 2016 Fiat 500X Cross AWD 19 2016 Fiat 500X Cross AWD 20 2016 Fiat 500X Cross AWD 21 2016 Fiat 500X Cross AWD 22 2016 Fiat 500X Cross AWD 23 2016 Fiat 500X Cross AWD 24 2016 Fiat 500X Cross AWD 25 2016 Fiat 500X Cross AWD 26 2016 Fiat 500X Cross AWD 27 2016 Fiat 500X Cross AWD 28 2016 Fiat 500X Cross AWD 29 2016 Fiat 500X Cross AWD 30 2016 Fiat 500X Cross AWD 31 2016 Fiat 500X Cross AWD 32 2016 Fiat 500X Cross AWD 33 47_Fiat_500X_Cross 14_Fiat_500X_Cross 17_Fiat_500X_Cross 24_Fiat_500X_Cross 25_Fiat_500X_Cross 29_Fiat_500X_Cross 34_Fiat_500X_Cross 42_Fiat_500X_Cross2016 Fiat 500X

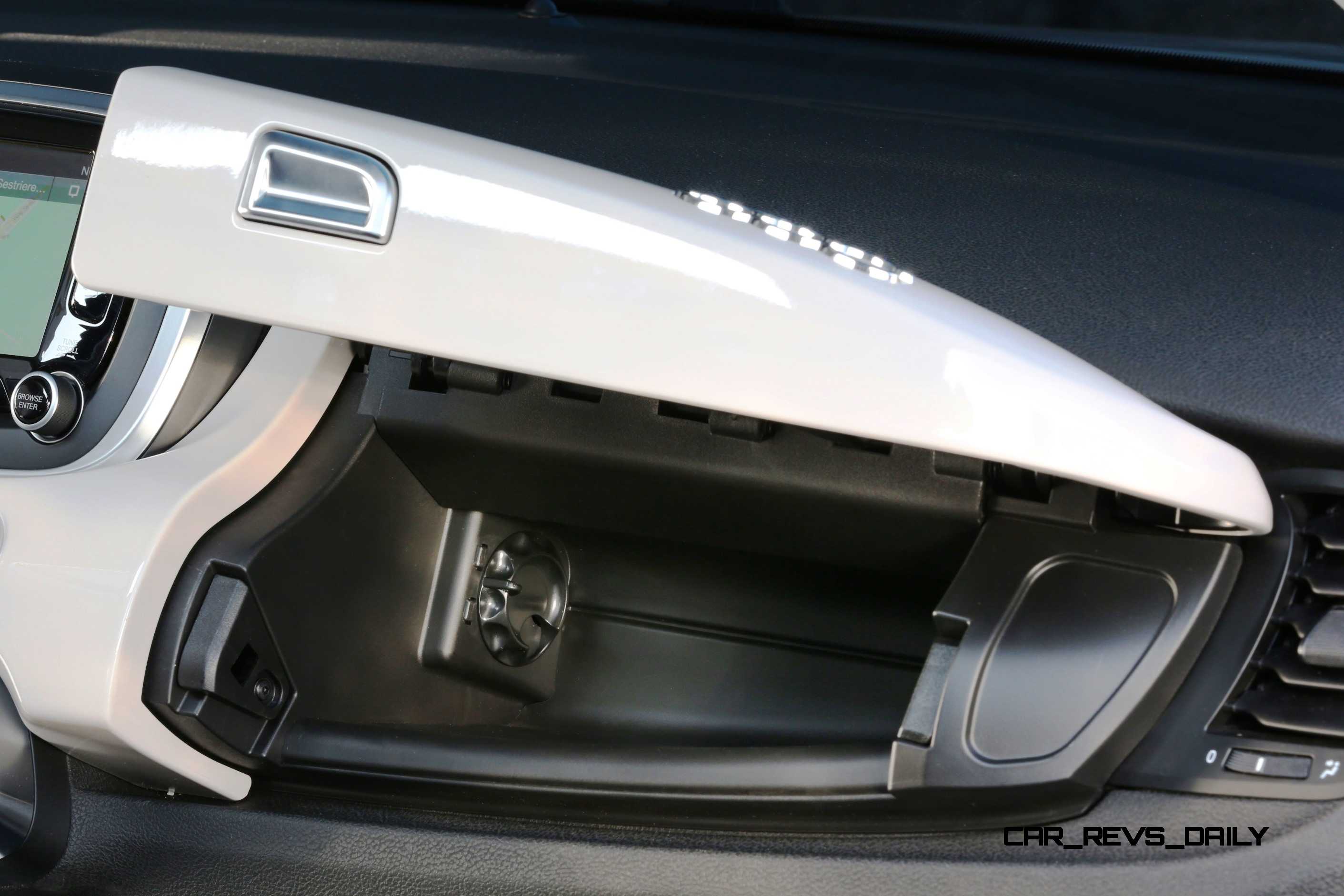

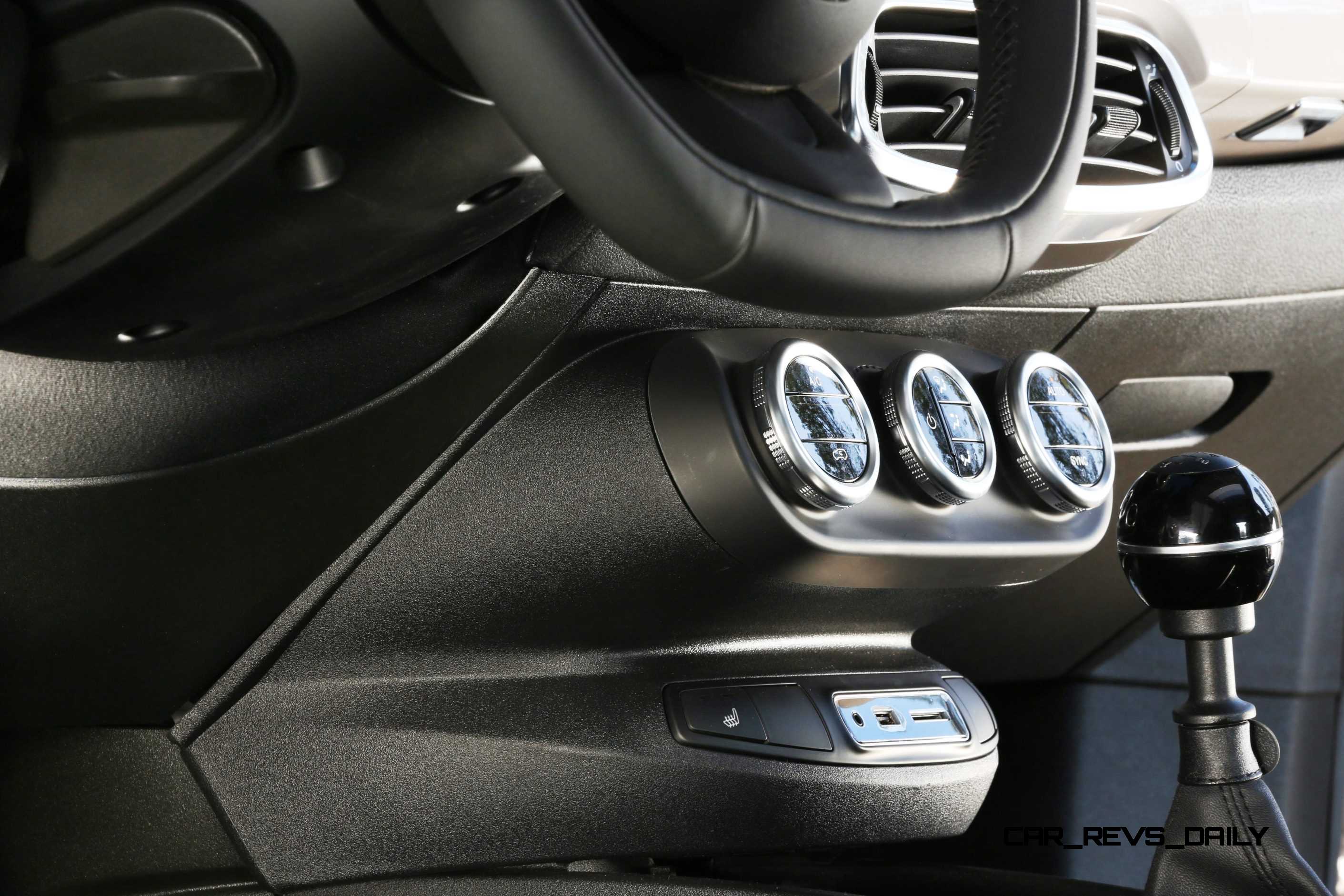

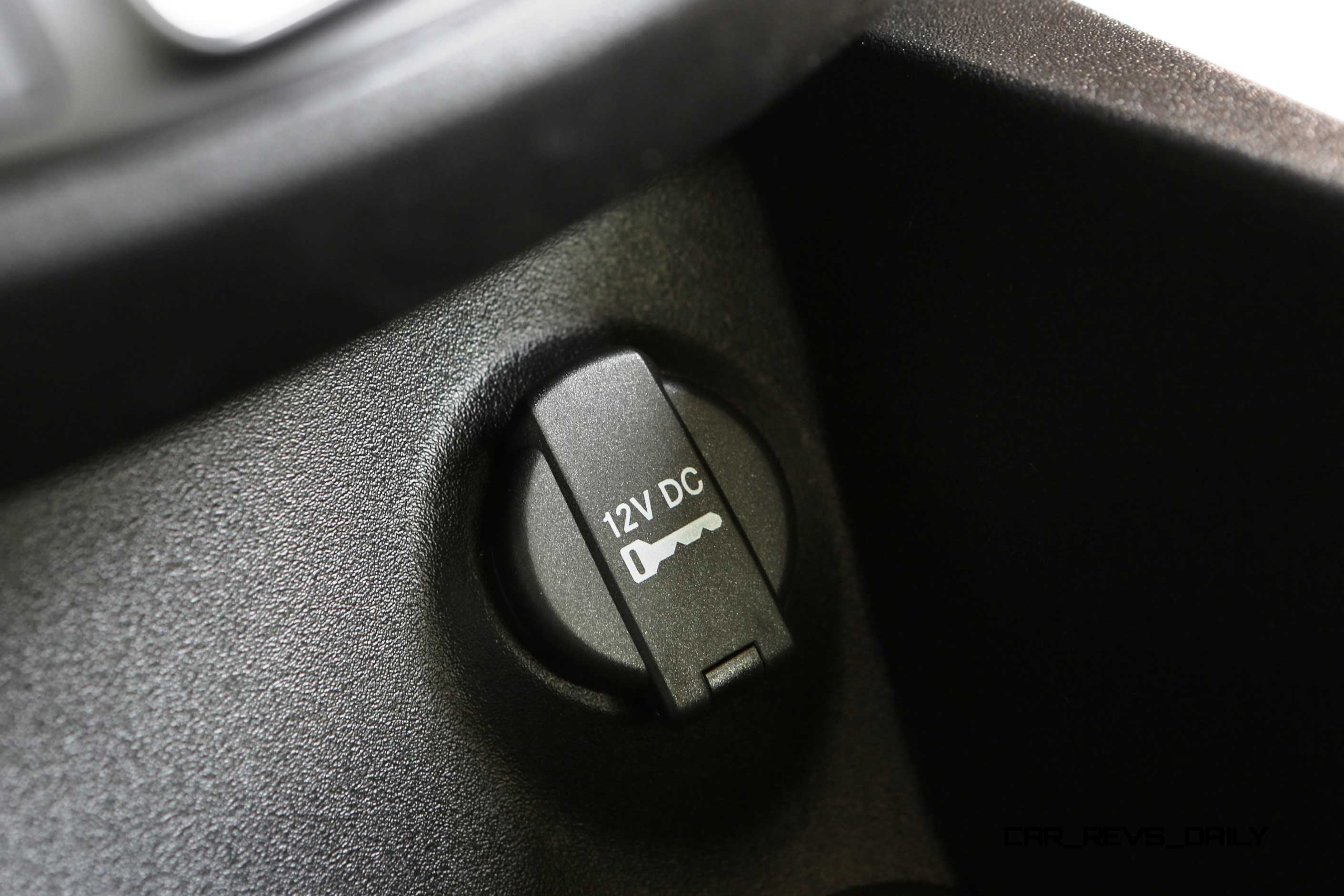

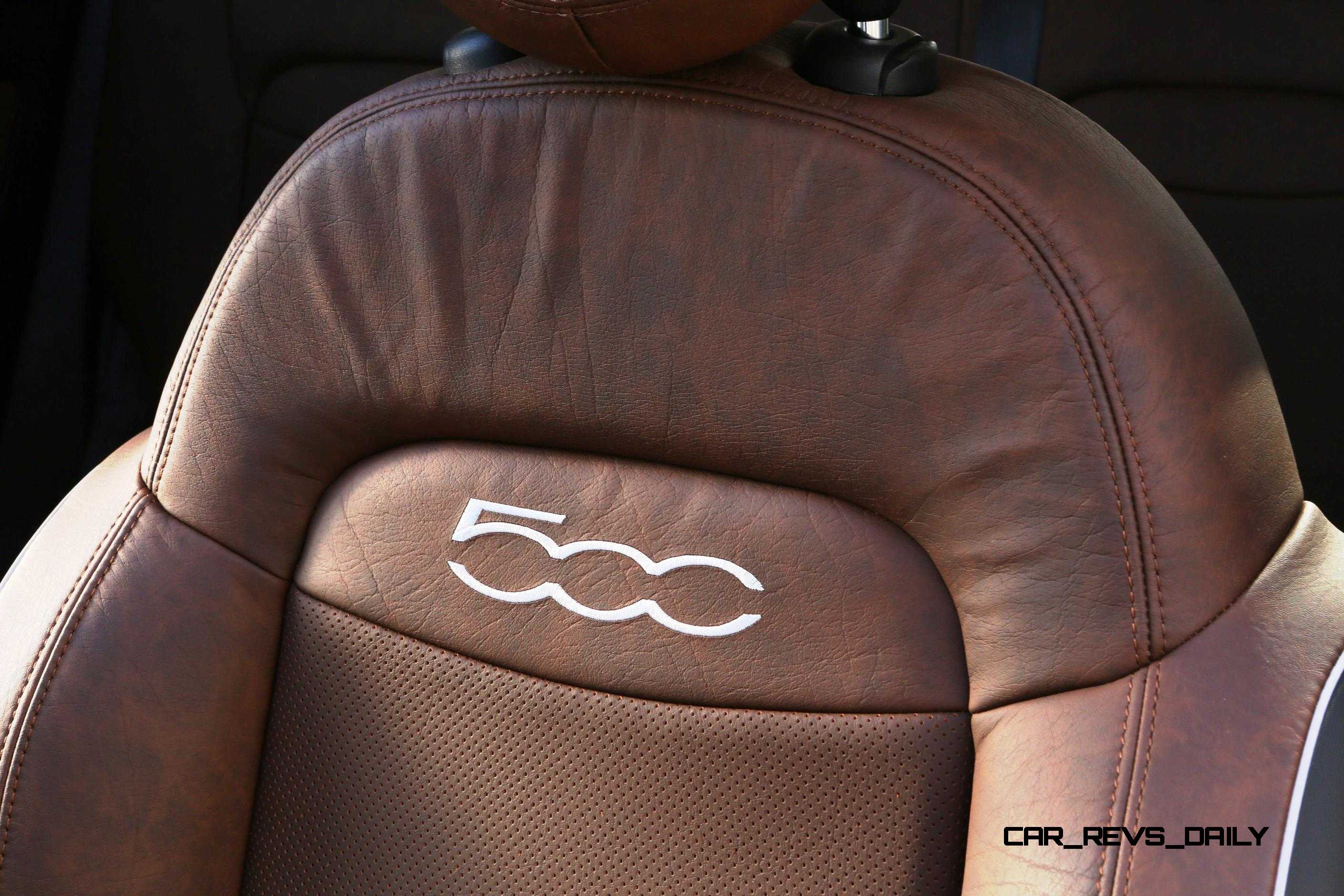

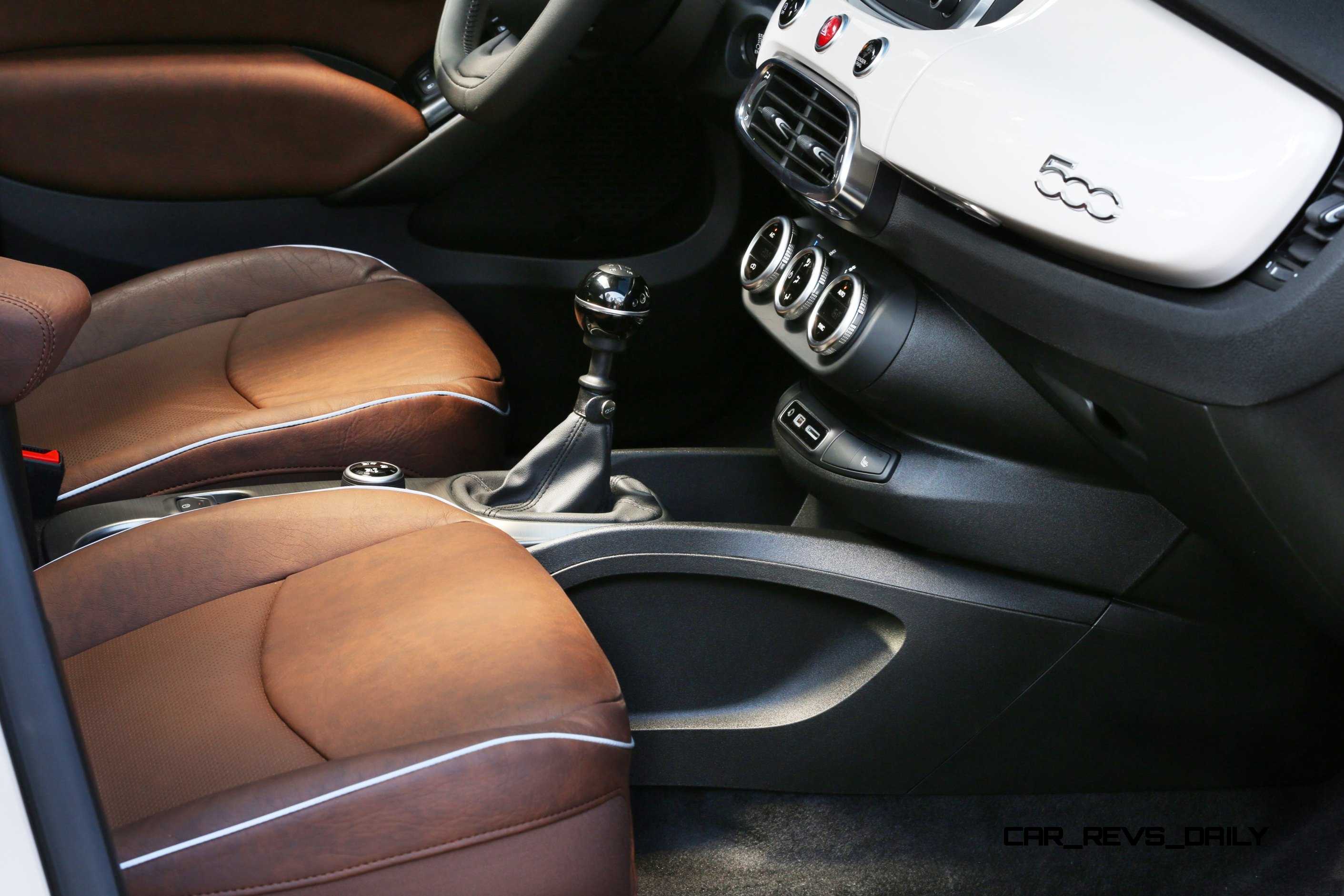

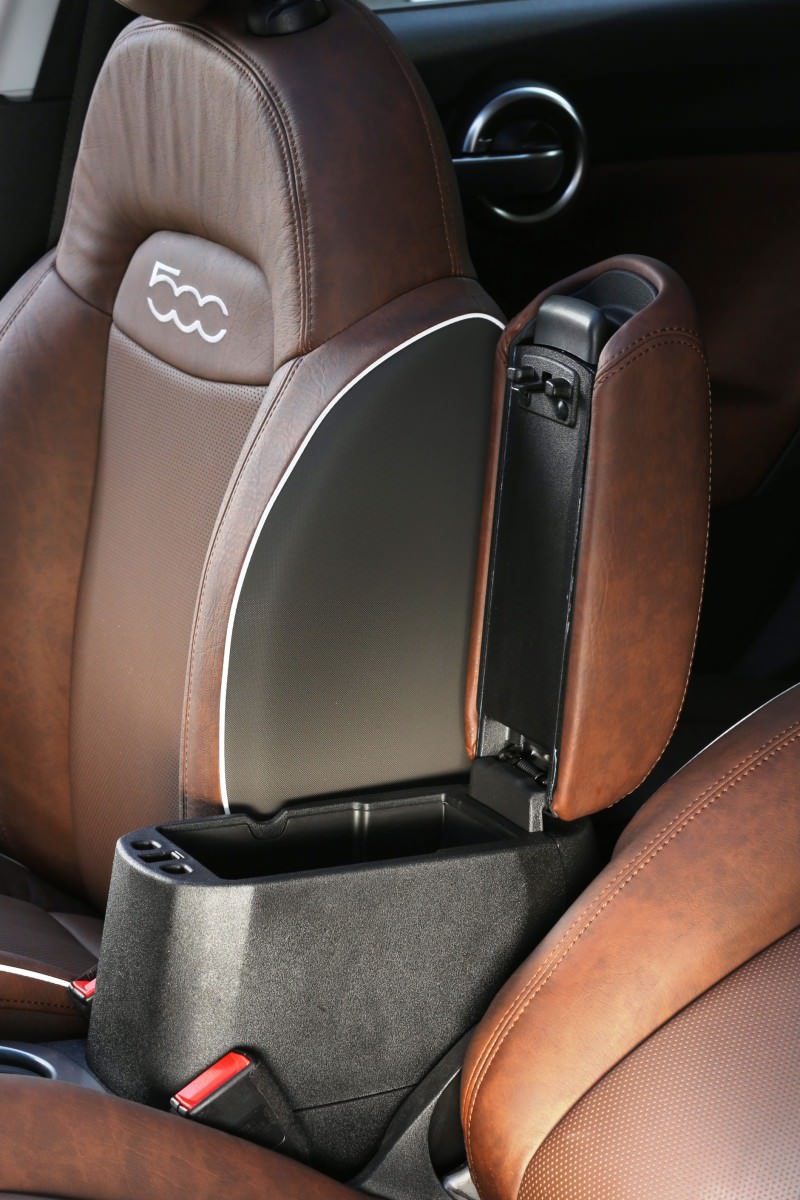

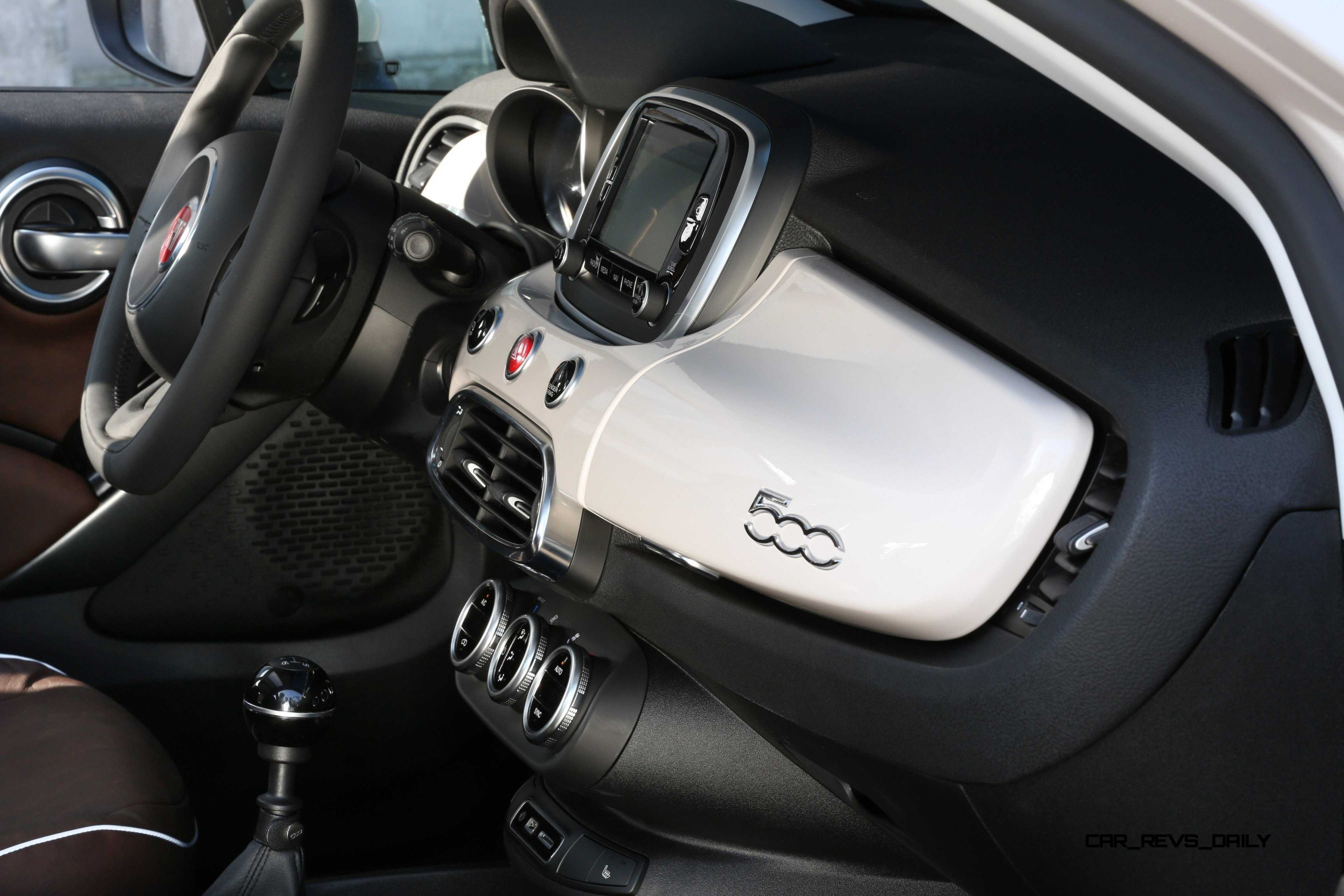

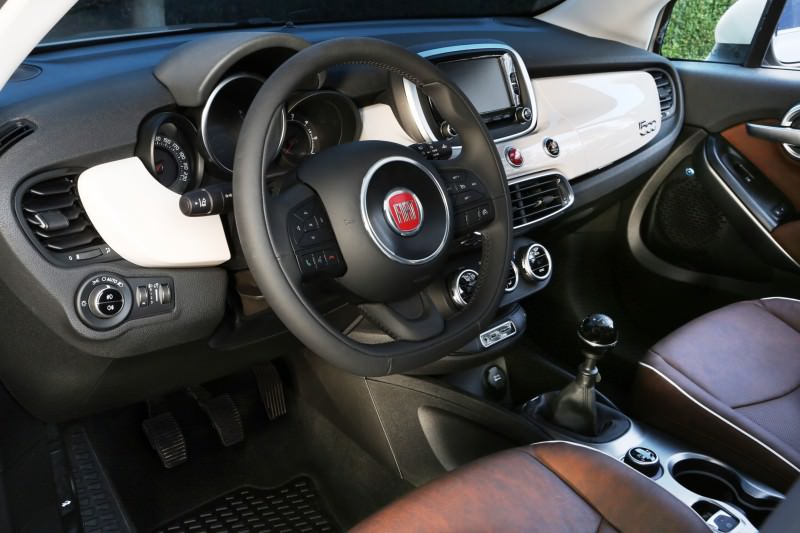

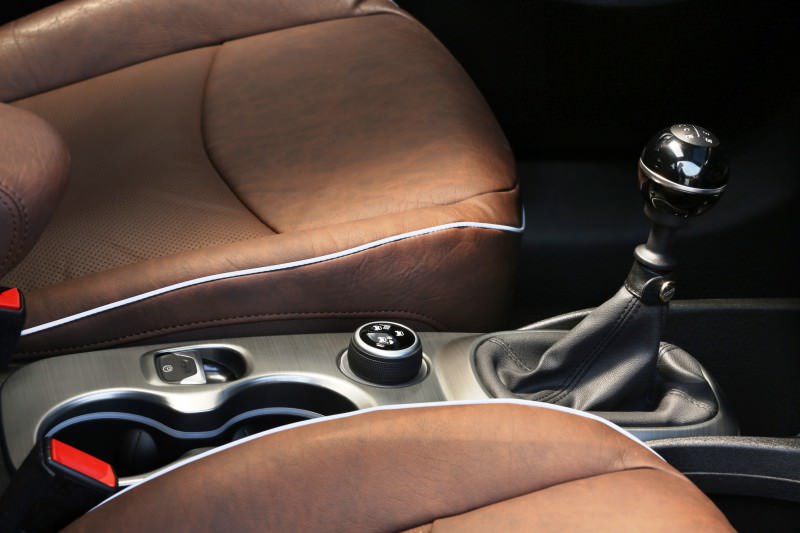

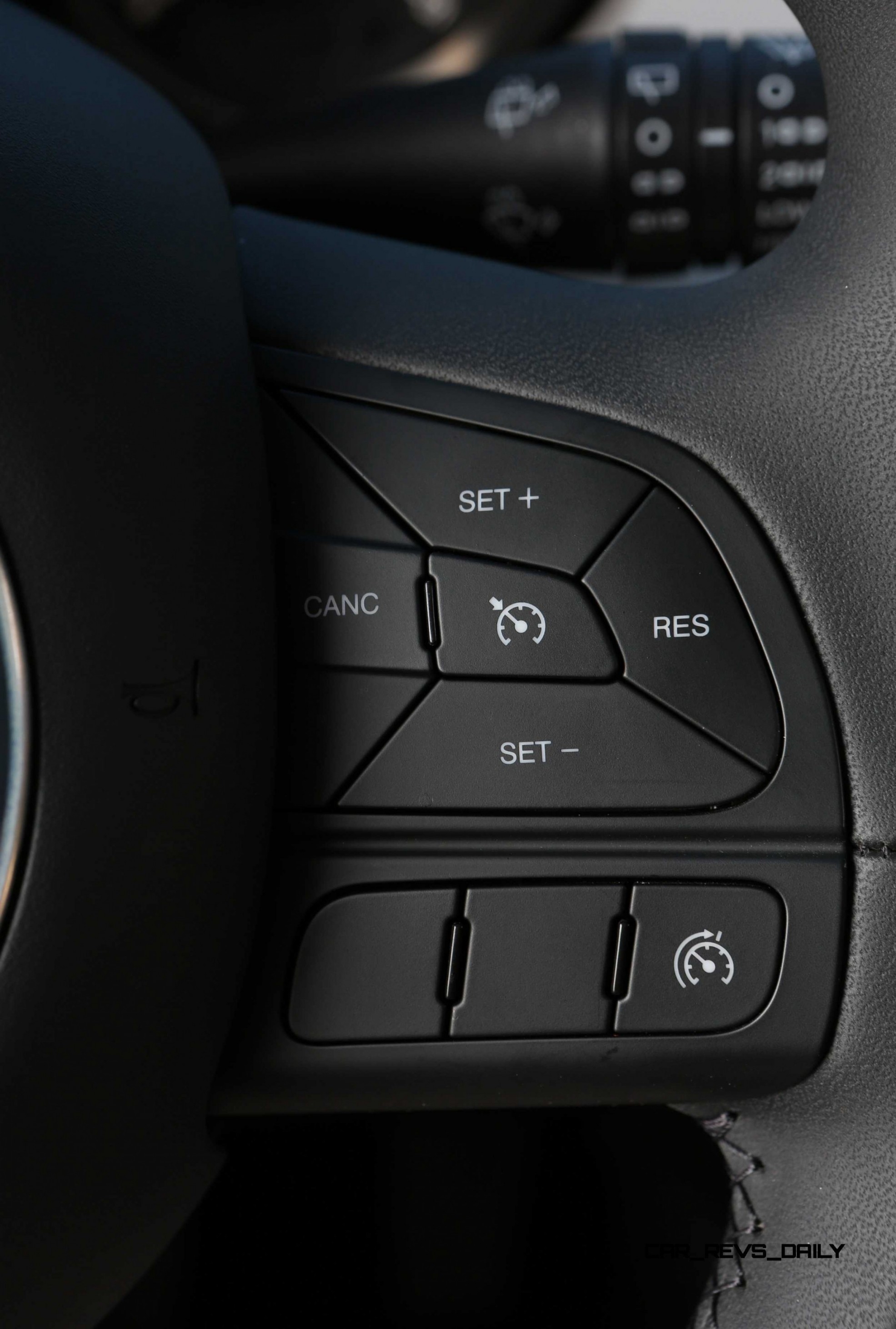

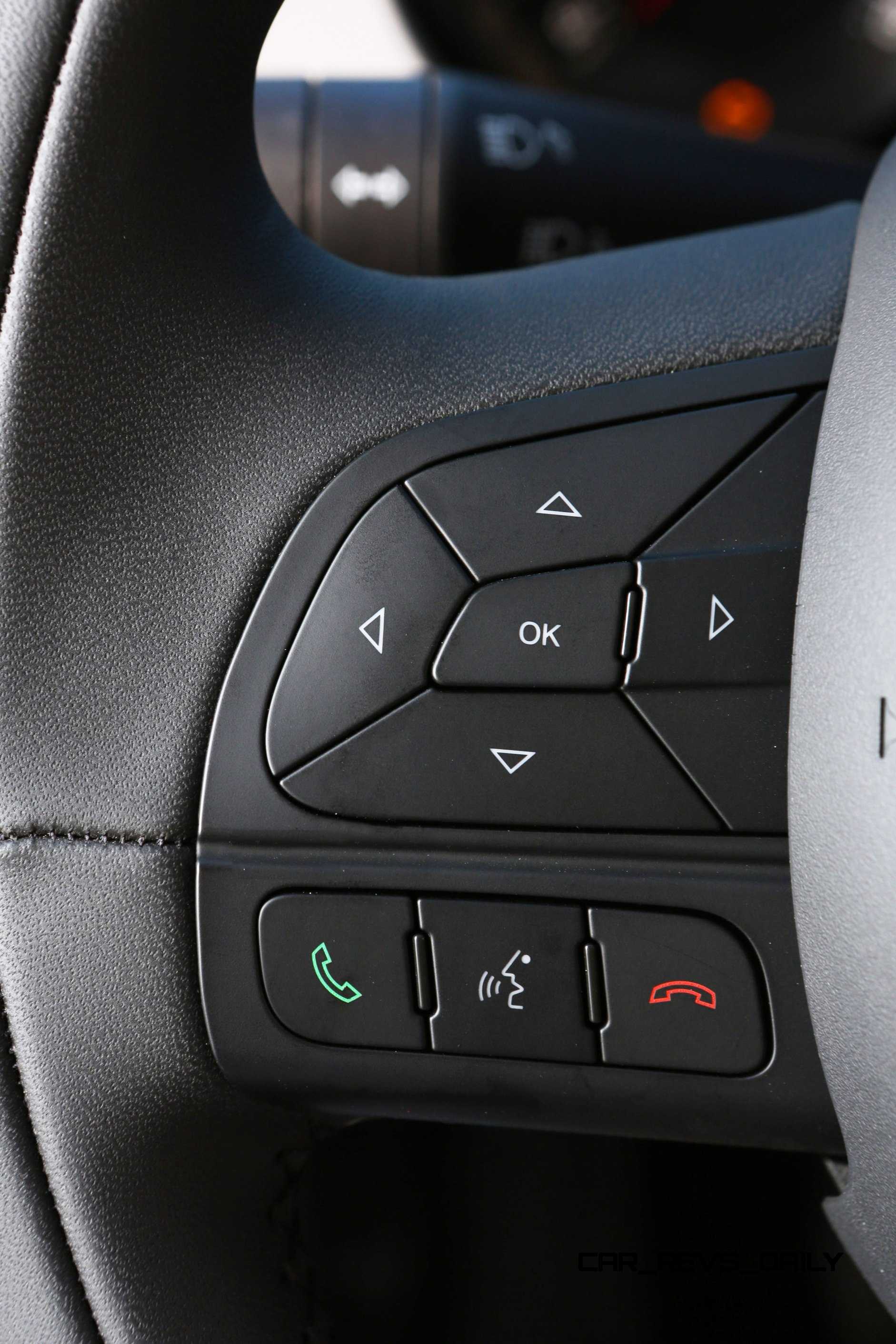

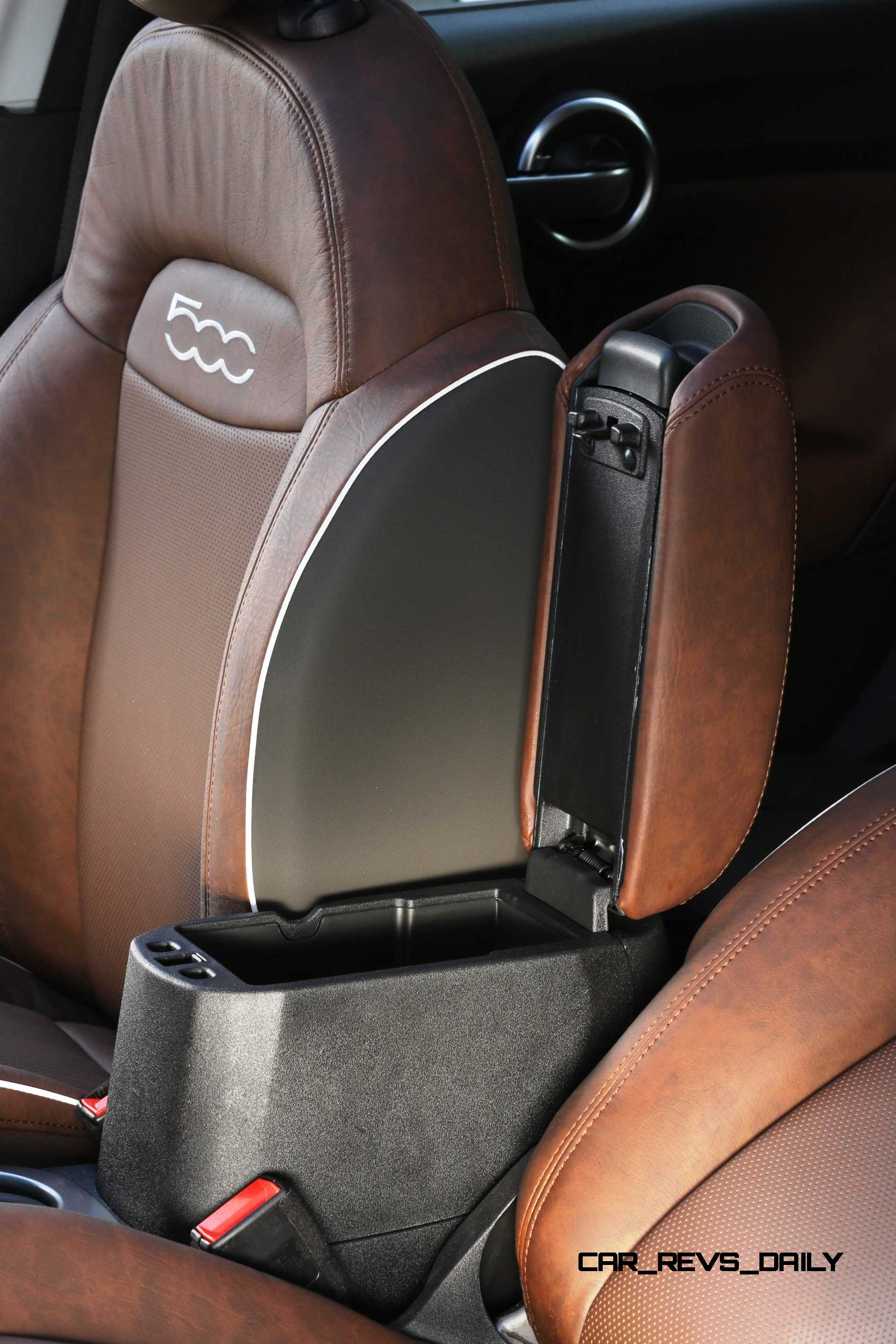

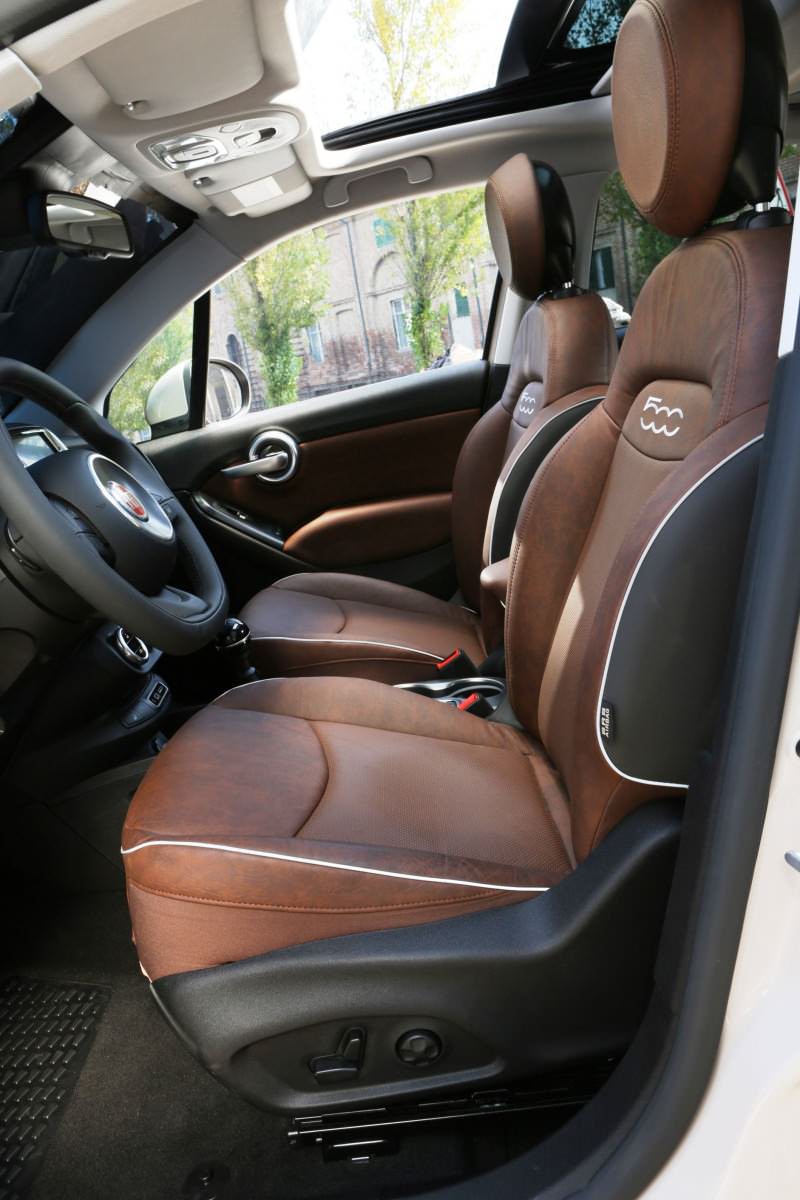

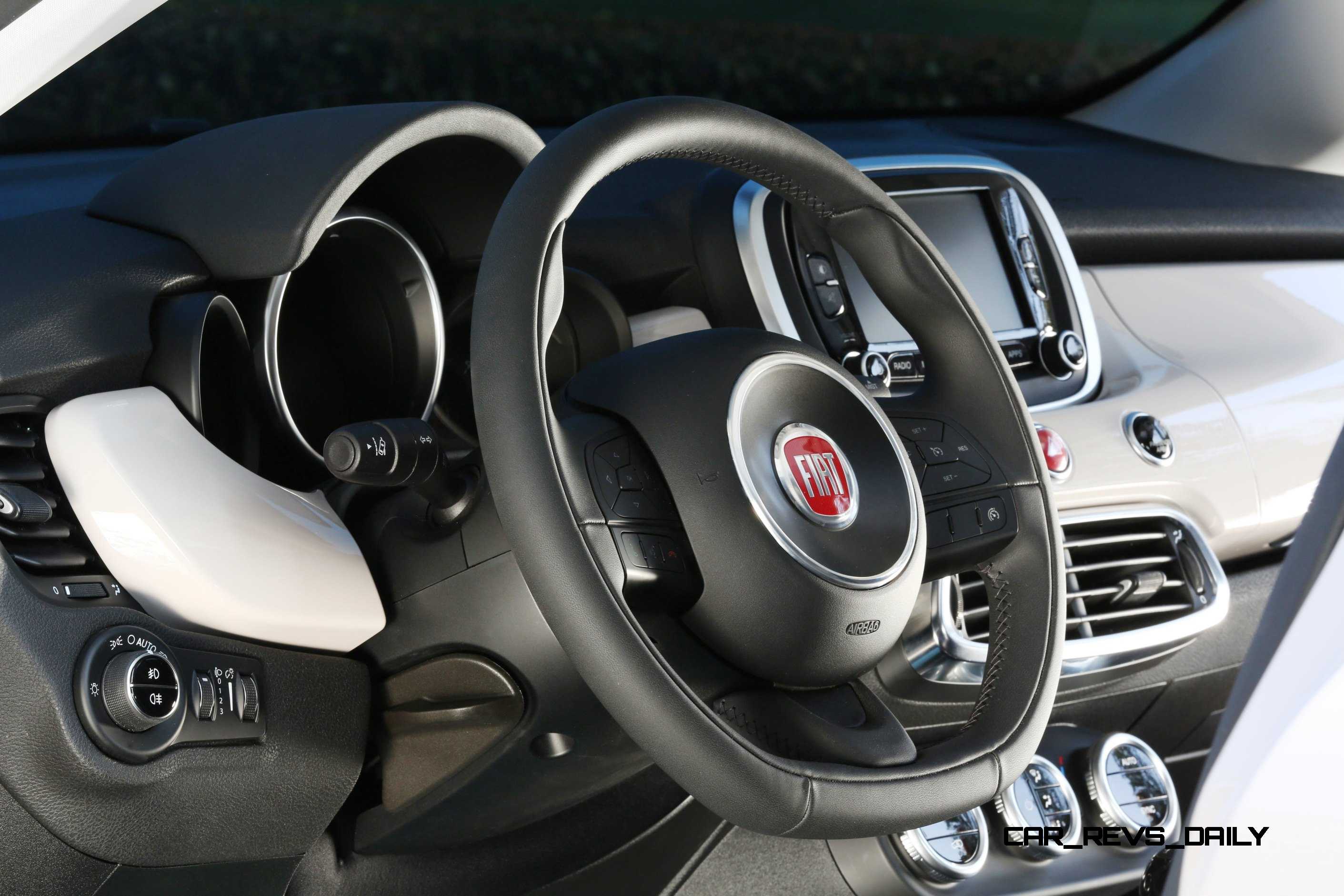

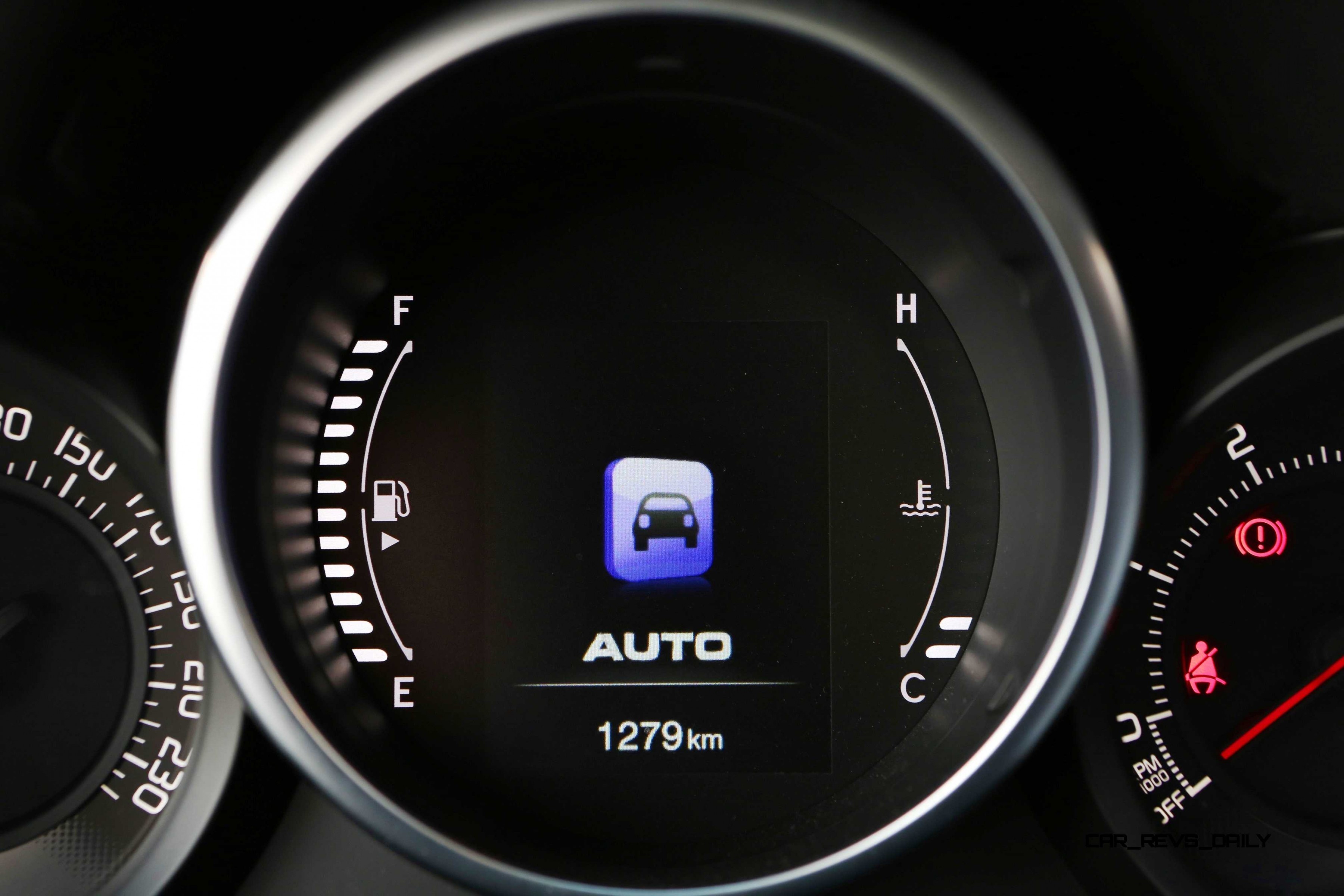

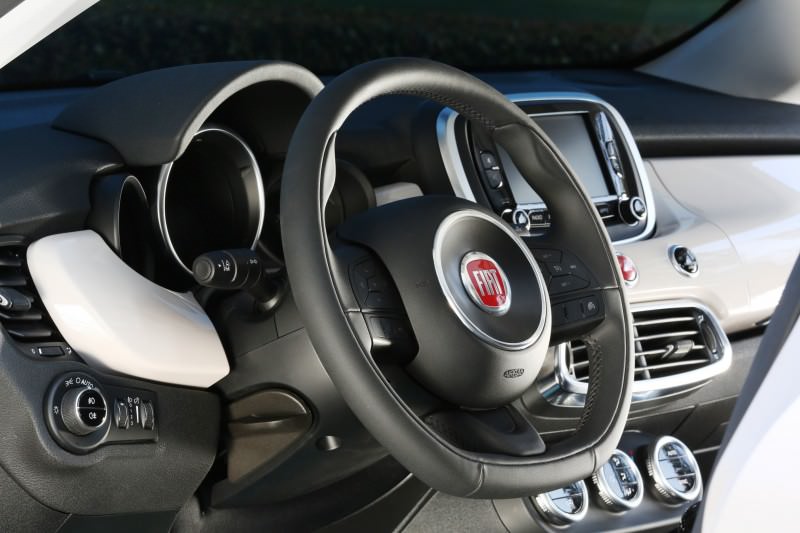

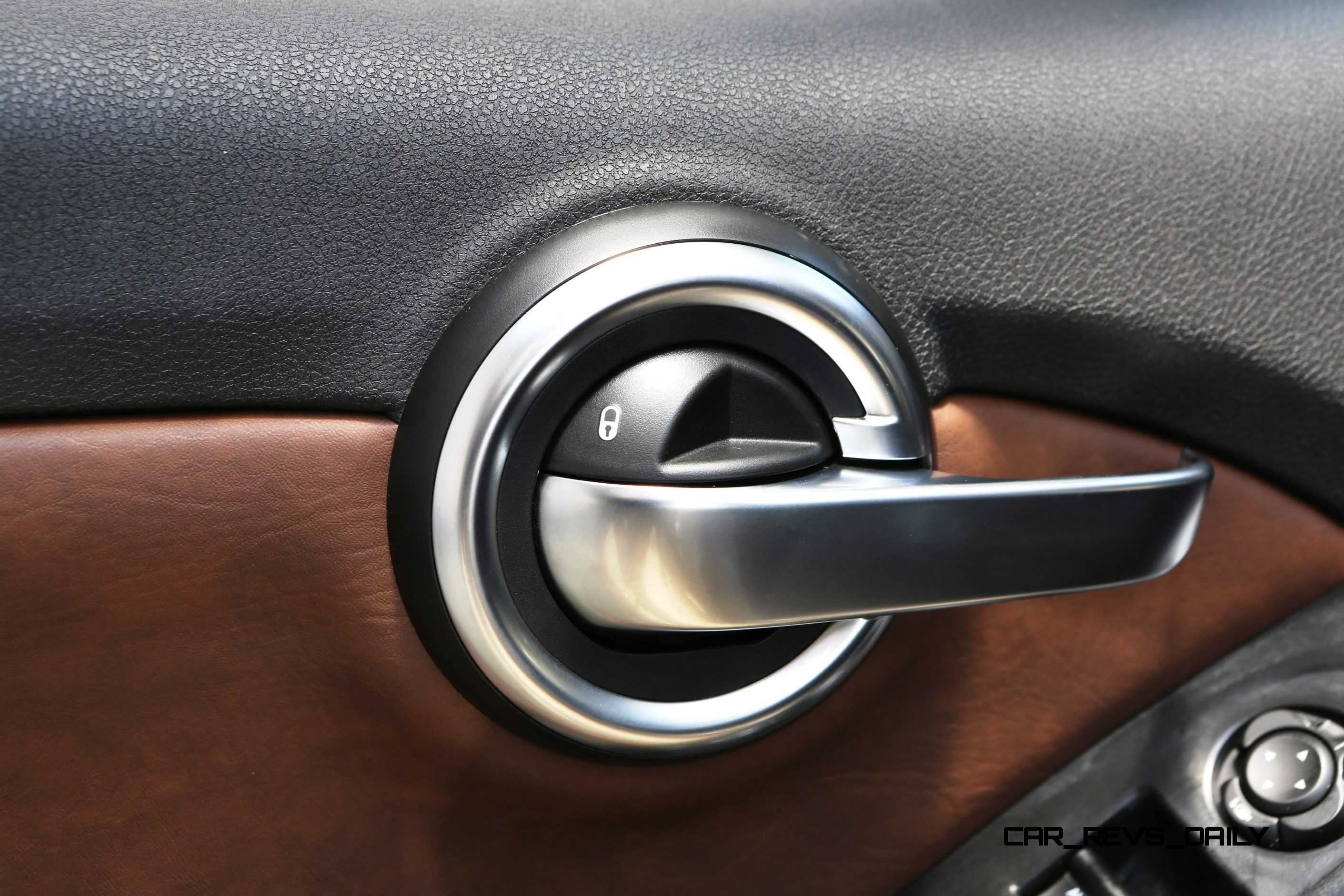

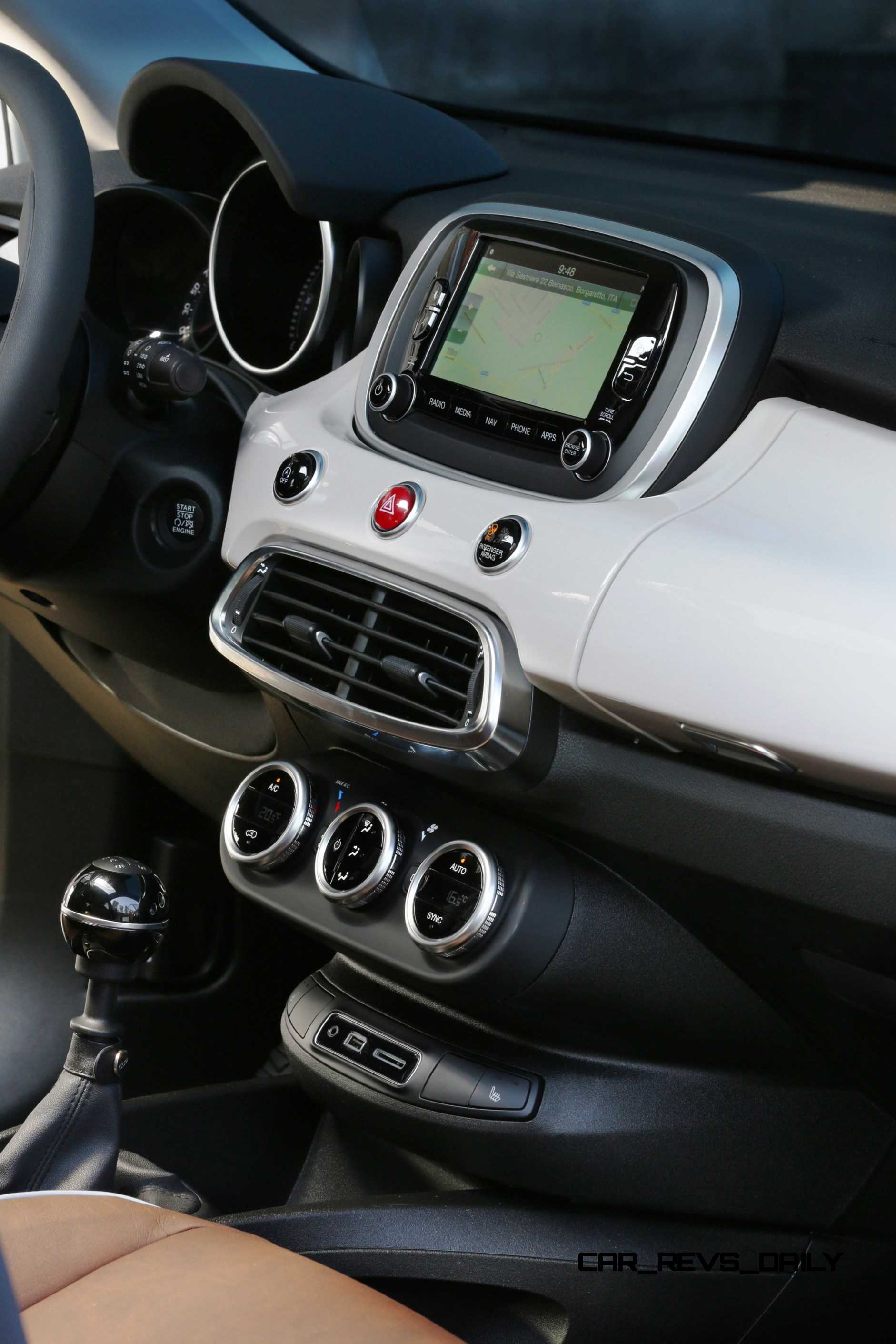

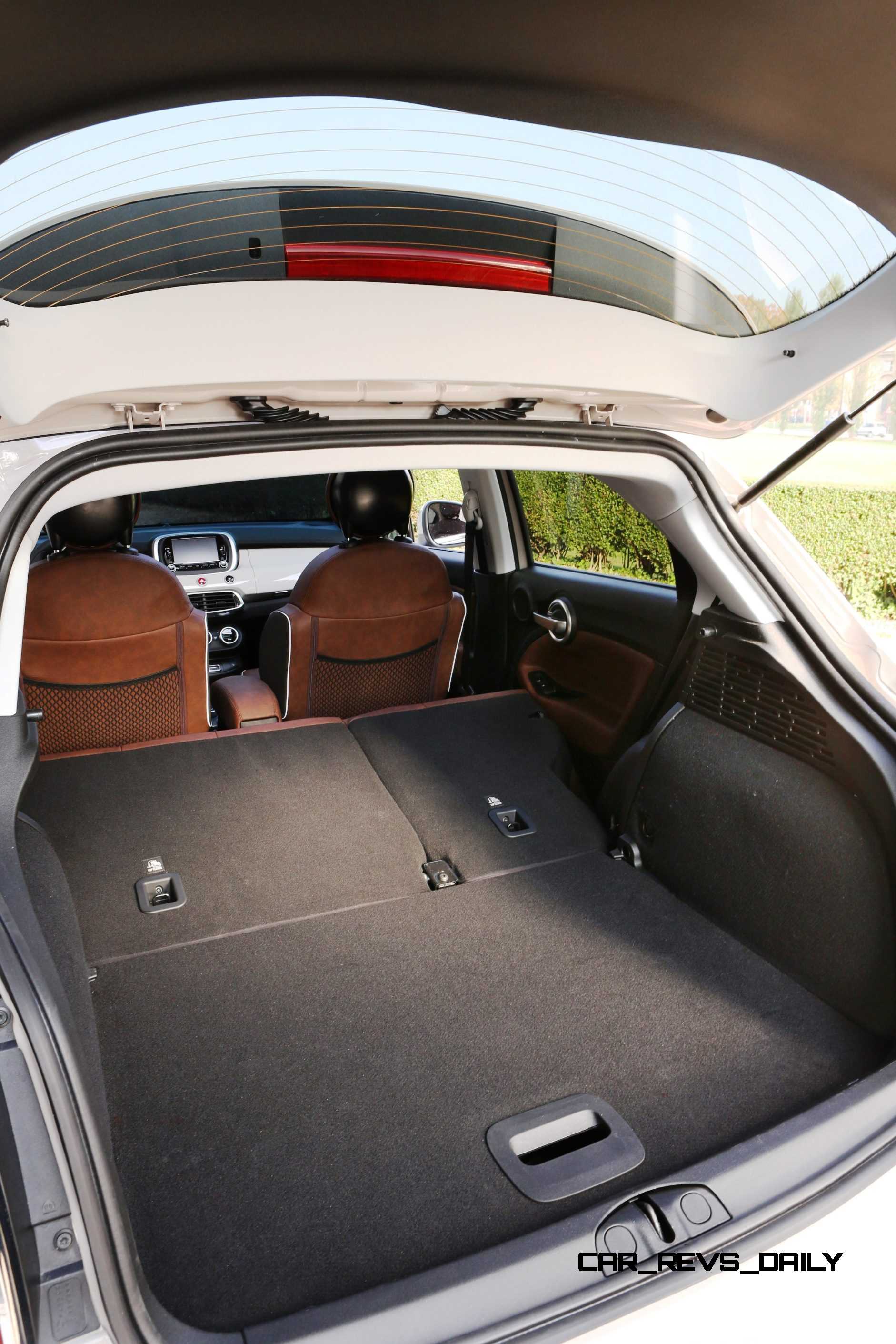

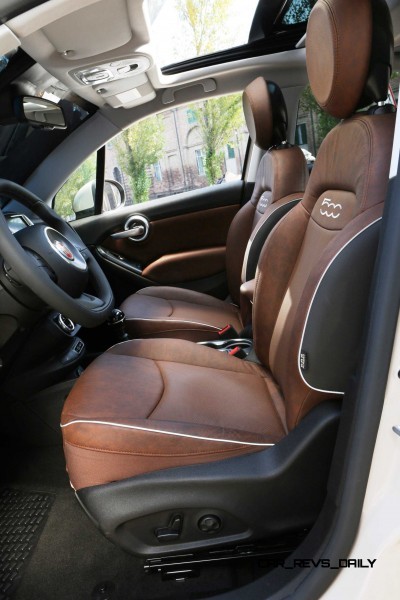

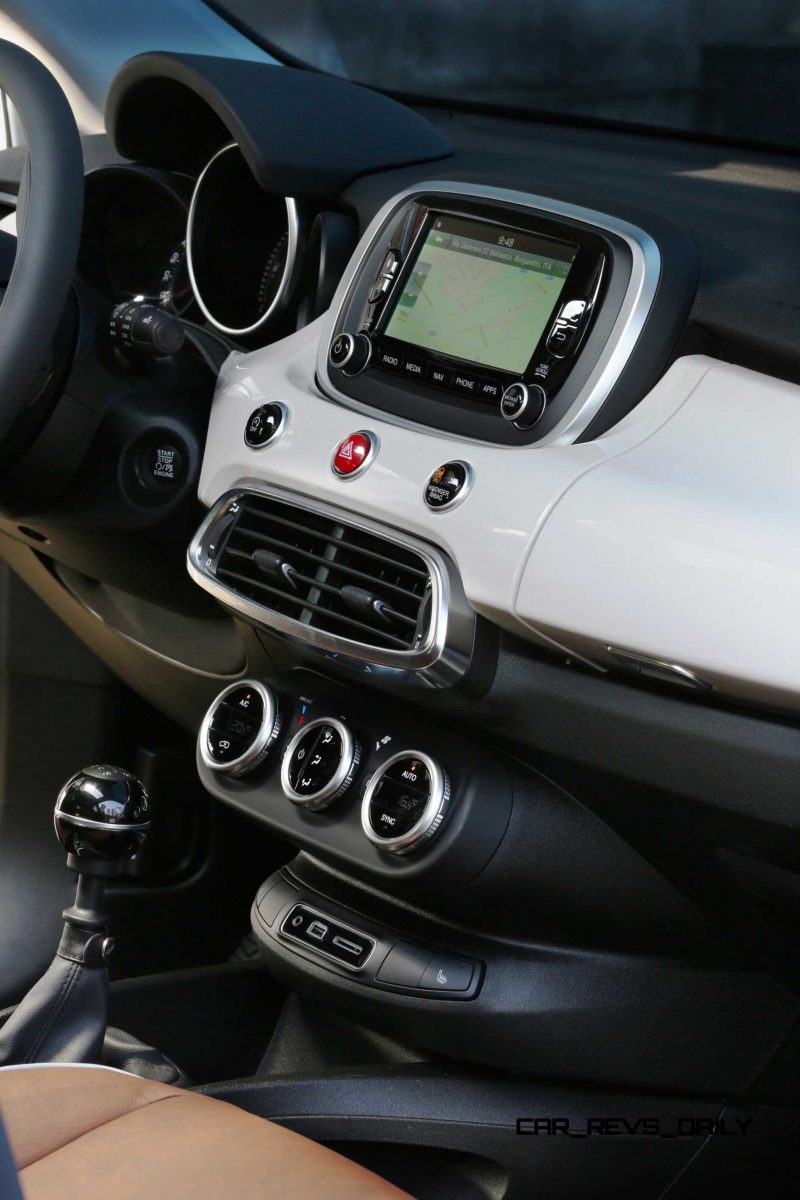

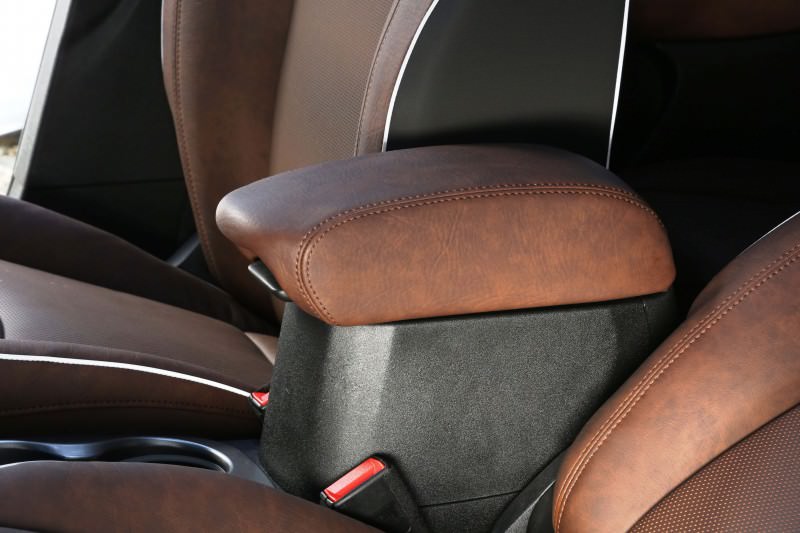

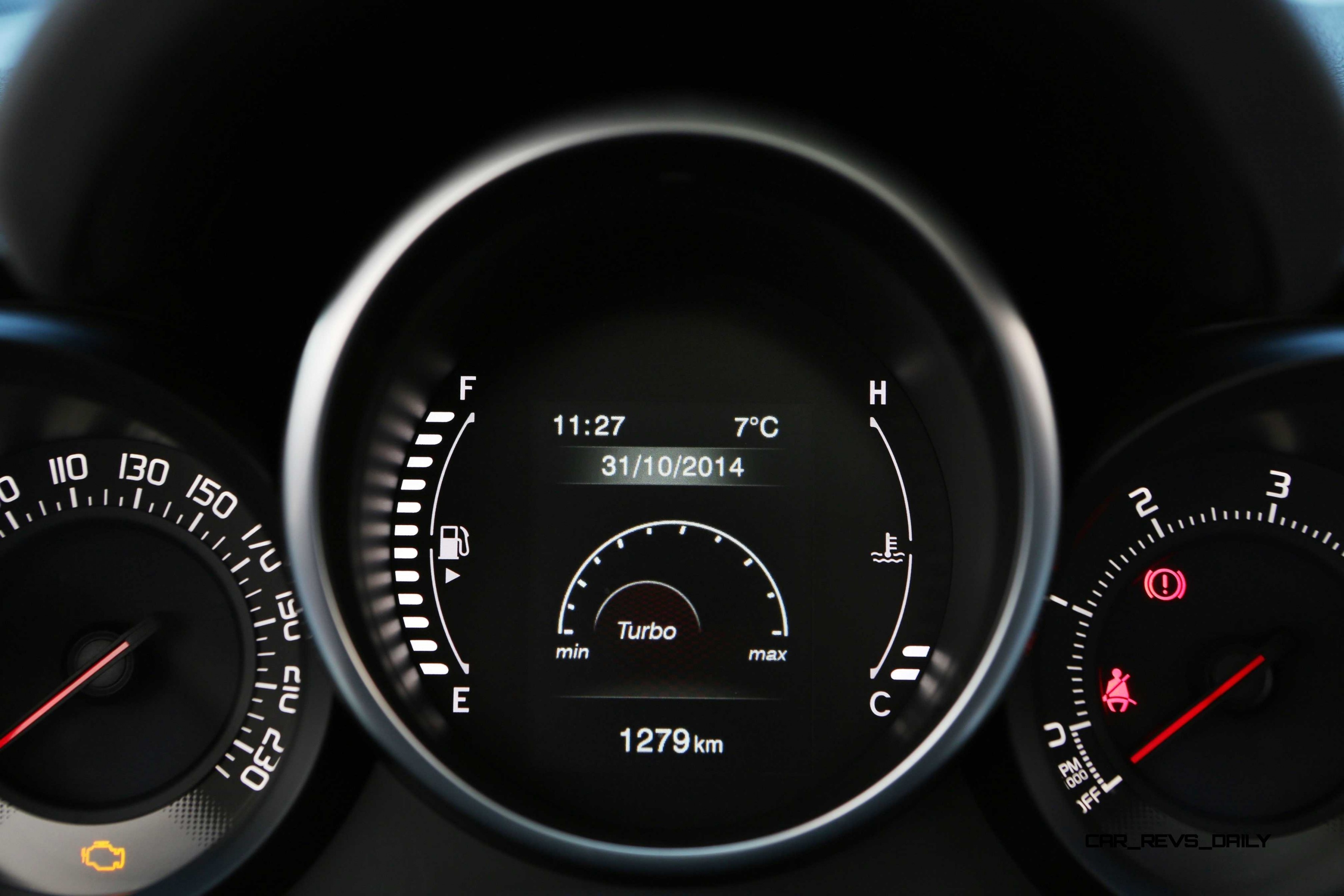

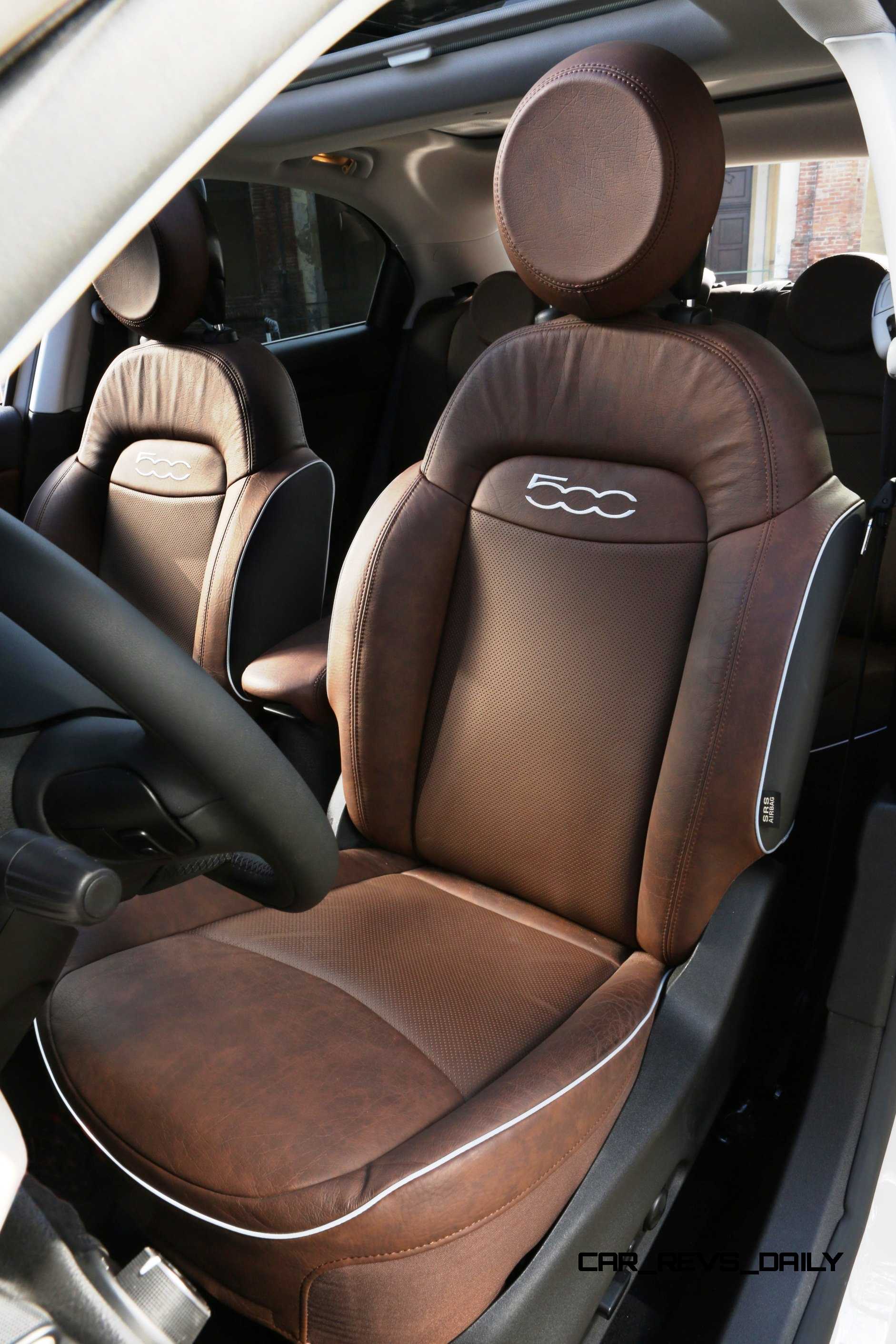

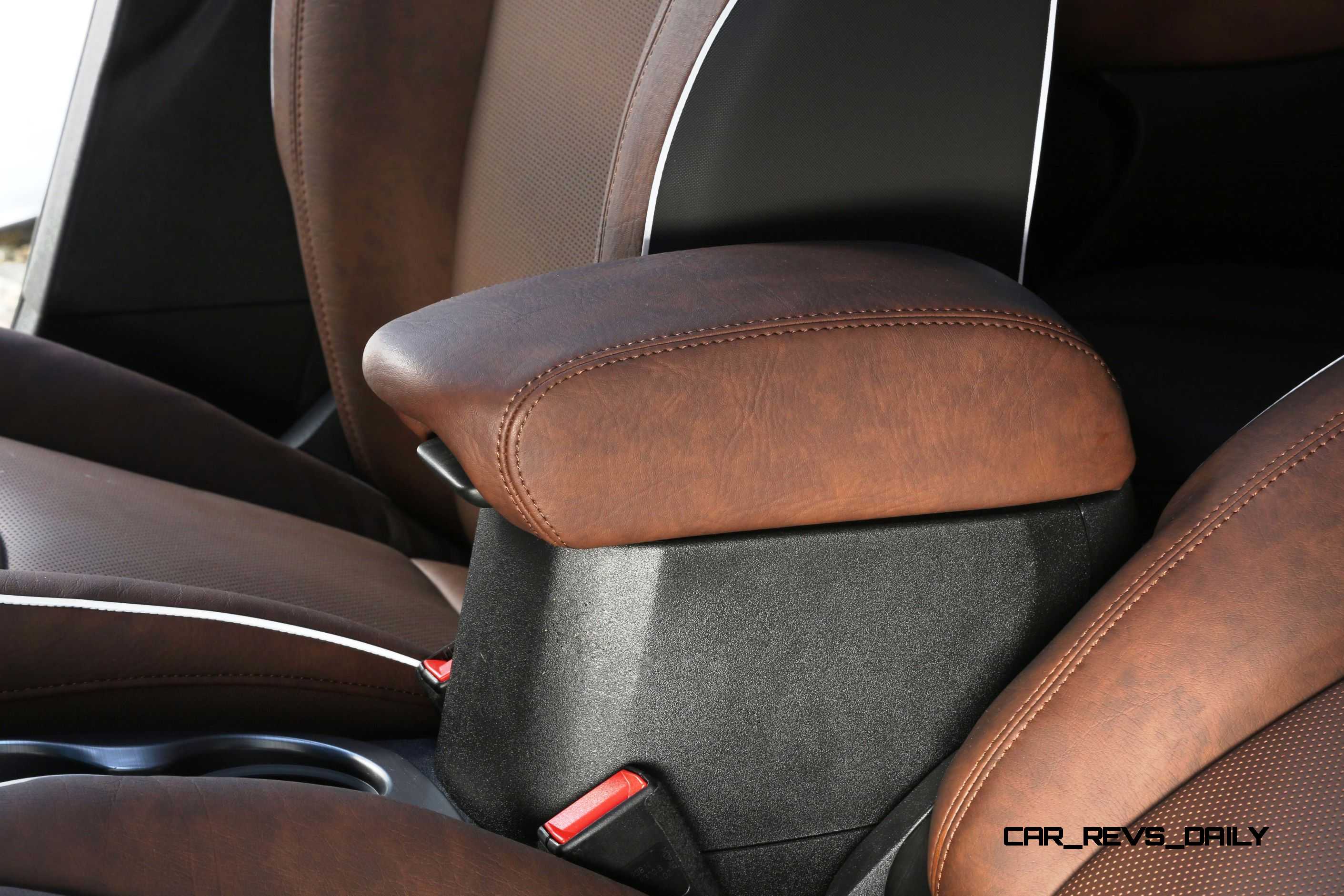

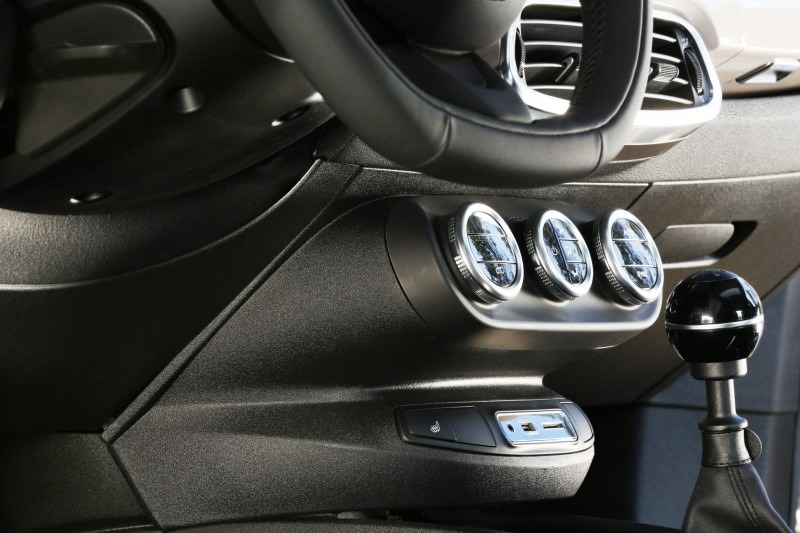

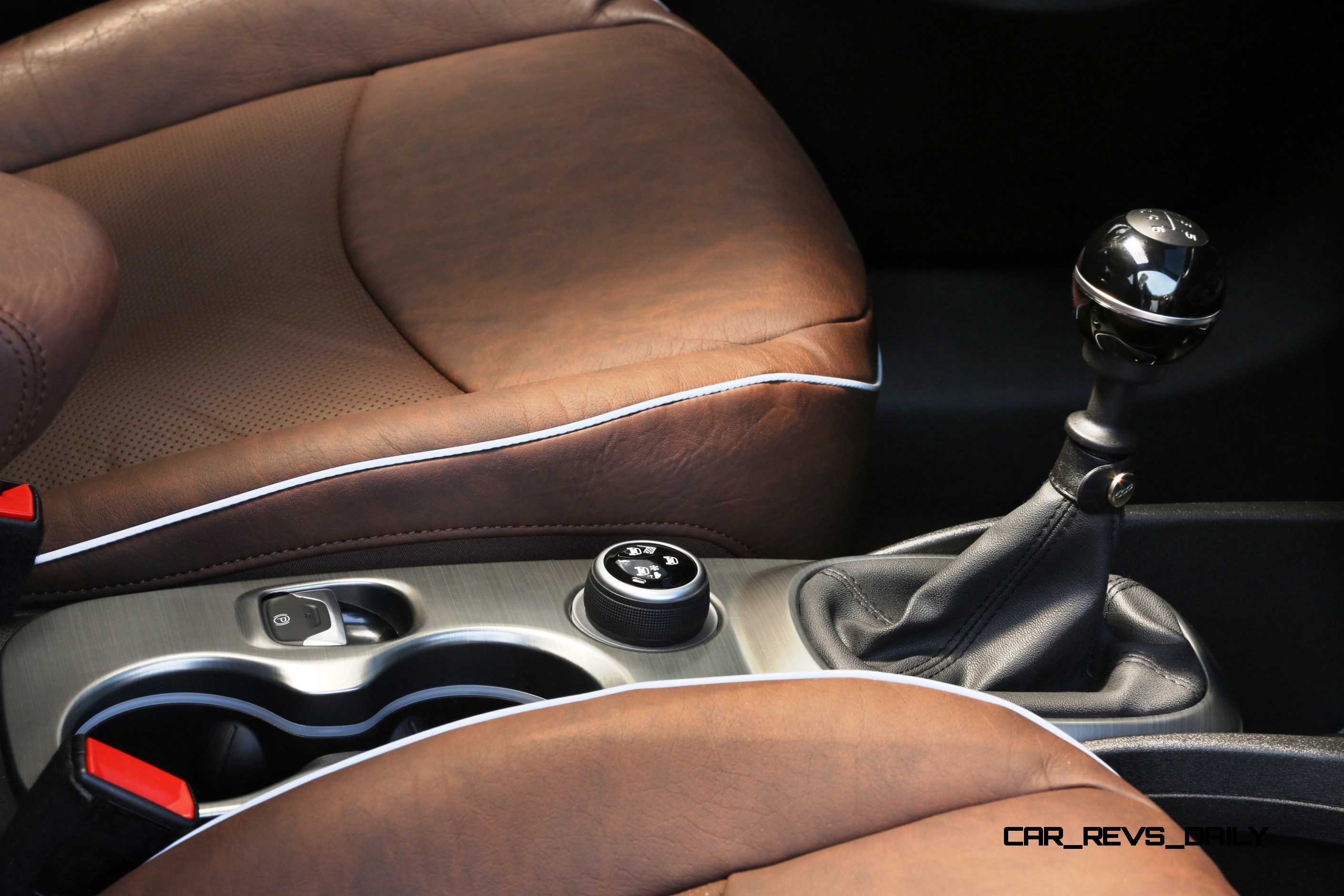

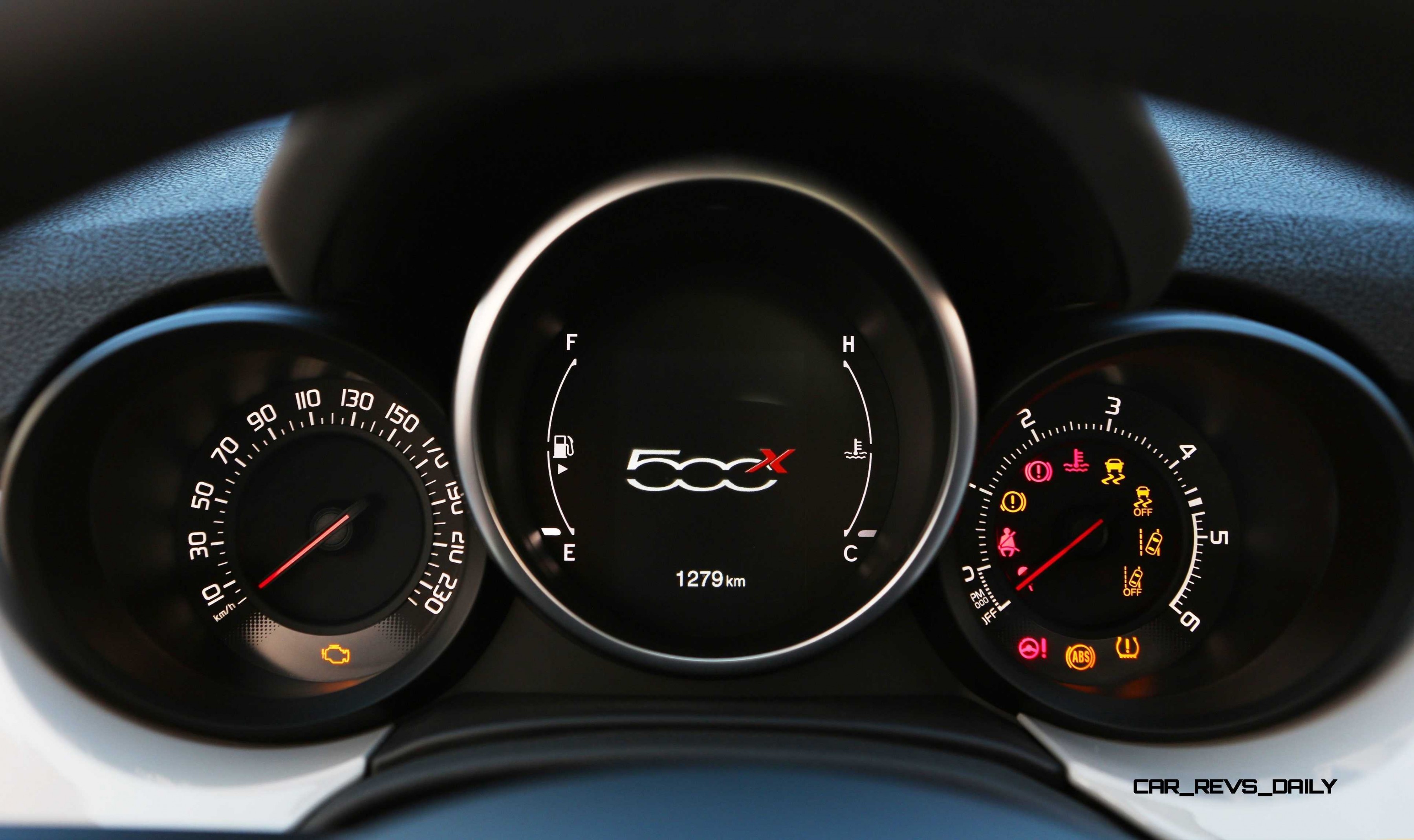

INTERIOR

2016 Fiat 500X 11 2016 Fiat 500X 10 2016 Fiat 500X 9 2016 Fiat 500X 8 2016 Fiat 500X 7 2016 Fiat 500X 6 2016 Fiat 500X 5 2016 Fiat 500X 4 2016 Fiat 500X 3 2016 Fiat 500X 2 2016 Fiat 500X 1 2016 Fiat 500X 51 2016 Fiat 500X 50 2016 Fiat 500X 49



2016 Fiat 500X

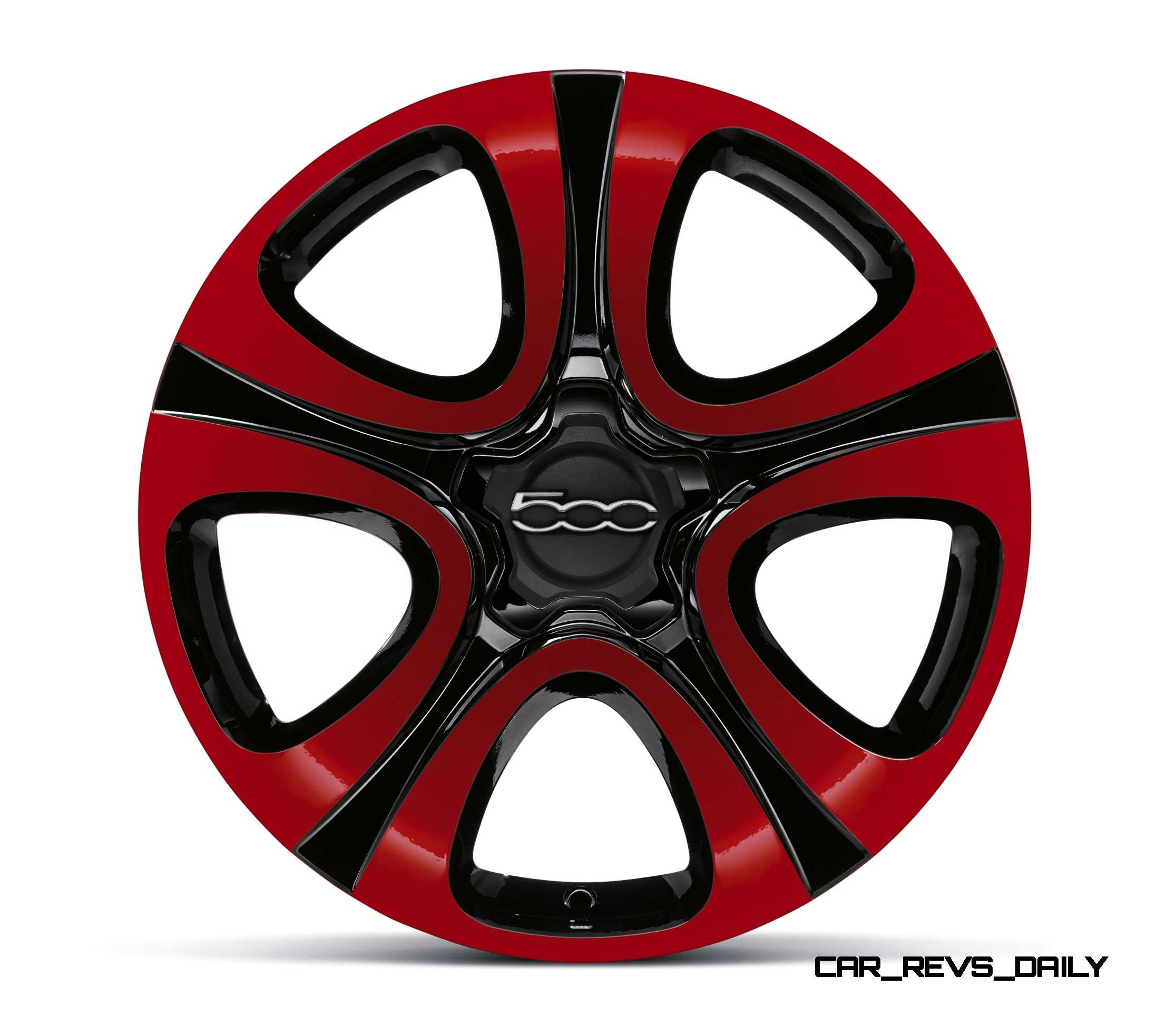

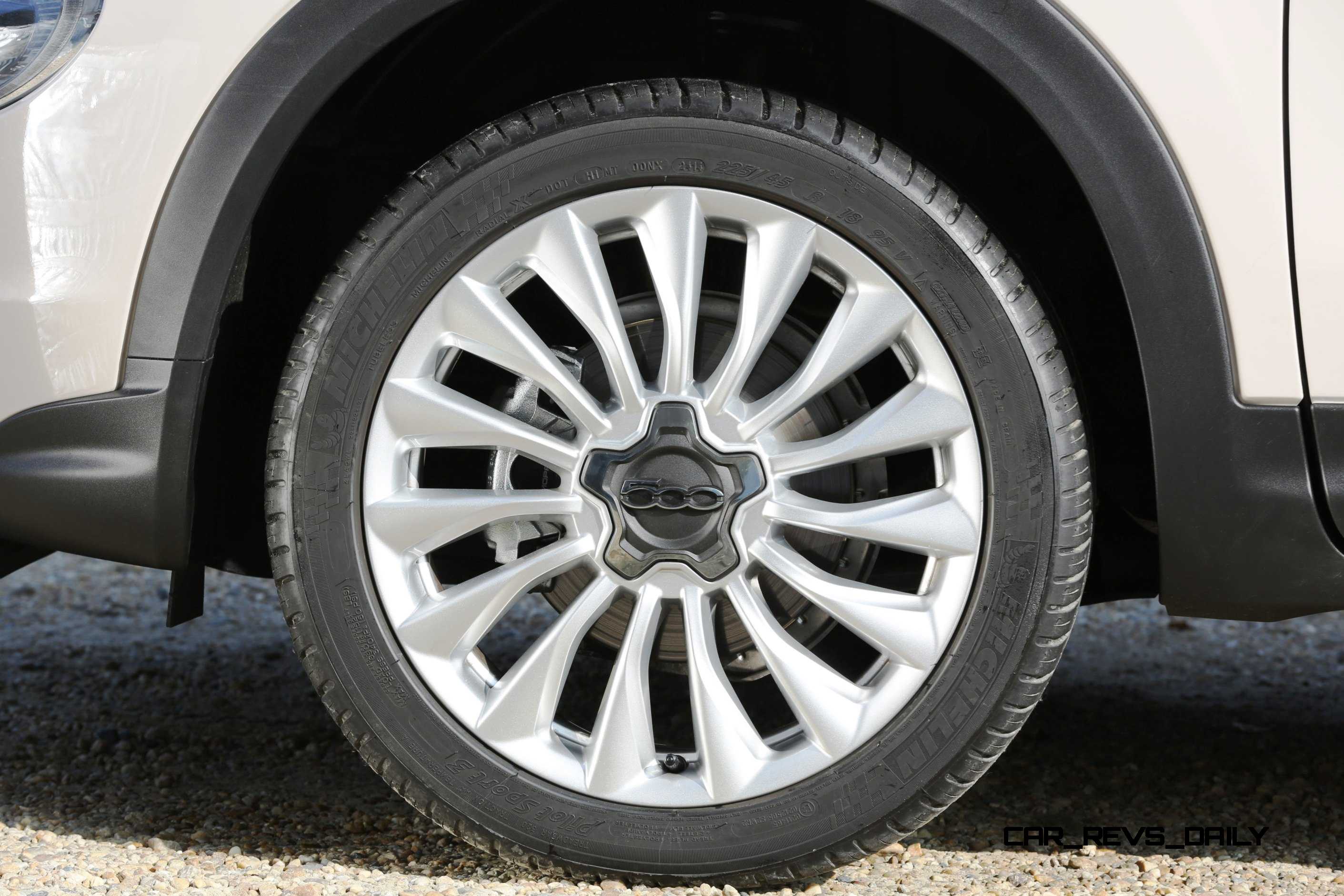

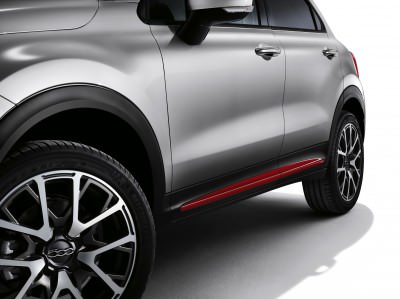

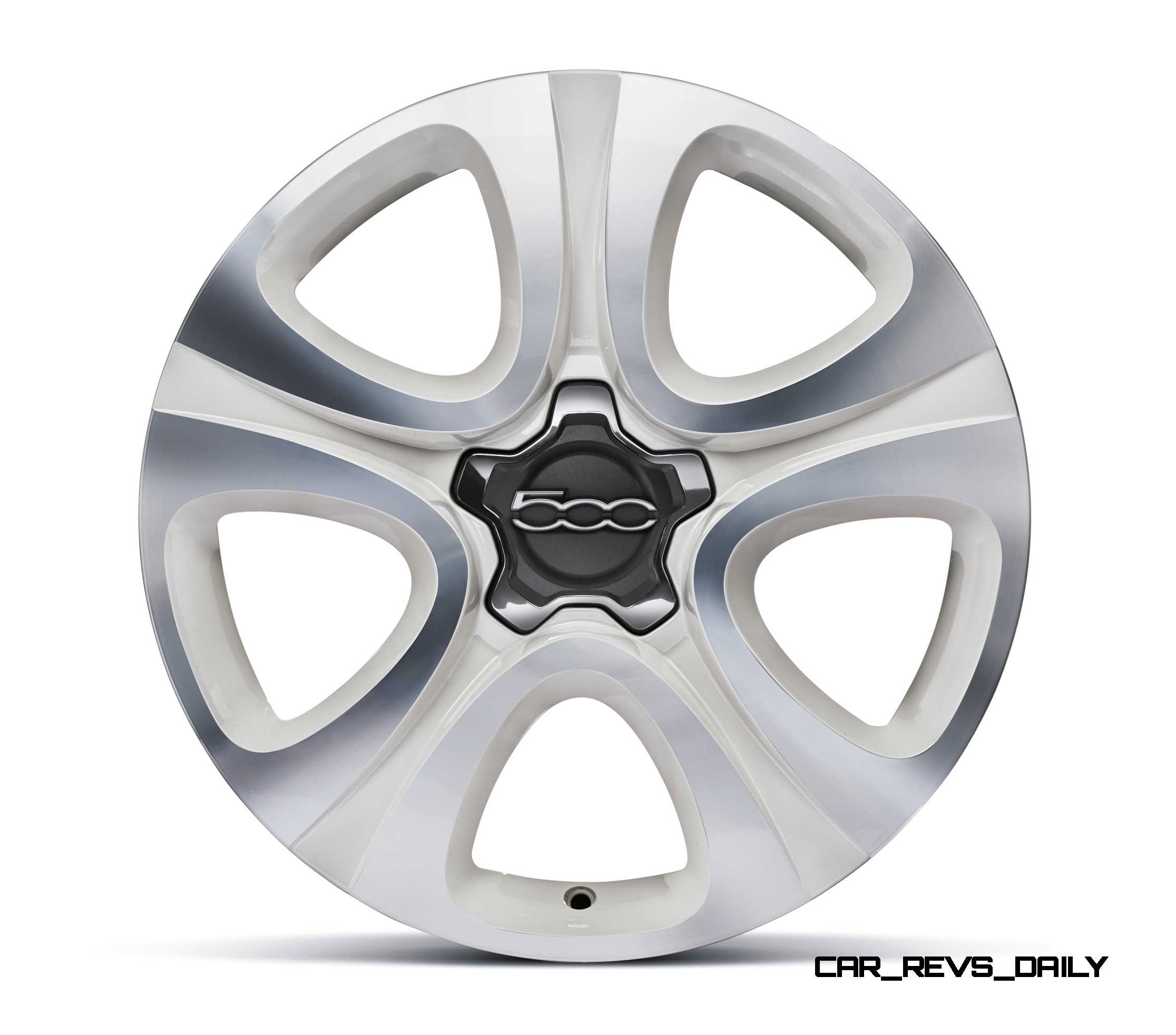

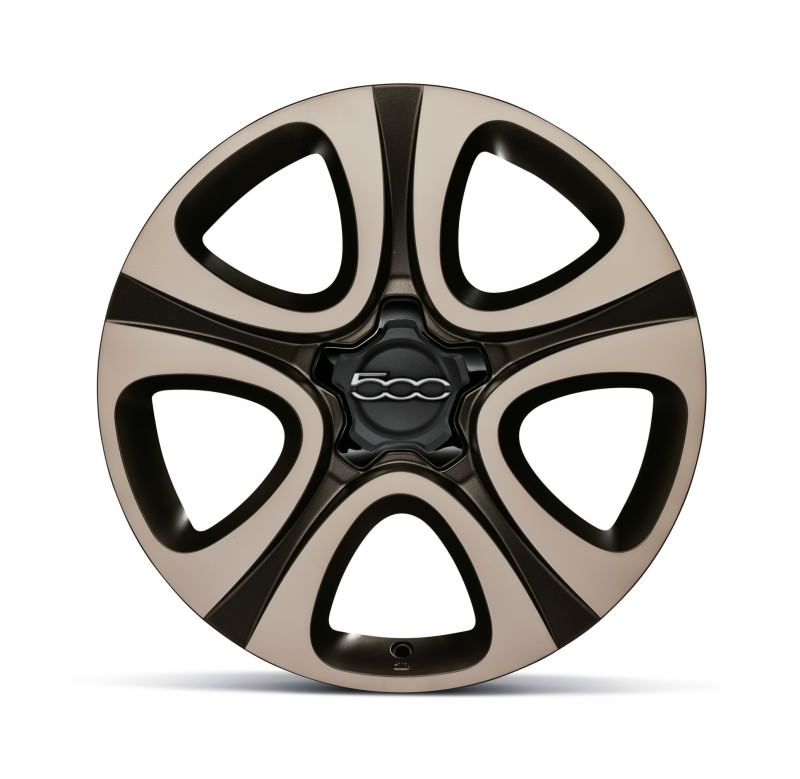

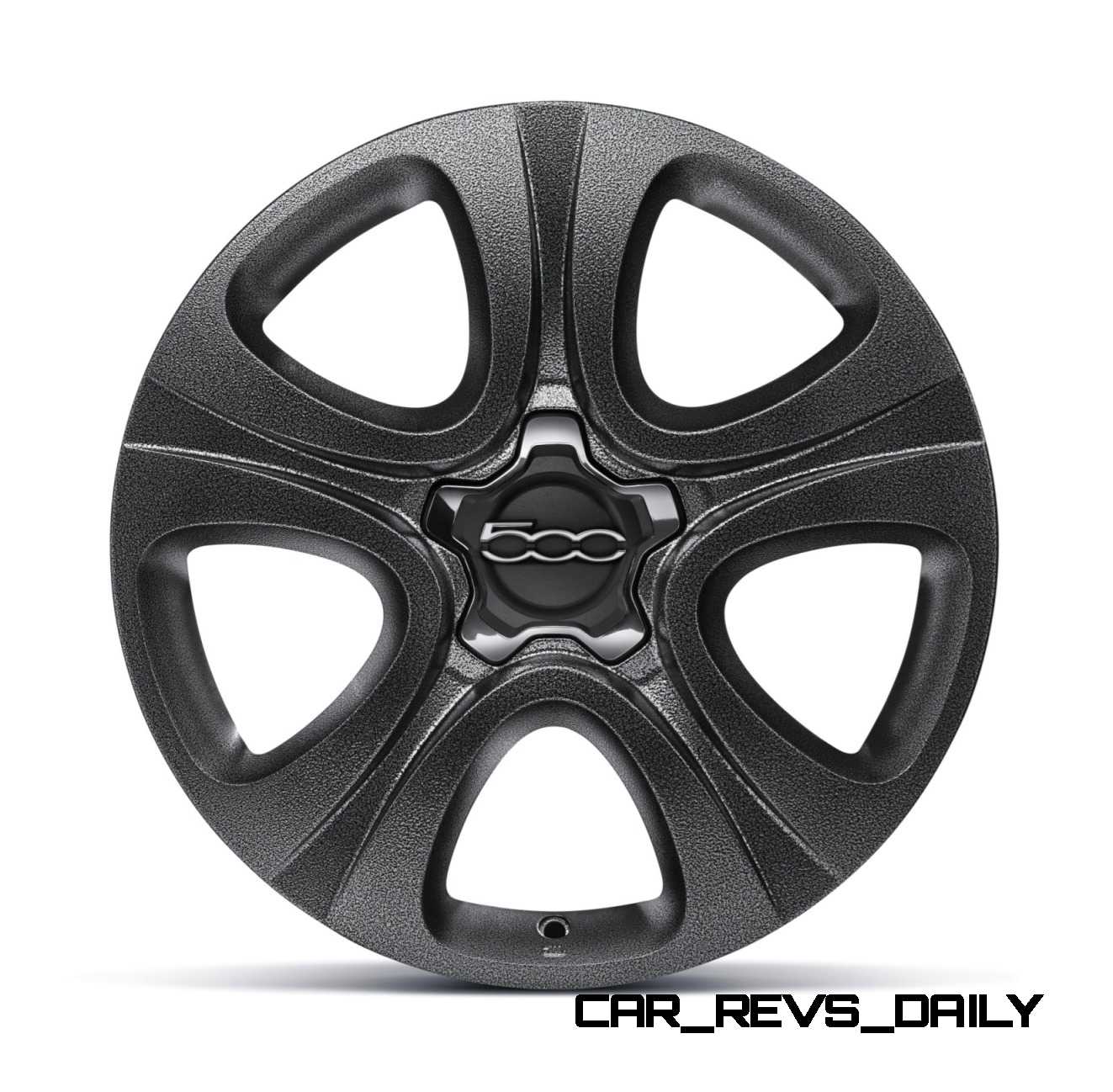

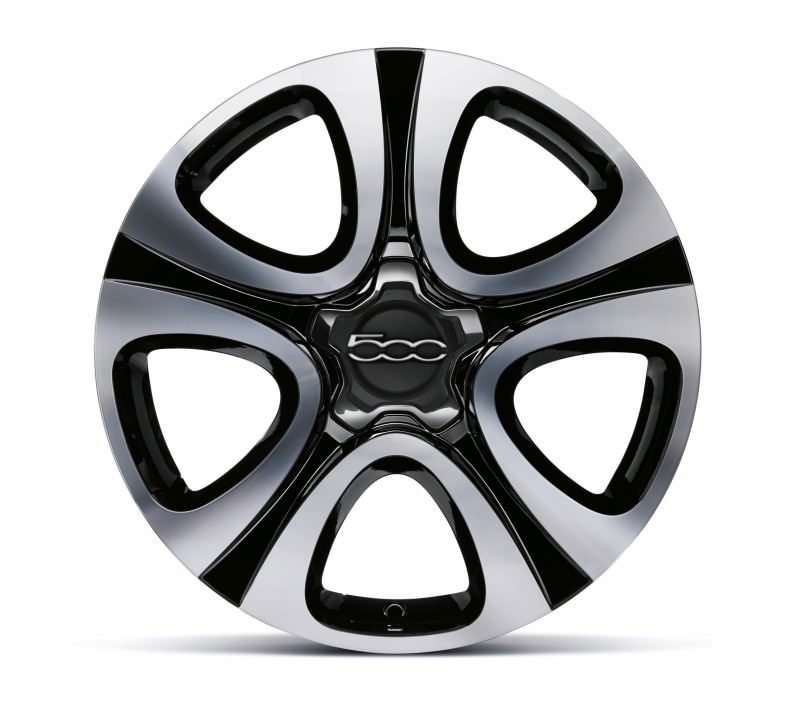

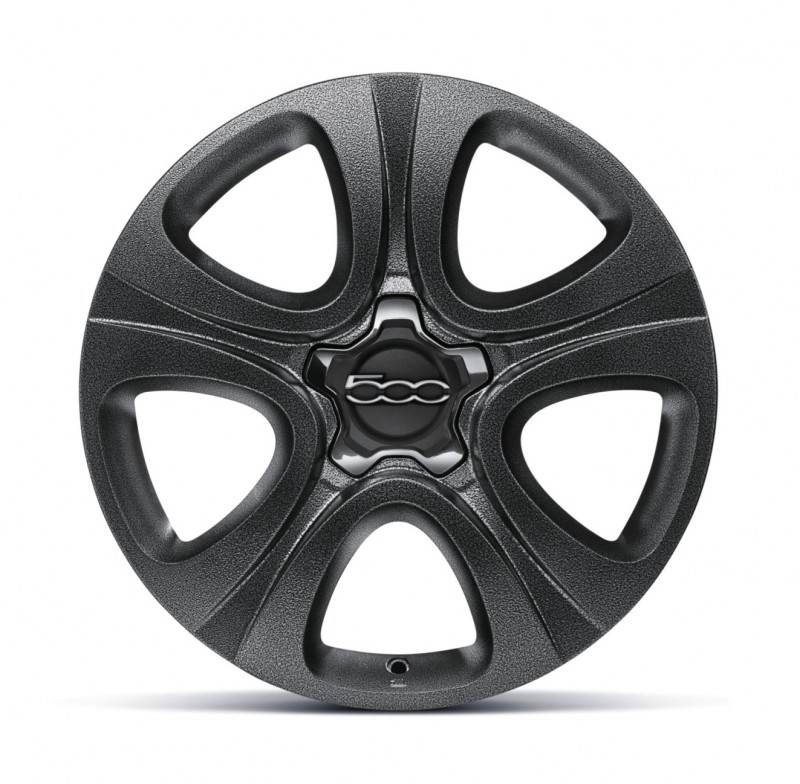

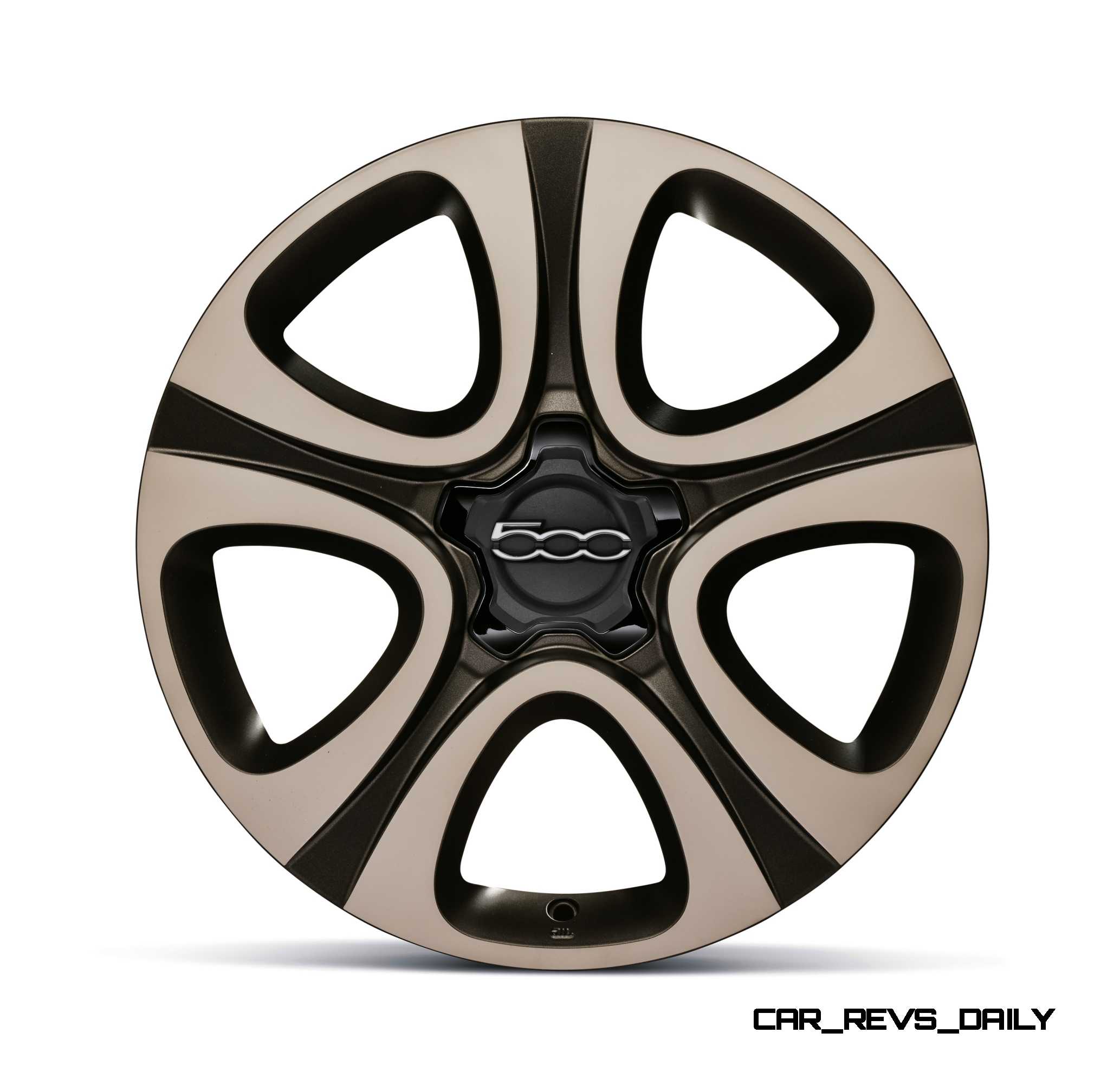

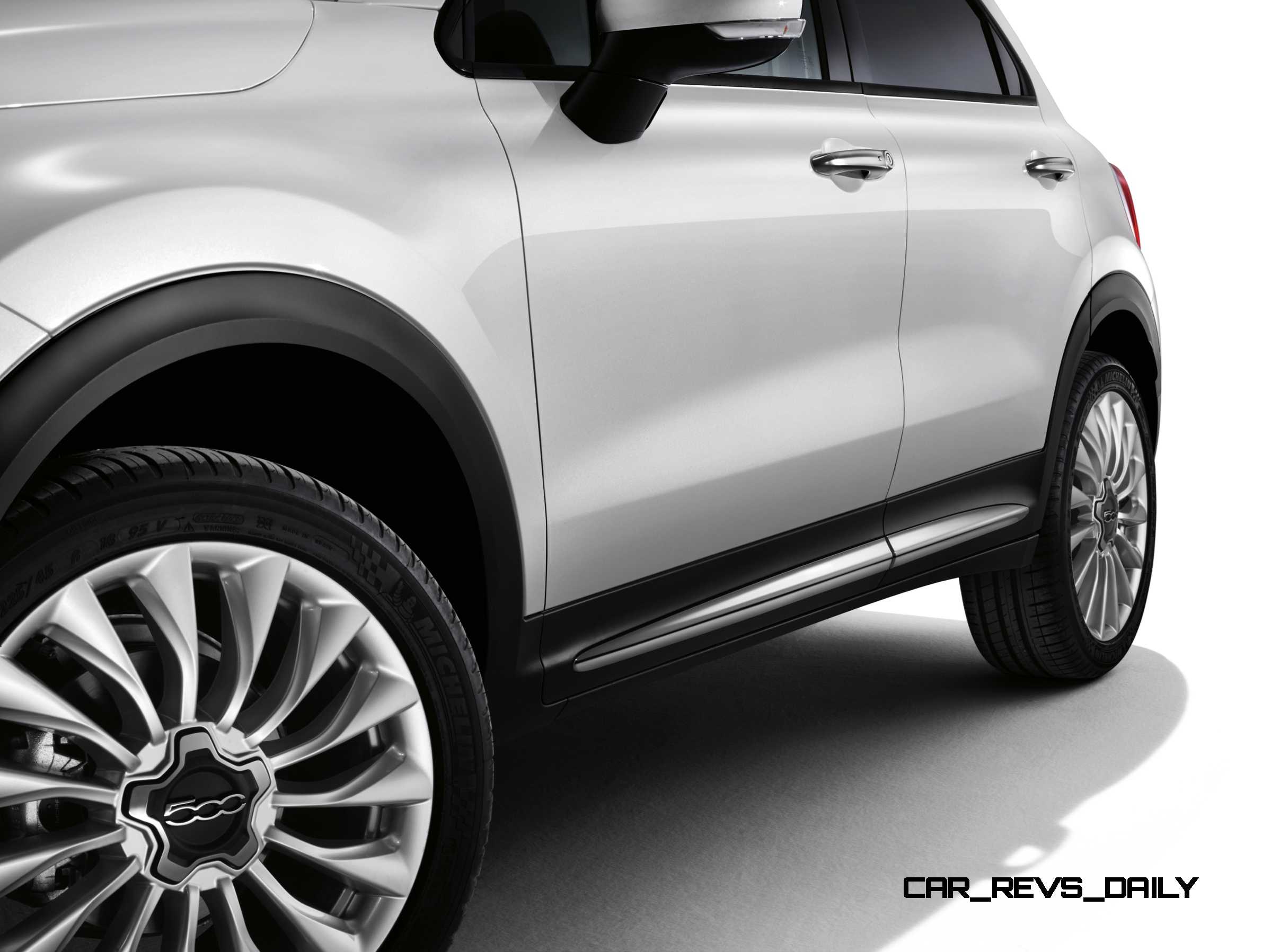

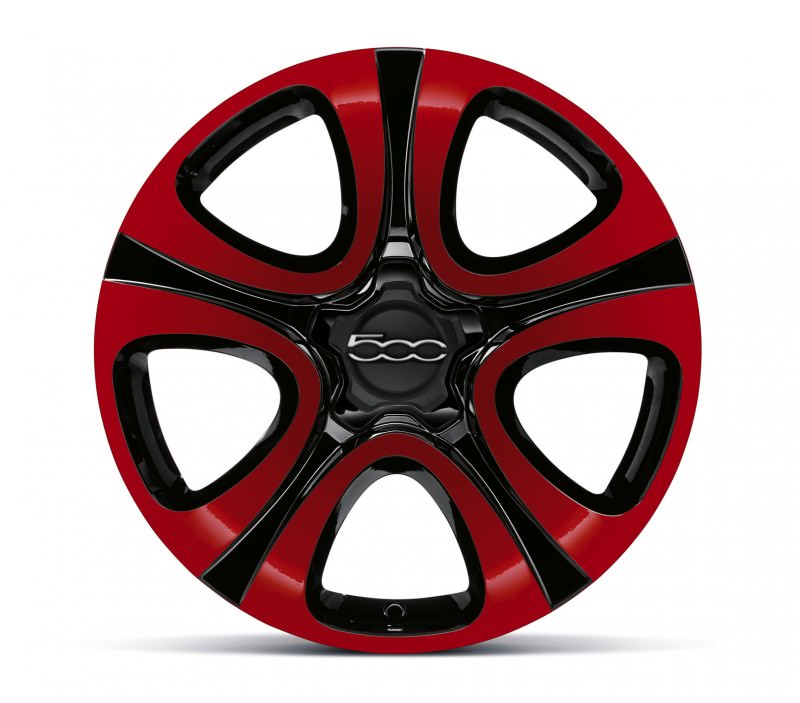

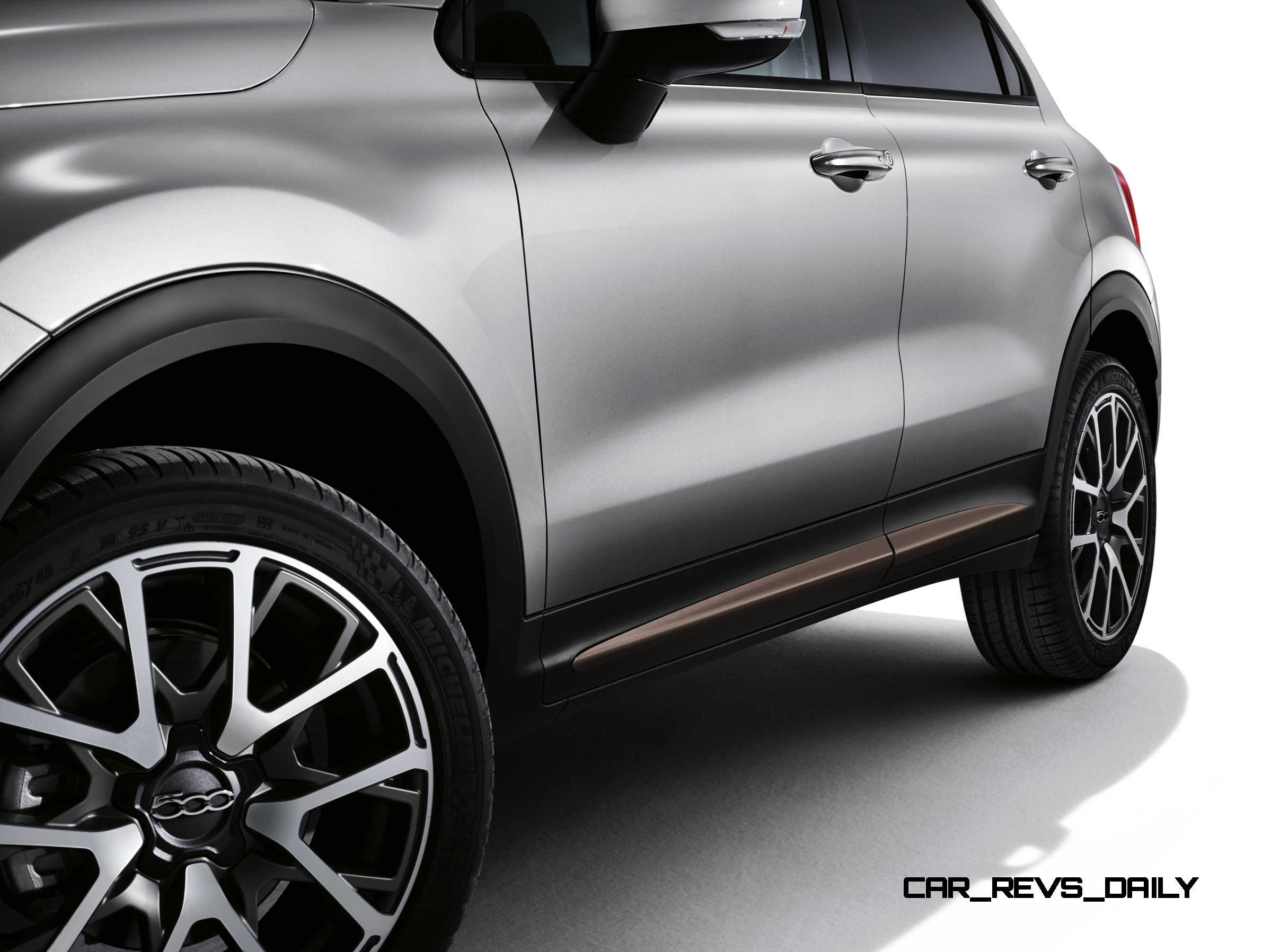

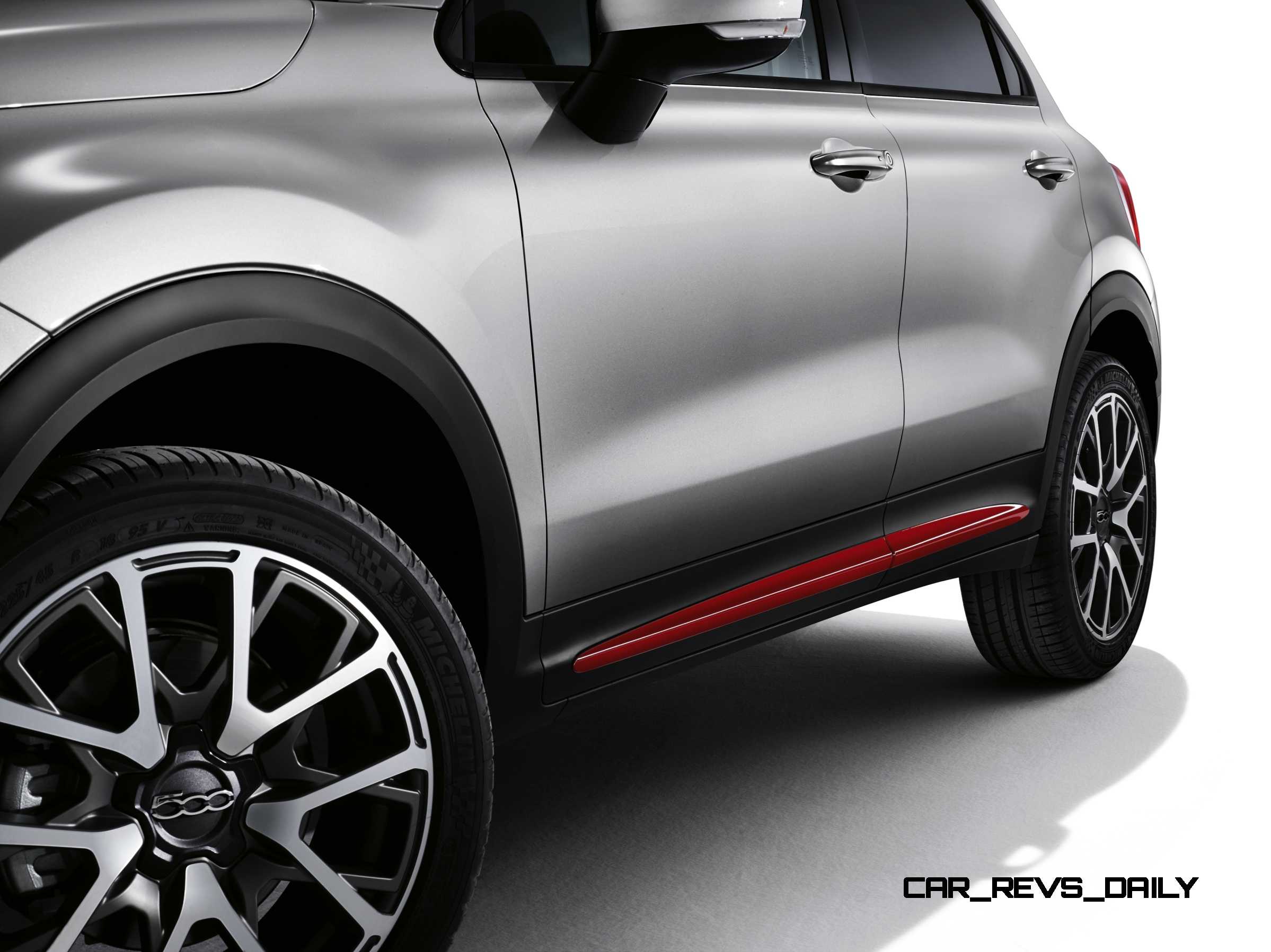

WHEELS

2016 Fiat 500X Lounge 6 2016 Fiat 500X Lounge 5 2016 Fiat 500X Lounge 2 2016 Fiat 500X Lounge 42016 Fiat 500X Lounge 3

2016 Fiat 500X

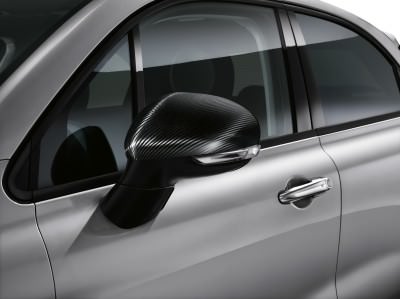

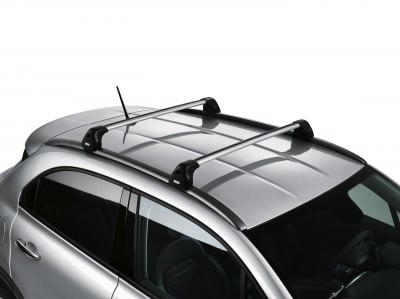

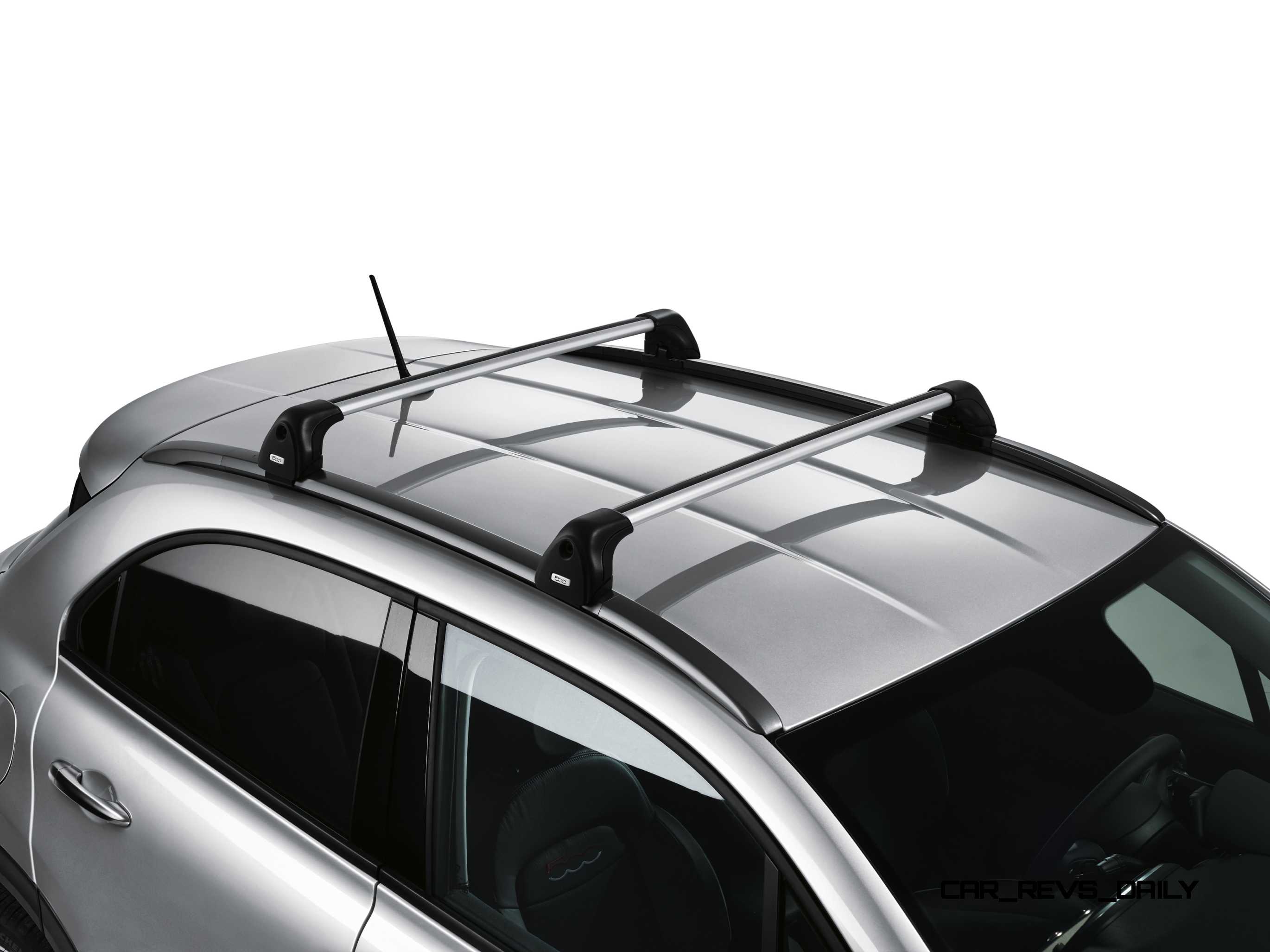

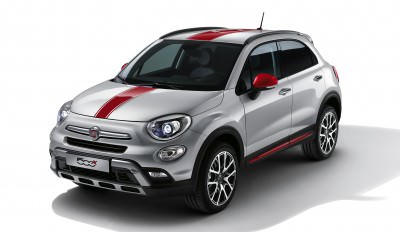

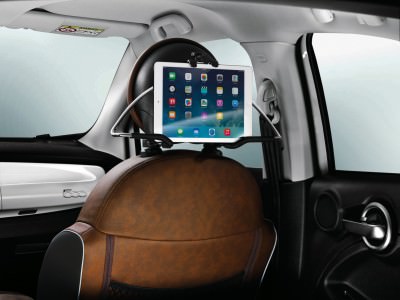

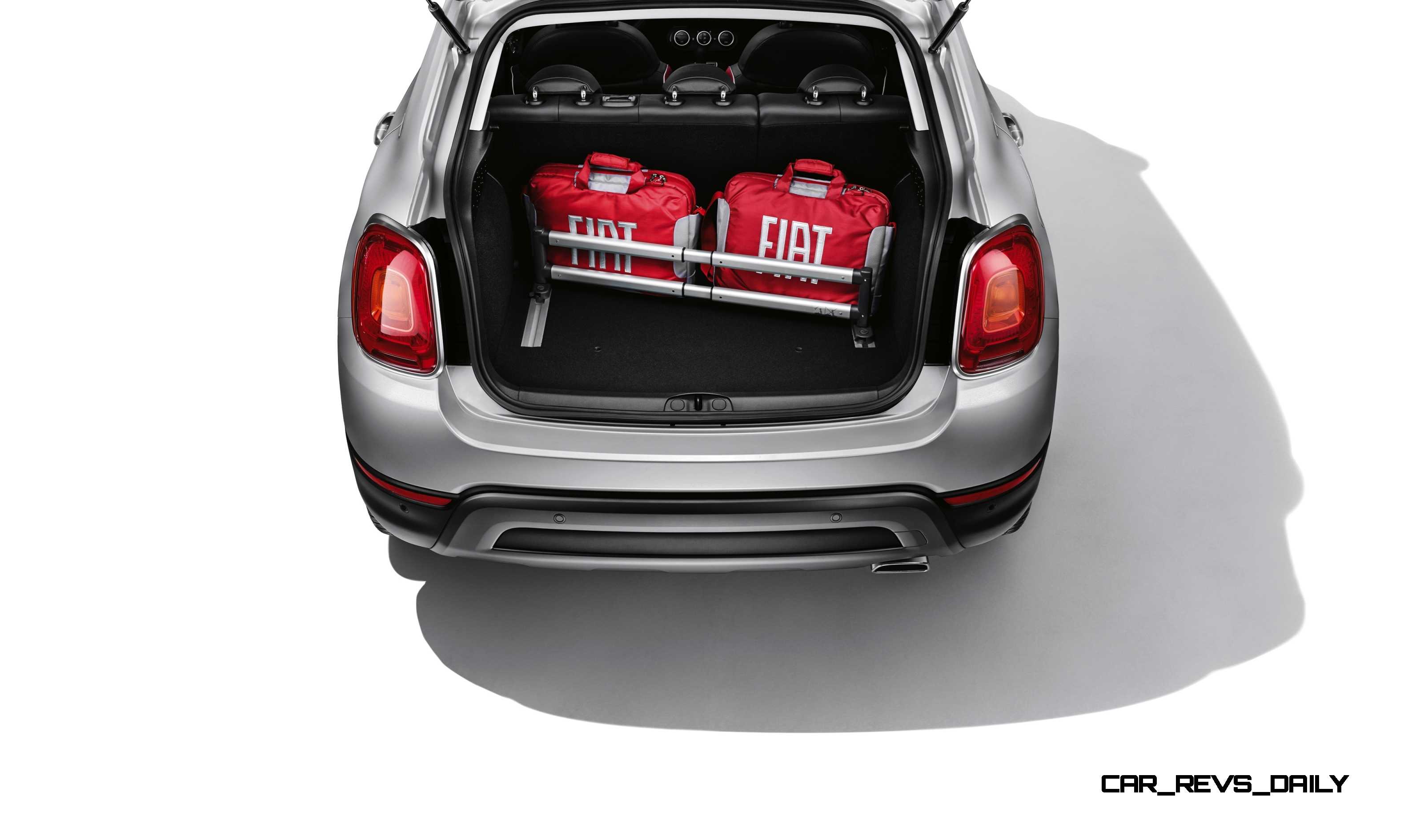

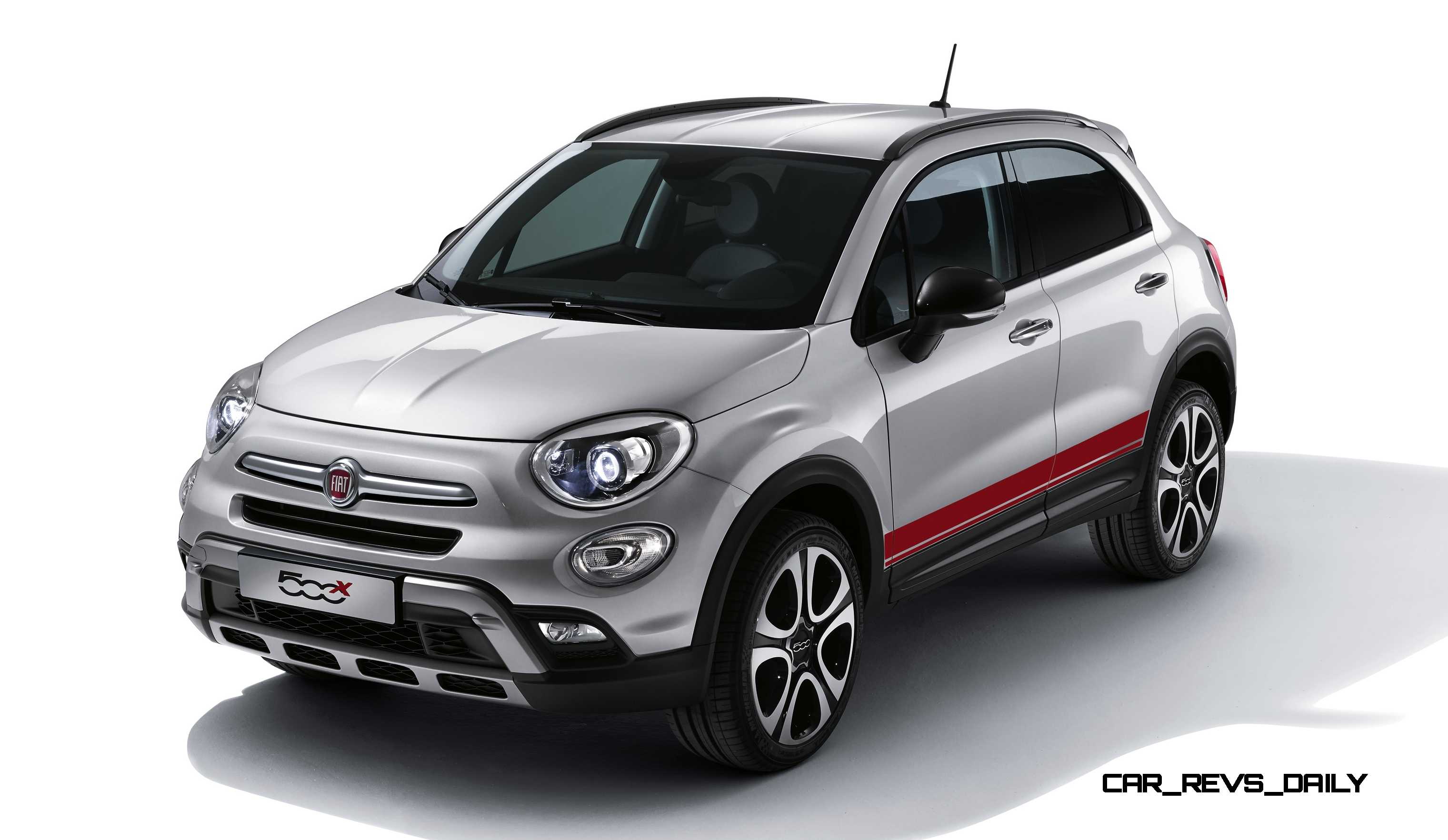

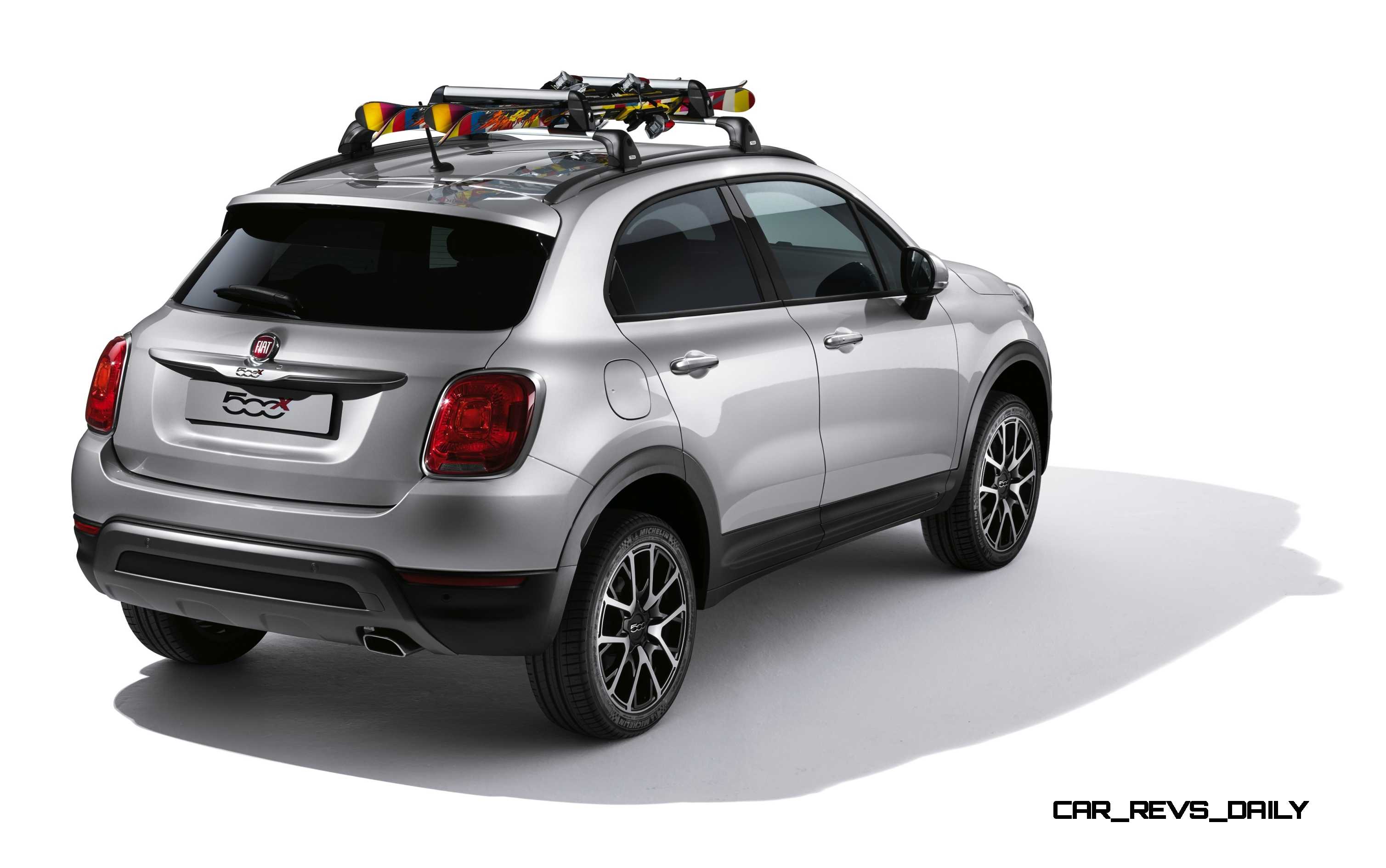

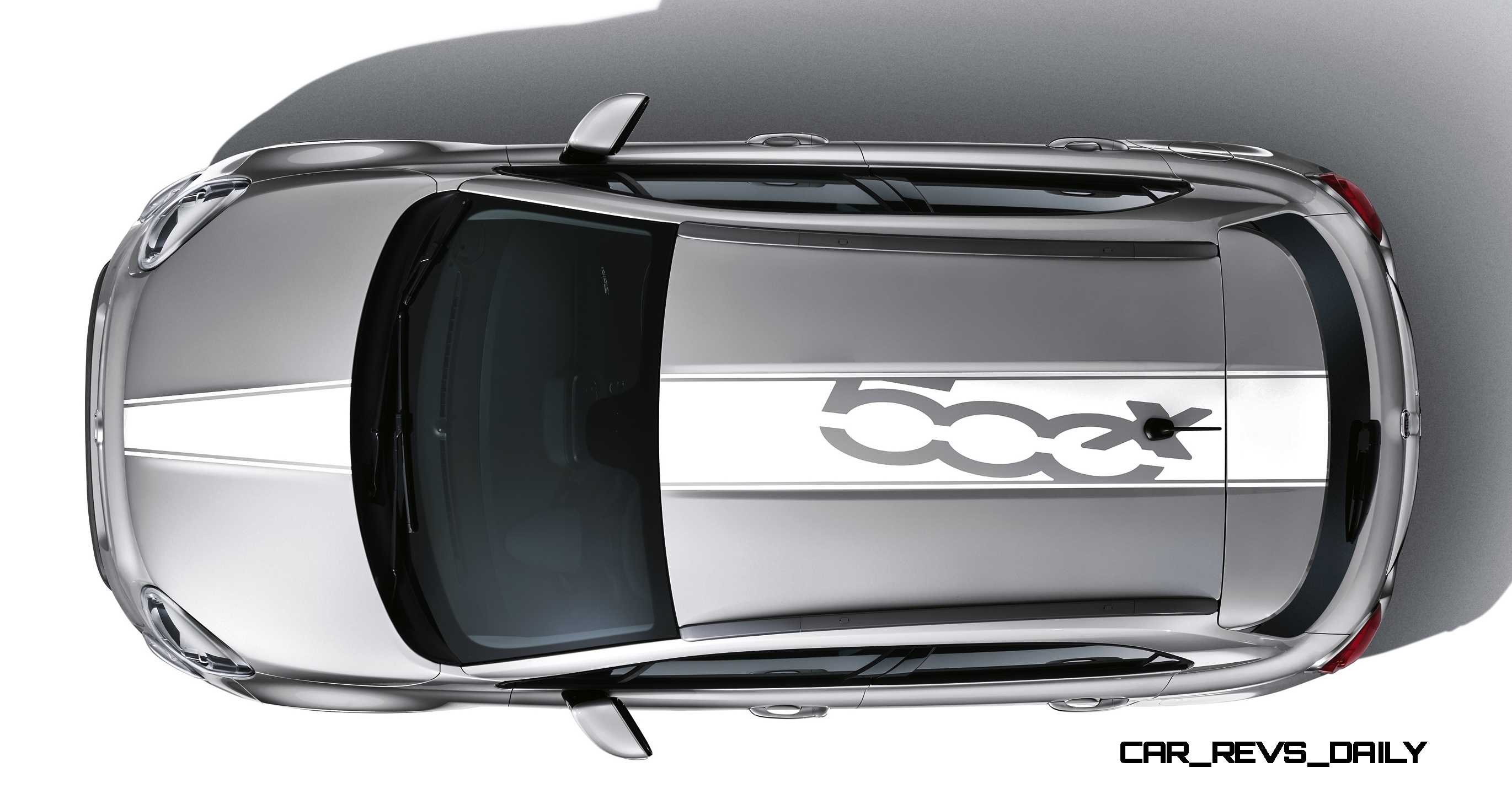

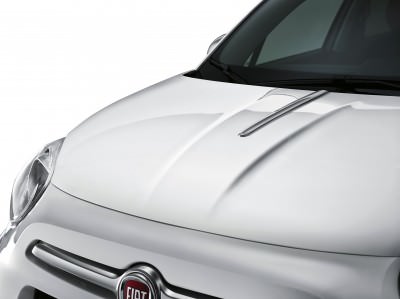

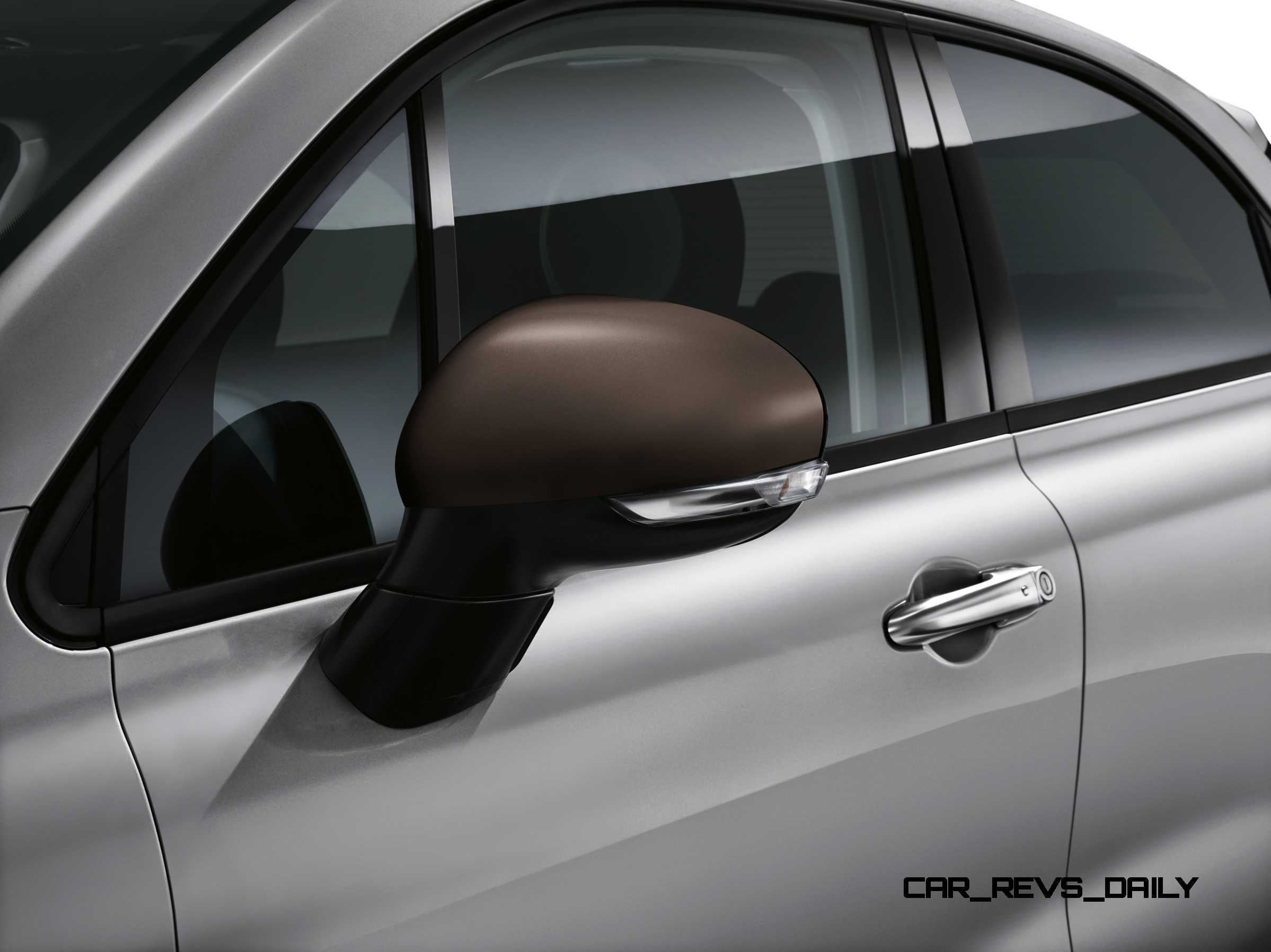

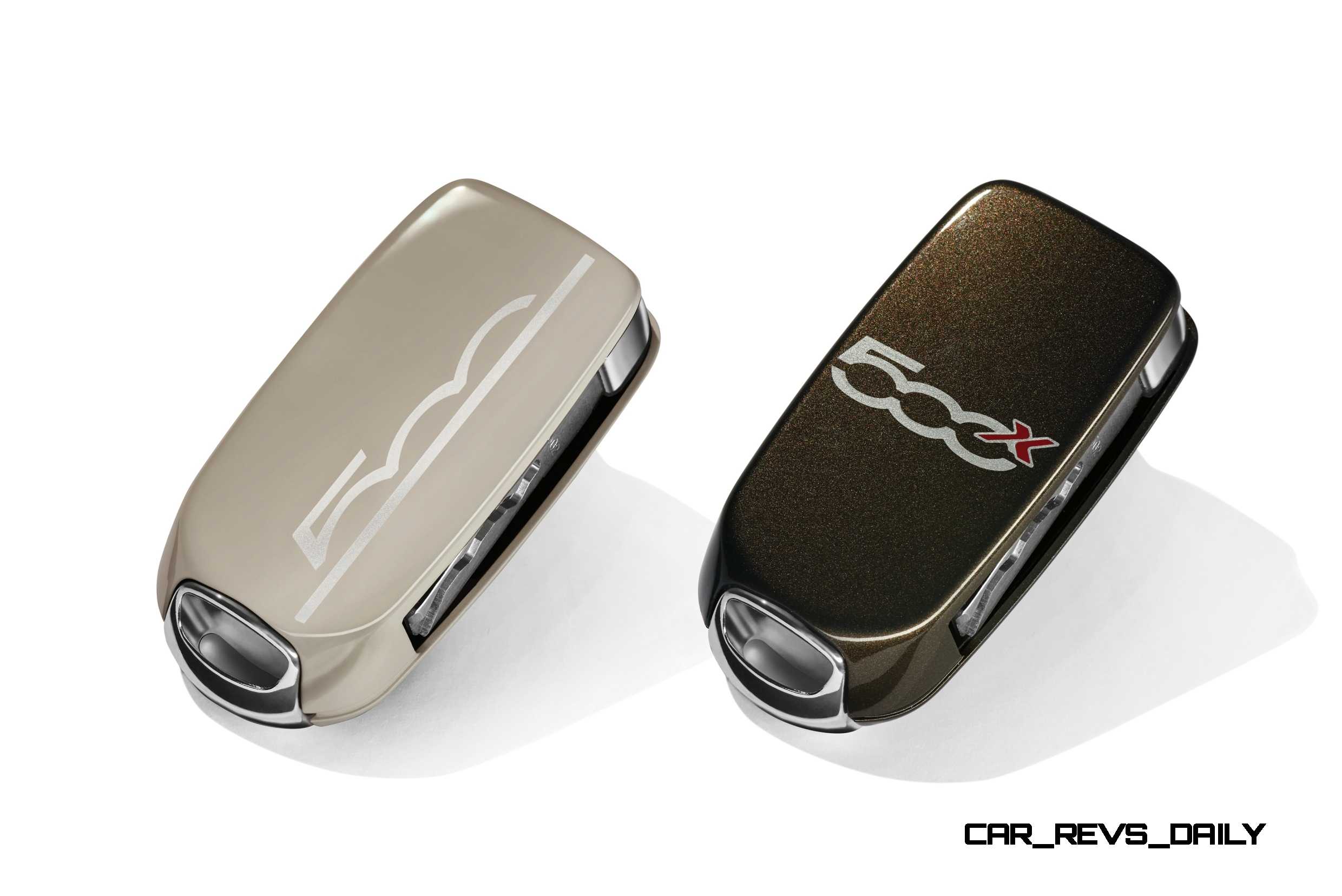

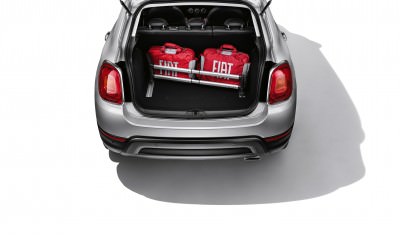

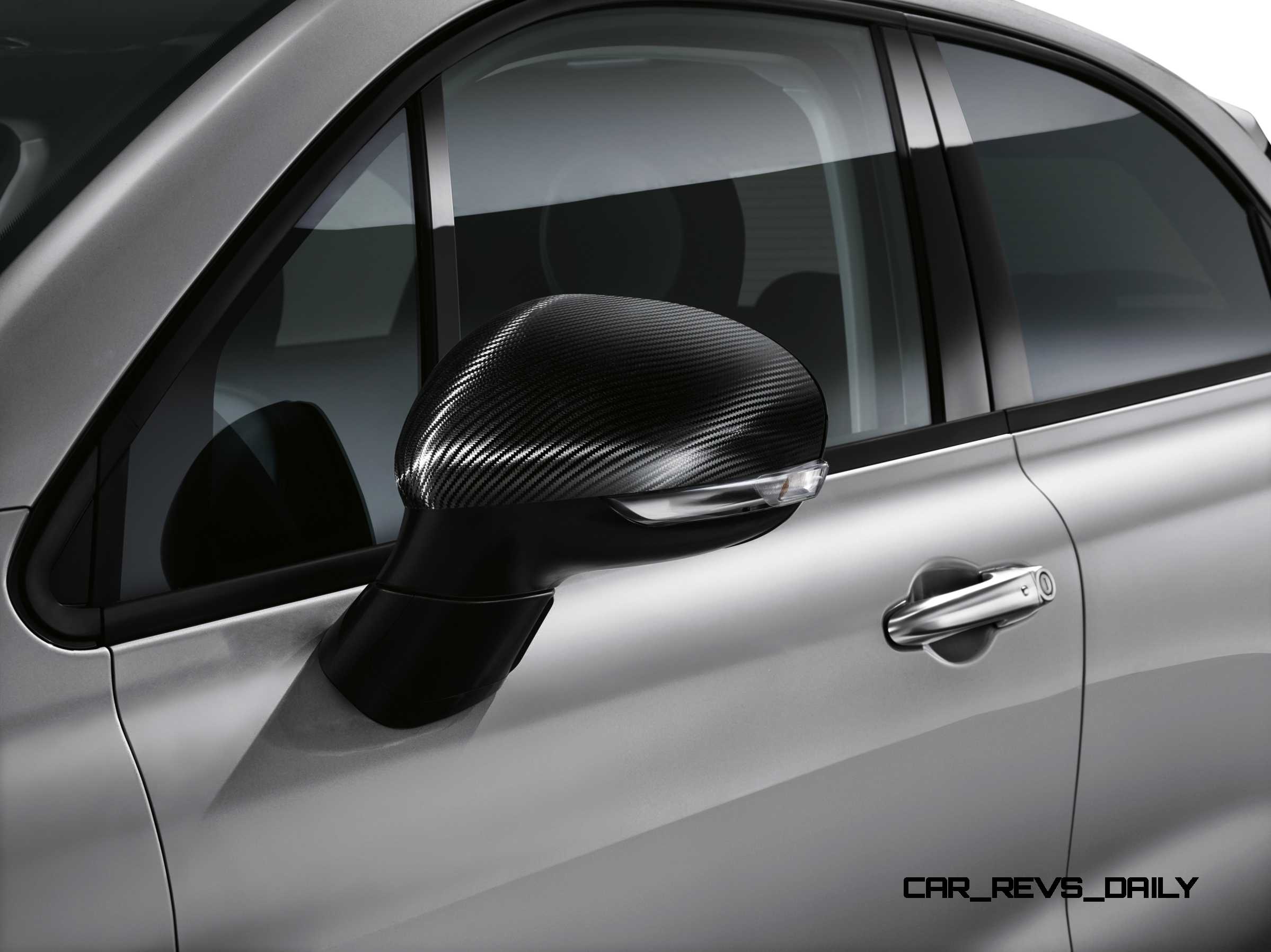

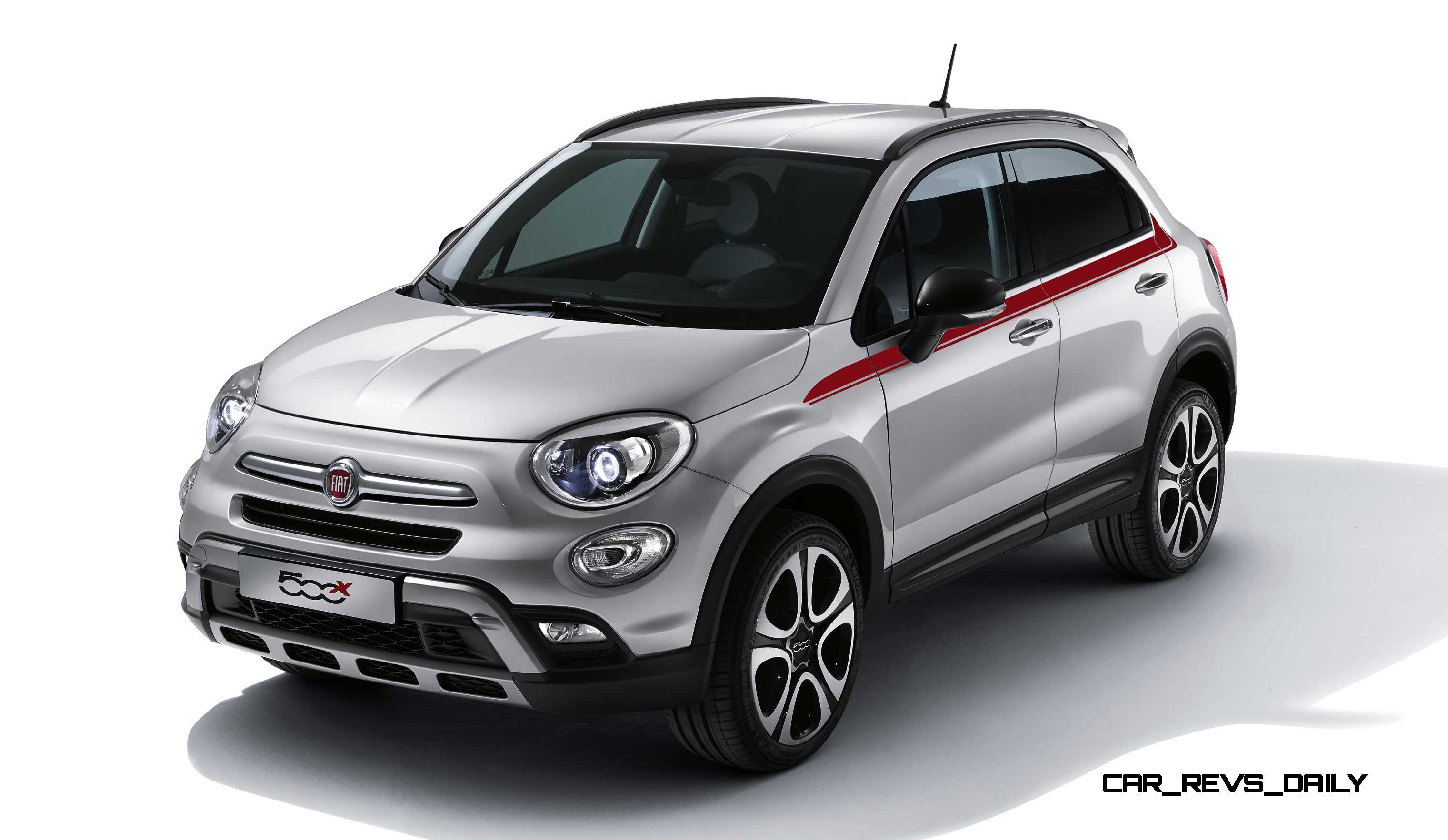

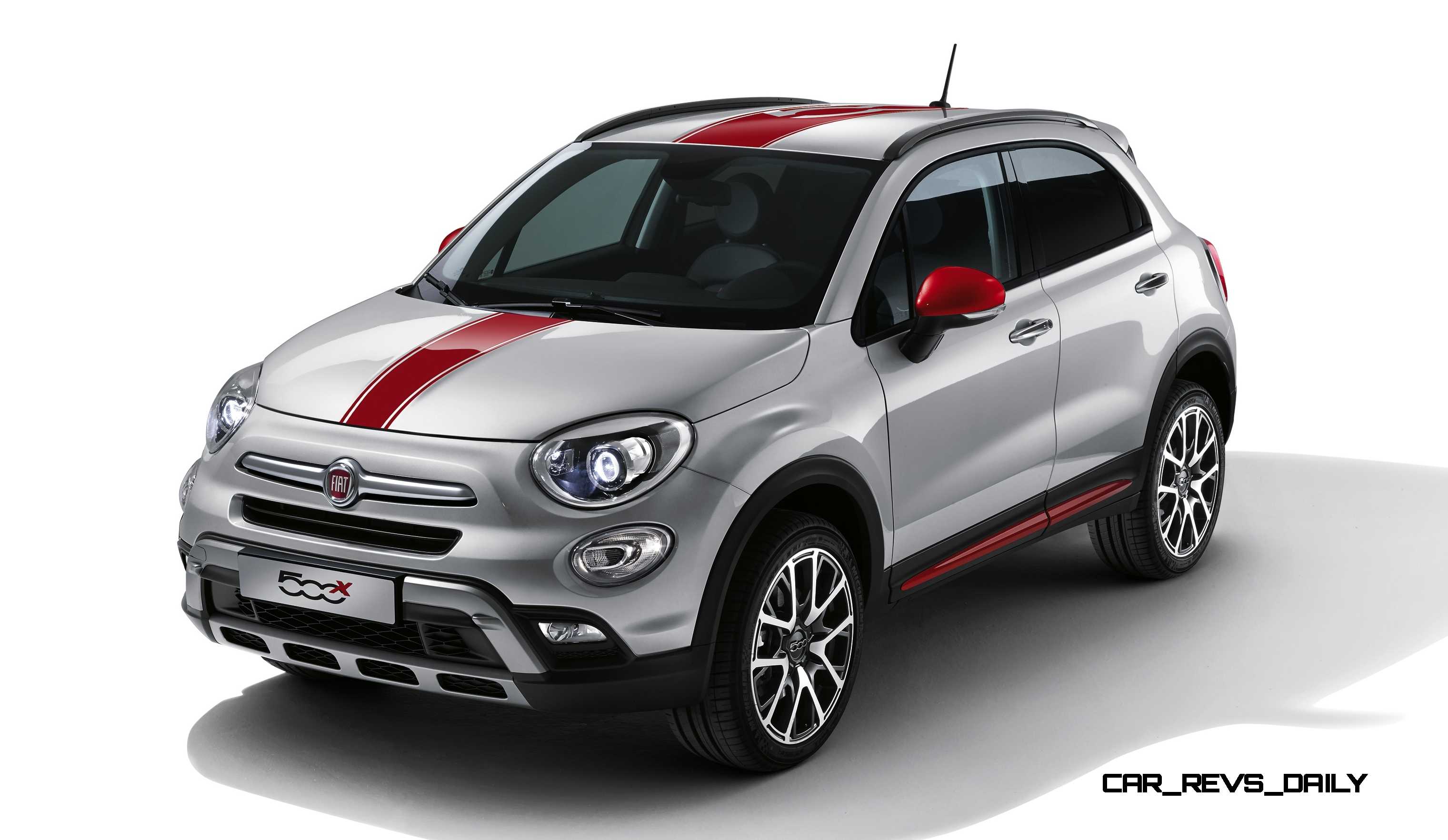

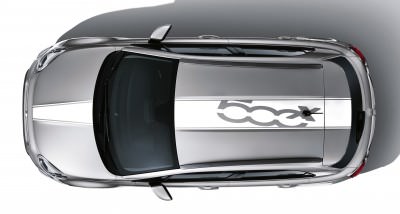

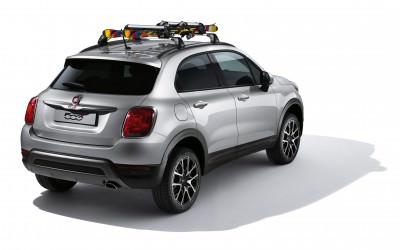

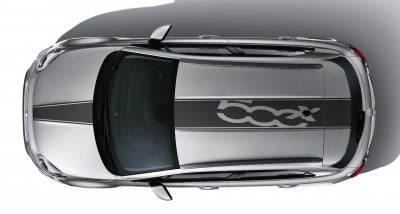

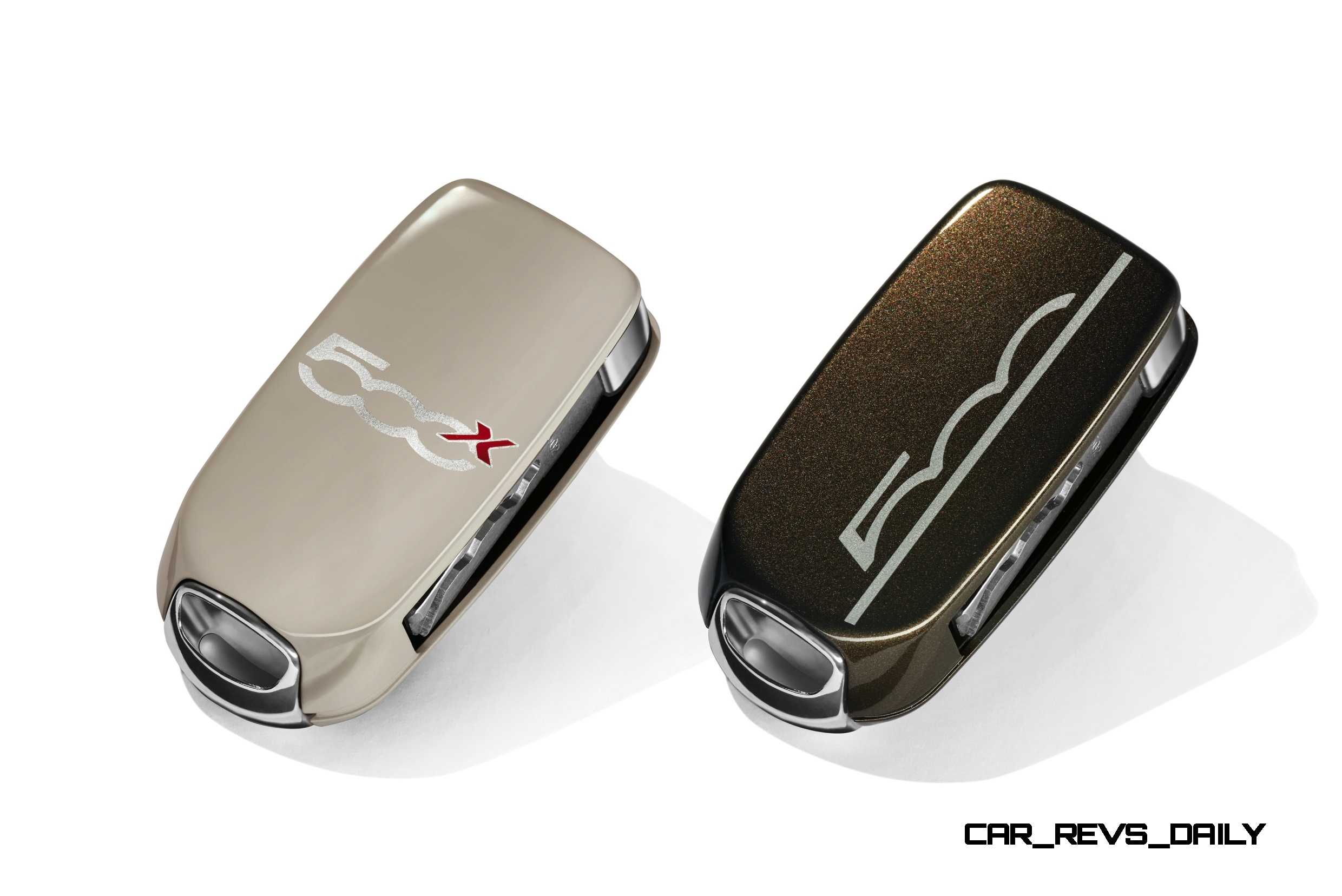

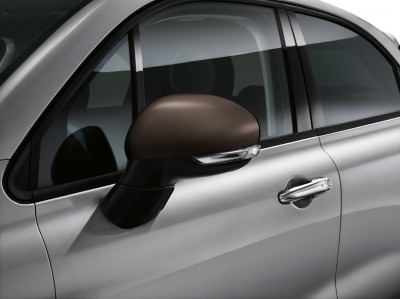

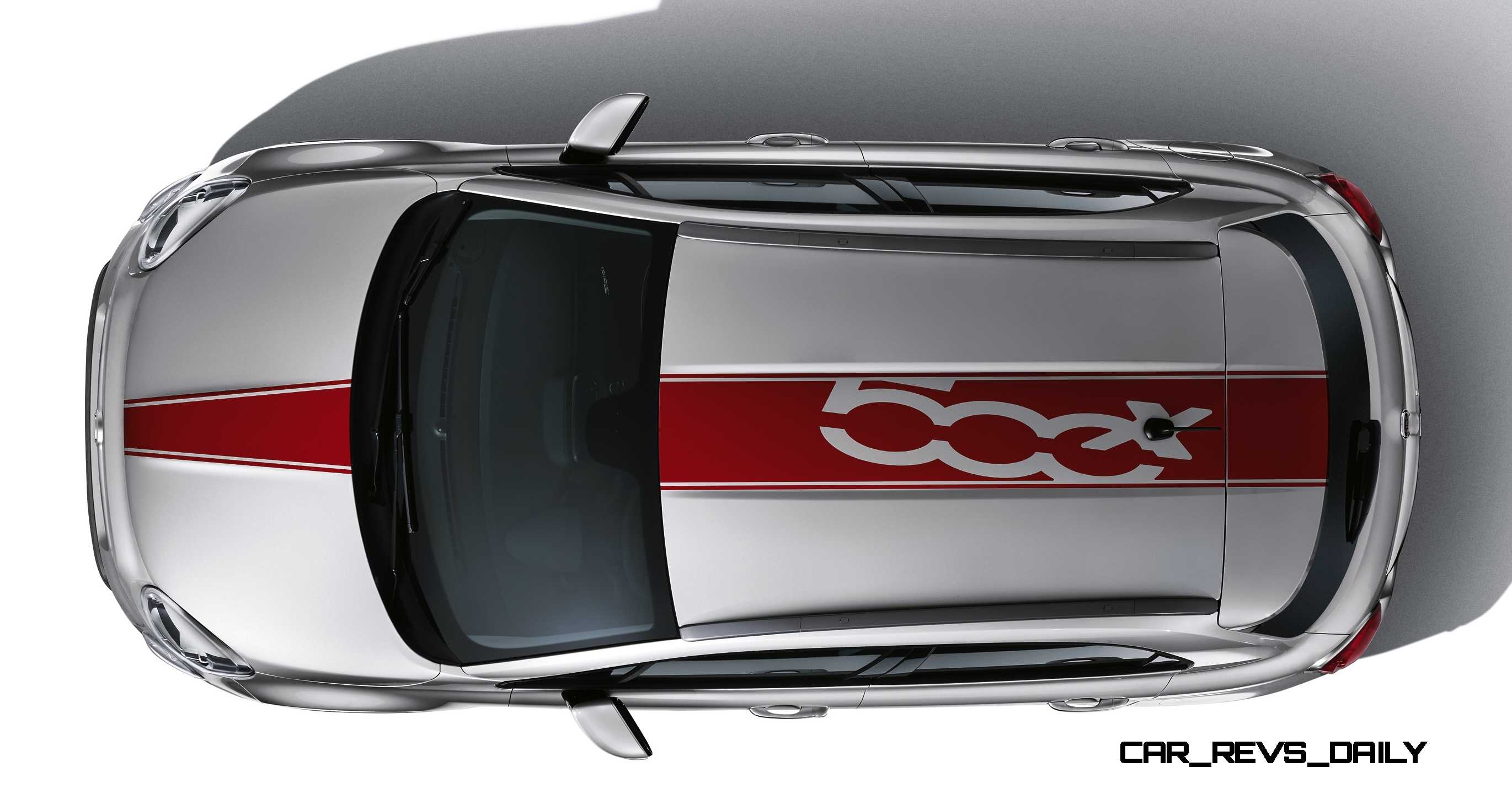

ACCESSORIES



500x gif

2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 10 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 7 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 13 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 14 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 1 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 2 ???????? ???????? 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 4 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 6 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 3 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 5

  • All-new FIAT 500X unveiled in two different versions - one for those with a spirited, metropolitan outlook and the other for active, stylish adventurers

  • Distinctive Italian style blends the spirit of the iconic original with a modern and elegant design

  • Compact on the outside, the FIAT 500X is spacious and inviting, and packed with the latest technologies on the inside

  • A broad range of petrol and diesel engines, plus a choice of transmissions and drivetrain configurations are available

  • FIAT 500X available with five- and six-speed manual gearboxes, as well as advanced six-speed twin-clutch and nine-speed automatic transmissions

  • Three drivetrain options: front-wheel drive; "Traction Plus"-equipped front-wheel drive or advanced all-wheel drive with fuel-saving rear axle disconnect

  • On sale in the UK in the second quarter of 2015



FIAT 500X TECHNICAL SPECIFICATION (Launch Vehicles)



1.4 MultiAir II 140hp
MT FWD

1.6 MultiJet II 120hp
MT FWD

2.0 MultiJet II 140hp
AT AWD

DIMENSIONS (mm)

Length standard / Cross

4248 / 4273

4248 / 4273

4248 / 4273

Width / + mirrors

1976 / 2025

1796 / 2025

1796 / 2025

Height / + roof bars

1600 / 1608

1600 / 1608

1600 / 1608

Height Cross FWD / AWD

1608 / 1620

1608 / 1620

1608 / 1620

Wheelbase

2570

2570

2570

Track Front/Rear (FWD + AWD)

1545/1545

1545/1545

1545/1545

ENGINES:

No. cylinders, layout

4

4

4

Bore × stroke (mm)

72 × 84

79.5×80.5

83x90.4

Displacement (cm3)

1368

1598

1956

Compression ratio

10.0

16.5:1

16.5:1

Max. power (HP @ rpm)

140 @ 5000

120 @ 3750 rpm

140 @ 4000 rpm

Max. torque (Nm) @ rpm

230 @ 1750

320 @1750 rpm

350 @1750 rpm

Supply

Turbo Petrol, MPI

Turbo Diesel MultiJet II

Turbo Diesel MulitJet II

Timing

SOHC 16V

DOHC 16V

DOHC 16V

Timing Control

Belt

Toothed Belt

Toothed Belt

Tappet Control

MultiAir II Hydraulic

Hydraulically operated

Hydraulically operated

Ignition

Electronic

Compression

Compression

Start&Stop System

Standard

Standard

Standard

Battery capacity (Ah)

63

72

72

TRANSMISSIONS

Drive

FWD

FWD

AWD

Transmission

C635 Manual

C635 Manual

948TE Auto

First

4.154

4.154

4.700

Second

2.118

2.118

2.840

Third

1.361

1.361

1.910

Fourth

0.978

0.978

1.380

Fifth

0.756

0.756

10

Sixth

0.622

0.622

0.810

Seventh

-

-

0.700

Eighth

-

-

0.580

Ninth

-

-

0.480

Reverse

40

40

3.810

Final drive ratio

4.438

3.833

4.334

TYRE SIZES

16" tyre size

215/60 R16

215/60 R16

215/60 R16

17" tyre size

215/55 R17

215/55 R17

215/55 R17

18" tyre size

225/45 R18

225/45 R18

225/45 R18

STEERING

Steering box

Rack and pinion with Dual Drive Electric Power Steering

Wall-to-wall turning circle (m)

11.05

11.05

11.05

Kerb-to-kerb turning circle (m)

11.50

11.50

11.50

SUSPENSIONS AND BRAKES

Front

Independent MacPherson

Rear

Independent MacPherson

Ventilating Front Disc Ø (mm)

281 x 26

281 x 26

305 x 28

Solid Rear Discs Ø (mm)

278 x 12

278 x 12

278 x 12

CAPACITIES AND WEIGHTS

Fuel tank (litres)

48

48

48

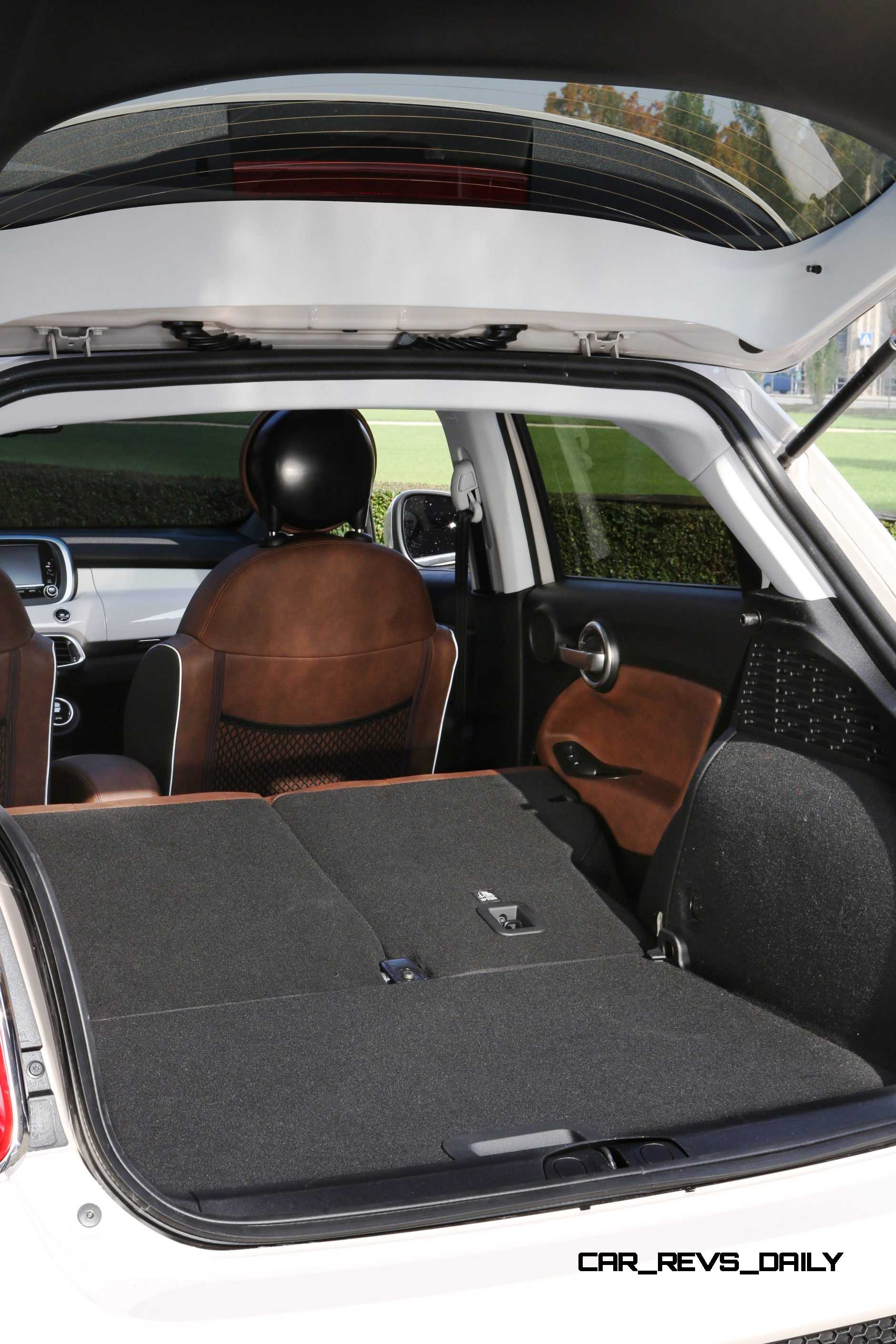

Boot capacity (Litres)

- rear seat in place + tyre kit

- rear seat folded + tyre kit

- rear seat in place + spare wheel

- rear seat folded +spare wheel

350

1000

245

910

350

1000

245

910

350

1000

245

910

Kerb weight (kg)

1320

1320

1495

Max. towable weight (kg) braked

1200

1200

1200

Max. towable weight (kg) non-braked

600

600

600

PERFORMANCE

Top speed (MPH / km/h)

118 / 190

116 / 186

118 / 190

Acceleration: 0-62 MPH (s)

9.8

10.5

9.8

CONSUMPTION AND EMISSIONS

Urban cycle (MPG / L/100 km)

 36.2 / 7.8

60.1 / 4.7

43.5 / 6.5

Extra-urban cycle (MPG / L/100 km)

56.5 / 5.0

74.3 / 3.8

57.6 / 4.9

Combined cycle (MPG / L/100 km)

47.1 / 6.0

68.9 / 4.1

51.4 / 5.5

CO2 emissions (g/km)

139

109

144

FIAT 500X UK PRICING

POWERTRAINSPECIFICATIONOTR Price
1.6-litre E-torQ 110hpPOP£14,595
1.6-litre E-torQ 110hpPOPSTAR£16,345
1.4-litre MultiAir II 140hpPOPSTAR£17,595
1.6-litre MultiJet II 120hpPOPSTAR£19,095
1.4-litre MultiAir II 140hpCROSS£18,595
1.6-litre MultiJet II 120hpCROSS£20,095
2.0-litre MultiJet II 140hp AT AWDCROSS£24,095
1.4-litre MultiAir II 140hpLOUNGE£19,345
1.6-litre MultiJet II 120hpLOUNGE£20,845
1.4-litre MultiAir II 140hpCROSS PLUS£20,345
1.6-litre MultiJet II 120hpCROSS PLUS£21,845
2.0-litre MultiJet II 140hp AT AWDCROSS PLUS£25,845
1.4-litre MultiAir II 140hpOPENING EDITION£17,595

Introducing the new FIAT 500X, the latest addition to the FIAT 500 family! Making its world début at the Paris Motor Show, the new FIAT 500X is a crossover not only in terms of vehicle segments, but also in terms of its potential customers. With two versions on offer, there is a 500X to suit every need and taste: one is designed to appeal to those with a fun-loving, spirited, metropolitan outlook while another, more rugged version has been designed with stylish, active adventures in mind. A choice of 12 different body colours and eight different designs for the 16-, 17- and 18-inch alloy wheels, will help every owner personalise the look of their FIAT 500X.

In keeping with its philosophy of appealing to every spectrum of customer, the FIAT 500X is available with a broad range of engines and transmissions, including a new nine-speed automatic transmission - a first for a FIAT vehicle! This new, electronically-controlled, nine-speed automatic transmission features "shift-on-the-fly" mapping with the possibility of switching to manual-sequential mode, while the four-wheel drive system it drives adopts a fuel-saving rear axle disconnection system that seamlessly switches between two- and four-wheel drive for full-time torque management without requiring input from the driver. The result is a highly efficient drivetrain that offers excellent pick-up and smooth delivery of power, with sure-footed and dependable handling in all conditions.

Equipped with a MacPherson rear suspension, the FIAT 500X has been engineered to strike the optimal balance of handling and comfort that the segment demands, while the latest active safety systems are available to assist the driver, including front headlights with DRLs; front fog lights with adaptive cornering; sophisticated ESC (Electronic Stability Control); Lane Assist (lane departure warning system) and Blind Spot Assist (lane change assistance system). A ParkView reversing camera is also available in the new 500X, as is the "Brake Control" assisted braking system.2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 11 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 8 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 12 2016 Fiat 500X Makes Paris Debut With Optional AWD and 9-Speed Automatic 9

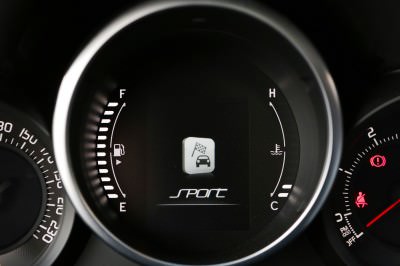

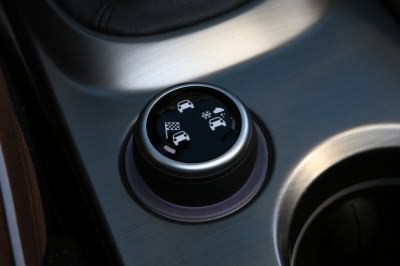

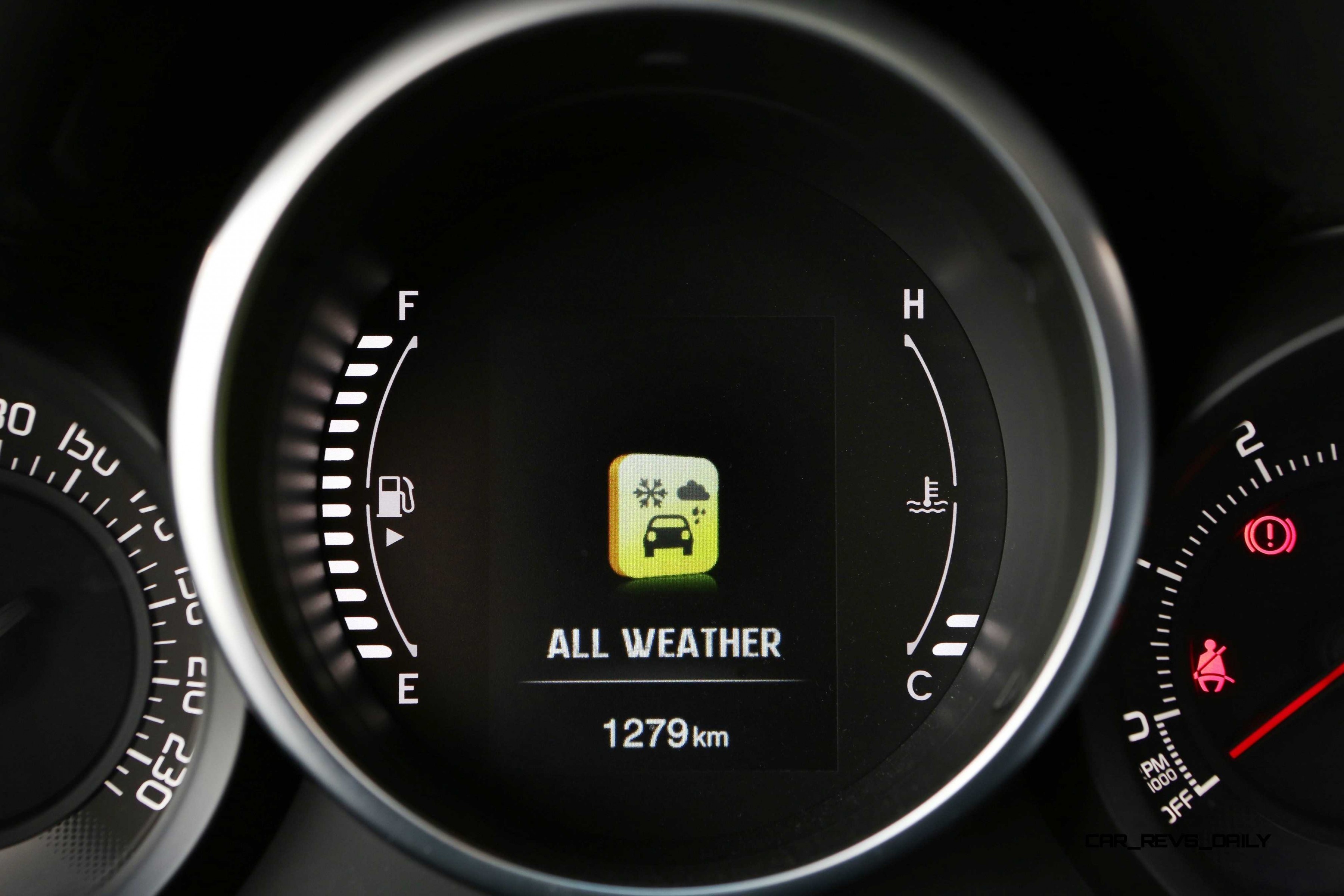

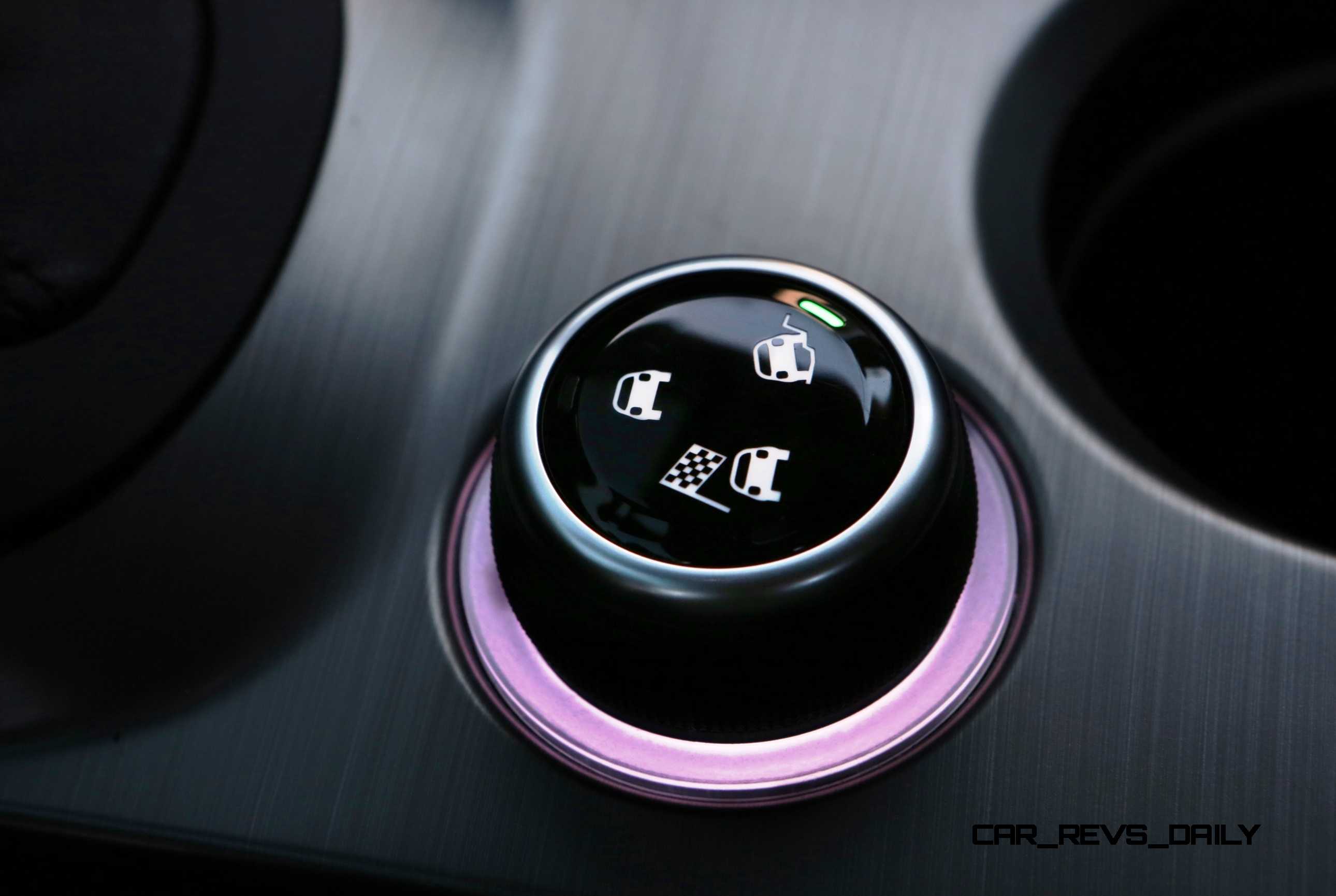

Even the driving experience can be personalised and adapted, depending on how the new FIAT 500X is being driven and the prevailing driving conditions. The "Drive Mood Selector" has three different modes for engine, brakes, steering and gearbox/transmission settings: "Auto" offers the best compromise in terms of comfort, consumption and CO2 emissions while "Sport" reconfigures the FIAT 500X for better performance and more spirited handling. "All Weather" adjusts the vehicle settings for maximum safety even in low grip conditions.

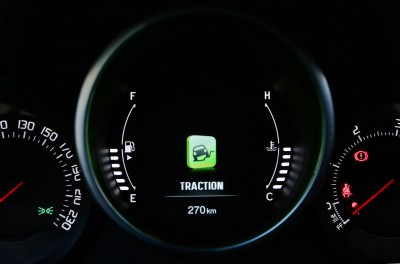

On the more rugged version of the FIAT 500X, "All Weather" mode is replaced by the "Traction" function, which speeds up the transmission of torque to the rear axle on four-wheel drive versions or activates the "Traction Plus" control system on front wheel drive versions, the latter offering an ideal solution to drivers who only encounter extreme low-traction situations occasionally, thereby avoiding the additional costs and slight emissions increase associated with a conventional four-wheel drive system. The FIAT 500X also offers eco:DriveTM, which can help reduce emissions and fuel costs by up to 16 percent, in addition to the my:CarTM service (UK availability TBC) which helps with maintenance and dealing with emergencies using an interactive user manual.

The engine range of the new FIAT 500X in EMEA countries comprises four petrol engines and three diesels: Front-wheel drive, petrol-powered models are either equipped with a 110hp, 1.6-litre "E-torQ" engine with a five-speed manual gearbox or a 140hp, 1.4-litre Turbo MultiAir II petrol engine with either a six-speed manual or a six-speed twin-clutch transmission. All-wheel drive petrol models, which are equipped with a nine-speed automatic transmission as standard, are powered either by a 170hp, 1.4-litre Turbo MultiAir II engine or the 184hp, 2.4-litre Tigershark engine.

The front-wheel drive diesel range consists of the 95hp, 1.3-litre MultiJet II turbo diesel, equipped with a five-speed manual gearbox and the 120hp1.6-litre MultiJet II turbo diesel equipped with a six-speed manual gearbox. The four-wheel drive diesel option is the 140hp, 2.0-litre MultiJet II turbo diesel, which will be available with a six-speed manual or nine-speed automatic transmission. All engine and transmission versions will be offered in the UK, with the exception of the 2.4-litre Tigershark unit.

Designed in the Centro Stile FIAT, the new 500X is compact on the outside - measuring 4.25 metres in length (the more adventurous FIAT 500X is 2cm longer), 1.80 metres in width and 1.60 metres in height (1.61 with roof bars, 1.62 with 4WD) - while spacious and inviting on the inside, with extensive use of high-grade materials, top-quality finishes and practical storage compartments - including a spacious 350 litre luggage compartment.  The seats adjust to offer a high degree of flexibility and seven different interior fabric, leather and colour configurations are available, depending on the model and exterior colour.

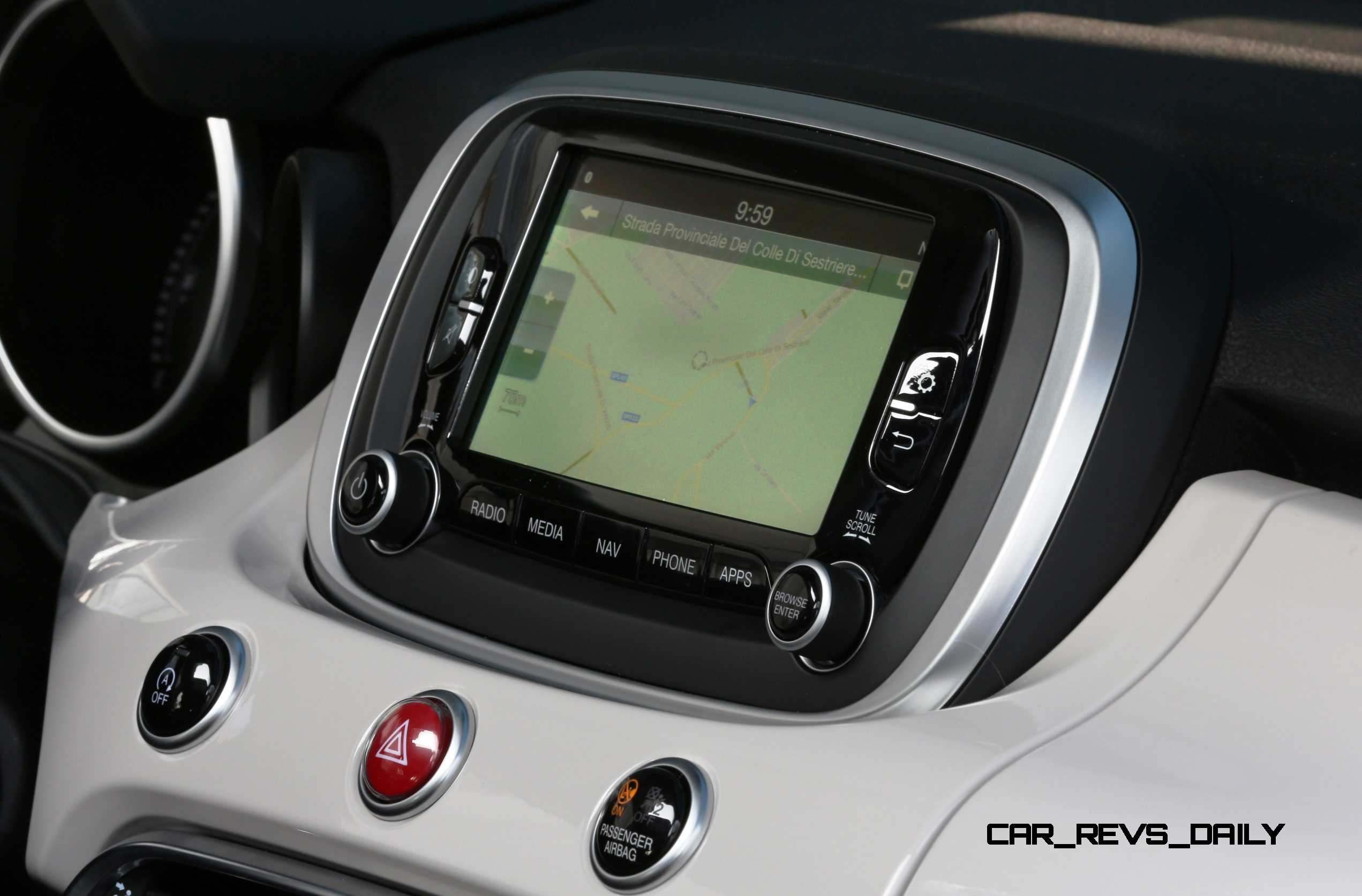

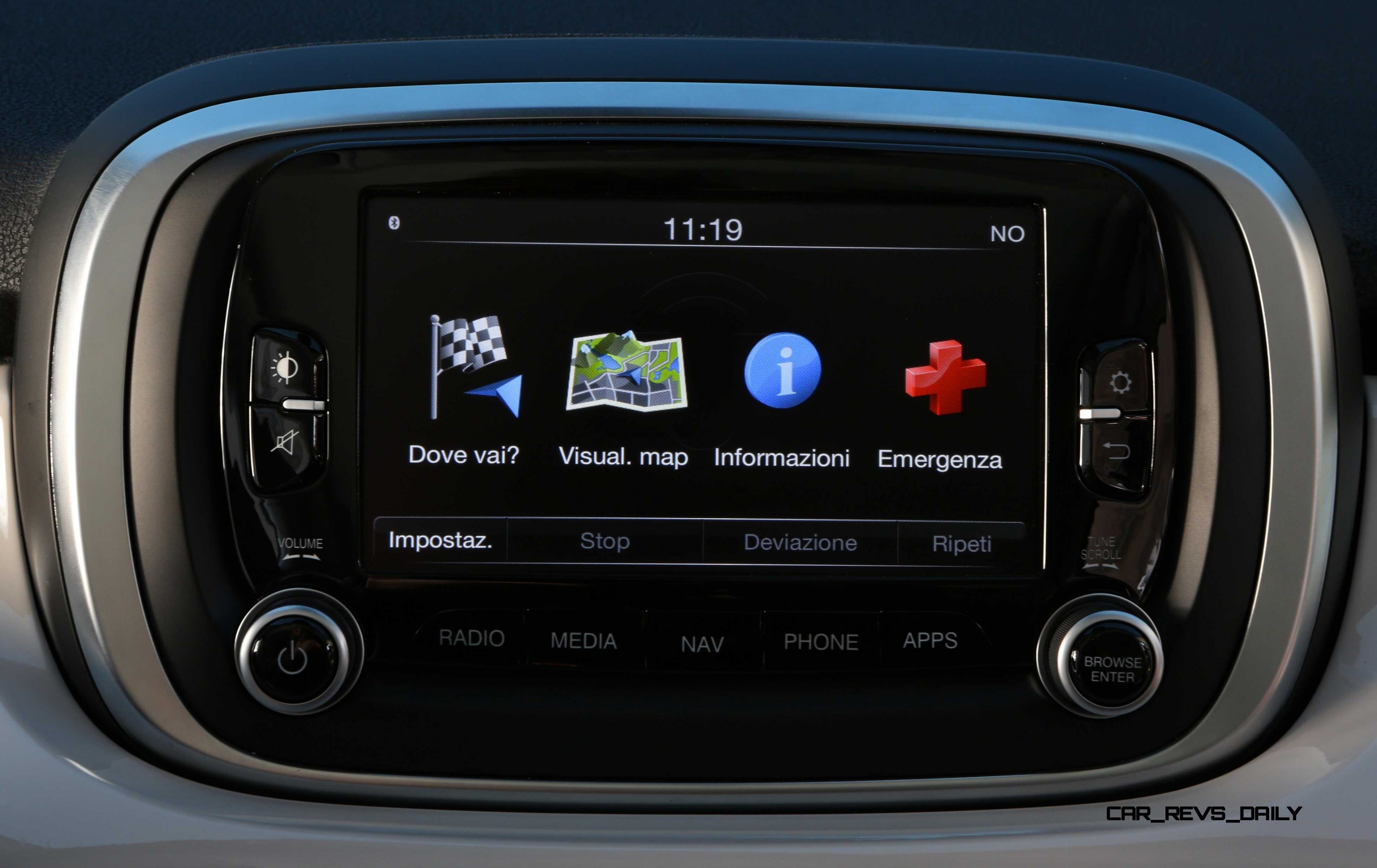

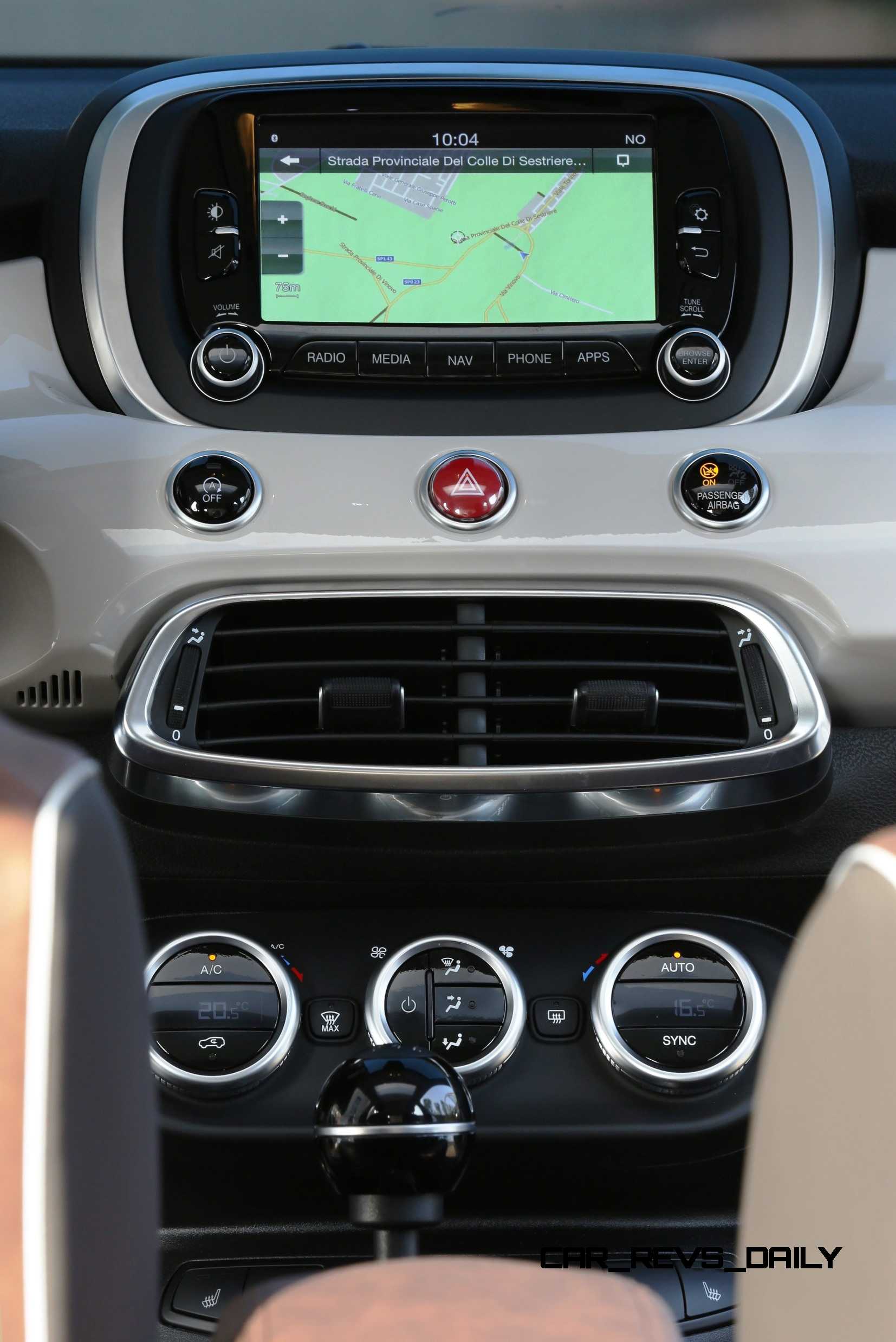

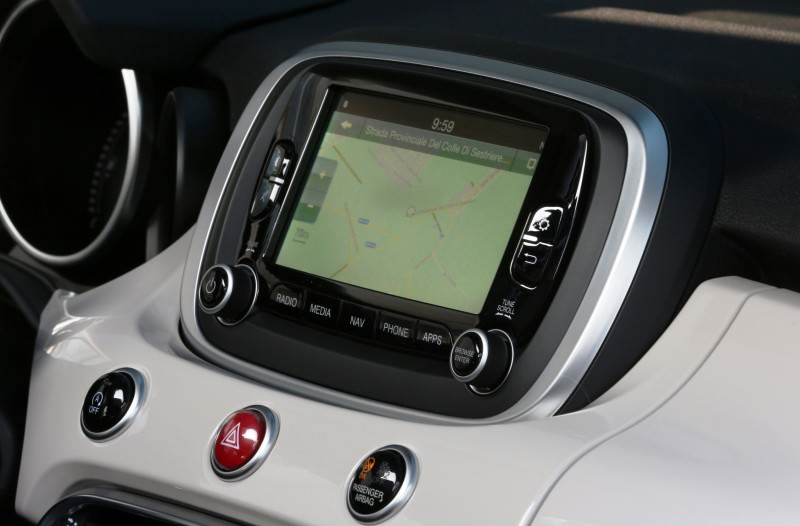

The FIAT 500X also stands out compared to its competitors thanks to its sophisticated 5.0- or 6.5-inch UconnectTM colour touchscreen infotainment systems. Both systems feature Bluetooth, aux-in and USB connectivity and can be operated via steering wheel remote controls and voice commands. The five-inch UconnectTM unit is available with TomTom 2.5D navigation while the 6.5-inch system features satellite navigation with 3D maps, progressive route guidance and 'One Shot Voice Destination Entry' to enter addresses with voice commands. DAB and a Beats Hi-Fi system, developed in collaboration with Beats by Dr. Dre, are also available.

A new UconnectTM Live system (UK availability TBC) also allows customers - through integration with their smartphones - to use many apps on the on-board system so that they can always be in contact with their friends on Facebook and Twitter; listen to millions of music tracks on Deezer and more than 100,000 radio stations with TuneIn; get real-time news updates from Reuters and get the latest traffic, safety camera and weather information from the TomTom Live service.

Built in the updated SATA plant in Melfi, Italy and sold in more than 100 countries worldwide including the United States, the new FIAT 500X will go on sale in the UK in the second quarter of 2015. Final specifications and pricing will be announced closer to the launch of the FIAT 500X in the UK.500x gif
