RM Paris 2015 Preview – 1982 Lancia 037 Stradale Directly Influenced F40, 959 and GT-R



1982 Lancia 037 Stradale gifThe Lancia 037 is a legend to the core. The rally version and its AWD traction were a benchmark for Audi, Ferrari and Porsche when those firms were designing cars as legendary as the Sport Quattro, F40 and 959. No small praise!

The "zero-three-seven" innovated up and down its chassis - with the tech specs below reading like a hypercar must-have list for the 1990s, far after this car was retired from sale for road use. Gas shocks, supercharged four-cylinder engine, ZF box slung out behind the mid-mounted powerplant, dry-sump-lubrication, kevlar-reinforced fiberglass panels, dual fuel tanks, magnesium and titanium components, Brembo brakes,... the list goes on.

The purpose of the 037 Stradale was clear even as the road car launched in April of 1982 in Turin: to beat the world's best on racing and rally circuits. A more modern and practical design than the Stratos, the 037 also became an 80s style icon in its own right.

This car is for sale from RM Auctions in Paris in two months, and will surely attract the who's-who of racing icons and collectors for its amazing originality and incredible engineering achievements.

One of perhaps 205 ever produced for the road, this may be the best-available 037 in the world right now. Enjoy this drive video below for the full experience.

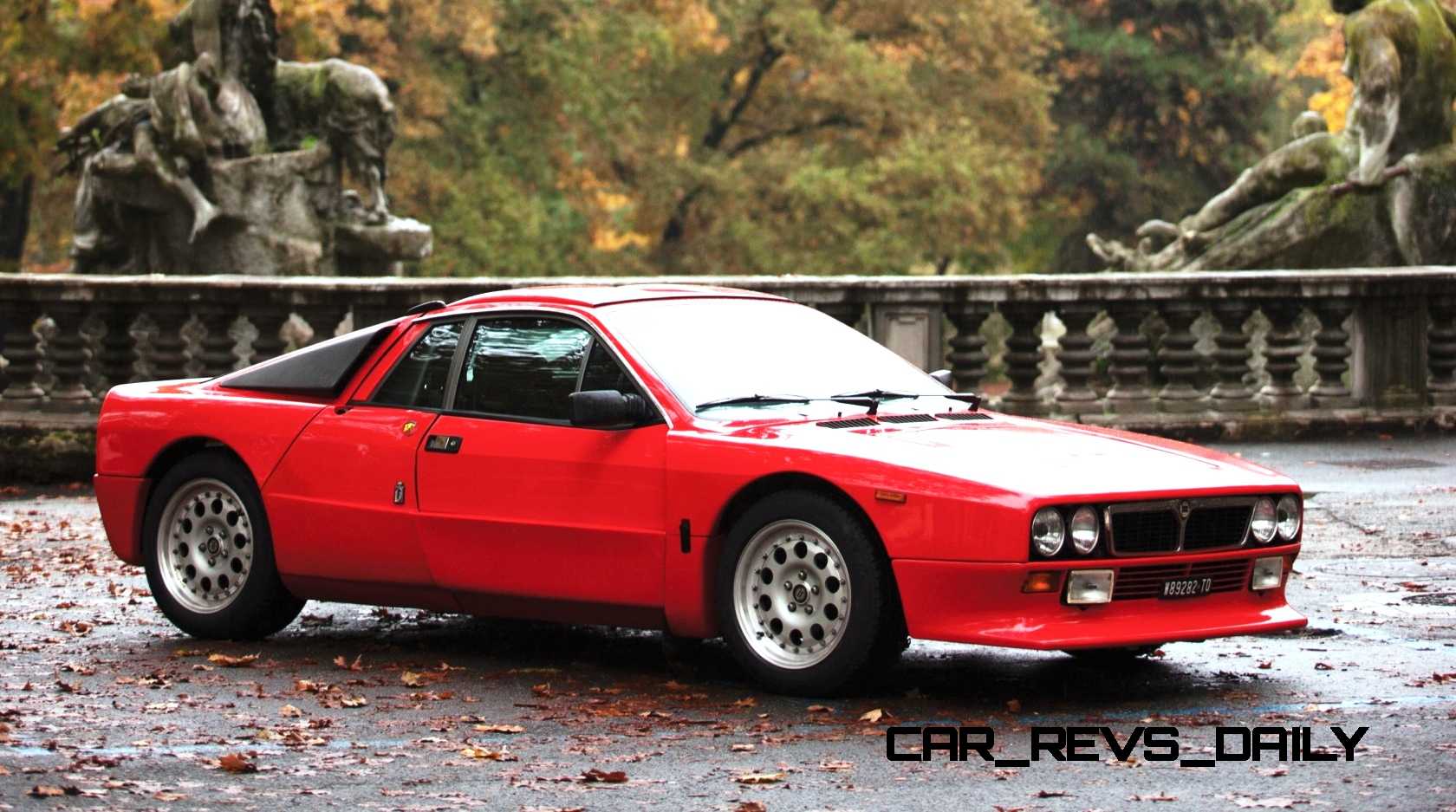

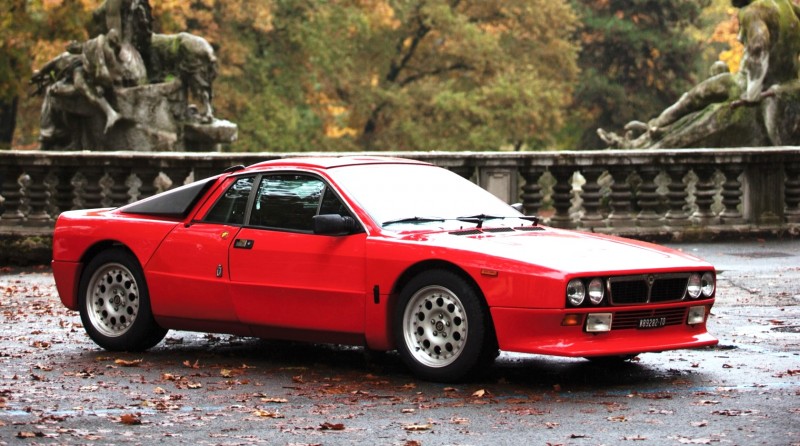

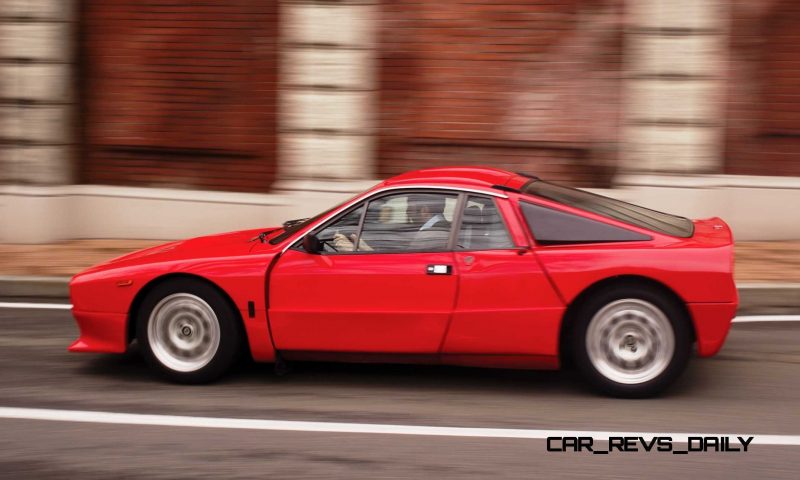

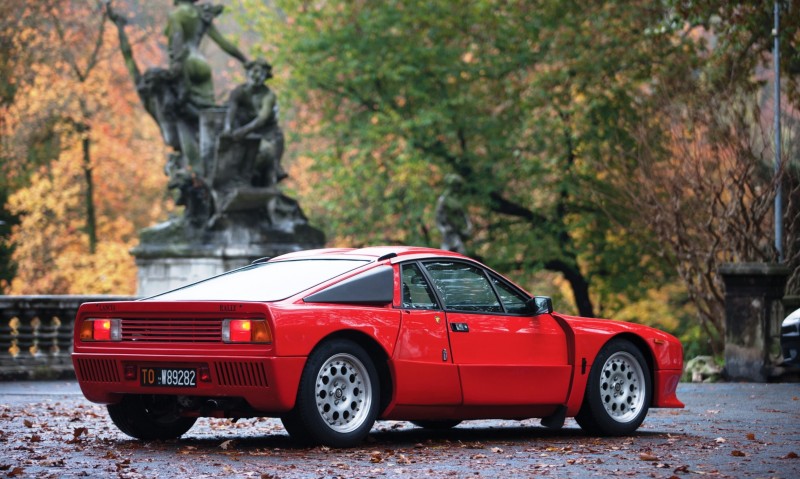

1982 Lancia 037 Stradale

1982 Lancia 037 Stradale 16 1982 Lancia 037 Stradale 17 1982 Lancia 037 Stradale 13 1982 Lancia 037 Stradale 1 1982 Lancia 037 Stradale 5 1982 Lancia 037 Stradale 2 1982 Lancia 037 Stradale 14



RM Auctions Paris    4 February 2015

1982 Lancia 037 Stradale

http://rmauctions.com/lots/lot.cfm?lot_id=1071620

Photos Courtesy of RM Auctions

1982 Lancia 037 Stradale 23 1982 Lancia 037 Stradale 20 1982 Lancia 037 Stradale 21 1982 Lancia 037 Stradale 22 1982 Lancia 037 Stradale 19 1982 Lancia 037 Stradale 18 1982 Lancia 037 Stradale 15 1982 Lancia 037 Stradale 12 1982 Lancia 037 Stradale 11 1982 Lancia 037 Stradale 10 1982 Lancia 037 Stradale 9 1982 Lancia 037 Stradale 8 1982 Lancia 037 Stradale 7 1982 Lancia 037 Stradale 6 1982 Lancia 037 Stradale 3 1982 Lancia 037 Stradale 4

TECHNICAL SPECIFICATIONS

By Lancia037rally.com

http://www.lanciarally037.com/e-stradaledati.htm

CHASSIS :

Central car body: steel false-monocoque, front tubular frames (that support suspensions and radiator) and back tubular frames (that support the engine system, the gearbox and the suspensions).

CAR BODY :

In Kevlar-reinforced with glassfibre.

Car weight: Kg. 1170 when racing.

Dimensions: Length mm. 3915 - Width mm. 1850 - Height mm. 1245 - Wheelbase mm. 2240.

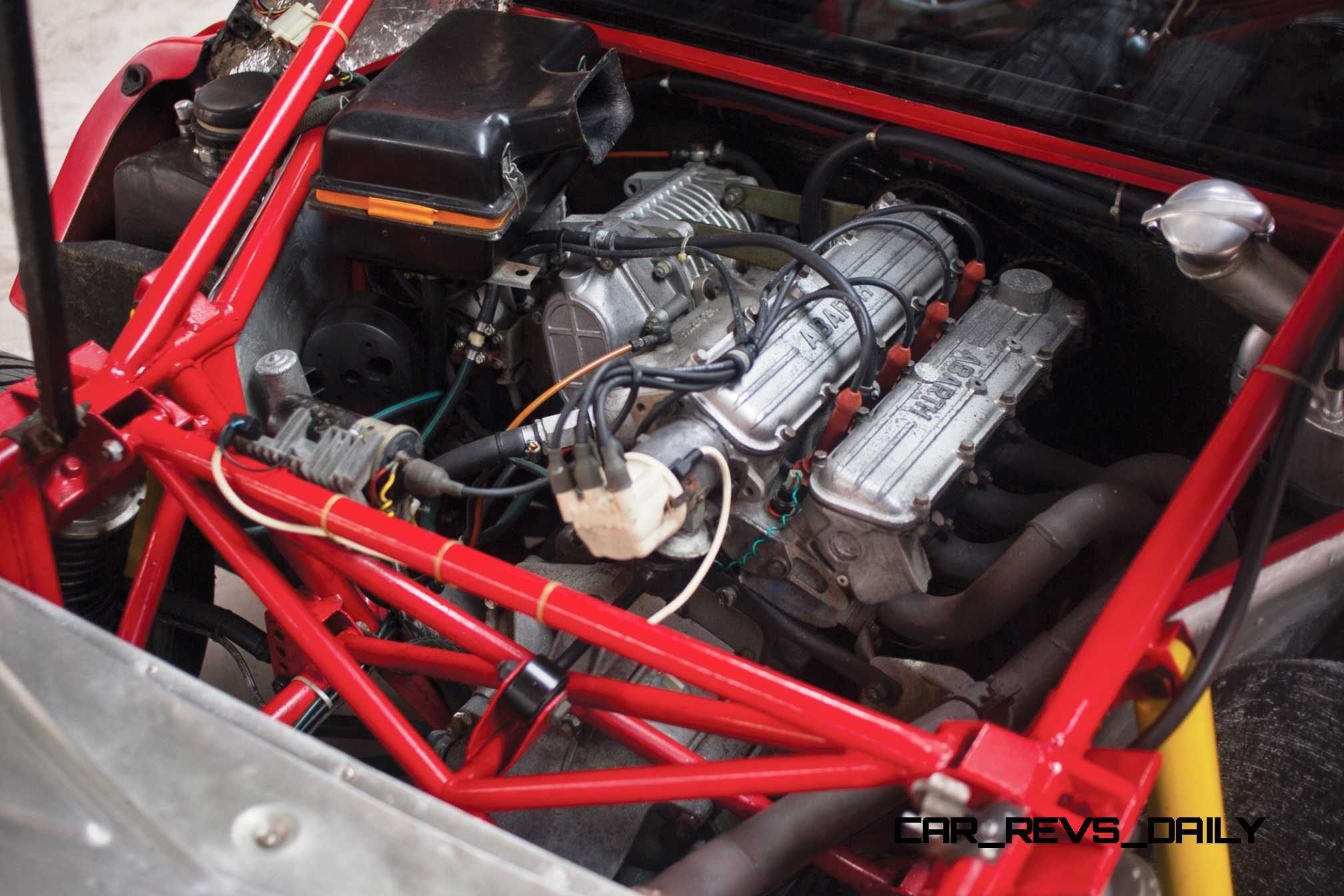

ENGINE:

Centre-rear, type 232AR4, longitudinally mounted, four cylinders in line, bore 84 mm, stroke 90 mm, 1995 cc, compression ratio 7.5:1. Max. torque at 23 mKg at 5000 rpm. Max. power 205 bhp at 7000 rpm.

SUPERCHARGING :

Roots Volumex compressor type ABARTH with variable pressure from 0.60 to 0.90 bar.

LUBRICATION :

Forced in a dry oil sump with thermostaic oil-radiator.

TRACTION :

On rear wheels.

FUEL INJECTION :

Through a twin-choke carburettor type 40DC NVH 12/250.

Diffuser : 33

Main fuel jet : 33

Min. fuel jet : 50

Air jet : 160.

VALVES GEAR :

Two overhead camshafts controlled by the power shaft through a toothed belt.

Four valves per cylinder with 0.30 mm of clearance in suction

and 0.35 mm of clearance in exhaustion.

CLUTCH :

Singleplate VALEO 230 mm diameter and hydraulic treadle drive.

Clutch pedal idle stroke : 25 mm.

GEAR BOX :

ZF 5-speed + RM with frontal power take-off .

Mechanical lever control on the chassis floor.

SPEED RATIO :

1° 2.417

2° 1.611

3° 1.136

4° 0.846

5° 0.704

RM 2.867.

DIFFERENTIAL GEAR :

ZF-ABARTH type 25% self-locked. Two axle shafts fitted with constant-velocity joints at their ends with permanent lubrication.

FRONT SUSPENSIONS :

Indipendent wheels with flexible parallelogram layout of the suspension.

Multiple mounting for variable system.

Gas shock absorbers.

Helical springs of variable flexibility.

Stabilized bar.

Possibility of regulation of the ground height.

REAR SUSPENSIONS :

Like front suspension but with double shock absorber.

There isn't a stabilizer bar.

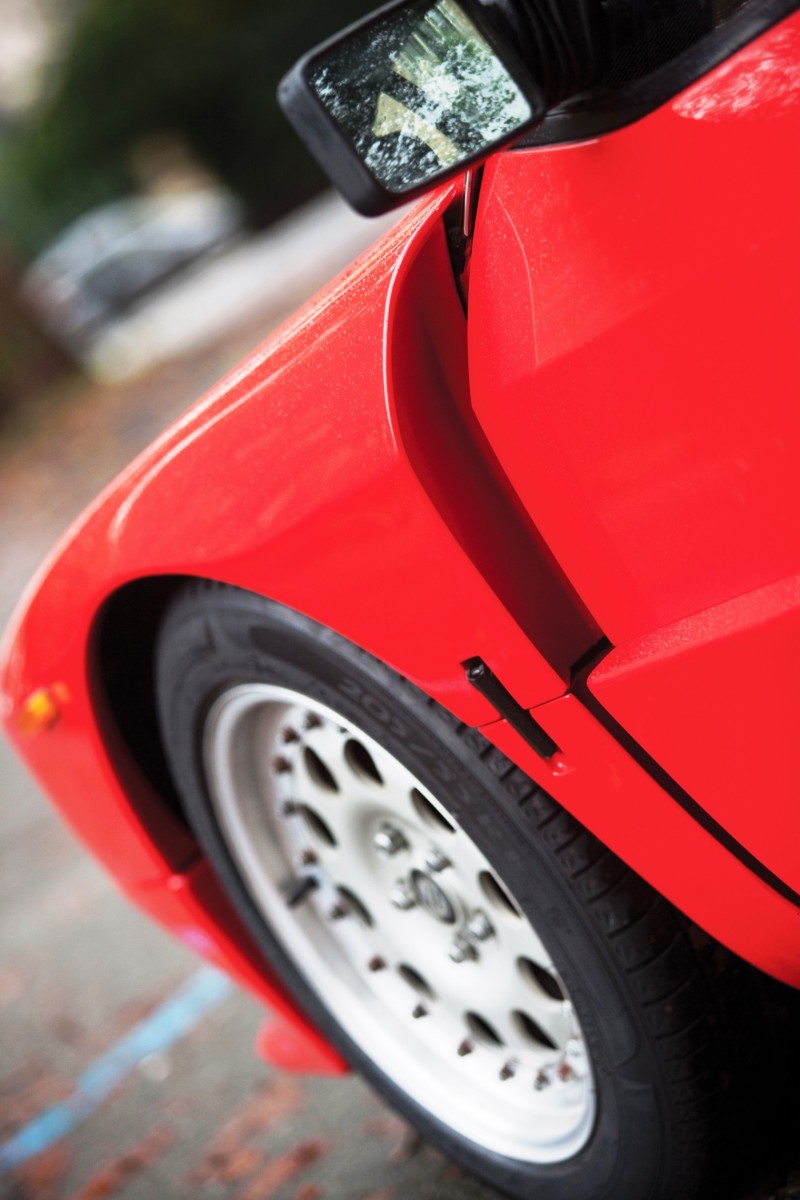

FRONT TYRES :

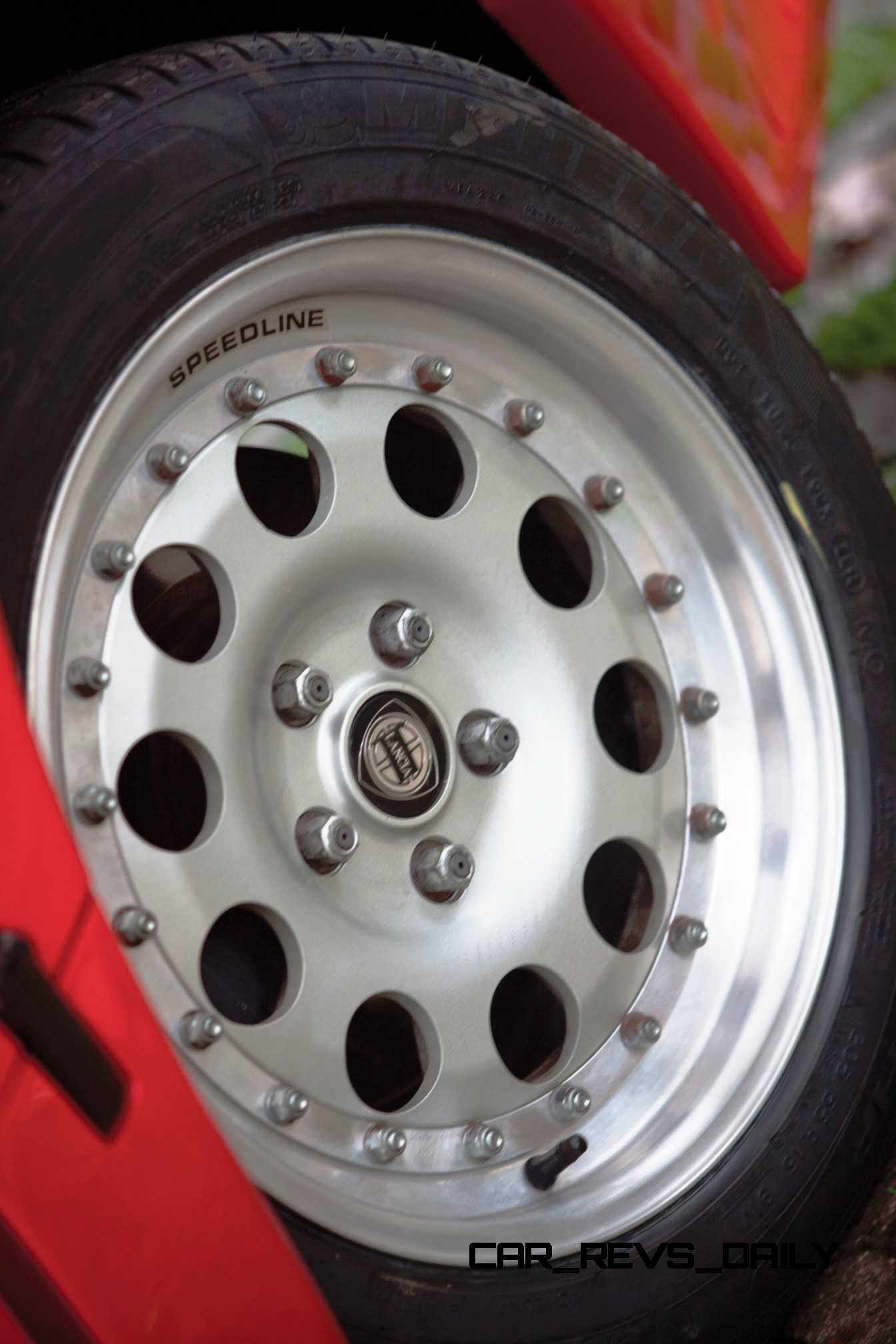

SPEEDLINE wheel rim - dimensions 8J x 16" - light alloy.

PIRELLI P7 CORSA 205/55 VR16 tyres.

Pressure of inflation : 2 bar.

REAR TYRES :

SPEEDLINE wheel rim - dimensions 9J x 16" - light alloy.

PIRELLI P7 CORSA 225/50 VR16 tyres

Pressure of inflation : 2 bar.

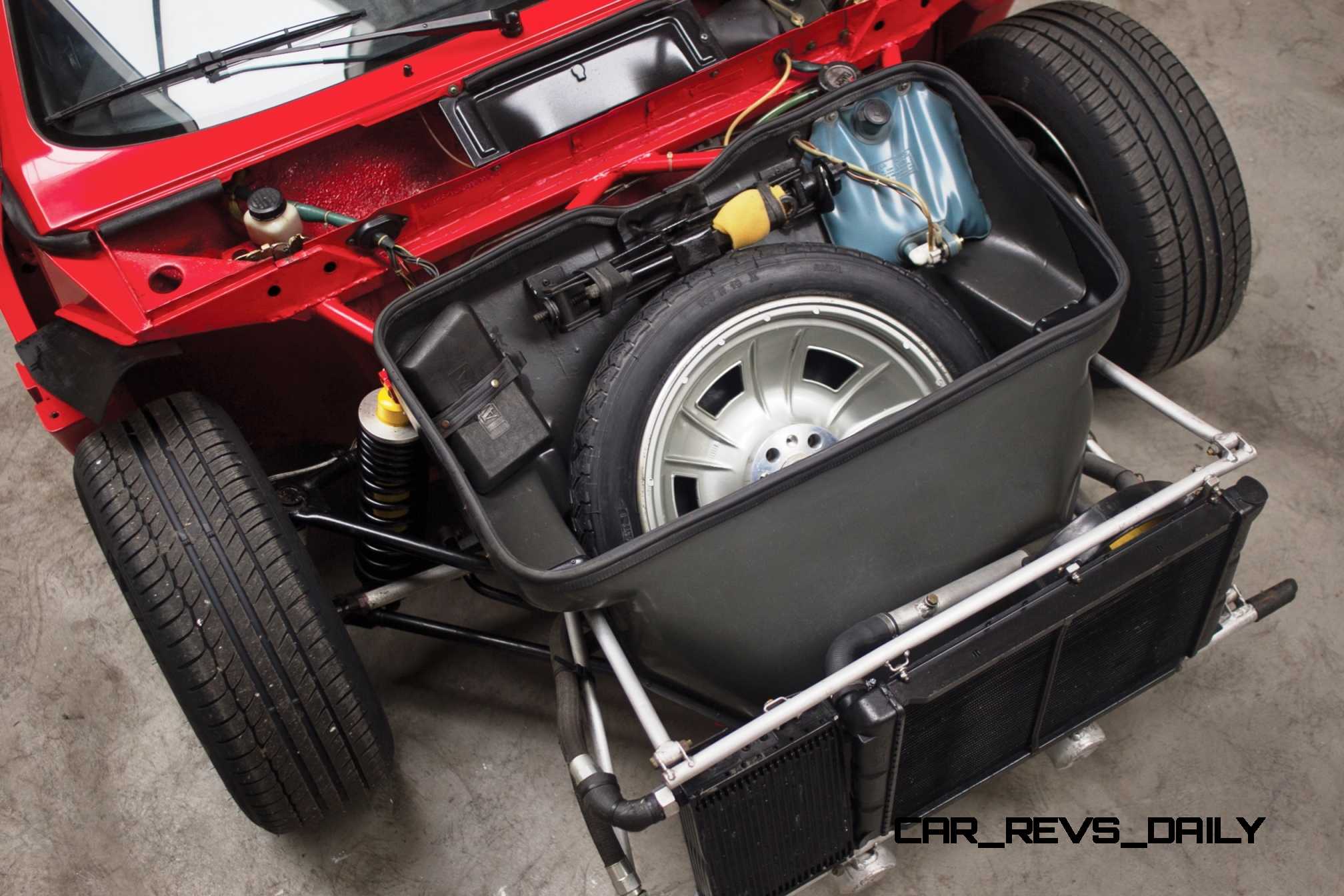

SPARE WHEEL :

SPEEDLINE wheel rim - dimensions 3 1/4''B - magnesium alloy.

PIRELLI 108 R 18 X tyres.

Pressure of inflation : 5 bar.

STEERING BOX :

Rack and pinion system with an articulated height-adjustable steering column.

Permanent lubrication.

Uniball mounting.

BRAKES :

Four BREMBO self ventilating brake discs.

Double brake circuit with two vacuum servos and 7/8'' inches pump.

HANDBRAKE :

Hydraulic brake on rear discs with specified calipers in light alloy.

WATER-OIL COOLING SYSTEM :

Forced circulation of the cooling system water by a pump, front radiator combined with the oil radiator, termoelectrically driven-fan and water tank with filler.

Dinamic on two positions air stranglers for the engine cooling.

ELECTRONIC IGNITION :

MARELLI electronic ignition with inductive discharge.

Ignition system with Marelli coil AEI 200 A.

Marelli SM 808 X ignition device.

Spark plugs: CHAMPION N2G for usual performances.

Ignition order : 1-2-3-4.

Fix ignition time (engine) : 10° +/- 1°.

Automatic ignition time (engine) : 25° +/- 2°.

Distance between the spark plugs electrodes : 0.6-0.7 mm.

Ignition : electric starting motor of 0.95 Kv.

LIGHTING SET :

Battery : 12V 48 Ah. without maintenance.

Alternator: Marelli AA 125 14V 55 A.

LIGHTS :

Headlights : H4 - 12V 60W.

Anti-dazzle lights : H1 - 12V 55W.

Additional halogen lamps (two) : H3 - 12V 55W.

Head position lights and direction indicators : 12V - 5/21W.

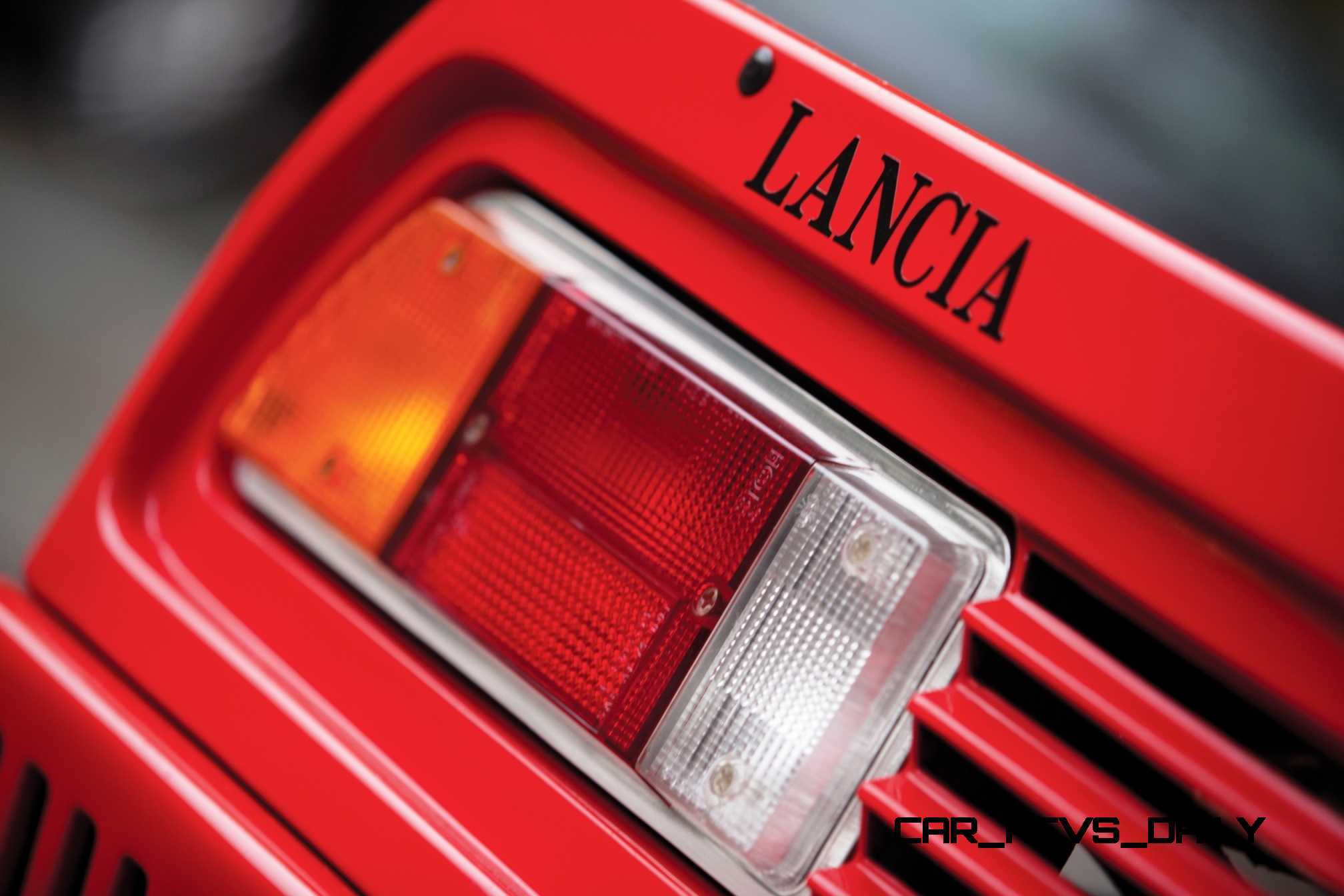

Rear position lights and stop-lights : 12V - 5/21W.

Rear direction indicators and reversing light : 12V - 21W.

Side direction indicators: 12V - 4W.

Cockpit and instrument board lights and leds : 12V - 3W.

OIL, WATER AND FUEL SUPPLY :

Fuel : Two tanks 35 lt. capacity with 5 lt. for reserve.

Radiator and engine : coolant fluid Lt.9 (50% PARAFLU 11 FIAT and 50% water).

Engine : OLIOFIAT VS+ CORSE Kg.8.

Gear box and differential gear: TUTELA W90 M-DA (SAE 80W/90) Kg.3

Steering box : TUTELA MRM 2.

Hydraulic brakes : TUTELA DOT4 Kg.0.5.

Clutch system : TUTELA DOT4.

Constant velocity joints on rear wheels : TUTELA MRM 2.

Cleaning windows water : Additional tank 1.5 lt. capacity (50% water and 50% FIAT DP1 detergent).1982 Lancia 037 Stradale gif
