Transformers 4 Truck Called Hound is Oshkosh Defense M1157 A1P2



The GMC TopKick had a really good run with the Transformers franchise, surviving through the end of the third movie on the strength of Ironhide's close friendship with our hero.

CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase GIF

But General Motors quietly exited the C4500 - C8500 truck classes altogether in 2009. Most of the larger trucks were absolutely ancient. Imagine a Frito-Lay extra-long delivery truck, and you've got it.

The TopKick was a strong option for the films: huge, versatile with a dump-truck rear end, and looked great.

TRANSFORMERS: AGE OF EXTINCTIONTransformers4 Oshkosh Defense 10-Ton 6x6 Dumptruck Hound

Ironhide outlived the Hummer H2 BayWatch car and Jazz, the oft-mocked Pontiac Solstice character with a somewhat racist accent.

RIP Trnsformers GIF

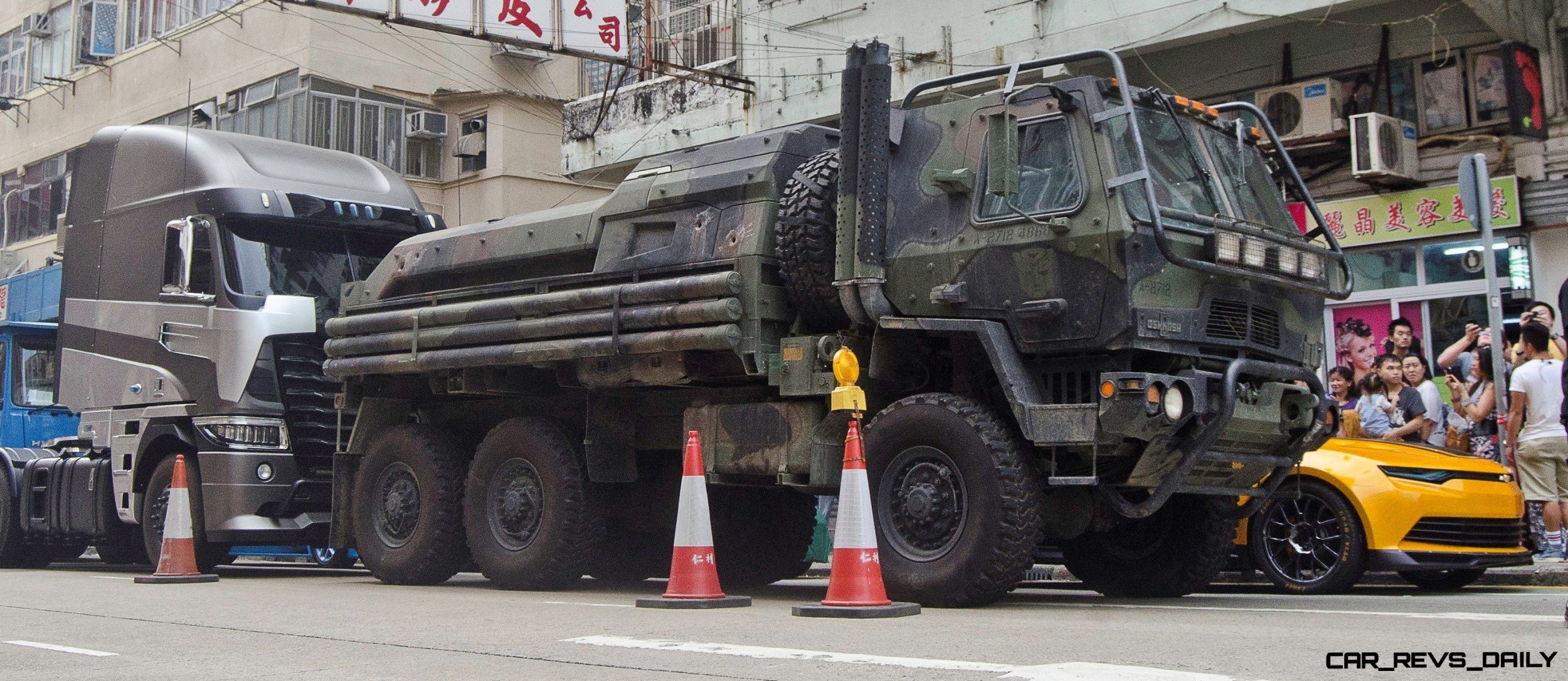

Ironhide died in battle during Transformers 3, and will be replaced by a new medium-duty truck named Hound.

CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 2

Hound wants to be human, which is an endearing trait for any machine, I guess. The legendary Oshkosh Defense FMTV gets a bad-ass jungle paint job, heavy duty roll bars, and hundreds of other special effects tricks.

MichaelBay.com - Tr4 Preview Images 2From my research, it looks like the 6x6 Cargo variant of the FMTV family. CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 5More likely, however, is the 10-Ton Dump Truck version. The model numbers are below, along with a variety of other heavy tactical trucks from Oshkosh -- which look mean enough to be Decepticons...Fleet_Modern_F2Y2052_HR

"Hound" - Transformers 4 previews from MichaelBay.com

MichaelBay.com - Tr4 Preview Images 2m1157a1p2

TRANSFORMERS: AGE OF EXTINCTION Oshkosh Transformers4 Header graphic Oshkosh Transformers4 Header graphic TRANSFORMERS: AGE OF EXTINCTION TRANSFORMERS: AGE OF EXTINCTION TRANSFORMERS: AGE OF EXTINCTION TRANSFORMERS: AGE OF EXTINCTION transformers-4_1371105080 transformers-4_1371105093 transformers-4_1371105105(1) transformers-4_1371105140 transformers-4_1371105150 transformers-4_1372216332 TRANSFORMERS: AGE OF EXTINCTION

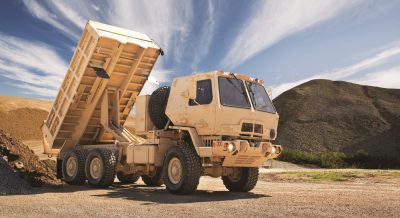

Oshkosh FMTV 6x6 10-Ton Dump (M1157 A1P2)

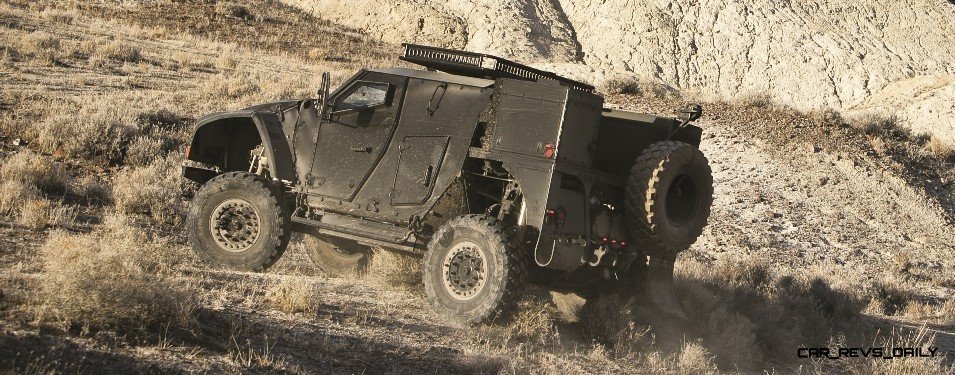

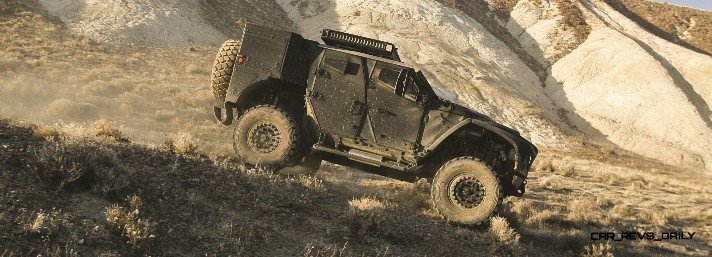

Light Trucks from Oshkosh

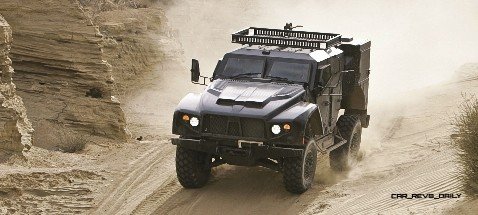

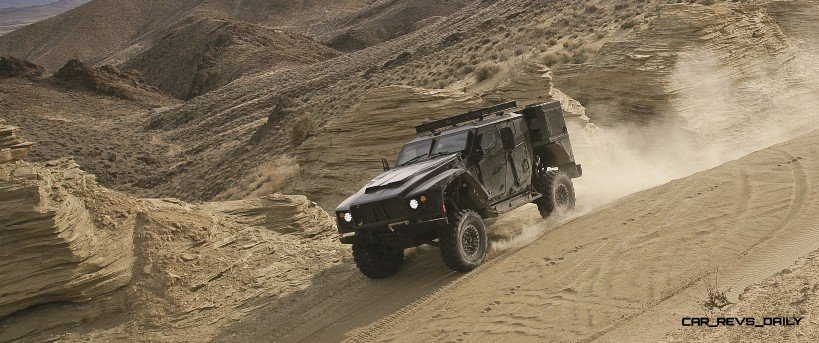

LCTV_J7L1807_HR LCTV_J7L1584_HR LCTV_F2Y9175_HR LCTV_F2Y9023_HR LCTV_F2Y8627_HR LCTV_F2Y8357_HR

Heavy Trucks from Oshkosh



Transformers4 Oshkosh Defense 10-Ton, 6x6 Dumptruck Hound 2 Transformers4 Oshkosh Defense 10-Ton 6x6 Dumptruck Hound Oshkosh Transformers4 Header graphic Oshkosh Light medium and Heavy tactical trucks GIF Oshkosh Transformers4 Header graphic CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 2 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 3 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 4 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 5 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase GIF CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 16 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 15 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 14 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 13 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 11 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 10 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 9 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 8 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 7 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase 6



















FMTV | 10-TON DUMP | FAMILY OF MEDIUM TACTICAL VEHICLES
---  Capacity to carry more material in less loads, increasing efficiencies and decreasing personnel fatigue
---  Easily maneuverable
---  Long-Term Armor Strategy-compliant cab
---  Electronic Central Tire Inflation System (CTIS)
---  3 person; ergonomically adjustable driver seat and steering wheel for greater crew comfort
---  ---  Length: 307 in. (7798 mm)
---  ---  Width: 96 in. (2438 mm)
---  ---  Height: 111 in. (2819 mm)
---  ---  Wheel Base: 161 in. (4089 mm)
---  ---  Approach/Departure Angle: 40˚/40˚
---  Vehicle Curb Weight w/Fuel: 28,727 lbs. (13030 kg)
---  Payload: 20,000 lbs. (9072 kg) plus kits
---  Towed Load: 26,000 lbs. (11793 kg)
---  Maximum Speed Governed at Gross Weight:
---  55 mph (88 km/h)
---  Range: 74 gal. (280 L) nominal 300+ mi. (483+ km)
---  Maximum Grade/Side Slope: 60%/30%
---  Cab Design: 3 person ergonomically adjustable driver seat and steering wheel
---  Engine: Caterpillar® C7 heavy-duty diesel 6 cylinder
---  electronically controlled fuel injected
---  turbocharged and aftercooled EPA certified
---  Transmission: Allison® MD 3700 SP automatic/select
---  7 speed electronically controlled
---  Optional: Winch
 Oshkosh Light medium and Heavy tactical trucks GIF

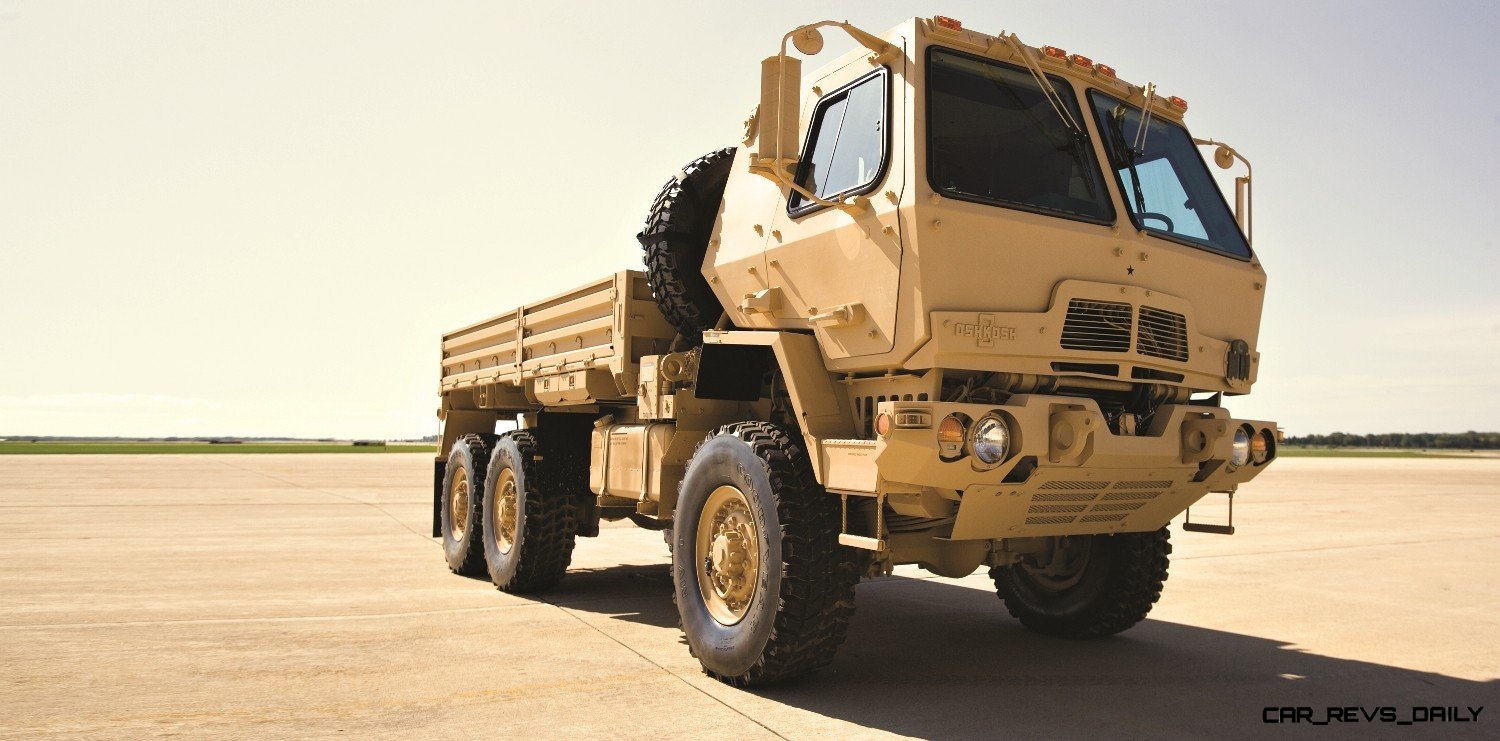

FMTV 6x6
---  Length: 286 in. (7272 mm)
---  Width: 96 in. (2438 mm)
---  Height: 111 in. (2830 mm)
---  Wheel Base: 161 in. (4100 mm)
---  Approach/Departure Angle: 40˚/40˚
---  Vehicle Curb Weight w/Fuel: 24,870 lbs. (11281 kg)
---  Payload: 10,000 lbs. (4536 kg) plus kits
---  Towed Load: 21,000 lbs. (9525 kg)
---  Maximum Speed Governed at Gross Weight:
---  55 mph (89 km/h)
---  Range: 56 gal. (212 L) nominal 300+ mi. (483+ km)
---  Maximum Grade/Side Slope: 60%/30%
---  Cab Design: 3 person ergonomically adjustable
---  driver seat and steering wheel
---  Engine: Caterpillar® C7 heavy-duty diesel 6 cylinder
---  electronically controlled fuel injected
---  turbocharged and aftercooled EPA certified
---  Transmission: Allison® MD 3700 SP automatic/select
---  7 speed electronically controlled
---  Optional: Winch
 CarRevsDaily.com - Oshkosh Defense Medium and Heavy Showcase GIF transformers-4_1372669666 transformers-4_1371105080Transformers4 Oshkosh Defense 10-Ton 6x6 Dumptruck Hound Transformers4 Oshkosh Defense 10-Ton, 6x6 Dumptruck Hound 2
Variants
2.5-Ton Chassis (M1080 A1P2)
2.5-Ton Standard Cargo (M1078 A1P2)
2.5-Ton Van (M1079 A1P2)
5-Ton Standard Cargo (M1083 A1P2)
5-Ton Standard Cargo with MHE (M1084 A1P2)
5-Ton Long Cargo (M1085 A1P2)

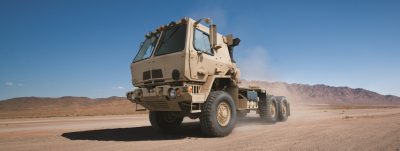

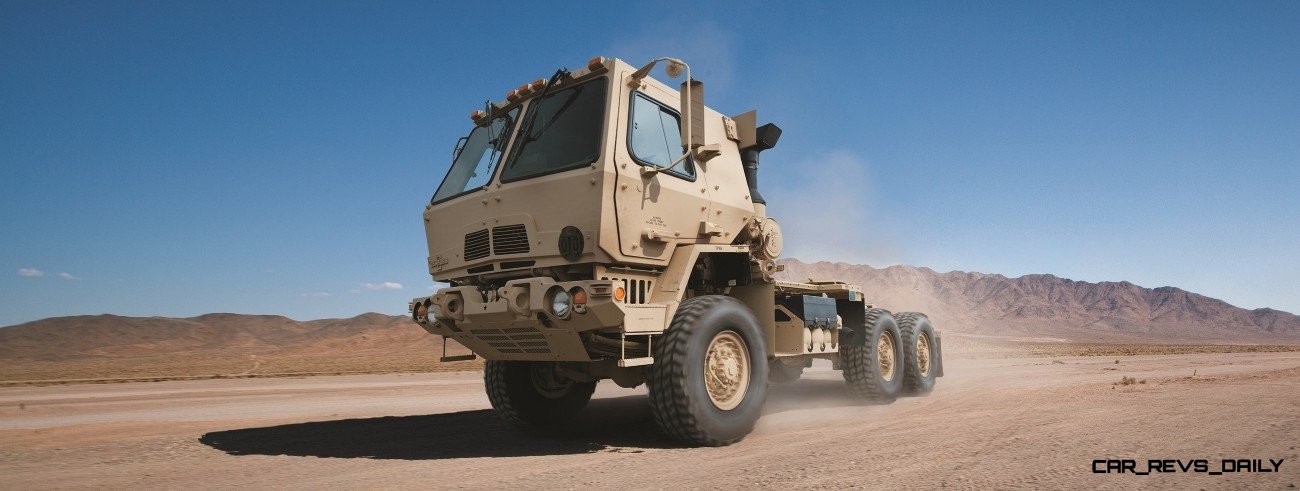

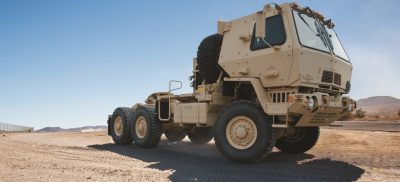

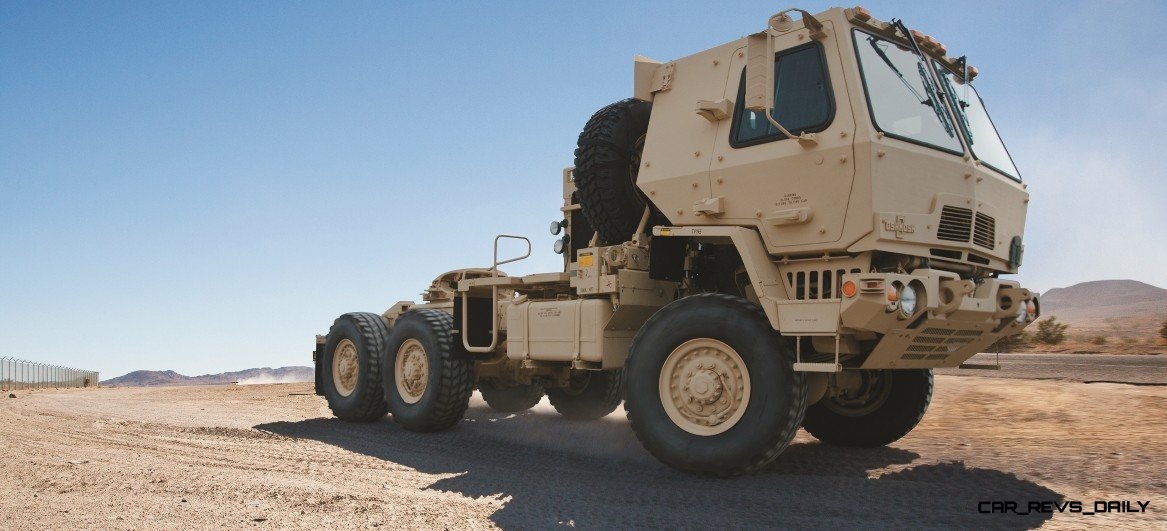

5-Ton Tractor (M1088 A1P2)
5-Ton Wrecker (M1089 A1P2)
5-Ton Long Cargo with MHE (M1086 A1P2)
5-Ton Expansible Van (M1087 A1P2)
5-Ton Chassis (M1092 A1P2)
5-Ton Long Chassis (M1096 A1P2)
2.5-Ton Trailer (M1082 A1R)
5-Ton Trailer (M1095 A1R)
5-Ton Load Handling System Trailer (M1147 A1R LHST)
8.8-Ton Load Handling System (M1148 A1P2)Oshkosh Transformers4 Header graphic

10-Ton Dump (M1157 A1P2)
