AHEAD OF THE Q: AUDI PRESENTS NEAR-PRODUCTION Q8 CONCEPT SUV AT DETROIT

Wraps taken off striking concept that will propel Audi into a new segment next year

• Luxurious space for four, new control concept with large touchscreens
• Plug-in hybrid with 330 kW and 700Nm (516.3 lb-ft) of torque
• Production model based on concept to launch in 2018
• 37-mile range on purely electric power, with a total range of up to 621 miles

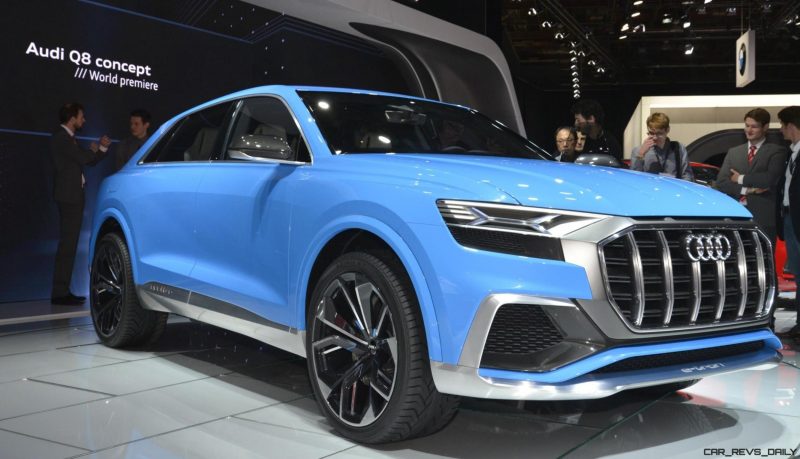

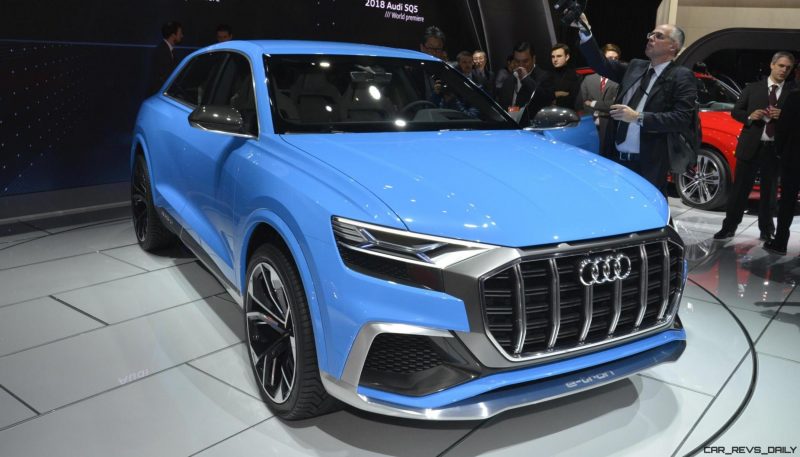

Ingolstadt/Detroit, January 9, 2017 – Dynamic, highly efficient and extremely comfortable: Audi is presenting the Audi Q8 concept at the 2017 North American International Auto Show (NAIAS). Serving as a prelude to a production model that will be introduced in 2018, it combines the spaciousness typical of an SUV with the elegant lines of a coupe and will tap into a new segment for Audi by offering an elegant alternative to the classic design of the full-size class. Propulsion is provided by a powerful, yet highly efficient plug-in hybrid with 330 kW of system output and 700 Nm (516.3 lb-ft) of torque.

At 5.02 metres long, the Audi Q8 concept is an impressive presence in the full-size class. Thanks to a wheelbase of three metres, the show car offers plenty of space for passengers and luggage. Despite the sloping, coupe-like roofline, even the rear-seat passengers enjoy ample head and shoulder room. The control concept uses large touchscreens in the cockpit and is rounded out by an expanded version of the Audi virtual cockpit and a contact-analogue head-up display. The latter uses intelligent augmented reality technology that merges the real and the virtual worlds.

“The Q8 concept is an Audi in peak form. It demonstrates the strengths of our brand in both technology and design while providing a glimpse at a future full-size, production SUV,” said Dietmar Voggenreiter, Member of the Board of Management for Sales and Marketing at AUDI AG.

“With its next-generation display and control solutions, we are enabling customers to experience connectivity in a whole new way.”

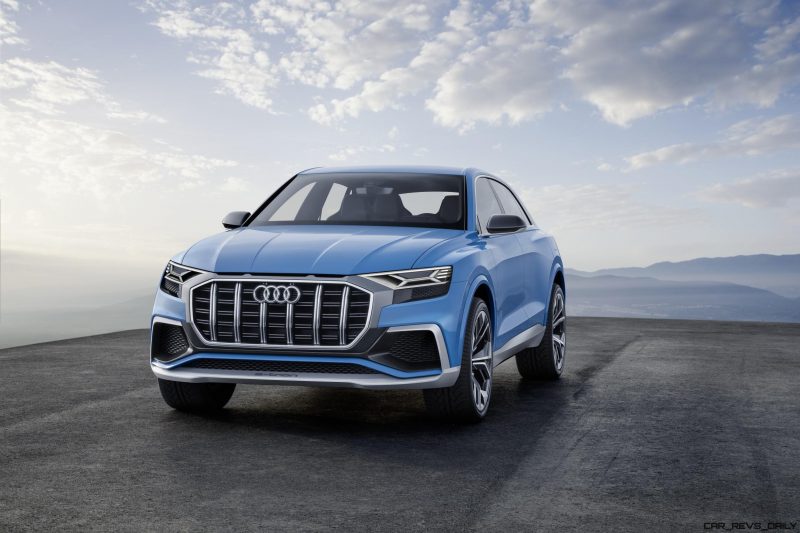

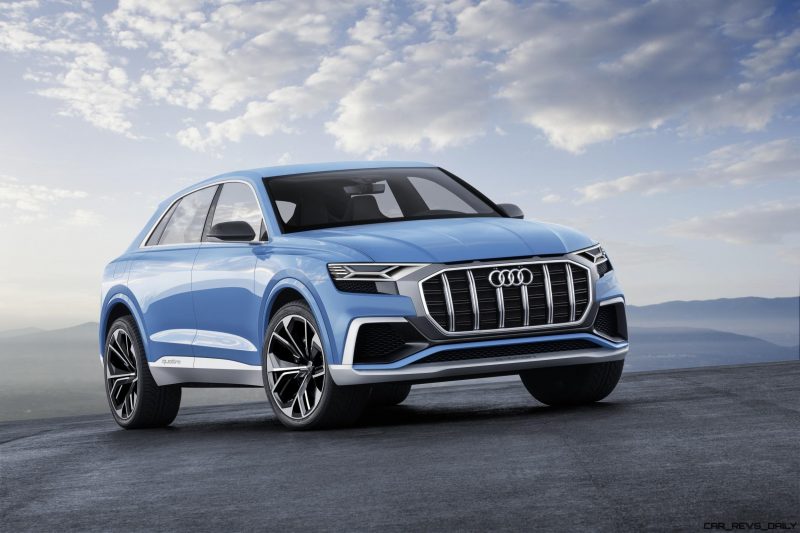

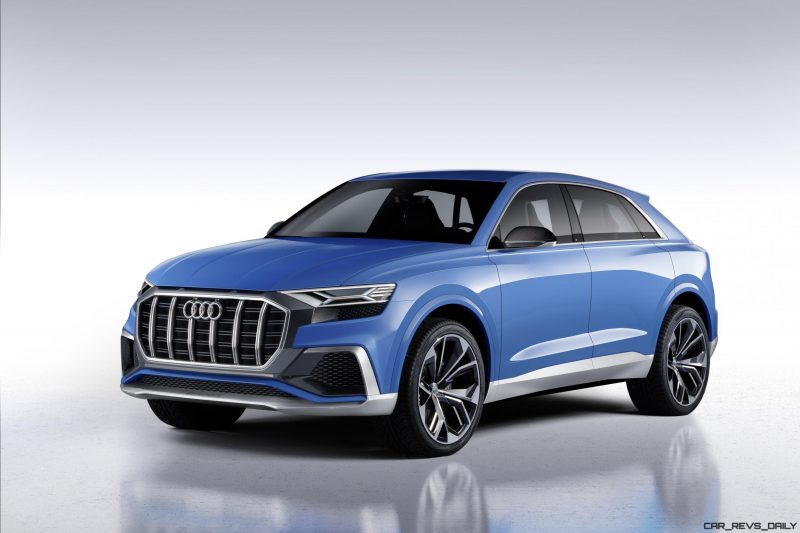

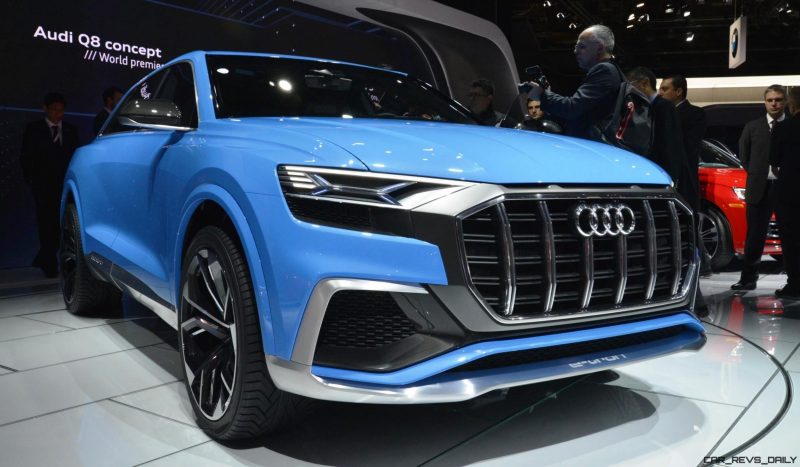

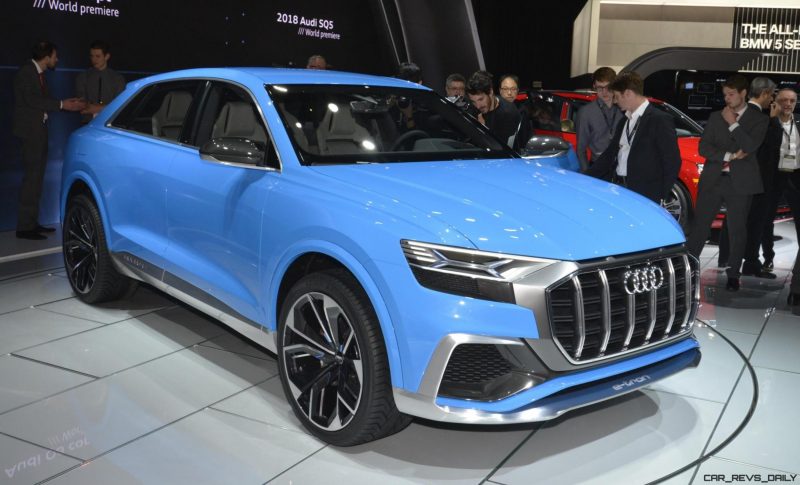

Dynamic lines and digital Matrix laser technology: the front end

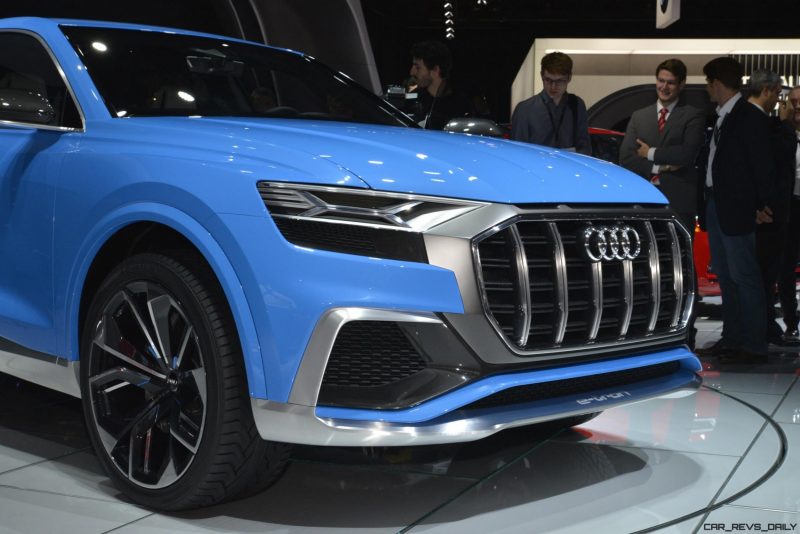

The distinguishing feature at the front of the 2.04-metre-wide Audi Q8 concept is the octagonal Singleframe with honeycomb insert. It is sculpted and significantly wider than in today’s Audi production models. Six upright double bars structure the radiator grille while simultaneously emphasising its height. A mask painted in a contrasting colour frames the grille. The outer air inlets have a deep and dynamic appearance like the intakes of a turbine. A distinctive aluminium blade forms the bottom edge of the bumper.

The flat, wedge-shaped headlights of the Audi Q8 concept are integrated progressively into the exterior and connected from a design perspective to the surrounding air inlets. The individual lighting units have glass covers, but the headlights as a whole are open. This creates the impression that they are free in space. The aluminium housing for the headlights carries over the sculpture of the Singleframe. The clear geometry gives the Audi Q8 concept an unmistakable look. An x-shaped, blue laser light signature highlights the digital Matrix laser technology used for the low and high beams. Broken down into more than one million pixels, their light can illuminate the road in high resolution and with precise control. Located below the edge of the bonnet is a narrow LED light guide that emits the light for the dynamic turn signals and the daytime running lights. It wraps around the outside of the headlights, where its ribs create an innovative e-tron signature. All lighting functions are dynamic.

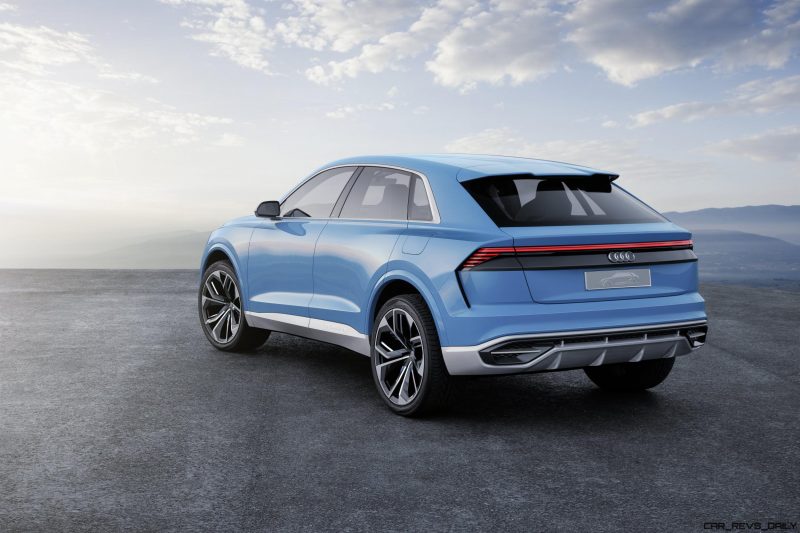

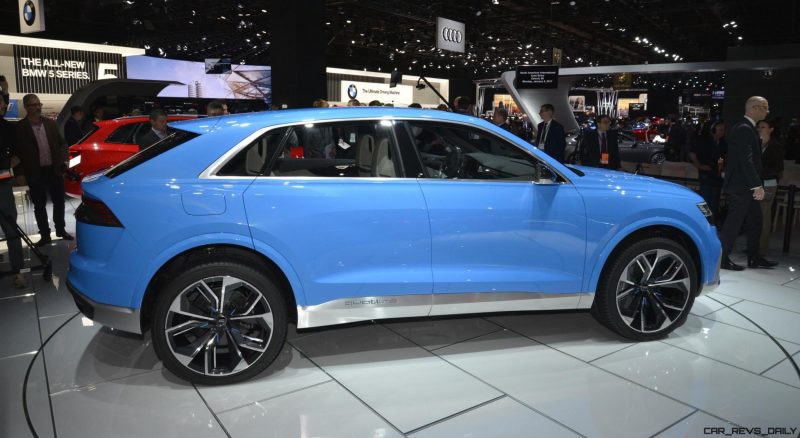

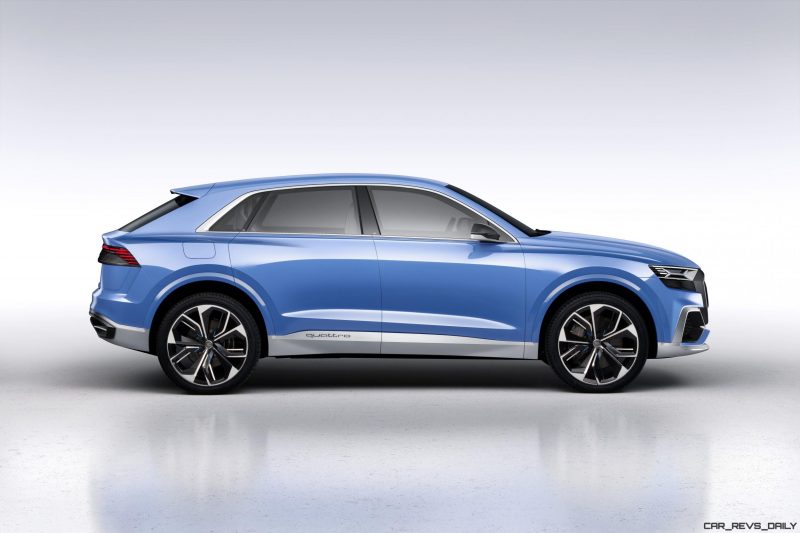

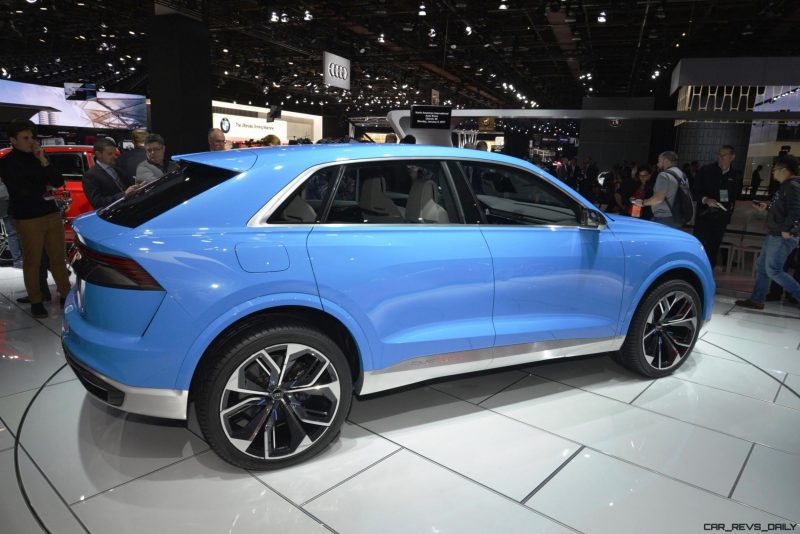

Athletic and powerful: the side view
The silhouette of the Audi technology study also evokes tautness. The doors do not have window frames, thus contributing to the flat roofline. The Audi Q8 concept is 1.70 metres tall. All lines on the body climb upward dynamically toward the rear – the bottom edge of the side window, the shoulders, the dynamic line and the sill lines. The surfaces of the wings, doors and side panels are athletically curved.

The lower section of the doors forms a deep fillet. Other design features are the quattro logo milled below the rear doors and also the exterior mirrors with their multifaceted edges. The doors are opened via touch sensors. As soon as the door detects hand contact, it opens easily and swings to a defined opening angle.

The extremely flat and very wide C-pillar is reminiscent of the Audi Ur-quattro from the 1980s, as are the strongly flared shoulders over the wheels. This places the concept car in a logical line with the show cars of the Audi Prologue series. The balanced proportions of the Audi Q8 concept emphasise the front and rear wheels equally – that too is typical quattro. The strongly accentuated wheel arches feature a double design. The sill region of the doors shines in brushed aluminium for an intriguing contrast to the show car’s Bombay blue paint finish.

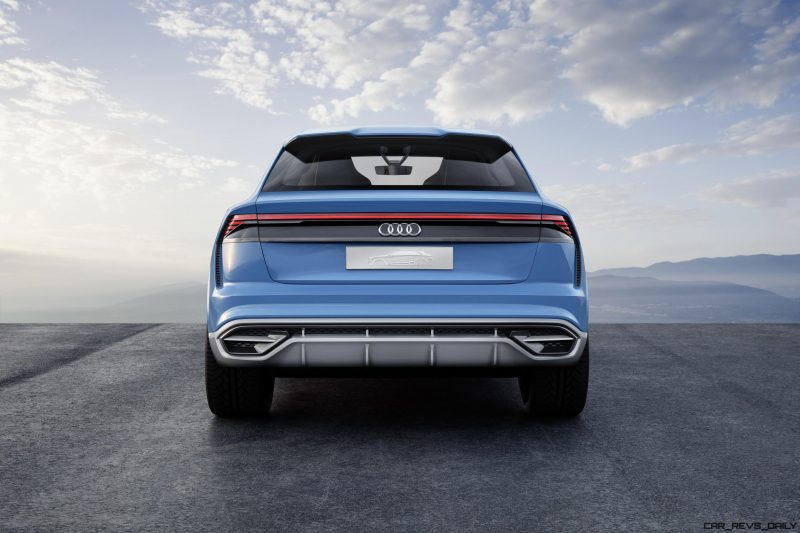

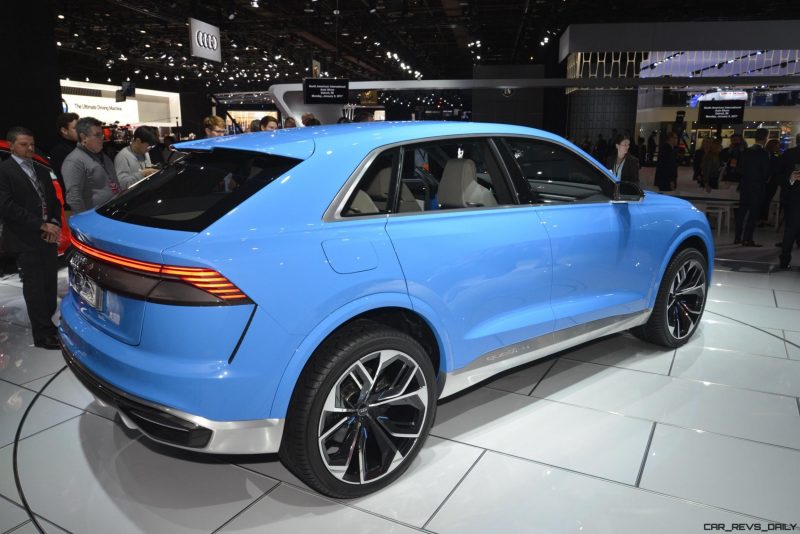

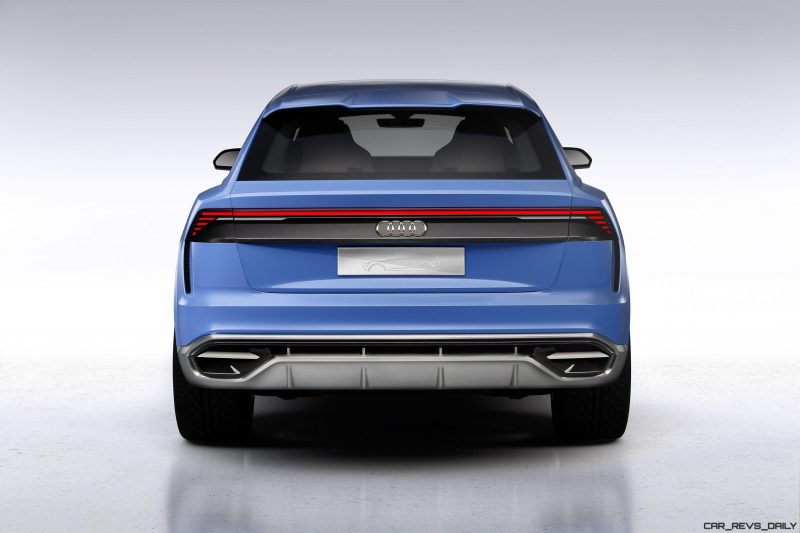

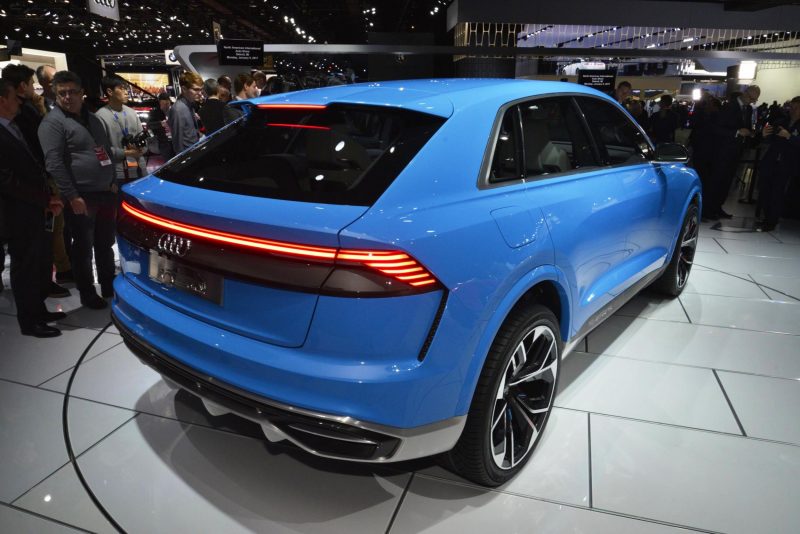

Flat and compact: the rear

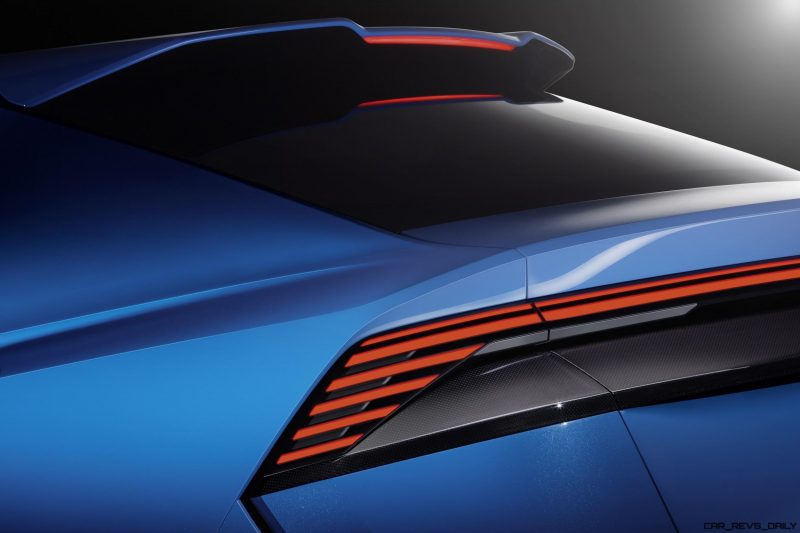

A long roof edge spoiler shades the extremely flat rear window of the Audi concept car. A double spoiler lip below the window forms a distinctive contour on the power luggage compartment hatch. The strip of lights extending over the entire width of the rear end is part of a distinctive e-tron light signature. It serves as both the tail and brake light as well as the dynamic turn signals. The four outer lighting elements are set in aluminium blades and reflect the semantics of the headlights. The individual elements of the tail lights are also open, and all lighting functions are dynamic.

The license plate of the Audi Q8 concept is located on a black trim strip between the lights – a typical feature of the Audi Ur-quattro. The diffuser is made of aluminium; its clasp of high-gloss Carbon Atlas. This combination of materials is also used around the headlights.

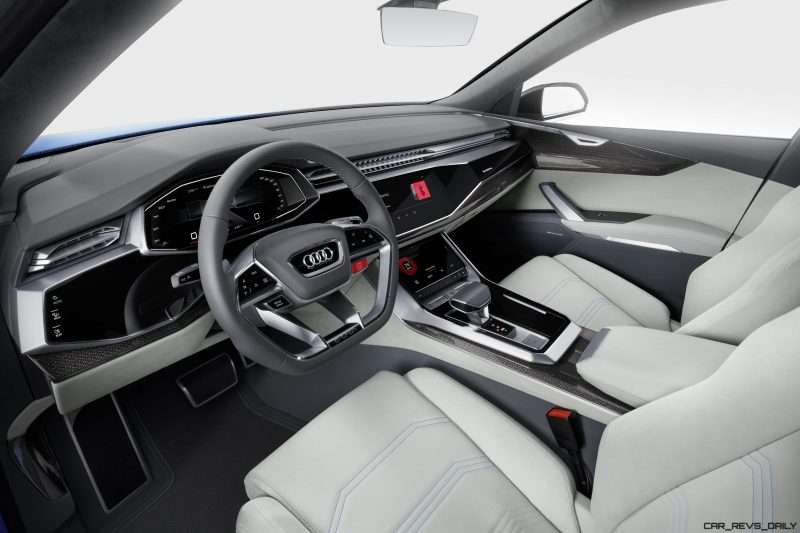

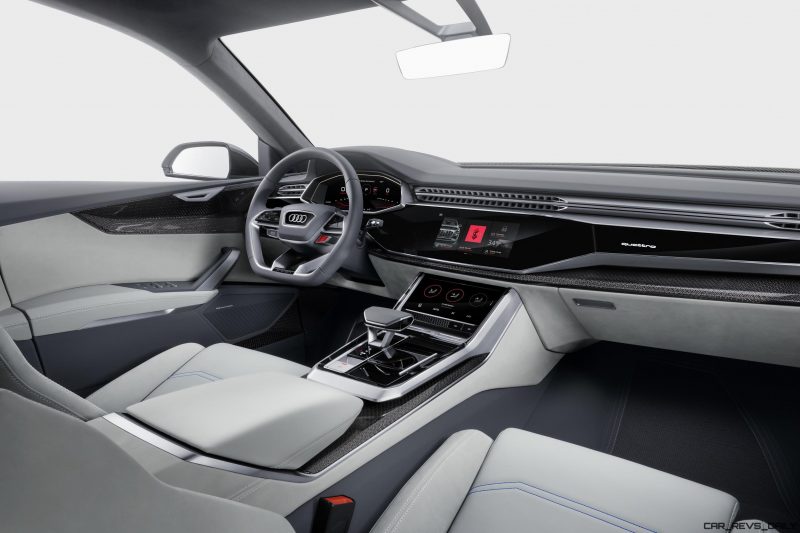

Luxury lounge for four: the interior
The interior of the Audi Q8 concept offers opulent spaciousness for four persons and their large suitcases. The luggage compartment has a capacity of 630 litres. Widely stretched lines lend the cockpit an  elegant ambiance. Virtually floating above the centre tunnel is a console for the shift-by-wire lever, with which the driver controls the eight-speed tiptronic transmission purely electronically. The console’s appearance resembles the stern of a sailing yacht.

The wrap-around begins in the front doors. This large, horizontal arc runs along the lower edge of the windshield and frames the driver’s and front passenger’s seats without hemming in the occupants. The sport seats as well as the two individual seats in the rear are made up of segments that appear to be separate geometric bodies, from the pronounced side bolsters to the head restraints. A horizontal aluminium clasp divides the backrests at the height of the window shoulder line.

The instrument panel with its distinctly horizontal character descends in steps toward the interior. The central control and display surfaces are integrated into the so-called “black panel” – a glossy black strip framed by an aluminium clasp. When switched off, the monitor is invisibly embedded in the surface and the lines flow harmoniously. When the display is in operation, it assimilates perfectly into the design line. In the front passenger area, the black panel encircles a graphical quattro badge. The arrow-shaped inlays in the doors pick up the expressive design. Filigree aluminium bars integrated into them serve as door openers. When dark, LED light guides illuminate the interior with white light.

The colours and materials in the Audi A8 concept provide for a cool atmosphere. One highlight is the three-dimensional, engineered grain on the instrument panel, doors and floor. High-gloss carbon applications with a new, abstract fabric structure as well as aluminium strips and frames set accents. Their brushed finish is relatively dark. Brightness increases gradually from the headlining to the centre console in graduated shades of grey from steel grey to pastel silver.

The technical materials in the Audi Q8 concept contrast with the soft surfaces. The seats are covered in a combination of Fine Nappa leather and Nubuk leather, both in pastel silver. The upholstery is pulled around the clasp that divides the backrests – the inside becomes the outside at this point. The head restraints are covered with a structured textile of a colour similar to that of the leather elements.

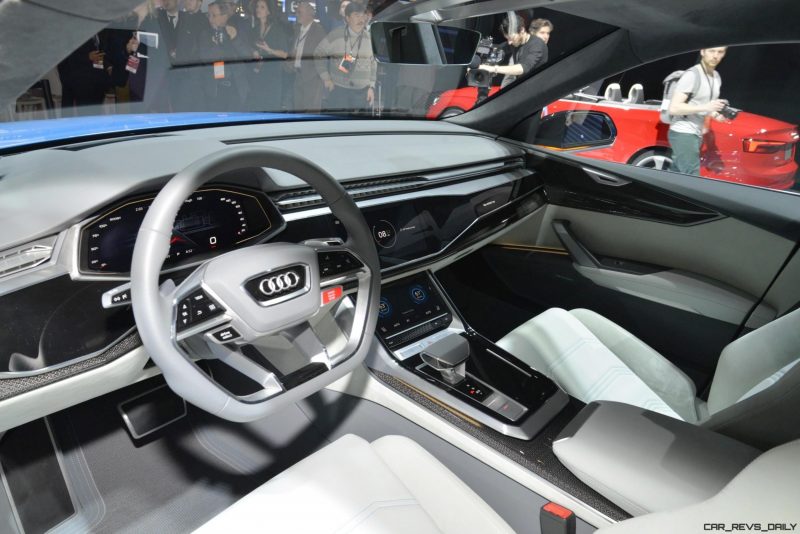

New ways: controls and displays

The elegant interior architecture of the Audi Q8 concept merges with a groundbreaking control and display concept. Information and commands are passed primarily through touch displays augmented by the Audi virtual cockpit and a contact analogue head-up display.

All displays feature a new “digital design” that concentrates systematically on the most important things.

The contact analogue head-up display projects important displays onto the windshield in the driver’s direct field of view, seemingly placing them in the real environment. A navigation arrow, for example, appears in the same position as an actual arrow on the road – an intelligent application of augmented reality. The notifications from the driver assistance systems also merge the virtual and physical worlds.

The Audi virtual cockpit future is even more dynamic thanks to new functions, and with a resolution of 1920 x 720 pixels displays graphics with more detail than ever before. In “auto” display mode, the 12.3-inch TFT display offers generous space for maps, lists and additional information. The top-down map view visualises the selected route. When zooming in, the current position and surroundings are displayed in 3D. Through the buttons on the steering wheel, the driver can switch to “performance” mode. The needles of the speedometer and powermeter now appear in a foreshortened, three-dimensional display.

All other monitors in the Audi Q8 concept are touch displays. The great strength of this principle is the direct, fast and intuitive operation. Drivers select each function exactly where they see it. Audi was also able to reduce the number of buttons, switches and levers thanks to the touchscreens. The interior now appears even neater and cleaner.

The MMI monitor in the centre of the dashboard is used to control the infotainment system and for vehicle settings. A display for the climate control system is integrated into the diagonal section of the centre console. The driver’s wrist rests comfortably on the low selector lever of the eight-speed tiptronic while using this display. If the sensors in the seat detect a front-seat passenger, the touchscreen displays their climate control settings. This function is not available when the driver is travelling alone. Another touchscreen is reserved for the lighting functions.

Powerful and highly efficient: the drive system

The Audi Q8 concept uses production technologies for the drive system and suspension. Their use in the study demonstrates their importance once again. The plug-in hybrid combines impressive performance with high efficiency. The combustion engine is a 3.0 TFSI producing 333PS and a maximum of 500 Nm (368.8 lb-ft) of torque. The electric motor generates 100 kW of power and 330 Nm (243.4 lb-ft). Together with a decoupler, it is integrated into the eight-speed tiptronic. The complete system produces 330 kW and 700 Nm (516.3 lb-ft) of torque. The Audi Q8 concept accelerates from 0 to 62mph in 5.4 seconds on its way to a top speed of 155mph. According to the standard applicable for plug-in hybrids, it returns up to 122mpg in the NEDC, corresponding to 53 grams CO₂ per km.

The lithium-ion battery located in the rear consists of 104 prismatic cells. With a capacity of 17.9 kWh, it enables an electric range of 37 miles, and the total range with the TFSI engine is up to 621 miles. A full charge with 7.2 kW output takes about two and a half hours.

When driving, the hybrid management system controls the operating states of the
Audi Q8 concept intelligently and flexibly. The full-size SUV can boost, coast and recuperate as appropriate for the situation. The predictive efficiency assistant, which in production models supports the driver, provides the hybrid management system with highly detailed information about the near surroundings for this purpose. Route data from the navigation system and Audi connect Car-to-X services are also considered.

The driver controls the Audi drive select system via a prismatic satellite button on the flat-bottomed steering wheel, just like the start-stop system. There is a choice of three driving modes: “EV” mode prioritises electric driving, while in “hybrid” mode the decision regarding the drive type is left largely to the hybrid management system. In “battery hold” mode, it saves the available electric energy for a later time.

High-tech from production models: drivetrain and suspension
In the Audi Q8 concept, the quattro permanent all-wheel drive system delivers the power of the hybrid drive to the road with supreme control. At the cornering limit, it works closely with the wheel-selective torque control.

This minimally brakes the inside wheels, which further enhances dynamics and stability.

The technology study also uses high-end production solutions for its wide-track suspension. The adaptive air suspension sport – an air suspension system with controlled damping – allows a wide range from cushioned cruising to firm and tight handling. In addition, it sets the ground clearance in two levels, with 90 millimetres height difference, to the ideal level in each case. The front and rear suspensions are engineered as lightweight five-link designs.

Audi mounts 305/35-series tyres on the large 11J x 23 wheels. The five intertwining Y spokes project a filigreed, three-dimensional and powerful image. Ceramic brake discs measuring 20 inches in diameter effortlessly decelerate the Audi Q8 concept.

– End –

Picture caption

Audi takes charge with the Q8 concept at Detroit – Audi is presenting a preview of the premium brand’s new entrant into the luxury SUV class, which will come to market in 2018. The plug-in hybrid features a powerful electric motor working with a 333PS 3.0 TFSI to produce an overall system output of 330 kW and 700Nm of torque. It returns up to 122mpg with CO₂ of only 52g/km.
