Design Analysis – 2017 Lamborghini CENTENARIO + 20 Astounding Geneva Closeups





This might be the most outrageous Lamborghini of all time.

And that is saying something — there have been some real wild childs’ in the back catalog!

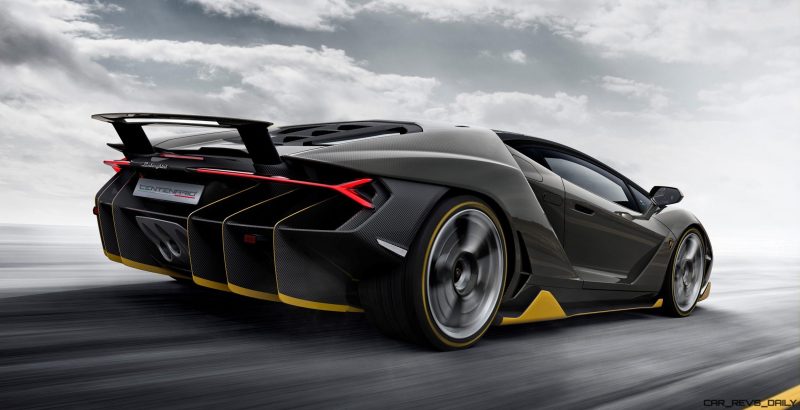

Design Analysis - 2017 Lamborghini CENTENARIO 3

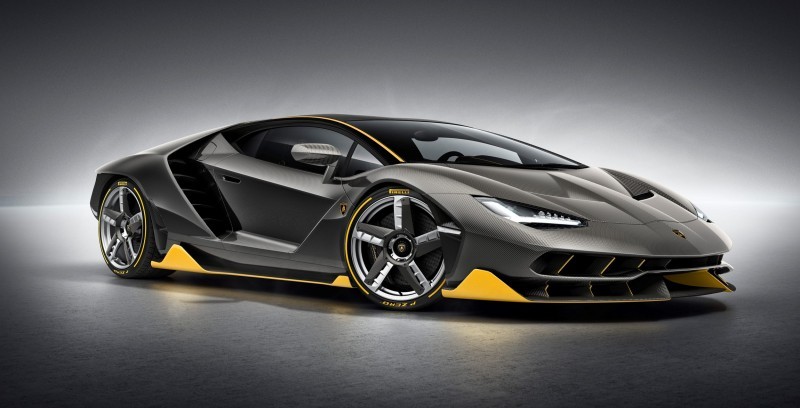

The Centenario is a 40-unit special Aventador with all-new styling and 770HP.  Half coupes and half roadsters, they are all pre-sold.

The big innovations over the Aventador include rear-wheel steering and a new carbon-fiber chassis tub.  Much part sharing for boring things (like glass and suspension details) with the Aventador, yet cutting out a large bit of mass by replacing its aluminum spaceframe with a CF tub wherever possible.  This is likely to be about 200-pounds of weight savings alone, and a big leap in rigidity as well.  All good things under that skin.

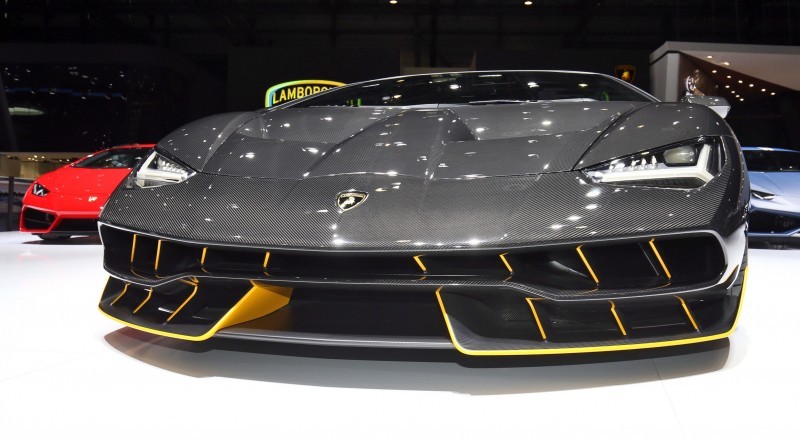

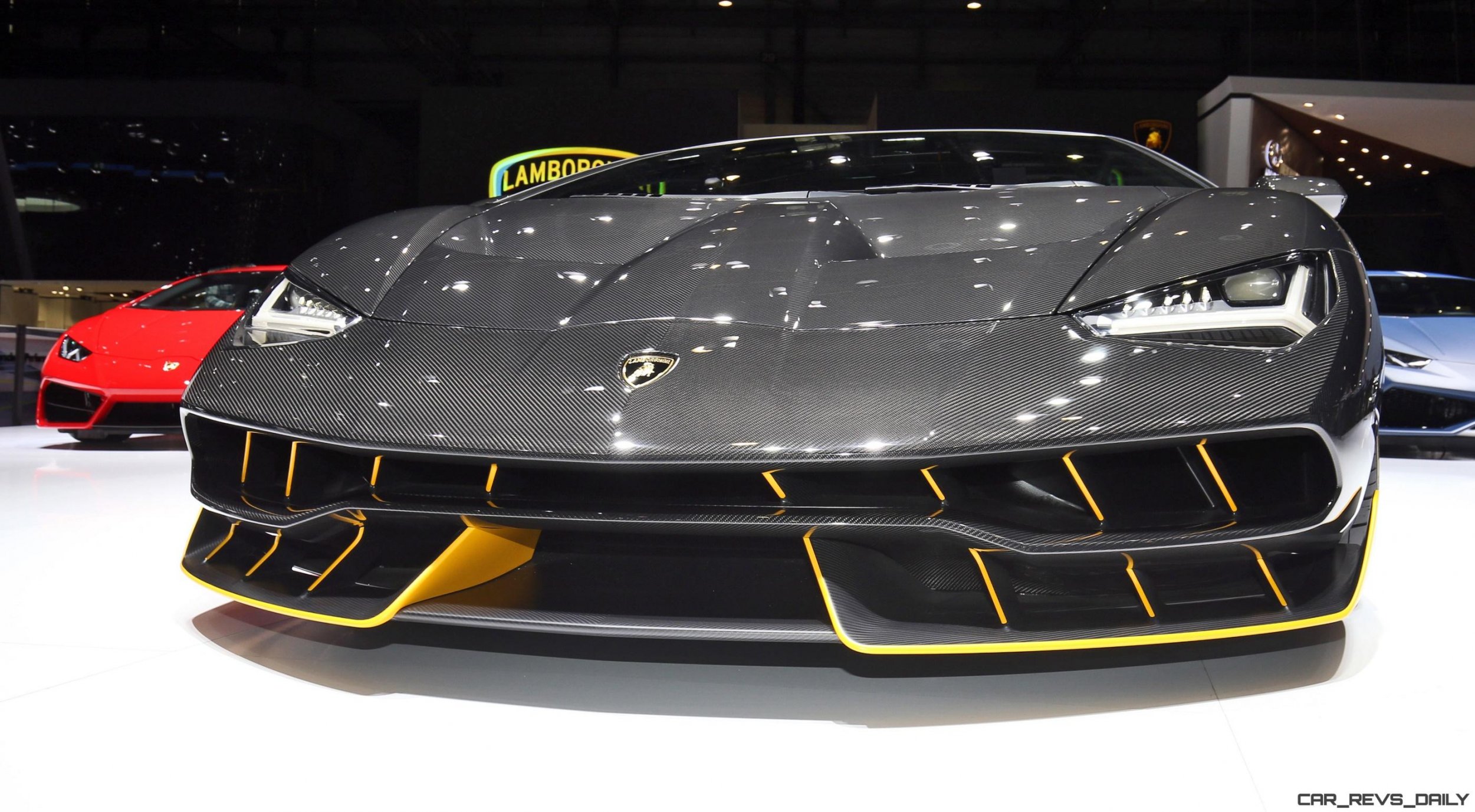

What about the skin itself?AQ2Y9742

DESIGN ANALYSIS

Active aero plays a huge role in the new Centanario’s performance at speed.  But there is a great deal of passive — always-on — aero at play as well!

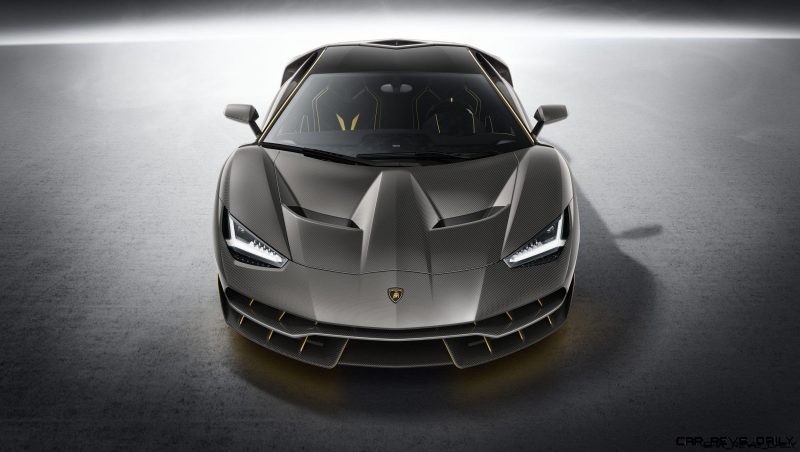

CHeck out the strongly defined vertical fins running up the nose and down the tail.  Intersected with horizontal wings, this outre statement of performance proves what a bull the Centanario really is on a racetrack.  The strong sense of geometry in the lower grille is enhanced by a sheer leading hood point and new, horizontally-oriented LEDs in the headlights. These slim slits of lamp unit stretch the car even more to the eye– if that were possible!  It is already obscenely wide and low all around.

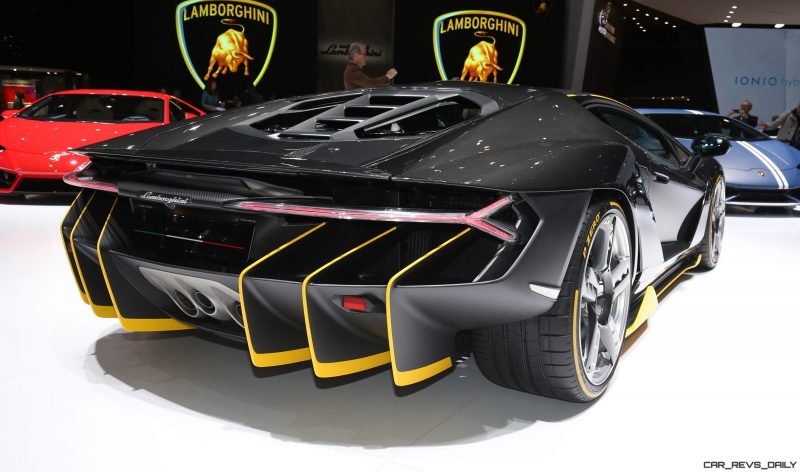

There is some deliberate design brutality on all sides of the Centenario, but nowhere more so than the tail.  A clamshell rear cover forms a small lip intake at the top of the cabin, then drapes down over the engine cover and rear fenders like a silk sheet of carbo-tanium.  This leaves a slightly raw rear wheelarch and fender outline, but that works just fine when you see what is behind the tires back there.

Nada!  Just air, baby.  Whipped, boiling-hot air coming of the CCM brakes and off the massive V12’s red-hot engine block.  THrough those Cuisinart wheel blades and blasted backward at 200-mph.

An ultra slim trailing edge of the clamshell is a final intriguing design detail.  This is likely an asset in the wind tunnel by creating a pressure point — almost sucking air up past the diffuser spikes and out of the engine compartment using nothing but the rushing wind itself.

Centenario in Italian?

Max attack!

Ferruccio Lamborghini–style.

Arch rivals?  FXX and new Huayra BC!

And if it looks this insane… imagine how it sounds or drives?!

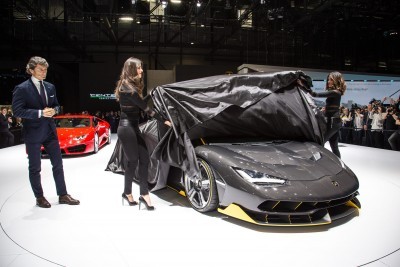

Lamborghini Executive Team Geneva Motor Show Press Conf

2017 Lamborghini CENTENARIO

Press Release

The Lamborghini Centenario at 2016 International Geneva Motor Show: futuristic design honours the Lamborghini legend

  • A one-off limited edition of 20 coupés and 20 roadsters, all sold, at a start price of 1.75 million euros plus tax
  • V12 naturally aspirated engine with 770 hp: most powerful built by Lamborghini, weight to power ratio 1.97 kg/hp
  • Futuristic, pure, essential design encompassing technological innovations
  • New Lamborghini rear-wheel steering, carbon fibre monocoque and body, advanced aerodynamics
  • Touchscreen access to connected infotainment: internet, web radio, telemetry and Apple CarPlay

Sant’Agata Bolognese/Geneva, 1 March 2016 – Automobili Lamborghini presents the Lamborghini Centenario at Geneva Motor Show, in the year the company celebrates the centenary of founder Ferruccio Lamborghini’s birth. Only 20 coupé and 20 roadster versions of the Centenario will be produced and all 40 cars are already sold, at a start price of 1.75 million euros plus tax.

The Centenario continues Lamborghini’s one-off strategy and demonstrates Lamborghini’s innovative design and engineering competencies. Using the V12 architecture, the Centenario’s naturally aspirated engine produces 770 hp and powers from 0-100 km/h in 2.8 seconds, and from 0-300 km/h in 23.5 seconds with a top speed of more than 350 km/h. Braking from 100 km/h to standstill is achieved in 30 meters. A monocoque and body in full carbon fiber provide a low weight of 1,520 kg and a weight to power ratio of just 1.97 kg/hp.

The car’s aerodynamic design includes an extending rear wing providing more downforce at high speeds. The introduction of rear-wheel steering provides increased agility and stability, and an innovative touchscreen provides connected infotainment, including internet browsing and Apple CarPlay.

“The Centenario is a car that perfectly combines tradition and innovation. It looks to the future while honouring the legend that is Ferruccio Lamborghini,” says Automobili Lamborghini President and CEO Stephan Winkelmann. “The Centenario is an opportunity for our designers and engineers to transcend some of the constraints of series car production to achieve an incomparable result: the Centenario has immediately proved itself as a desirable collectors’ car, while demonstrating new Lamborghini technologies and outstanding performance. It is the most fitting tribute to Ferruccio Lamborghini in his centenary year: a man who created an exceptional brand, believed that anything was possible, and produced extraordinary, iconic cars. The Centenario is a super sports car for Ferruccio Lamborghini and the future he and we believe in today.”

Design and aerodynamics

The Centenario is the truest expression of Lamborghini’s commitment to new and inspirational design, allowing Lamborghini designers and engineers the freedom to create a technology demonstrator in the form of a limited edition.



The Centenario’s pure and essential lines are evident in a new design language throughout, demonstrating the quintessence of Lamborghini’s commitment to ‘form follows function’. The car has a permeability, defined by the intakes, outlets and ducts that mark its aerodynamic superiority.

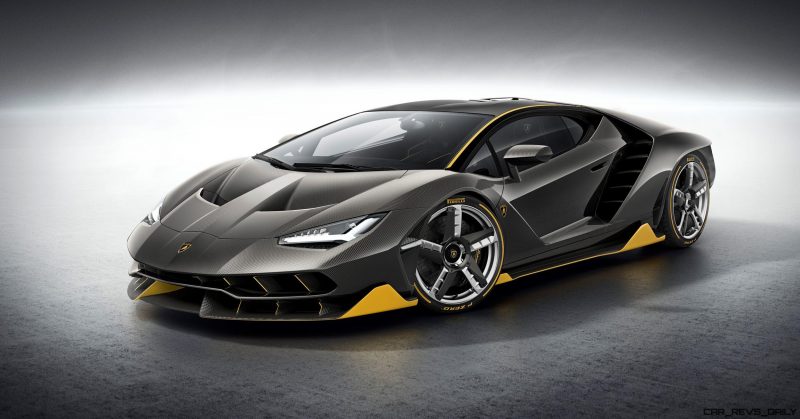

A mono line from front to back defines the recognisable Lamborghini contours, with long, low overhangs front and rear creating a clean, sensuous, mono-body shape. The Centenario measures 4.924 m long and 1.143 m high. Aerodynamic inlets made of several fins characterize both front and rear. Large air scoops in the front bonnet, while reminiscent of 1970s sports cars, are there for functionality: air is taken in through the car’s front contributing to downforce on the front axle.

Furthermore, air flows through ducts within the front headlight casing and others in the sideskirts and around the wheel arches, improving the airflow to the rear radiators and providing optimized cooling. The roof including air scoops, takes its styling from aeronautic cues, enhanced by a hexagonal carbon fibre and glas engine cover.

The body of the Centenario is defined in a gloss carbon fibre. The front bonnet, scissor door panels (always reserved for V12 models) and roof line are fluent, aerodynamic and organic: the lower parts in matt carbon fibre are functional, technical and dedicated to aerodynamic superiority, including front splitter, side skirts, wheel arches and rear diffuser.

The irregular wheel arches, both front and rear, are a defining feature of the Centenario, as they have been in other Lamborghini models. Accented in matt carbon fibre and concealing airflow ducts, they highlight the aerodynamic design of the car. The profile of the rear wheel arch particularly attracts attention, accentuating the Centenario’s rear-wheel steering. Pirelli PZero tyres, developed specifically for the rear-wheel steering, sit on exclusive 20”/21” front/rear rims in forged and milled aluminium. The spokes’ fan shape, accented in carbon fibre, mask ducts extracting hot air from the carbon ceramic brakes, finished with a central-locking wheel nut sporting the Lamborghini bull logo.

The integrated rear diffuser dominates the back of the car, its substantial dimension optimising air flow distribution, maximising the car’s downforce and aesthetically emphasising the importance of aerodynamics in the Centenario. Like many mechanical parts around the car, exposed to maximise heat exchange, the rear tyres are visible, while floating in the void above the diffuser are the Centenario’s ‘Y’-shaped rear lights. Seemingly suspended in air but attached at each end of the ‘Y’, the LED lights stretch the full width of the rear. The Centenario is as distinct at night as it is during the day.

An extendable rear wing is integrated in body when stationary or at low speeds to preserve the minimalist lines of the Centenario. According to vehicle dynamic conditions and Driving Mode chosen, the wing extends to 150mm and rotates up to 15 degrees for optimal aerodynamic efficiency in high performance conditions.

Power and performance

The Centenario takes Lamborghini’s V12 engine as its powerplant, perfectly matching the dynamic potential of the car.  The highly responsive engine, even at low revs, provides the unmistakeable resonance and characteristics that only a naturally aspirated engine can. Uprated to provide an output of 770 hp (566 kW) and with the engine speed limiter raised from 8,350 rpm to 8,600 rpm, the Centenario’s is the most powerful engine produced by Lamborghini to date.



Accelerating from 0-100 km/h in just 2.8 seconds and from 0-300 km/h in just 23.5 seconds, the Centenario’s top speed is more than 350 km/h. Braking distances are equally impressive: from 1000 km/h in just 30 m and from 300-0 km/h in 290 m.

Chassis and drive

The body of the Centenario is built entirely in carbon fiber, with a monocoque and all other body parts and trims in carbon fiber. With a dry weight of just 1,520 kg, the Centenario achieves a weight-topower ratio of 1.97 kg/hp and a torsional stiffness of 35.000 Nm per degree.

With permanent four-wheel drive, the Centenario adopts a new Lamborghini rear-wheel steering system. At low speeds the rear tires turn in the opposite direction of the steering angle which leads to a virtual reduction of the wheelbase. This provides increased turning agility at low speeds, requiring less steering angle and a reduced turning radius. At high speeds the rear tires turn in the same direction of the steering angle which leads to a virtual increase of the wheelbase. As a result the rear-wheel steering provides increased stability and optimises vehicle response. In the three Lamborghini driving modes,  Strada, Sport and Corsa, the rear-wheel steering heightens the characteristics of each, particularly in lateral dynamics.

The Centenario is fitted with Lamborghini’s magneto rheological suspension and Lamborghini Dynamic Steering (LDS), especially tuned for the Centenario’s rearwheel steering and providing optimal responsiveness and driver feedback. Transmission is via Lamborghini’s Independent Shifting Rod (ISR) gearbox, providing a lightweight and emotive solution to achieving the fastest gearshifts possible.

Interior – luxury and functionality

The luxurious interior can be finished to each Centenario client’s specification. Sports seats in lightweight carbon fiber are included, with new stitching that features on the length of the dashboard, steering wheel, sunvisors, rocker covers, and the new inner door panels made of carbon fiber and Alcantara.

Functionality and connectivity are essential features of the Centenario. Including satellite navigation, a high definition 10.1 inch touchscreen connects the Centenario driver to both the car and the outside world. Users may browse the internet, connect to email and social media and use online applications such as web radio. Apple CarPlay is included, allowing a safe, effective way to make calls, request directions, play music and access the functionality of an iPhone.

The infotainment system includes a sophisticated telemetry function: the Centenario provides ultimate performance, both on road and, should an owner wish, on track: as evidenced by space for two helmets in the front trunk! The highly sophisticated telemetry allows speeds, times, lateral and G forces to be recorded and even compared between different occasions and different drivers. Two optional interior cameras allow the drivers’ experiences to be recorded.

20 coupés and 20 roadsters

The Centenario will be produced as a limited edition, with only 20 coupés and 20 roadsters to be delivered from autumn 2016 and throughout 2017. All 40 Centenario models are sold, to collectors and Lamborghini enthusiasts around the world at a start price of 1.75 million euro plus tax. The company OPAC has been an important partner involved in the new model’s construction together with Lamborghini’s Research & Development department.

Shown in Geneva in an entirely carbon fiber finish, clients can specify their Centenario to include exposed carbon fiber or any colour and finish from Lamborghini’s Ad Personam personalisation programme.

The Centenario continues Lamborghini’s strategy of producing one-off cars and exclusive limited editions, which allow scope for exploring design and technology possibilities while heightening brand awareness.  Starting with the Reventón and including the Sesto Elemento, Aventador J and Veneno, every car has proved its instant appeal, achieved iconic status, and increased in value.
