2014 Volkswagen XL Sport Concept Makes One Seriously Sexy BMW i8 Competitor

Xl Sport 2014 gif

Here is an interesting machine! The eco-friendly supercar segment established by the BMW i8 could find a competitor in the VW XL Sport concept, which takes all the ideas and tech from the XL1 high-mileage, low-volume special and sends it to the racetrack.

Much wider, lower, leaner and meaner: the XL Sport is still wholly unconventional in its style and presence. This makes it not unlike the i8 in many ways. They both certainly have stopping power: heads will turn to catch this wild machine zing past. But the carbon-ceramix brakes of the the XL Sport will surely provide actual deceleration at warp speeds.

A supercar version of the XL1 might make good business sense for Volkswagen in the future. After all, buyers in the $140,000 sports car market are easier to find than those in the $100,000-plus Prius PHEV market.

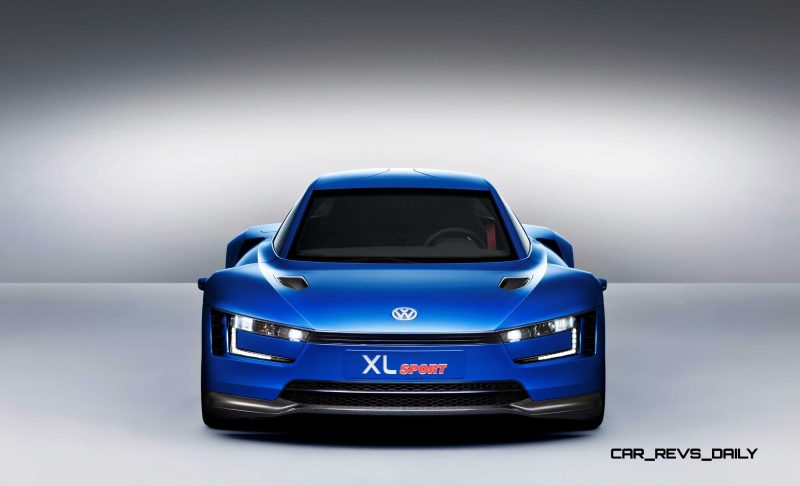

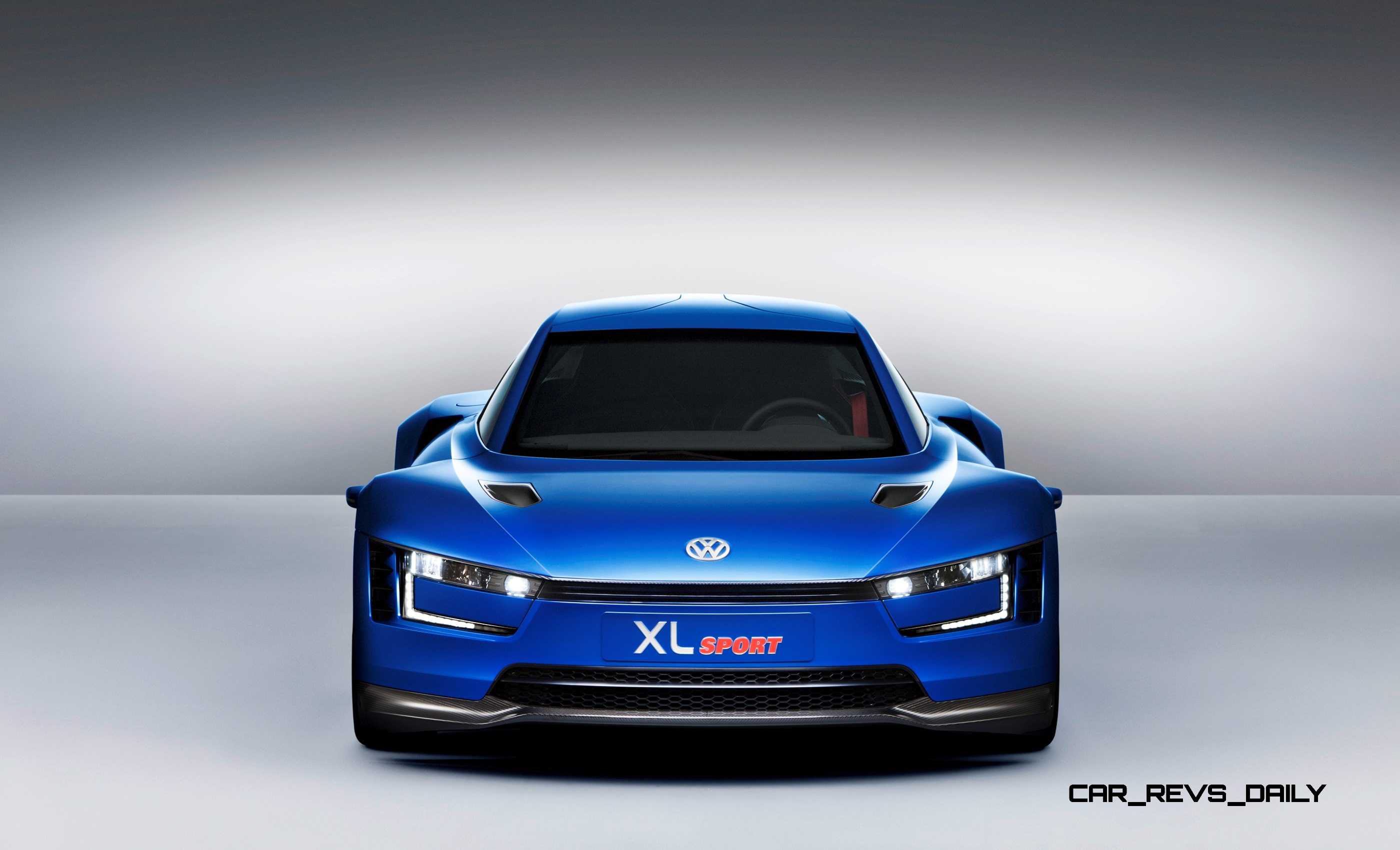

What the XL1 is showcase an interesting synergy among the VW Group and one of its newest brands, Ducati. The high-revving twin-cylinder engine pumps out nearly 200 horsepower and powers the XL Sport to 60-mph in just 5.7-seconds. Eventually, the little screamer will reach a Vmax of 168-mph.2014 Volkswagen XL Sport Concept 30

Interestingly, the XL Sport appears to run no hybrid components of any kind. This make make sense in a racing series, but is very different in purpose than the PHEV i8.A slick 0.258 cD makes this a wind tunnel darling. Why not lower? The car also delivers a huge amount of downforce for racing grip.

No MPG or CO2 figures are cited whatsoever by Volkswagen for the XL Sport, nor is there any production mention.

Even so, the XL Sport would be a reasonable and smart follow-up to the XL1 — of which the company produced a hand-made batch of only 250 for sale in Europe. At such low volumes, the XL Sport certainly seems do-able as well.

 2014 Volkswagen XL Sport Concept

Xl Sport 2014 gif22014 Volkswagen XL Sport Concept 3 2014 Volkswagen XL Sport Concept 4 2014 Volkswagen XL Sport Concept 5 2014 Volkswagen XL Sport Concept 6 ??????????????????????????????? ??????????????????????????????? 2014 Volkswagen XL Sport Concept 11 2014 Volkswagen XL Sport Concept 13 2014 Volkswagen XL Sport Concept 15 2014 Volkswagen XL Sport Concept 18 2014 Volkswagen XL Sport Concept 20 2014 Volkswagen XL Sport Concept 21 2014 Volkswagen XL Sport Concept 22 2014 Volkswagen XL Sport Concept 23 2014 Volkswagen XL Sport Concept 24 2014 Volkswagen XL Sport Concept 25 2014 Volkswagen XL Sport Concept 26 2014 Volkswagen XL Sport Concept 27 2014 Volkswagen XL Sport Concept 28 2014 Volkswagen XL Sport Concept 29 2014 Volkswagen XL Sport Concept 30 2014 Volkswagen XL Sport Concept 31 2014 Volkswagen XL Sport Concept 32 2014 Volkswagen XL Sport Concept 33


Oct 1, 2014

197-horsepower sports car is based on the XL1, has a top speed of 168 mph and promises incredible track performance

  • XL Sport uses the world’s most powerful two-cylinder engine
  • Better aerodynamics than any other sports car
  • Ducati Superleggera V-Twin engine revs to 11,000 rpm
  • Car accelerates from 0 to 62 mph in 5.7 seconds
  • High-tech engine features titanium connecting rods, desmodromic valvegear, and magnesium-alloy components
  • Completely new chassis uses a motorsports-derived features

 Xl Sport 2014 gif2

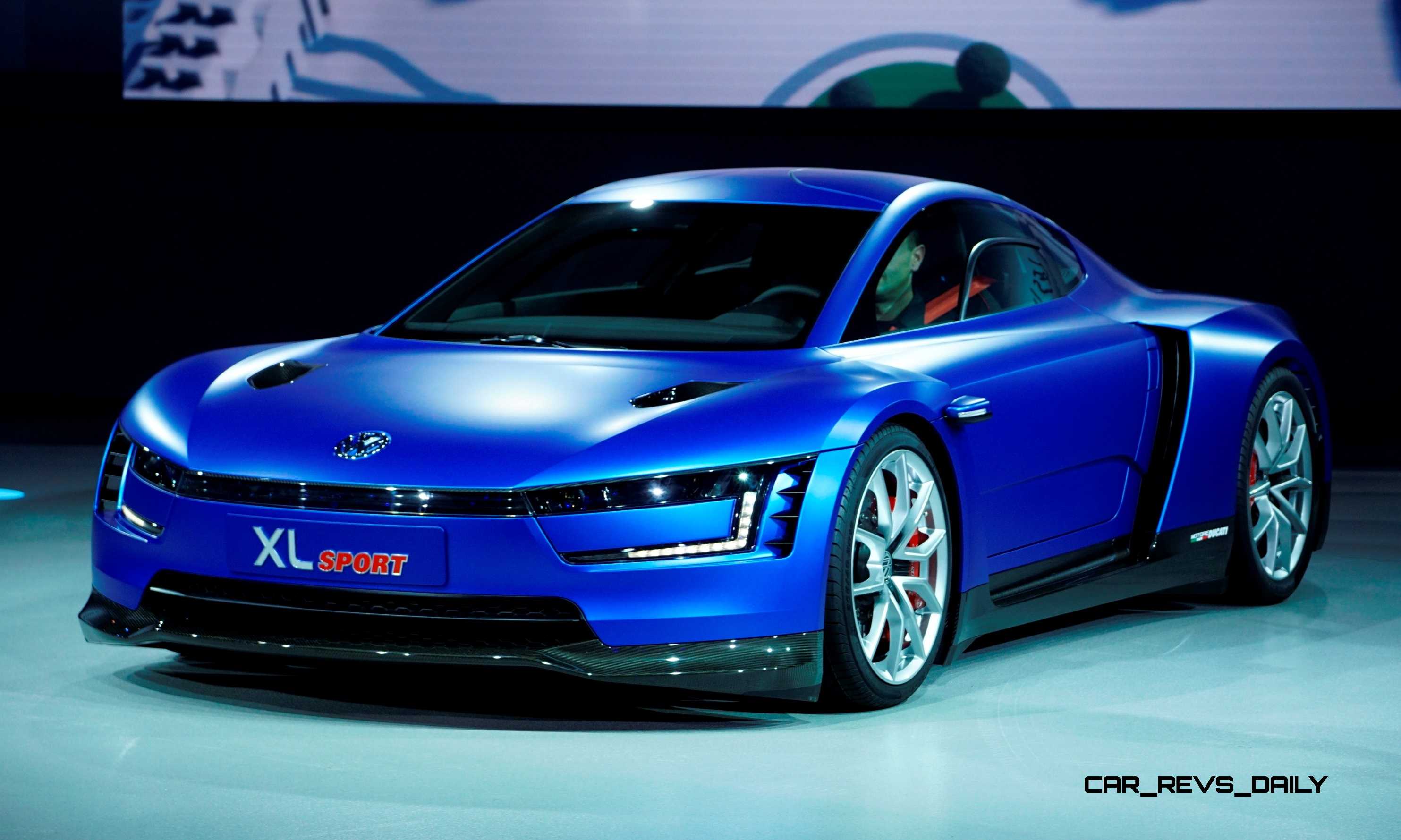

Wolfsburg / Paris, October 2014 —There has never been a sports car like the XL Sport concept that is being shown for the first time by Volkswagen at the Paris Motor Show. This is a car that uncompromisingly furthers the development of the lightweight sports car. Based on the XL1, the most fuel-efficient production car of all time, this 168-mph machine is a compelling blend of efficiency and emotion.

The XL Sport houses one of the finest achievements in engine technology—the V-Twin adapted from the new Ducati 1199 Superleggera, the world’s most powerful two-cylinder motorcycle. Like the XL1, of which only 250 will be built, the Superleggera is also being manufactured in a limited edition of 500 units, using a process that embraces hand fabrication and high-precision industrial manufacturing. The XL1 and the Superleggera, two icons of lightweight carbon and magnesium design technology, thus unite to create a unique sports car. With the XL Sport, Volkswagen and Ducati impressively demonstrate how high-tech developments can lead to synergies between Volkswagen Group brands.

Pioneering aerodynamics. The Ducati 1199 Superleggera has the best power-to-weight ratio of any production motorcycle in history. In the car world, the XL Sport achieves a similar record—the best ratio between weight (1962 pounds), power (147 kW/197 hp) and aerodynamics (CdA of 0.44 square meters). It’s a combination that allows the car to reach an impressive top speed of 168 mph on just 197 hp.

The vehicle’s aerodynamics are one key reason the car performs so well. The coefficient of drag (Cd) of 0.258 and the low frontal area of 1.7 sq m combine to give a CdA of 0.44 sq m, one of the best values ever achieved and a major triumph for Volkswagen’s aerodynamicists and designers. The achievement is made all the more impressive due to the fact that the concept’s performance-car design brief demanded wide tires, apertures for cooling air, and optimal downforce.

There are a number of individual features that contribute to the XL Sport’s arrow-like performance, in addition to the uncompromising styling. These include special vanes that direct the air at the front into specific channels, wheelarch vents, an optimized underbody, lift-reducing air ducts in the hood, an extendable rear spoiler (powered by the same unit as in the Lamborghini Aventador), and adaptive air vents incorporated in the rear hatch.??????????????????????????????? ??????????????????????????????? ??????????????????????????????? ??????????????????????????????? ??????????????????????????????? ???????????????????????????????

The world’s most powerful two-cylinder engine. The Ducati 1199 Superleggera’s V-Twin engine was slightly modified for use in the XL Sport, but is basically the same as the motorcycle’s. Thanks to its tough, lightweight titanium connecting rods, the 1199 cc double-overhead-camshaft engine can rev up to 11,000 rpm. The Superquadro’s high speeds are made possible by its extreme bore/stroke ratio of 112 mm by 60.8 mm and the exceptionally short crankshaft stroke associated with it.

In addition, the two four-valve cylinders, which are arranged at an angle of 90 degrees to each other, feature desmodromic valve control (positive valve closure) that is typical of the high-revving Ducati engines and requires the finest of precision engineering to ensure optimum valve clearance. Other features of the world’s most powerful two-cylinder engine are the use of magnesium-alloy for the clutch, cylinder head, and oil pan covers, the two throttle valve discs, and the two fuel injectors per cylinder. Last but by no means least, the XL Sport has a newly developed step-down transmission to reduce engine speeds by a factor of 1.86. Torque from the V-Twin engine (99 pound-feet) is transmitted to the rear axle via a seven-speed DSG® dual-clutch automatic transmission. From a standing start, the XL Sport takes 5.7 seconds to reach 62 mph.

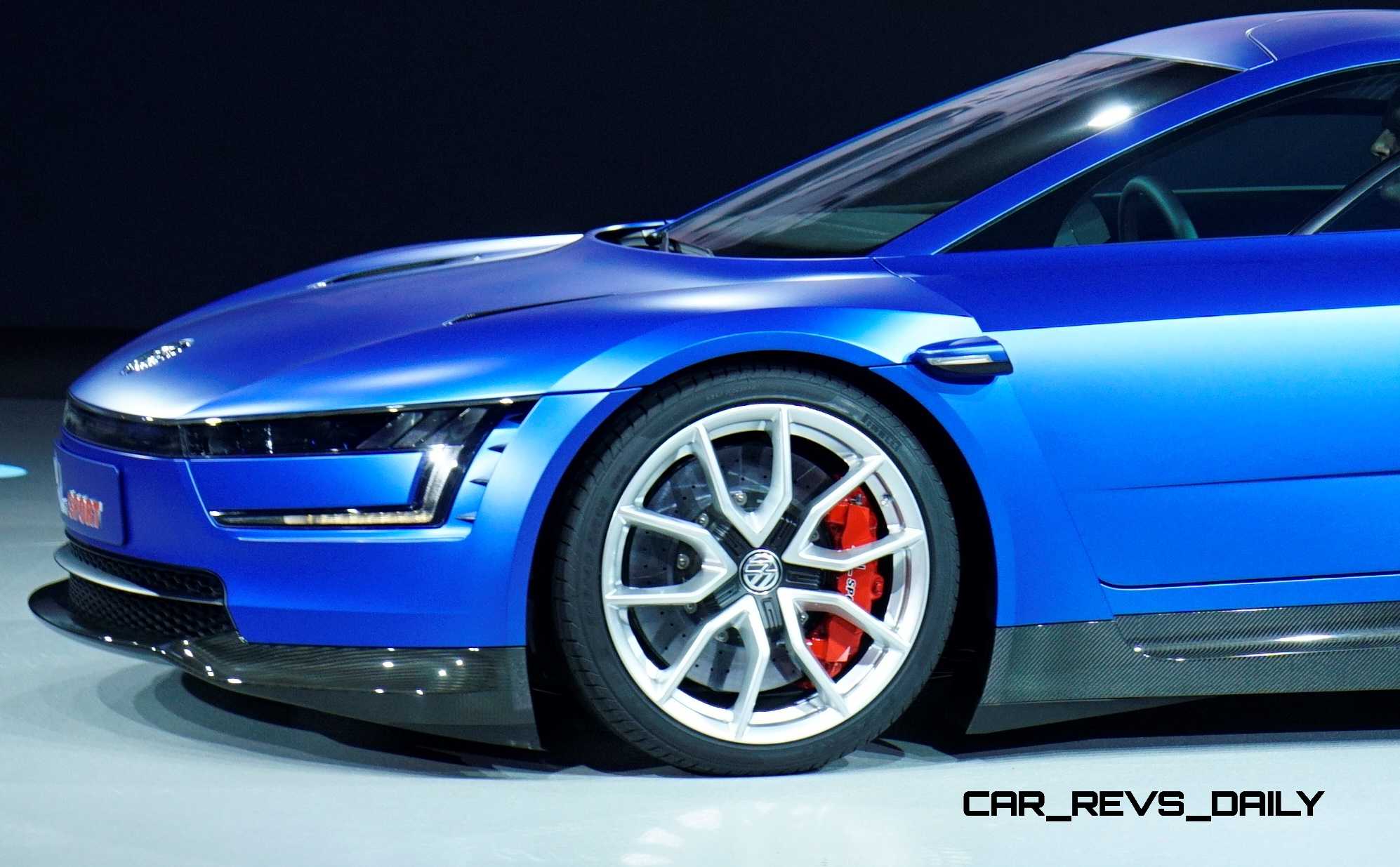

Racing chassis. The significantly redesigned chassis, high-revving engine, and aerodynamic performance firmly plant the XL Sport in the racing realm. The chassis incorporates high-strength steel subframes which house upper and lower control arms at the front with pullrod actuation for the dampers, while the control arms at the back have pushrods—similar to the layout for a racing car. The forged magnesium-alloy wheels, which save 53 pounds compared to aluminum-alloy rims, are fitted with 205/40 R18 front and 265/35 R18 rear high-performance tires. The XL Sport has a powerful ceramic brake disc setup.

CFRP body. Because the XL Sport is a sister model to the XL1, it shares the same basic design. Like the XL1, the central monocoque and most of the body panels are manufactured in carbonfiber-reinforced polymer (CFRP) using the RTM (Resin Transfer Molding) process. The monocoque features slightly offset seats for the driver and passenger.

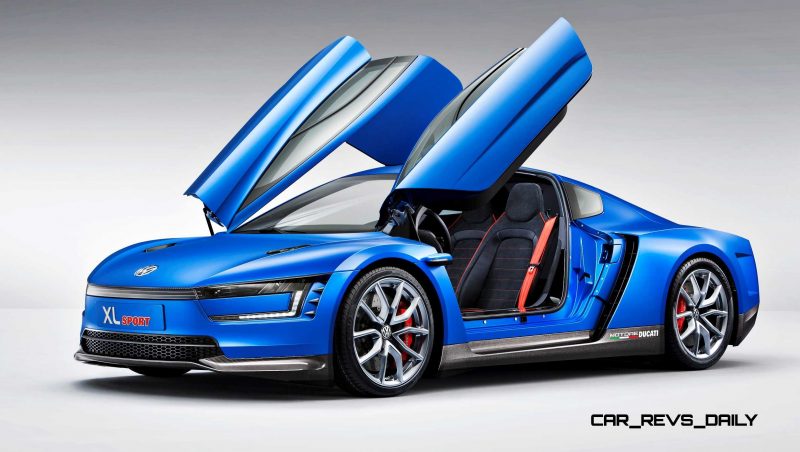

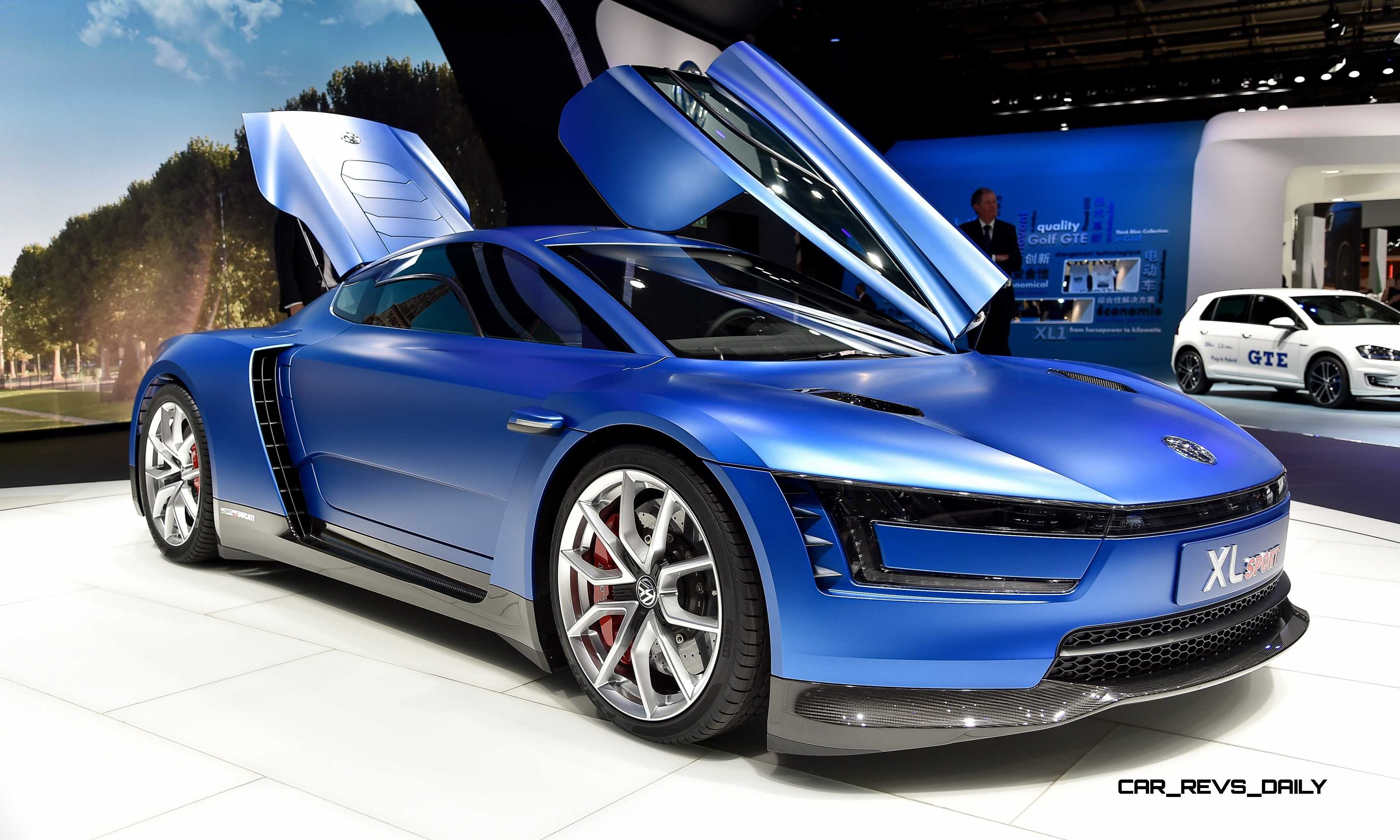

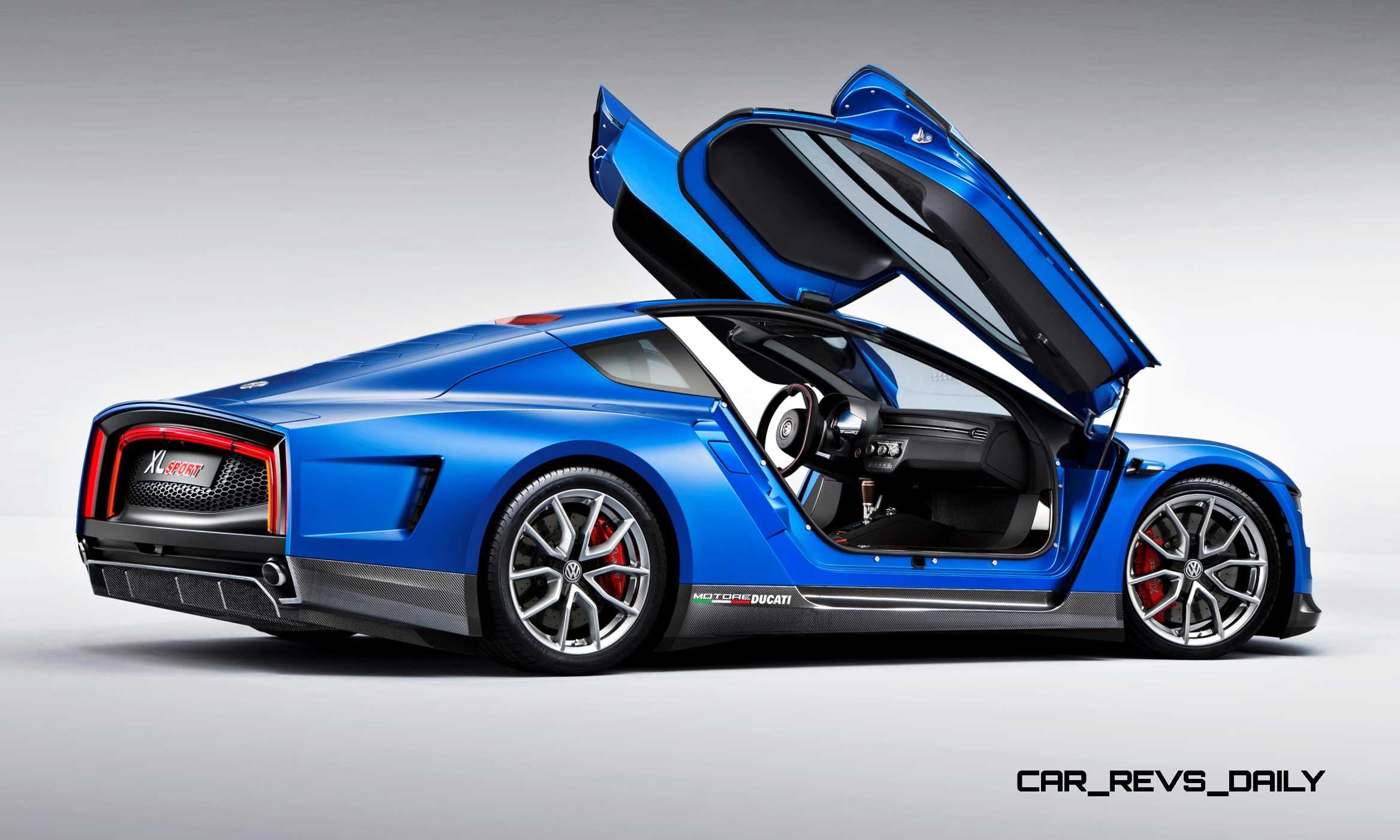

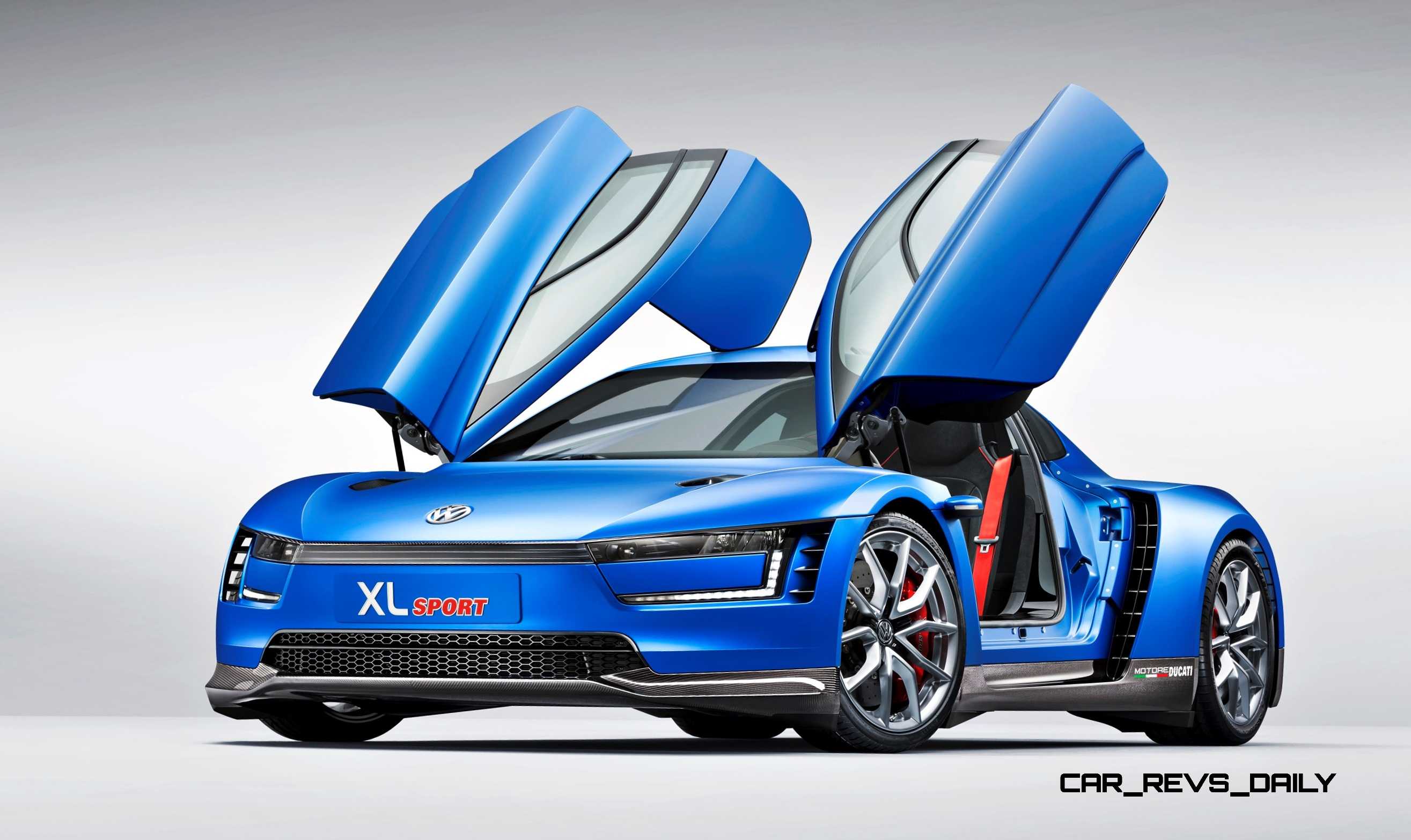

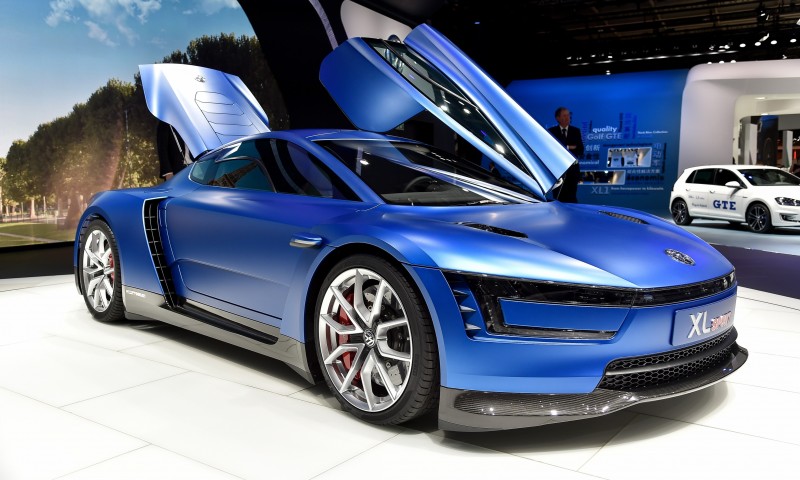

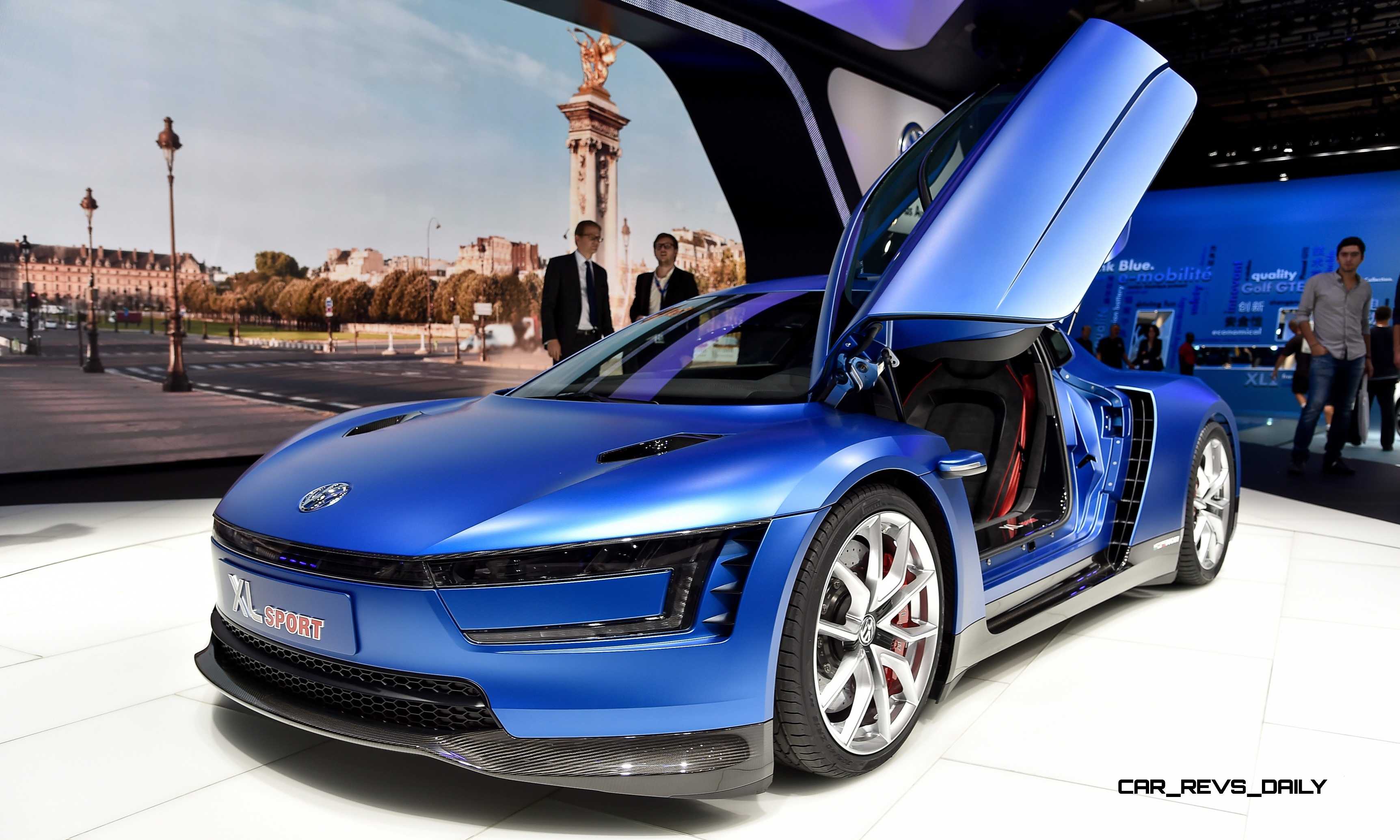

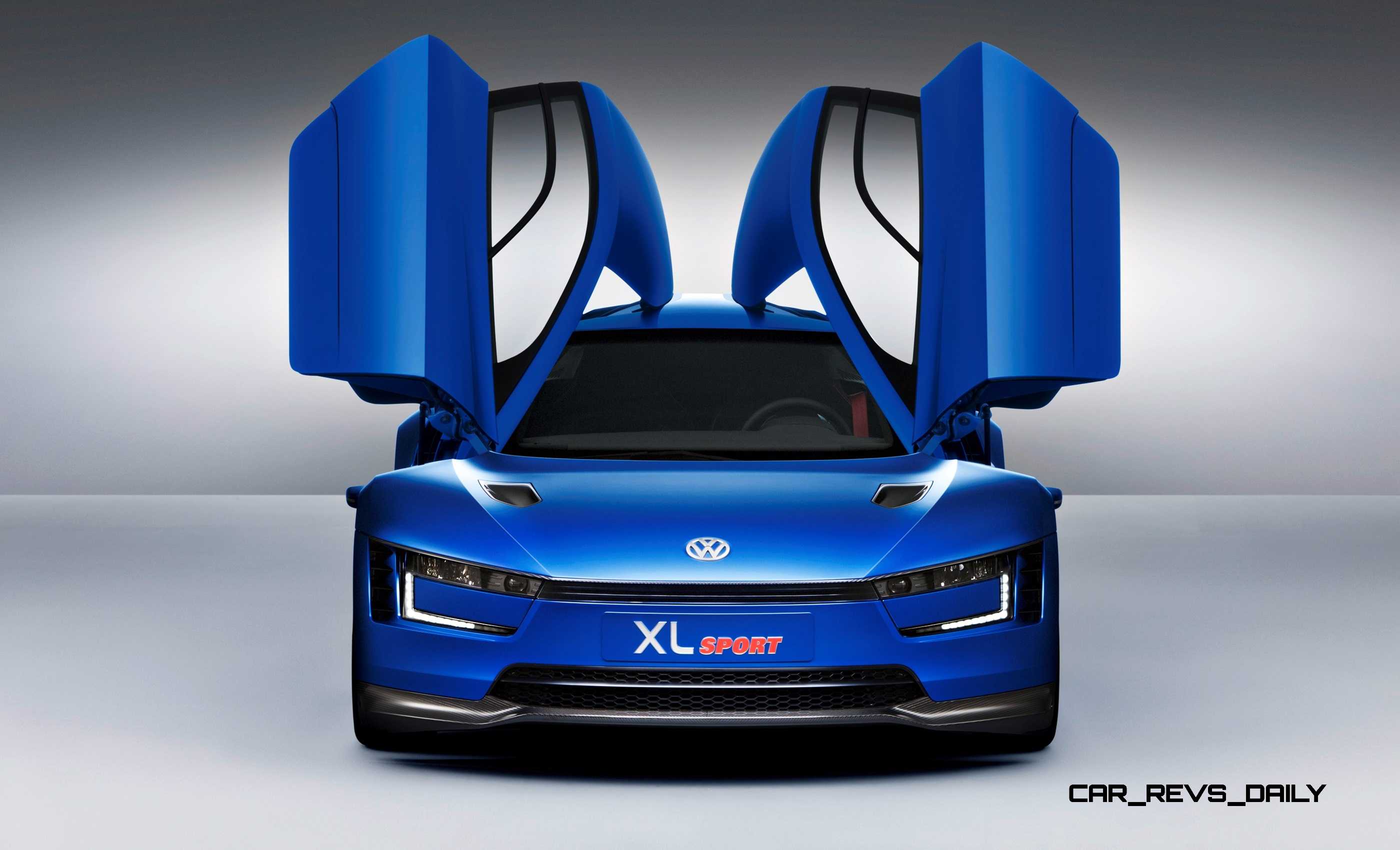

The wing doors of the XL1 and XL Sport are reminiscent of a high-end sports car’s. They are hinged at two points: low on the A-pillars and just above the windshield in the roof frame, so they swivel upwards and slightly forwards as well. The doors also extend far into the roof, giving an exceptionally large amount of entry and exit space. In order to keep the weight as low as possible, the windows are made from polycarbonate and are fixed in place: just a segment of the lower area of the side windows can be opened.2014 Volkswagen XL Sport Concept 35 2014 Volkswagen XL Sport Concept 34 2014 Volkswagen XL Sport Concept 2 2014 Volkswagen XL Sport Concept 1

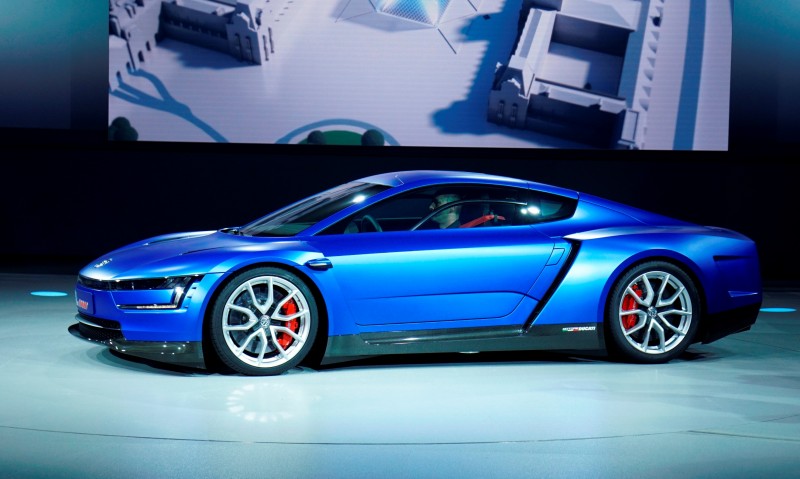

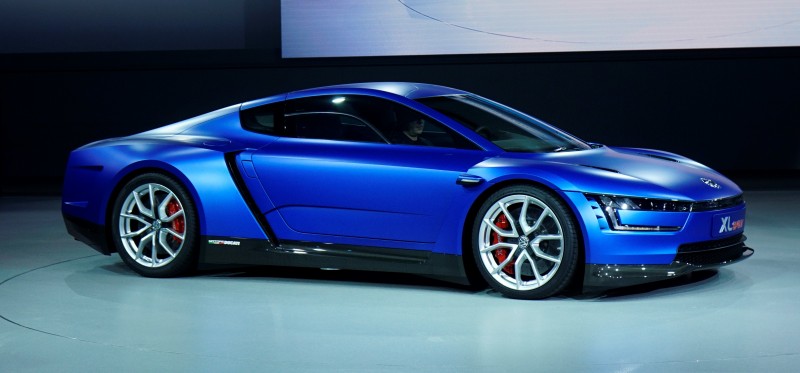

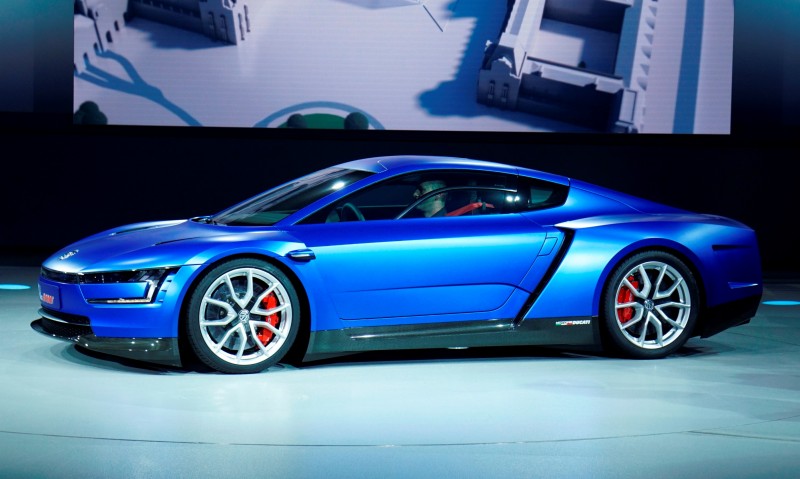

Compelling proportions. Despite sharing its underlying design with the XL1, the XL Sport has a look of its own. The reason for this is that the XL1 was designed for ultimate fuel efficiency, whereas the XL Sport’s design brief included uncompromising driving dynamics. The XL Sport is longer and wider than the XL1 because of the need for additional downforce on a 168-mph car and because of the packaging requirements of the chassis and powertrain. The XL Sport showcased in Paris is 168.9 inches long (versus 153.1 in for the XL1), 72.7 in wide (65.5 in), and 45.4 in mm high (45.4 in). The wheelbase has also been increased to 95.4 in, up from : 87.6 in.

Design concept. As outlined above, the concept car builds on the dynamic and expressive design of the XL1. The surfaces have an even more muscular appearance as they extend over the significantly broader fenders and the large wheels.

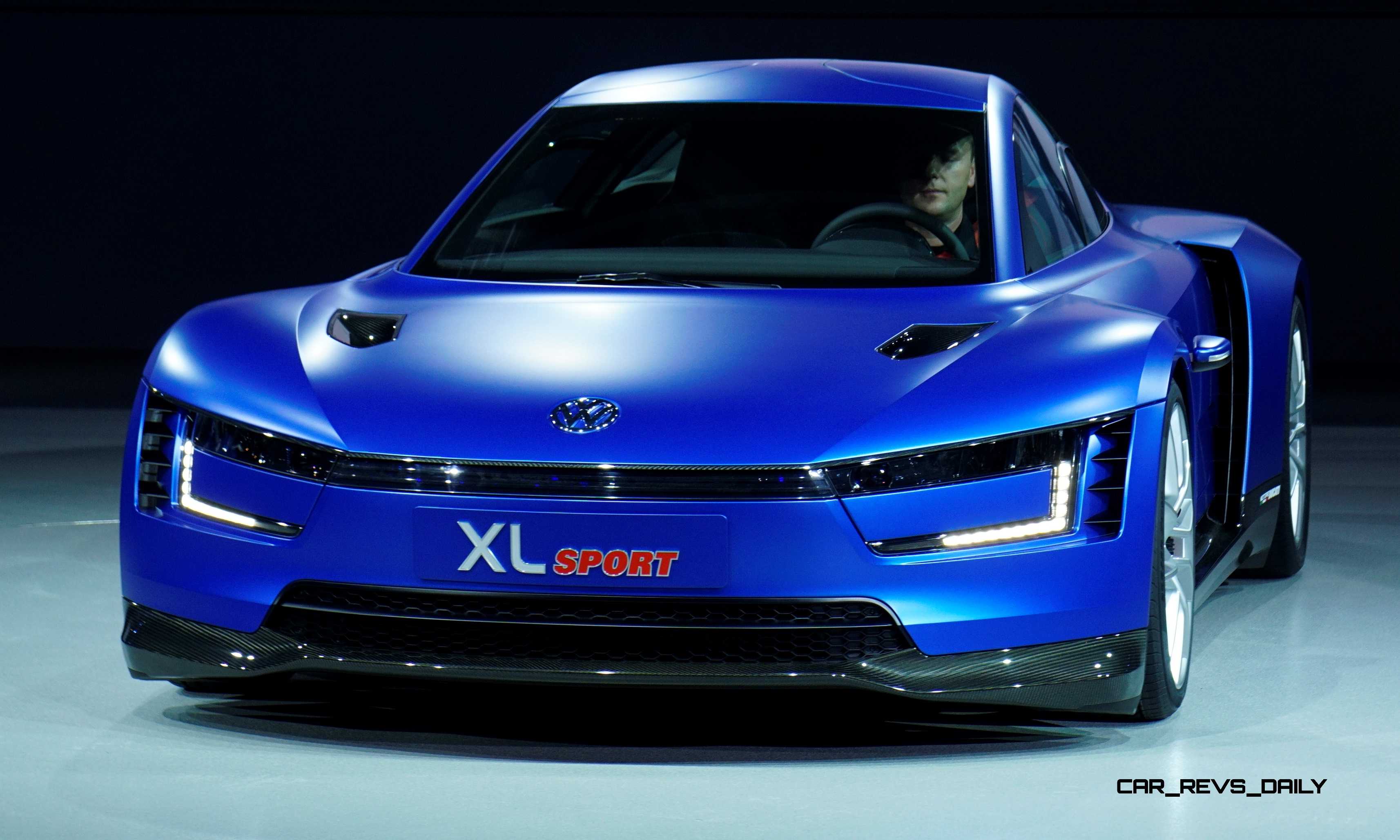

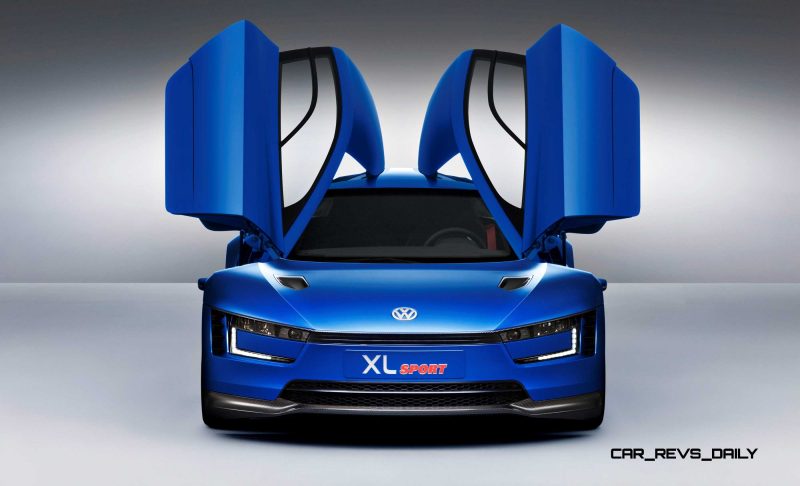

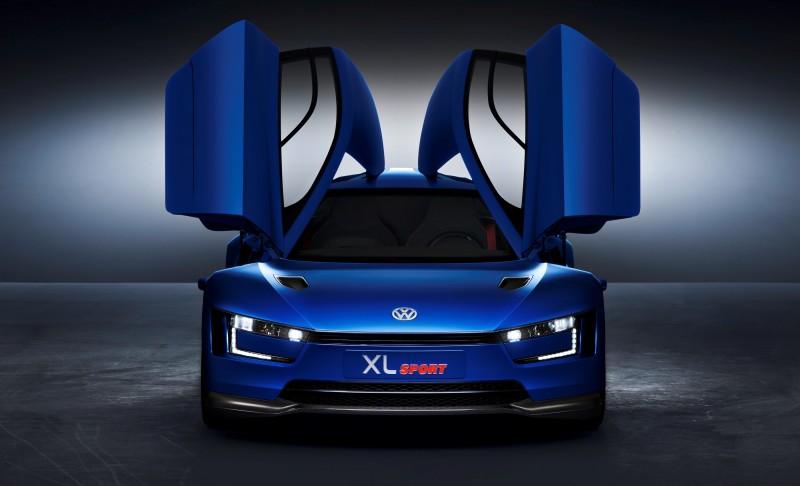

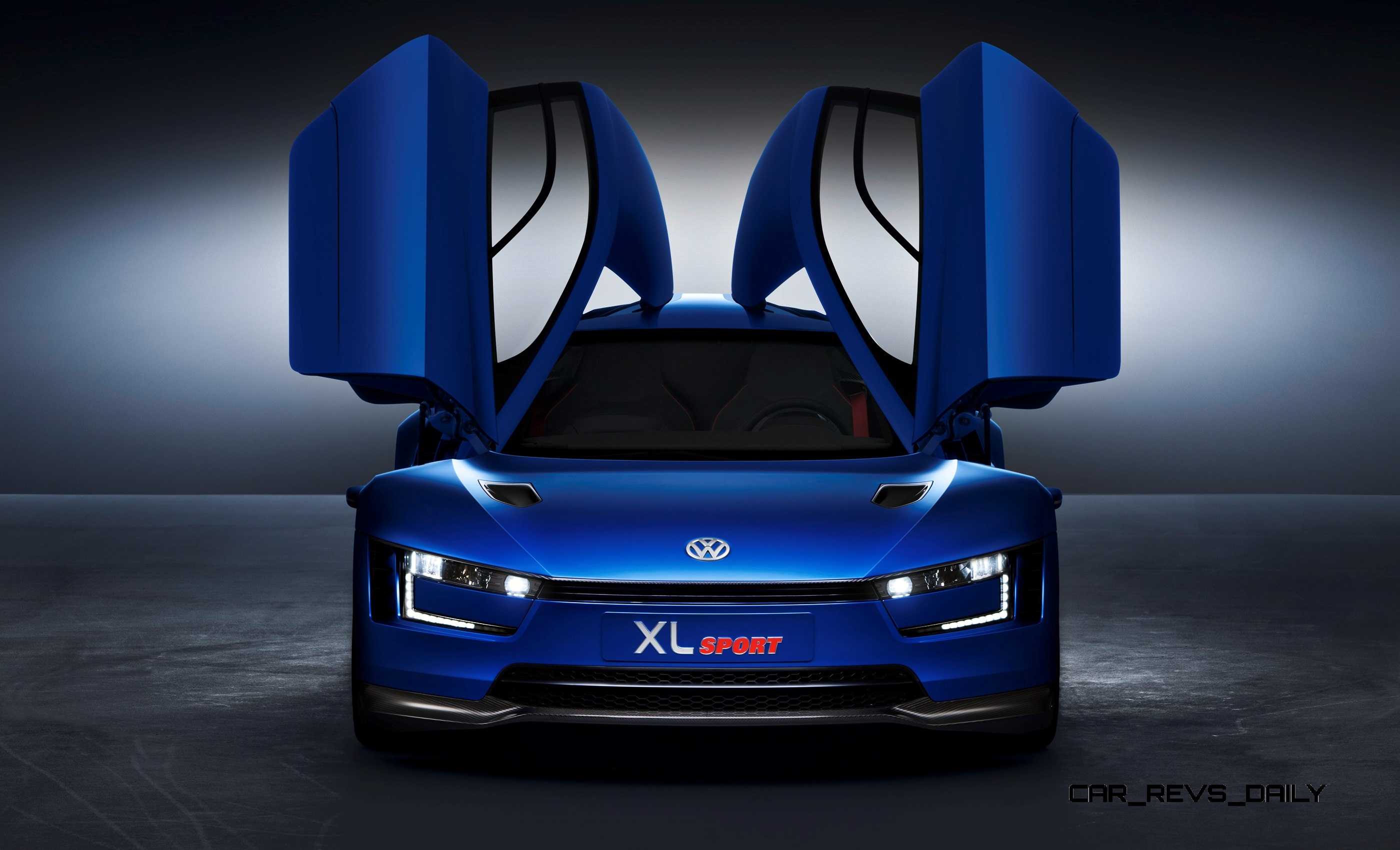

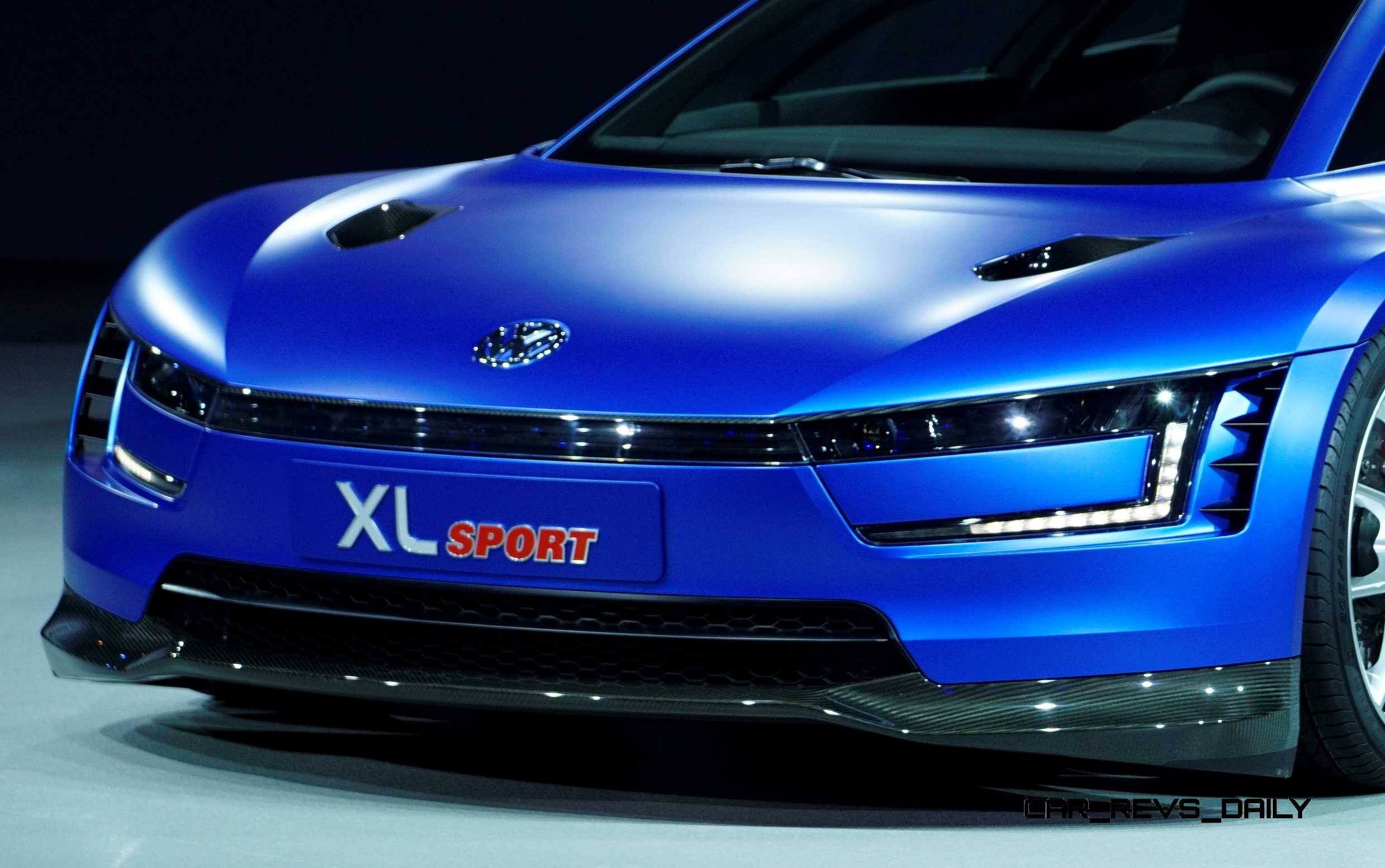

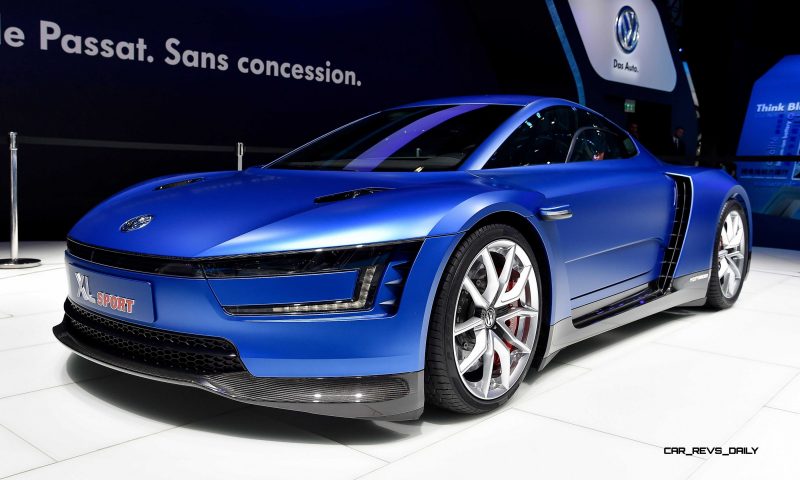

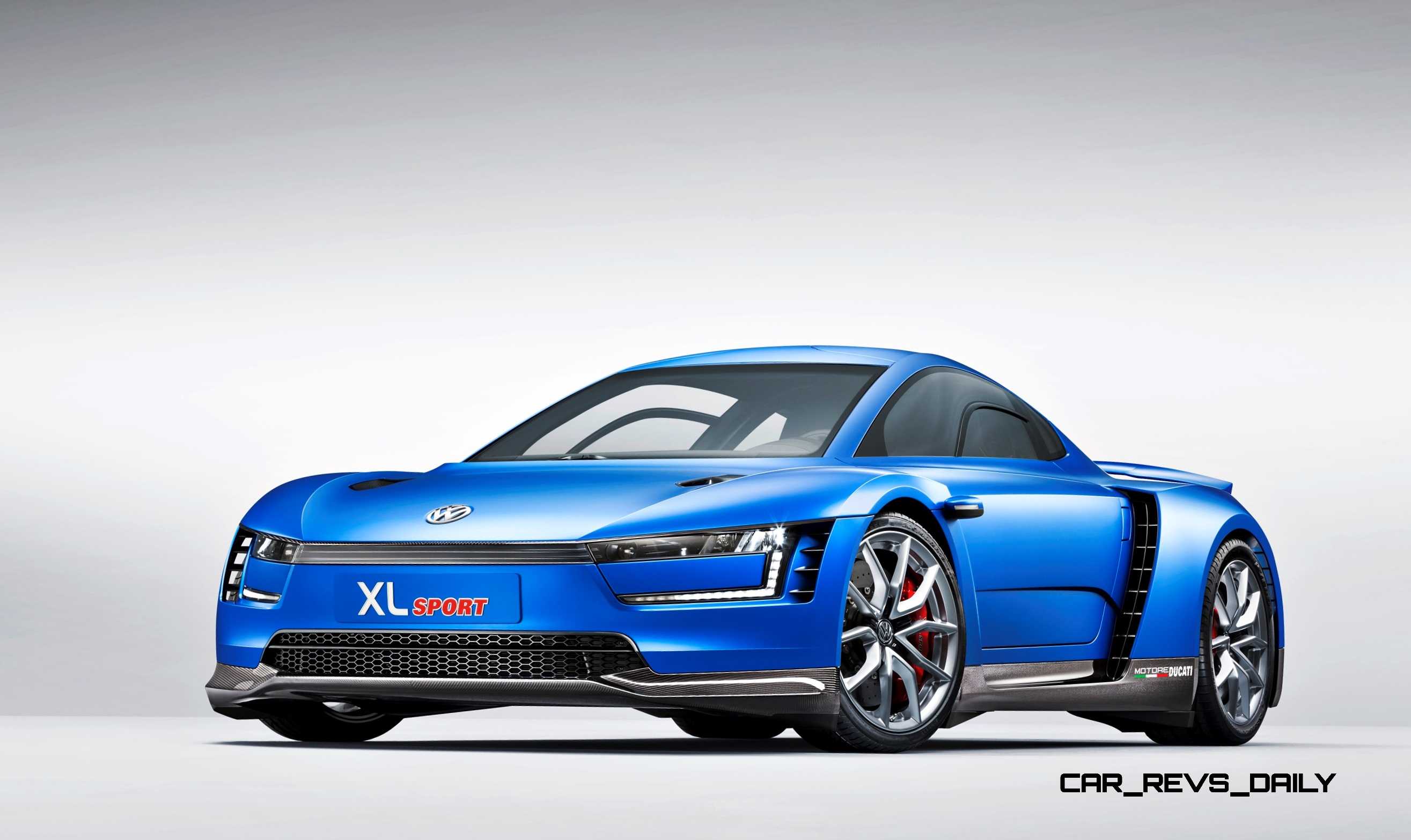

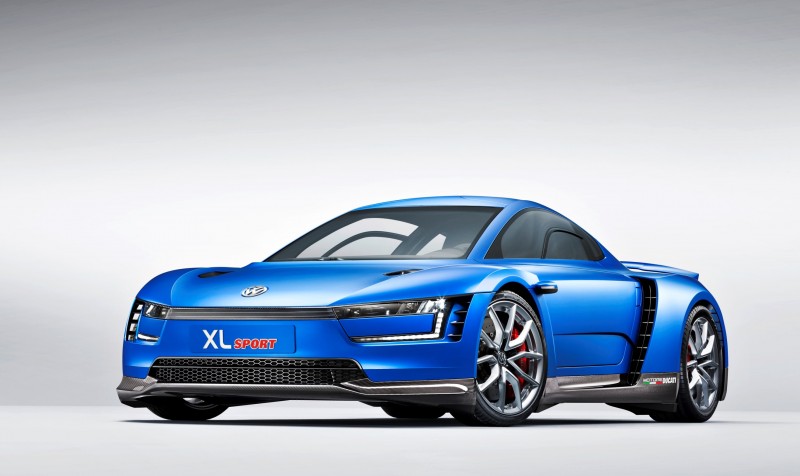

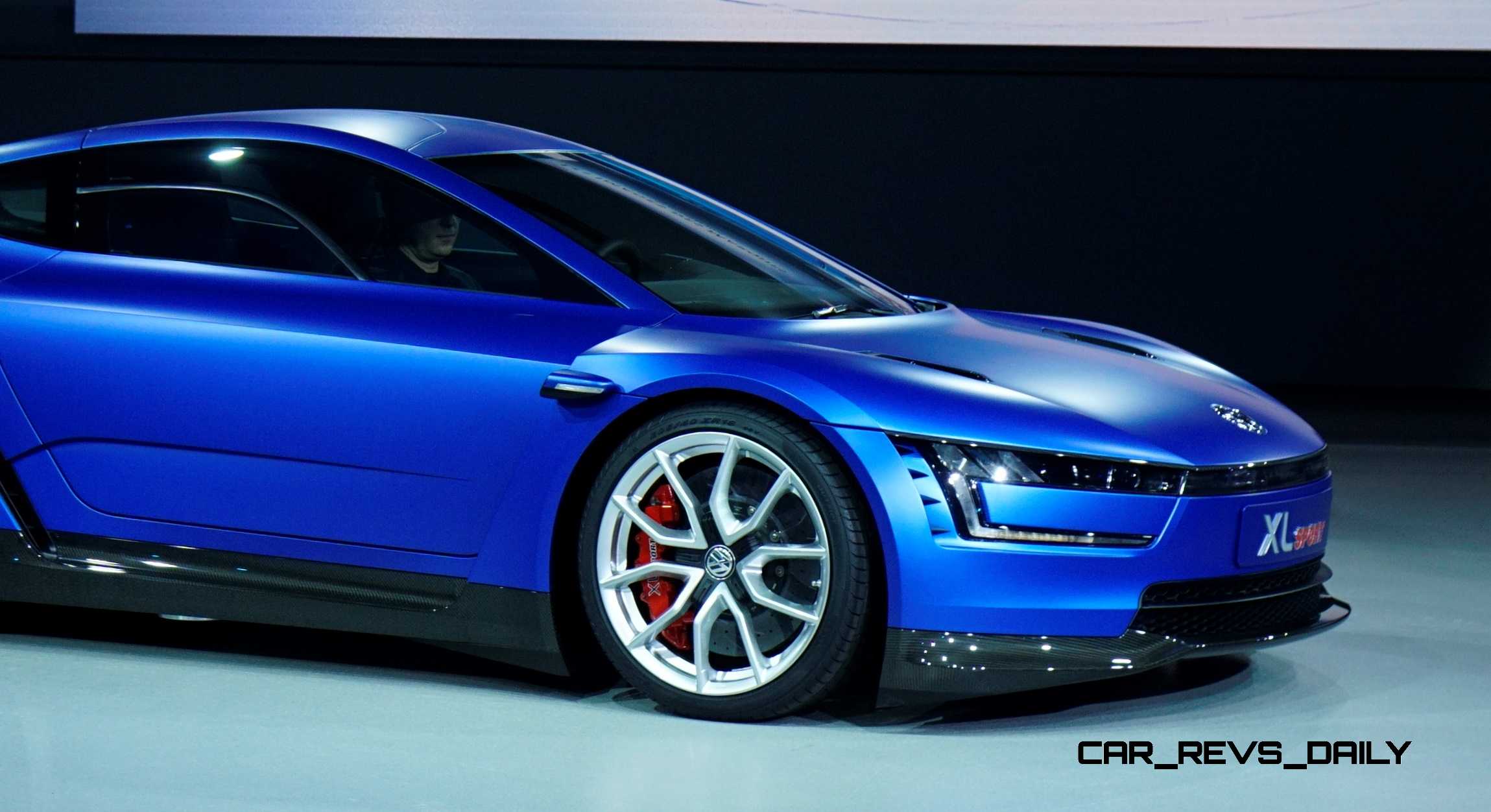

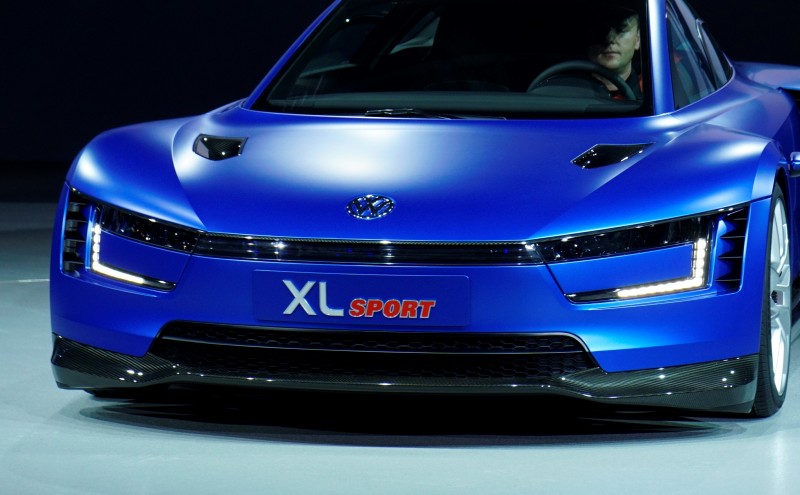

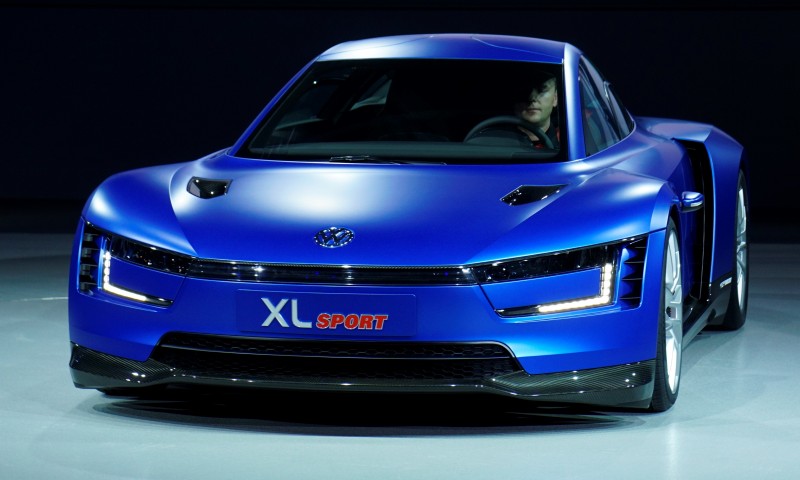

The XL Sport’s broad front section is marked out by dual LED headlights and the XL1’s signature LED daytime running lights. The XL Sport features air intakes on either side of the headlights for the vanes which feed the air around the car’s front end. In common with the XL1, the front section of the XL Sport does not have a conventional radiator grille, yet it retains the current Volkswagen design DNA, with horizontal lines dominating this area. The cooling air supply for the Ducati engine is via vents in the rear fenders.

Whereas the XL1 is at its widest at the front and tapers towards the rear, the XL Sport is just as wide at the back as at the front. From above, the shape is that of a classic racing car, with a waisted cockpit area. Air intakes and outlets at the A- and B-posts ensure optimal air flow and cooling for the drive unit. Like the XL1, there are no conventional door mirrors: instead, they are replaced by e-Mirrors, small streamlined cameras integrated in the fenders that send images of the surroundings behind the car to two displays inside the vehicle. In front of the rear wheelarches, the ‘Motore Ducati’ lettering refers to the 1199 Superleggera engine in the rear.

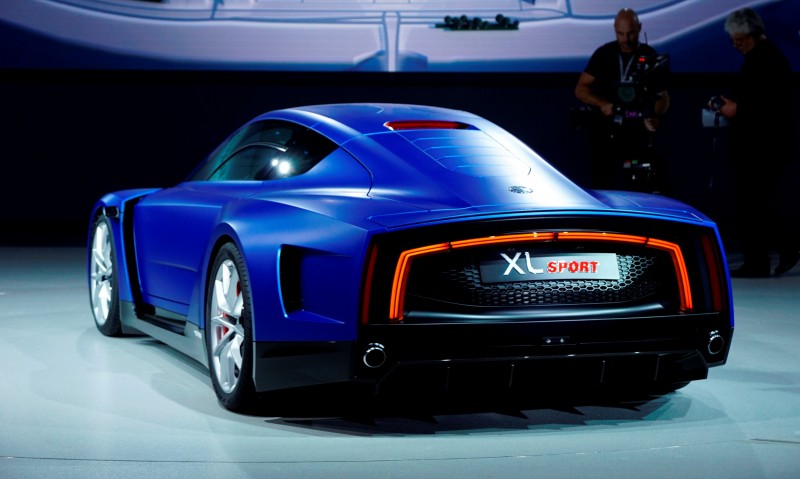

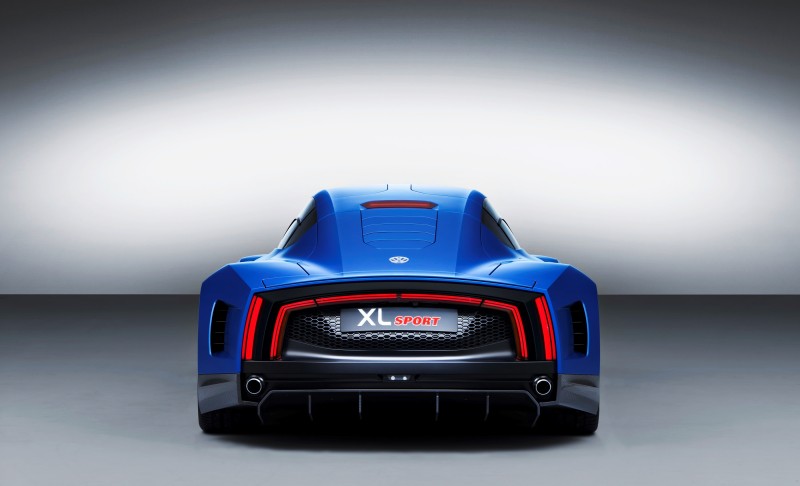

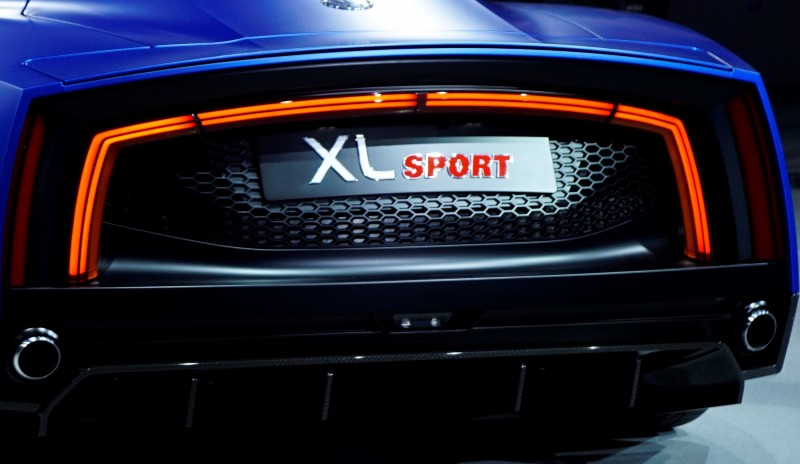

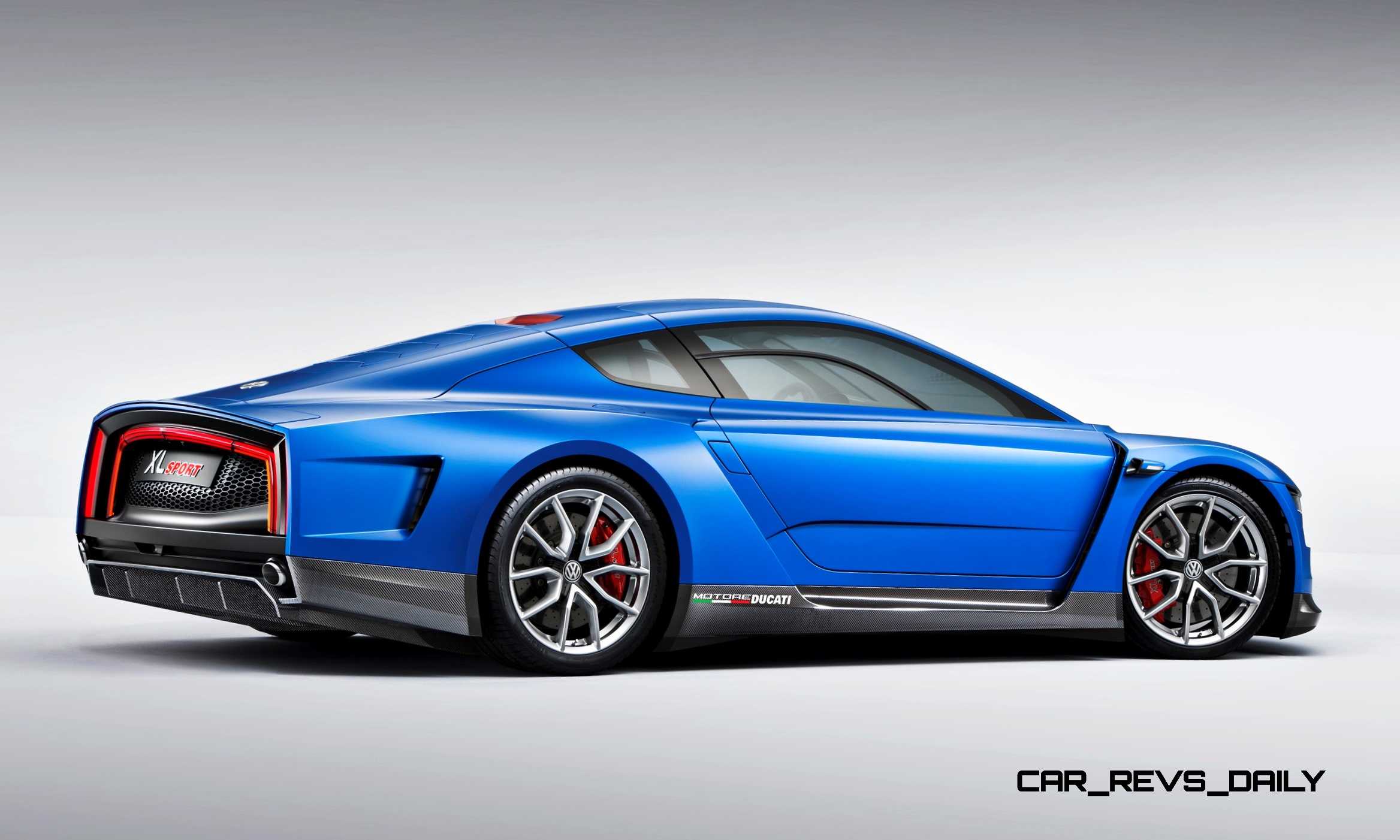

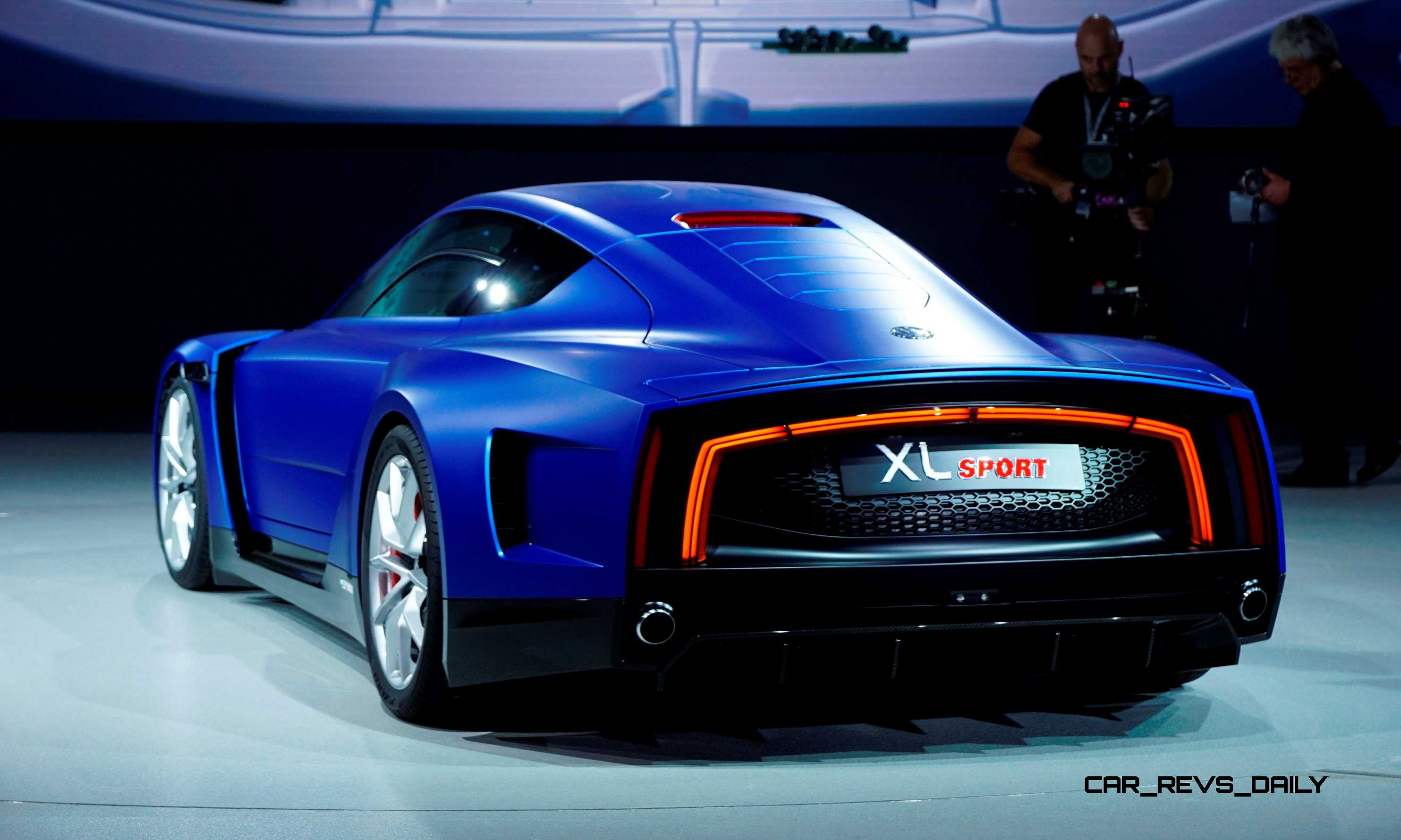

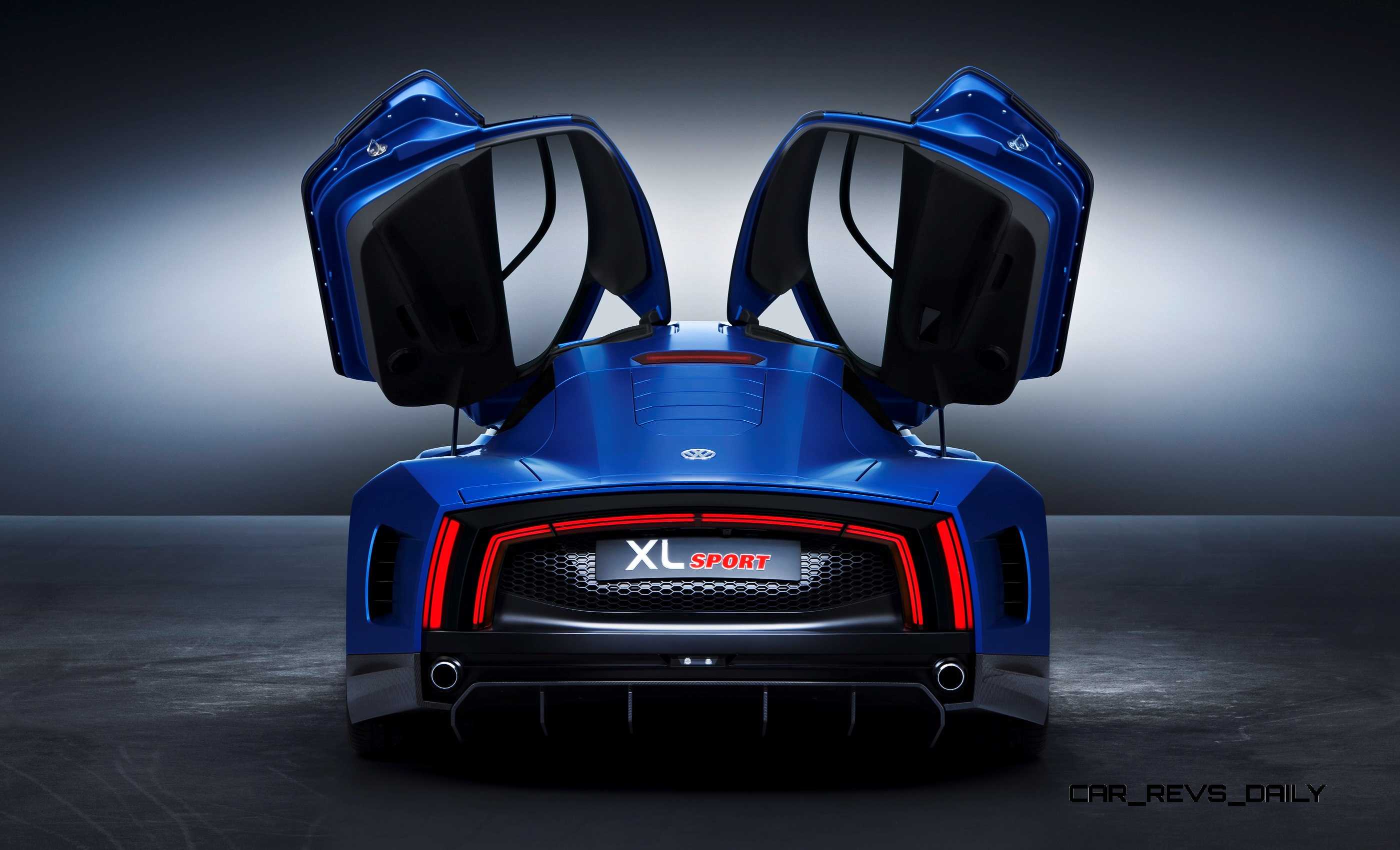

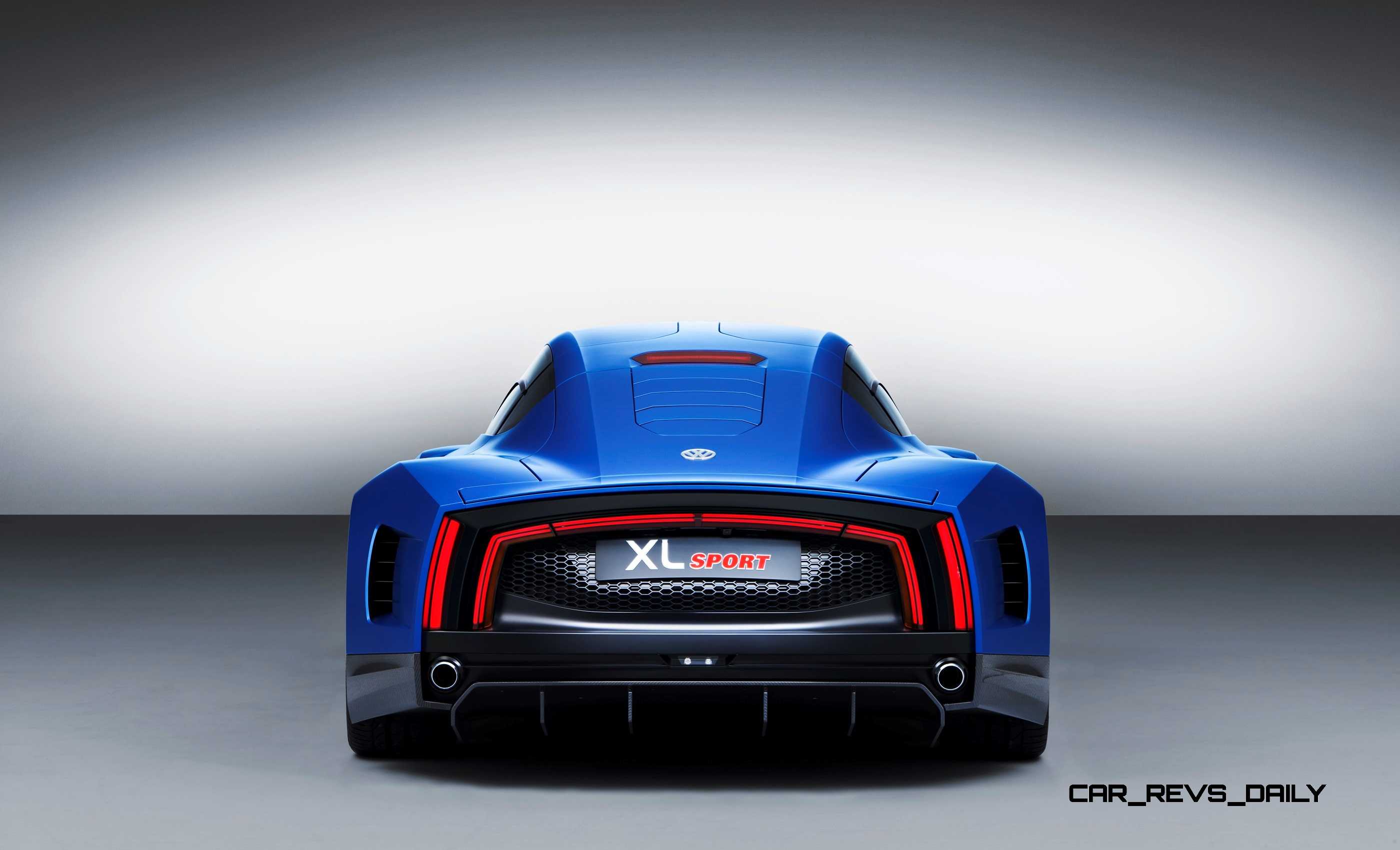

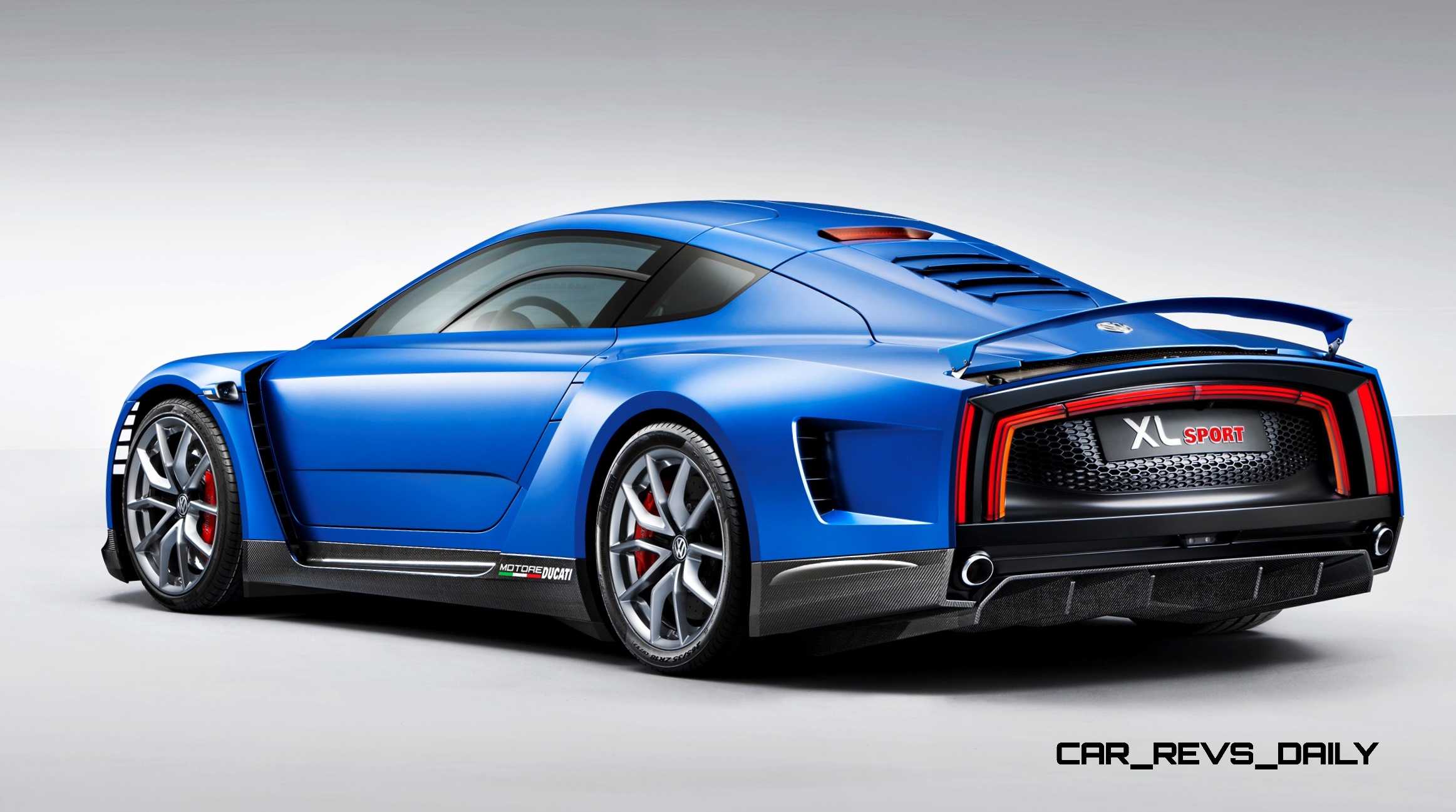

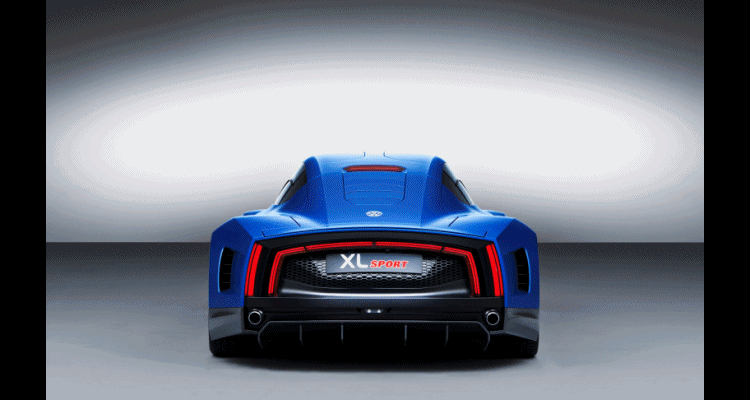

At the rear, the new XL Sport has four specific eye catching features. First, the extremely wide, flat rear has distinctive “shoulders” above the wheels and an extendable rear spoiler that occupies almost the full width. Second, as with the XL1, there is a coupe-shaped roofline without a rear windshield. The rear hatch that merges into the roofline conceals the Ducati engine, the seven-speed DSG transmission and 3.8 cubic feet of luggage space, and incorporates five louvers that open automatically to cool the drive unit. Third, the iconic red LED ribbon follows the shape of the rear section and is framed at the sides by another, vertical, LED element which serves to emphasize the XL Sport’s width. Fourth, there is a black diffuser that merges almost seamlessly into the completely enclosed underbody and is finished at each side with a chrome exhaust tip.

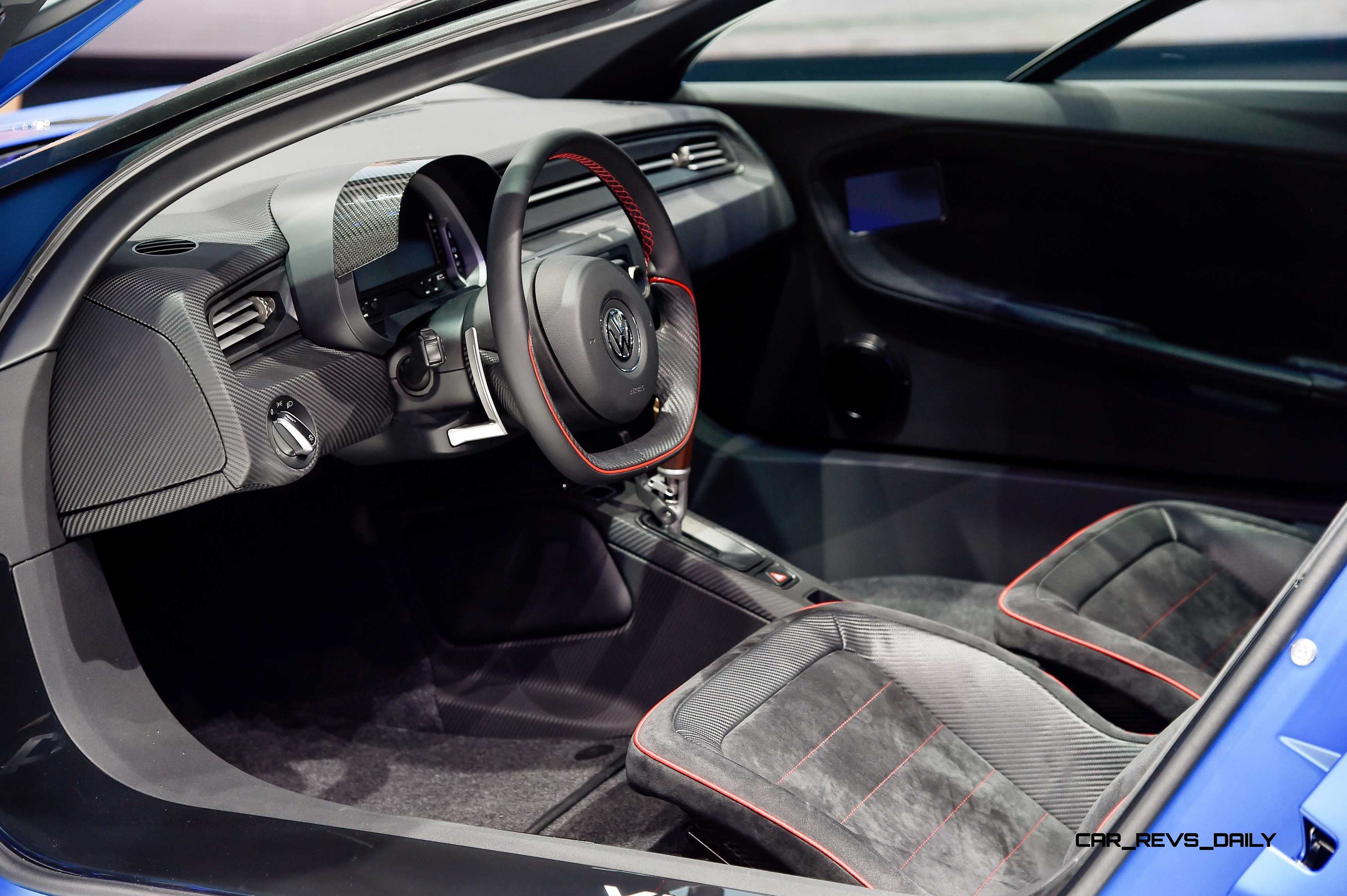

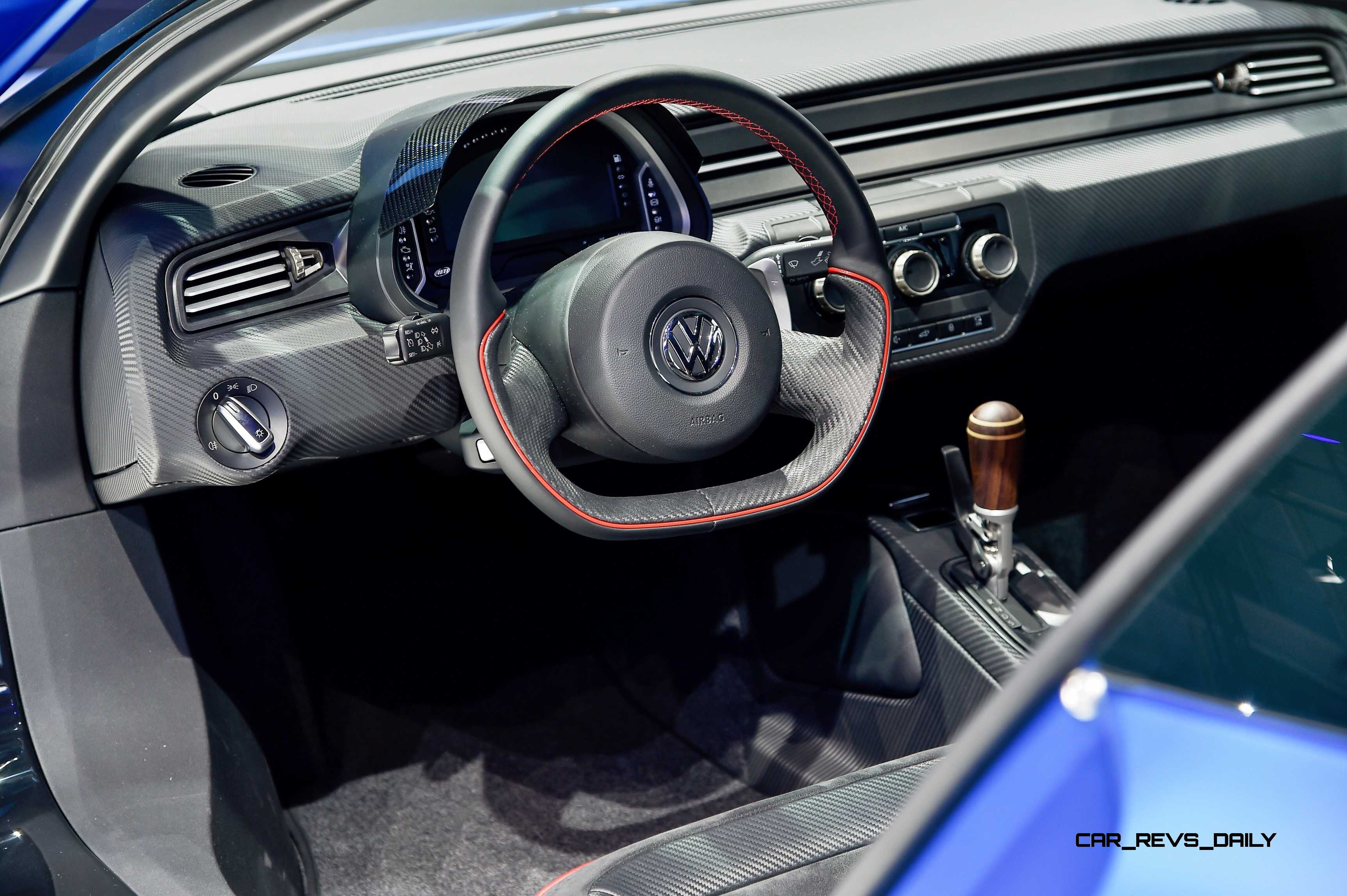

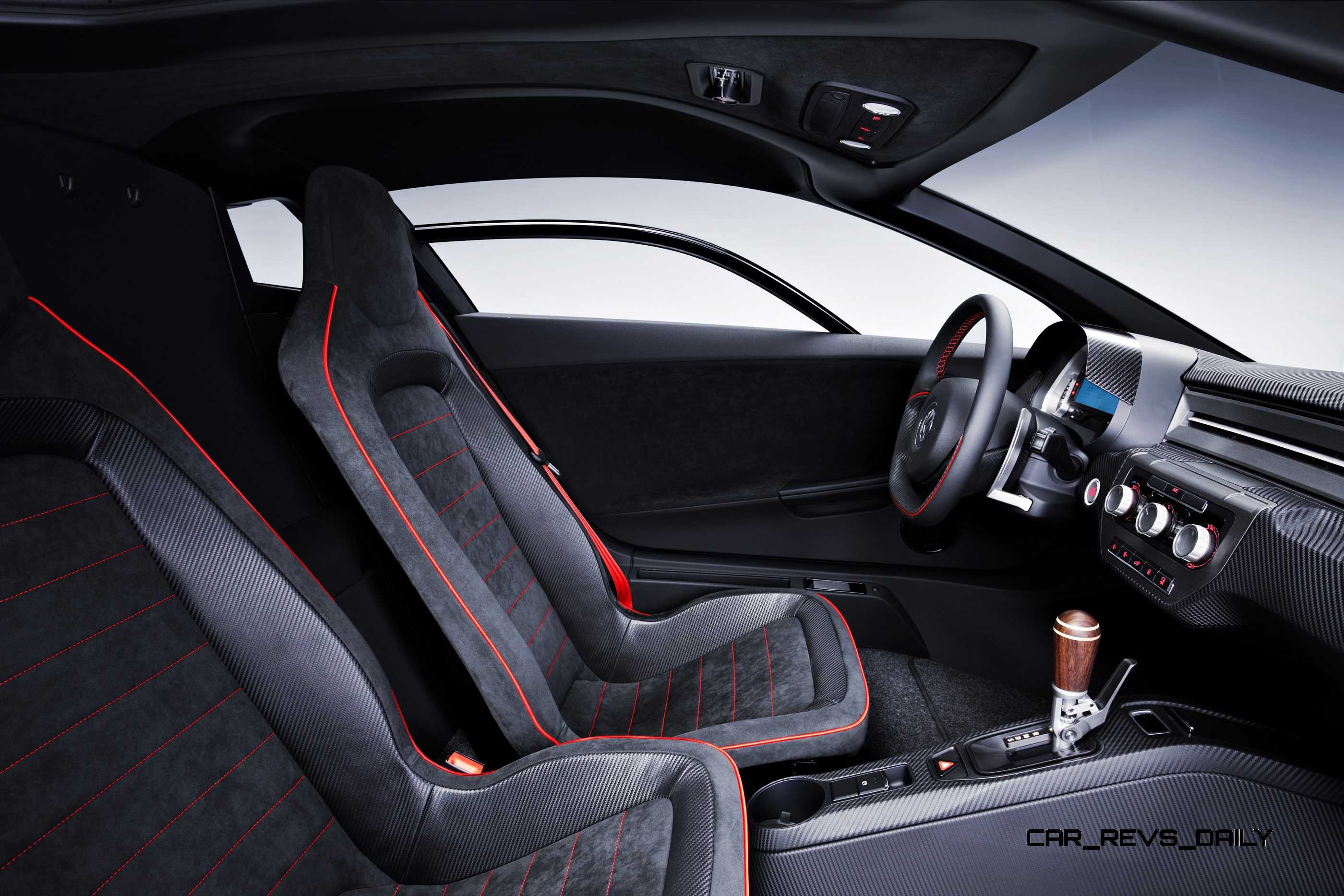

Interior design. The interior of the XL Sport is based on the XL1’s, but has been modified and individualized to conform with the change in the vehicle’s mission. For example, the XL Sport boasts a digital instrument cluster that includes a lap timer and oil pressure display. A carbonfiber cowl extends across the top of the instrument cluster to completely eliminate reflections. The XL Sport’s steering wheel has decorative red stitching and has been equipped with aluminum-alloy shift paddles to facilitate ultra-quick gear shifts. There are further classy details to add a sporty touch, with anodized aluminum accents around the air vents, the climate control fascia and the DSG shift gate. The seat belts are red, picking up on the theme of the contrasting red stitching on the steering wheel.
