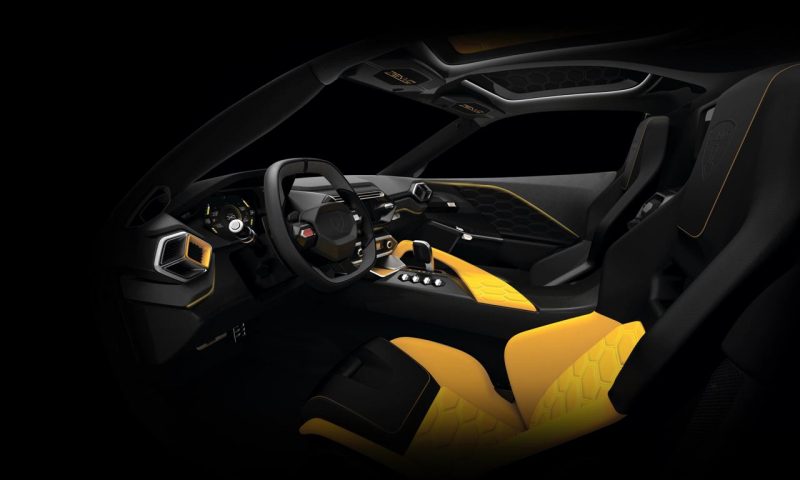

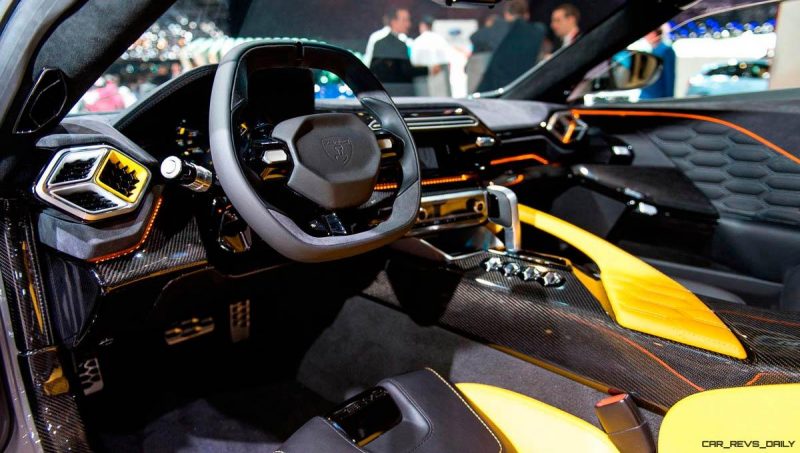

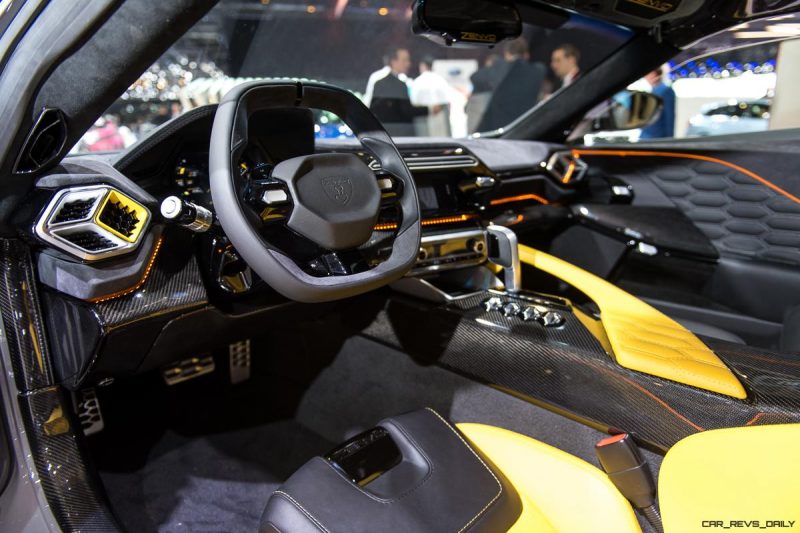

850HP 2017 Zenvo TS1 Scores New Cabin, Track-Attack Aero



Zenvo has flipped the script on their marquee hypercar!

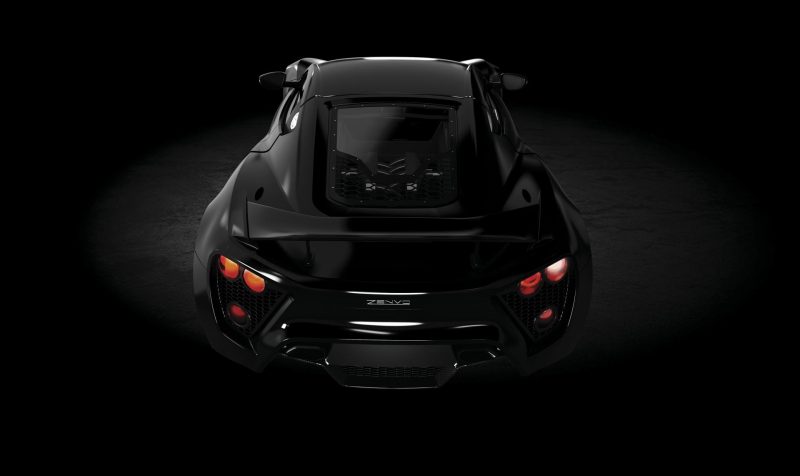

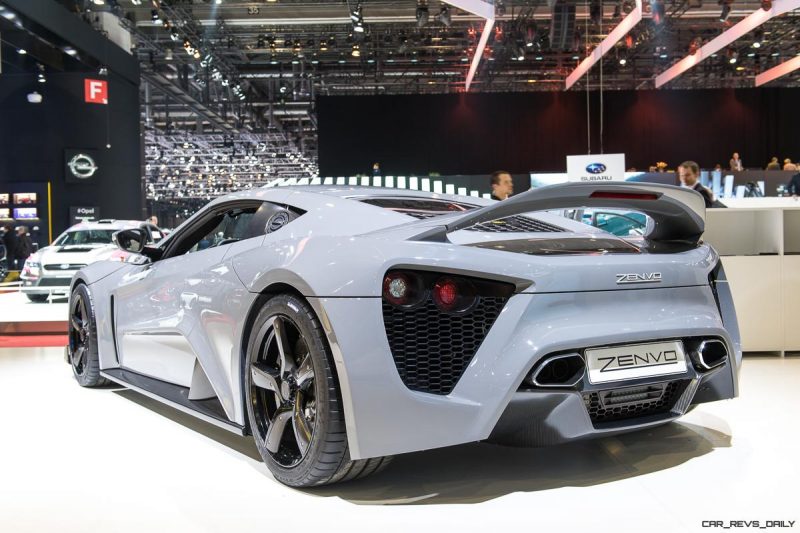

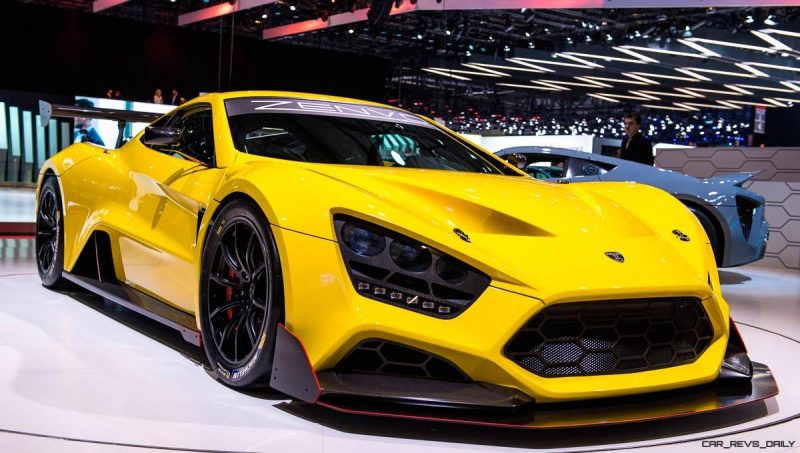

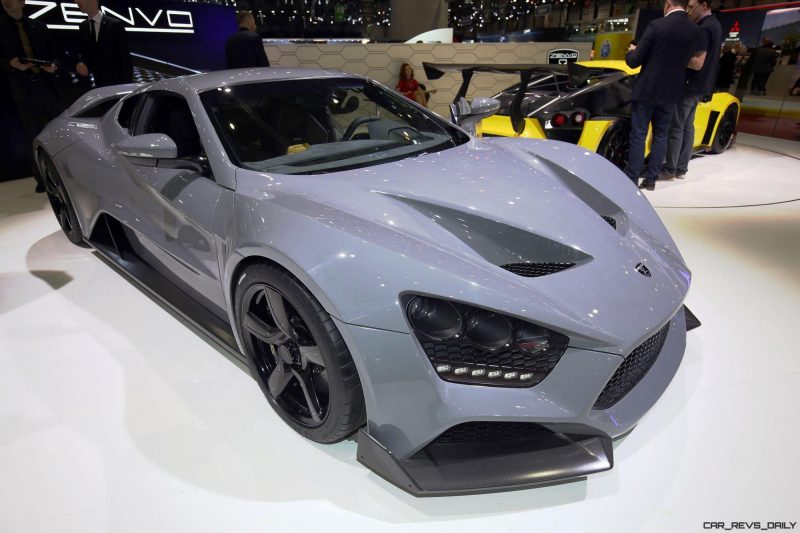

ST1 becomes TS1 for 2017. Aero treats up front include a huge new splitter with side and sill spats shown in contrast-carbon. Out back, a bigger duck-flip of a spoiler promises better aero and more stares.

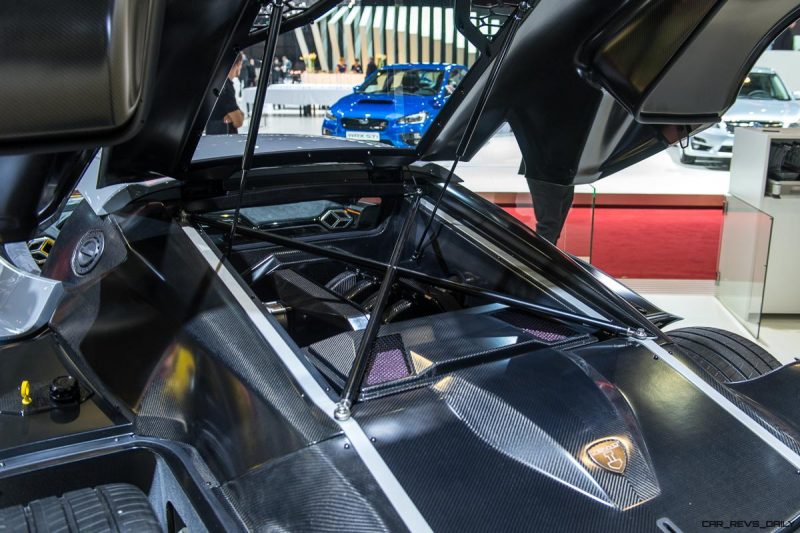

If that were possible! The TS1’s 5.9-liter, twin-supercharged V8 rumbles like a monster truck.

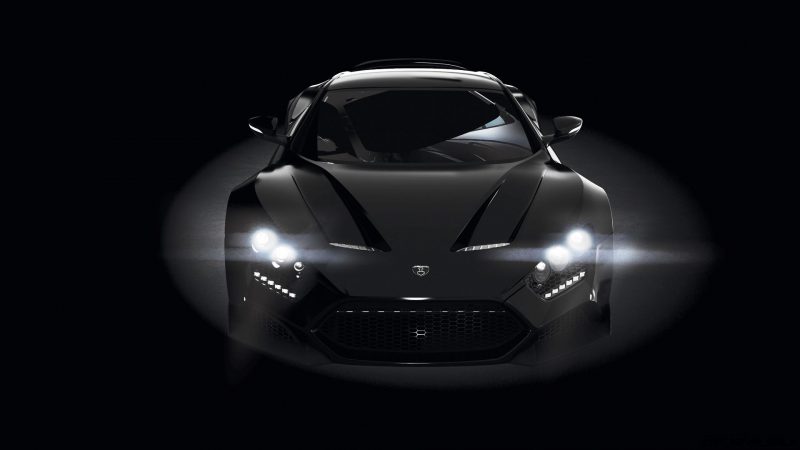

We wish the lighting package were updated in the nose with something more fresh. But as always, a very dramatic hypercar statement.

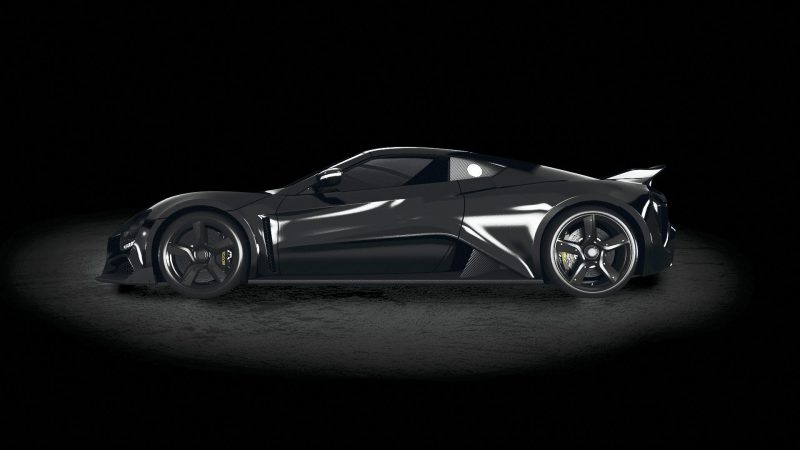

2017 Zenvo TS1





2017 Zenvo TS1 – Tech Specs



  • Body

    2-door 2-seater. The Body is made of carbon fiber

  • Chassis

    light weight steel/aluminium monocoque, front and rear frames of light weigth steel

  • Engine

    configuration: hand-built centre mounted 5.9 litre V8 engine
    displacement: 5900 cm3
    supercharged: twin supercharger
    lubrication: dry sump lubrication with oil coolers, piston spray oil cooling
    max. power output: TBA
    max. torque: TBA
    top speed (km/h): 375 km/h
    bore: 104 mm
    stroke: 90 mm
    compression ratio: TBA
    fuel type: unleaded 98 RON
    oil type: 5W-30 synthetic racing oil
    acceleration 0-100 km/h: TBA
    power modes: Race: TBA, Sport: 850 HP, Wet: 650 HP

  • emission

    the engine complies with Euro 6 standard

  • transmission

    layout: rear wheel drive
    gearbox: to choose
    gearbox shift speed: less than 40 ms
    torque distribution rear: limited slip differential (Torsen)
    clutch: two disc 240 mm carbon clutch

  • steering

    rack and pinion: 2.2 turns lock to lock

  • suspension

    configuration: double wishbone, front and rear
    shock absorbers: 3-way adjustable racing shock absorbers (KW)
    anti roll bars: front and rear anti-roll bar adjustable

  • brakes

    brake disk material: Crbon/ceramic ventilated discs (Brembo)
    size front: Ø 395 mm 6 piston calipers
    size rear: Ø 395 mm 6 piston calipers

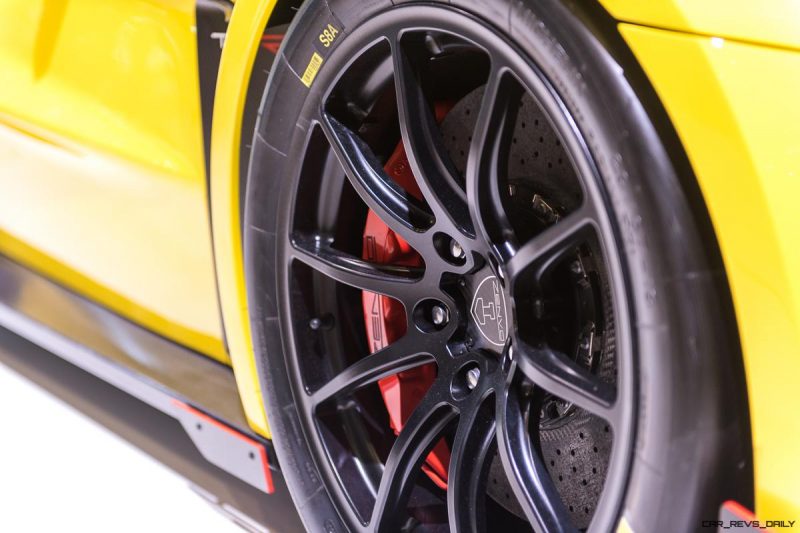

  • wheels

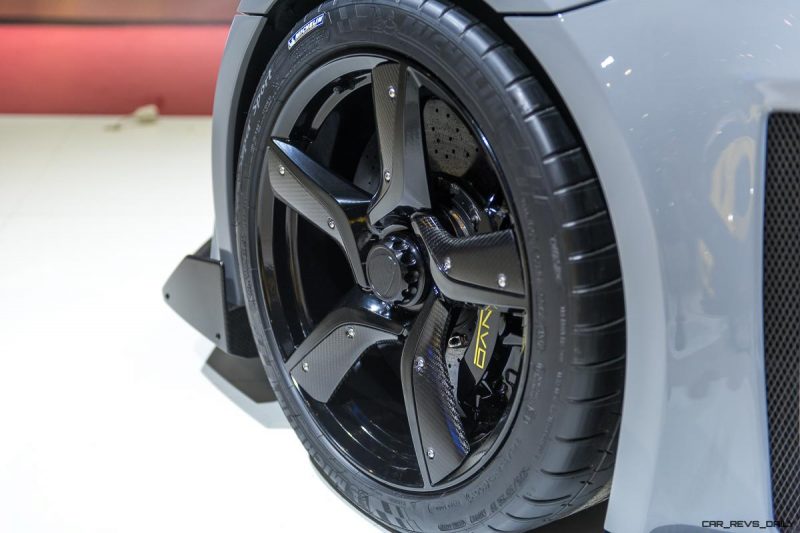

    rims: forged aluminium wheels with center lock mechanism
    size front: 9.5’’ x 19’’
    size rear: 12.5’’ x 20’’

  • tires

    Michelin Pilot Super Sport 2
    size front: 275/35ZR19’’ (Y)
    size rear: 345/30ZR20’’ (Y)

  • dimensions

    overall length: 4665 mm
    overall width: 2041 mm
    overall height: 1198 mm
    ground clearance (lifted): 110mm (160mm)
    wheelbase: 3055 mm
    weight: TBA
    head room: 998 mm
    leg room: 1109 mm
    hip room: 1395 mm
