How about an awesome Rinspeed concept to help forget the X-Trem from 1999?

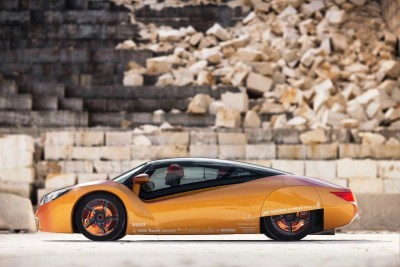

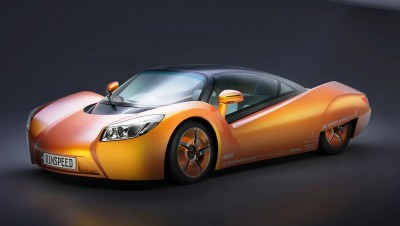

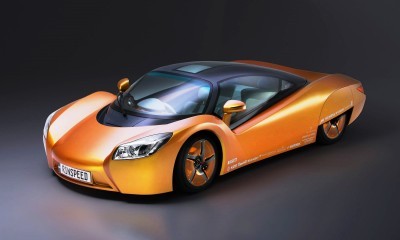

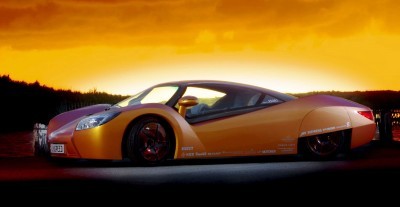

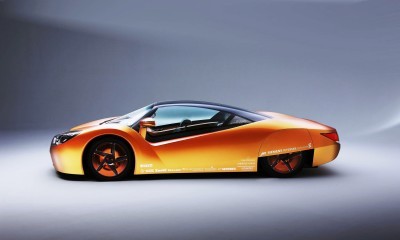

Flash forward ten years later, and we have the 2009 iChange — an ultra-low, sleek and sexy single-seat sports car — with a twist.

At the touch of a button, the track-attack looks and functionality of the iChange into a chic three-seater with bubble glass canopy.  How?  The entire glasshouse shifts upward and forward, with its rear section base extending a few inches upward to give more headroom in back.   (It is subtle)  Very subtle.  So the name is iChange, but might be better billed as the iChange(but-not-much…)ichange

All-electric drive with three battery packs delivers a 4.2-second sprint to 62-mph, with overall range of 90 miles. A three-hour recharge time is extremely impressive.  But the best part might be that the iChange embraced EV futuretech while still celebrating performance and speed.

2009 RINSPEED iChange

World Debut at the 79th Geneva Motor Show, March 5th through 15th, 2009

Swiss Automobile Visionary Frank M. Rinderknecht Builds a Concept Car with Adaptive Energy Concept

„iChange“ Alters its Shape – and Automotive Thinking

Zumikon, Switzerland – World debut at the Geneva Motor Show 2009 (March 5th-15th): The Swiss auto powerhouse Rinspeed presents the ‘iChange,’ the world’s first car whose body adapts to the number of passengers on board. For Rinspeed boss Rinderknecht the vehicle is more than just a clever concept car. “The „iChange“ is a symbol for the fundamental changes the auto industry undergoes worldwide. And it is clear that only those companies will survive that have innovative answers for the demands of a new automotive era.” The visionary Rinderknecht is convinced that the days of gasguzzling behemoths are coming to an end: “The „iChange“ is a signal for the coming global changes to individual mobility. We need to be ready to meet these challenges with new ideas.”

In seconds a streamlined one-seater sports car transforms into a comfortable car with ample room for three. The trick: At the push of a button the rear end of the teardrop-shaped car magically pops up. “We have designed and built an extremely flexible vehicle. In it we have brought the themes of versatility and continually changing energy demands to their logical conclusions.” The result is a streamlined, lightweight zero-emission car with dramatically reduced energy consumption.

The basic idea behind the ‘iChange:’: The energy demand of a vehicle depends mostly on its weight, the type of engine it uses, and its aerodynamic properties. The engineering-services company Esoro that traditionally builds Rinspeed concept cars has built an extremely lightweight car weighing in at only 1’050 kilograms. To power the car, the Swiss specialists chose an electric motor. The idea of the pop-up rear end was conceived to account for the sizeable effect aerodynamics play in fuel consumption.

While other cars always have to ferry around their puffed-up exteriors that can accommodate up to seven passengers even if they’re just transporting a single soul, the „iChange“ features an adaptive body. The sole driver is conveyed in a teardrop-shaped car that offers optimal aerodynamic properties and thus minimized energy consumption. If more than one person need to be transported the expanding rear provides room for two passengers. As a result of the increased weight and no longer optimal aerodynamics the energy consumption increases – but only for the time passengers are actually on board.

The energy for the electric motor comes from lithium-ion batteries that are available in two different stack configurations for short- and long-distance driving. The electric motor of the „iChange“ produces 150kW, capable of propelling the car to a top speed of 220 km/h. The sprint from rest to 100 km/h takes just slightly over four seconds. This impressive performance is made possible with the help of a six-speed pre-selector gearbox from the Subaru WRX car. The central research department of Siemens AG (Corporate Technology, CT) supplied the integration technology for engine/generator, electronics and battery connection interface. Siemens has long been one of the world leaders for energy systems and eco technology with pioneering concepts for electric drive systems. Its products cover the entire electric value-added chain from generation to distribution to consumption. The gearbox and drivetrain are lubricated with eco-friendly lubricants from Motorex. Custom-made lightweight 17” and 18” forged wheels with aerodynamic shrouds are supplied by light-alloy wheel specialists AEZ. Pirelli P Zero tires in size 215/40-17 in front and size 245/40-18 in back provide optimal grip.

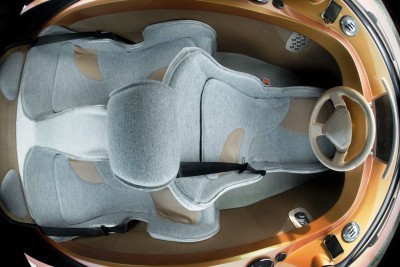

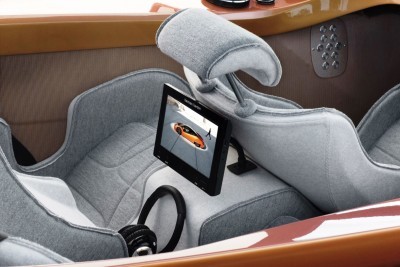

2009 RINSPEED iChange – INTERIOR

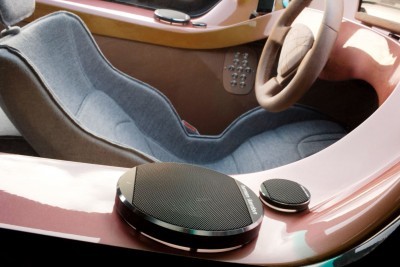

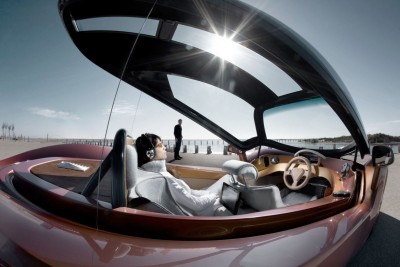

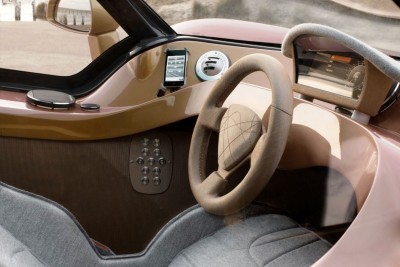

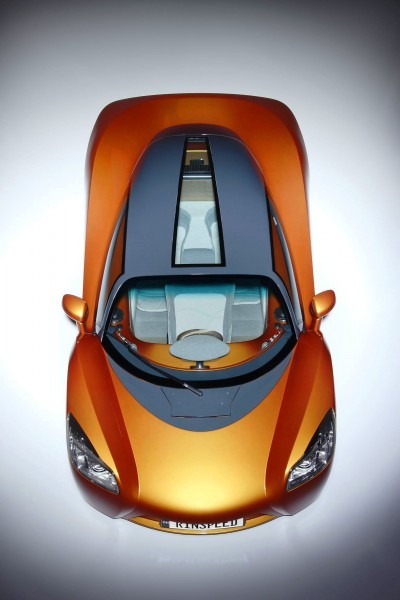

An initial walk-around reveals that the concept car has no doors. The entire electrically powered roof section of the car measuring just 1.03 meters in height tilts forward to allow passengers to board. Also gone are such mundane things as a key. Its role is filled by an Apple iPhone, which also controls the most important vehicle functions. The „iChange“ is drastically different than ordinary cars in every detail: At the heart of the concept car lies the groundbreaking next-generation Harman/Kardon infotainment system. The system uses an innovative Intel processor technology that guarantees minimized power consumption. The same is true for the Harman/Kardon high-efficiency audio system. This revolutionary technology meets highest demands on sound quality, weighs much less than ordinary systems and at the same time uses only a fraction of energy. This opens the door to a new dimension of energy efficiency. The route guidance of the navigation system is also especially ecofriendly: The system calculates the most energy-saving route and displays the directions in realistic 3D view. When it comes to the subject of heating systems, the “iChange” is as versatile as its car body. Because the electric motor produces too little waste heat, the concept vehicle depends on a highperformance auxiliary heater. The Esslingen-based Eberspächer Group – one of the world’s leading manufacturers of vehicle heating systems – designed two tailor-made ecological heating systems especially for this project: an electric heater as well as an ethanol 85 heater. This optimally accentuates the advantages of the two technologies: The entirely emission free electric PTC heater proves itself at short distances. Over long distances, the battery-independent alternative fuel-powered heater ensures a significantly longer operating range of the vehicle. As a result, even the heater of the “iChange” variably adjusts to the respective requirements.

The pure wool used in the interior was further refined into high-tech wool by Schoeller using state-ofthe-art processes. The wool is spun and died in accordance with the highest eco standards. It provides an extremely extravagant ambiance in the ‘iChange,’ looks stunning and is delicate to the touch. The competence partner Strähle + Hess transformed this natural product into a striking interior. Its surface character and materiality combine to create a symbiosis of shell, firmness and frothy air.

Unconventional techniques create unusual surfaces. The seams of the seats are reversed and the removable seats cushions are adorned with the prototype’s name. Xmobil provided further customization services. While textiles can be found in the „iChange“ in their original form in other areas, they are newly interpreted on seats and cargo floor using various refinement techniques such as braiding and gathering and a combination of both. Leather strips alternate with technical textiles. The seat cushions are interchangeable, braided felt alternates with technical textiles formed into threedimensional shapes. This transfers the adaptive concept of the „iChange“ to the interior as well. The diamond-coated anti-slip floor is supplied by abrasives specialist KGS.

The Swiss Federal Ministry for Energy (Bundesamt für Energie) supports the „iChange“ project as a groundbreaking research and development project. Solar panels on the top and sides of the roof provide electricity to the fan to keep temperatures in the „iChange“ comfortably low on hot summer days. The large Sharp solar panels also provide additional eco-friendly charging of the batteries.

With the „iChange“ Rinderknecht, a passionate C. F. Bucherer watch wearer, and his partners once more want to provide food for thought for the automotive industry. The Swiss car visionary: “If we want to maintain our individual mobility in the future we have to rethink the car in its entirety, without taboos. Most of all, we have to take its ecological aspects into consideration.” And in the end everyone has to personally answer the same question: Am I ready and willing to change myself, do and can ‘I change’?

Esoro – Swiss Made

Frank M. Rinderknecht used highly advanced technology and a Swiss-based network of top automotive specialists for his project. So the Rinspeed “iChange” fits perfectly to Esoros motto: engineered by Esoro – What you dream is what you get.

For the tenth time the Swiss engineering company Esoro was hired to serve as general contractor for the entire project. Esoro was responsible for project management, implementation of new technologies, engineering, rendering, design and the manufacturing of the Rinspeed “iChange”. Esoro realized the Rinspeed “iChange” with the help of its competent suppliers. Starting with initial concepts, it took the highly skilled development team just six months to realize the entire project. For 18 years now, Esoro has been a contract developer of concept vehicles, components and products with main focus on lightweight construction and mobility. During this time it has gained a well-deserved reputation for excellent efficiency and innovative solutions, which is demonstrated by numerous prototypes and serial products. Esoro develops fiber reinforced components from initial conception up to pre-production samples. In-house specialists optimize the component properties and characteristics throughout the entire development process. Important steps are non-linear, strong orthotropic Finite Element Analysis and crash simulation.

Another recent development from Esoro is the new E-LFT production technology developed for Weber Automotive. E-LFT makes large scale production of high-strength and lightweight composite parts affordable. E-LFT composite parts weigh more than 30 percent less than comparable steel parts. The tailgate of the actual smart fortwo – the first serial produced E-LFT-component – was produced over 200’000 times since 2007 and received the JEC Innovation Automotive Award 2008. Furthermore another production process for niche markets, like high performance cars, trucks and caravans is now under development at Esoro. The new and patented process called Melt Embossing offers the possibility to produce high end thermoplastic composite parts with low initial invest for structural and semi-structural applications.

Since the company was founded, Esoro has been working intensively in the field of conception, implementation and tests of alternative and optimized vehicle concepts and drive systems. Esoro is thus one of the few companies in the world with well-founded experience in development and operation of electric, hybrid and fuel cell drives. The Rinspeed “iChange” proves impressively this competence using cutting edge technology.

Electric shape-changer: a sports car or a sports van? Rinspeed “iChange” – forward-looking ideas onAEZ wheels

The Motor Show in Geneva is traditionally the place where Frank M. Rinderknecht presents his visions. For years he and his company Rinspeed have been presenting environmentally-friendly, practical and extravagant creations, which offer possible solutions for the future of automobiles. And now joining him for the third time is: AEZ, the renowned manufacturer of premium light-metal wheels. Following the eXasis and the underwater car sQuba, this time the perfect alloys had to be found for the “iChange”. Norbert Frohner, the General Manager of AEZ, said the following: “As with the sQuba we have created a new wheel, which works almost directly on the blank forging. The task was just as complex as last year, but also just as different. Although the “iChange” can’t go underwater, it is extremely diverse on land – and that’s precisely what the wheel intends to demonstrate.”

Frank M. Rinderknecht’s latest development is actually a vehicle which adapts to diverse conditions: First and foremost, thought, the “iChange” is a thoroughbred, futuristic sports car. The AEZ alloys support this by looking like the wheels on a classic Bugatti – and that suits the streamlined design of the Rinspeed. In this form the “iChange” is a fun car for one person, but “when the rear is raised as if by magic” it changes in the blink of an eye into a small sports van for three people. The double spoke wheel also takes part in the metamorphosis; it fits the spatial wonder like a glove even when the focus is shifted to the adequate transportation of people.

Dynamics meets versatility – that is this year’s topic from Rinspeed. Rinderknecht says: “If we want to maintain our individual mobility in the future, then we will have to rethink the car disregarding all taboos.” That also means that the vehicle has to adjust to changing conditions. And that explains the name “iChange”. The vehicle concept also comprises, of course, the vehicle technology, as it also has to adjust to future demands. As is normal with Rinspeed, environmental protection is in the foreground: an electric engine with 150kW (204 HP) offers decent thrust without harmful emissions. With its large, enclosed surface, the wheel from AEZ provides even better aerodynamics – it helps to extend the lifespan of the battery and increase the sports potential of the “iChange”. Designers and technicians at AEZ have designed and built an expressive, spectacular alloy for an extraordinary car. It represents the high-point so far in the cooperation between the wheel producer and Rinspeed.









Rinspeed iChange
Technische Daten Technical data
Masse Measurements
Länge 4280 mm Length
Breite 1800 mm Width
Höhe 1’035 mm Height
Radstand 2’385 mm Wheelbase
Spur vorne 1’495 mm Track front
Spur hinten 1’465 mm Track rear
Bodenfreiheit 100 mm Ground clearance
Leergewicht ca. (approx.) 1’050 kg Empty weight
Werte Performances
Höchstgeschwindigkeit 220km/h* Top speed
Beschleunigung 0-100 km/h 4.2 s* Acceleration 0-100 km/h
Motor Engines
Strasse Electric Street
Leistung max. 150kW Power output
bei 4’500 /min at
Drehmoment 370 NM Torque
bei 0 bis 3000 /min at
Batterien Lithium-Ionen LiFePO4 Batteries
Spannung 576 Volt Voltage
Reichweite ca. (app.) 90 km* Range
Ladezeit ca. (app.) 3 h Charging time
Antrieb Propulsion
Kraftübertragung Heckantrieb / Rear wheel drive Power train
Getriebe R – N – F (6 Speed) Gearbox
Fahrwerk Suspension
Fahrgestell Aluminium/Steel Chassis
Karosserieteile Glas / Epoxid Body panels
Sitzplätze 3 Seating capacity
Aufhängung vorne Doppeldreiecklenker / Double wishbone Front suspension
Aufhängung hinten Doppeldreiecklenker / Double wishbone Rear suspension
Stossdämpfer/Federn Radical Dampers/springs
Lenkung Zahnstange / Rack & pinion Steering
Bereifung Tires

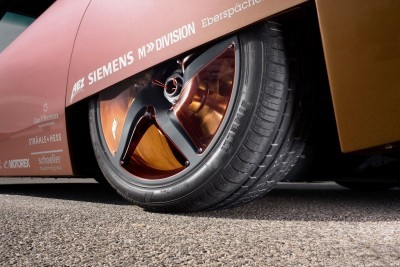

Bereifung vorne Pirelli P Zero 215/40 R17 Front tires
Felgen vorne AEZ 7.5 x 17″ Front wheels
Bereifung hinten Pirelli P Zero 245/40 R18 Rear tires
Felgen hinten AEZ 9 x 18″ Rear wheels
Verschiedenes Miscellaneous
Schmiermittel Motorex

* using three battery packs

Lubricants
Alle Angaben ohne Gewähr All data without guarantee



Durability on four wheels. Carl F. Bucherer supports the “iChange” by Rinspeed

For both Frank M. Rinderknecht, the founder of Rinspeed Concept Cars, and Carl F. Bucherer, innovation is the driving force of all production. So it is not surprising that the Lucerne watch manufacturer is supporting the latest of Frank M. Rinderknecht’s projects the variable Rinspeed “iChange”. Over 30 years ago, Frank M. Rinderknecht set himself the goal of fulfilling the dreams of his youth and realizing the vision of the ultimate motor vehicle with his own cult car. His company, Rinspeed, soon created for itself a unique reputation in the tuning and modification of luxury vehicles for a financially independent clientele. In parallel with this, Rinspeed became famous for producing concept and small series cars. In his partnership with international companies in the high-tech field, Frank M. Rinderknecht actually provided them with a valuable development platform.

Common philosophy, new project: Cars which can drive on water, cars which can drive under water, cars with transparent bodywork. The concept cars developed by Frank M. Rinderknecht interpret mobility in a different way. They are the work of a person, who quietly goes his own way. Just as Carl

  1. Bucherer, founder of the Lucerne watch brand, used to. This was one of the reasons that CEO Thomas Morf and Marketing Manager Bruno Jufer decided to support Frank M. Rinderknecht and his ideas. However, an even greater influence was the common philosophy shared by Carl F. Bucherer and Rinspeed, demanding technology, top class materials and amazing shapes, all contributing to an innovative, conceptually convincing final product.

From the sports car to the van: This common philosophy is also foremost in the latest RinspeedProject. The “iChange” is a „1-2-3-seater” with a 150kW-e-motor, whose eye-catching body shape adapts to the number of passengers by electronic tail magic. At the touch of a knob, one can convert the single person sports car into a small sports van for three people, exactly like the motto “I change”. As well as in its design, the “iChange” reveals its innovation through its extremely low energy consumption: the car drives without exhaust emission and boasts a weight and wind resistance reduced to their minimum. So the Rinspeed “iChange” demonstrates a high potential in the area of durability, which also represents part of Frank M. Rinderknecht’s motivation: “We have put a flexible vehicle on wheels and, in so doing, the themes of the varied and constantly changing energy requirements meaningfully thought right through, to take the ecological aspect fully into account”, maintains the car tinker.

Highest Swiss quality: Innovative thinking, the belief in one’s own way and today’s theme of durability are also of the utmost importance for Carl F. Bucherer components, and explain why the Lucerne watch manufacturer is collaborating on this project with Frank M. Rinderknecht. “The Rinspeed „iChange“ stands for change, future-orientated technologies and great passion. This embodies the Carl F. Bucherer philosophy in a unique way”, explains Bruno Jufer, Executive Vice President

Marketing. The “iChange” will be presented to the public for the first time at this year’s motor show in Geneva, taking place from 5th to 15th March. Carl F. Bucherer will be there with Rinspeed. All in all, the credos of the “iChange” and the watch models of Carl F. Bucherer go perfectly together: the highest Swiss quality and efficiency, combined with the perpetual search for perfection.

About Carl F. Bucherer: Carl F. Bucherer, registered as Bucherer Montres S.A., is an independent company with 90 years competency in the production of luxury watches. The Manufacture brand stands for uncompromising quality and esthetical products with stylish design. It combines the finest watch making craftsmanship with the highest jewelry competency. The name recognizes the pioneering achievements of the company’s founder of the same name, Carl Friedrich Bucherer. The Carl F. Bucherer brand was launched in 2001, with the objective of giving more strategic emphasis to its manufacturing expertise, which had already been successfully demonstrated since 1919. As the only watch brand located in Central Switzerland, Carl F. Bucherer produces and markets exclusive ladies and gents watches, thereby building the second arm of the Bucherer Group. Today, the Bucherer Group is managed by the owner-family. It took the Carl F. Bucherer team only a short time to develop an effective distribution network and create international consumer awareness for the brand. In July 2007, Carl F. Bucherer strengthened its market position as a watch manufacturer in the premium segment with the acquisition of the workshop for the development, research and production of manufacture movements, Carl F. Bucherer Technologies SA, (formerly Techniques Horlogères Appliquées SA) in Ste-Croix, and with the launch of its manufacture movement CFB A1000 at Baselworld 2008.

Die Agentur is a full service Ad Agency with its main office in Saarbrücken

Die Agentur develops integral communication solutions. Our services include everything from classic communication and design to photography and interactive applications. We further expanded with the establishment of our In-House film production, called Movie Division. Clear, straight to the point and exceptional communication is our philosophy. Therefore, it is self – evident that an innovative customer such as Rinspeed is attended to with great care, enthusiasm and passion. Die Agentur was nominated for Germany’s most popular design award 2009.

Die Agentur is responsible for all Rinspeed communication including: Web, PR for the new concept car, an image film, a making off and a trade fair. Die Agentur has both national and international clients. Names like Samsonite, BMW, O’Neil, Rinspeed, Coca-Cola and Bertelsmann/Mohn speak for themselves. Die Agentur currently employs 30 persons.

Eberspächer supplies innovative heating systems for the “iChange”

As do all electric vehicles, the “iChange” from the Swiss design house Rinspeed relies on a powerful, but economical in-cabin heater: The electric motor simply does not generate enough waste heat to use for heating the passenger compartment. The concept car appeals because of its transformability not only with regard to its body, but also with regard to heating, and offers two attractive alternatives. The Eberspächer Group – headquartered in Esslingen and one of the world’s leading manufacturers of vehicle heaters – developed both a perfectly fitted electric heater and a custom-engineered fuelpowered heater specifically for the “iChange” project. Both systems are designed to meet the specific requirements of electric vehicles.

With the electric PTC air heater from Eberspächer catem – global leader in the field of electric auxiliary heaters – the “iChange” is fit especially for short trips and city traffic: The prototype that was developed specifically for the Rinspeed project was designed for a nominal voltage of 580 volts. Thanks to its fully insulated construction, the PTC heater is safe from an electrical standpoint. Because of the aerodynamic shape of the corrugated ribs, the heater body exhibits only a minimal pressure drop on the air side. With a heating capacity of 5.6 kilowatts, the electric in-cabin heater achieves a high power density in spite of its extremely compact size: The dimensions of 228 x 167 x 36 millimeters mean that the air heater requires very little space for installation. Other benefits: The heater’s efficiency – the direct energy conversion from electric energy into thermal energy – is 99 percent. In addition, no pollutants are emitted during operation of the heater. As a result, the PTC heater is ideal for zeroemission vehicles intended for use in congested areas to keep the air clean.

Electrical pre heating of the vehicle by a park heating function is also possible – especially during the charging process.

For longer trips the Eberspächer Airtronic is the right choice: Since the fuel-powered heater puts no load on the vehicle’s electrical system, the battery capacity is available entirely for driving purposes. In this way, the “iChange” achieves a considerably greater scope. The Airtronic, also designed specifically for the concept car, consumes about maximum of 0.43 liters per hour of heating and has been engineered especially for the combustion characteristics of the alternative, eco-friendly fuel E-85 ethanol. The small 3.5-liter tank disappears cleverly behind the license plate. The major benefit of the Airtronic is its high energy efficiency: With an efficiency of 84 percent – based on the primary energy input – it excels when overall CO2 emissions are taken into consideration. Equipped with a catalytic converter and with nitrogen oxides and particulates filtered out to almost below the detection limit, the Airtronic appeals not only because of its positive ecological features, but above all because of its rapid heat output. Moreover, the unit has all the convenience features of a regular Eberspächer park heating: In the winter, the passenger compartment can be pre-heated and ice-covered windows cleared without the need for scraping.

In the “iChange”, Eberspächer has exemplified two different air heating systems for electric vehicles.

Use of electric or fuel-powered water heaters produced by the company is also conceivable. Integrated in a cooling water circuit these kind of heating systems are able to pre-heat the sensitive battery in the winter – holding it capable of cold starts – and cooling it in the summer. Besides electric water heaters are able to use the waste heat of power electronics, motor and other users for heating proposes and support so an overall thermal management.

With its many-faceted technologies, Eberspächer truly conveys the meaning behind the name “iChange”: The company provides custom-engineered system solutions for any requirement and thus positions itself as the specialist for innovative thermal management for the drive concepts of the future.

Harman International sets the standard for energy-efficient audio and infotainment solutions withoutcompromises

“One does not discover new lands without consenting to lose sight of the shore for a very long time”. Harman Becker Automotive Systems, the Automotive Division of Harman International, truly lives this tenet of French author André Gide, and introduces more than just one energy-efficient audio and infotainment solution in the Rinspeed “iChange” zero emission concept car. And this without any compromise in performance and enjoyment.

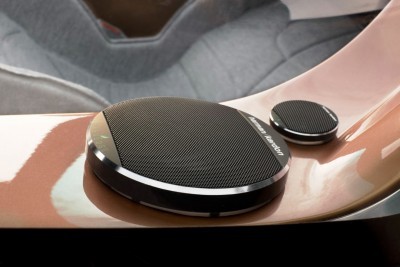

At the heart of the is the next generation Harman infotainment system. The overall system is designed to minimize power consumption, which is achieved thanks to the innovative new Intel® processor on board. The same mindset is applied to the Harman Kardon® GreenEdgeTM high-efficiency audio system. This revolutionary technology satisfies the highest demands for superb sound reproduction while dramatically reducing energy consumption and weight, resulting in efficiency levels never before possible. In the “iChange”, a total of twelve Harman Kardon HiETM high efficiency speakers are driven by a highly efficient eight-channel amplifier. The Class D amplifier, with Harman’s uniquely designed output amplifier stages, achieves efficiency levels in excess of 90 percent, compared to 35 to 50 percent in conventional models. Together this system reduces current required dramatically while providing a new benchmark in dynamic performance. In addition, the embedded satellite navigation system calculates the most energy-friendly route, and guides the driver to the destination by means of a realistic 3D display.

With this entirely new energy-efficient system approach without compromise, the Automotive Division of Harman International offers a vision of what the technology leader in infotainment and audio will be offering drivers in the very near future. The car of tomorrow will be permanently “on-line” providing energy-efficiently the best in information, communication and entertainment, with a performance spectrum that easily competes with any stationary application at home or in the office.

Harman Becker Automotive Systems, the Automotive Division of Harman International, offers leadingedge infotainment systems for the automotive industry and the aftermarket. Harman International Industries, Incorporated, designs, manufactures and markets a wide range of audio and infotainment products for the automotive, consumer and professional markets. Harman International maintains a strong presence in the Americas, Europe and Asia, and employs more than 11,000 people worldwide. The Harman International family of brands includes AKG®, Audioaccess®, Becker®, BSS®, Crown®, dbx®, DigiTech®, Harman Kardon®, Infinity®, JBL®, Lexicon®, Mark Levinson®, Revel®, QNX®, Soundcraft® and Studer®. Harman International’s stock is traded on the New York Stock Exchange under the symbol “NYSE: HAR.”

KGSDiamond Group AG

KGS Diamond of Switzerland, a global leader in industrial super abrasives innovation for two generations, has built a business platform based on life’s “one” constant: change. The KGS business model has successfully adapted to international markets as well as specialized technologies, crossing cultural boundaries. It has flourished when others have failed.

The partnership with Rinspeed and the sponsoring of the “iChange’s” development and fabrication put KGS once again ahead of the competition. Synchronizing people and businesses with the everchanging world is a cornerstone of the KGS culture. KGS is proud to participate in this project. Together we prove that the future is promising for businesses and people embracing change and possessing the values vital to navigating changing times.

Motorex supplies „green“ know-how for Rinspeed “iChange”

Switzerland’s biggest lubricant producer Motorex supports the latest concept car project from Rinspeed with a lot of technical know-how in lubricants and greases. The goal of this partnership is to make the vehicle „pollution free“, not only in the engine, but also with the lubricants and greases. After the successful cooperation for the world’s first diving car “sQuba”, the Motorex specialists have again put together a very special lubricant plan for the “iChange”. Motorex has made all the lubricants and greases in use rapidly biodegradable.

Frank M. Rinderknecht states: „Because we have used a zero emission engine, it was very clear to us from the beginning that we wanted to minimize the pollution in every aspect. With Motorex, we have a partner that has the Know-how and is able to address our specific demands. Further more, they have already supported us optimally in the development of the sQuba in the same area. Manuel Gerber, Head of Communications at Motorex: “Every year, the partnership with Rinspeed is a perfect opportunity to explore the different routes of development in our market. Although the “iChange” features an electric engine that does not need any motor oil, it was an interesting challenge on all the other lubricants and fluids used. At the same time, it was another possibility for us to prove our readiness for the future, our innovation power and our flexibility. We could profit from our years of experience in rapidly biodegradable products in many different areas of applications.

Pirelli Tyre – Excellence and innovation

Pirelli Tyre is the world’s fifth largest operator in terms of turnover on the tyre market, with levels of profitability among the highest in the sector. Pirelli Tyre is today the operational holding company for a group involved in the design, development, production and marketing of tyres destined for various types of vehicle: cars, light vehicles and motorcycles (Consumer sector, 70% of revenue), buses, trucks, agricultural and earth moving machinery, and the production and marketing of steelcord (Industrial segment, 30% of revenue). Within this market, Pirelli Tyre focuses in particular on the highend segments characterised by elevated techno-logical contents and high performance. These are segments in which Pirelli has established itself in positions of leadership with regard to both its car and motorcycle tyres: Pirelli tyres are today seen as synonymous with quality, emotion and ultimate performance. Drawing on its technological expertise, the group has consolidated working relationships with the world’s leading car and motorcycle manufacturers; partnerships that have translated into a number of homologations for models from all the leading automotive firms.

Schoeller – Sustainability right down to the last thread

The Schoeller Group, which has its headquarters in the Austrian city of Bregenz, is one of the leading worsted yarn manufacturers in the world. 500 employees produce 4,000 tones of yarn a year at various locations across Europe. One and a half centuries’ worth of experience, coupled with an innovative Research and Development department, is the reason why its technological advancements are constantly being expanded upon. Schoeller’s corporate mission statement leads the way with its fixed policy of sustainability. This also explains why Schoeller was the first ‘bluesign’-certified spinning mill in the world to be awarded the prestigious ‘bluesign Award’ – ‘bluesign’ being the comprehensive environmental and eco quality seal. An important part of the Schoeller customer portfolio is the ‘traveltex’ segment, i.e. fibers used in cars, buses, trains and airplanes; several of the fibers are even used in space travel, making them some of the most widely travelled threads around. Schoeller develops yarn innovations in close cooperation with industry partners, enabling the design, amongst other things, of novel seat covers, door trims and ceiling solutions.

The implementation of the Rinspeed study „iChange“ meant that the Vorarlberg-based employees could fully put their strengths in sustainable development and production to use. The materials utilized for this project heralded the return of a fiber long and unjustly neglected in favor of man-made fibers – pure wool. Its very nature means that wool offers more functions than traditional synthetic fibers and is vastly superior even to cotton in terms of environmentally friendly production and waste disposal. The wool was refined into high-tech wool by Schoeller using newly developed processes. Spun, colored and finished according to the highest environmental standards, it offers an exceptionally high-quality look and feel as part of „iChange“. Alongside its optimal ergonomic characteristics, the wool also offers a particularly attractive visual effect and pleasant feel for seat covers. In addition, thanks to its special ‘coldblack’ finish, the high-tech wool guarantees a warming and UV-absorbing function for ceilings, thus ensuring a pleasant temperature in vehicles. Positive proof that being environmentally friendly does not necessarily mean having to do without luxury and comfort.

Sharp – Rinspeed’s official multimedia partner

The well-known Swiss design and concept company Rinspeed is working in collaboration with the leading LCD TV manufacturer Sharp on the new “iChange” concept car. An extraordinary vehicle deserves a unique introduction. And Sharp is making sure it will get one with the latest full HDTVs (best HDTV picture quality via high resolution full HD displays), which will highlight the ideas and characteristics behind this revolutionary vehicle for the viewer in a needle sharp color brilliance unlike any other before.

Sharp worldwide: The company which employs more than 53,000 people worldwide, is active in nearly all fields of electronics and offers an enormous range of products. Among other things, Sharp belongs to the world market leader in LCD flat screen televisions and solar collectors; two areas of major significance in today’s times.

LCD technology is inseparably linked with the Sharp name: Ever since the introduction of the first LCD calculator in 1973, Sharp has been a major player in the liquid crystal display industry. It is no surprise that the newest generations of LCD televisions come from the Sharp factory Kameyama II in Japan, which is one the most modern production plants anywhere in the world. Sharp is the market driver and trend setter for premium TV. Sharp, the inventor of the LCD TV, implements the following formula for success in today’s flat screen TV business: large screen diagonals, high quality equipment, and noble design. The disproportionate growth of the still small segment of LCD TVs with screen diagonals > 42 inches is especially impressive. Sharp recognized this trend early on and got in on this highly lucrative market from the very beginning.

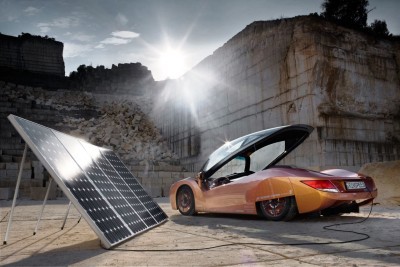

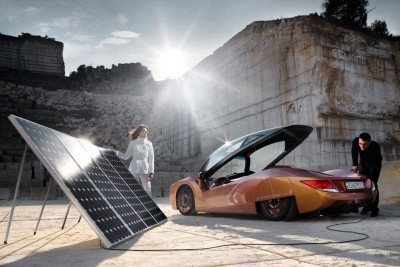

Sharp solar technology: Sharp has almost 50 years‘worth of experience in solar energy and is the driving force worldwide for an intensified, environmentally friendly use of photovoltaic technology. The company manufactures light concentrators as well as mono-, poly-, and microcrystalline solar cells and modules. In addition to three module factories in Japan and one in Tennessee (USA), the Wrexham factory in Wales (UK) has been manufacturing solar modules to generate electricity for the European market since 2004. In Europe, the solar pioneer also purchases glass and silicon for cell and module manufacture and collaborates with its business partners in the installation of solar power facilities.

Siemens Corporate Technology as partner for Rinspeed

Siemens’ Corporate Technology Department (CT), the company’s central research unit, is contributing an integrated system – comprising a motor / generator, power electronics and a battery-connected interface – for the “iChange”, Rinspeed’s latest car model. As a world-leading supplier of power systems and environmental technologies and a provider of products covering the entire electrical value chain (generation, distribution, utilization), Siemens has long been a pioneer in the field of electrical drives systems.

Regenerative energy concepts are the key to fossil-fuel-independent energy supplies. Serving not just as means of transportation but also as mobile energy storage units that can be used to supply energy in public power grids over the medium term, electric vehicles may provide such concepts’ mobile and flexible components in the future. But before this can happen, energy and communications interfaces will have to be standardized to create a power network that enables system-wide coordination of the rapid power feed and feedback process. For this reason, safe and simple “filling up” and the securing of network stability are both key focuses of the research partnership with Siemens. To guarantee optimal efficiency, a car’s electric drive, battery, power electronics and communications with the power grid must be oriented toward its twofold function as a mobile power storage unit and a vehicle. That’s why Siemens is working on a new concept for controlling and coordinating internal vehicle functions and power flows to the grid – since electric cars will not be able to establish themselves on the market until both grid and vehicle work hand in hand.

Boasting some 3.000 researchers and more than 55.000 active patents, Siemens’ Corporate Technology Department is a world leader among technology company research networks. Innovation is Siemens’ most important growth and productivity driver. In fiscal 2008, the company invested €3.8 billion – 4.9 percent of its total revenue – in research and development. As an integrated technology company, Siemens is pushing developments in the field of electro mobility, both at the Corporate Technology Department and at the Energy and Industry Sectors. Work is focusing not only on the requirements relating to the electric car itself but also on the associated power supply infrastructure. Intensive efforts are underway in areas such as power generation and distribution, traffic and energy management, smart electricity meters, power electronics, software and sensor technology and, of course, electric drives and the recovery and storage of energy.

Electric vehicles could prove to be mobile and flexible components of a largely fossil-fuel-independent power supply in the future. For instance, they could compensate for power supply fluctuations that may occur with wind and solar energy. Not only can electric cars store excess energy from the power grid; they can also feed it back into the grid as required. Because electric drives make much more efficient use of energy resources than combustion engines, they could well become a key element in Siemens’ Environmental Portfolio. Already in fiscal 2008, the products and solutions in the Environmental Portfolio generated revenue of €19 billion – roughly one-fourth of the company’s total revenue.

Siemens AG (Berlin and Munich) is a global powerhouse in electronics and electrical engineering, operating in the industry, energy and healthcare sectors. The company has around 430.000 employees (in continuing operations) working to develop and manufacture products, design and install complex systems and projects, and tailor a wide range of solutions for individual requirements. For over 160 years, Siemens has stood for technological excellence, innovation, quality, reliability and internationality. In fiscal 2008, Siemens had revenue of €77.3 billion and income from continuing operations of €5.9 billion (IFRS).

“iChange“ – the interior concept made made by Strähle + Hess

“I change!” The Swiss out-of-the-box thinker Frank M. Rinderknecht puts this motto of a new world order into practice in his newest concept car. The “iChange”, a zero emission featherweight, transforms in a matter of seconds from a single seater into a van. The German company Strähle + Hess accounts for the car’s visionary interior.

Ours is a fascinating time. The world has reached a period of thorough reorientation. Economic crisis, climatic change, and cultural wars enforce a revision of opinions. In every crisis, though, there hides a chance. We at Strähle + Hess cherish this chance! We mirror it in the development of an interior, fit to change its shape constantly – enabled to adapt quickly and flexibly to new challenges in ranges previously undreamt of. We set out to create the world’s most versatile in-cabin space. This challenge has to be realized on an ecologic base – just like every single one of our innovative concepts. Following the motto “Put everything to the test, keep what prevails.” we chose to revive a very special eco-material for our interior: wool. Wool is a material with excellent technical specs – and a long tradition of usage in automotive in-cabin constructions. In the starting years of the automobile, the ladies and gentlemen traveled on wool while the drivers had to content themselves with leather seats.

We herald a renaissance of wool in car interiors. Thanks to our excellent partner Schoeller Wool Ltd. we were able to adapt and functionalize every single interior component in wool. Our successful cooperation with Frank Rinderknecht continues with the “iChange”. Thankful to Mr. Rinderknecht and his Rinspeed-team, we are looking forward to a future, in which one will be able to adapt even more flexible to the challenges of automotive daily life. Strähle + Hess Ltd. – profiling ideas.

Founded in 1926 the company produces highly specialized technical textiles for car interiors. In Althengstett near Calw (40 kilometers to the west of Stuttgart) 150 employees design, develop, and produce state-of-the-art seat components as well as textiles for casings and gasket systems. With its high potential in experience and know-how as well as its many patents and demand-oriented engineering services, the company is one of the leading international suppliers of textiles – exterior and interior – for the automotive field. The innovative and versatile company joined the Sellner Group in 2007, thus taking another step towards long-term development at the market.

Xmobil Design + Marketing GmbH – The excellent art of finishing

As a long-term partner of Rinspeed, Xmobil Design + Marketing GmbH frequently provides its innovative contributions for the configuration of the interior of the concept cars. For this year’s “iChange” Xmobil is acting as a finisher. For the seat-contact surfaces and the floor of the boot those textiles, which can be found in their original design at another location in the ”iChange”, are interpreted differently by varied steps of finishing like plaiting, gathering and combining: Leather stripes alternate with technical textiles, the seat-contact surfaces can be exchanged in such a way that plaited felt alternates with three-dimensionally shaped technical textiles. Thus the concept of the “iChange” is translated into its interior in a fascinating way. After all, the exterior cover of the “iChange” is a product of Xmobil.

Since the foundation of Xmobil Design + Marketing GmbH in 1997 by Christian Grübl the company has extended and diversified its development and product program continuously. Xmobil is mainly acting as an independent marketing and development partner of well-known European manufacturers and suppliers in the automotive and furniture industry. Utmost attention is turned to aesthetics, functionality, quality, innovation as well as ecology. Xmobil’s mission is mainly understood in the continuous support of the customers and suppliers in the market by consulting, project support and communication among the partners. By cooperating with flexible and highly productive suppliers provided with European production sites and worldwide marketing channels, Xmobil turns new ideas into products and supplies them to the industry and the wholesale trade.

The following materials and products form the base of Xmobil’s development and marketing activity: Leather, artificial leather, technical and fashion fabrics and a combination of these materials. Leather fittings, seat covers, seating systems, floor mats in textile, velour, rubber or a combination of these materials, covers (indoor, outdoor, transport, presentation), accessories and lifestyle products. Highquality furniture, wall and floor panels for different areas.

Xmobil runs two offices in Germany: The headquarters are located at the lake of Tegernsee south of Munich, a branch office is located in Lorsch close to Frankfurt.
