2014 Porsche 919 Hybrid LMP1 Racecar in 100-Plus Real-Life Photos + Tech Specs

919 Hybrid gif1

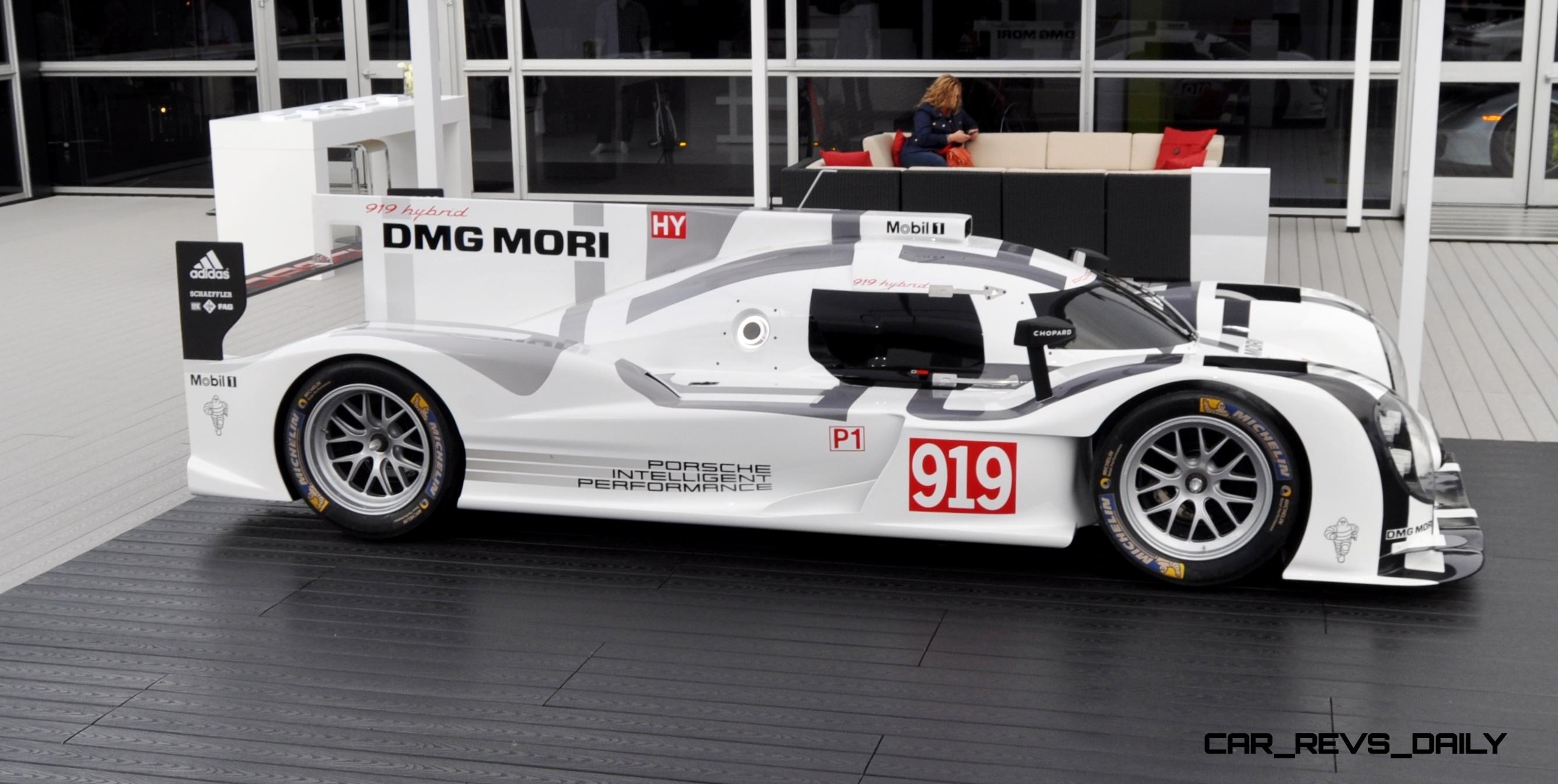

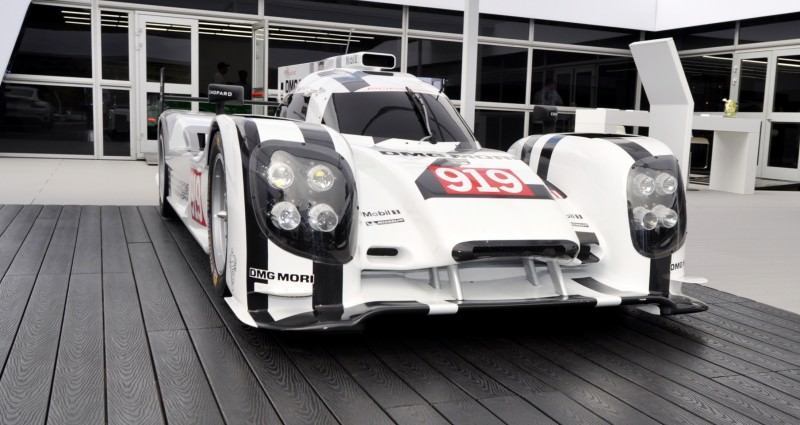

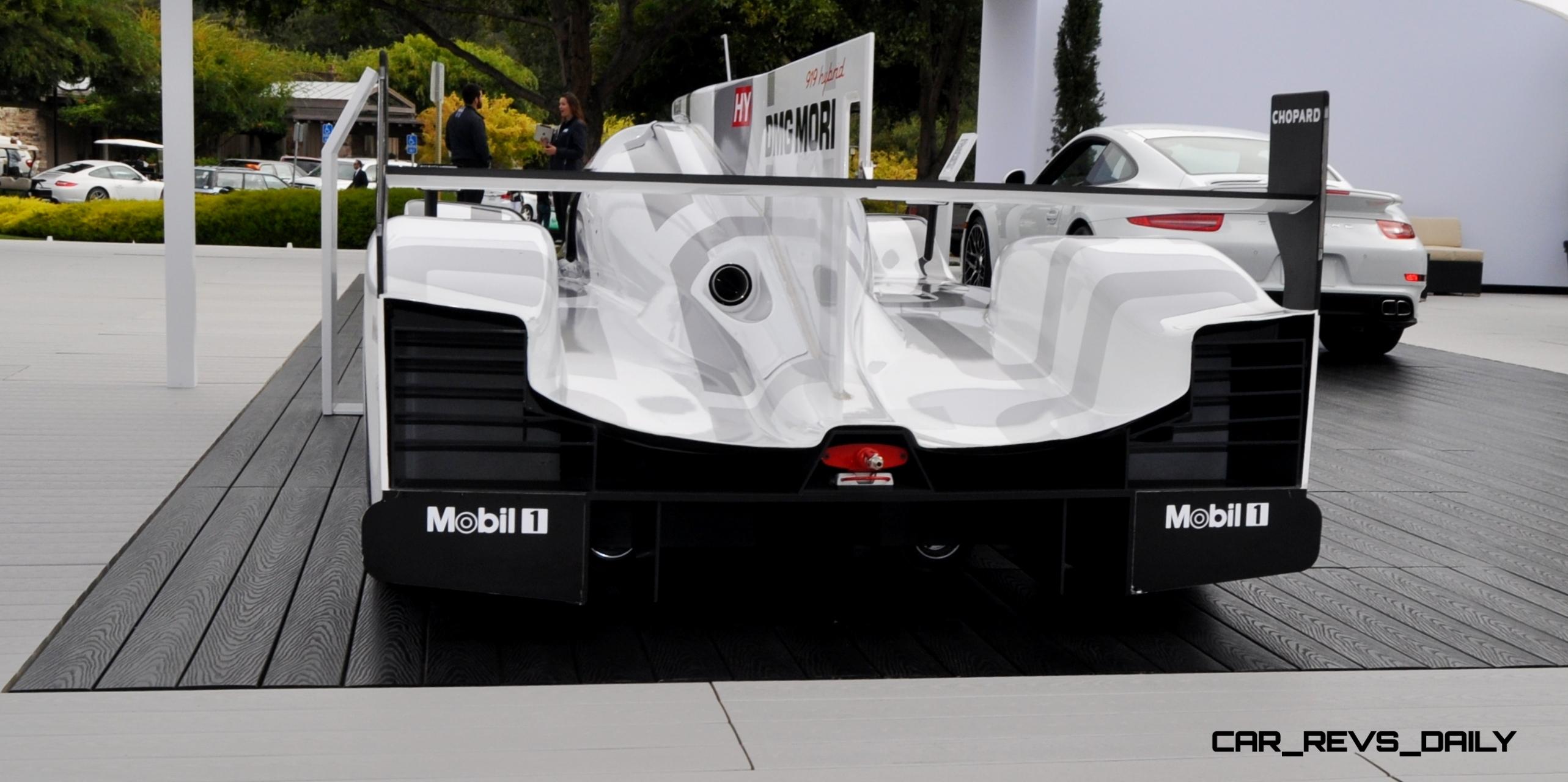

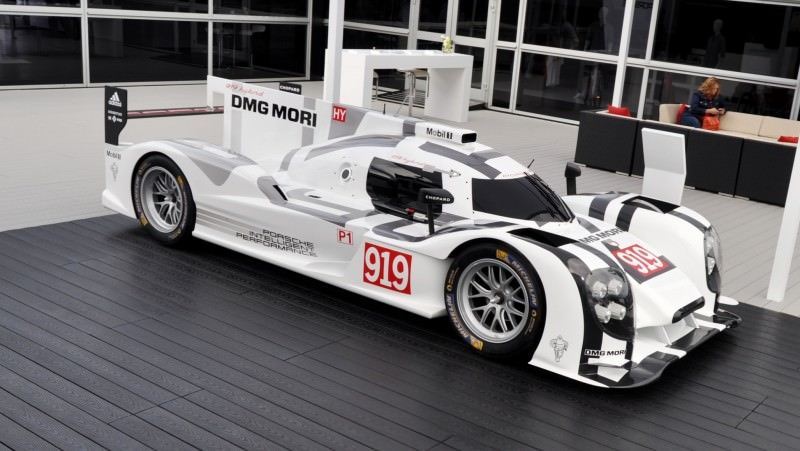

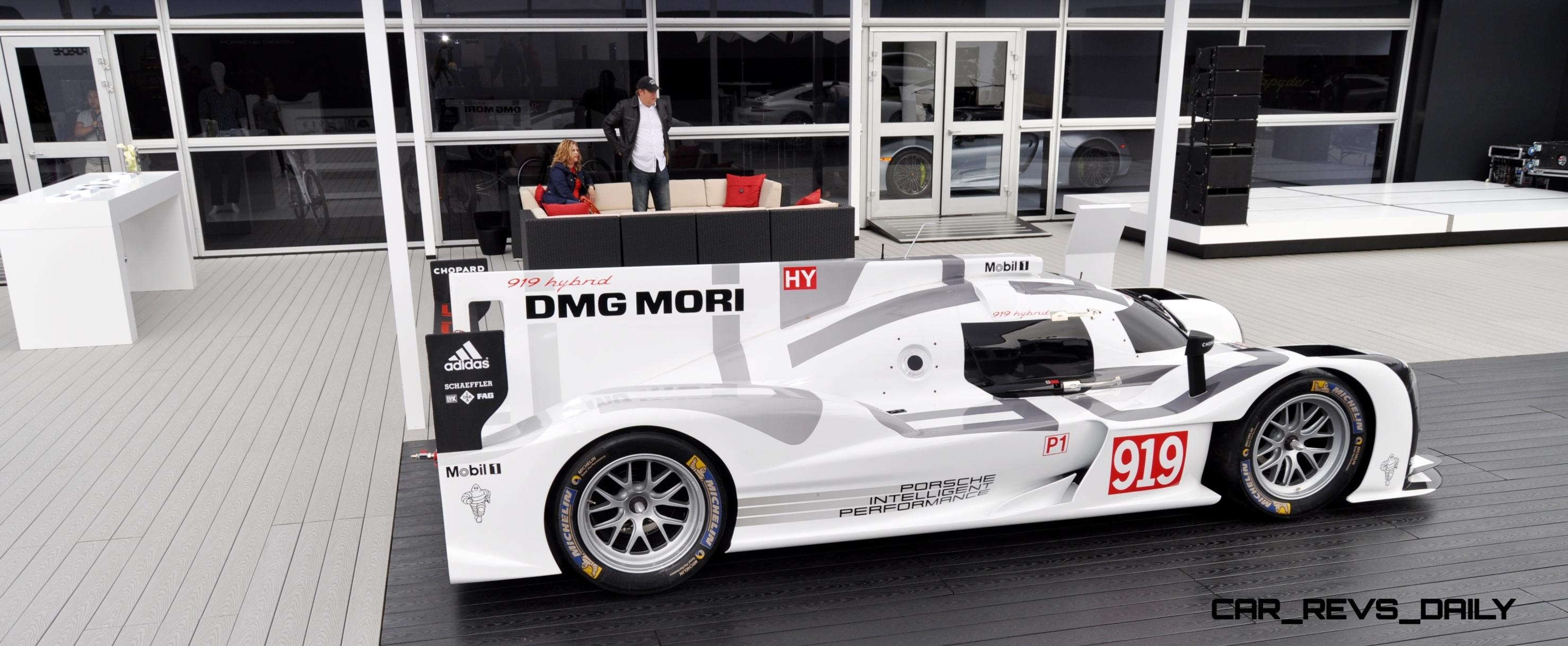

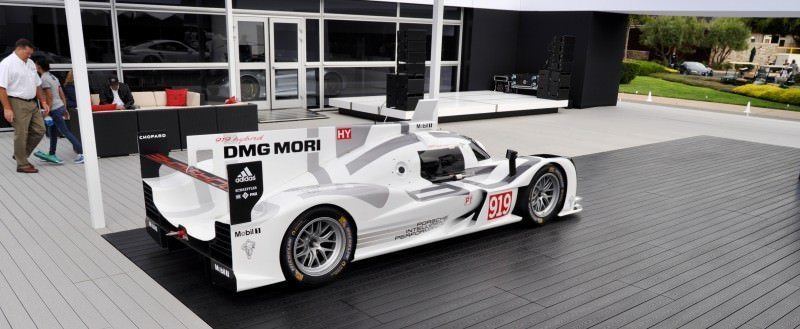

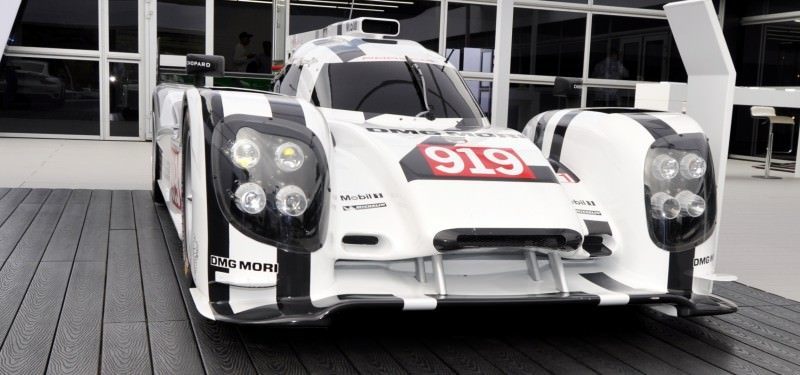

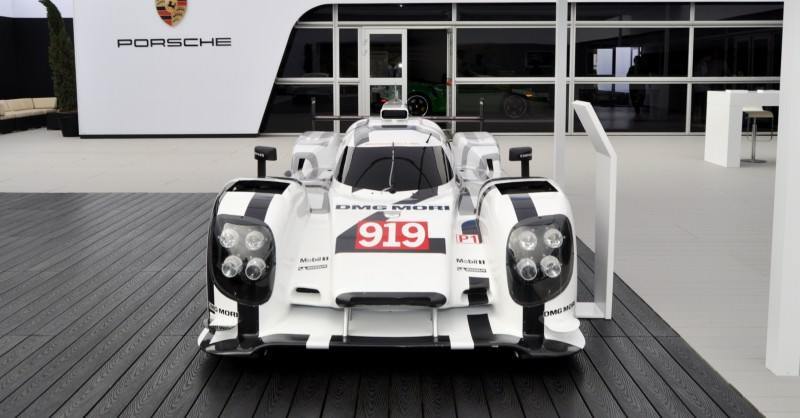

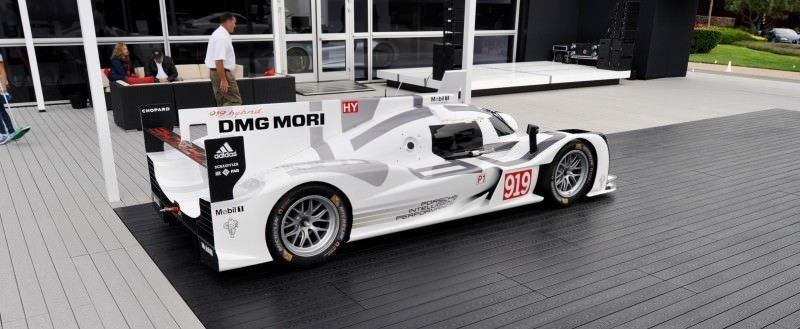

Full disclosure: this is the 919 design and aero prototype on loan from the Porsche Museum in Germany, and not one of the team’s actual Le Mans 2014 competitors.

Even so, being touchably close to any racecar is enought to get the heart beating faster.

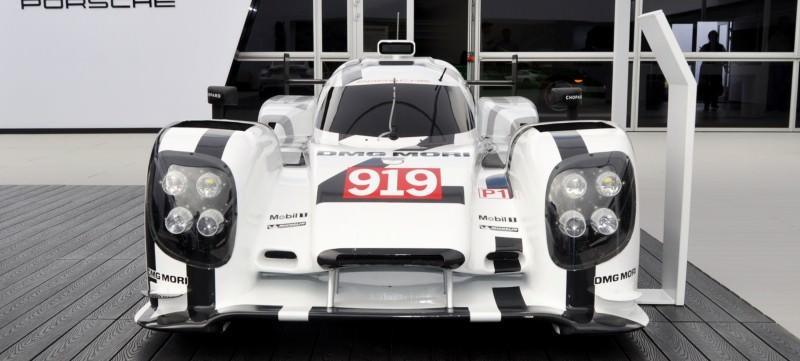

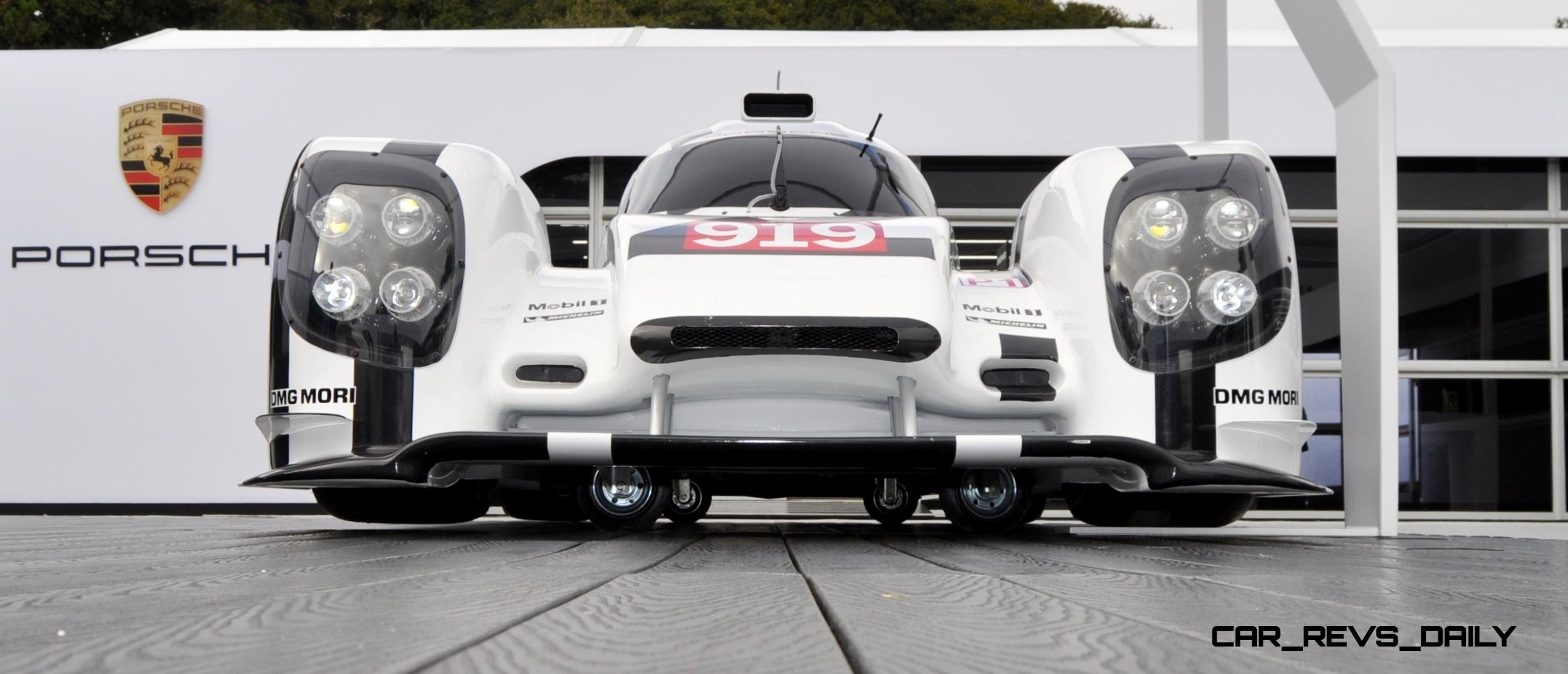

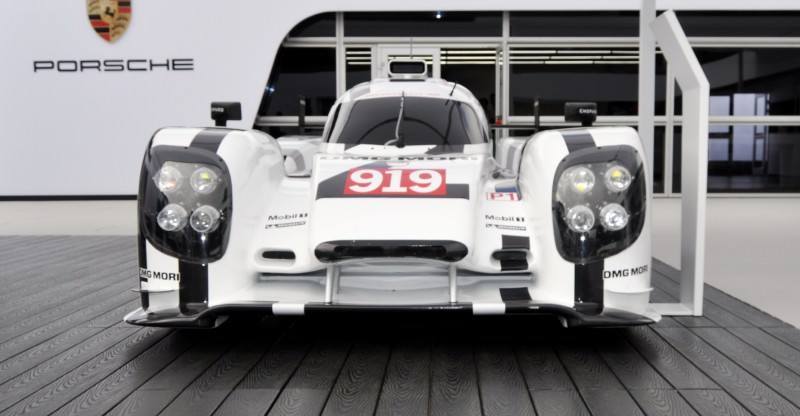

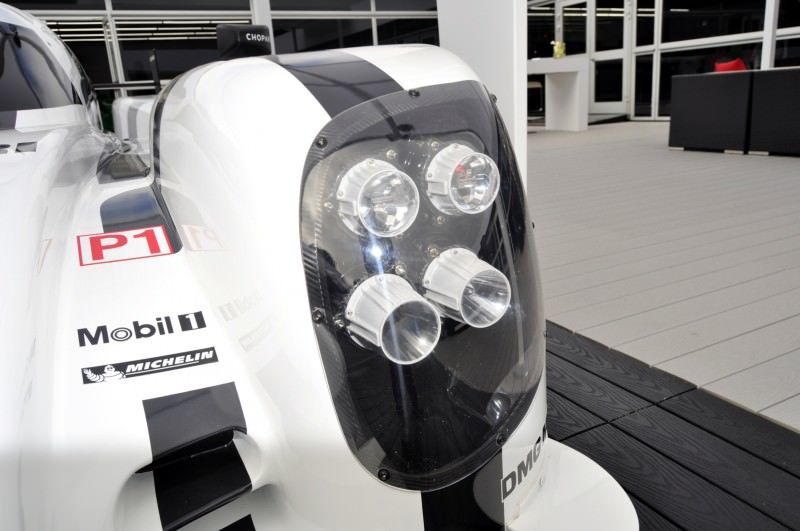

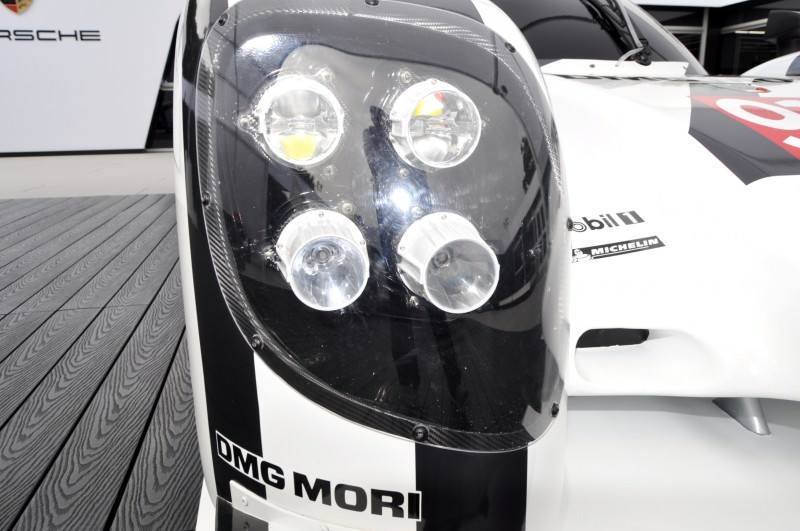

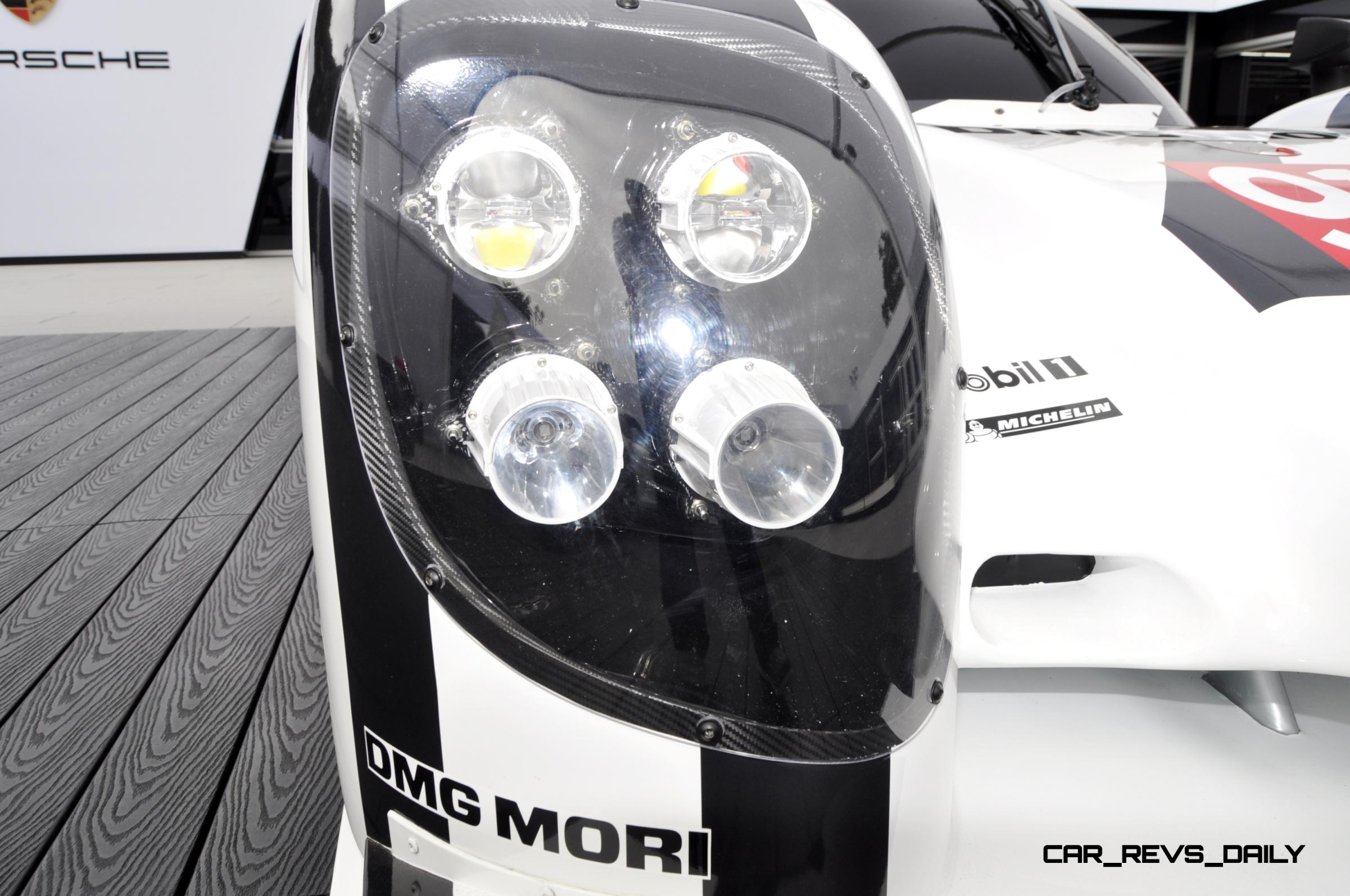

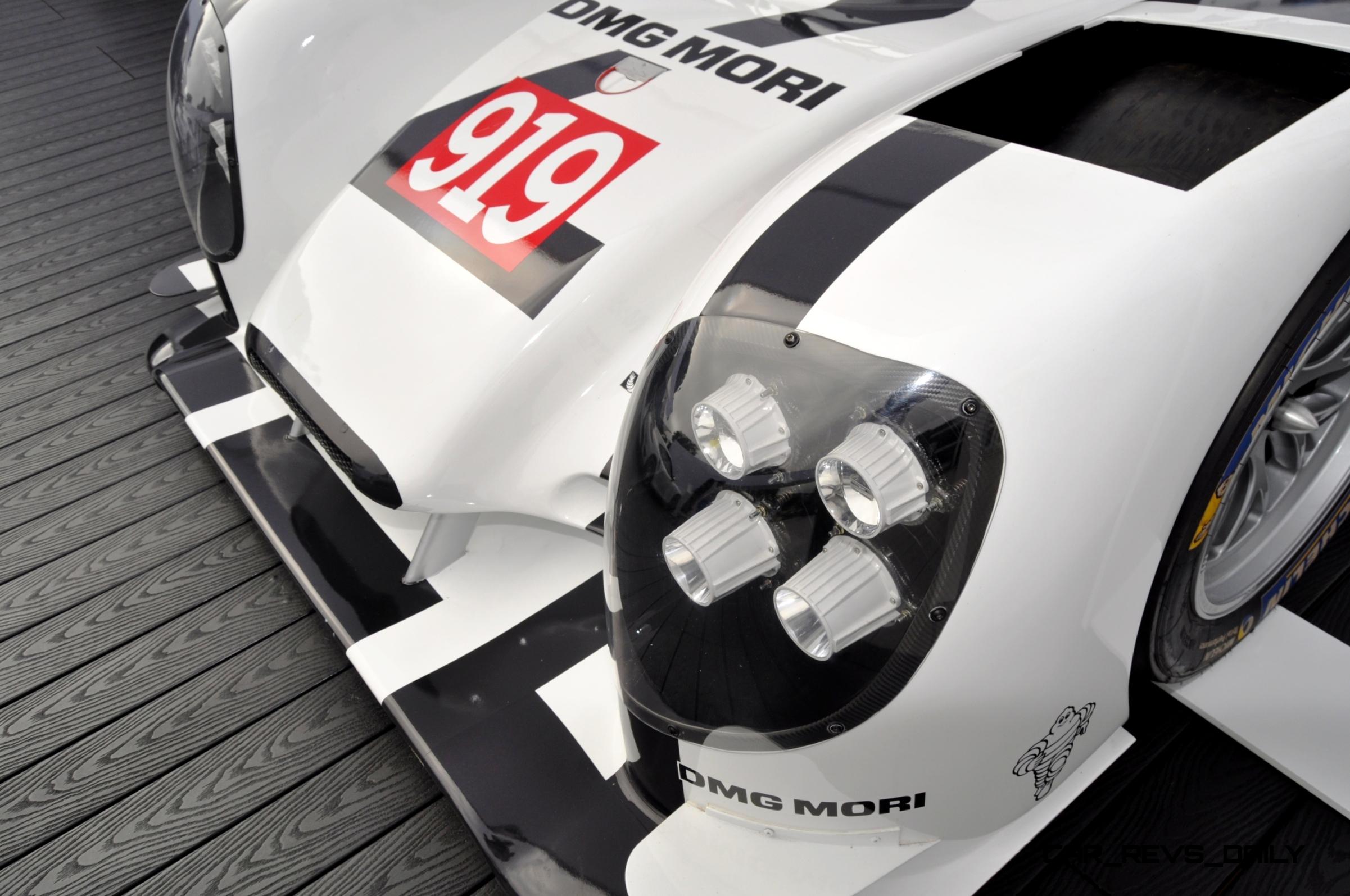

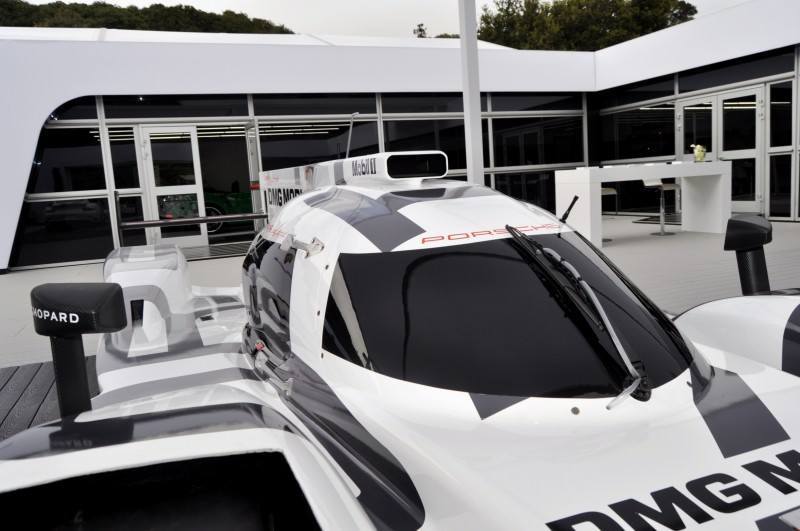

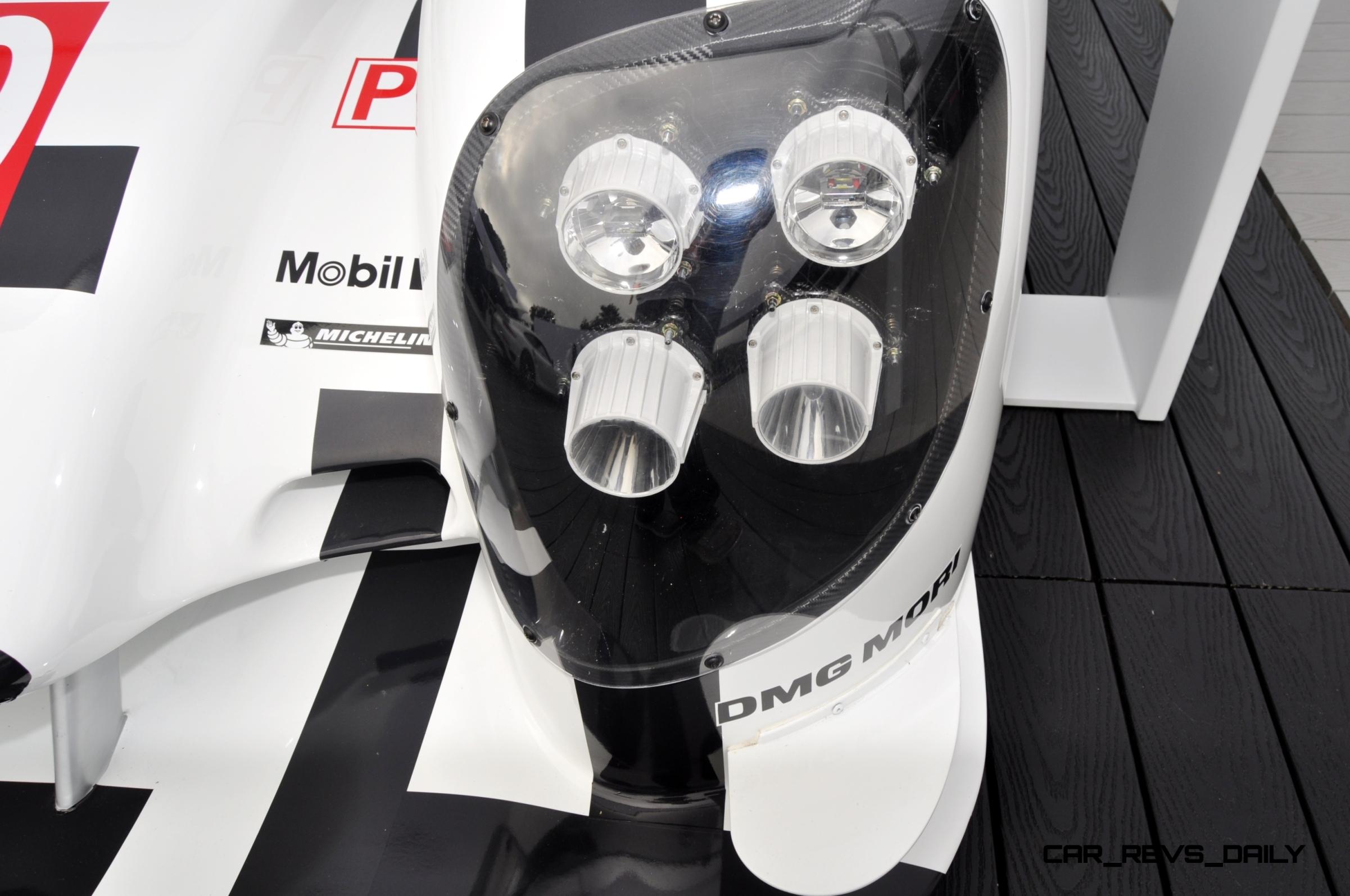

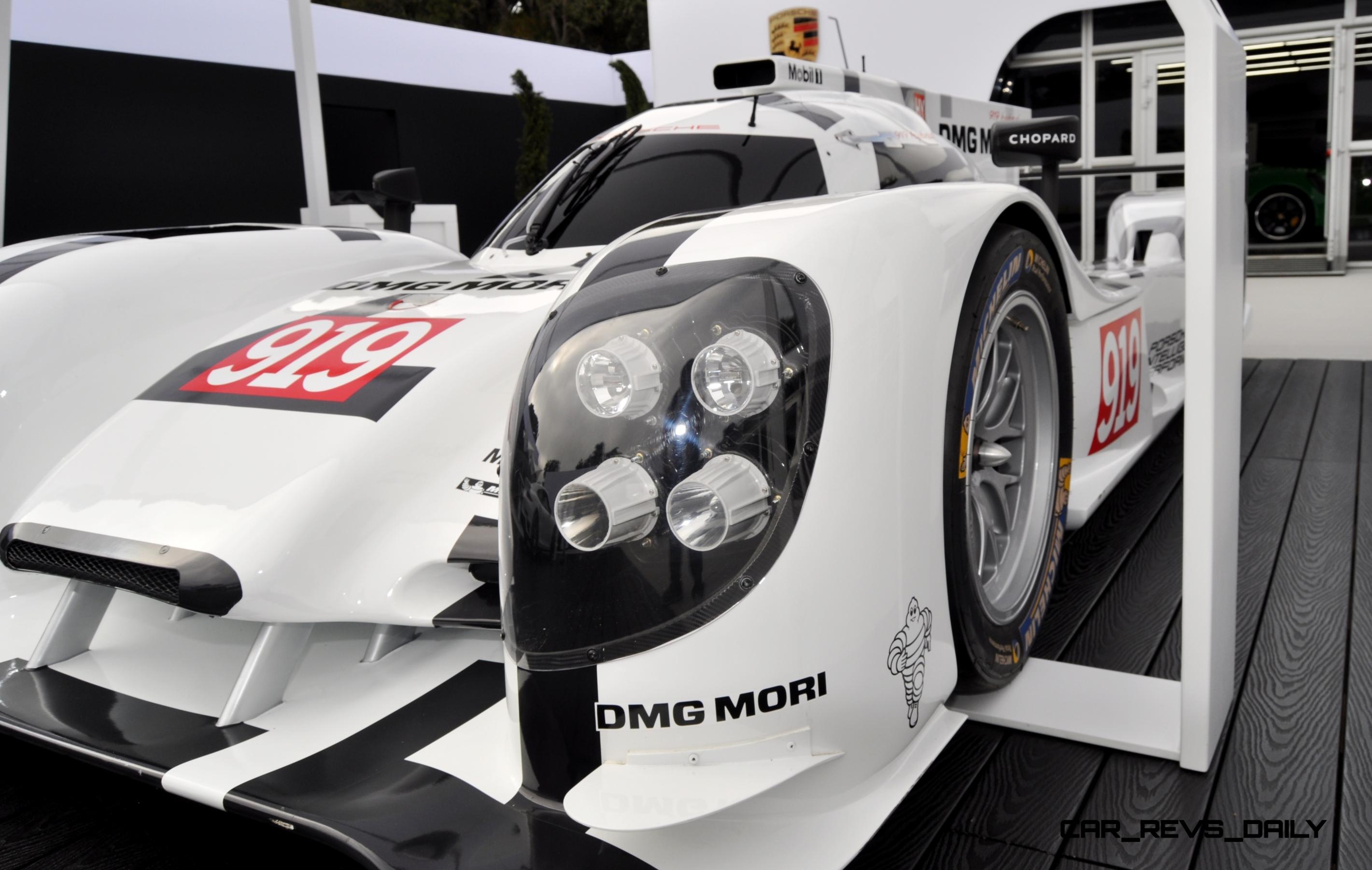

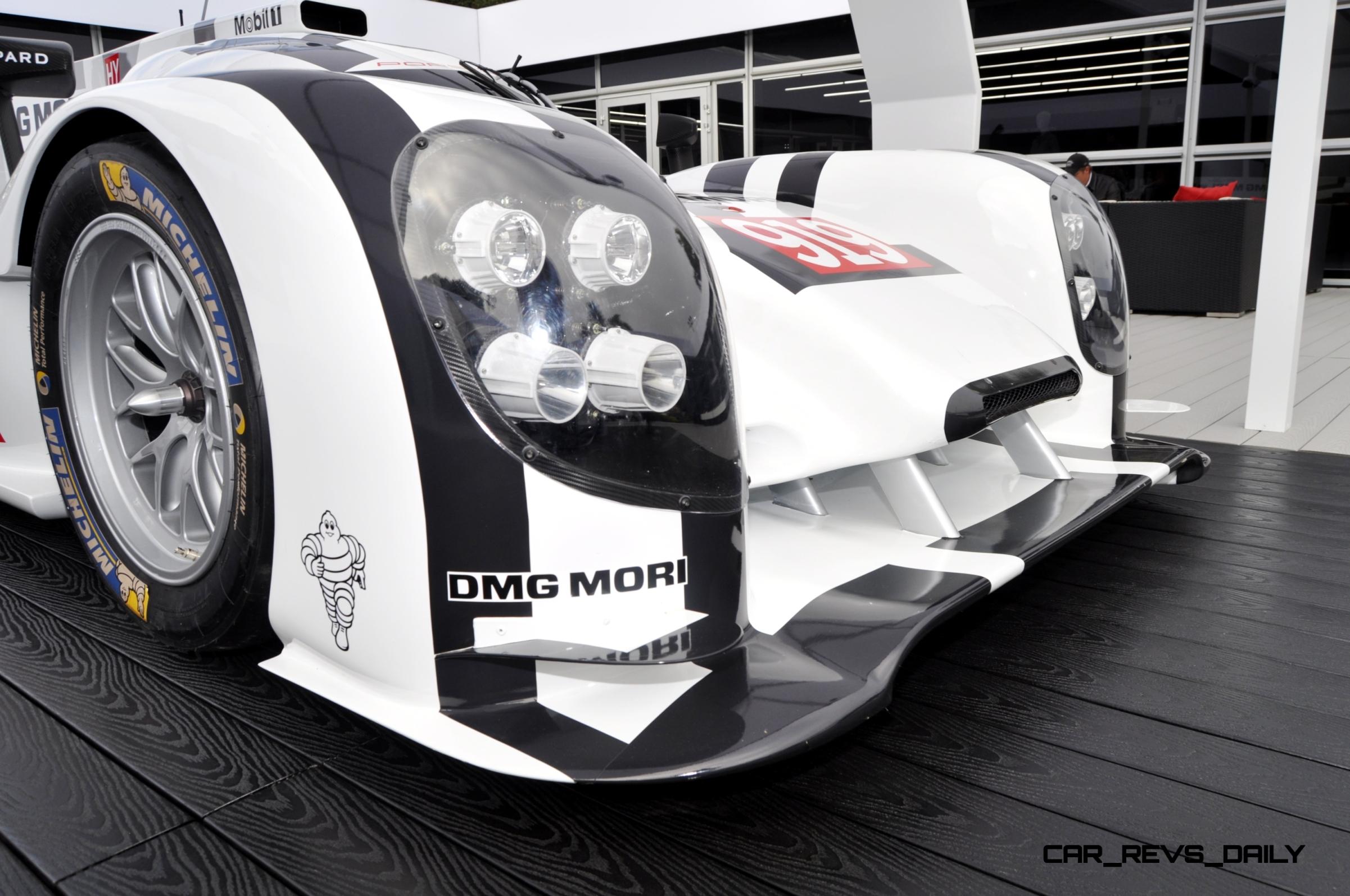

In fact, even cropping these photos has made a big thump-thump in my neck! The closer my eye comes to the quad-beam lighting setup, the more exciting the car seems — even a static model.



Despite much respect for the Audi Motorsport team, the Porsche 919 Hybrid was the favorite on this sofa during June’s Le Mans race. Well, to be fair to Toyota, we mainly just wanted a non-Audi team to win the top LMP1 class. The Audi dominance of the race is both boring and tiresome at this point. There is no way to sugar-coat that.

Sure, they work very hard and are brilliantly skilled as a team.

But nothing would have sent the Audi guys home more humble than being beaten by Porsche on their first year back in the race.

Sigh… can you imagine!?

Maybe next year… when Nissan will also field a LMP1 car — making it a four-way rumble par excellence...!



2014 Porsche 919 Hybrid

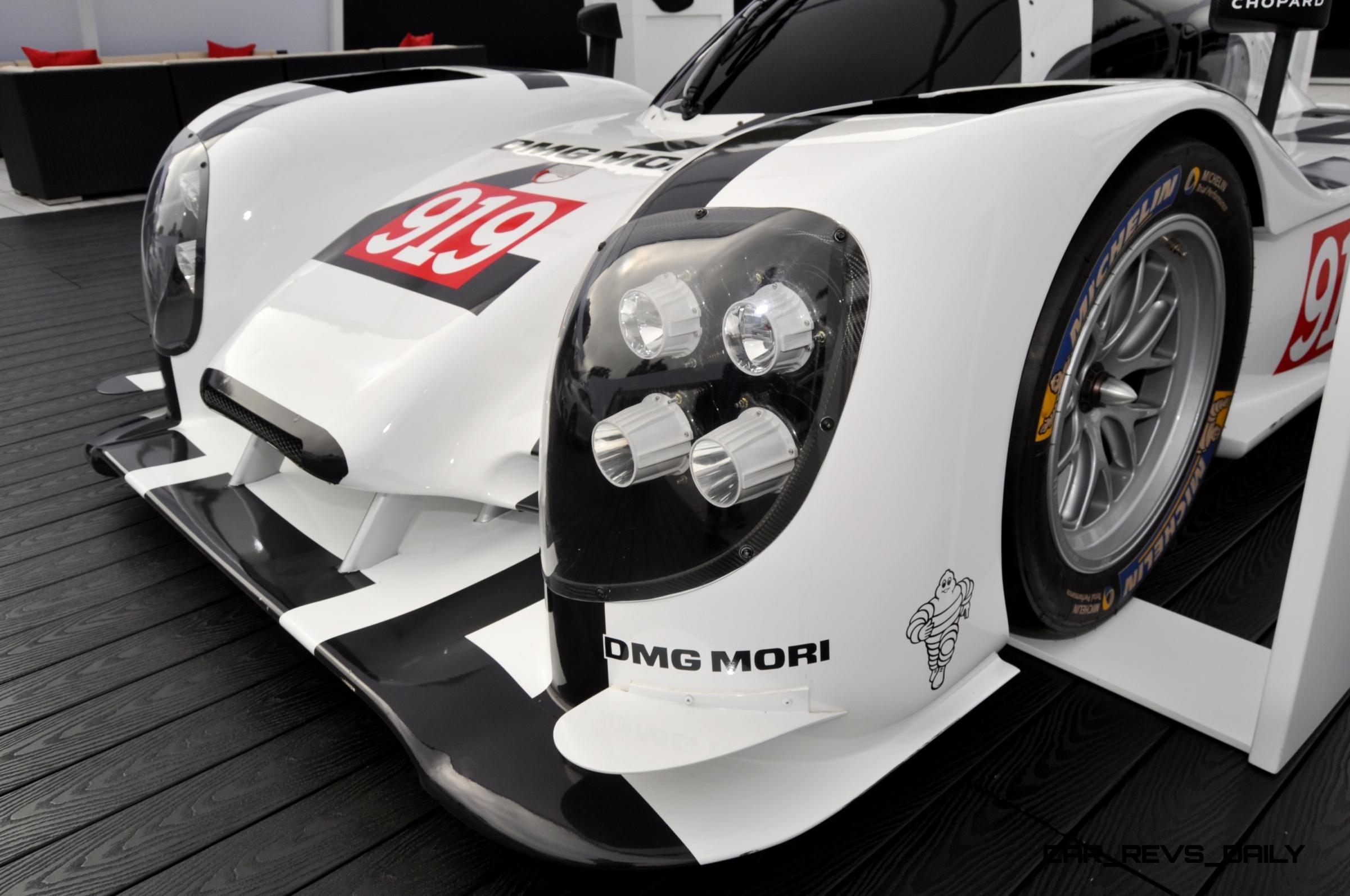

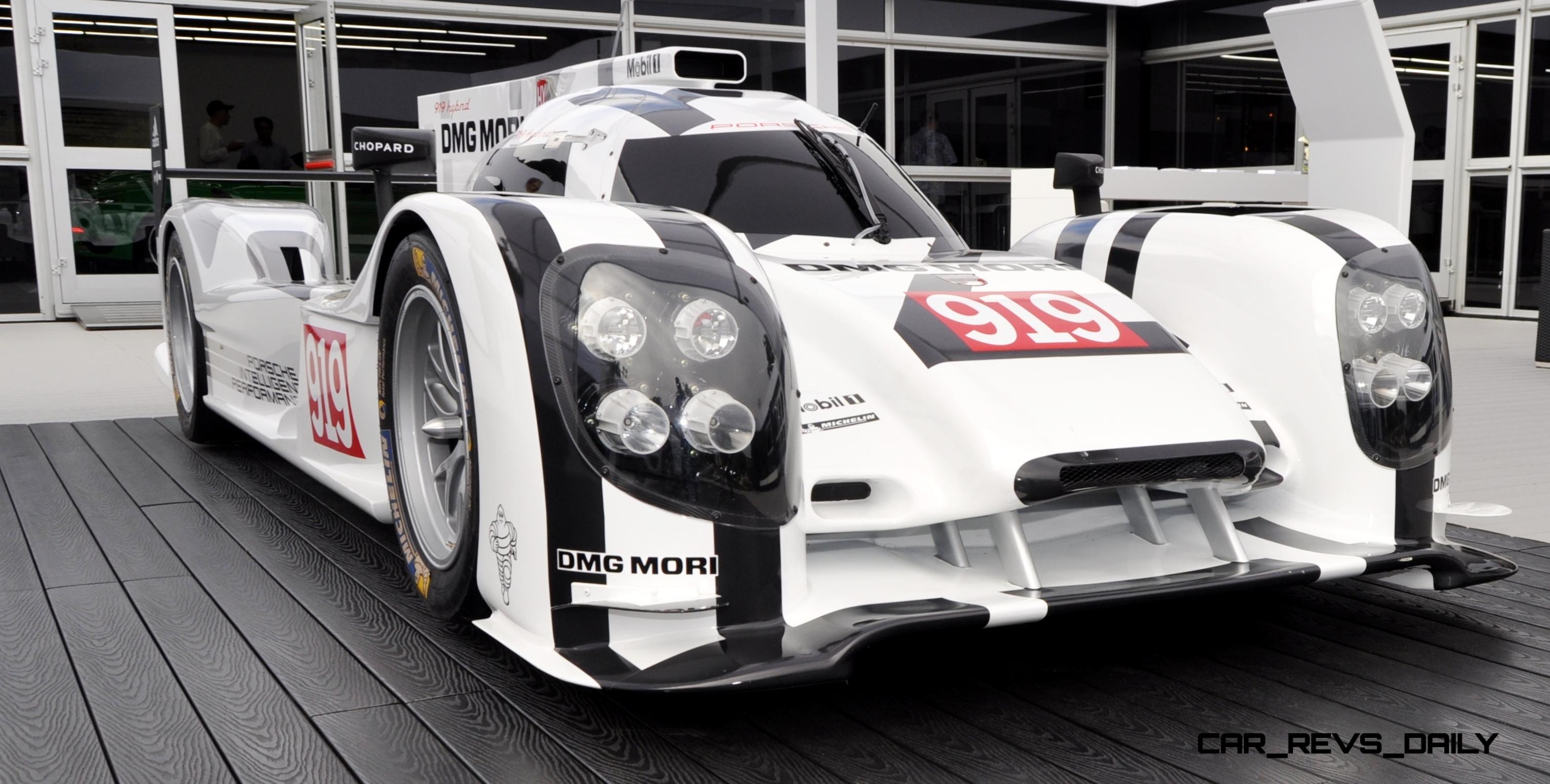

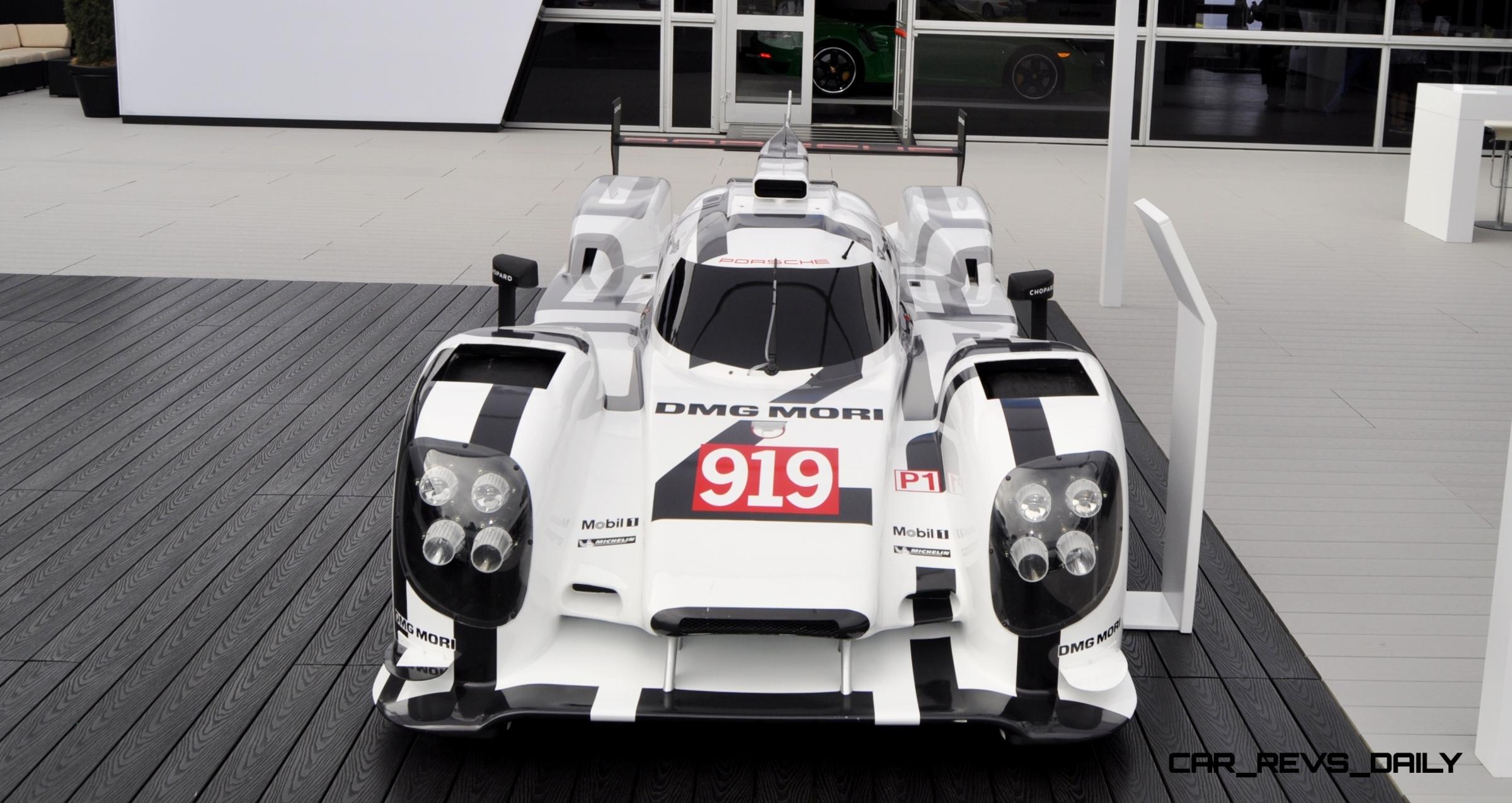

Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 71 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 69 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 68 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 67 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 65 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 61 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 60 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 59 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 58 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 55 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 54 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 53 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 52 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 51 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 50 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 49 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 48 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 47 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 46 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 45 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 44 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 43 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 41 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 40 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 38 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 37



Technical Specs

2014 Porsche 919 Hybrid

The vehicle

Vehicle type Le Mans Prototype class LMP1
Monocoque Composite fiber construction made of carbon fibers with a honeycomb aluminum core.
On-board system battery Lithium-ion battery

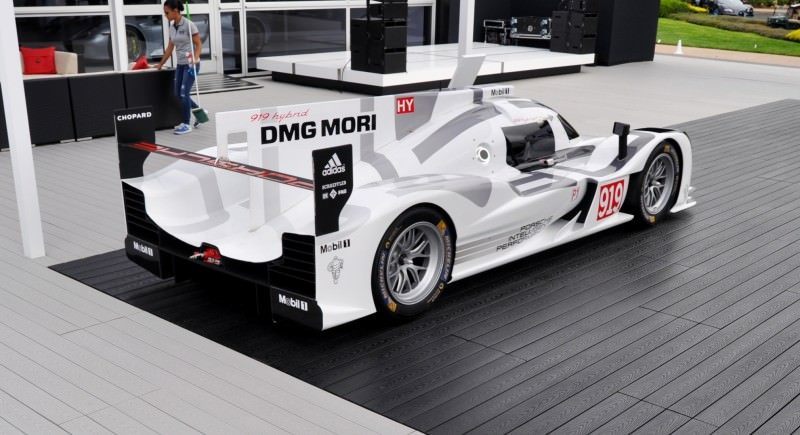

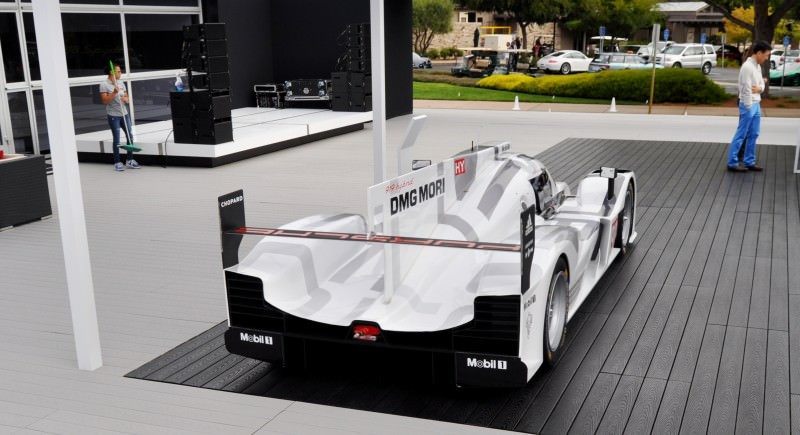

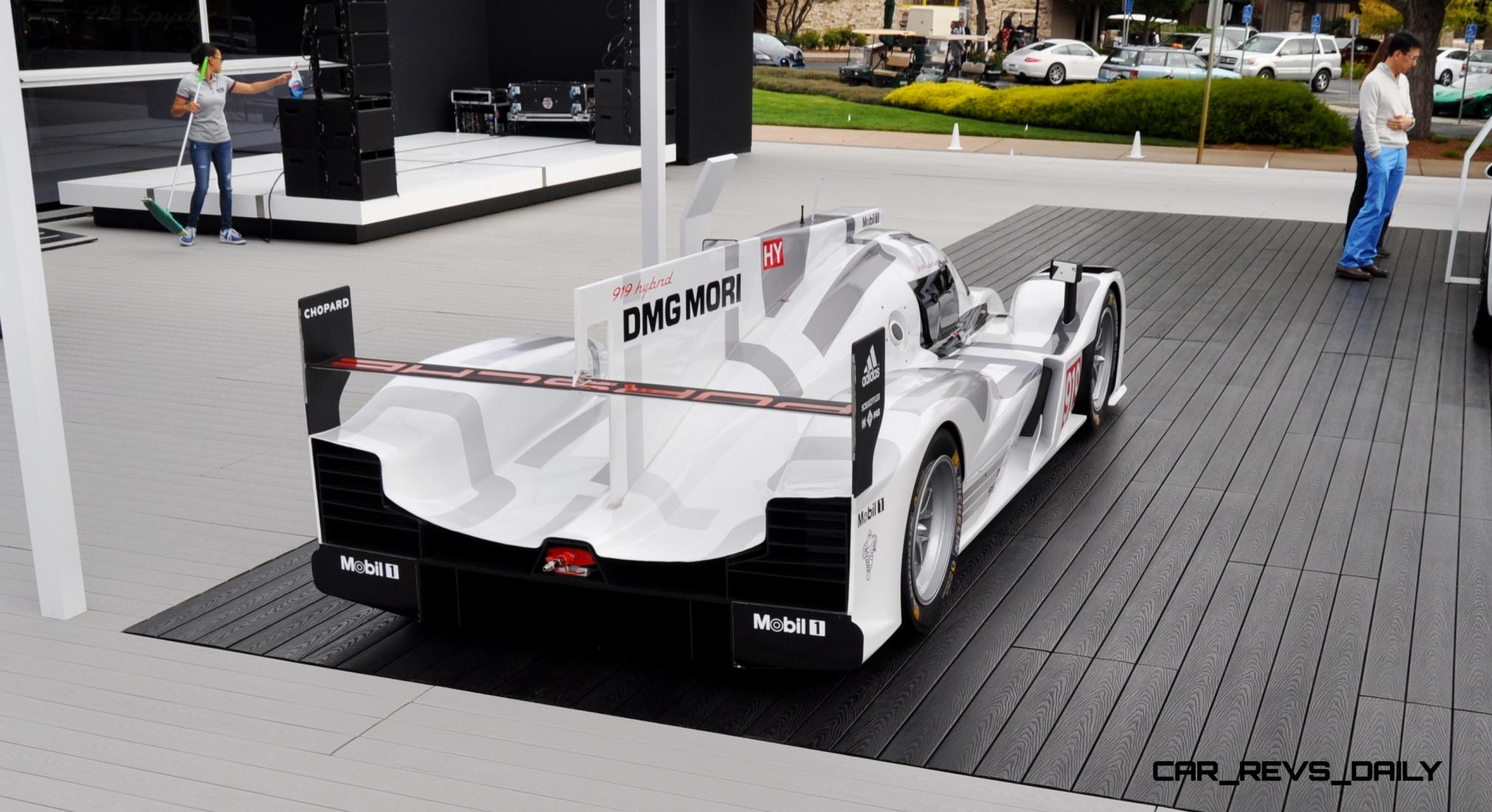

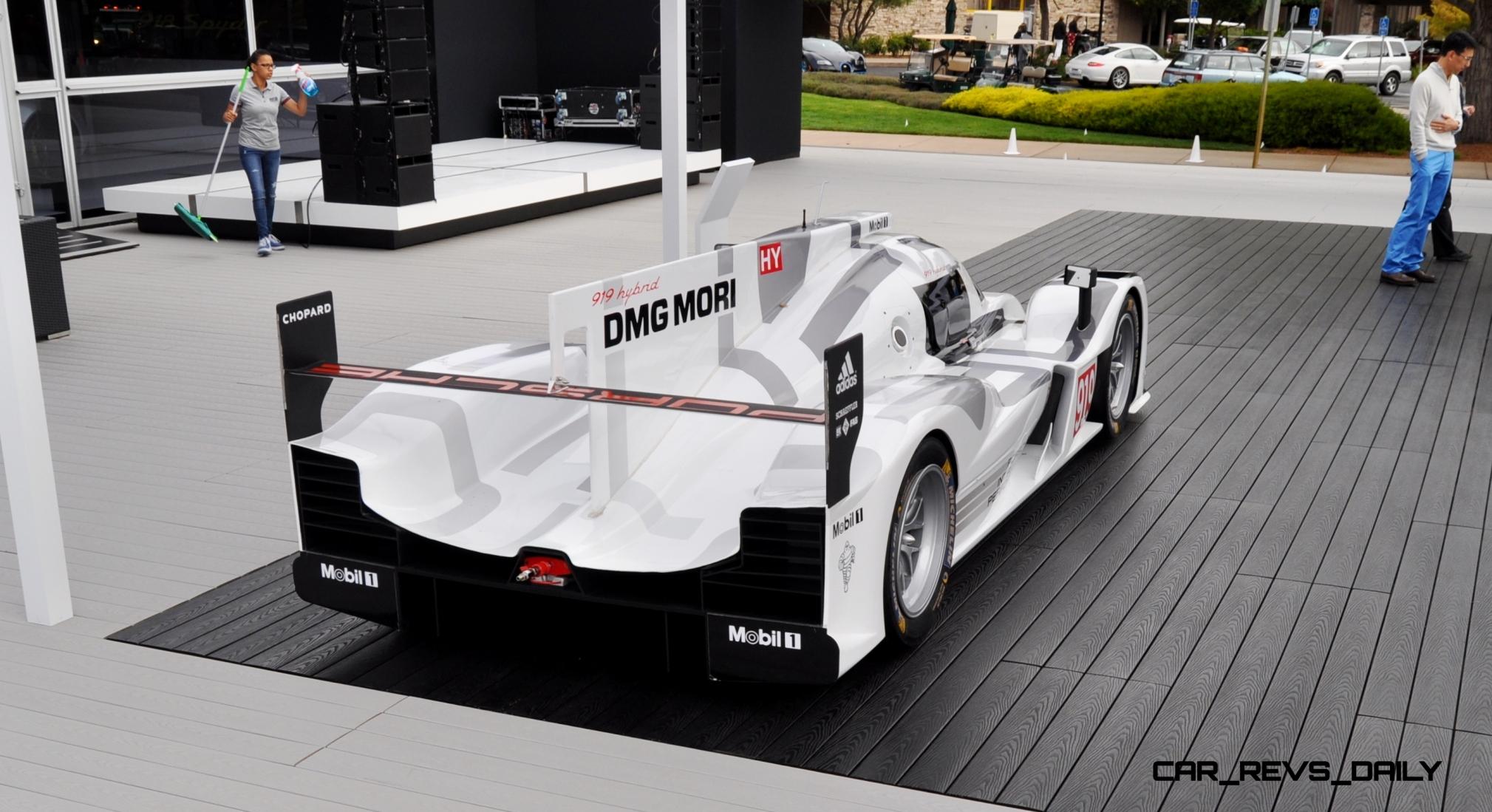

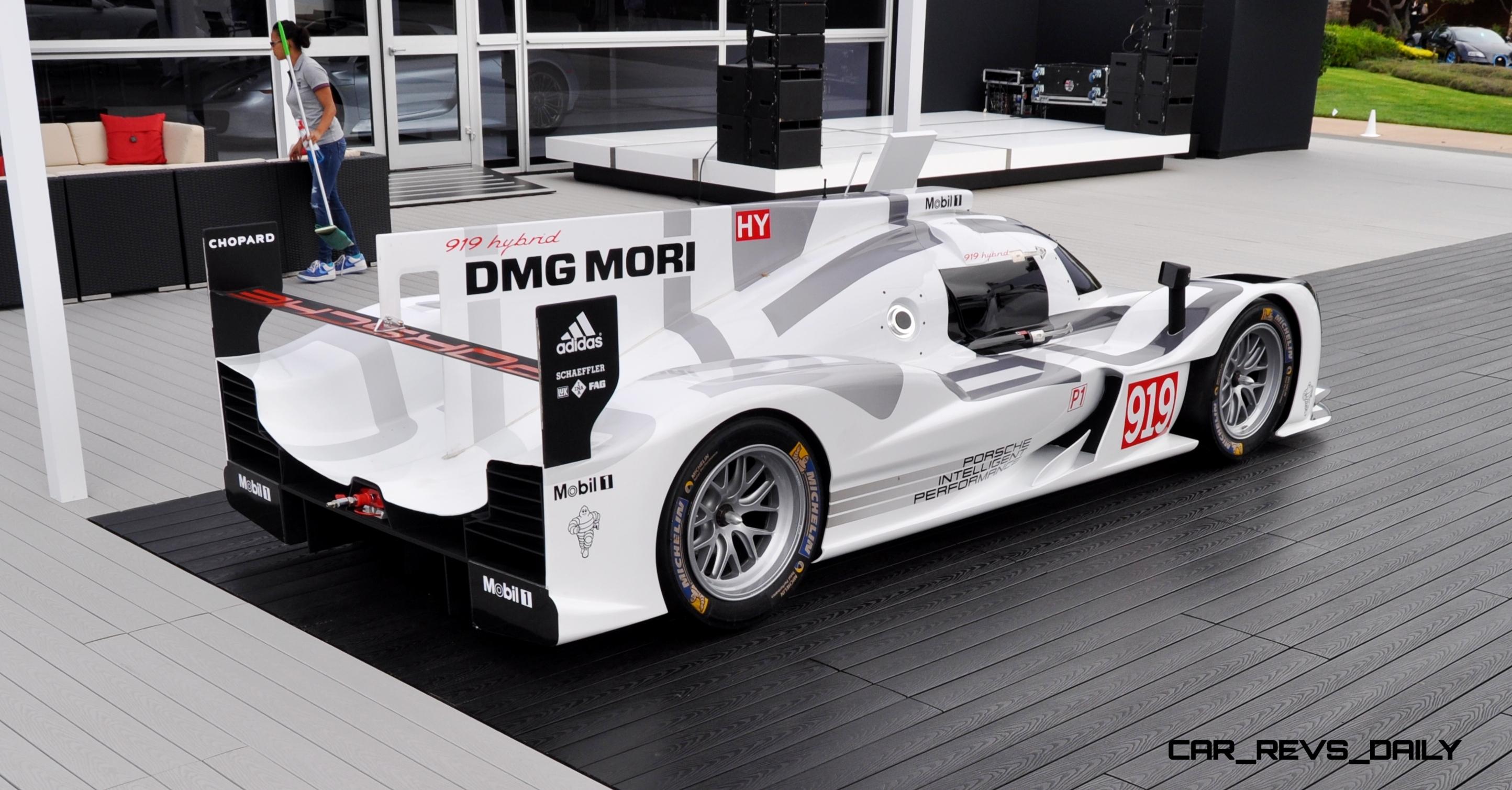

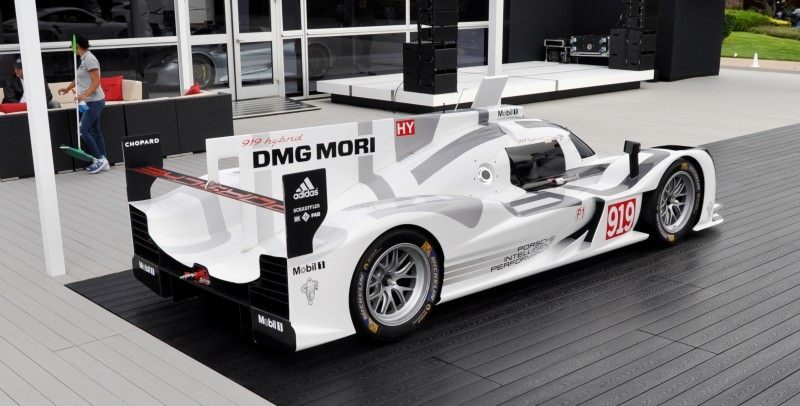

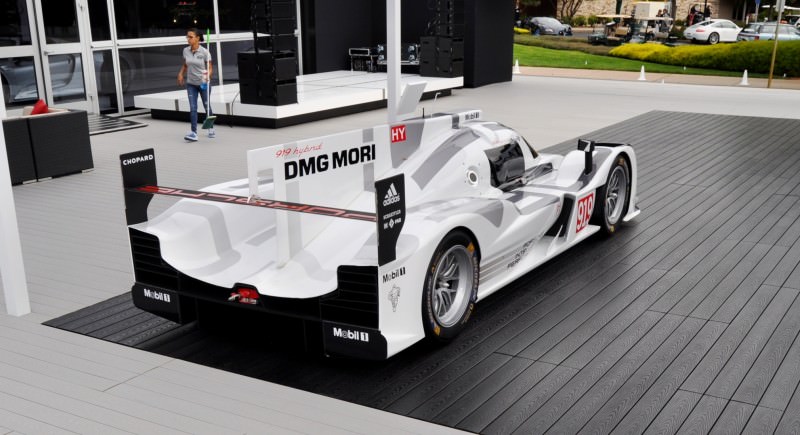

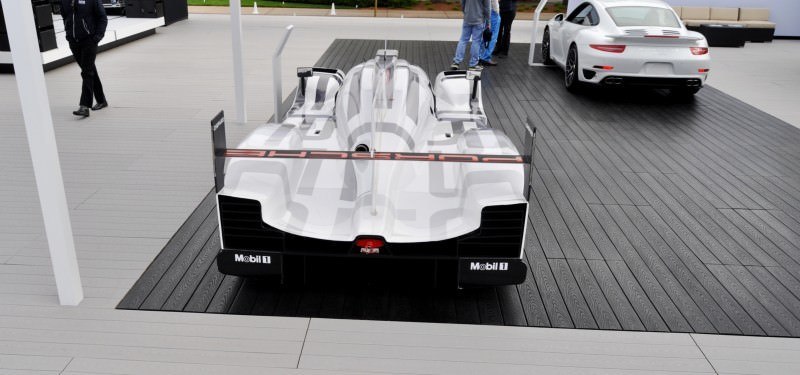

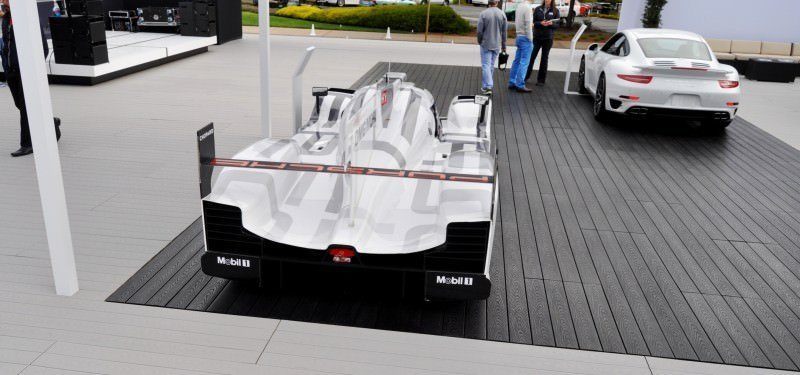

Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 72 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 93 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 92 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 91 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 90 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 89 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 88 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 87 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 86 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 85 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 84 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 83 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 82 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 81 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 80 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 79 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 78 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 77 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 76 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 75 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 74 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 73

Engine

Engine V4 engine with turbocharging
Engine management Bosch MS5.6
Engine lubrication Dry-sump lubrication
Displacement 2.000 ccm
Power > 370 kW (> 500 hp)

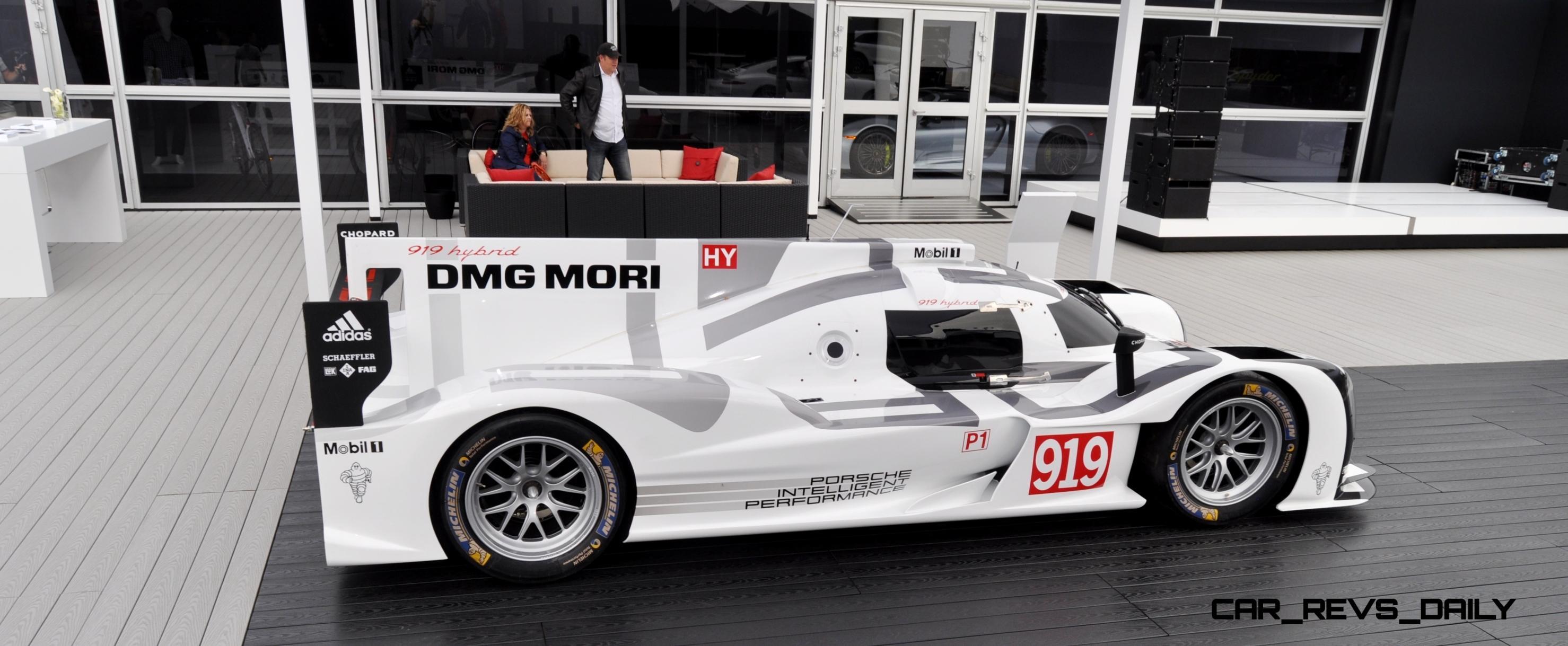

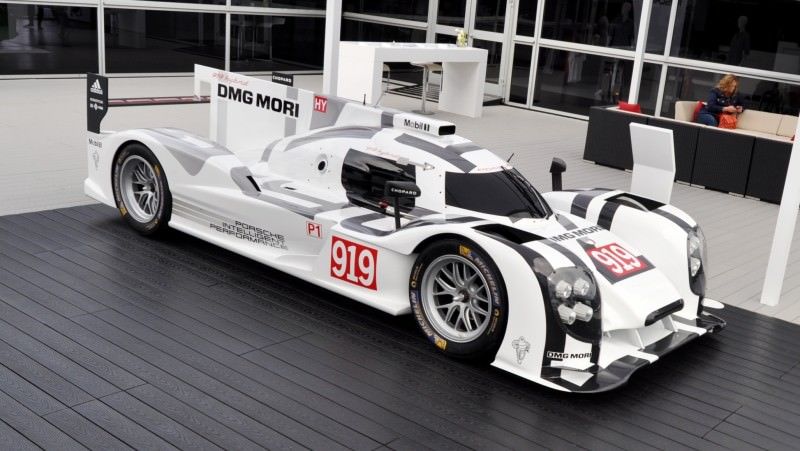

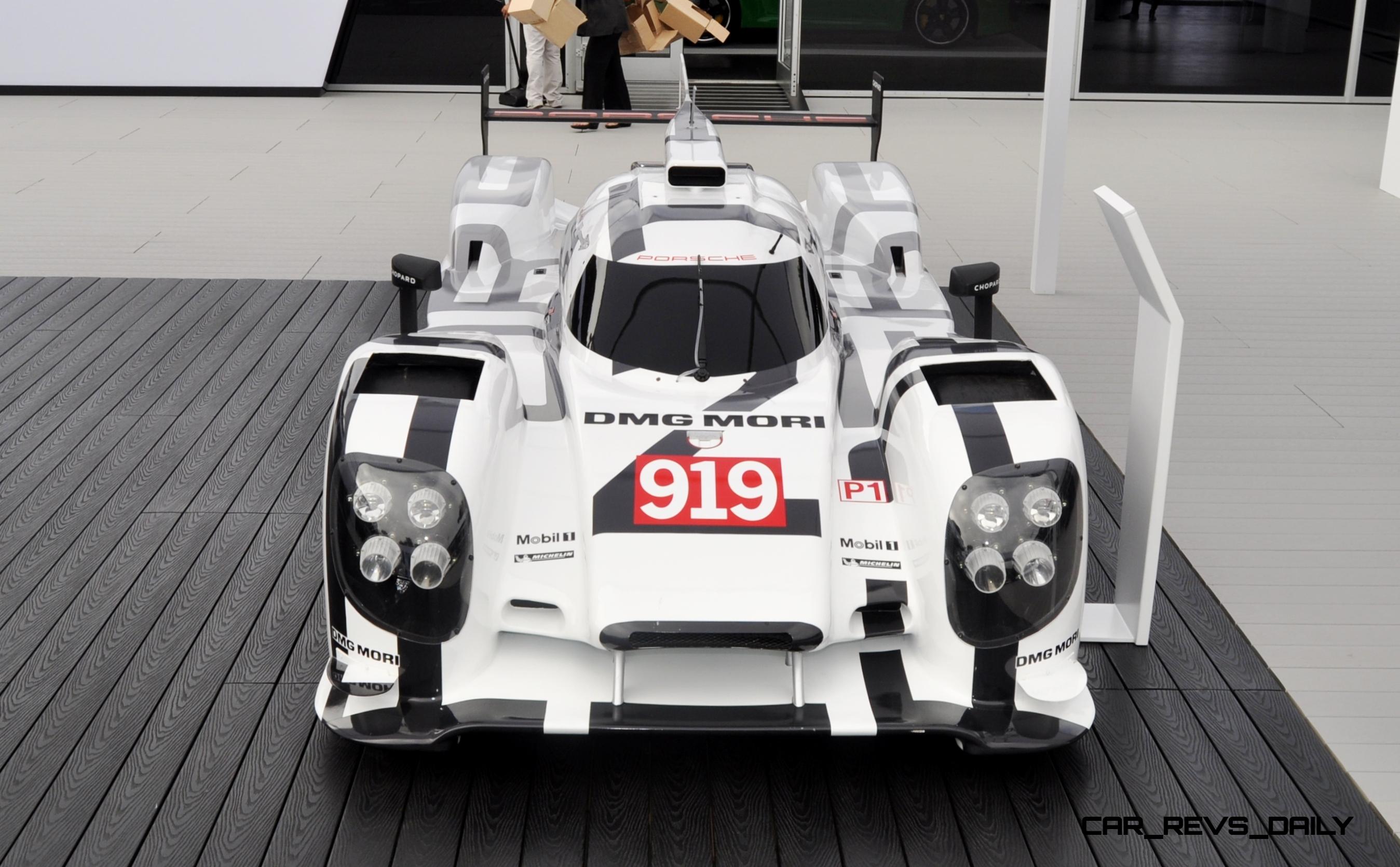

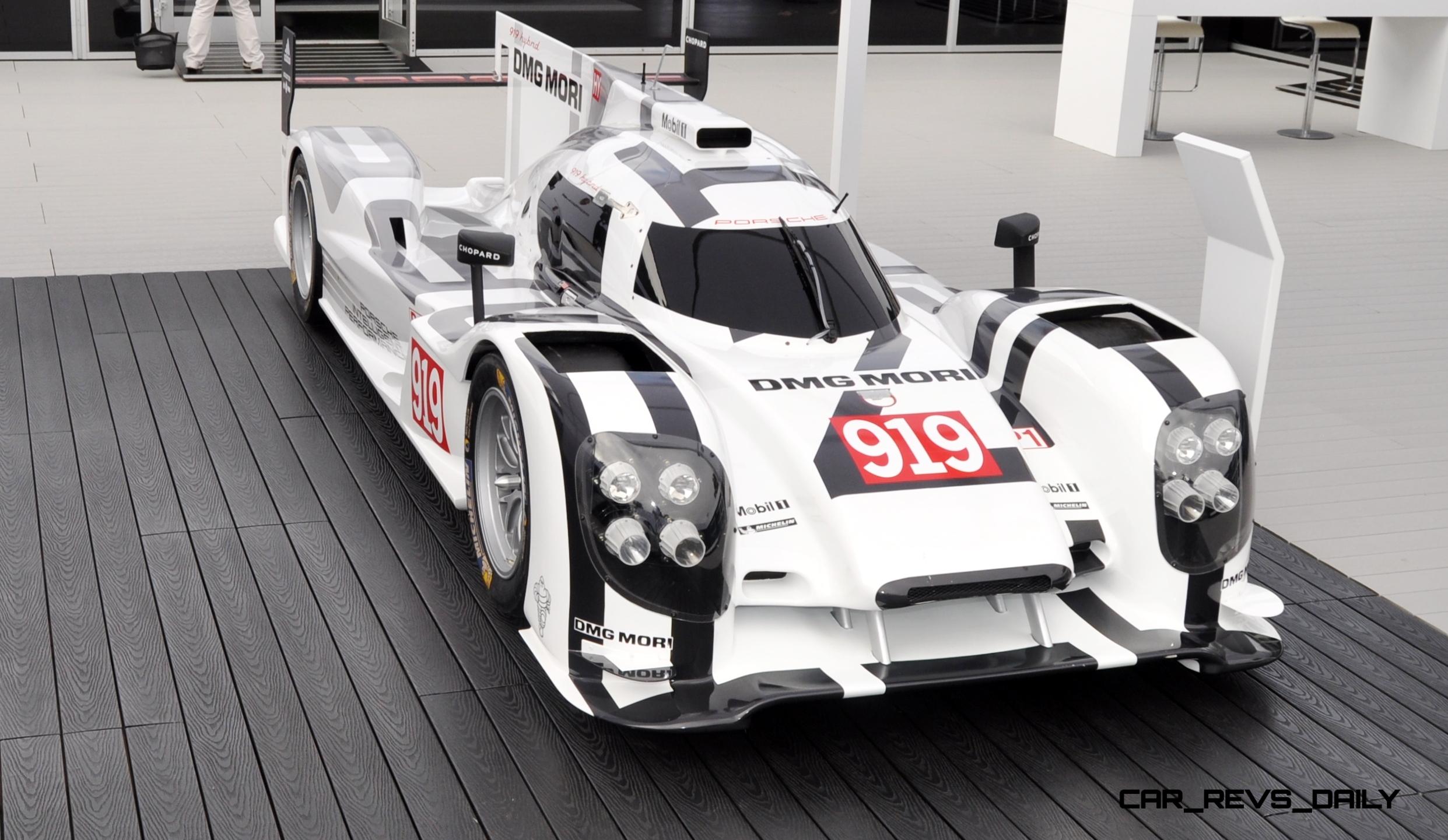

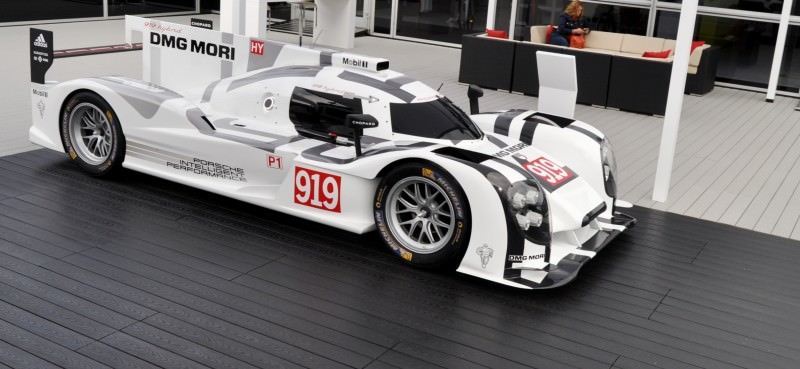

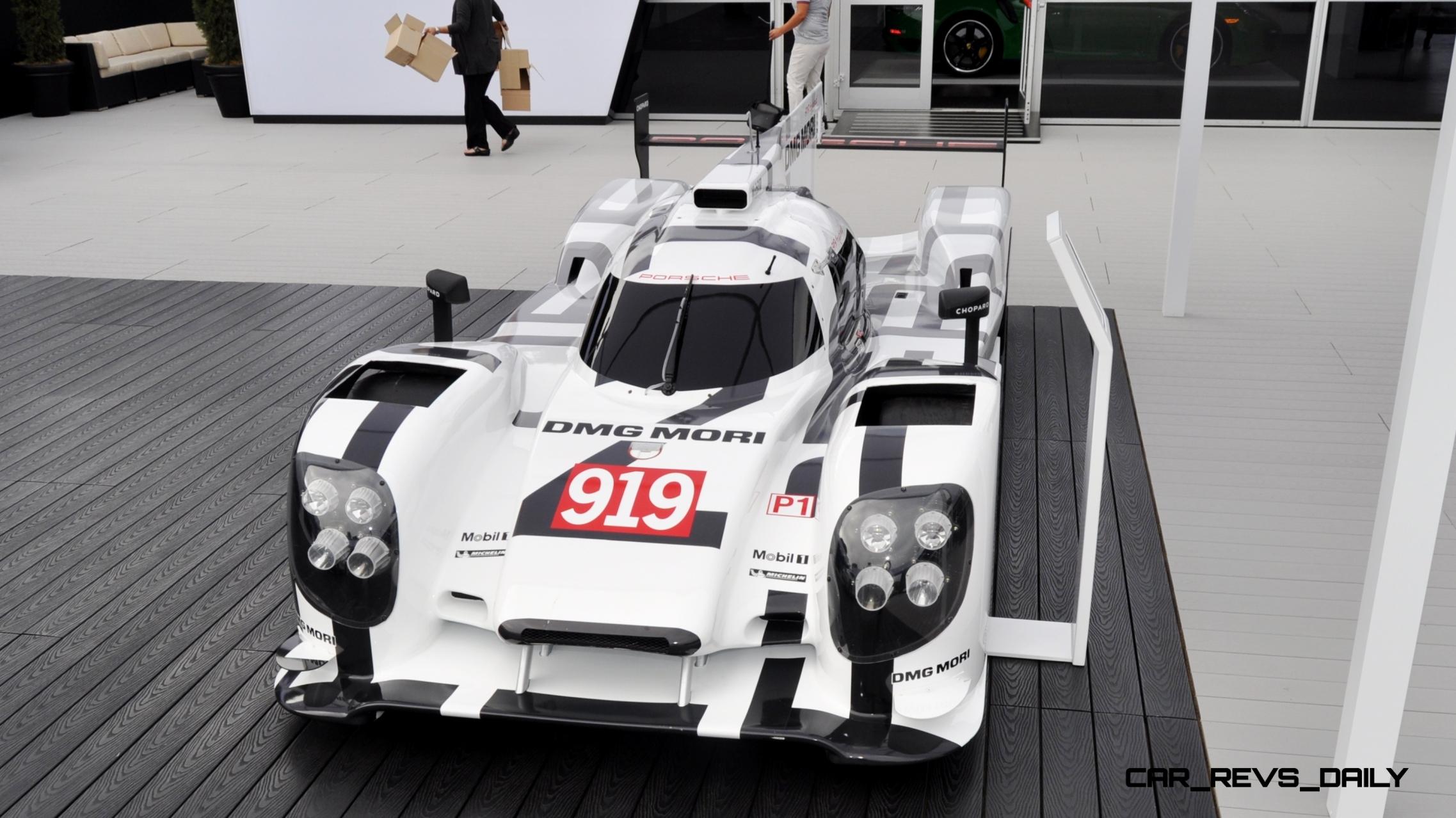

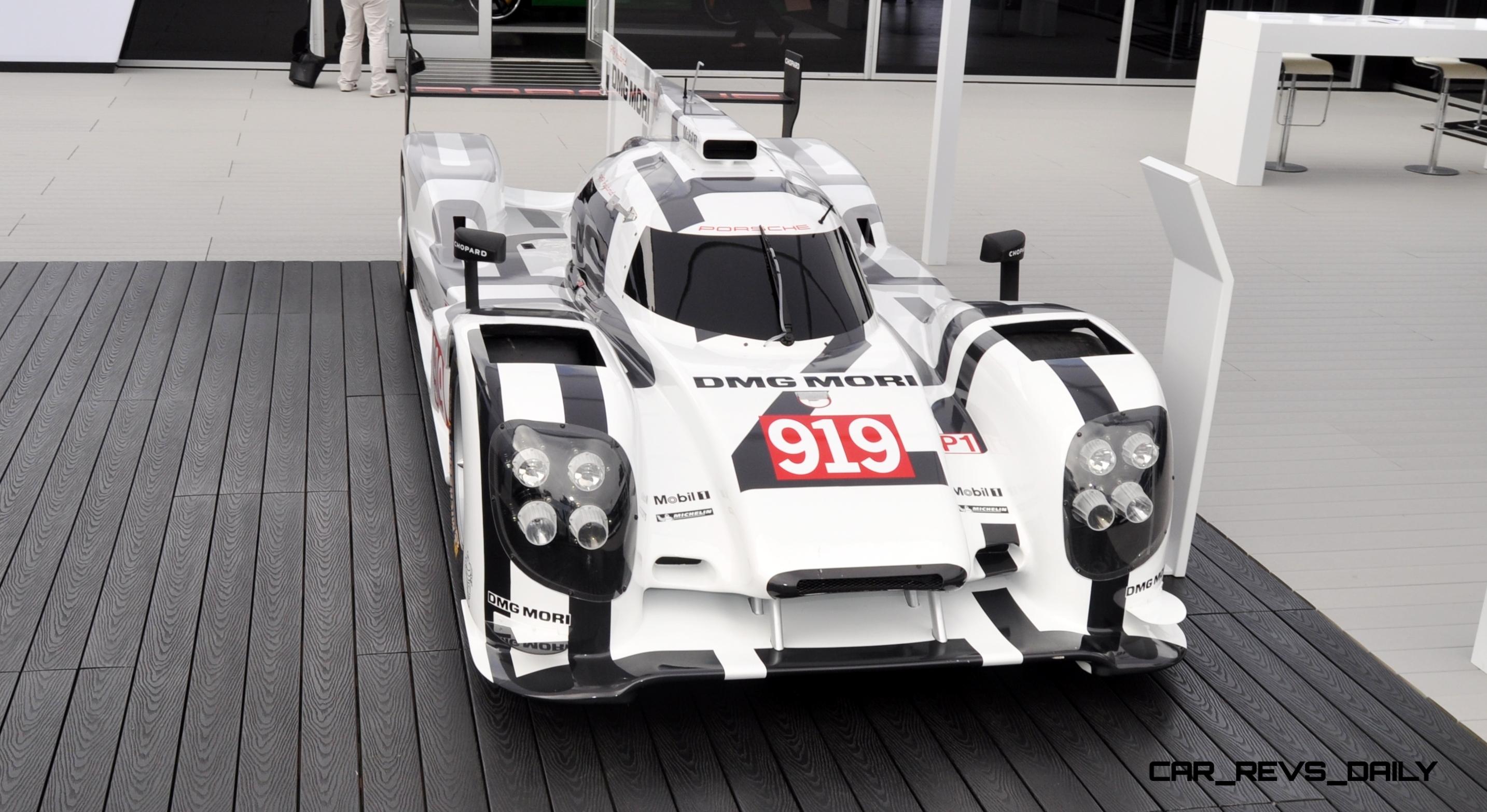

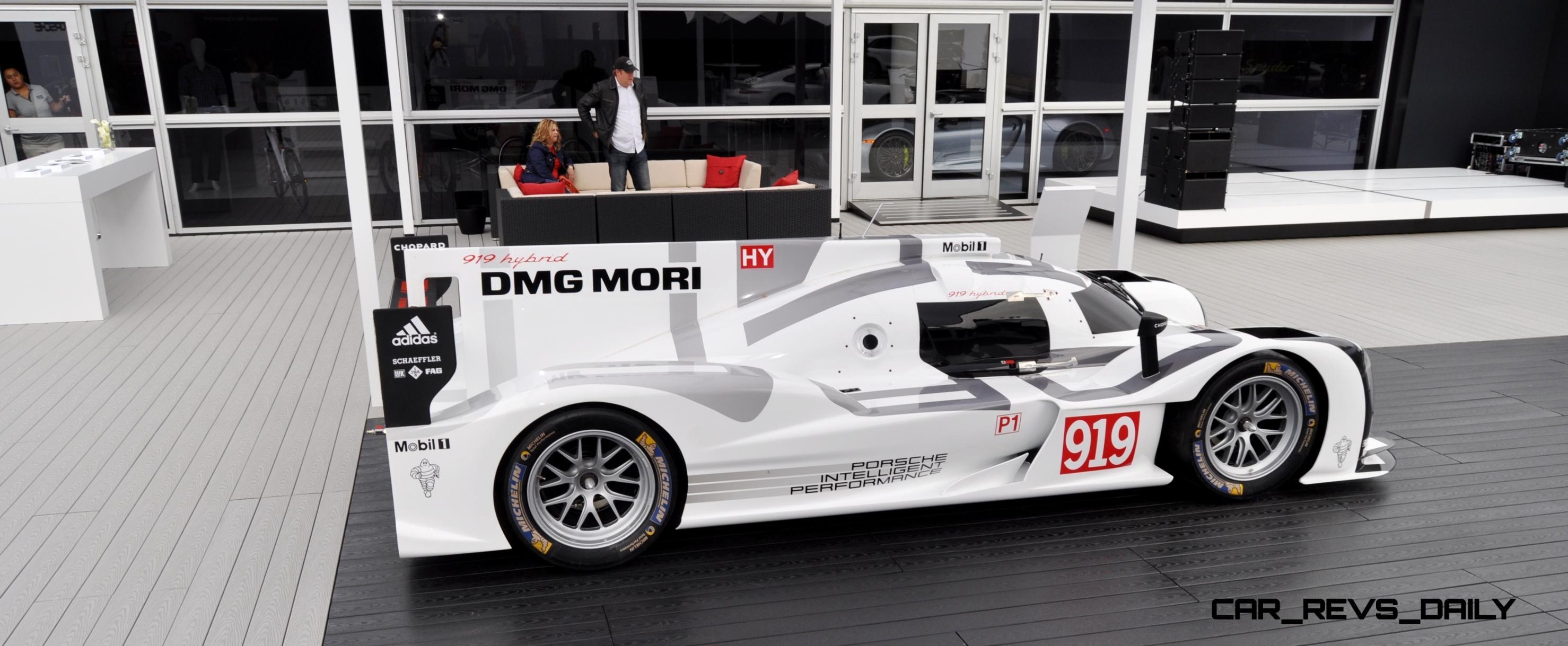

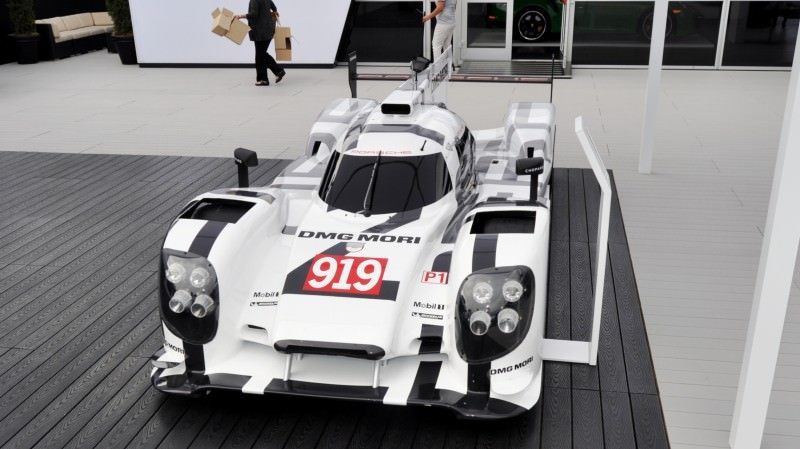

Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 121 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 117 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 116 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 114 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 112 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 110 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 108 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 107 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 106 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 105 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 104 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 103 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 100 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 97 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 96 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 95 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 94

Hybrid system

Accumulator type Lithium-ion battery
EGU on front axle Engine Generator Unit (EGU), Power > 250 hp

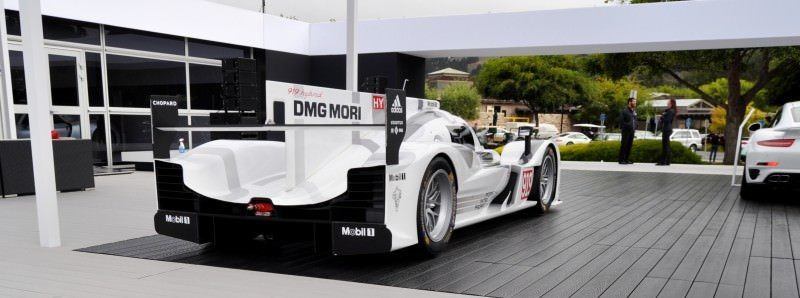

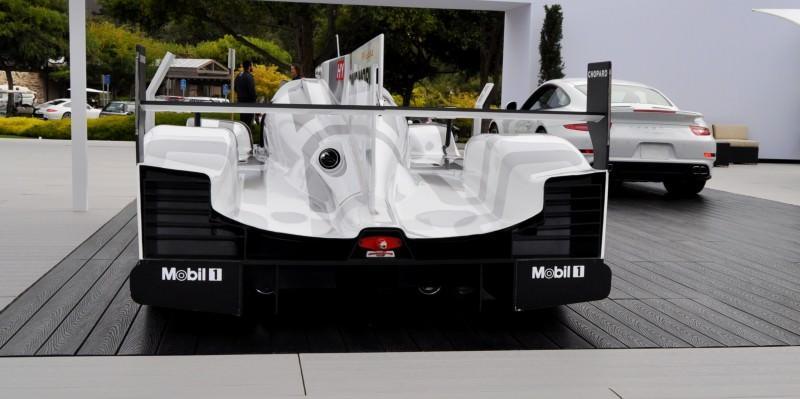

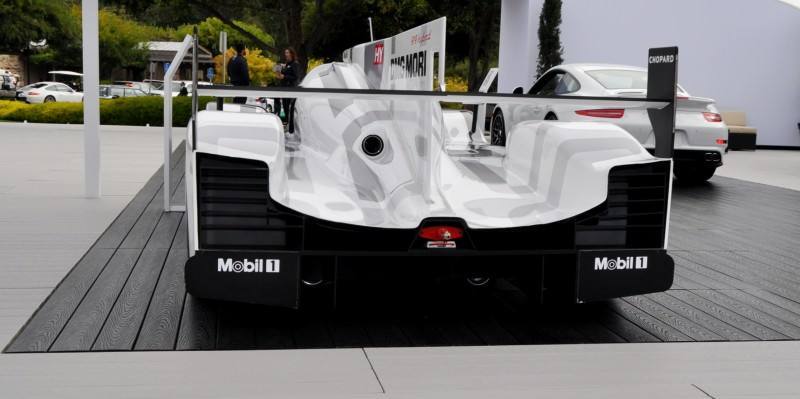

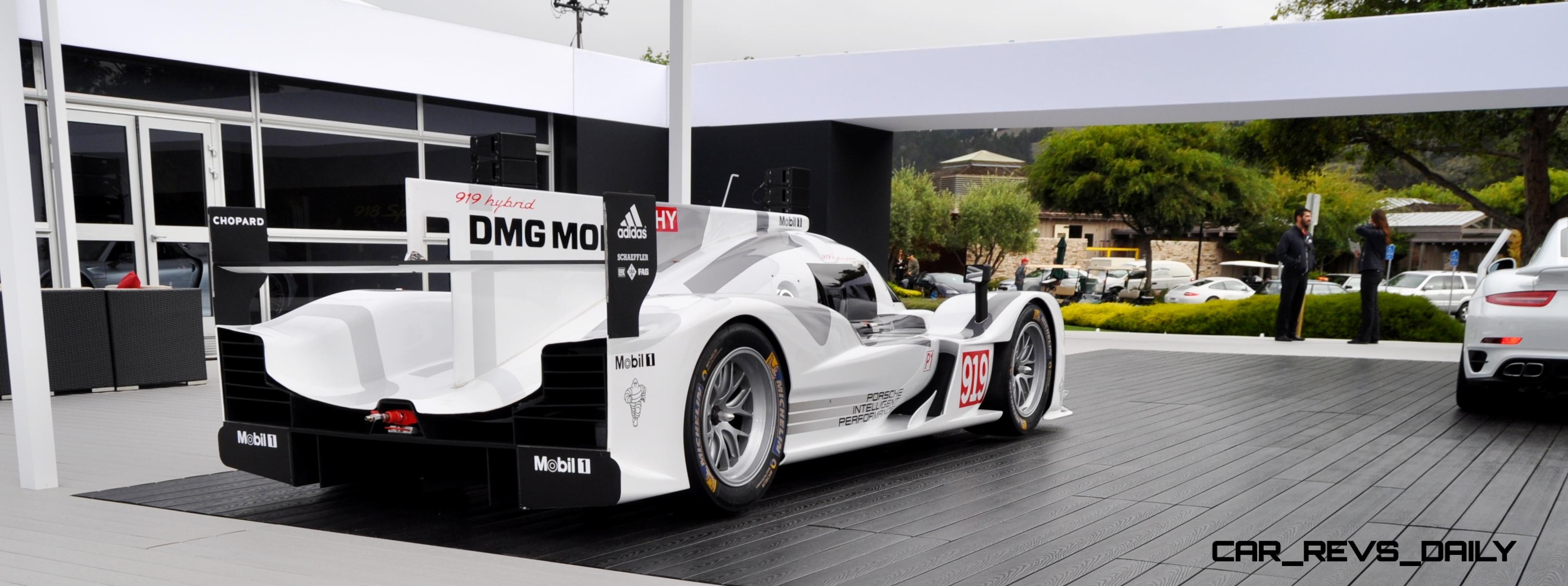

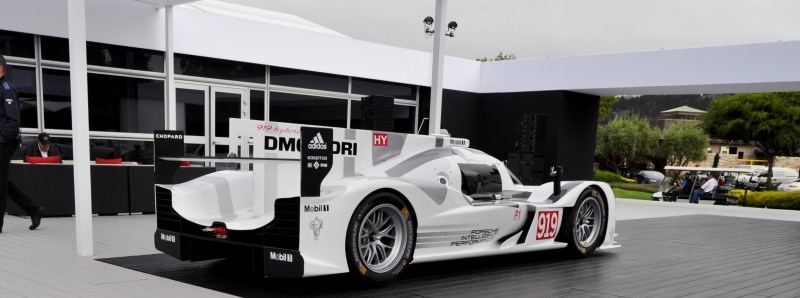

Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 31 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 30 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 28 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 27 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 26 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 25 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 24 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 23 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 22 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 21 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 20 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 19 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 18 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 17 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 16

Drive/power transmission

Drive type Rear wheel drive, all-wheel drive via KERS on the front axle.
Clutch CFRP clutch
Transmission Sequential, hydraulically activated 7-speed sequential racing transmission
Differential Rear differential lock
Hybrid construction in CFRP with titanium inserts and cast aluminum housing Transmission housing
Drive shafts Constant-velocity sliding tripod universal joints

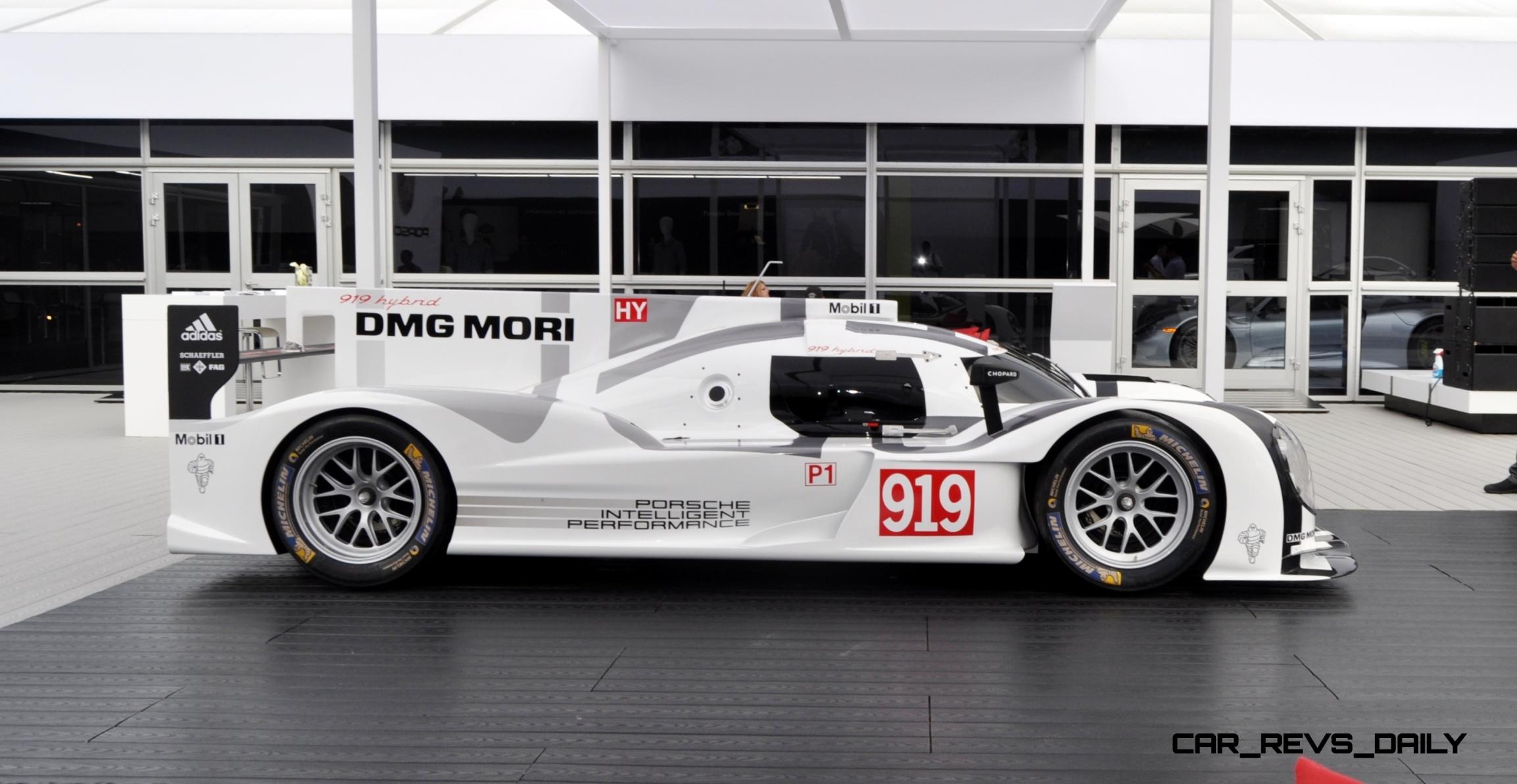

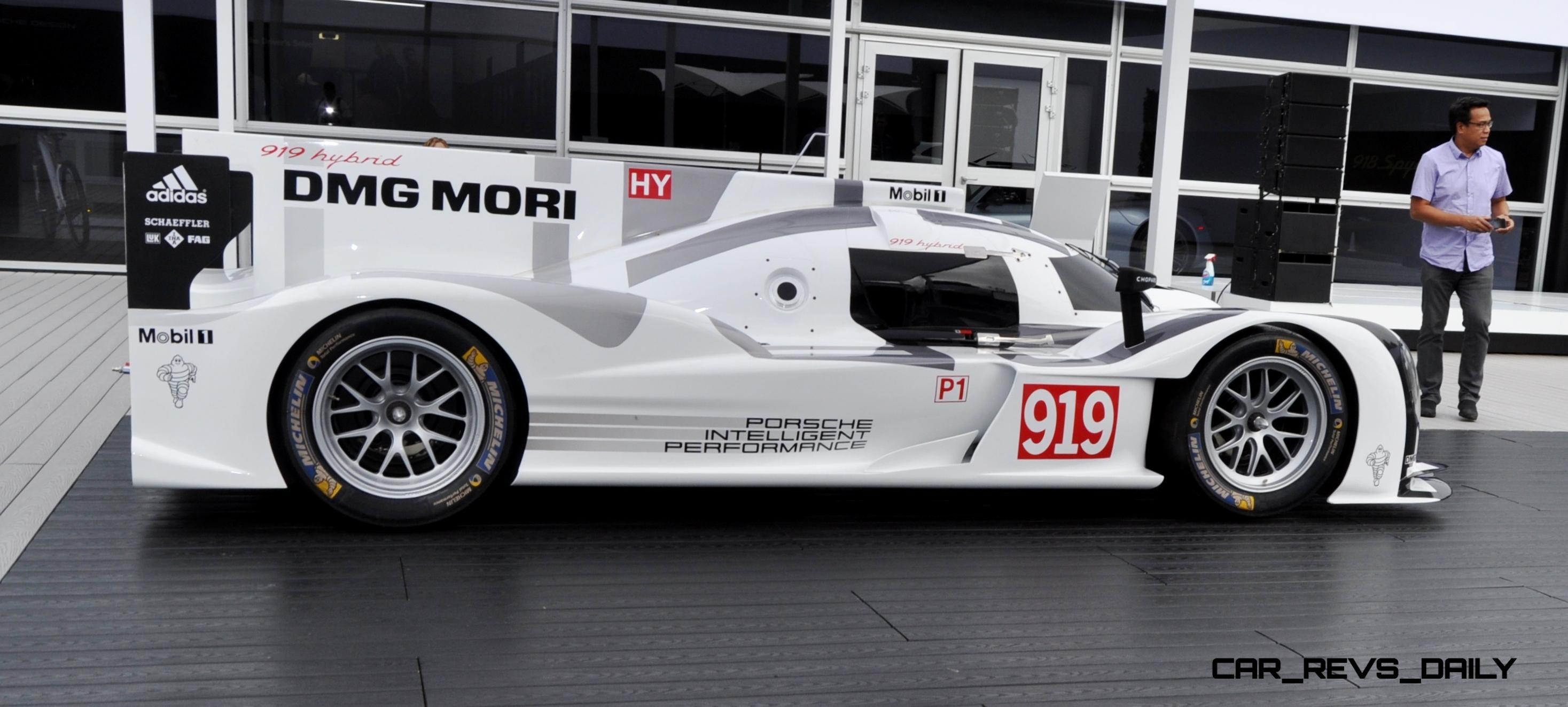

Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 122 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 4 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 3 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 2 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 1 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 126 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 124 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 14 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 13 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 12 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 11 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 10 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 8 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 7 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 6 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 5

Chassis/steering/brake

Chassis Front and rear multi-link pushrod independent wheel suspension with adjustable shock absorbers
Steering Hydraulically assisted rack-and-pinion steering
Brakes Hydraulic dual-circuit brake system, light-alloy monobloc brake calipers, internally ventilated carbon fiber rear and front brake discs
Rims Forged magnesium wheels
Tires Michelin Radial, front and rear: 310/710-18

Weight/volume

Minimum weight 870 kg
Tank capacity 68.3 l

Body

Height 1050 mm
Width 1900 mm
Length 4650 mm

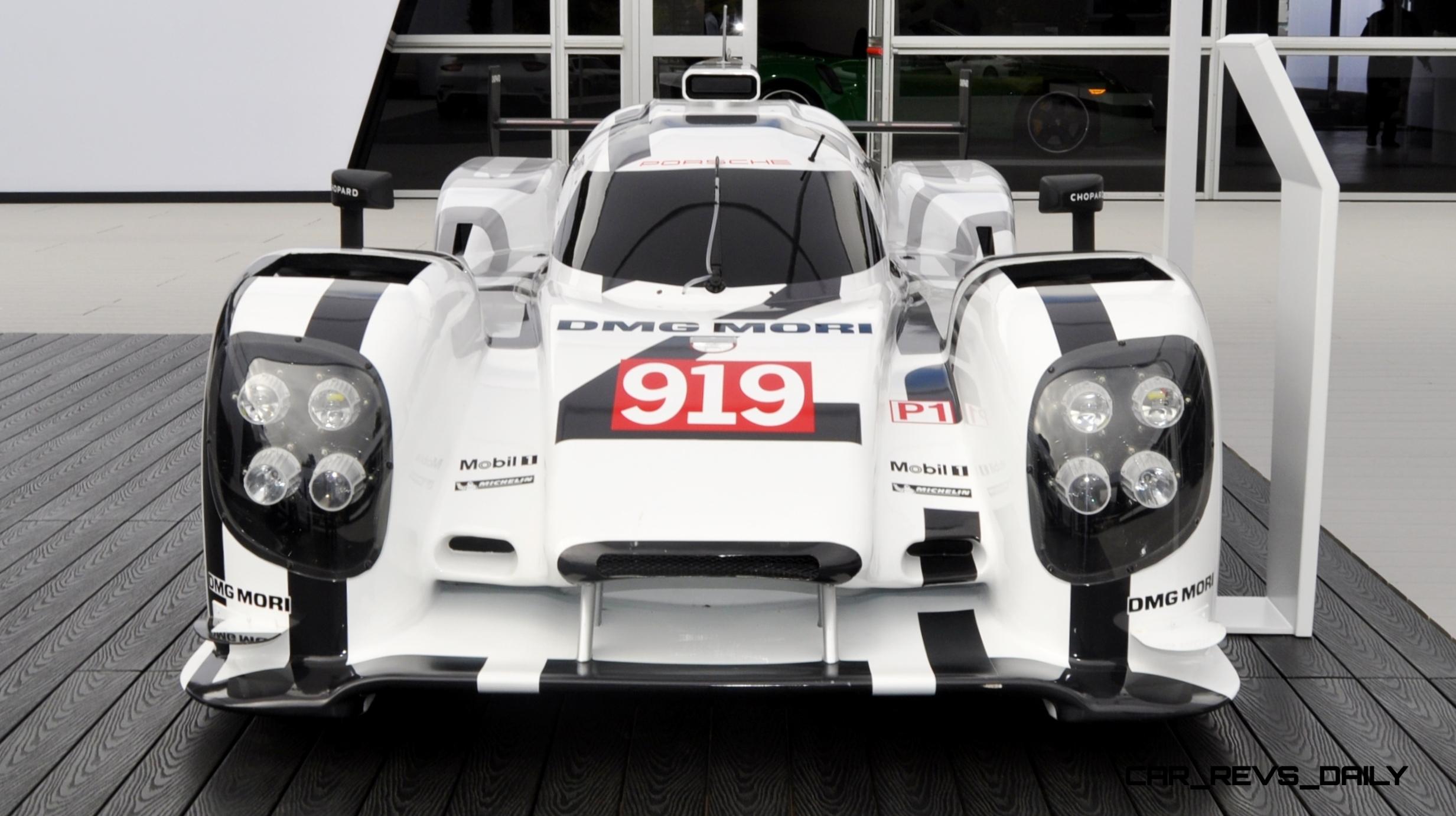

Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 45 Car-Revs-Daily.com 2014 Porsche 919 LMP1 Racecar at the Quail 69 919 Hybrid gif1
