Helicat22 At Miami Boat Show — Twin-Engine Catamaran is Cool and FAST — Even In Very Rough Seas



Most of the boats and yachts in the world employ a single-hull design, with the classic shape offering merits via the huge enclosed living space they can provide.

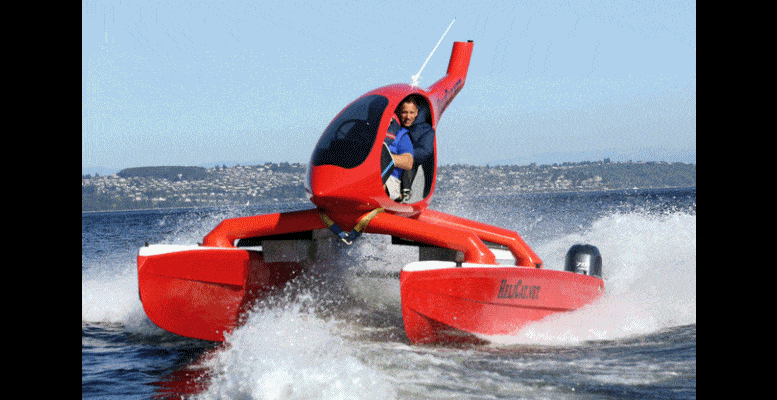

Helicat22 At Miami Boat Show -- Red Twin-Engine Catamaran GIF

But every bit of hull displacement becomes extra problematic over rough waters.

These videos show:

  • a wakeboarding trial with the red Helicat22

  • a rough-water scenario at speed.

Watching some of the bone-jarring impacts suffered by James May and the TopGear team over the years is proof enough -- and reason enough -- to slow down to a crawl in any rough seas.

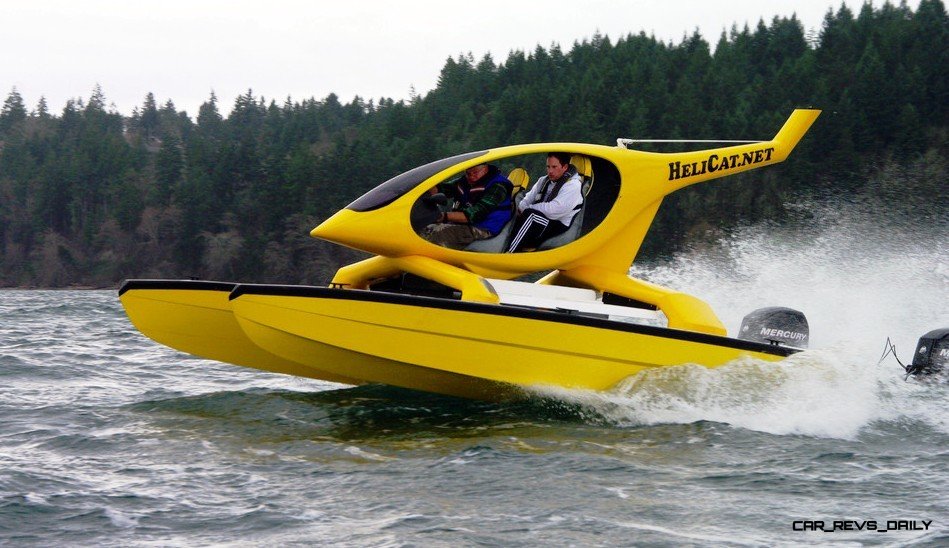

Helicat22 At Miami Boat Show -- Twin-Engine Catamaran Prototype in Yellow GIF

But how un-fun is going slowly in a fast car?  Even worse on the water, with the throttle only a tease away.

Even so: After a few 2.5-G spinal crushes on impact, even the wildest of wild-men will back off the throttle of a single hull boat.

These are seriously huge impacts, and each one theoretically weakens the structure of any ship.

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran Prototype in Yellow GIF

Sophisticated dampers and air-ride seating cannot solve this fundamental surface area impact problem for single-hull craft.

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 2 ??????????????????????????????? ??????????????????????????????? ???????????????????????????????

So the catamaran is really coming into its own. Huge catamarans are already the preferred method for SeaCat jet-powered ferries from Australia, and diving and pleasure boats all over the world.

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 11 Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 9

But a lightweight, motorized catamaran has never been quite as feasible in the marine engineering world. The issue is with the net base area that generations of sailing catamarans have relied on for their extreme lightness.

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 7 Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 8

Hanging on to the hammock canvas for dear life is not exactly a premium experience at 30 knots in rough seas.

The Helicat22 overcomes these issues in three ways:

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 11

-- A hyper-rigid frame of nearly 1-foot-diameter tubular steel connects each outrigger

-- A single-piece cabin in a teardrop shape rides atop this middle chassis

-- Twin props at the back of each water wing ensure great power, without a guzzling internal V8 (or two)

??????????????????????????????? Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 22 Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 23 Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 24

But best of all: no slowing down over big swells. And no chronic spinal pain c/o crushed vertebrae, slipped disks ... or worse.

The Helicat22 is new-for-2014, and on display at the Miami Boat Show this week for prospective owners.

What is the price, you ask? It is upon-request via Sandy (at ) helicat.net

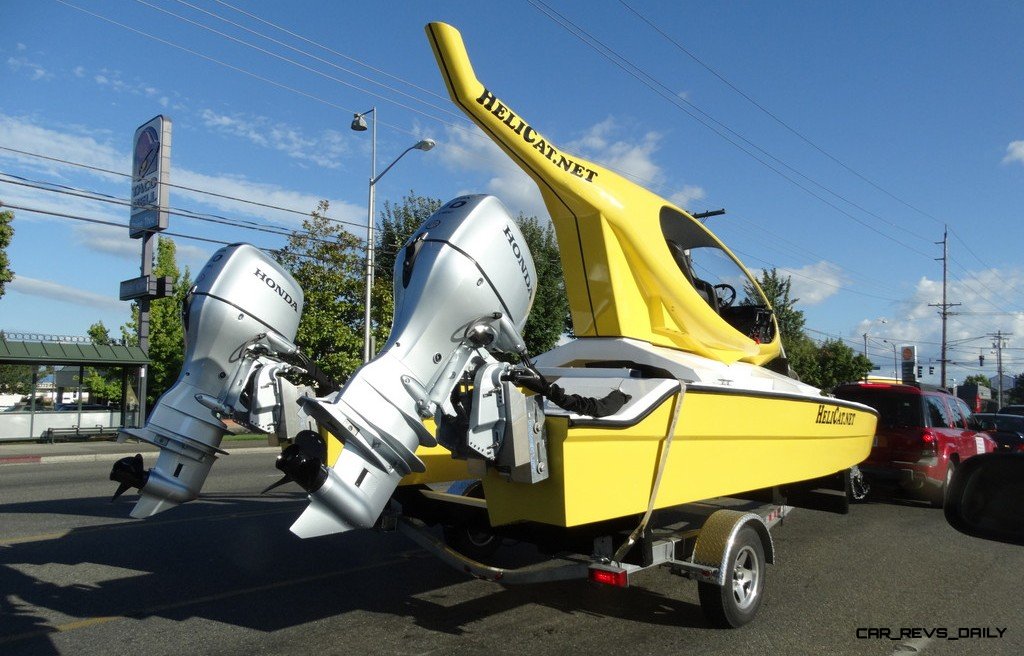

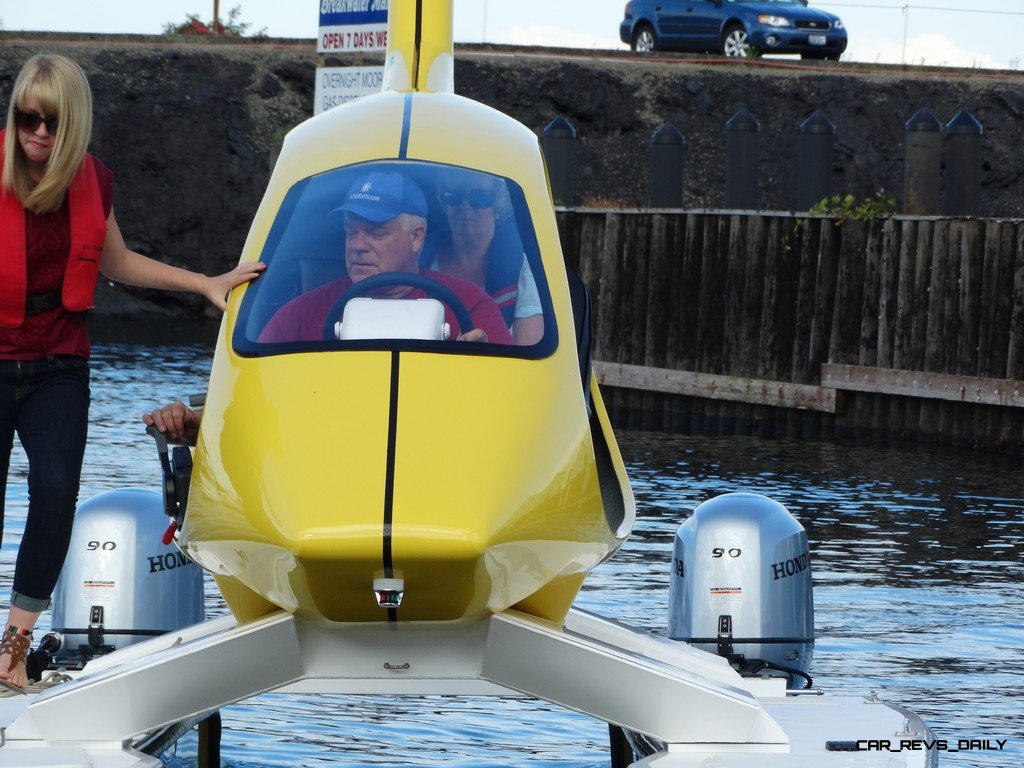

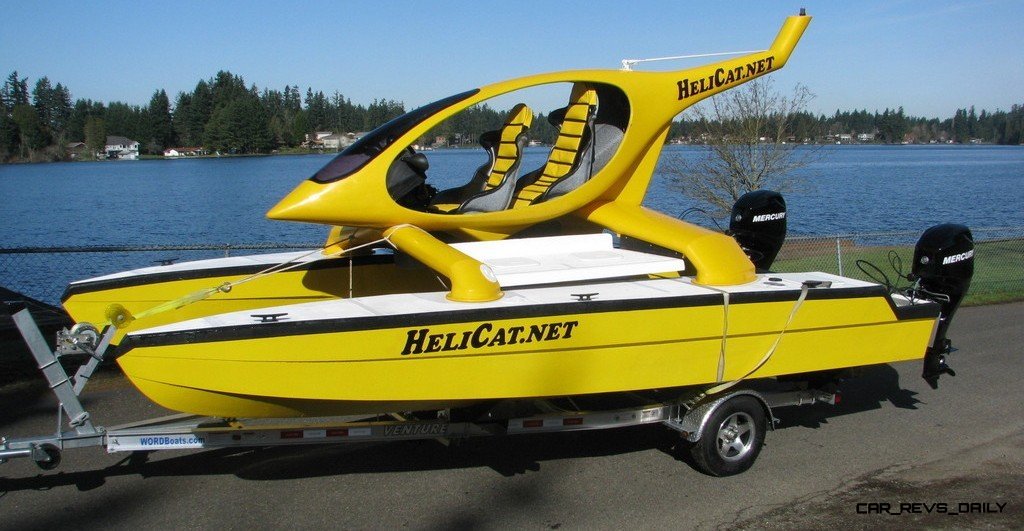

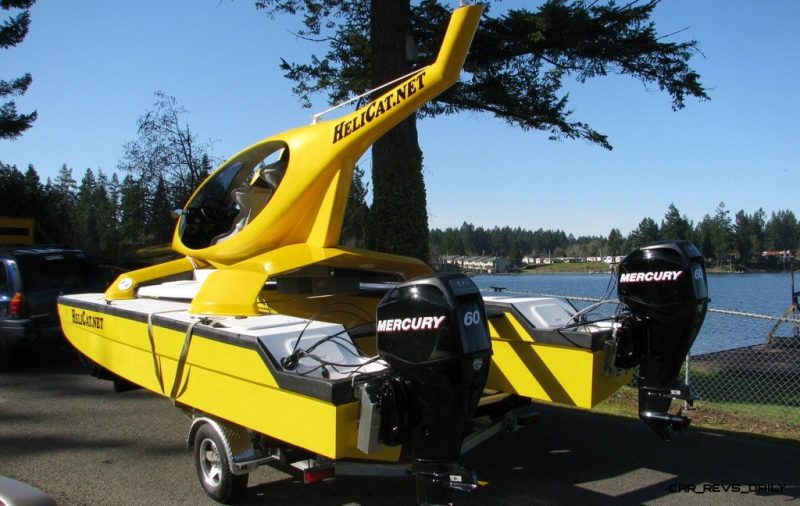

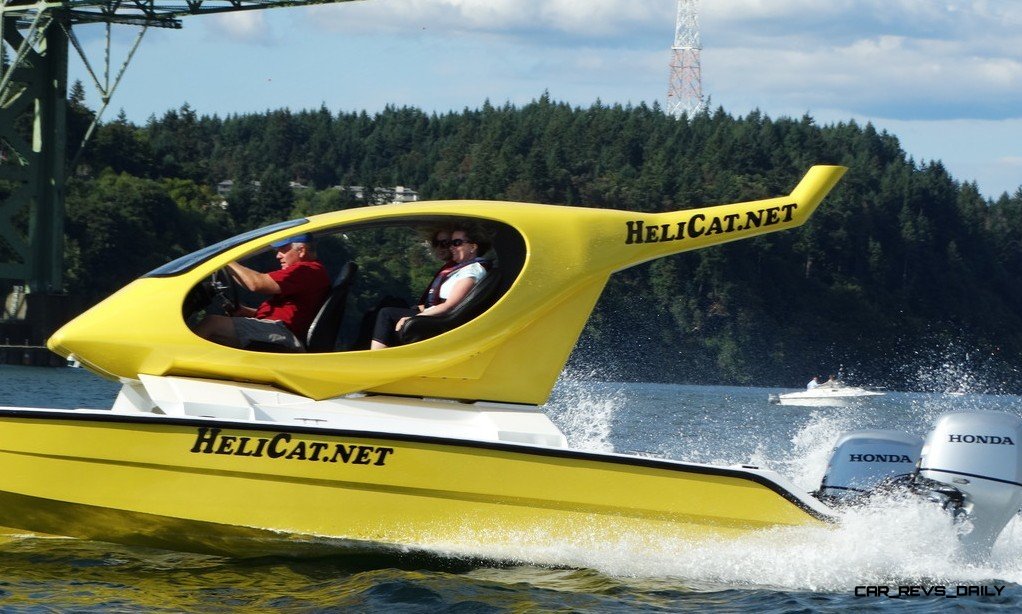

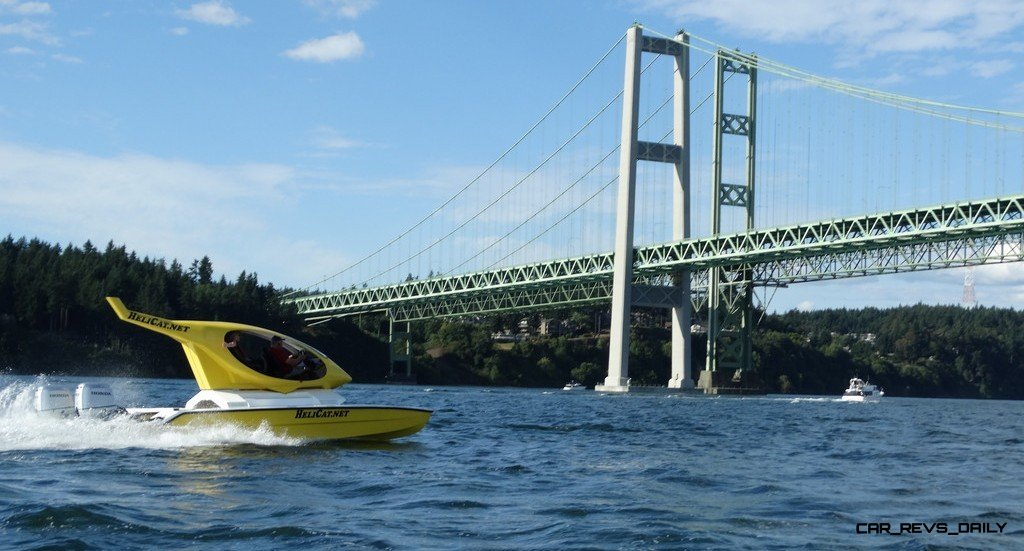

The yellow 2014 Helicat22 is for sale in Tacoma, Washington for about $70,000, however, for a ballpark idea.

4473148_20130926091838472_1_XLARGE

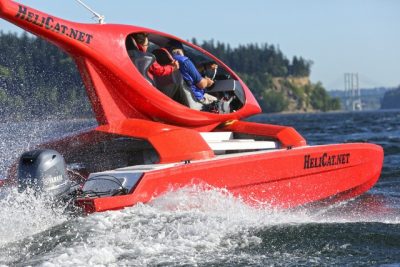

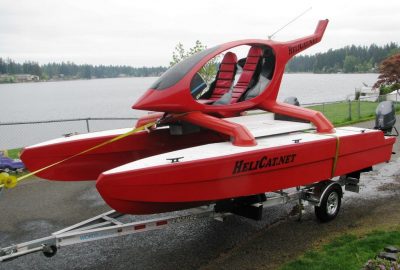

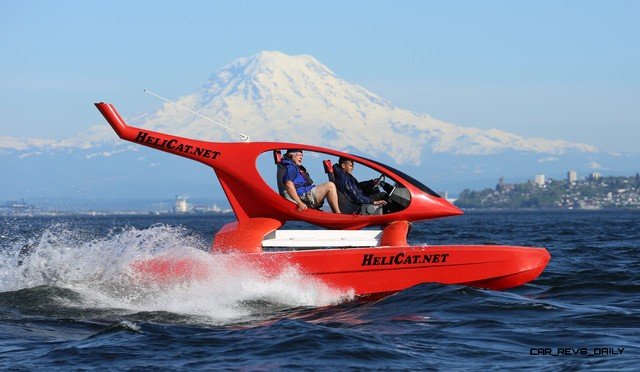

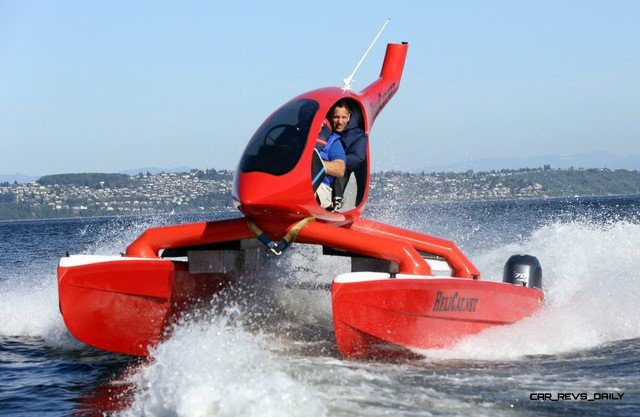

The red Helicat22 is also nearby for Miami scenic tours.

The Helicat22 an unforgettable way to cruise over the waves with the smoothness of a hydrofoil, but the affordability and ease-of-use of simple out-board pleasure craft.

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 4 Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 5 ??????????????????????????????? Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 17

Helicat22 Specifications, Features and Options

Length:
21.5 feet (6.50 meters)
Beam:
8.5 OR 10 ft (2.59 OR 3.05 meters) easier trailering vs. even more stability and room
Draft:
Only 18 inches (46 centimeters)
The motors tilt totally out of water at rest, so they stay clean!
Weight:
1600 lb (730 kg) without engines
2200 lb (1,000 kg) total dry weight with two 60-hp 4 stroke motors
Top Speed:
38 mph with 60-hp motors. 30 mph in white cap waves. 43 mph with 90 hp
Range: Over 100 miles [160km] with std. twin 12 gal. [45 l.] tanks
Towing Weight:
3300 lb (1500 kg) including boat, two motors, aluminum trailer, and fuel.
Light -- it can be towed by medium SUV or car
  • Foreign shipping available. See bottom.
  • INTRODUCTORY BASE PRICE MERCURY 60 HPS 4sEFI & TRAILER:  $CALL

OPTIONS:

  • WHITE COLOR STANDARD, OTHER COLORS $2,000
  • HONDA 60HP MOTORS $2,000
  • YAMAHA 70HP MOTORS $6,000 [same weight as 60-hp]
  • HONDA 90HP MOTORS $6,000
  • OTHER MOTORS CAN BE PRICED.
  • CANVAS [CLEAR VINYL] “DOORS” $1,500
  • SIDE SWIVEL FISHING SEATS $200 PLUS SEAT OF CHOICE
  • SIDE JUMP SEATS TBA
  • REAR CARGO NET AND DECK TBA
  • PRODUCTION AT 1-2 PER MONTH. RESERVE YOUR BOAT NOW.



CAN BE SHIPPED IN STANDARD 40 FT CONTAINER ANYWHERE IN THE USA FOR $5,000 AND ANYWHERE IN THE WORLD FOR ABOUT $6,000 PLUS APPLICABLE DUTIES.

Prices subject to change.

We have shipped boats and trailers several times to East and West Australia, but also to the Phillipines, Russia, and Argentina. The new HeliCat will fit in a 40ft container and can be reassembled simply in 4 hours by 1-2 people. The boat can ship with motors installed and the hulls upright on the trailer for easy reassembly of the struts and then cabin.



Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran is FAST -- Even In Rough Waters 10

Equipment from Factory

  • Hydraulic steering with liquid tie bar
  • LED navigation lights (red, green, and all-around white)

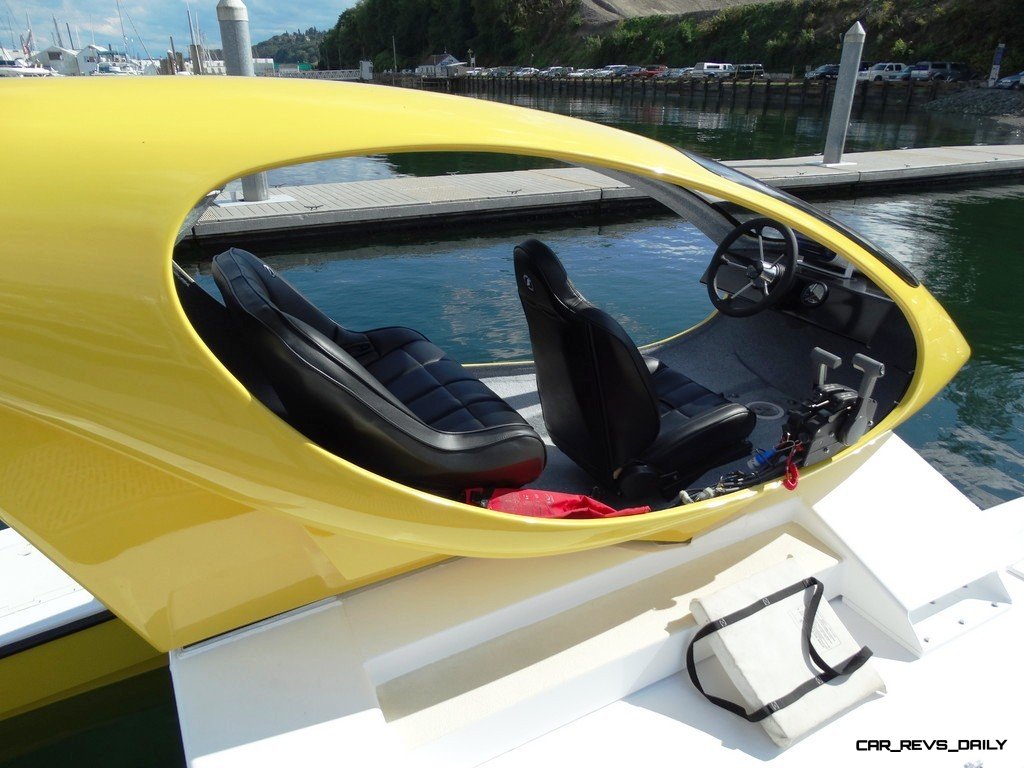

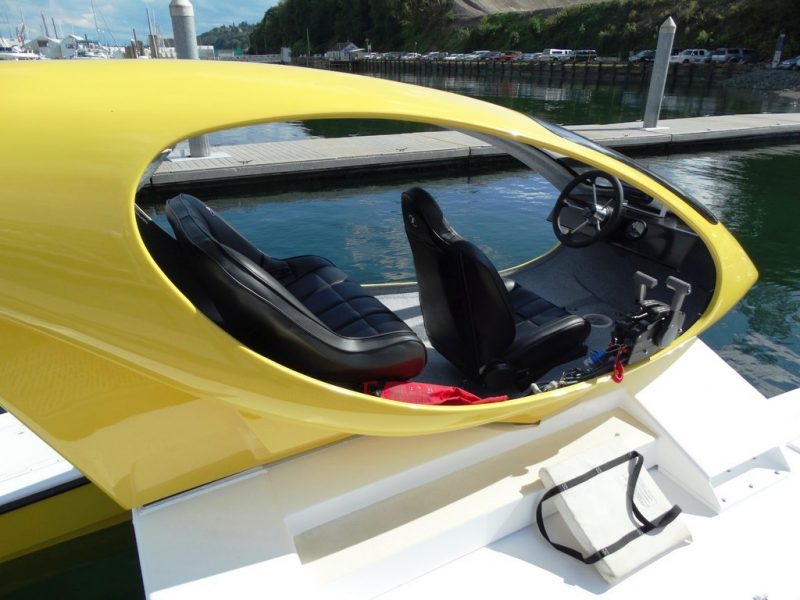

  • Padded bucket seats, Front is slide adjustable and tilt back. Rear is tight 2-seater and tilts
  • 6 storage hatches, including battery compartments in each hull. Cab area behind back seat and fishing rod storage in the tail.
  • Towing eyes front and back.
  • Two bilge pumps & fuel gauges

??????????????????????????????? Helicat22 At Miami Boat Show -- Red Twin-Engine Catamaran GIF

Maximum power:

2 outboard engines, 60 -90 HP (2 or 4 strokes)

Colors: White is standard -- Red, Yellow, Blue, or Black for additional charge.

Optional equipment:

Helicat22 At Miami Boat Show Seems to Best of All Worlds -- Twin-Engine Catamaran Prototype in Yellow GIF

For more information or to order your Helicat22 today, please visit:

http://www.helicat.net/
